AV-156

< ECU DIAGNOSIS >

[AUDIO WITH NAVIGATION]

DISPLAY UNIT

DISPLAY UNIT

Reference Value

INFOID:0000000000947132

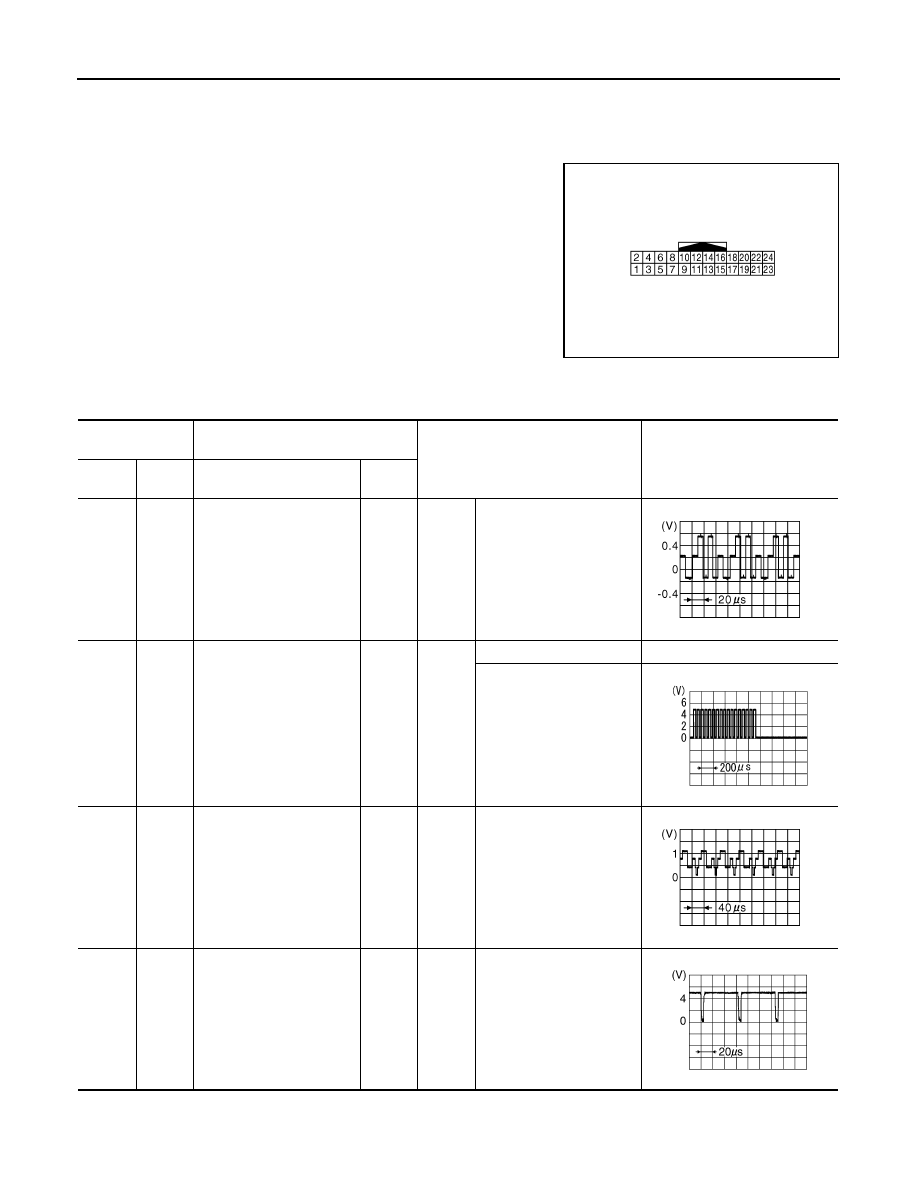

TERMINAL LAYOUT

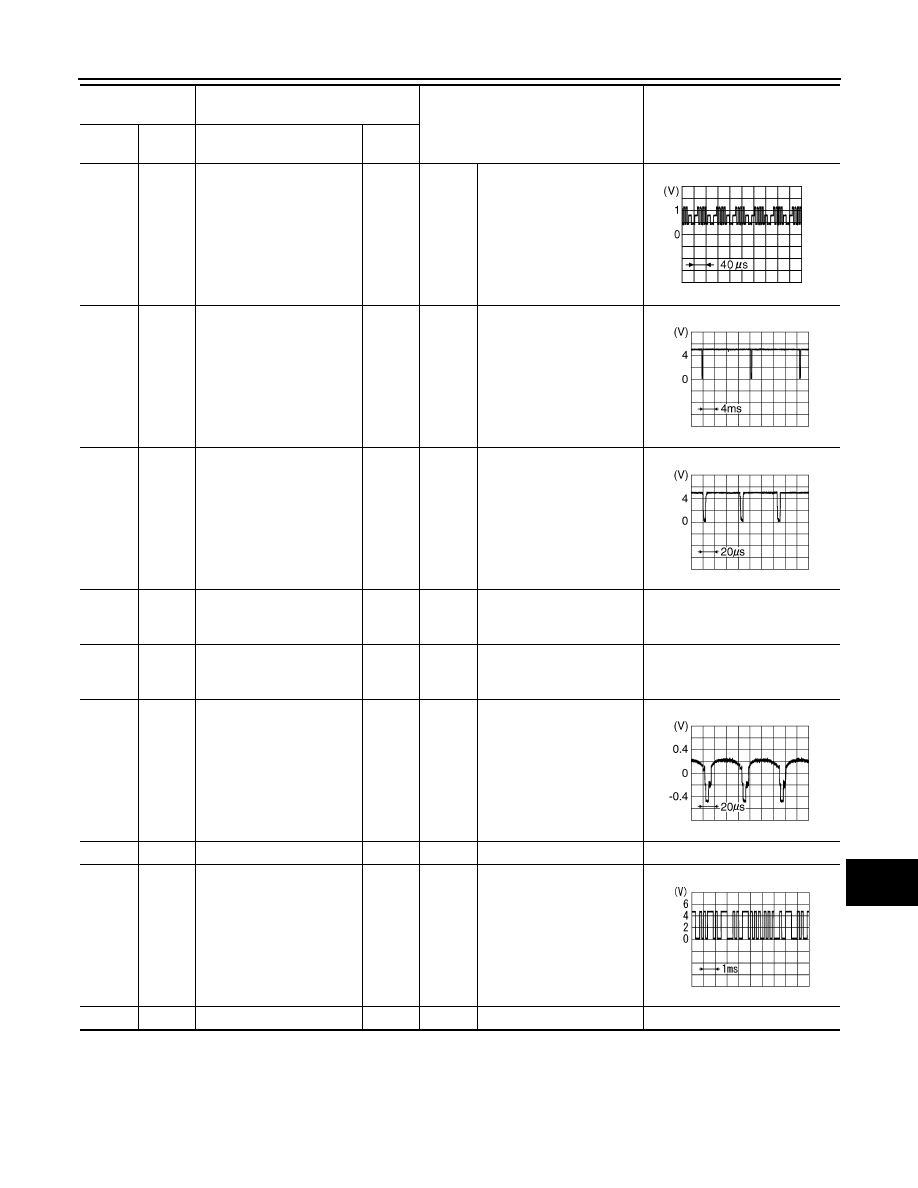

PHYSICAL VALUES

JPNIA0228ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(G)

8

(B)

RGB signal (R: red)

Input

Ignition

switch

ON

Start “Confirmation / Adjust-
ment Mode”, and then dis-
play color bar by
selecting“Color Spectrum
Bar” on DISPLAY DIAGNO-
SIS screen.

2

(G)

Ground

RGB area (YS) signal

Input

Ignition

switch

ON

At RGB image displayed

5 V

At rear view camera image
displayed

3

(R)

8

(B)

RGB signal (G: green)

Input

Ignition

switch

ON

Start “Confirmation / Adjust-
ment Mode”, and then dis-
play color bar by
selecting“Color Spectrum
Bar” on DISPLAY DIAGNO-
SIS screen.

4

(R)

Ground

Horizontal synchronizing
(HP) signal

Output

Ignition

switch

ON

—

JPNIA0221ZZ

PKIB4948J

JPNIA0222ZZ

SKIB0825E

AV

DISPLAY UNIT

AV-157

< ECU DIAGNOSIS >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

5

(W)

8

(B)

RGB signal (B: blue)

Input

Ignition

switch

ON

Start “Confirmation / Adjust-
ment Mode”, and then dis-
play color bar by
selecting“Color Spectrum
Bar” on DISPLAY DIAGNO-
SIS screen.

6

(W)

Ground

Vertical synchronizing (VP)
signal

Output

Ignition

switch

ON

—

7

(B)

Ground

RGB synchronizing signal

Input

Ignition

switch

ON

—

8

(B)

Ground

RGB ground

—

Ignition

switch

ON

—

0  V

10

Ground

Shield

—

Ignition

switch

ON

—

0  V

11

(R)

Ground

Camera image signal

Input

Ignition

switch

ON

At rear view camera image
displayed

12

—

Shield

—

—

—

—

17

(O)

Ground

Communication signal
(DISP

→

CONT)

Output

Ignition

switch

ON

When adjusting display-
brightness.

18

—

Shield

—

—

—

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

JPNIA0223ZZ

SKIB0823E

SKIB0825E

SKIB0827E

PKIB5039J
