AV-58

< FUNCTION DIAGNOSIS >

[AUDIO WITH NAVIGATION]

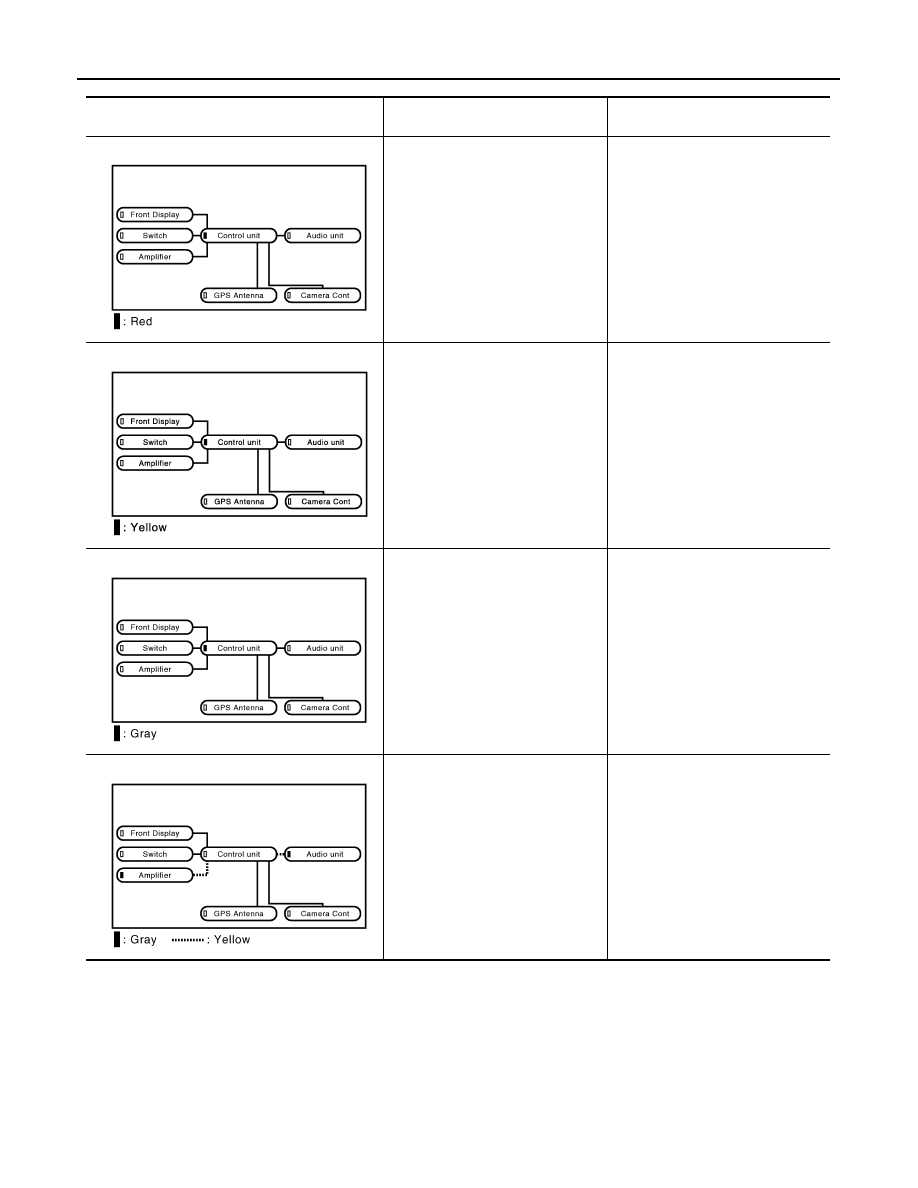

DIAGNOSIS SYSTEM (NAVI CONTROL UNIT)

Area with yellow connection lines

Description

Possible malfunction location / Action

to take

NAVI control unit malfunction is de-
tected.

NAVI control unit

• Malfunction is detected on DVD-

ROM drive pickup lens in NAVI con-
trol unit.

• There is dirt and damage on the

map disc.

• Clean the DVD-ROM drive pickup

lens in NAVI control unit using the
specified cleaning disc.

• Map  disc
• NAVI  control  unit

DVD-ROM not inserted is detected.

Insert map disc

Malfunction is detected on communi-
cation signal between NAVI control
unit and audio unit.

• NAVI  control  unit
• Audio unit

SKIB9022E

JSNIA0391GB

SKIB9024E

SKIB9025E

AV

DIAGNOSIS SYSTEM (NAVI CONTROL UNIT)

AV-59

< FUNCTION DIAGNOSIS >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

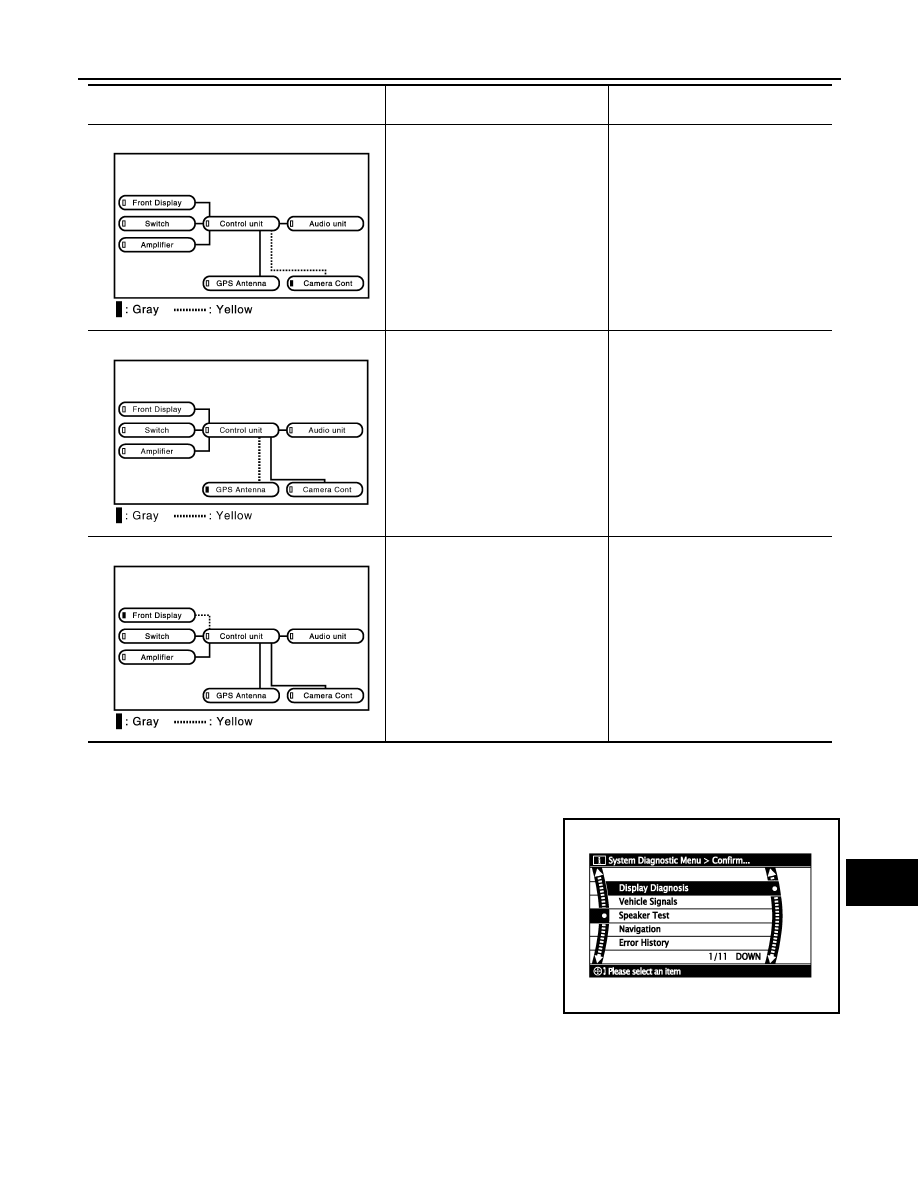

COMFIRMATON/ADJUSTMENT MODE

1.

Start the diagnosis function and select “Confirmation / Adjustment”. The confirmation/adjustment mode
indicates where each item can be checked or adjusted.

2.

Select each switch on the “Confirmation / Adjustment Mode”
screen to display the relevant trouble diagnosis screen. Press
the “BACK” switch to return to the initial “Confirmation / Adjust-
ment Mode” screen.

A malfunction is detected in Camera-
connection recognition signal circuit.

Camera connection recognition signal
circuit

GPS antenna connection malfunction
is detected.

• GPS antenna
• GPS antenna feeder

Malfunction is detected on communi-
cation signal between NAVI control
unit and display unit.

• NAVI  control  unit
• Display unit

Area with yellow connection lines

Description

Possible malfunction location / Action

to take

JSNIA0392GB

SKIB9028E

JSNIA0393GB

SKIB4658E

AV-60

< FUNCTION DIAGNOSIS >

[AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (NAVI CONTROL UNIT)

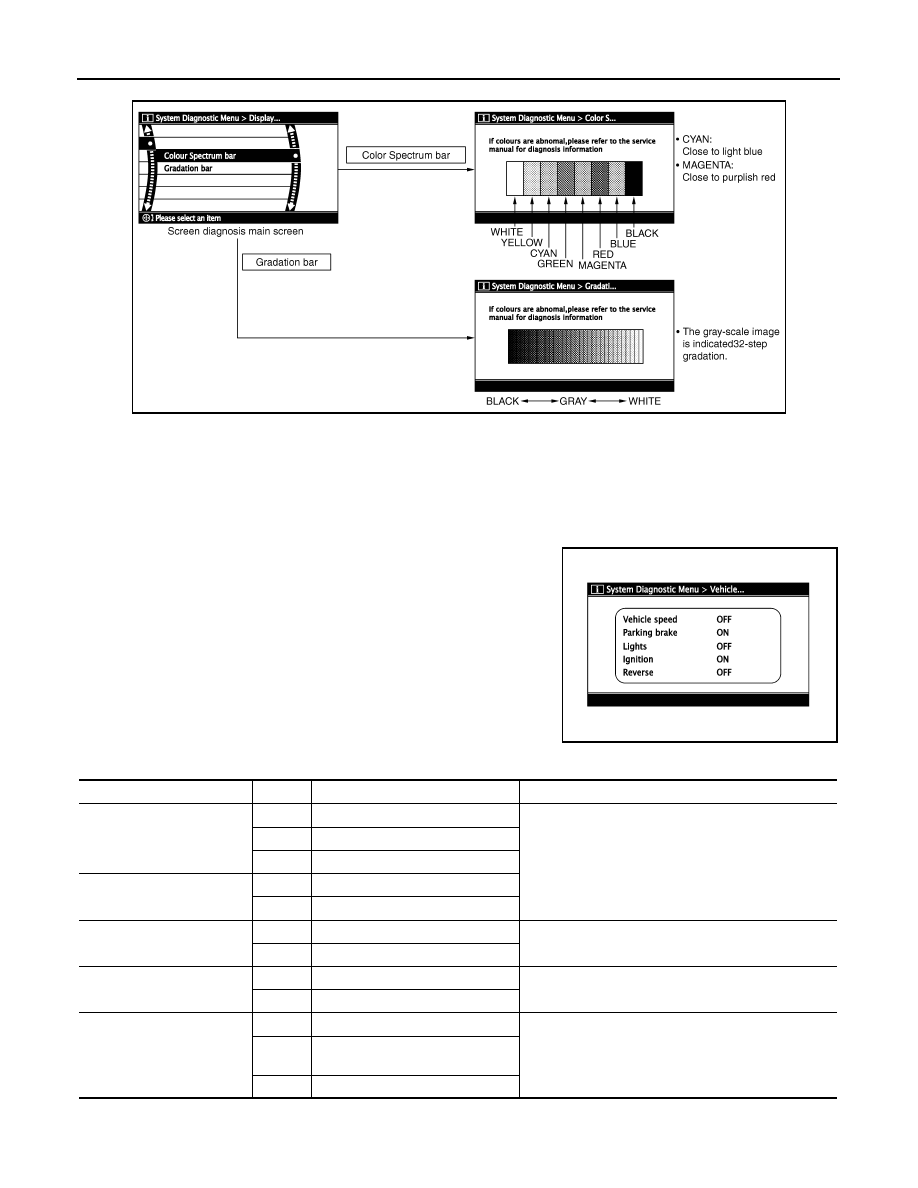

Display Diagnosis

The tint of the color bar indication is as per the following list if RGB signal error is detected.

Vehicle Signals

A comparison check can be made of each actual vehicle signal and
the signals recognized by the system.

Speaker Test

JPNIA0169GB

R (red) signal error

: Light blue (Cyan) tint

G (green) signal error

: Purple (Magenta) tint

B (blue) signal error

: Yellow tint

SKIB3663E

Diagnosis item

Display

Vehicle status

Remarks

Vehicle speed

ON

Vehicle speed > 0 km/h (0 MPH)

Changes in indication may be delayed by approximate-
ly 1.5 seconds. This is normal.

OFF

Vehicle speed = 0 km/h (0 MPH)

—

Ignition switch ACC

Parking brake

ON

Parking brake is applied.

OFF

Parking brake is released.

Lights

ON

Light switch ON

—

OFF

Light switch OFF

Ignition

ON

Ignition switch ON

—

OFF

Ignition switch in ACC position

Reverse

ON

Selector lever in R position

Changes in indication may be delayed by approximate-
ly 1.5 seconds. This is normal.

OFF

Selector lever in any position other
than R

—

Ignition switch ACC

AV

DIAGNOSIS SYSTEM (NAVI CONTROL UNIT)

AV-61

< FUNCTION DIAGNOSIS >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

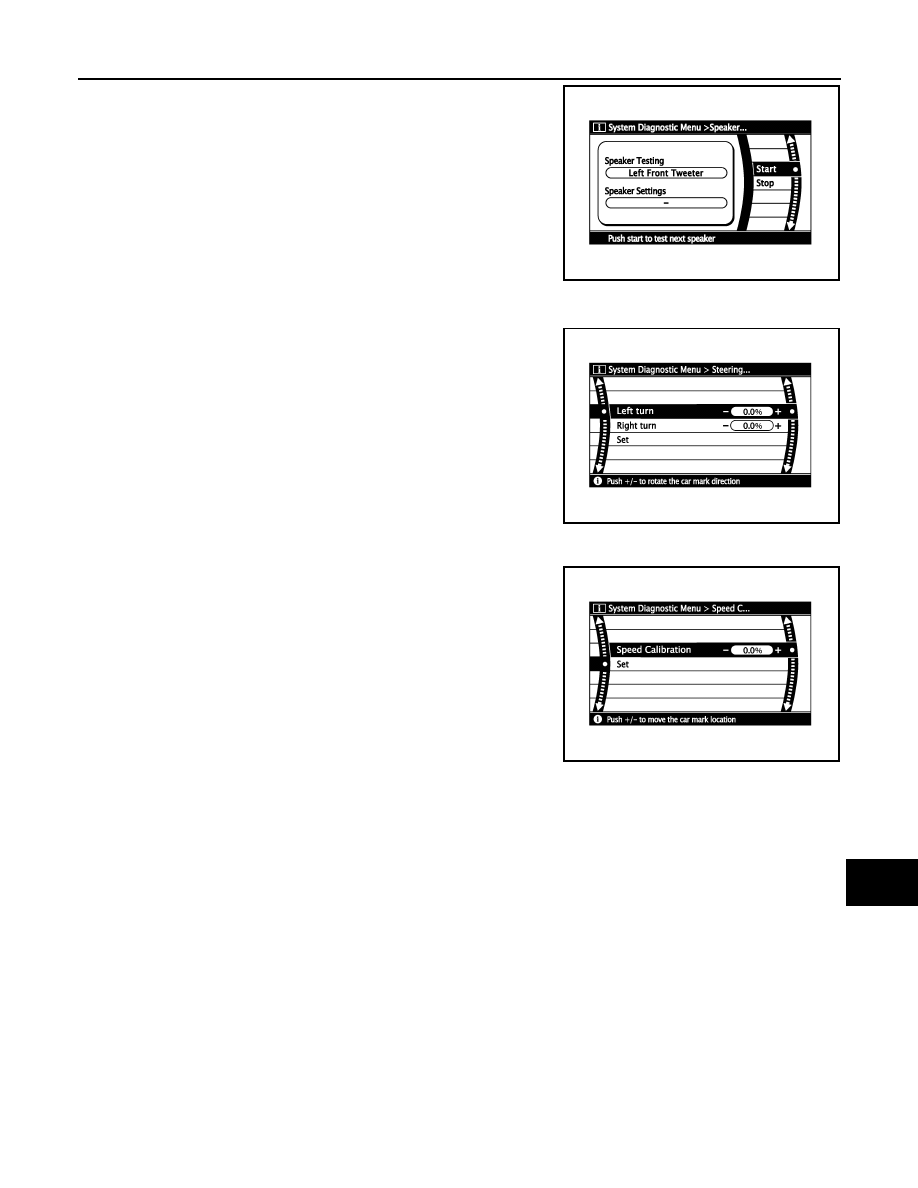

Select “SPEAKER TEST” to display the Speaker Diagnosis screen.
Press “START and NEXT” to generate a test tone in a speaker.
Press “Start” to generate a test tone in the next speaker. Press
“Stop” to stop the test tones.
NOTE:
The frequency of test tone emitted from each speaker is as follows.

Navigation

STEERING ANGLE ADJUSTMENT
The steering angle output value detected with the gyroscope is
adjusted.

SPEED CALIBRATION
During normal driving, distance error caused by tire wear and tire
pressure change is automatically adjusted for by the automatic dis-
tance correction function. This function, on the other hand, is for
immediate adjustment, in cases such as driving with tire chain fitted
on tires.

ERROR HISTORY

The diagnostic results of “Self-diagnosis” determine if any malfunction occurred between selecting “Self-diag-
nosis” and displaying “Self-diagnostic Results”.
The trouble diagnosis result will be judged normal if an error occurred before the ignition switch was turned
ON and does not occur again until “Self-diagnosis” is completed. Therefore, errors in the past which cannot be
found by “Self-diagnosis”, must be found by checking the “Error record”.
The error history shows the error occurrence frequency in past. The frequency of occurrence is displayed by 2
types: the count down type and the count up type. Select either type according to the error item.
In “Error History” of models with NAVI, time and place that the selected error last occurred are displayed. Be
careful about the following.
• The correct date of occurrence may not be able to be displayed if there is a malfunction with the GPS

antenna circuit board in the NAVI control unit.

• Place of the error occurrence is represented by the position of the current location mark at the time an error

occurred. If current location mark has deviated from the correct position, then the place of the error occur-
rence cannot be located correctly.

Tweeter

: 3 kHz

Front door speaker

: 300 Hz

Rear door speaker

: 1 kHz

SKIB4686E

SKIB3684E

SKIB3685E
