AV-54

< FUNCTION DIAGNOSIS >

[AUDIO WITH NAVIGATION]

AUDIO SYSTEM

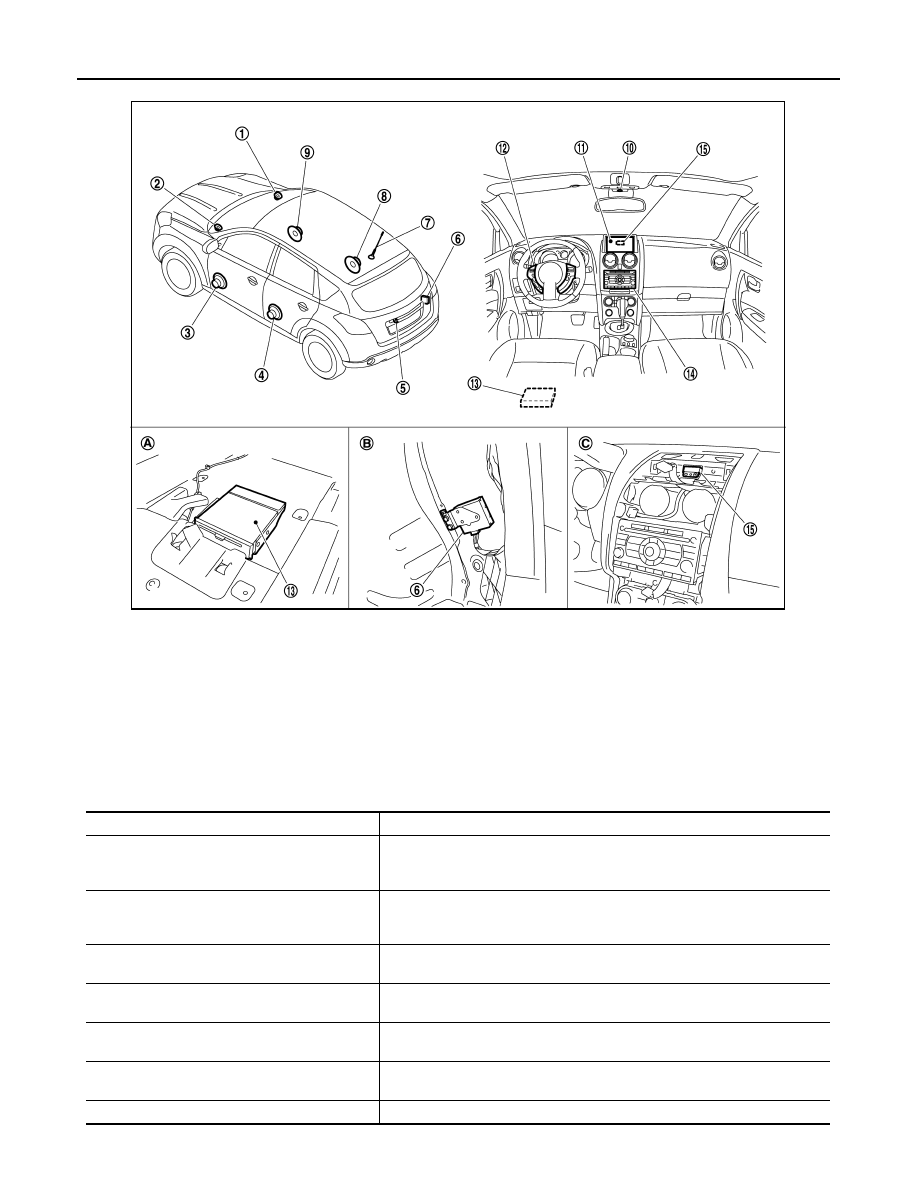

Component Description

INFOID:0000000000947018

1.

Tweeter RH

2.

Tweeter LH

3.

Front door speaker LH

4.

Rear door speaker LH

5.

Rear view camera

6.

Camera control unit

7.

Radio antenna

8.

Rear door speaker RH

9.

Front door speaker RH

10. Microphone

11. Display unit

12. Steering switch

13. NAVI control unit

14. Audio unit

15. GPS antenna

A.

A bottom of a front seat LH

B.

Luggage side RH

C.

Back of a display unit

JSNIA0349ZZ

Part name

Description

AUDIO UNIT

• Operational switch of audio system is integrated.
• Receiving function of AM/FM radio, replaying function of CD are integrated.
• Audio signals are output to each speaker.

DISPLAY UNIT

• Display image is controlled by the serial communication from NAVI control

unit.

• RGB image signal (audio operation condition) is input from NAVI control unit.

FRONT DOOR SPEAKER

• Outputs sound signal from audio unit.
• Outputs high, mid and low range sounds.

REAR DOOR SPEAKER

• Outputs sound signal from audio unit.
• Outputs high, mid and low range sounds.

TWEETER

• Outputs sound signal from audio unit.
• Outputs high range sound.

STEERING SWITCH

• Each audio operation can be operated.
• Steering switch signal (operation signal) is output to audio unit.

RADIO ANTENNA

Radio signal received by antenna is sent to audio unit.

AV

DIAGNOSIS SYSTEM (NAVI CONTROL UNIT)

AV-55

< FUNCTION DIAGNOSIS >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (NAVI CONTROL UNIT)

Diagnosis Description

INFOID:0000000000947019

MULTI AV SYSTEM on board diagnosis function

• The NAVI control unit diagnosis function starts up with audio switch operation and the NAVI control unit per-

forms a diagnosis for each unit in the system during the on board diagnosis.

• Perform a CONSULT-III diagnosis if the on board diagnosis does not start, e.g., the screen does not display

anything, the multifunction switch does not function. etc.

On board diagnosis

Description

• The trouble diagnosis function has a self-diagnosis mode for conducting trouble diagnosis automatically and

a confirmation/adjustment mode for operating manually.

• The self-diagnosis mode performs diagnoses on the NAVI control unit, connections between system compo-

nents as well as connections between NAVI control unit and GPS antenna. Then it displays the diagnosis
results on the display.

• The confirmation/adjustment mode allows the technician to check, modify or adjust the vehicle signals and

set values, as well as to monitor the system error records and system communication status. The check,
modify or adjust actions generally require human intervention and judgment (the system cannot make judg-
ment automatically).

On board diagnosis item

STARTING PROCEDURE

1.

Start the engine.

2.

Turn the audio system OFF.

Mode

Description

Self Diagnosis

• NAVI control unit diagnosis
• Diagnoses the connections across system components, between

NAVI control unit and GPS antenna.

Confirmation/
Adjustment

Display Diagnosis

The following check functions are available: color tone check by color
bar display, light and shade check by gray scale display.

Vehicle Signals

Diagnosis of signals can be performed for vehicle speed, parking
brake, lights, ignition switch, and reverse.

Speaker Test

The connection of a speaker can be confirmed by test tone.

Navigation

Steering Angle Ad-
justment

A difference can be adjusted between the actual turning angle and the
vehicle mark turning angle.

Speed Calibration

A difference can be adjusted between the current location mark and the
actual location.

Error History

The system malfunction and the frequency when occurred in the past
are displayed. The time and place that the selected malfunction last oc-
curred are displayed when the malfunctioning item is selected.

Vehicle CAN Diagnosis

The transmitting/receiving of CAN communication can be monitored.

AV COMM Diagnosis

The communication condition of each unit of Multi AV system can be
monitored.

Handsfree Phone

The received volume adjustment of hands-free phone, microphone
speaker check, and erase memory can be performed.

Bluetooth

The passkey and the device name can be checked and changed.

Delete Unit Connection Log

Erase the connection history of unit and error history.

Feature Restriction Setting

Operations of navigation system while driving can be restricted by us-
ing this function.

AV-56

< FUNCTION DIAGNOSIS >

[AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (NAVI CONTROL UNIT)

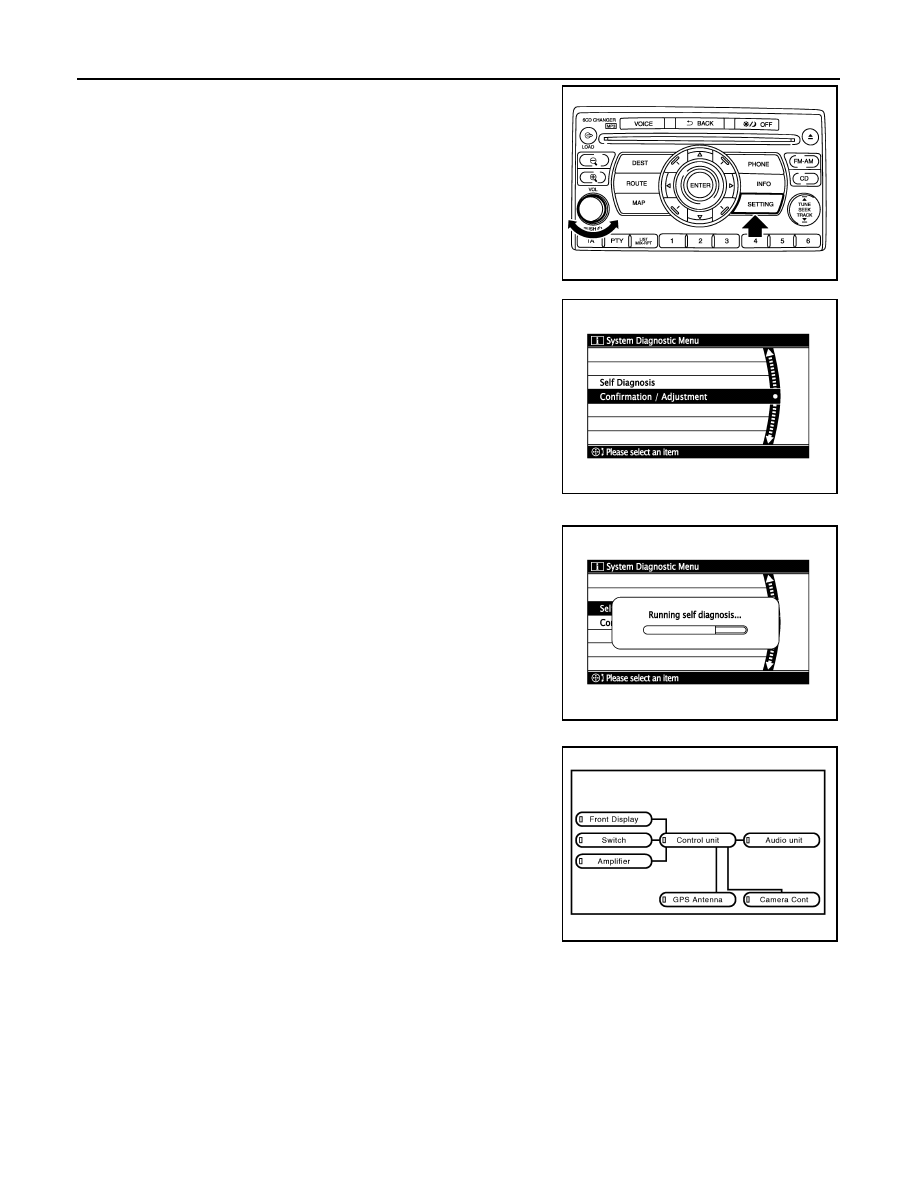

3.

Turn the volume control dial clockwise or counterclockwise for
40 clicks or more while pushing the “SETTING” button. (A short
beep will be heard when the self-diagnosis mode is started.)
• Shifting from current screen to previous screen is performed

by pushing “BACK” button.

4.

The trouble diagnosis initial screen is displayed, and then the
items of “Self Diagnosis” and “Confirmation / Adjustment” can be
selected.

Self-diagnosis mode

1.

Start the self-diagnosis function. Then select “Self Diagnosis”.

-

Self-diagnosis subdivision screen is displayed, and the self-
diagnosis mode starts.

-

The bar graph visible on the center of the self-diagnosis subdivi-
sion screen indicates progress of the trouble diagnosis.

2.

Diagnosis results are displayed after the self-diagnosis is com-
pleted. The unit names and the connection lines are color-coded
according to the diagnostic results.

NOTE:

• Only the control unit (NAVI control unit) is displayed in red.

-

The screen switch colors are determined according to the following order of priority: red > yellow > gray if
multiple errors occur at the same time for a single unit.

JPNIA0173GB

SKIB3961E

SKIB3657E

Diagnosis results

Unit

Connection

line

Normal

Green

Green

Connection malfunction

Gray

Yellow

DVD drive undiagnosed

Gray

Green

DVD-ROM and DVD-ROM
drive malfunction

Yellow

Green

Unit malfunction

Note

Red

Green

SKIB9021E

AV

DIAGNOSIS SYSTEM (NAVI CONTROL UNIT)

AV-57

< FUNCTION DIAGNOSIS >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

-

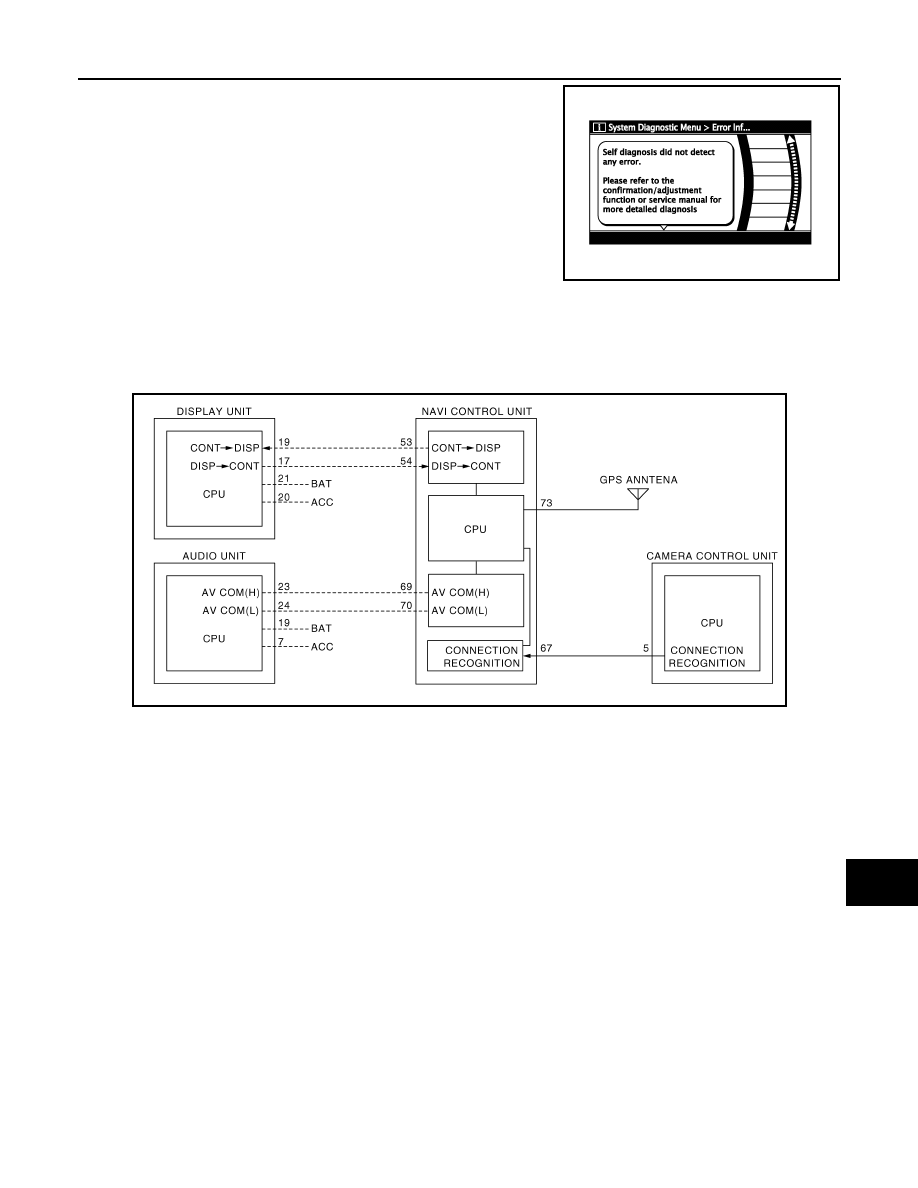

The comments of the self-diagnosis results can be viewed with a
component in the diagnosis result screen.

Detection range of self-diagnosis mode

• The self-diagnosis mode allows the technician to diagnose the connection in the communication line

between NAVI control unit and each unit and the internal operation of the NAVI control unit.

• Because the start condition of diagnosis function is a switch operation, the on board diagnosis function can-

not be started up if any malfunction is detected in a switch.

Self-diagnosis results

Check the applicable display at the following table, and then repair the malfunctioning parts.

Self-diagnosis result chart

JPNIA0168GB
