WCS-4

< FUNCTION DIAGNOSIS >

WARNING CHIME SYSTEM

FUNCTION DIAGNOSIS

WARNING CHIME SYSTEM

WARNING CHIME SYSTEM

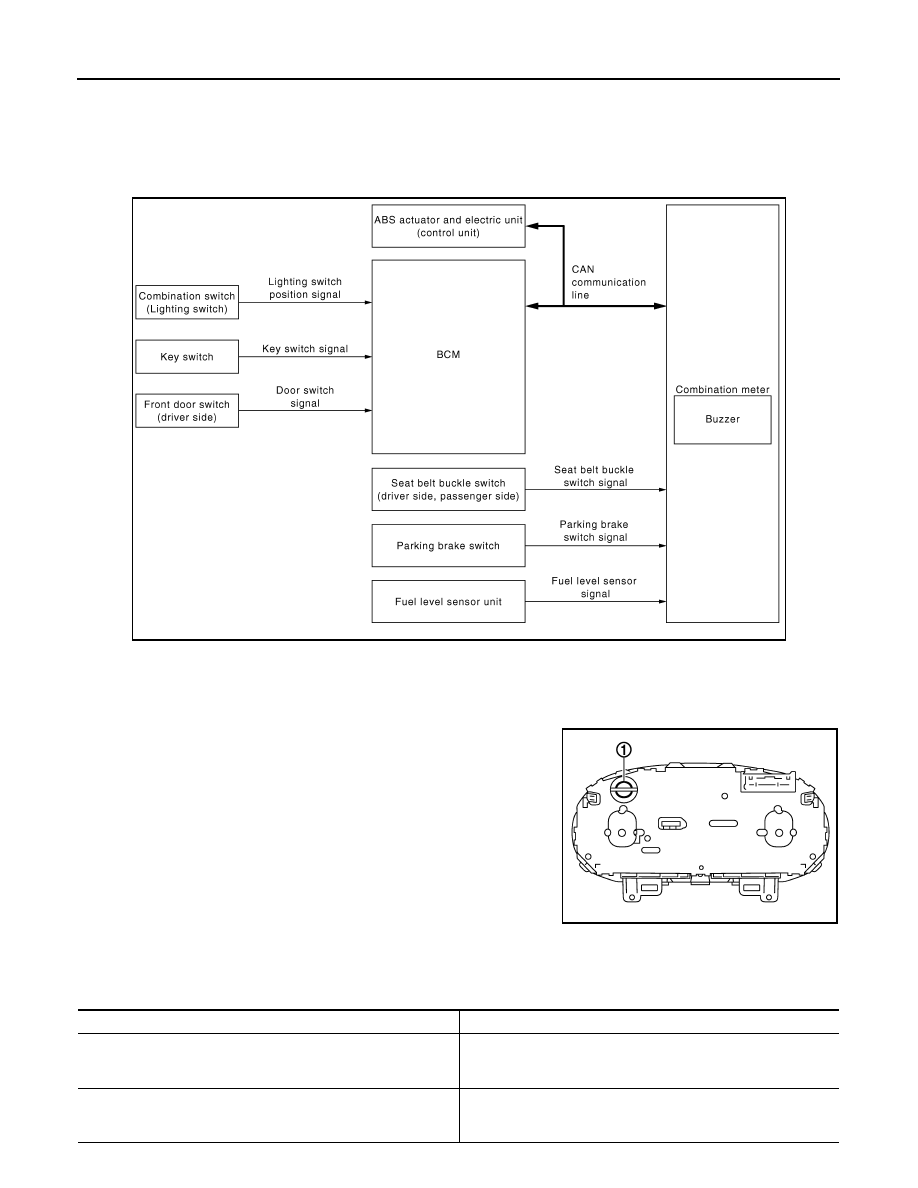

WARNING CHIME SYSTEM : System Diagram

INFOID:0000000000892392

WARNING CHIME SYSTEM : System Description

INFOID:0000000000892393

COMBINATION METER

• The buzzer (1) for the warning chime system is integrated in the

combination meter.

• The combination meter sounds the alarm buzzer installed in the

combination meter when receiving the buzzer output signal trans-
mitted from each unit.

BCM

BCM receives signals from various units and transmits a buzzer output signal to the combination meter via
CAN communication if it judges that the warning buzzer should be activated.

BCM warning function list

JSNIA0296GB

JSNIA0319ZZ

Warning functions

Signal name

Light reminder warning chime

• Ignition signal
• Lighting switch position signal
• Front door switch signal (driver side)

Key warning chime

• Ignition signal
• Key switch signal
• Front door switch signal (driver side)

WCS

WARNING CHIME SYSTEM

WCS-5

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

NOTE:
• Seat belt reminder warning, parking brake release warning and low fuel warning are judged by combination

meter.

• Intelligent key warning is judged by intelligent key unit.

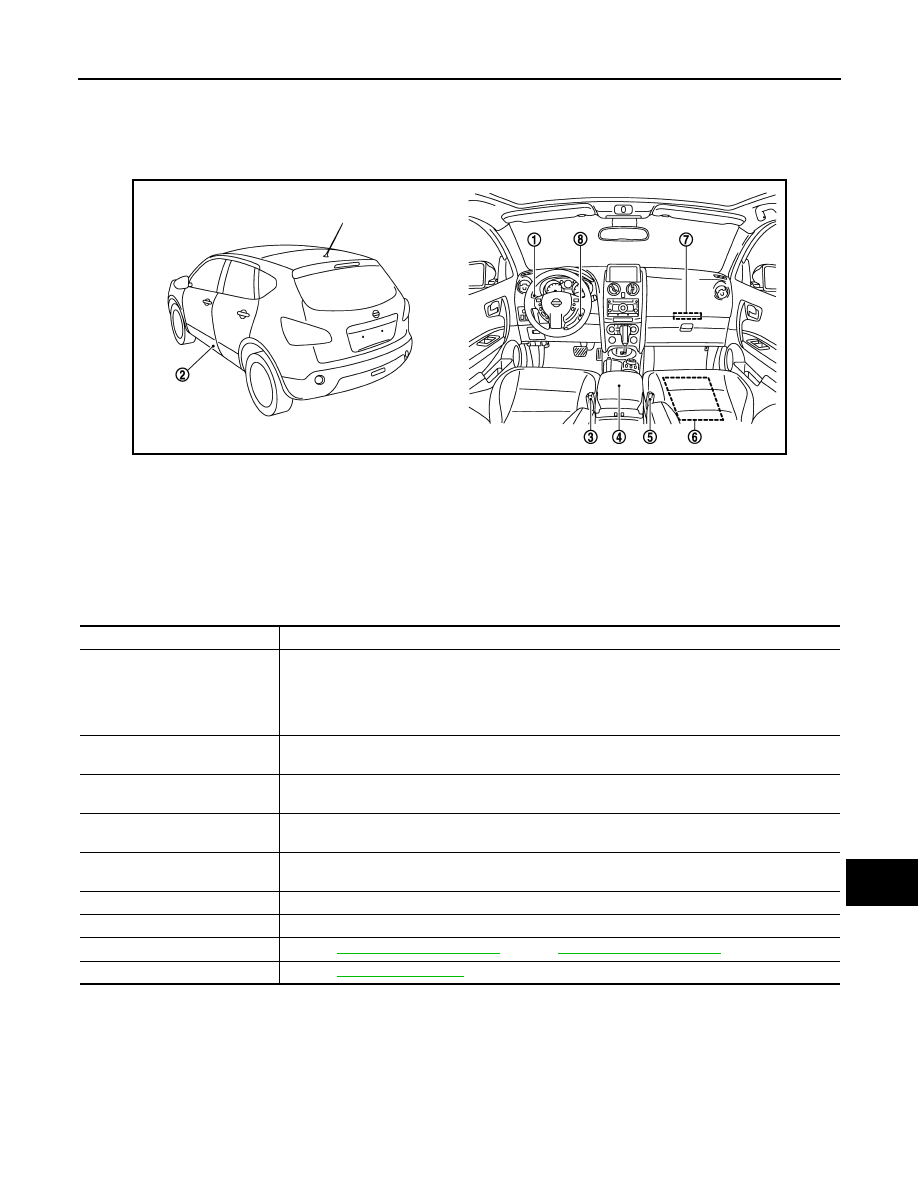

WARNING CHIME SYSTEM : Component Parts Location

INFOID:0000000000892394

WARNING CHIME SYSTEM : Component Description

INFOID:0000000000892395

LIGHT REMINDER WARNING CHIME

JSNIA0318ZZ

1.

Combination switch
(Lighting switch)

2.

Front door switch (driver side)

3.

Front seat belt buckle switch
(driver side)

4.

Parking brake switch

5.

Front seat belt buckle switch
(passenger side)

6.

Occupant detection unit

7.

BCM

8.

Key switch

Unit

Description

Combination meter

• Receives the buzzer output signal from BCM with the CAN communication line and sounds the

buzzer.

• Judges the remaining parking brake according to the vehicle speed signal received from the ABS

actuator and electric unit (control unit) via CAN communication and the parking brake switch sig-
nal from parking brake switch to sound the warning buzzer.

BCM

Transmits signals received from each unit to the combination meter with the CAN communication
line.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to combination meter with the CAN communication line.

Front seat belt buckle switch
(Driver side, passenger side)

Transmits the seat belt buckle switch signal to the combination meter.

Combination switch (Lighting
switch)

Transmits the lighting switch signal to BCM.

Front door switch

Transmits the door switch signal to BCM.

Key switch

Transmits the ignition switch signal to BCM.

Fuel level sensor unit

Refer to

MWI-30, "2WD : Description"

 (2WD) or

MWI-31, "4WD : Description"

 (4WD).

Parking brake switch

Refer to

WCS-23, "Description"

.
