MWI-70

< SYMPTOM DIAGNOSIS >

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

INFORMATION DISPLAY

INFORMATION DISPLAY : Description

INFOID:0000000000892380

AMBIENT AIR TEMPERATURE

The displayed ambient temperature on the information display may differ from the actual temperature because
it is a corrected value calculated from the OAT sensor signal by the combination meter. Refer to

MWI-18,

"INFORMATION DISPLAY : System Description"

 for details on the correction process.

POSSIBLE DRIVING DISTANCE

The calculated possible driving distance may differ from the actual distance to empty if the refueling amount is
approximately 4   or less. This is because the refuel control (moves the fuel gauge needle quicker than nor-
mal judging that the driver is refueling the vehicle) is not performed in such a case.

MWI

PRECAUTIONS

MWI-71

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001078351

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRC and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRC section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

MWI-72

< ON-VEHICLE REPAIR >

COMBINATION METER

ON-VEHICLE REPAIR

COMBINATION METER

Exploded View

INFOID:0000000000892381

Refer to

IP-11, "Exploded View"

.

Removal and Installation

INFOID:0000000000892382

Removal

1.

Remove the cluster lid A. Refer to

IP-12, "Removal and Installation"

.

2.

Remove steering column cover. Refer to

IP-12, "Removal and Installation"

3.

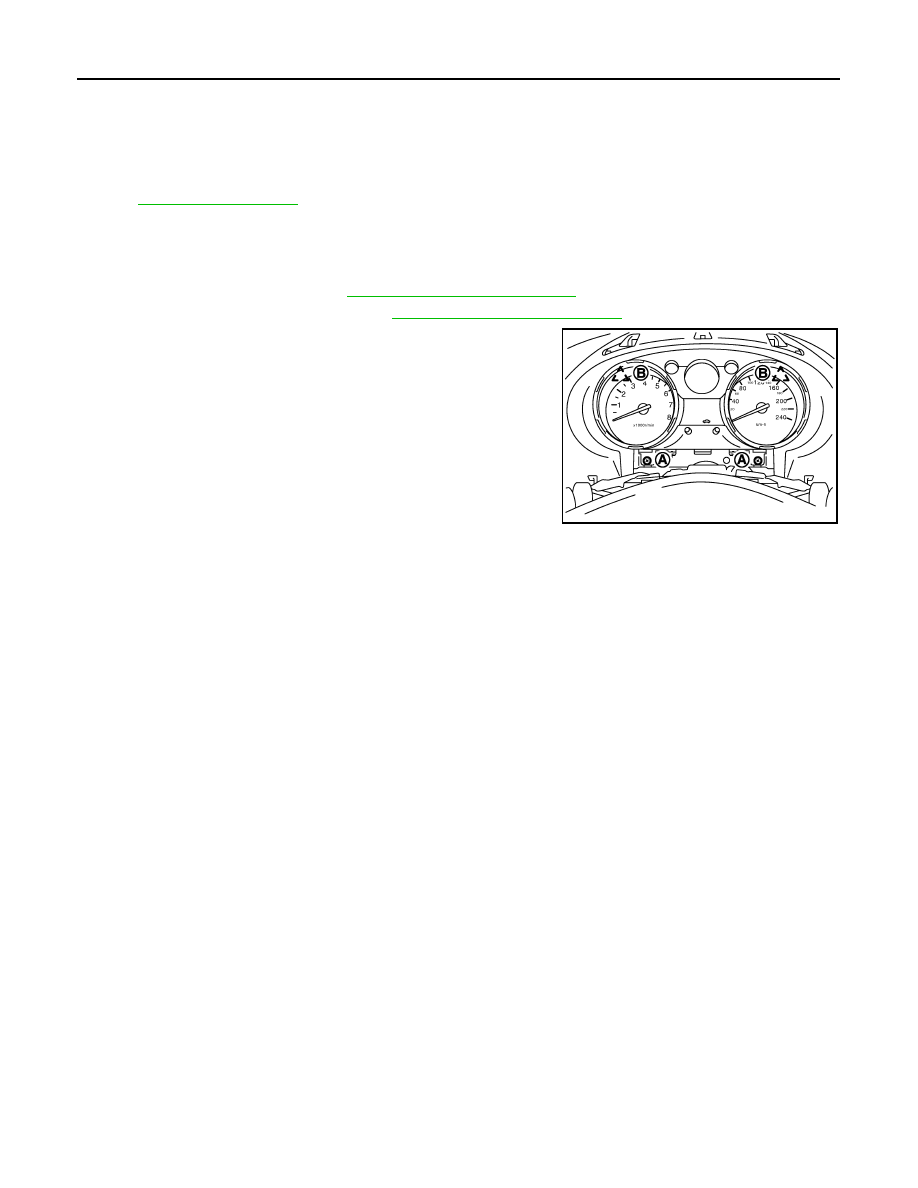

Remove screw (A) and connector, and then remove combination
meter.

Installation

Install in the reverse order of removal.

B :

Clip

JSNIA0317ZZ

WCS

WCS-1

DRIVER INFORMATION & MULTIMEDIA
