Nissan Qashqai (2007-2010). Manual - part 1875

PG-38

< COMPONENT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

JCMWA0458GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-39

< COMPONENT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWA0459GB

PG-40

< COMPONENT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

JCMWA0460GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-41

< COMPONENT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

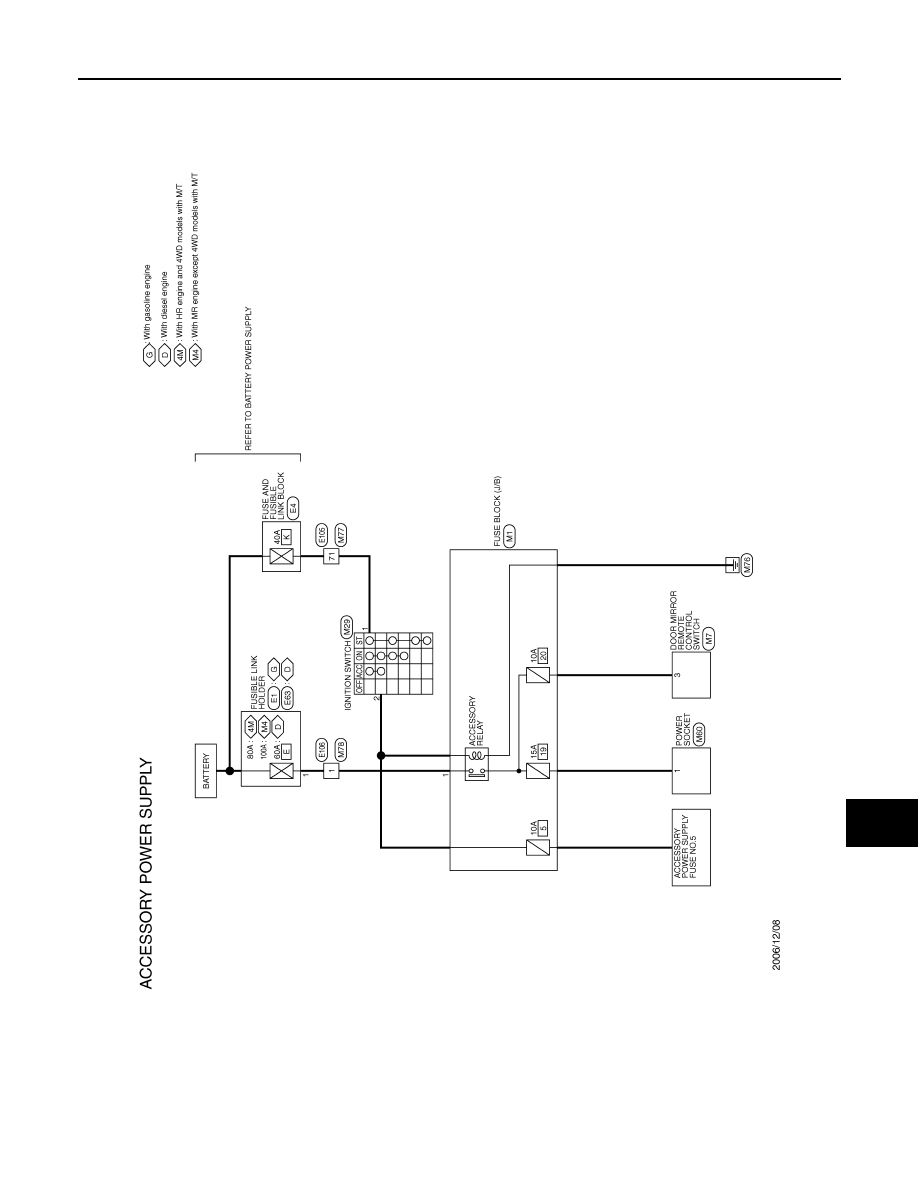

Wiring Diagram - ACCESSORY POWER SUPPLY -

INFOID:0000000000956064

JCMWA0461GB
