PG-34

< COMPONENT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

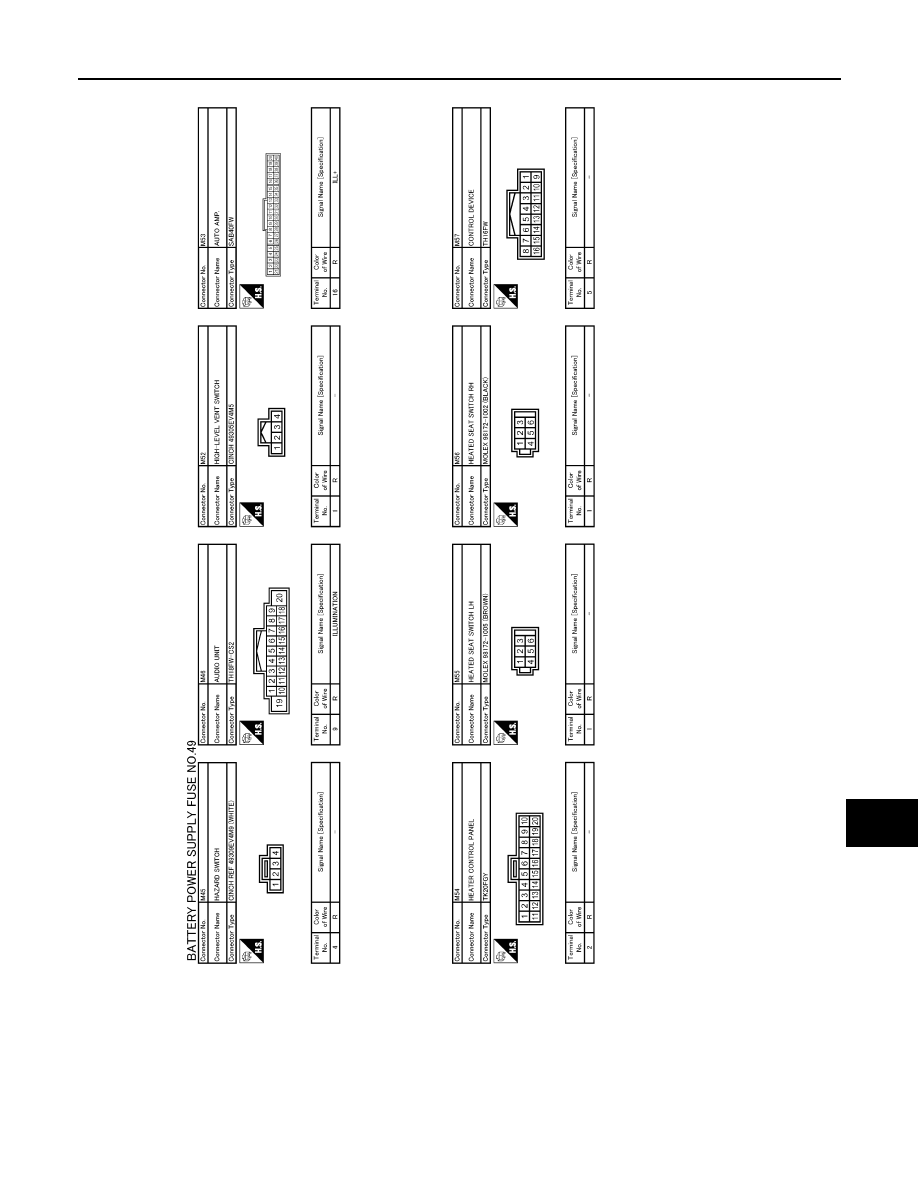

POWER SUPPLY ROUTING CIRCUIT

JCMWA0454GB

PG

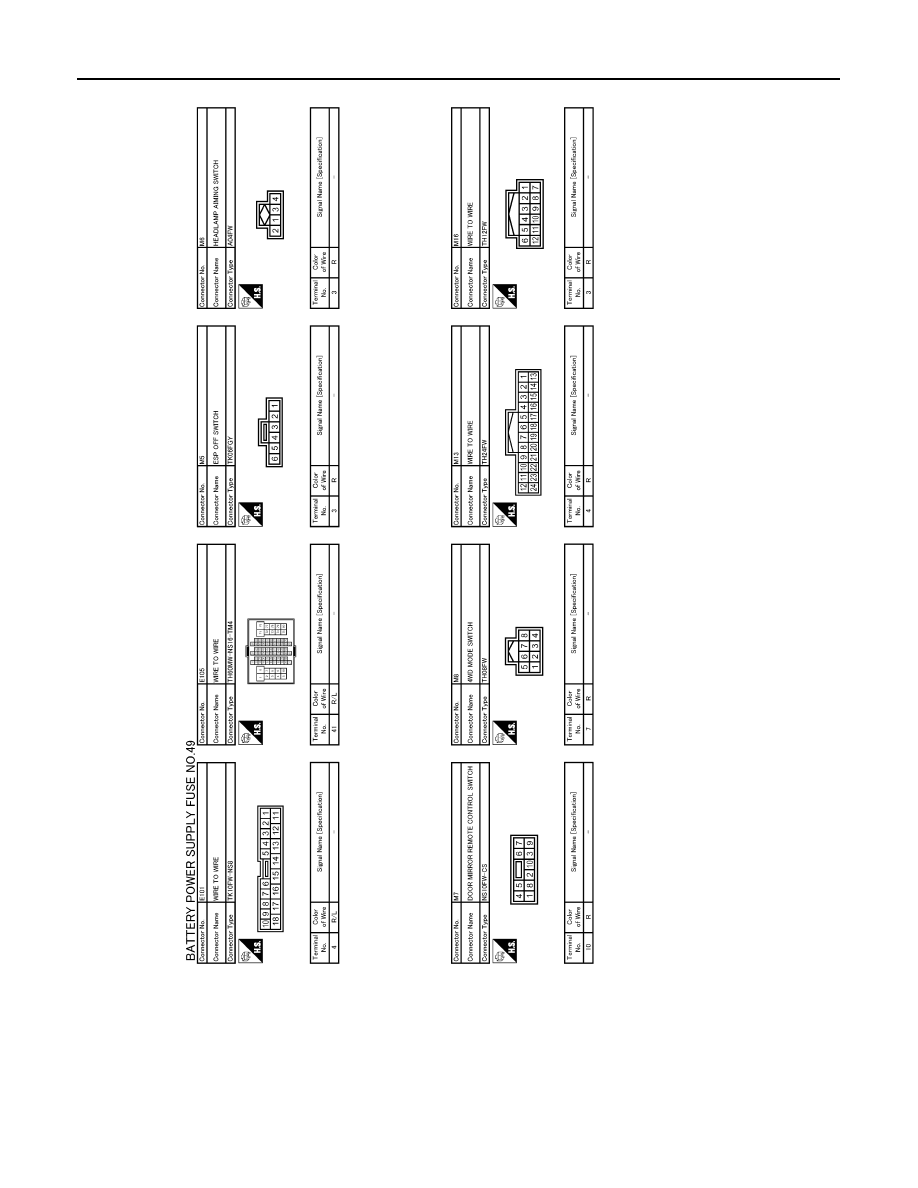

POWER SUPPLY ROUTING CIRCUIT

PG-35

< COMPONENT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWA0455GB

PG-36

< COMPONENT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

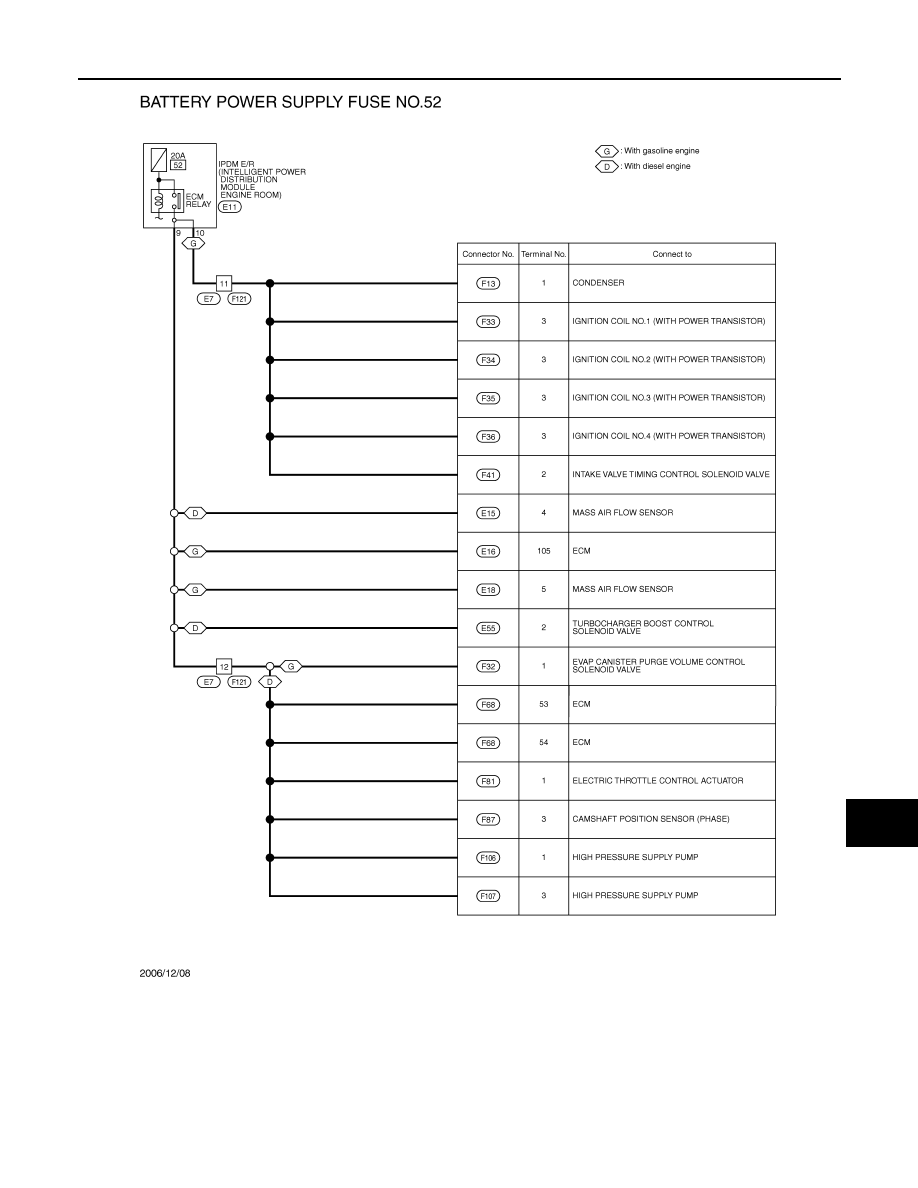

POWER SUPPLY ROUTING CIRCUIT

JCMWA0456GB

PG

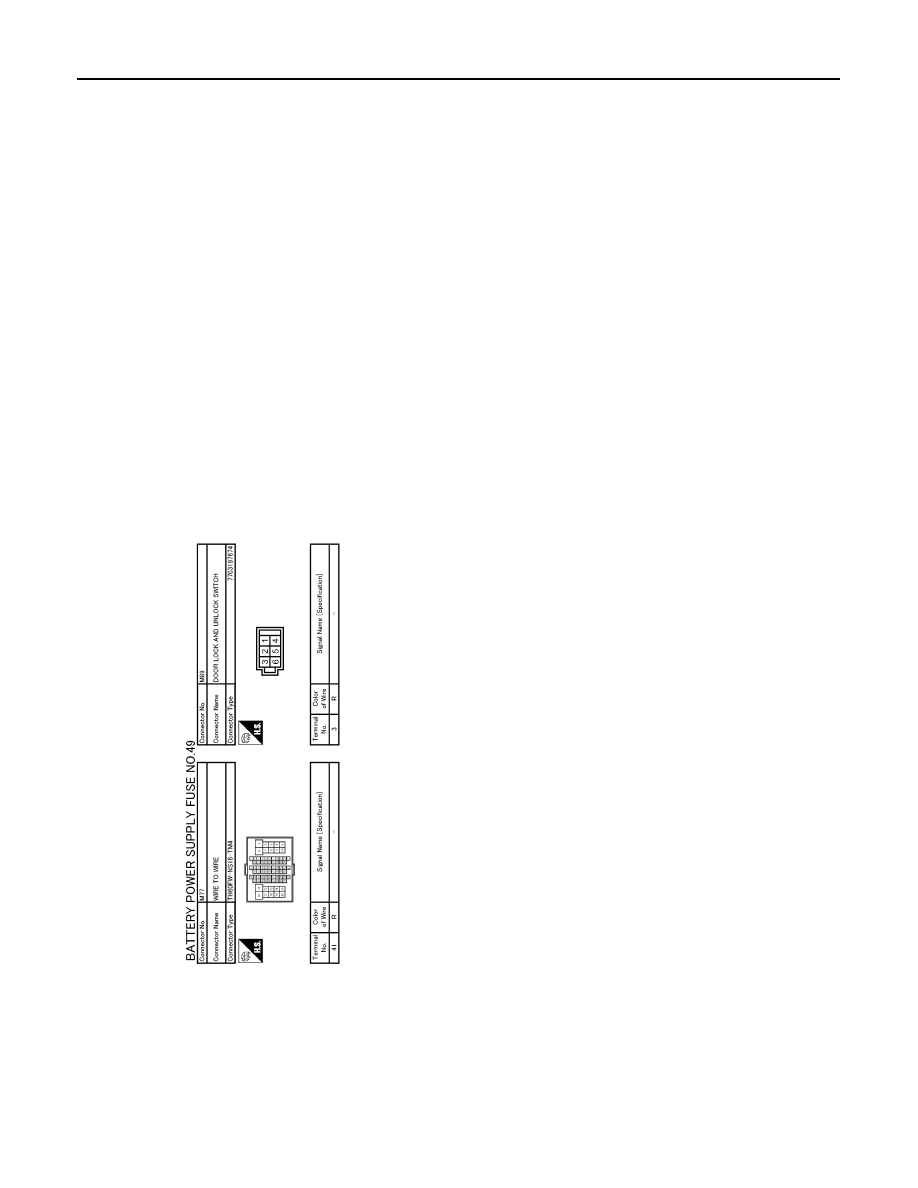

POWER SUPPLY ROUTING CIRCUIT

PG-37

< COMPONENT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWA0457GB
