COMBINATION SWITCH SYSTEM SYMPTOMS

BCS-63

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYMPTOM DIAGNOSIS

COMBINATION SWITCH SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000000936046

1.

Perform “Data Monitor” of CONSULT-III to check for any malfunctioning item.

2.

Check the malfunction combinations.

Malfunction item:

×

3.

Identify the malfunctioning part from the agreed combination and repair or replace the part.

Data monitor item

Malfunction combi-

nation

TURN SIG

N

AL R

TURN SIGNAL L

H

I BEAM SW

HEAD LAMP SW

1

HEAD LAMP SW

2

T

A

IL

 LA

MP

SW

P

ASSI

N

G

 SW

AU

T

O

 LI

GH

T

 S

W

FR F

O

G

SW

RR FO

G S

W

FR WI

PER HI

FR WIP

E

R LOW

FR WI

PER INT

F

R

 W

A

SH

ER

 S

W

INT VOL

U

ME

RR

 WIPE

R

 O

N

RR WIP

E

R INT

RR W

ASHER

SW

×

×

×

×

A

×

×

×

×

B

×

×

×

×

C

×

×

×

×

D

×

×

×

×

E

×

×

×

×

F

×

×

×

G

×

×

×

×

H

×

×

×

×

I

×

×

×

×

J

Combinations other than those above

K

All Items

L

If only one item is detected or the item is not applicable to the combinations A to L

M

Malfunction

combination

Malfunctioning part

Repair or replace

A

Combination switch INPUT 1 circuit

Inspect the combination switch input circuit applicable to the malfunctioning
part. Refer to

BCS-35, "Diagnosis Procedure"

.

B

Combination switch INPUT 2 circuit

C

Combination switch INPUT 3 circuit

D

Combination switch INPUT 4 circuit

E

Combination switch INPUT 5 circuit

F

Combination switch OUTPUT 1 circuit

Inspect the combination switch output circuit applicable to the malfunction-
ing part. Refer to

BCS-37, "Diagnosis Procedure"

.

G

Combination switch OUTPUT 2 circuit

H

Combination switch OUTPUT 3 circuit

I

Combination switch OUTPUT 4 circuit

J

Combination switch OUTPUT 5 circuit

K

Light and turn signal switch or front wip-
er and washer switch

Refer to

BCS-38, "Description"

.

L

BCM

Replace BCM.

M

Light and turn signal switch or front wip-
er and washer switch

Replace the switch that cannot be operated.

BCS-64

< ON-VEHICLE REPAIR >

BCM (BODY CONTROL MODULE)

ON-VEHICLE REPAIR

BCM (BODY CONTROL MODULE)

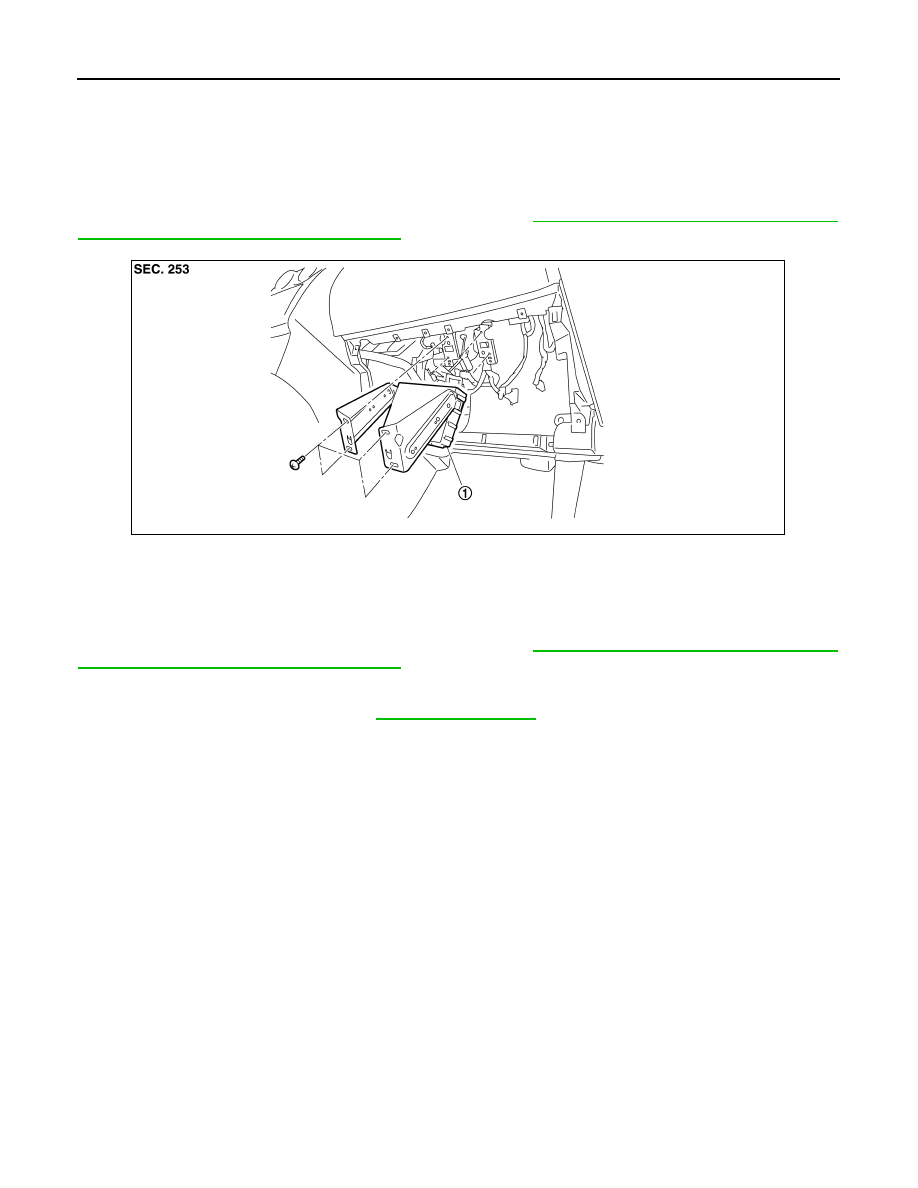

Exploded View

INFOID:0000000000924640

CAUTION:

Before replacing BCM, perform configuration. Refer to

BCS-3, "ADDITIONAL SERVICE WHEN

REPLACING CONTROL UNIT : Description"

.

Removal and Installation

INFOID:0000000000924641

CAUTION:

Before replacing BCM, perform configuration. Refer to

BCS-3, "ADDITIONAL SERVICE WHEN

REPLACING CONTROL UNIT : Description"

.

REMOVAL

1.

Remove glove box assembly. Refer to

IP-11, "Exploded View"

.

2.

Disconnect 4WD control unit connector.

3.

Remove intake heater duct.

4.

Remove mounting screws.

5.

Remove BCM and disconnect the connector.

INSTALLATION

Install in the reverse order of removal.

1.

BCM

JPMIA0205ZZ

BCS

COMBINATION SWITCH

BCS-65

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

COMBINATION SWITCH

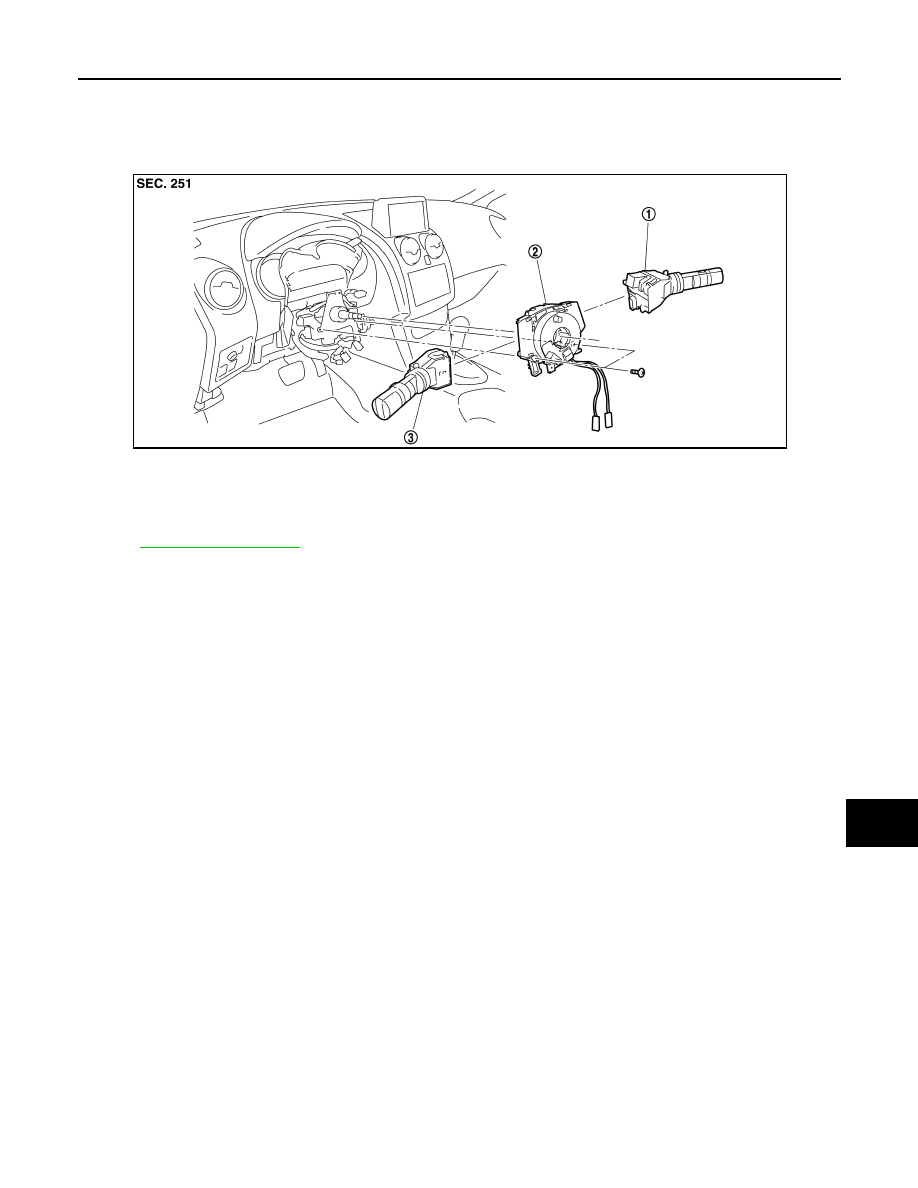

Exploded View

INFOID:0000000000924642

Removal and Installation

INFOID:0000000000924643

Refer to

SR-6, "Exploded View"

.

1.

Wiper and washer switch

2.

Switch base (Spiral cable)

3.

Light and turn signal switch

JPMIA0206ZZ
