Nissan Qashqai (2007-2010). Manual - part 1491
BCS-54
< ECU DIAGNOSIS >

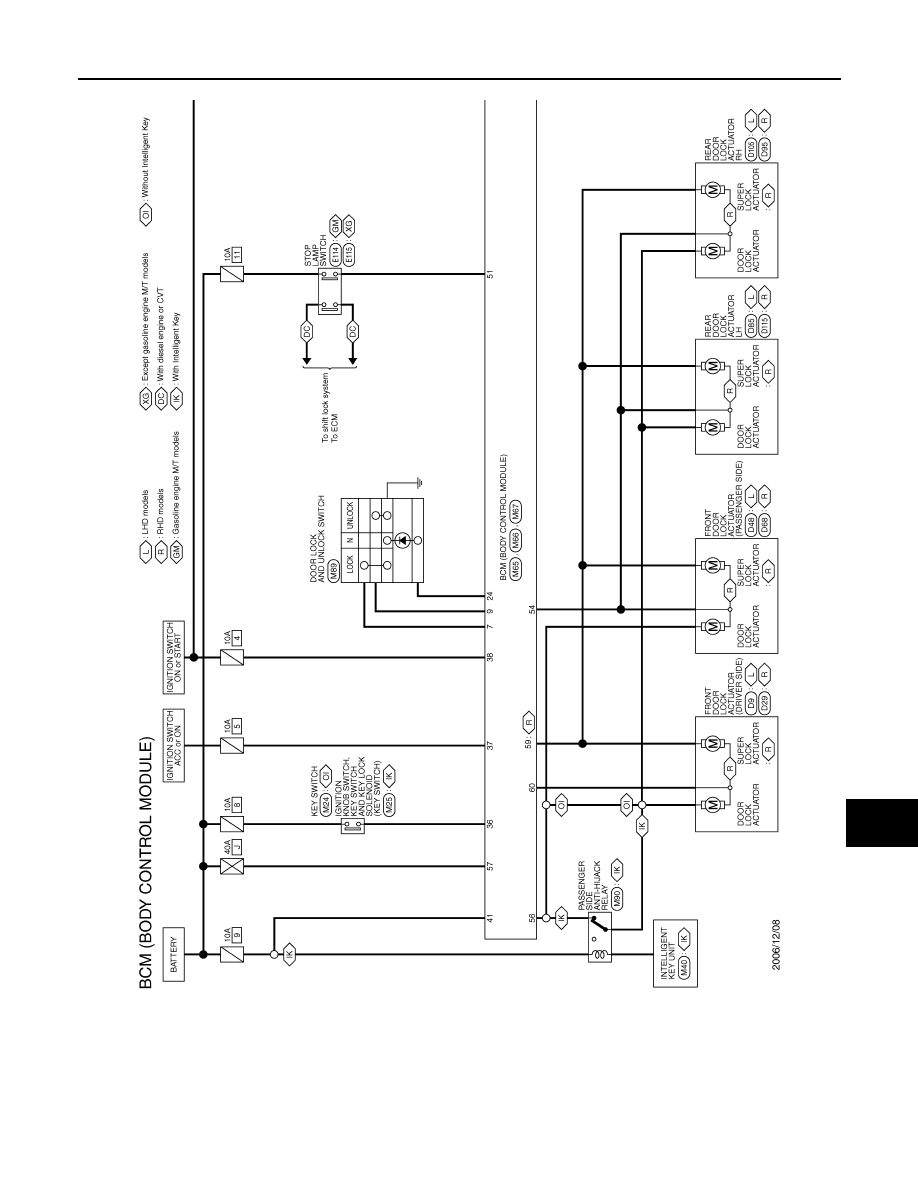

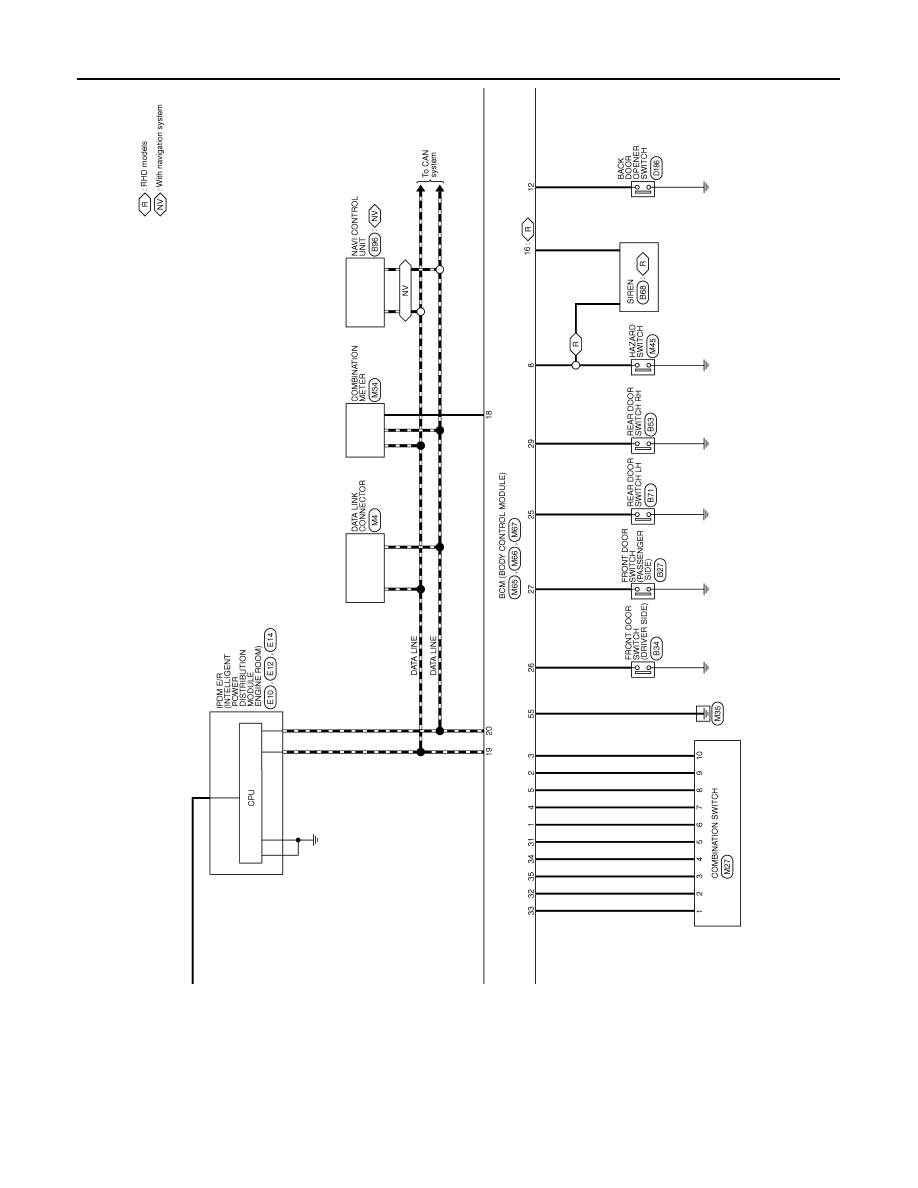

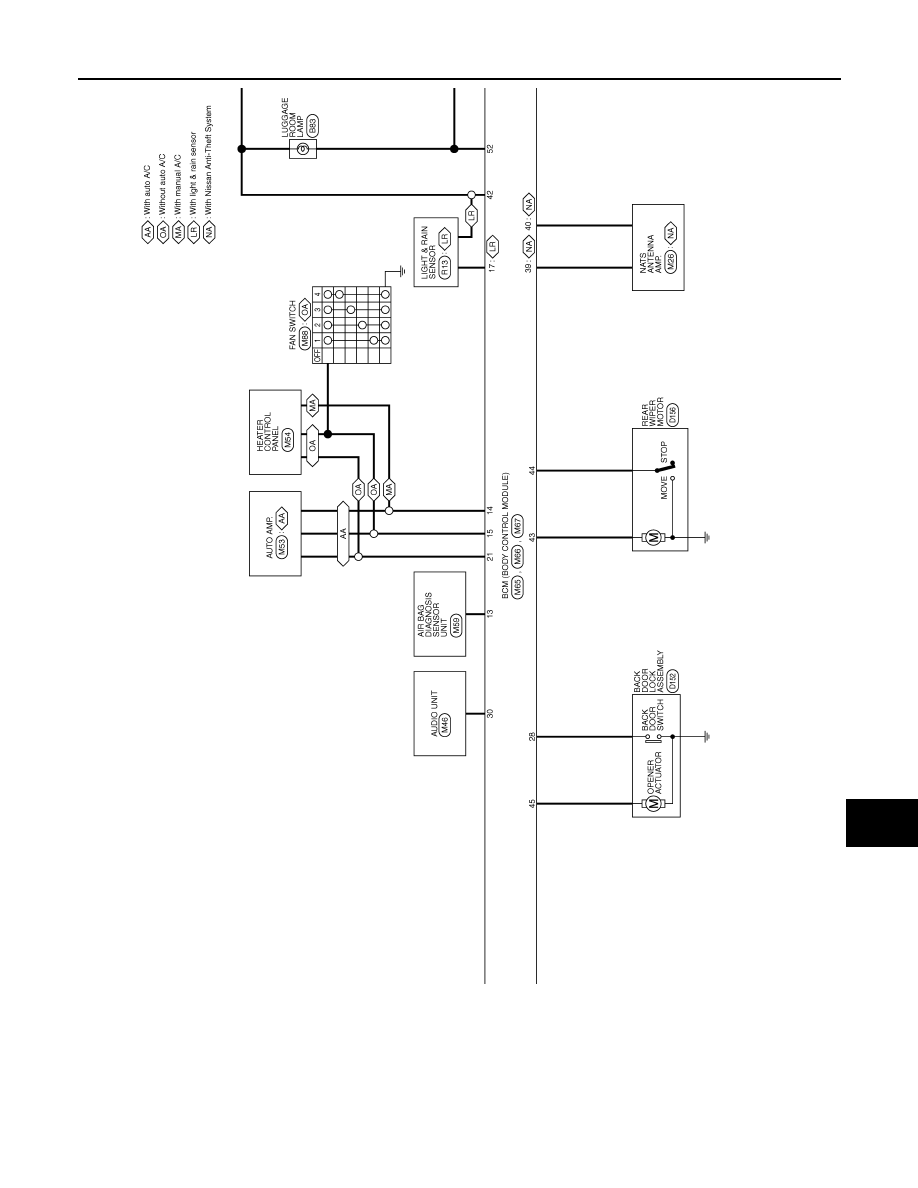

BCM (BODY CONTROL MODULE)
*1: With Intelligent Key system
*2: Without Intelligent Key system
52
(R)
Ground
Room lamp timer
control
Output
Interior room
lamp
OFF
Battery voltage
ON
0 V
53
(L)
Ground
Power window pow-
er supply
Output
Ignition switch
OFF or ACC
0 V
ON
Battery voltage
54
(O)
Ground
Door unlock (All)
Output
Door lock/un-
lock switch
Pressed to the unlock side
Battery voltage
Pressed to the lock side
0 V
55
(B)
Ground
Ground
—
Ignition switch ON
0 V
56
(Y)
*1
(SB)
*2
Ground
Door lock (All)
Output
Door lock/un-
lock switch
Pressed to the unlock side
0 V
Pressed to the lock side
Battery voltage
57
(Y)
Ground
Battery power sup-
ply
Output
Ignition switch OFF
Battery voltage
58
(P)
Ground
Power window pow-
er supply
Output
Ignition switch OFF
Battery voltage
59
(BR)
Ground
Super lock
Output
When lock button of key fob or Intelligent Key
is not pressed
0 V
When lock button of key fob or Intelligent Key
is pressed
Battery voltage
60
(GR)
Ground
Driver door unlock
Output
Door lock/un-
lock switch
Pressed to the unlock side
Battery voltage
Pressed to the lock side
0 V
Terminal No.
(Wire color)
Description
Condition
Value
(Approx.)
Signal name
Input/
Output
+
−
