BCS-18

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

DOOR LOCK

DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)

INFOID:0000000001097013

BCM CONSULT-III FUNCTION

CONSULT-III performs the following functions via CAN communication with BCM.

DATA MONITOR

*1

: For the Intelligent key equipped vehicle.

*2

: For the multi remote control system equipped vehicle.

ACTIVE TEST

Item

Description

RESET SETTING VALUE

Return a value set with WORK SUPPORT of each system to a default value in factory shipment.

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

Monitor Item

Condition

IGN ON SW

Indicates [ON/OFF] condition of ignition switch in ON position.

ACC ON SW

Indicates [ON/OFF] condition of ignition switch in ACC position.

PUSH SW

*1

Indicates [ON/OFF] condition of ignition knob switch.

KEY ON SW

Indicates [ON/OFF] condition of key switch.

CDL LOCK SW

Indicates [ON/OFF] condition of door lock and unlock switch.

CDL UNLOCK SW

Indicates [ON/OFF] condition of door lock and unlock switch.

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch (driver side).

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch (passenger side).

DOOR SW-RR

Indicates [ON/OFF] condition of rear door switch RH.

DOOR SW-RL

Indicates [ON/OFF] condition of rear door switch LH.

BACK DOOR SW

Indicates [ON/OFF] condition of back door switch.

KEYLESS LOCK

*2

Indicates [ON/OFF] condition of lock signal from key fob.

KEYLESS UNLOCK

*2

Indicates [ON/OFF] condition of unlock signal from key fob.

I-KEY LOCK

*1

Indicates [ON/OFF] condition of lock signal from Intelligent Key.

I-KEY UNLOCK

*1

Indicates [ON/OFF] condition of unlock signal from Intelligent Key.

UNLOCK WITH DR

This item is indicated, but not monitored.

UNLOCK SHOCK

Indicates [ON/OFF] condition of signal from air bag diagnosis unit.
• ON: During the unlock operation interlock with air bag.
• OFF: Other than above.

SHOCK SENSOR

Indicates [NOMAL/ON/OFF] condition of circuit between BCM and air bag diagnosis sen-
sor unit.
• NORMAL: Ignition switch ON. (BCM is receiving normal condition signal from air bag di-

agnosis sensor unit.)

• ON: During the receiving of air bag deployment signal from air bag diagnosis sensor

unit.

• OFF: After the receiving of air bag deployment signal from air bag diagnosis sensor unit.

VEHICLE SPEED

Displays the vehicle speed signal received from combination meter by numerical value
[km/h].

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-19

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

:

*1

 For the super lock equipped vehicle.

WORK SUPPORT

REAR WINDOW DEFOGGER

REAR WINDOW DEFOGGER : CONSULT-III Function (BCM - REAR DEFOGGER)

INFOID:0000000001097014

Data monitor

ACTIVE TEST

BUZZER

BUZZER : CONSULT-III Function (BCM - BUZZER)

INFOID:0000000001097015

CONSULT-III FUNCTION (BCM – BUZZER)

DATA MONITOR

Test item

Description

SUPER LOCK

*1

This test is able to check super lock operation [LOCK (SET)/UNLOCK (RELEASE)].

DOOR LOCK IND

This test is able to check door lock indicator (built in door lock and unlock switch on center
console) operation [ON/OFF].

DOOR LOCK

This test is able to check door lock operation [ALL LOCK/ALL UNLOCK/DR UNLOCK/
OTHER UNLOCK].

Test item

Description

SECURITY DOOR LOCK SET

Anti hijack function mode can be changed in this mode.
• ON: Anti hijack mode is active.
• OFF: Anti hijack mode is inactive.

Monitor Item

Description

REAR DEF SW

Displays “Press (ON)/other (OFF)” status determined with the rear window defogger switch.

IGN ON SW

Indicates [ON/OFF] condition of ignition switch in ON position.

ACC ON SW

Indicates [ON/OFF] condition of ignition switch in ACC position.

Test Item

Description

REAR DEFOGGER

Give a drive signal to the rear window defogger relay to activate it.

Test item

Diagnosis mode

Description

Buzzer

Data Monitor

Displays BCM input data in real time.

Active Test

Operation of electrical loads can be checked by sending driving signal to them.

Display item

[Unit]

Description

IGN ON SW
[On/Off]

Ignition switch (ON) status judged by ignition power supply input.

KEY ON SW
[On/Off]

Key switch status.

DOOR SW -DR
[On/Off]

Front door switch (driver side) status judged by BCM.

TAIL LAMP SW
[On/Off]

Lighting switch status judged by the lighting switch signal read with combination switch reading func-
tion.

BCS-20

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

INT LAMP

INT LAMP : CONSULT-III Function (BCM - INT LAMP)

INFOID:0000000001097016

WORK SUPPORT

BUCKLE SW
[On/Off]

Seat belt buckle switch status judged by the seat belt buckle switch signal received from combination
meter via CAN communication.

DOOR SW -AS

Front door switch (passenger side) status judged by BCM.

DOOR SW -RR

Rear door switch RH status judged by BCM.

DOOR SW -RL

Rear door switch LH status judged by BCM.

BACK DOOR SW

Back door switch status judged by BCM.

VEHICLE SPEED
[km/h]

Vehicle speed signal value received from combination meter via CAN communication.

Display item

[Unit]

Description

Display item

Description

LIGHT WARN ALM

The light reminder warning operation can be checked by operating the relevant function (On/Off).

IGN KEY WARN ALM

The key warning operation can be checked by operating the relevant function (On/Off).

KEY REMINDER WARN

The key reminder warning operation can be checked by operating the relevant function (On/Off).

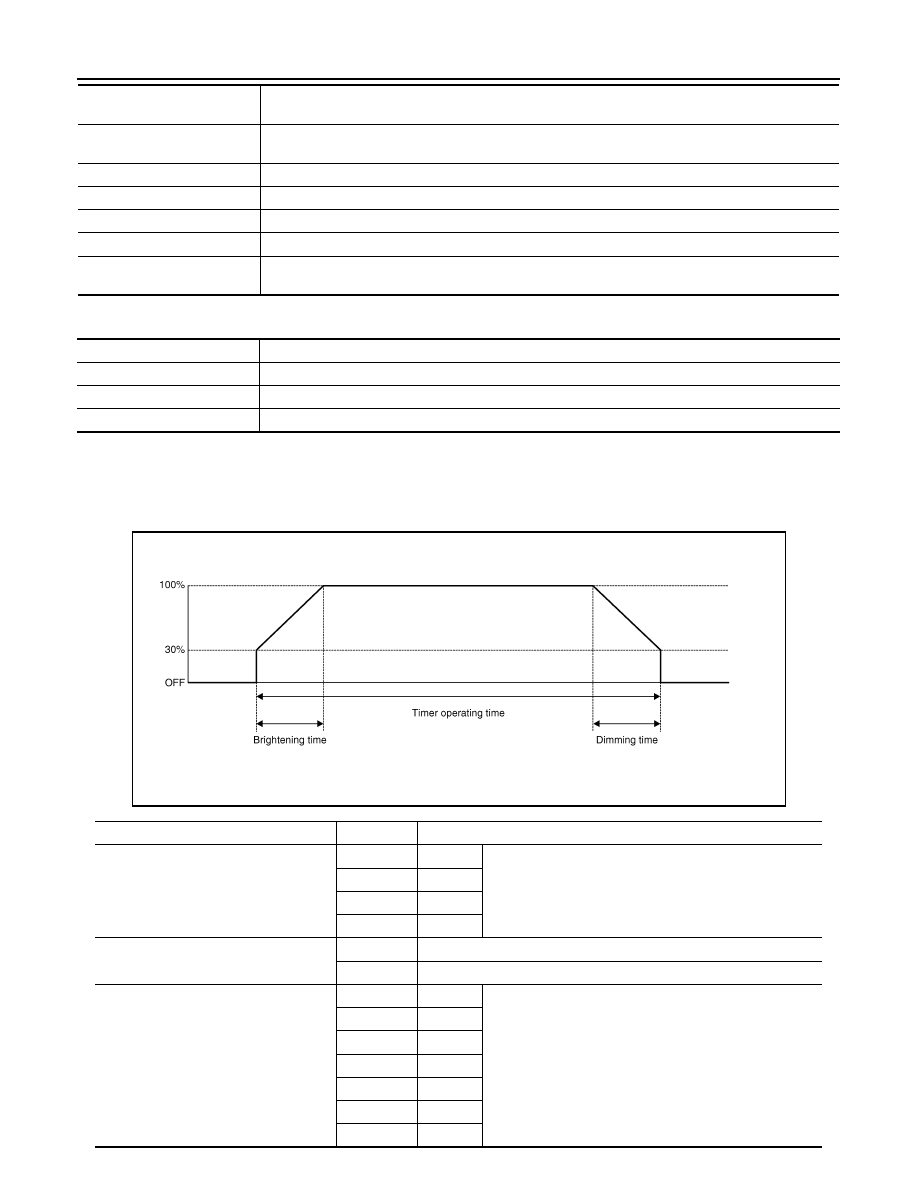

JPLIA0093GB

Service item

Setting item

Setting

ROOM LAMP TIMER SET

MODE 1

0 sec.

Sets the interior room lamp ON time. (Timer operating time)

MODE 2

7.5 sec.

MODE 3*

15 sec.

MODE 4

30 sec.

SET I/L D-UNLCK INTCON

ON*

With the interior room lamp timer function

OFF

Without the interior room lamp timer function

ROOM LAMP ON TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual brightening time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

4 sec.

MODE 6

5 sec.

MODE 7

0 sec.

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-21

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

*: Initial setting

DATA MONITOR

ACTIVE TEST

ROOM LAMP OFF TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual dimming time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

4 sec.

MODE 6

5 sec.

MODE 7

0 sec.

R LAMP TIMER LOGIC SET

MODE 1*

Interior room lamp timer activates with synchronizing all doors.

MODE 2

Interior room lamp timer activates with synchronizing the driver door
only.

Service item

Setting item

Setting

Monitor item

[Unit]

Description

IGN ON SW
[ON/OFF]

Ignition switch (ON) status judges from IGN signal (ignition power supply)

ACC SW
[ON/OFF]

Ignition switch (ACC) status judges from ACC signal (ACC power supply)

KEY ON SW
[ON/OFF]

The switch status input from key switch

PUSH SW
[ON/OFF]

Push switch status received from Intelligent Key unit by CAN communication

DOOR SW-DR
[ON/OFF]

The switch status input from front door switch (driver side)

DOOR SW-AS
[ON/OFF]

The switch status input from front door switch (passenger side)

DOOR SW-RR
[ON/OFF]

The switch status input from rear door switch RH

DOOR SW- RL
[ON/OFF]

The switch status input from rear door switch LH

BACK DOOR SW
[ON/OFF]

The switch status input from back door switch

CDL LOCK SW
[ON/OFF]

Lock switch status input from door lock and unlock switch

CDL UNLOCK SW
[ON/OFF]

Unlock switch status input from door lock and unlock switch

I-KEY LOCK
[ON/OFF]

Lock signal status received from Intelligent Key unit by CAN communication

I-KEY UNLOCK
[ON/OFF]

Unlock signal status received from Intelligent Key unit by CAN communication

KEYLESS LOCK
[ON/OFF]

Lock signal status received from remote keyless entry receiver (integrated in the
BCM)

KEYLESS UNLOCK
[ON/OFF]

Unlock signal status received from remote keyless entry receiver (integrated in the
BCM)
