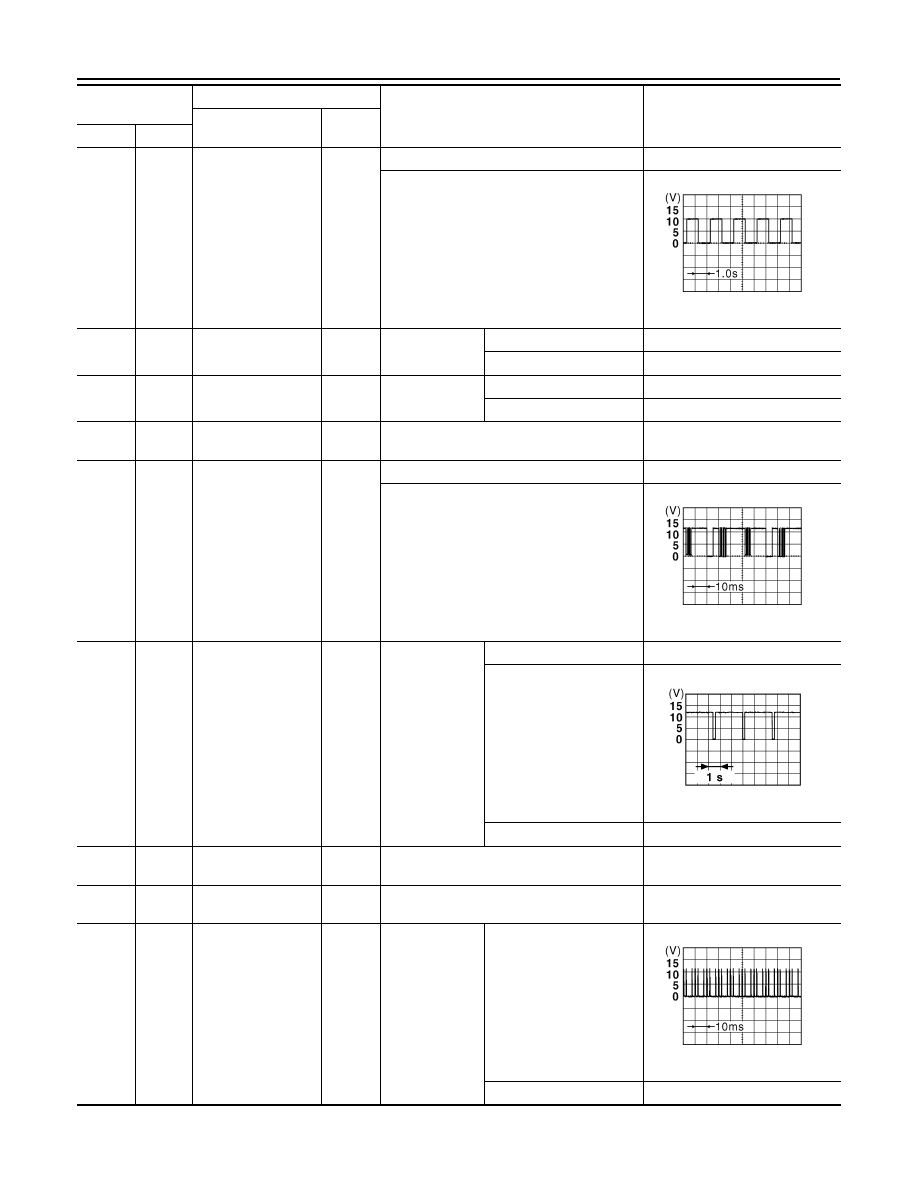

DEF-32

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

13

(R)

Ground

Shock detect sensor

Input

Ignition switch OFF or ACC

0 V

Ignition switch ON

6.0 V

14

(L/R)

Ground

A/C switch

Output

A/C switch

Not pressed

Battery voltage

Pressed

0 V

15

(LG/B)

Ground

Fan switch

Output

Fan switch

Not pressed

Battery voltage

Pressed

0 V

16

(GR)

Ground

Alarm link

Input

—

—

17

(BR)

Ground

Light & rain sensor
serial link

Output

Ignition switch OFF or ACC

Battery voltage

Ignition switch ON

8.7 V

18

(SB)

Ground

Security indicator

Output

Security indica-
tor

ON

0 V

Blinking

10.3 V

OFF

Battery voltage

19

(L)

—

CAN-H

Input/

Output

—

—

20

(P)

—

CAN-L

Input/

Output

—

—

21

(SB)

Ground

Rear window defog-
ger switch

Output

Rear window
defogger switch

Not pressed

1.1 V

While pressing

0 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−

JPMIA0155GB

JPMIA0156GB

JPMIA0014GB

JPMIA0154GB

BCM (BODY CONTROL MODULE)

DEF-33

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

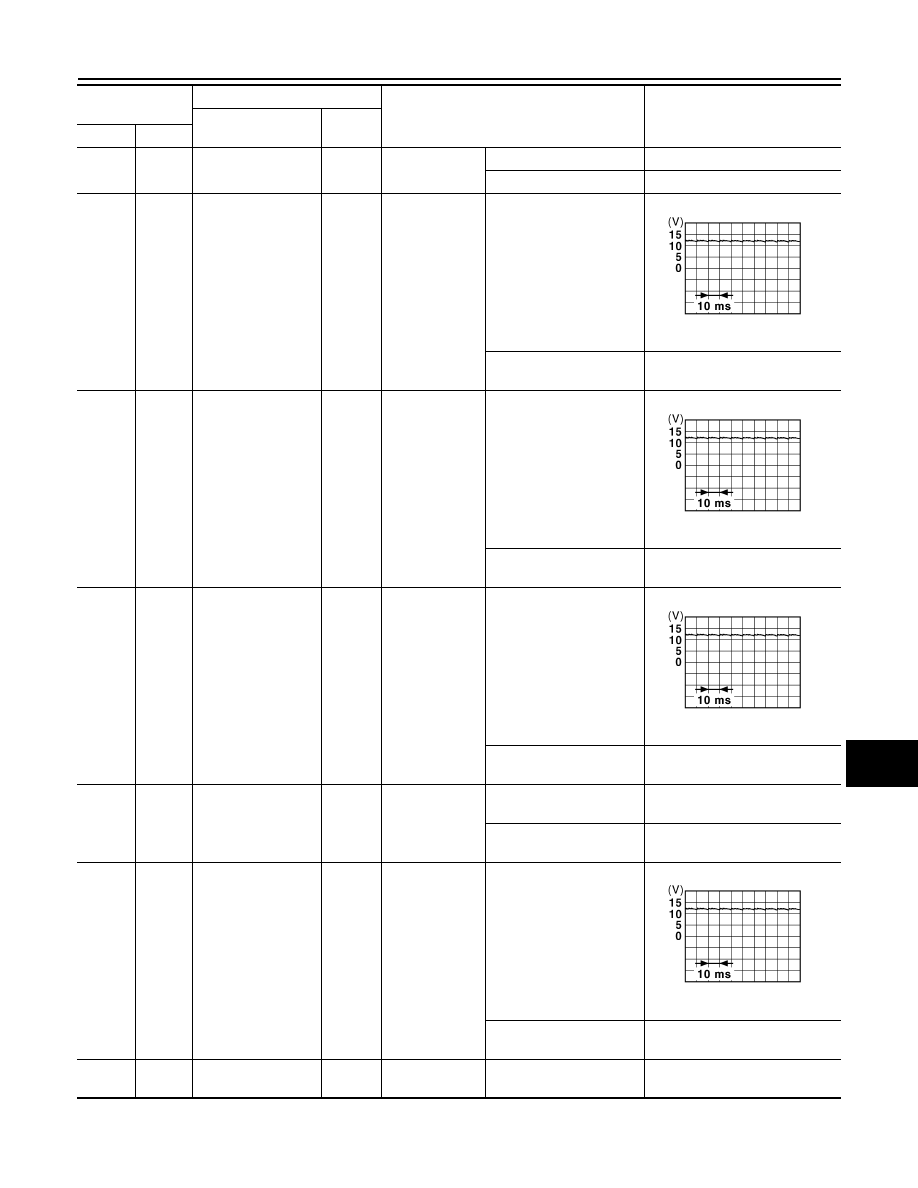

24

(GR)

Ground

Door lock status indi-
cator

Output

Door lock status
indicator

ON

Battery voltage

OFF

0 V

25

(GR)

Ground

Rear door switch LH

Input

Rear door
switch LH

OFF (When rear door LH
closed)

11.2 V

ON (When rear door LH
opened)

0 V

26

(R)

Ground

Driver door switch

Input

Driver door
switch

OFF (When driver door
closed)

11.2 V

ON (When driver door
opened)

0 V

27

(BR)

Ground

Passenger door
switch

Input

Passenger door
switch

OFF (When passenger
door closed)

11.2 V

ON (When passenger
door opened)

0 V

28

(G)

Ground

Back door switch

Input

Back door
switch

OFF (When back door
closed)

Battery voltage

ON (When back door
opened)

0 V

29

(LG)

Ground

Rear door switch RH

Input

Rear door
switch RH

OFF (When rear door RH
closed)

11.2 V

ON (When rear door RH
opened)

0 V

30

(SB)

Ground

Audio link

Output

—

—

—

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−

PKID0924E

PKID0924E

PKID0924E

PKID0924E

DEF-34

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

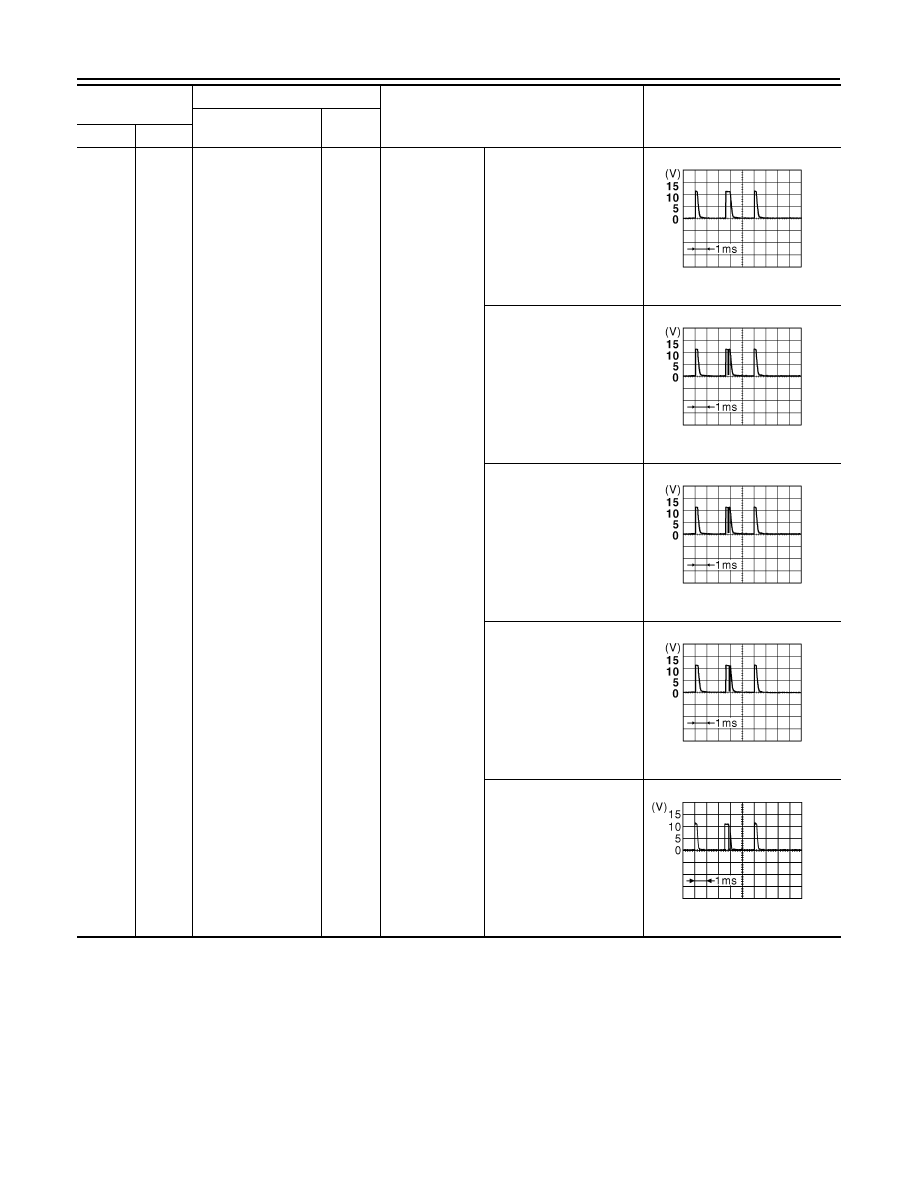

31

(BR)

Ground

Combination switch
INPUT 5

Input

Combination
switch

All switch OFF
(Wiper intermittent dial 4)

1.3 V

Front fog lamp switch ON
(Wiper intermittent dial 4)

1.3 V

Rear fog lamp switch ON
(Wiper intermittent dial 4)

1.3 V

Rear wiper switch ON
(Wiper intermittent dial 4)

1.3 V

Any of the condition below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 2
• Wiper intermittent dial 6
• Wiper intermittent dial 7

1.3 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−

JPMIA0165GB

JPMIA0167GB

JPMIA0168GB

JPMIA0169GB

JPMIA0196GB

BCM (BODY CONTROL MODULE)

DEF-35

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

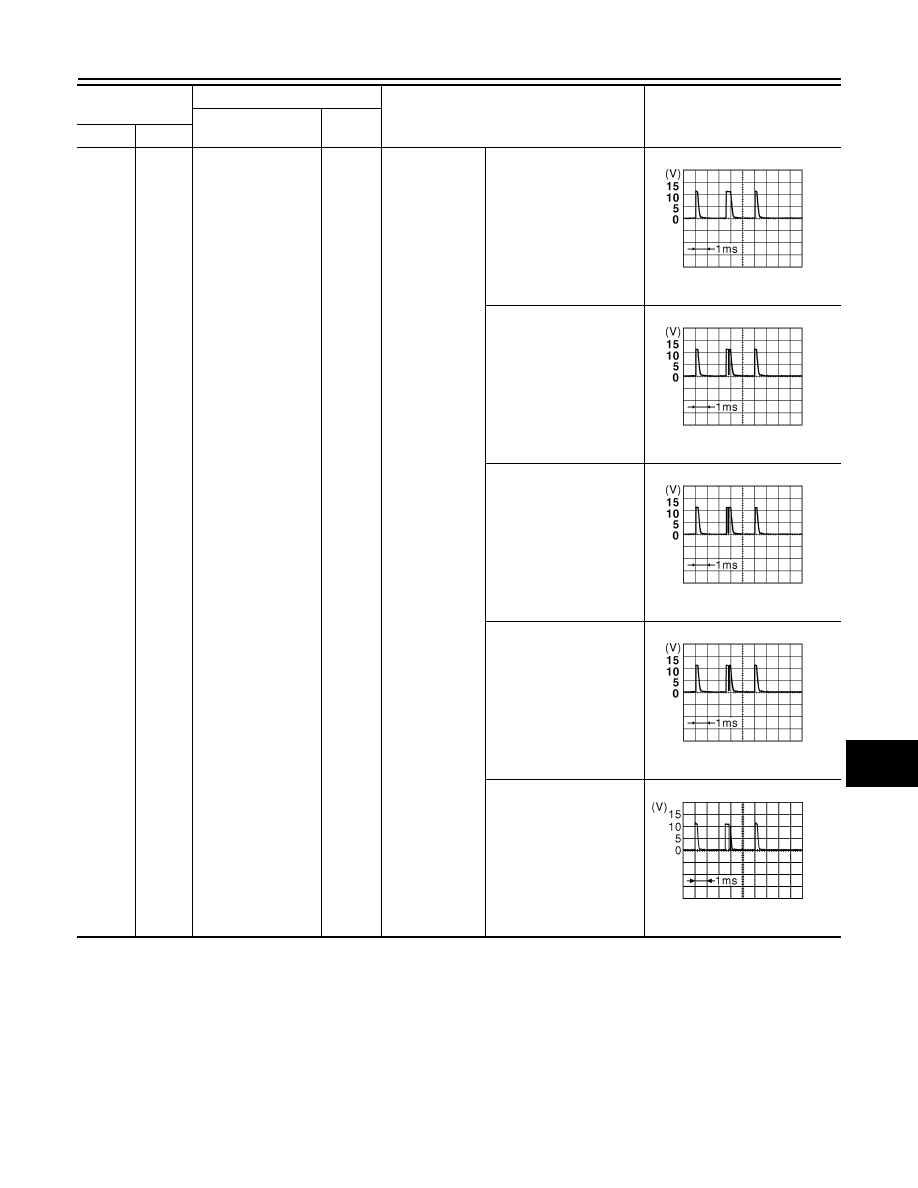

32

(G)

Ground

Combination switch
INPUT 2

Input

Combination
switch
(Wiper intermit-
tent dial 4)

All switch OFF

1.4 V

Lighting switch PASS

1.3 V

Lighting switch 2ND

1.3 V

Front wiper switch INT

1.3 V

Front wiper switch HI

1.3 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−

JPMIA0165GB

JPMIA0167GB

JPMIA0166GB

JPMIA0168GB

JPMIA0196GB
