ILLUMINATION

Wiring Diagram - ILLUMINATION -

INFOID:0000000001033391

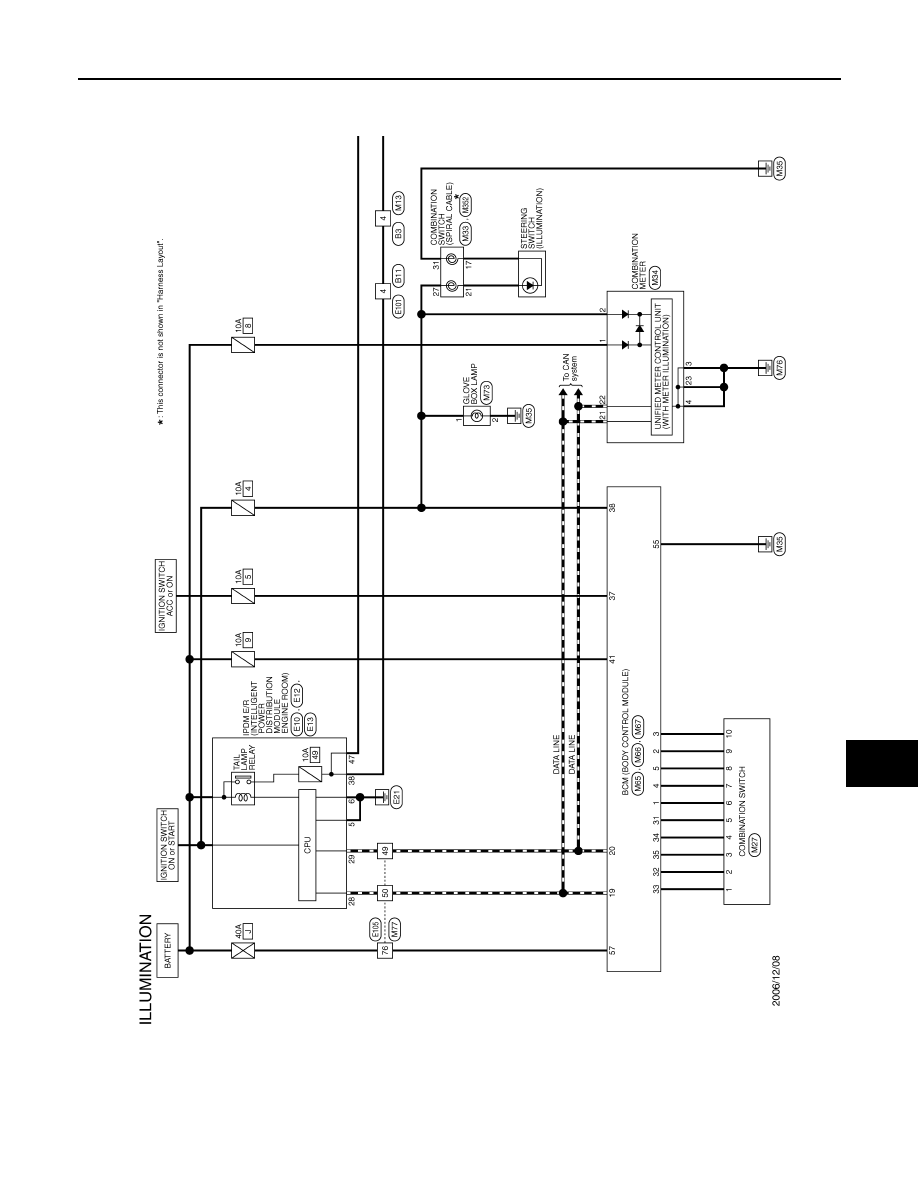

JCLWA0384GB

INL-32

< COMPONENT DIAGNOSIS >

ILLUMINATION

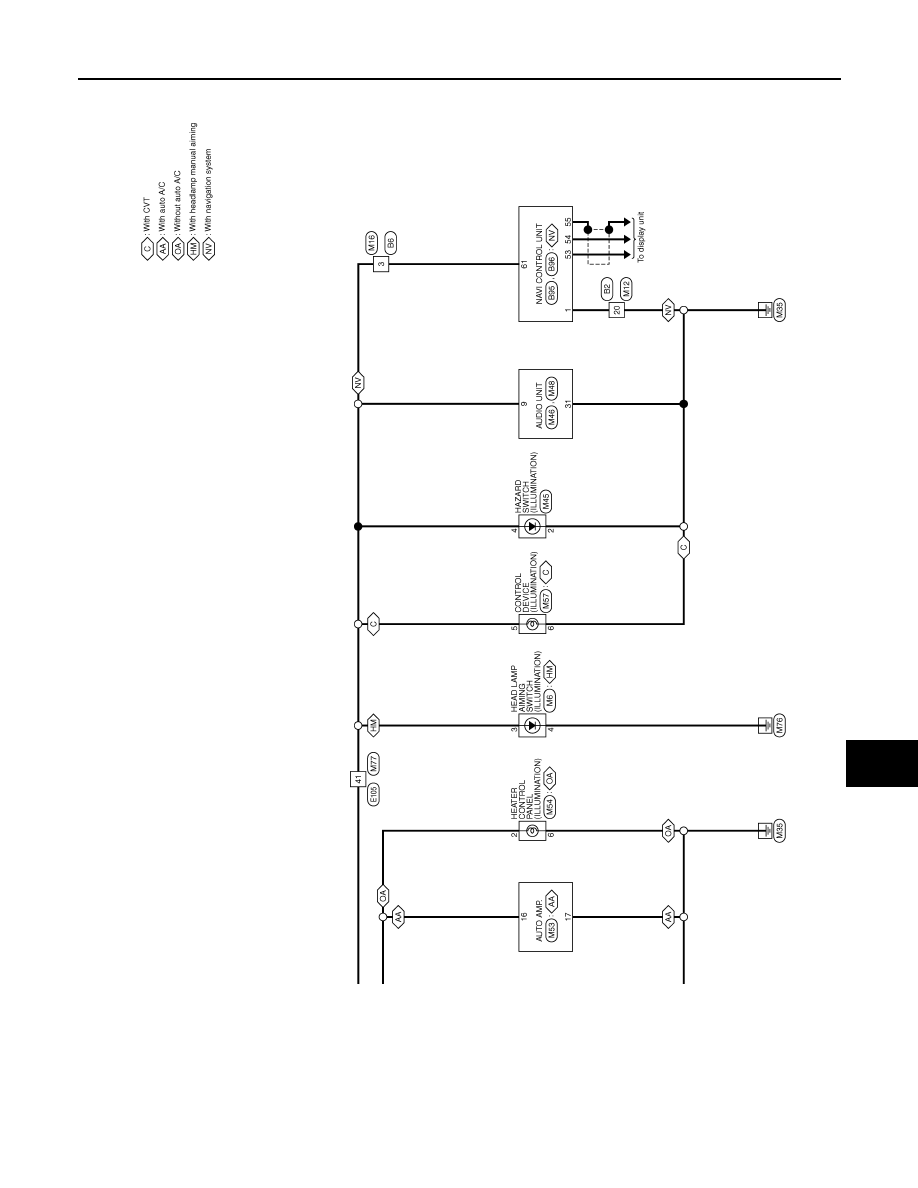

JCLWA0385GB

ILLUMINATION

INL-33

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

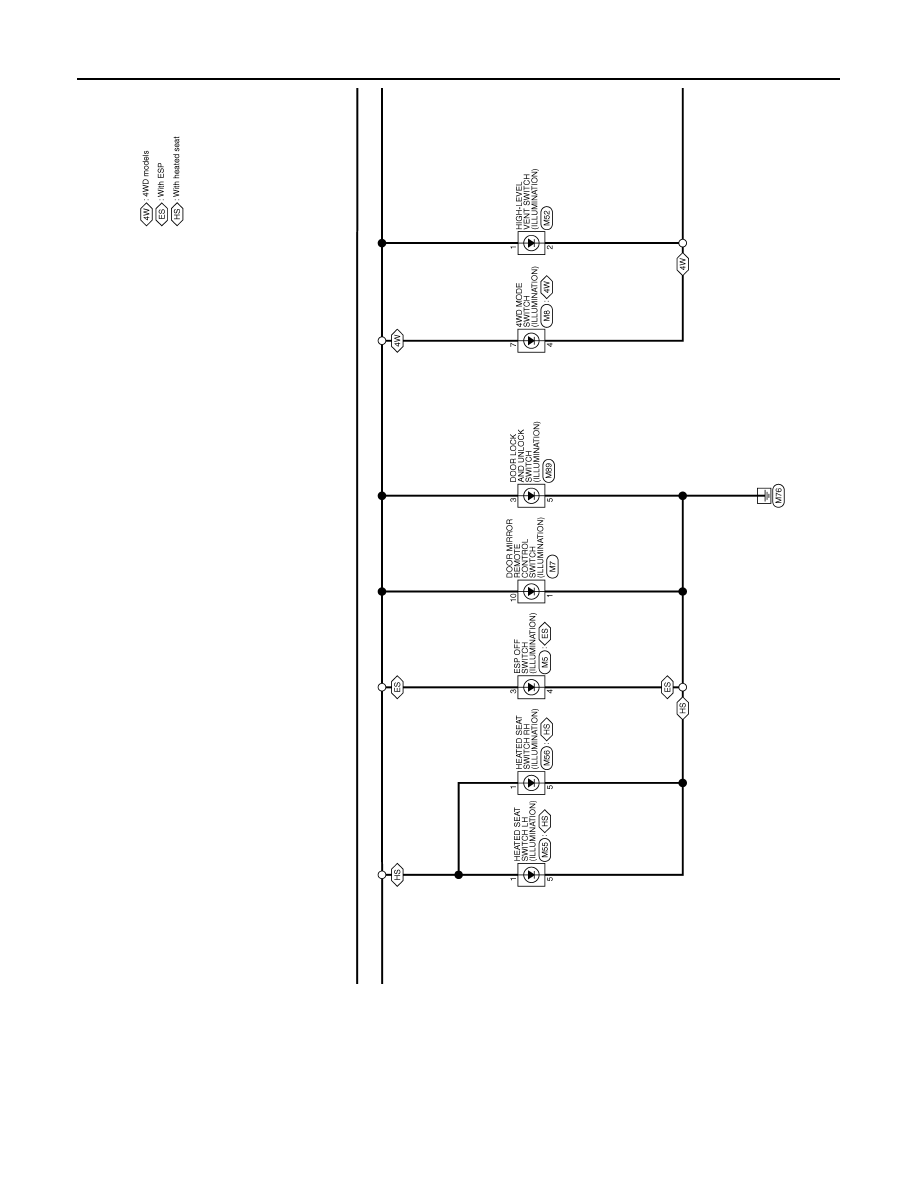

JCLWA0386GB

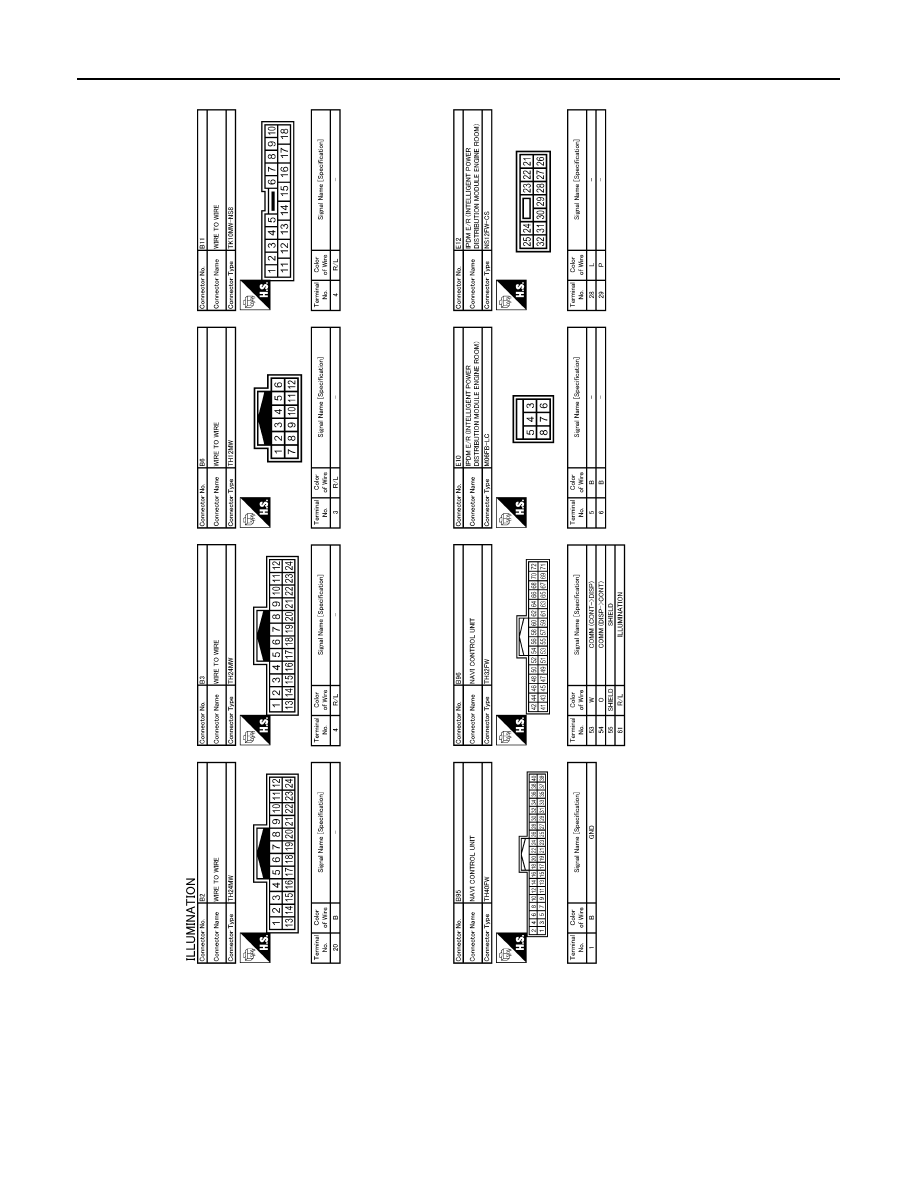

INL-34

< COMPONENT DIAGNOSIS >

ILLUMINATION

JCLWA0387GB
