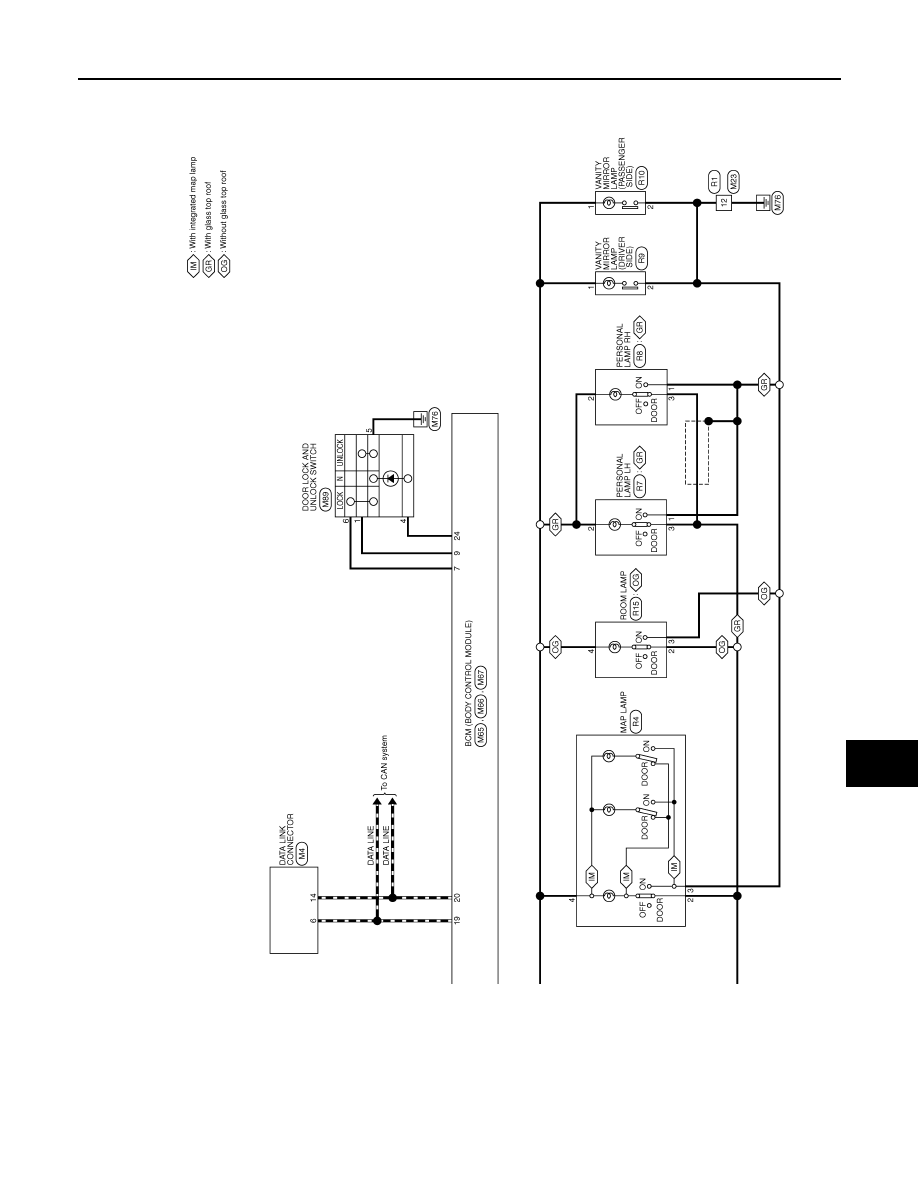

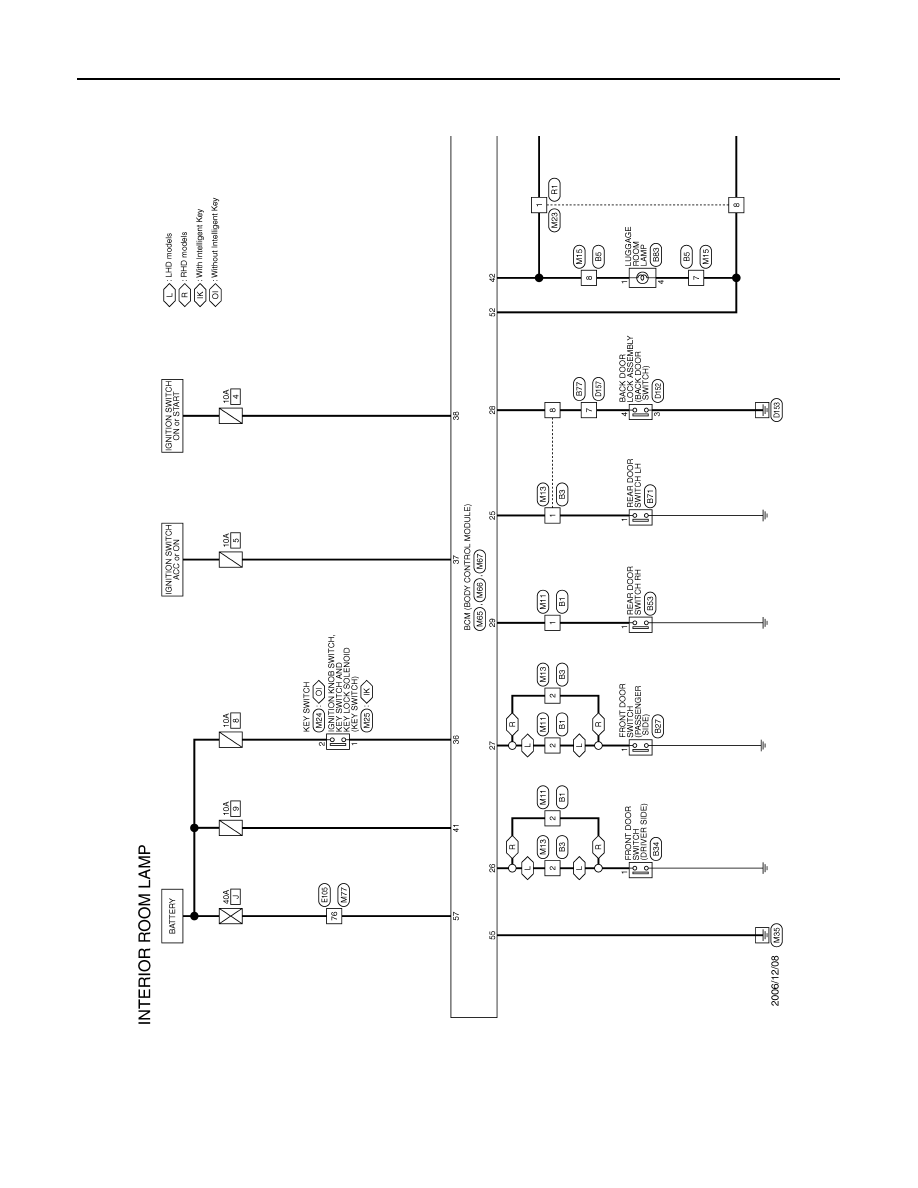

INTERIOR ROOM LAMP CONTROL CIRCUIT
INL-23
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
M
A
B
INL
N
O
P
2.
CHECK INTERIOR ROOM LAMP CONTROL OPEN CIRCUIT
1.
Turn ignition switch OFF.
2.
Disconnect the following connectors.
-
Map lamp
-
Room lamp
-
Personal lamp (RH)
-
Personal lamp (LH)
-
Luggage room lamp
3.
Check continuity between BCM harness connector, map lamp harness connector, and personal lamp har-
ness connector.
Does continuity exist?
YES
>> Replace the map lamp or the personal lamp.
NO
>> Repair the harnesses or connectors.
3.
CHECK INTERIOR ROOM LAMP CONTROL SHORT CIRCUIT
1.
Turn ignition switch OFF.
2.
Disconnect BCM connector, map lamp connector and personal lamp connector.
3.
Check continuity between BCM harness connector and ground.
Does continuity exist?
YES
>> Repair the harnesses or connectors.
NO
>> Replace BCM. Refer to
.
BCM
Map lamp/personal lamp
Continuity
Connec-
tor
Terminal
Connector
Terminal
M66
52
Map lamp
R4
2
Existed
Room lamp
R15
2
Personal
lamp (RH)
R8
3
Personal
lamp (LH)
R7
3
Luggage
room lamp
B83
4
BCM
Ground
Continuity
Connector
Terminal
M66
52
Not existed
