HEADLAMP SYSTEM

EXL-241

< COMPONENT DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

JCLWA0340GB

EXL-242

< COMPONENT DIAGNOSIS >

[HALOGEN TYPE]

HEADLAMP AIMING CONTROL SYSTEM (MANUAL)

HEADLAMP AIMING CONTROL SYSTEM (MANUAL)

Description

INFOID:0000000001026199

The headlamp levelizer adjusts the headlamp light axis upward and downward with the aiming motor inte-
grated in the front combination lamp.

Wiring Diagram - HEADLAMP AIMING CONTROL SYSTEM (MANUAL) -

INFOID:0000000001078331

JCLWA0351GB

HEADLAMP AIMING CONTROL SYSTEM (MANUAL)

EXL-243

< COMPONENT DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Component Inspection

INFOID:0000000001026664

1.

CHECK HEADLAMP AIMING SWITCH

1.

Remove the headlamp aiming switch.

JCLWA0352GB

EXL-244

< COMPONENT DIAGNOSIS >

[HALOGEN TYPE]

HEADLAMP AIMING CONTROL SYSTEM (MANUAL)

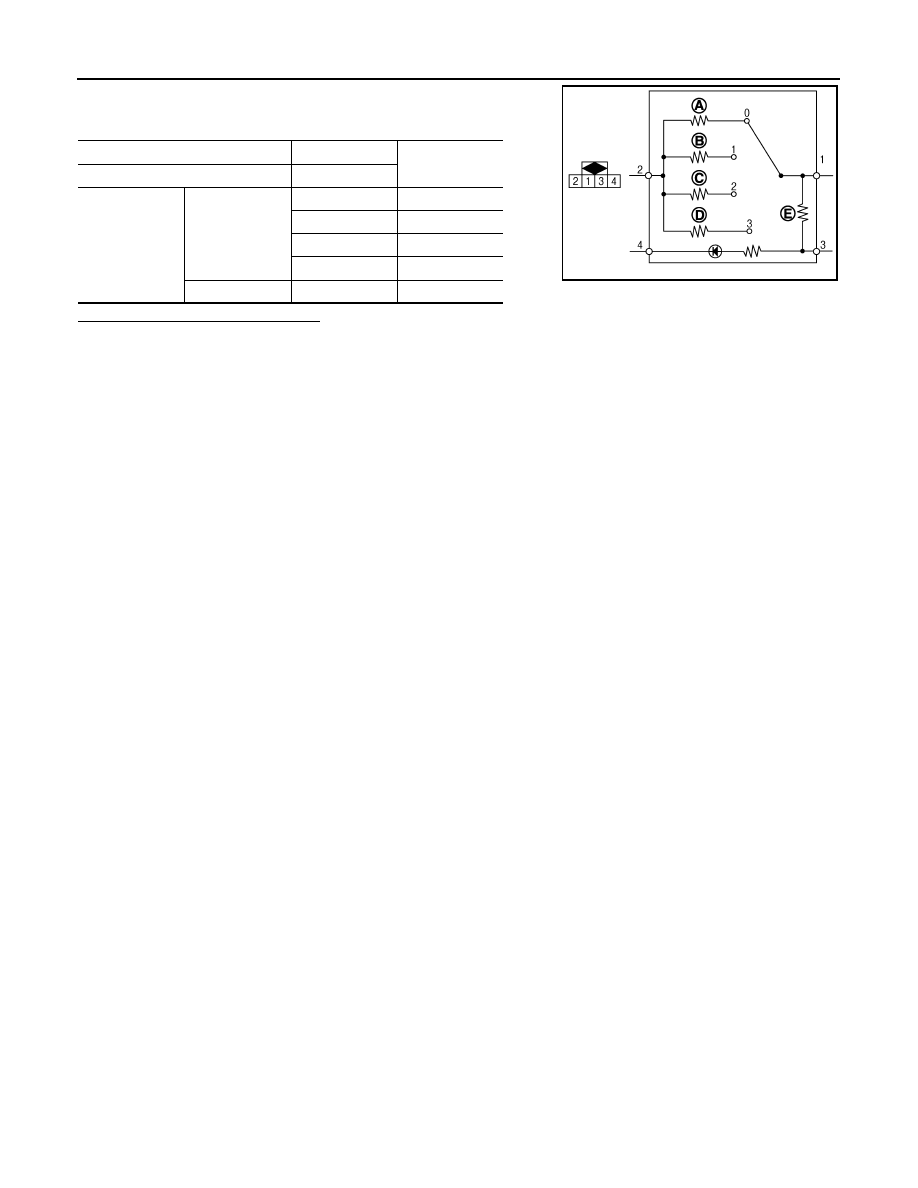

2.

Check the resistance among each headlamp aiming switch ter-
minal.

Is the measurement value normal?

YES

>> Headlamp aiming switch is normal.

NO

>> Replace the headlamp aiming switch.

Headlamp aiming switch

Condition

Resistance

(Approx.)

Terminal

Switch position

1

2

0

A: 160

Ω

1

B: 374

Ω

2

C: 576

Ω

3

D: 931

Ω

3

—

E: 390

Ω

JSLIA0084ZZ
