REAR FOG LAMP CIRCUIT

EXL-237

< COMPONENT DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

4.

CHECK REAR FOG LAMP SHORT CIRCUIT

Check continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> GO TO 5.

NO

>> Repair the harnesses or connectors.

5.

CHECK REAR FOG LAMP GROUND OPEN CIRCUIT

Check continuity between rear fog lamp harness connector and ground.

Does continuity exist?

YES

>> Replace the rear fog lamp.

NO

>> Repair the harnesses or connectors.

BCM

Ground

Continuity

Connector

Terminal

M66

49

Not existed

Rear fog lamp

Ground

Continuity

Connector

Terminal

B90

2

Existed

EXL-238

< COMPONENT DIAGNOSIS >

[HALOGEN TYPE]

HEADLAMP SYSTEM

HEADLAMP SYSTEM

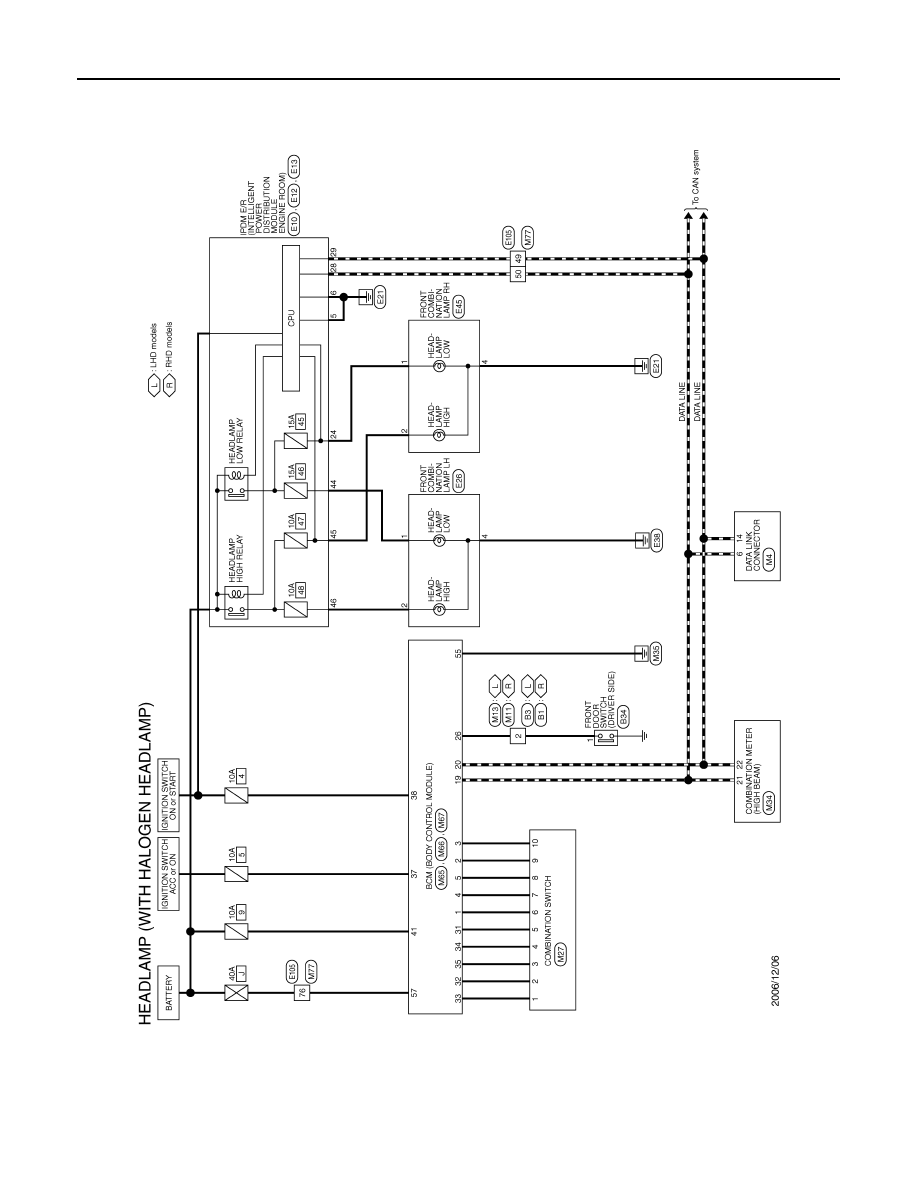

Wiring Diagram - HEADLAMP -

INFOID:0000000001026223

JCLWA0337GB

HEADLAMP SYSTEM

EXL-239

< COMPONENT DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

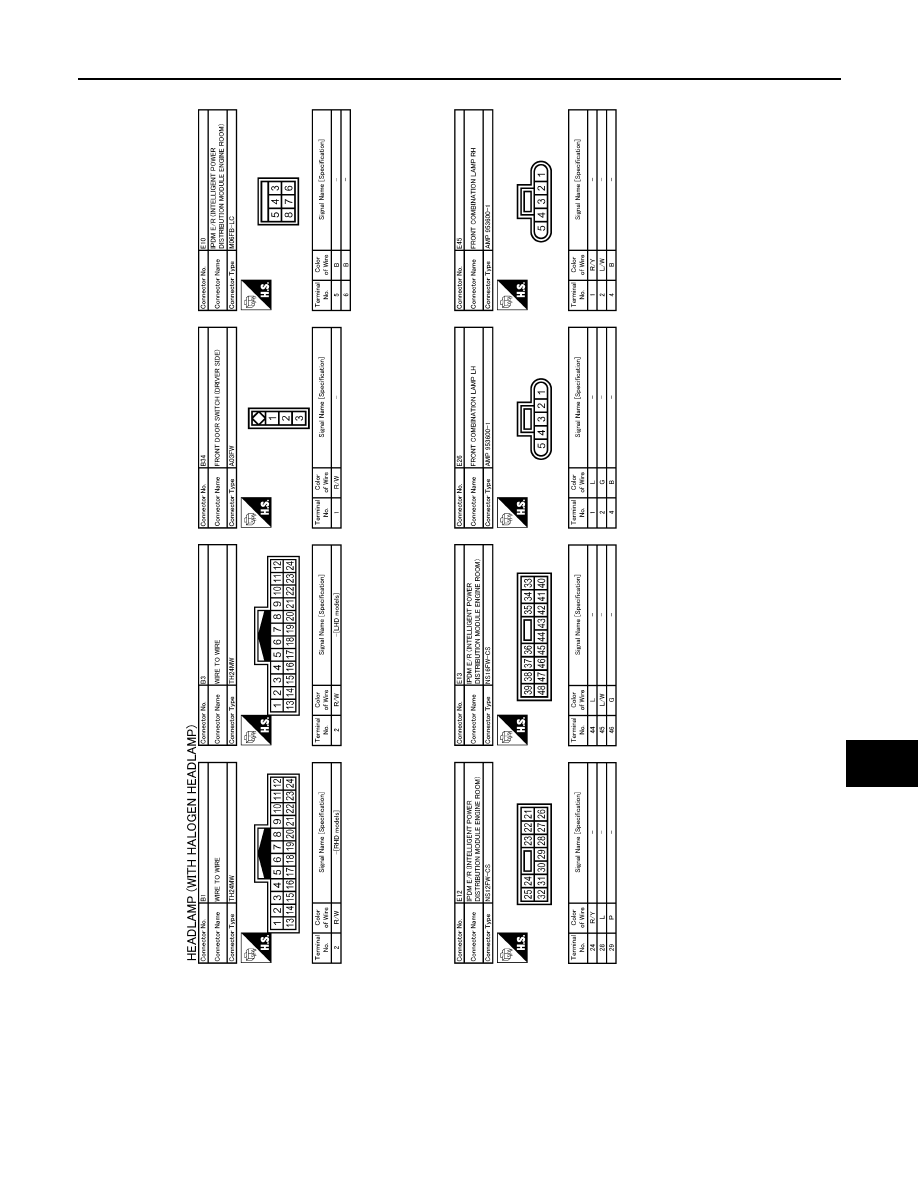

JCLWA0338GB

EXL-240

< COMPONENT DIAGNOSIS >

[HALOGEN TYPE]

HEADLAMP SYSTEM

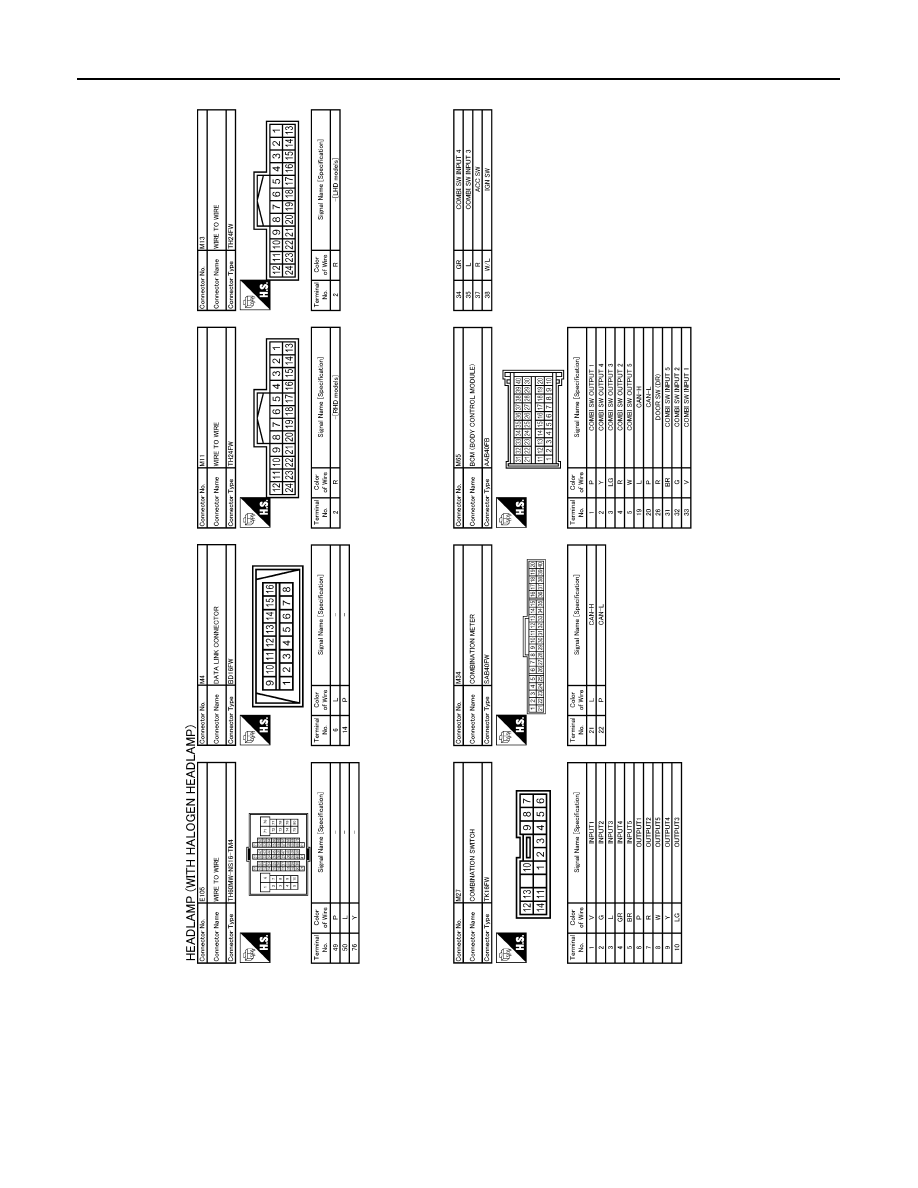

JCLWA0339GB
