COOLING FAN CONTROL

EC-71

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

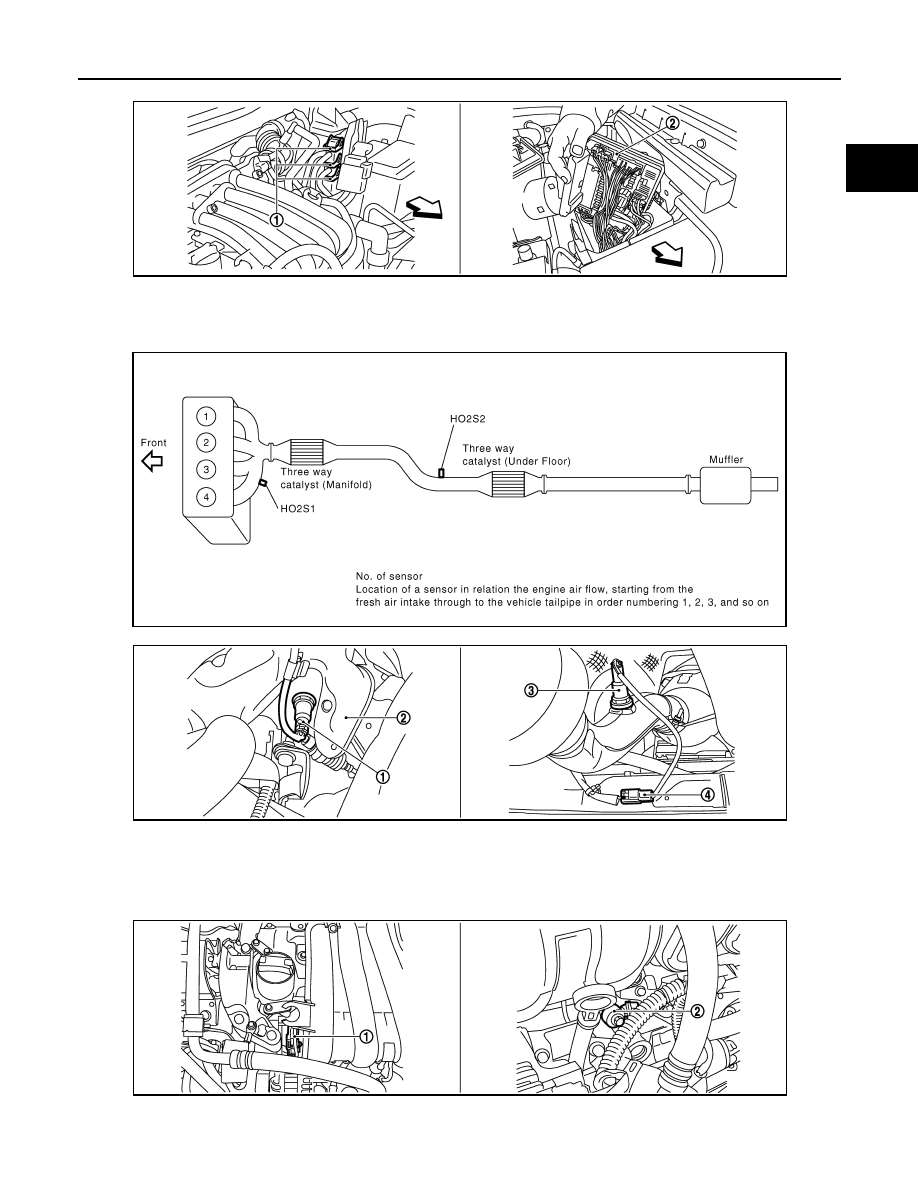

1.

ECM harness connector

2.

IPDM E/R

Vehicle front

JMBIA0403ZZ

PBIB2942E

1.

Heated oxygen sensor 1

2.

Exhaust manifold cover

3.

Heated oxygen sensor 2

4.

Heated oxygen sensor 2 harness
connector

1.

Intake valve timing control solenoid
valve

2.

Knock sensor

JMBIA0406ZZ

JMBIA0404ZZ

EC-72

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

COOLING FAN CONTROL

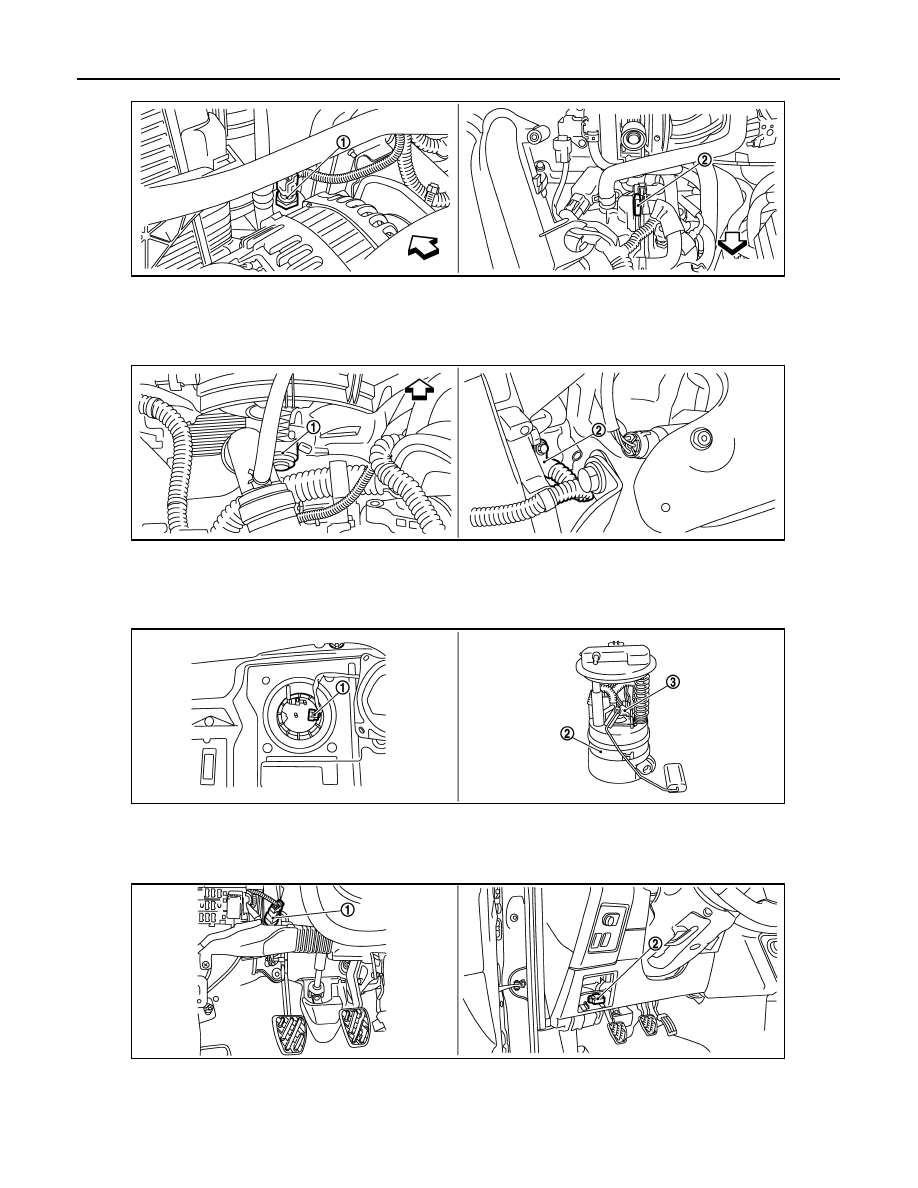

1.

Refrigerant pressure sensor

2.

PCV valve

Vehicle front

1.

Cooling fan motor

2.

Crankshaft position sensor (POS)

Vehicle front

1.

Fuel level sensor unit and fuel pump
harness connector

2.

Fuel level sensor unit and fuel pump  3.

Fuel pressure regulator

1.

ASCD clutch switch

2.

Data link connector

JMBIA0405ZZ

JMBIA0407ZZ

JMBIA0346ZZ

JMBIA0347ZZ

COOLING FAN CONTROL

EC-73

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

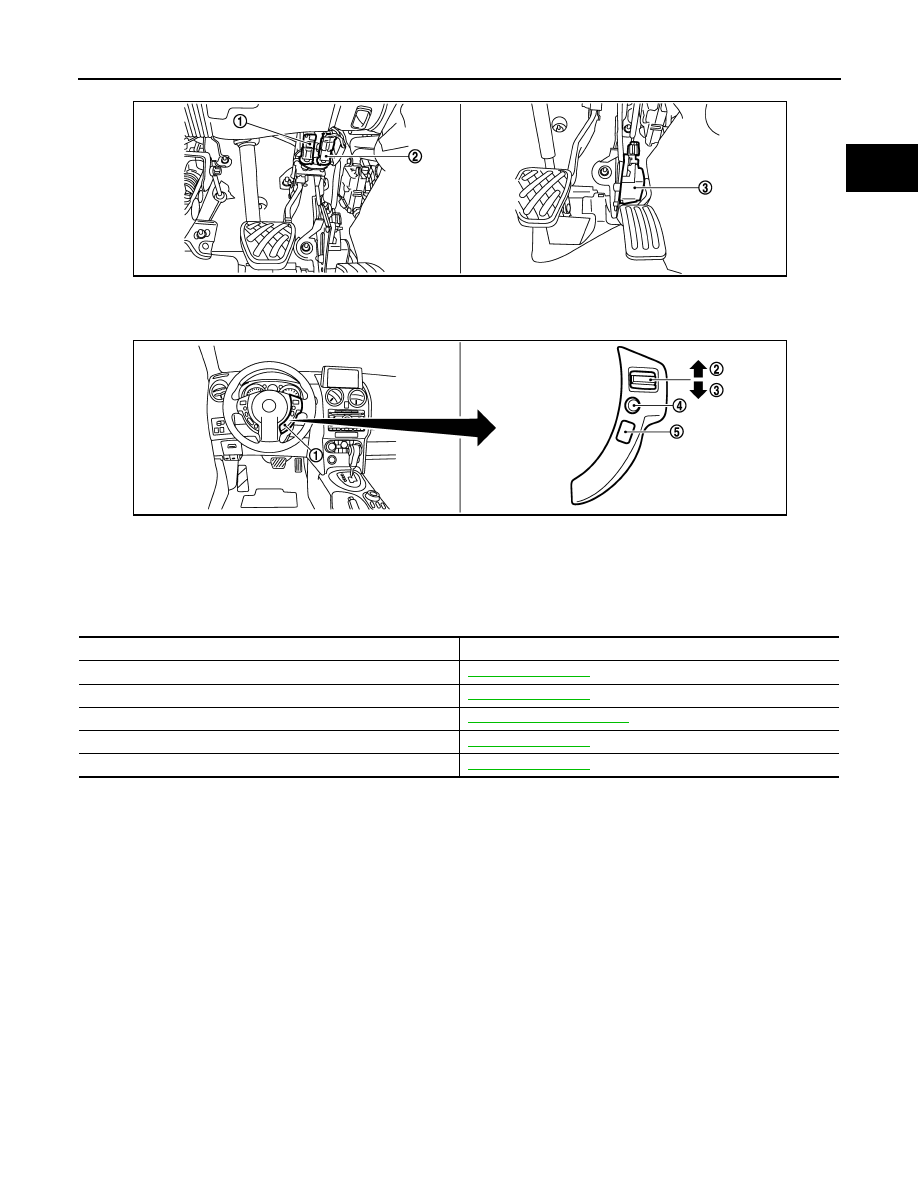

Component Description

INFOID:0000000001056153

1.

Stop lamp switch

2.

ASCD brake pedal

3.

Accelerator pedal position sensor

1.

ASCD steering switch

2.

CANSEL switch

3.

RESUME/ACCELERATE switch

4.

SET/COAST switch

5.

MAIN switch

JMBIA0348ZZ

JMBIA0349ZZ

Component

Reference

Camshaft position sensor (PHASE)

EC-197, "Description"

Crankshaft position sensor (POS)

EC-193, "Description"

Cooling fan motor

EC-68, "System Description"

Engine coolant temperature sensor

EC-135, "Description"

Refrigerant pressure sensor

EC-316, "Description"

EC-74

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

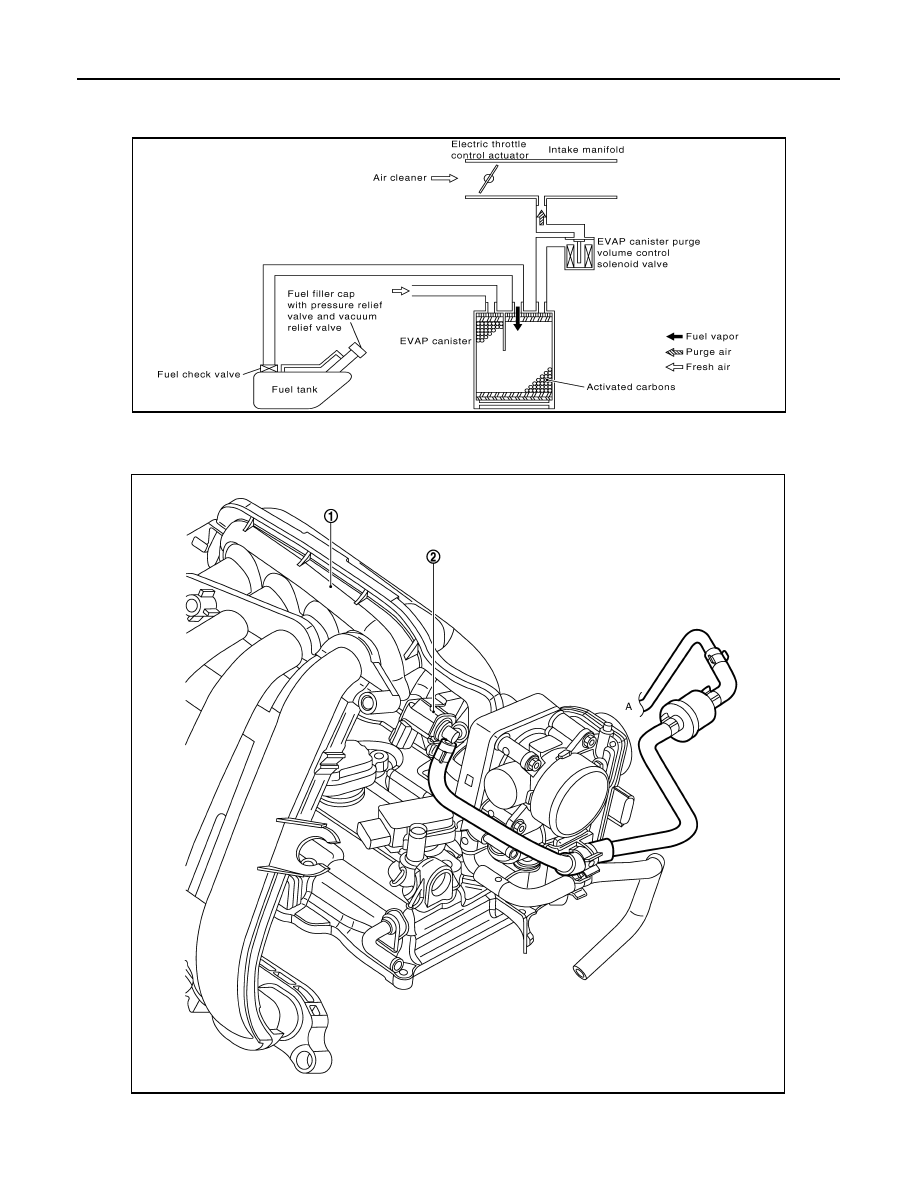

EVAPORATIVE EMISSION SYSTEM

EVAPORATIVE EMISSION SYSTEM

System Diagram

INFOID:0000000001056154

EVAPORATIVE EMISSION LINE DRAWING

PBIB3039E

JMBIA0413ZZ
