AUTOMATIC SPEED CONTROL DEVICE (ASCD)

EC-63

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

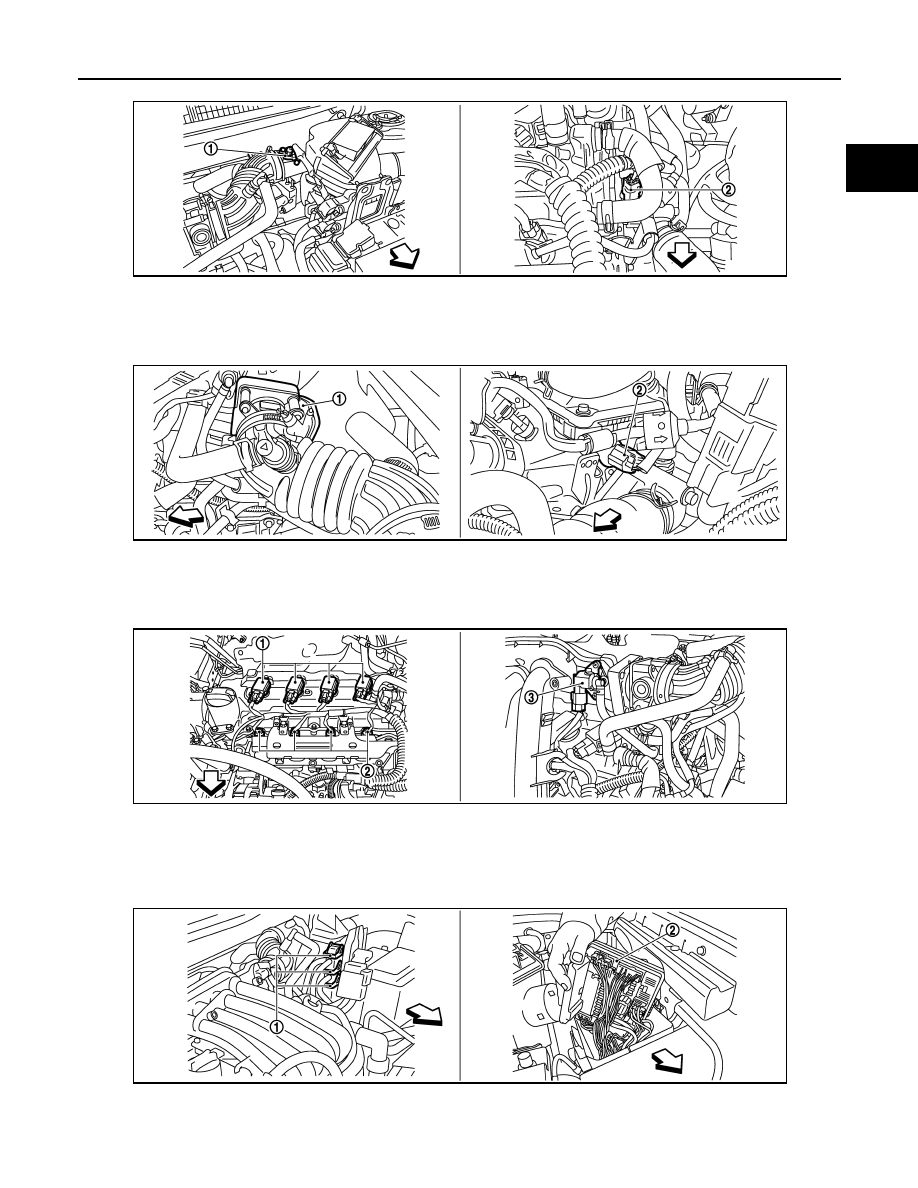

1.

Mass air flow sensor

2.

Engine coolant temperature sensor

Vehicle front

1.

Electric throttle control actuator

2.

Camshaft position sensor (PHASE)

Vehicle front

1.

Ignition coil (with power transistor)
and spark plug

2.

Fuel injector

3

EVAP canister purge volume control
solenoid valve

Vehicle front

1.

ECM harness connector

2.

IPDM E/R

Vehicle front

JMBIA0400ZZ

JMBIA0401ZZ

JMBIA0402ZZ

JMBIA0403ZZ

EC-64

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

PBIB2942E

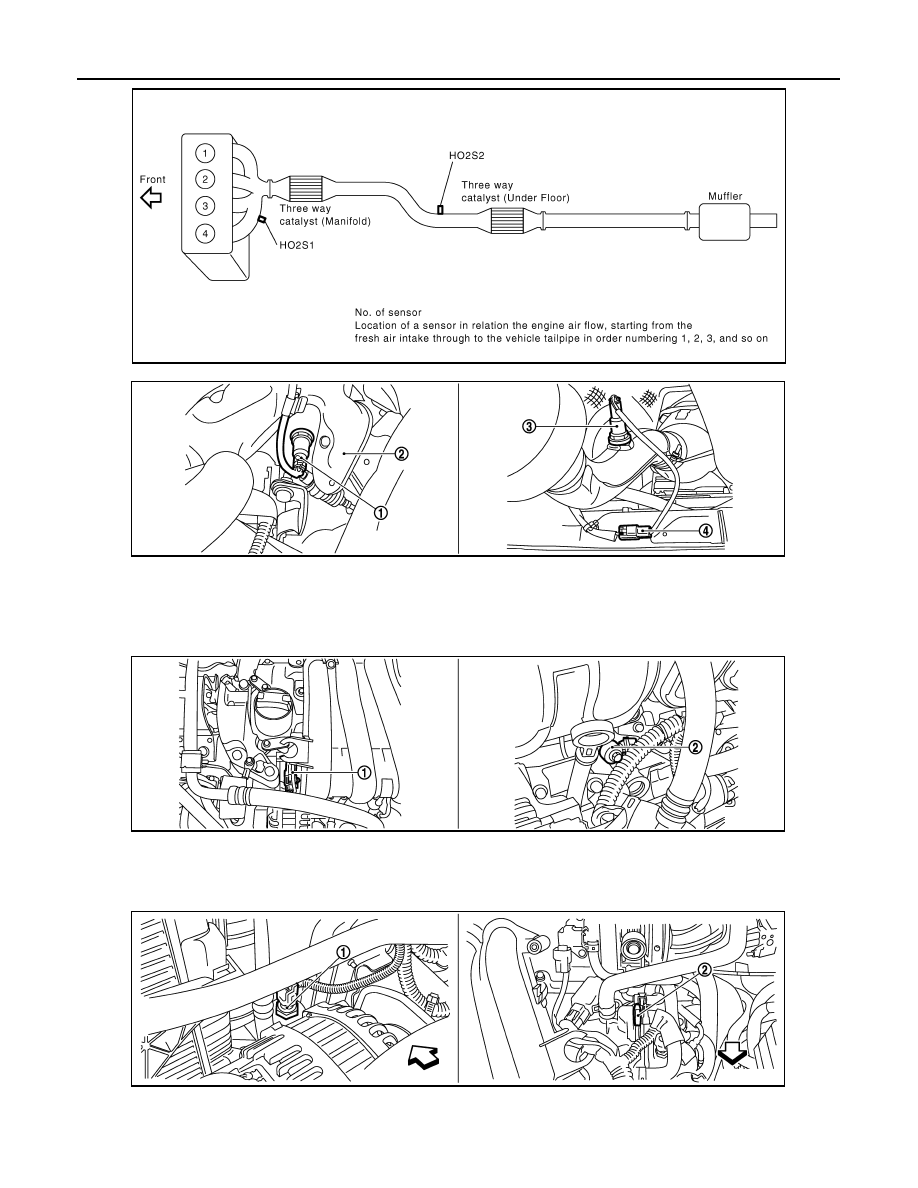

1.

Heated oxygen sensor 1

2.

Exhaust manifold cover

3.

Heated oxygen sensor 2

4.

Heated oxygen sensor 2 harness
connector

1.

Intake valve timing control solenoid
valve

2.

Knock sensor

1.

Refrigerant pressure sensor

2.

PCV valve

Vehicle front

JMBIA0406ZZ

JMBIA0404ZZ

JMBIA0405ZZ

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

EC-65

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

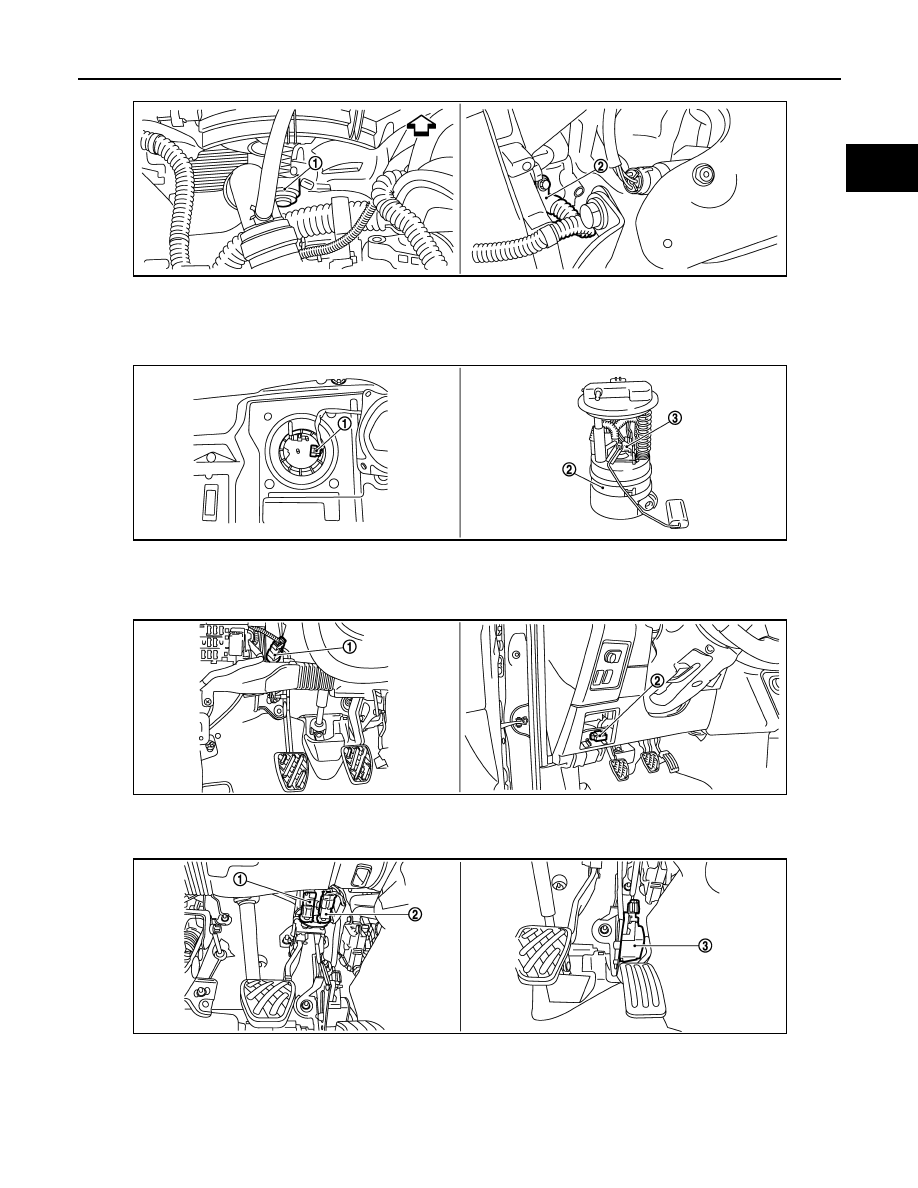

1.

Cooling fan motor

2.

Crankshaft position sensor (POS)

Vehicle front

1.

Fuel level sensor unit and fuel pump
harness connector

2.

Fuel level sensor unit and fuel pump  3.

Fuel pressure regulator

1.

ASCD clutch switch

2.

Data link connector

1.

Stop lamp switch

2.

ASCD brake pedal

3.

Accelerator pedal position sensor

JMBIA0407ZZ

JMBIA0346ZZ

JMBIA0347ZZ

JMBIA0348ZZ

EC-66

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

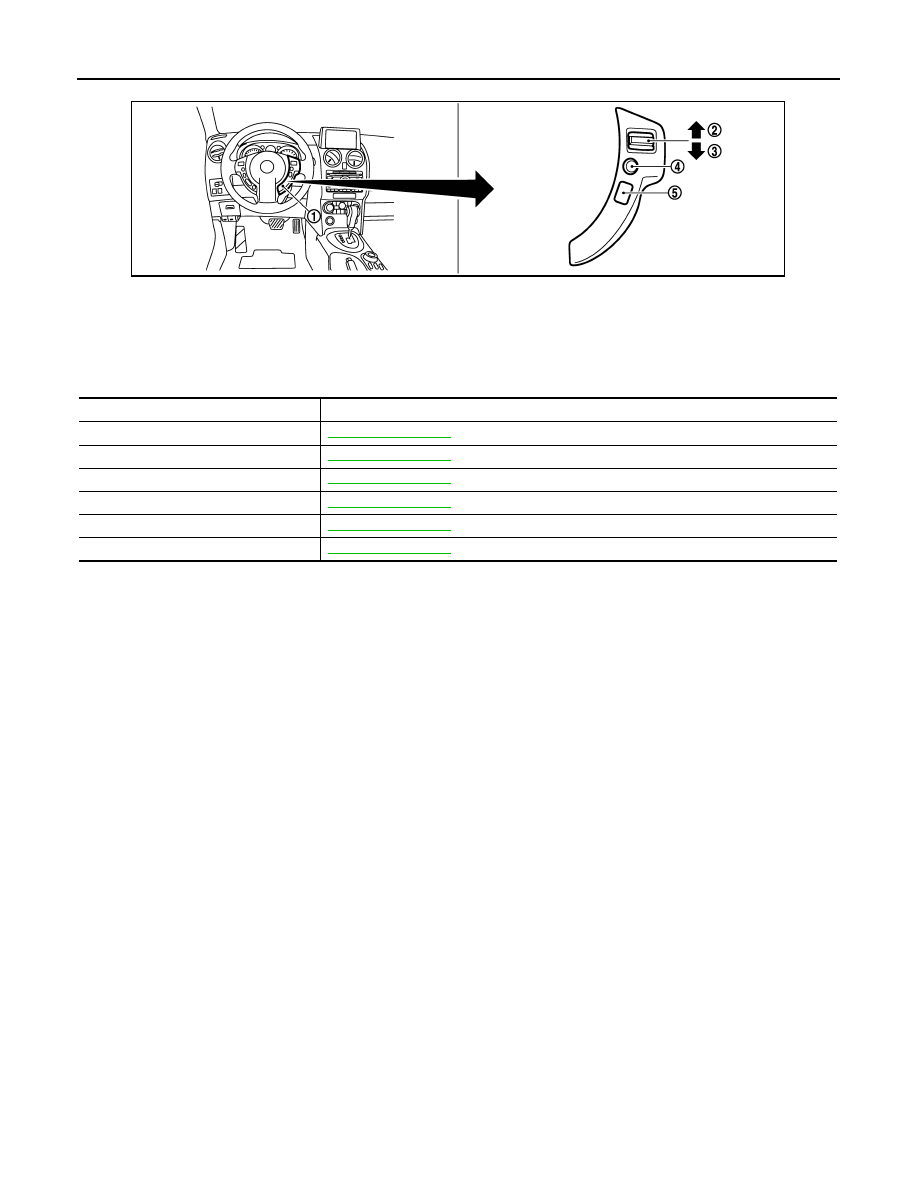

Component Description

INFOID:0000000001056148

1.

ASCD steering switch

2.

CANSEL switch

3.

RESUME/ACCELERATE switch

4.

SET/COAST switch

5.

MAIN switch

JMBIA0349ZZ

Component

Reference

ASCD steering switch

EC-263, "Description"

ASCD clutch switch

EC-294, "Description"

ASCD brake switch

EC-294, "Description"

ASCD indicator

EC-298, "Description"

Stop lamp switch

EC-277, "Description"

Electric throttle control actuator

EC-217, "Description"
