DIAGNOSIS SYSTEM (IPDM E/R)

EXL-209

< FUNCTION DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

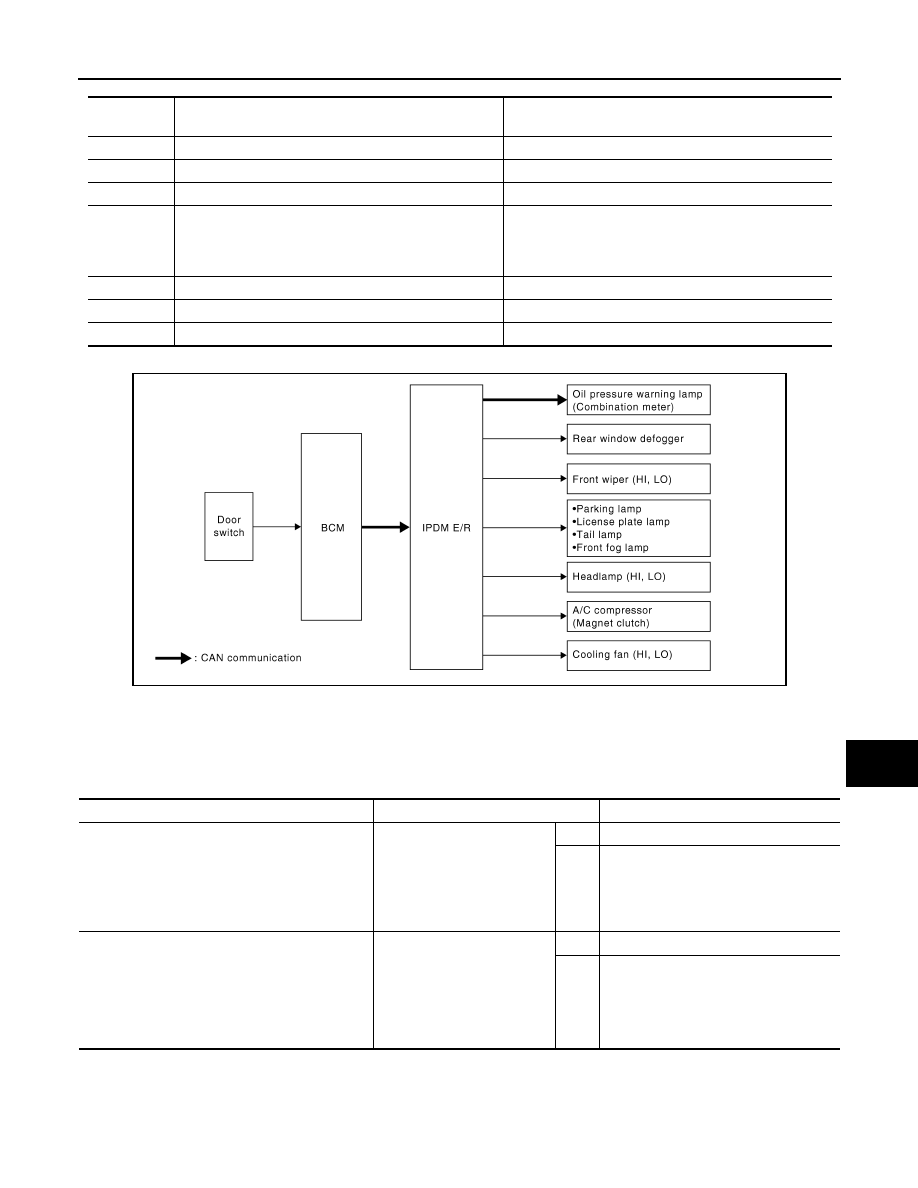

Concept of auto active test

• IPDM E/R starts the auto active test with the door switch signals transmitted by BCM via CAN communica-

tion. Therefore, the CAN communication line between IPDM E/R and BCM is considered normal if the auto
active test starts successfully.

• The auto active test facilitates troubleshooting if any systems controlled by IPDM E/R cannot be operated.

Diagnosis chart in auto active test mode

Operation
sequence

Inspection location

Operation

1

Oil pressure warning lamp

Blinks continuously during operation of auto active test.

2

Rear window defogger

10 seconds

3

Front wiper

LO for 5 seconds

→

 HI for 5 seconds

4

• Parking  lamps
• License plate lamps
• Tail lamps
• Front fog lamps

10 seconds

5

Headlamps

LO

⇔

 HI 5 times

6

A/C compressor (magnet clutch)

ON

⇔

 OFF 5 times

7

Cooling fan

LO for 5 seconds

→

 HI for 5 seconds

JPMIA0235GB

Symptom

Inspection contents

Possible cause

Rear window defogger does not operate

Perform auto active test.
Does the rear window defog-
ger operate?

YES

BCM signal input circuit

NO

• Rear window defogger
• Rear window defogger ground circuit
• Harness or connector between IPDM

E/R and rear window defogger

• IPDM E/R

Any of the following components do not operate
• Parking lamps
• License plate lamps
• Tail  lamps
• Front fog lamps
• Headlamp (HI, LO)
• Front wiper (HI, LO)

Perform auto active test.
Does the applicable system
operate?

YES

BCM signal input circuit

NO

• Lamp or motor
• Lamp or motor ground circuit
• Harness or connector between IPDM

E/R and applicable system

• IPDM E/R

EXL-210

< FUNCTION DIAGNOSIS >

[HALOGEN TYPE]

DIAGNOSIS SYSTEM (IPDM E/R)

NOTE:

*: MR engine and K9K engine models

CONSULT - III Function (IPDM E/R)

INFOID:0000000001099349

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with IPDM E/R.

SELF DIAGNOSTIC

Refer to

EXL-310, "DTC Index"

.

DATA MONITOR

Monitor item

A/C compressor does not operate

Perform auto active test.
Does the magnet clutch oper-
ate?

YES

• Communication signal between BCM

and auto amp. (with auto A/C)

• Communication signal between BCM

and heater control panel (without auto
A/C, with manual A/C)

• BCM
• CAN communication signal between

BCM and ECM

• CAN communication signal between

ECM and IPDM E/R

NO

• Magnet clutch
• Harness or connector between IPDM

E/R and magnet clutch

• IPDM E/R

Oil pressure warning lamp does not operate

Perform auto active test.
Does the oil pressure warning
lamp blink?

YES

• Harness or connector between IPDM

E/R and oil pressure switch

• Oil pressure switch
• IPDM E/R

NO

• CAN communication signal between

IPDM E/R and BCM

• CAN communication signal between

BCM and combination meter

• Combination meter

Cooling fan does not operate

Perform auto active test.
Does the cooling fan operate?

YES

• ECM signal input circuit
• CAN communication signal between

ECM and IPDM E/R

NO

• Cooling fan
• Cooling fan ground circuit
• Harness or connector between IPDM

E/R and cooling fan

• IPDM E/R
• Cooling fan relay-3*
• Harness or connector between IPDM

E/R and cooling fan relay-3*

• Harness or connector between cooling

fan and cooling fan relay-3*

Symptom

Inspection contents

Possible cause

Diagnosis mode

Description

Ecu Identification

Allows confirmation of IPDM E/R part number.

Self Diagnostic Result

Displays the diagnosis results judged by IPDM E/R.

Data Monitor

Displays the real-time input/output data from IPDM E/R input/output data.

Active Test

IPDM E/R can provide a drive signal to electronic components to check their operations.

CAN Diag Support Monitor

The results of transmit/receive diagnosis of CAN communication can be read.

DIAGNOSIS SYSTEM (IPDM E/R)

EXL-211

< FUNCTION DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ACTIVE TEST

Test item

Monitor Item

[Unit]

MAIN

SIGNALS

Description

MOTOR FAN REQ
[1 - 4]

×

Displays the value of the cooling fan speed signal received from ECM via CAN commu-
nication.

AC COMP REQ
[Off/On]

×

Displays the status of the A/C compressor request signal received from ECM via CAN
communication.

TAIL&CLR REQ
[Off/On]

×

Displays the status of the position light request signal received from BCM via CAN com-
munication.

HL LO REQ
[Off/On]

×

Displays the status of the low beam request signal received from BCM via CAN commu-
nication.

HL HI REQ
[Off/On]

×

Displays the status of the high beam request signal received from BCM via CAN com-
munication.

FR FOG REQ
[Off/On]

×

Displays the status of the front fog light request signal received from BCM via CAN com-
munication.

HL WASHER REQ
[Off/On]

Displays the status of the headlamp washer request signal received from BCM via CAN
communication.

FR WIP REQ
[Stop/1LOW/Low/Hi]

×

Displays the status of the front wiper request signal received from BCM via CAN com-
munication.

WIP AUTO STOP
[STOP P/ACT P]

×

Displays the status of the front wiper auto stop signal judged by IPDM E/R.

WIP PROT
[Off/BLOCK]

×

Displays the status of the front wiper fail-safe operation judged by IPDM E/R.

ST RLY REQ
[Off/On]

Displays the status of the ignition and starter request signal received from BCM via CAN
communication.

IGN RLY
[Off/On]

×

Displays the status of the ignition relay judged by IPDM E/R.

RR DEF REQ
[Off/On]

×

Displays the status of the rear defogger request signal received from BCM via CAN com-
munication.

OIL P SW
[Open/Close]

Displays the status of the oil pressure switch judged by IPDM E/R.

REV SW
[Off/On]

Displays the status of the reverse switch judged by IPDM E/R.

HOOD SW
[Off/On]

Displays the status of the hood switch judged by IPDM E/R.
NOTE:
This item is monitored only the vehicle with the Vehicle Security (Theft Warning) system.

THFT HRN REQ
[Off/On]

Displays the status of the theft warning horn request signal received from BCM via CAN
communication.
NOTE:
This item is monitored only the vehicle with the Vehicle Security (Theft Warning) system.

HORN CHIRP
[Off/On]

NOTE:
This item is indicated, but not monitored.

IGN ON SW
[Off/On]

Displays the status of the ignition switch judged by IPDM E/R.

Test item

Operation

Description

REAR DEFOGGER

Off

OFF

On

Operates the rear window defogger relay.

FRONT WIPER

Off

OFF

Lo

Operates the front wiper relay.

Hi

Operates the front wiper relay and front wiper high relay.

EXL-212

< FUNCTION DIAGNOSIS >

[HALOGEN TYPE]

DIAGNOSIS SYSTEM (IPDM E/R)

MOTOR FAN

1

OFF

2

Operates the cooling fan relay (low operation).

3

Operates the cooling fan relay (high operation).

4

HEAD LAMP WASHER

On

Operates the headlamp washer relay for 1 second.

EXTERNAL LAMPS

Off

OFF

TAIL

Operates the tail lamp relay.

Lo

Operates the headlamp low relay.

Hi

Operates the headlamp low relay and ON/OFF the headlamp high relay at 1 sec-
ond intervals.

Fog

Operates the front fog lamp relay.

HORN

On

Operates horn relay for 20 ms.

Test item

Operation

Description
