DAYTIME RUNNING LIGHT SYSTEM

EXL-193

< FUNCTION DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DAYTIME RUNNING LIGHT SYSTEM

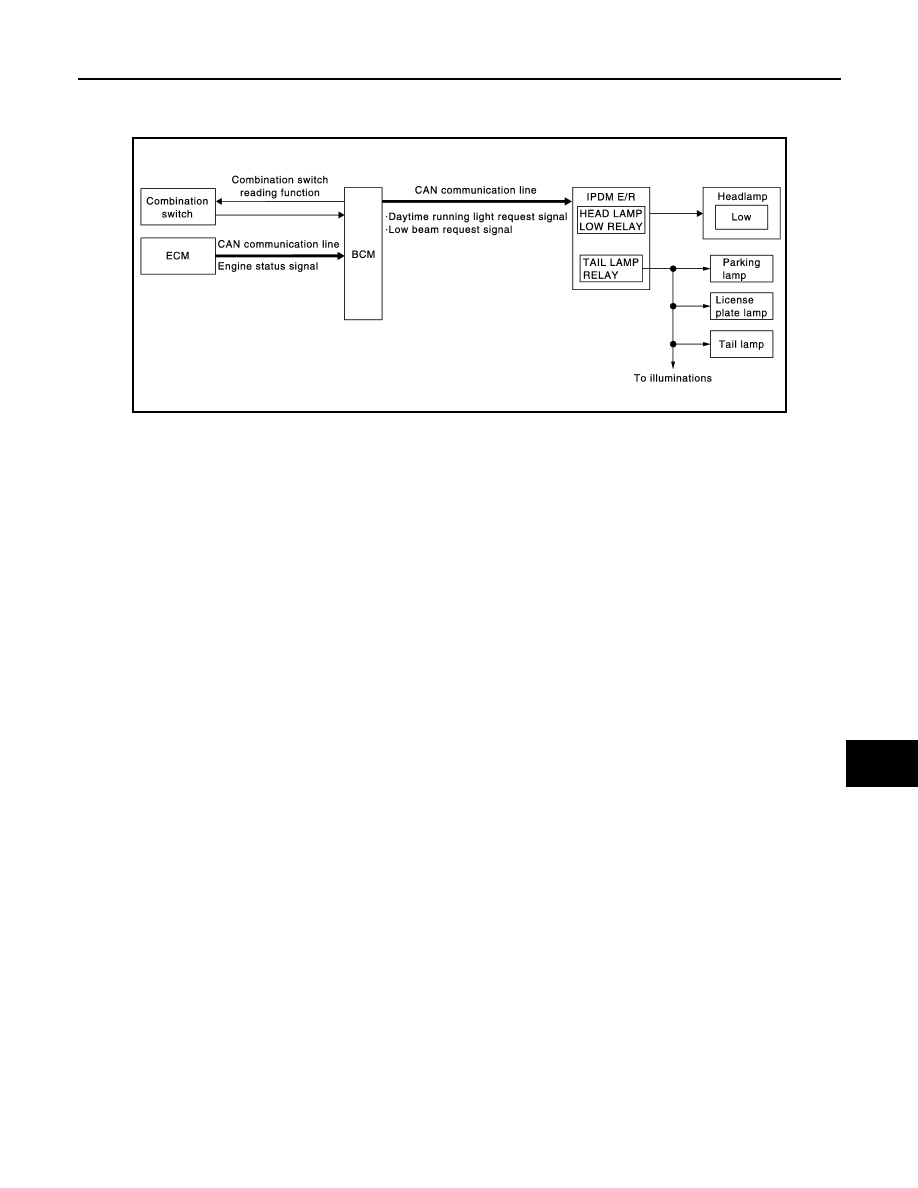

System Diagram

INFOID:0000000001099320

System Description

INFOID:0000000001099321

OUTLINE

• Turns the following exterior lamps ON as the daytime running light.
- headlamp (LO)
- Tail lamp, parking lamp and license plate lamp
• Daytime running light is controlled by daytime running light control function and combination switch reading

function of BCM, and relay control function of IPDM E/R.

DAYTIME RUNNING LIGHT OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM detects the engine condition by the engine status signal received from ECM with CAN communication.
• BCM transmits the daytime running light request signal and low beam request signal to IPDM E/R with CAN

communication according to the daytime running light ON condition.

Daytime running light ON condition

- Engine running
- Lighting switch OFF or AUTO
• IPDM E/R turns the integrated headlamp low relay and tail lamp relay ON according to the daytime running

light request signal and low beam request signal. And it turns each lamps ON.

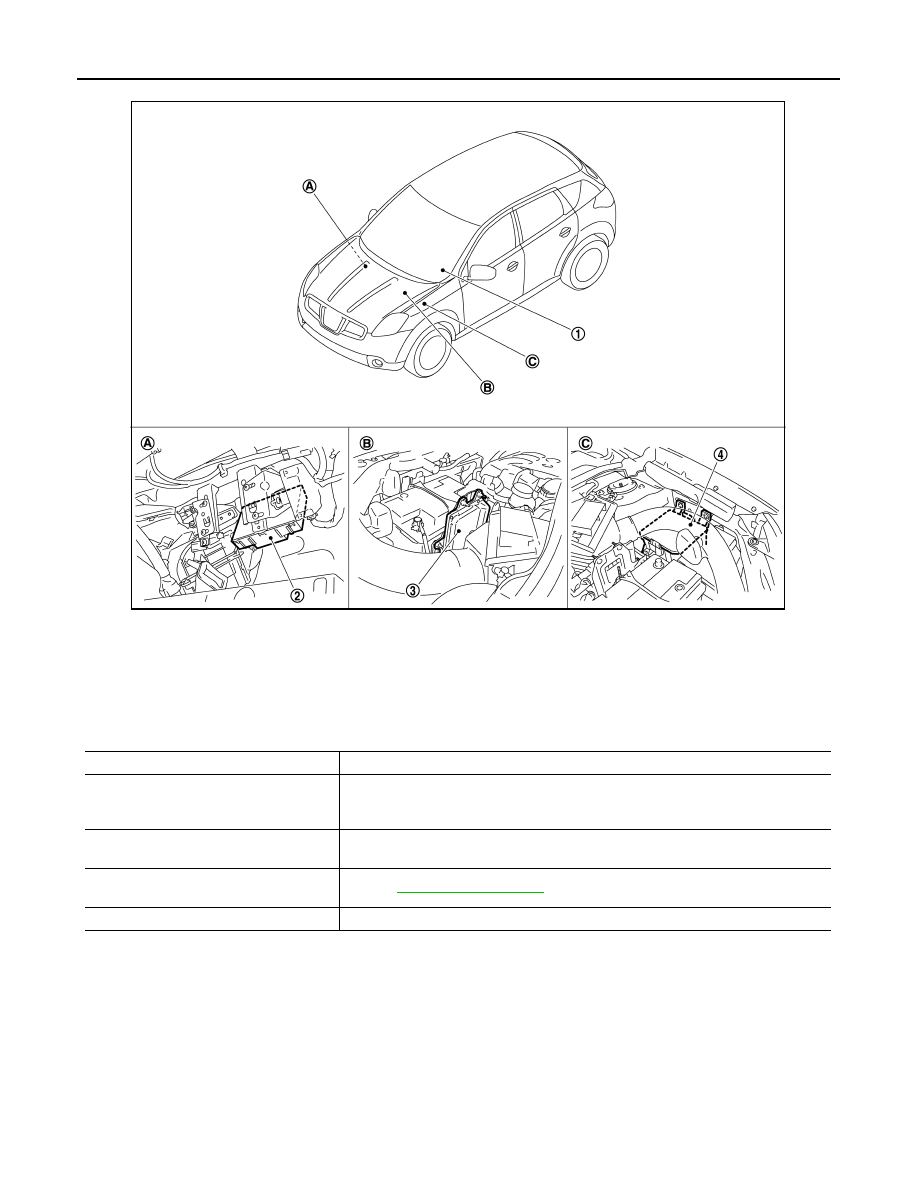

Component Parts Location

INFOID:0000000001099322

JPLIA0170GB

EXL-194

< FUNCTION DIAGNOSIS >

[HALOGEN TYPE]

DAYTIME RUNNING LIGHT SYSTEM

Component Description

INFOID:0000000001099323

1.

Combination switch

2.

BCM

3.

ECM

4.

IPDM E/R

A.

Over the glove box

B.

Engine room (left side)

C.

Engine room (left side)

JPLIA0191ZZ

Part

Description

BCM

• Detects each switch condition with the combination switch reading function.
• Judges each lamps ON/OFF condition according to the vehicle condition. Requests

the each relay ON to IPDM E/R (with CAN communication).

IPDM E/R

Controls the integrated relay and supplies voltage to the load according to the request
from BCM (with CAN communication).

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-9, "System Diagram"

.

ECM

Transmits the engine status signal to BCM with CAN communication.

AUTO LIGHT SYSTEM

EXL-195

< FUNCTION DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

AUTO LIGHT SYSTEM

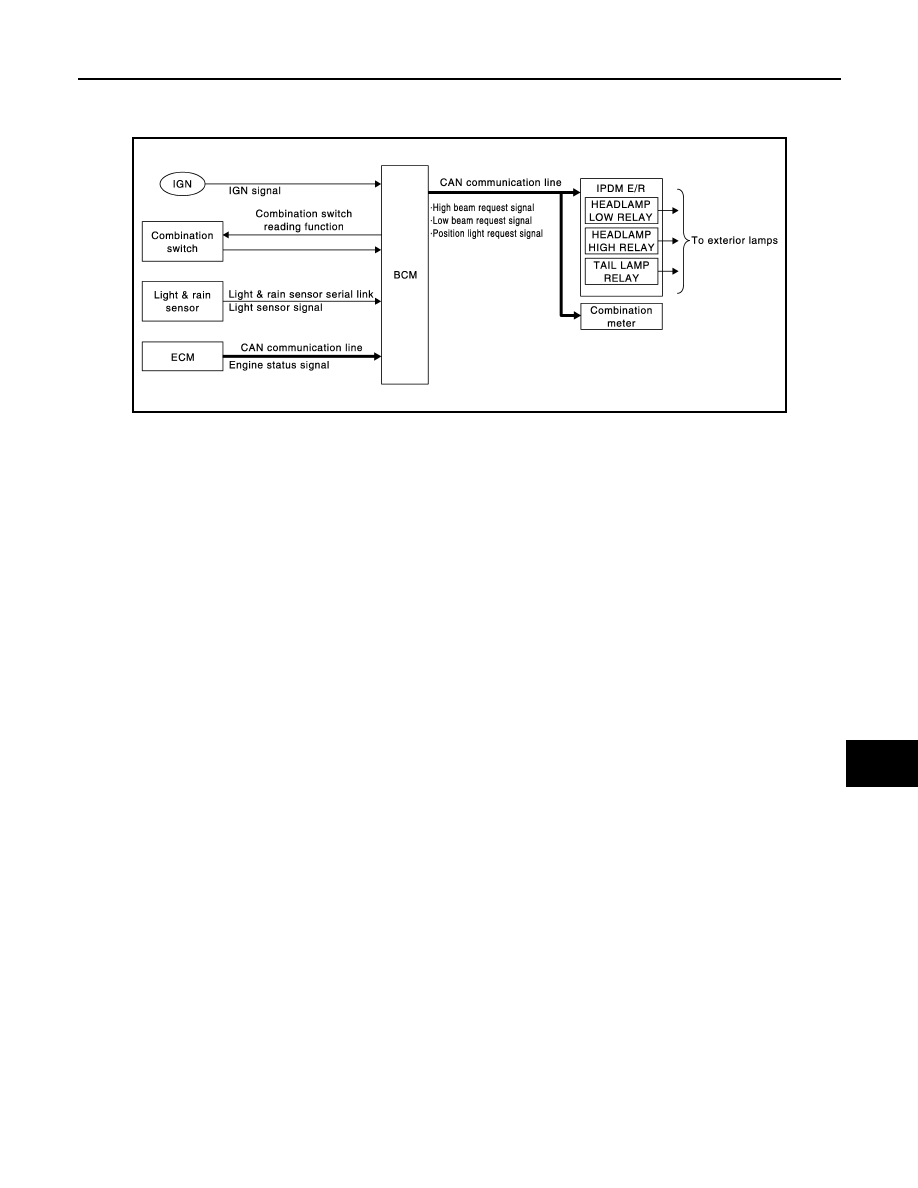

System Diagram

INFOID:0000000001099324

System Description

INFOID:0000000001099325

OUTLINE

•  Auto light system is controlled by each function of BCM and IPDM E/R.

Control by BCM

- Combination switch reading function
- Headlamp control function
- Auto light function

Control by IPDM E/R

- Relay control function
• Auto light function turns the exterior lamps* ON/OFF automatically according to the outside brightness.

*: Headlamp (LO/HI), parking lamp, tail lamp (Headlamp HI depends on the combination switch condition.)

AUTO LIGHT FUNCTION

• BCM detects the combination switch condition with the combination switch reading function.
• BCM detects the engine condition by the engine status signal received from ECM with CAN communication.
• BCM receives the light sensor signal [outside brightness (lux) and the light & rain sensor condition] from light

& rain sensor with the light & rain sensor serial link.

• BCM judges ON/OFF condition of the exterior lamps according to the outside brightness and the vehicle

condition.

• BCM transmits each request signal to IPDM E/R with CAN communication according to ON/OFF condition

by the auto light function.

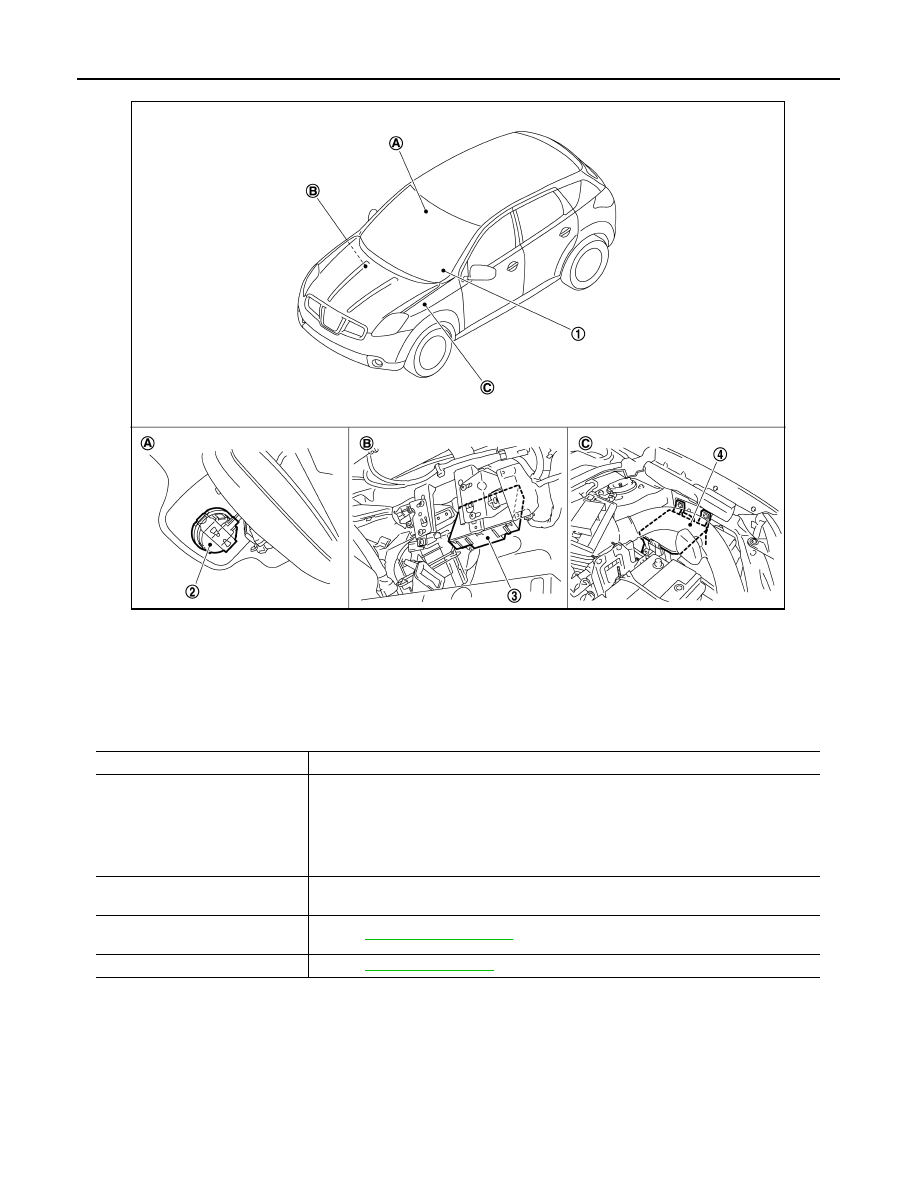

Component Parts Location

INFOID:0000000001099326

JPLIA0169GB

EXL-196

< FUNCTION DIAGNOSIS >

[HALOGEN TYPE]

AUTO LIGHT SYSTEM

Component Description

INFOID:0000000001099327

1.

Combination switch

2.

Light & rain sensor

3.

BCM

4.

IPDM E/R

A.

Windshield upper

B.

Over the glove box

C.

Engine room (left side)

JPLIA0194ZZ

Part

Description

BCM

• Detects each switch condition by the combination switch reading function.
• Detects the outside brightness from the light & rain sensor by light & rain sensor serial

link.

• Judges the ON/OFF status of the exterior lamp according to the outside brightness and

the vehicle condition.

• Requests ON/OFF of each relay to IPDM E/R (with CAN communication).

IPDM E/R

Controls the integrated relay, and supplies voltage to the load according to the request
from BCM (with CAN communication).

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-9, "System Diagram"

.

Light & rain sensor

Refer to

EXL-228, "Description"

.
