LICENSE PLATE LAMP

EXL-185

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LICENSE PLATE LAMP

Exploded View

INFOID:0000000000955530

Removal and Installation

INFOID:0000000000955531

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

While pressing the license plate lamp to direction right side, pull it to direction outside and then remove it.

2.

Disconnect the connector.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000000955532

CAUTION:

Disconnect the battery negative terminal or the fuse.

LICENSE PLATE LAMP BULB

1.

Remove license plate lamp.

2.

Turn the bulb socket counterclockwise and unlock it.

3.

Remove the bulb from the socket.

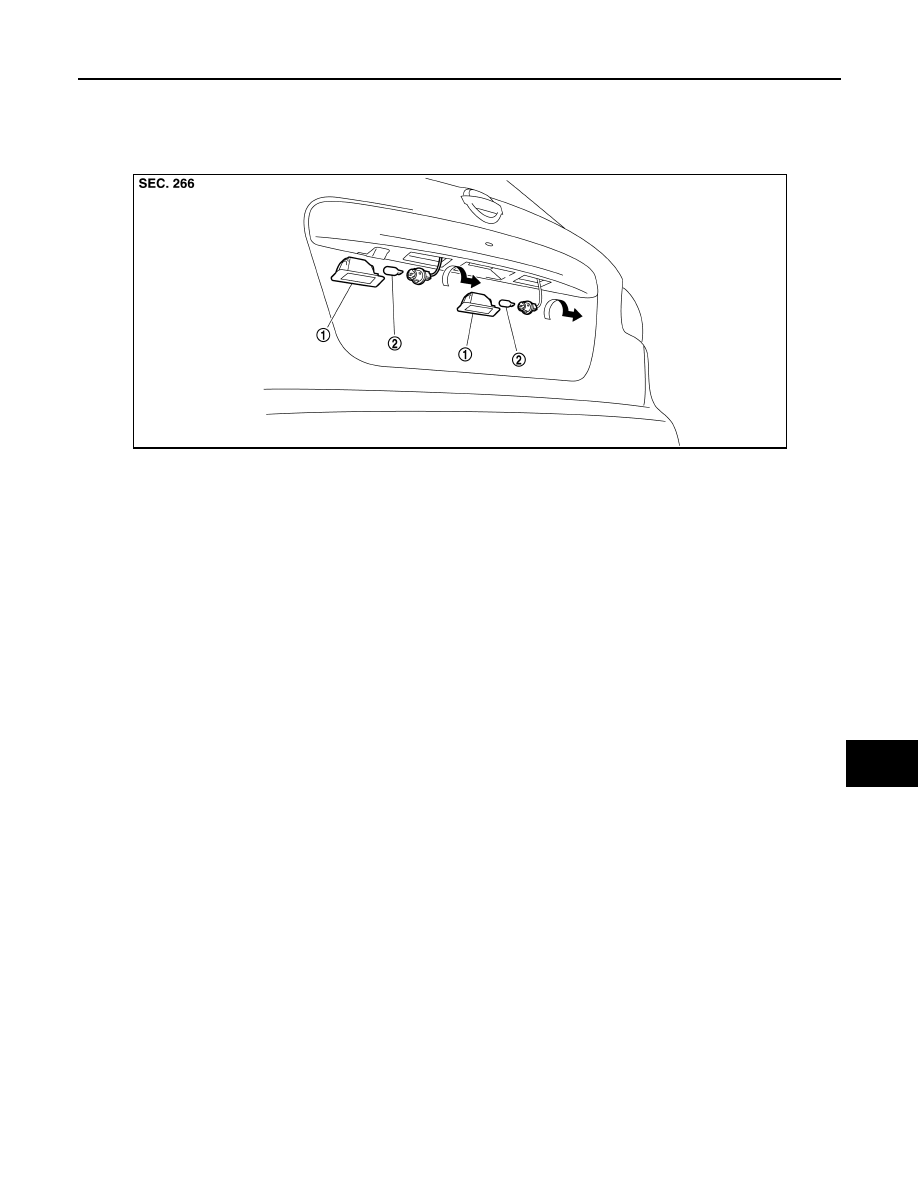

1.

License plate lamp housing

2.

License plate lamp bulb

JPLIA0262ZZ

EXL-186

< ON-VEHICLE REPAIR >

[XENON TYPE]

REAR FOG LAMP

REAR FOG LAMP

Exploded View

INFOID:0000000000955533

Removal and Installation

INFOID:0000000000955534

CAUTION:

Disconnect battery negative terminal or remove the fuse.

REMOVAL

1.

Insert any appropriate tool into the gap between the rear fog lamp housing. And pull off the rear fog lamp
from the vehicle.

2.

Disconnect rear fog lamp connector.

INSTALLATION

Installation is the reverse order of removal.

Replacement

INFOID:0000000000955535

CAUTION:

Disconnect battery negative terminal or remove the fuse.

REAR FOG LAMP BULB

1.

Remove the rear fog lamp.

2.

Turn the bulb socket counterclockwise and unlock it.

3.

Remove the bulb from its socket.

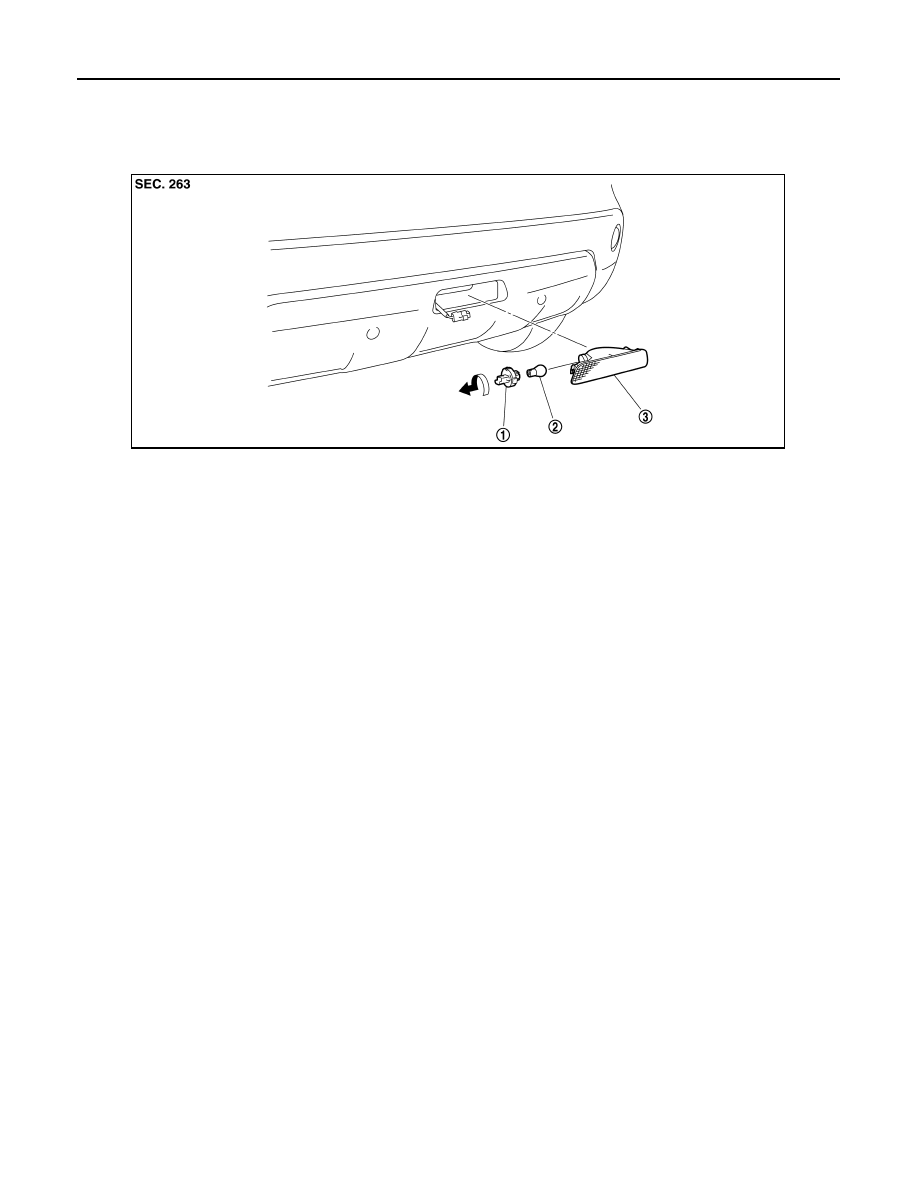

1.

Rear fog lamp bulb socket

2.

Rear fog lamp bulb

3.

Rear fog lamp housing

JPLIA0263ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

EXL-187

< SERVICE DATA AND SPECIFICATIONS (SDS)

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000000955536

Item

Type

Wattage (W)

Front combination lamp

Headlamp (LO)

D2R (XENON)

35

Headlamp (HI)

H7

55

Front turn signal lamp

WY21W (Amber)

21

Parking lamp

W5W

5

Front fog lamp

HB4

51

Side turn signal lamp

W5W

5

Rear combination lamp

Stop lamp/Tail lamp

W21/5W

21/5

Rear turn signal lamp

W21W

21

Back-up lamp

W16W

18

License plate lamp

W5W

5

High-mounted stop lamp

LED

—

Rear fog lamp

W21W

21

EXL-188

< BASIC INSPECTION >

[HALOGEN TYPE]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

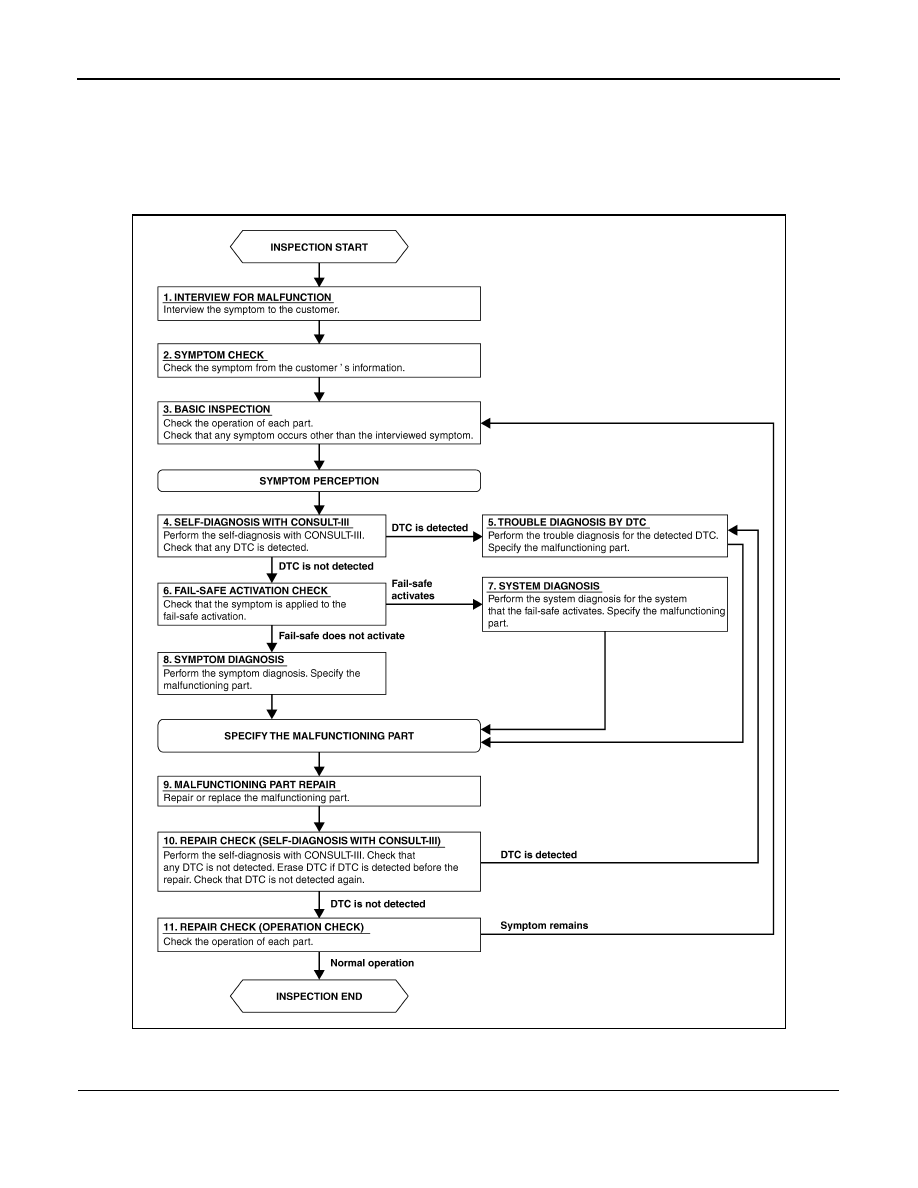

Work Flow

INFOID:0000000001078333

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

Interview the symptom to the customer.

JPLIA0313GB
