REAR COMBINATION LAMP

EXL-181

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

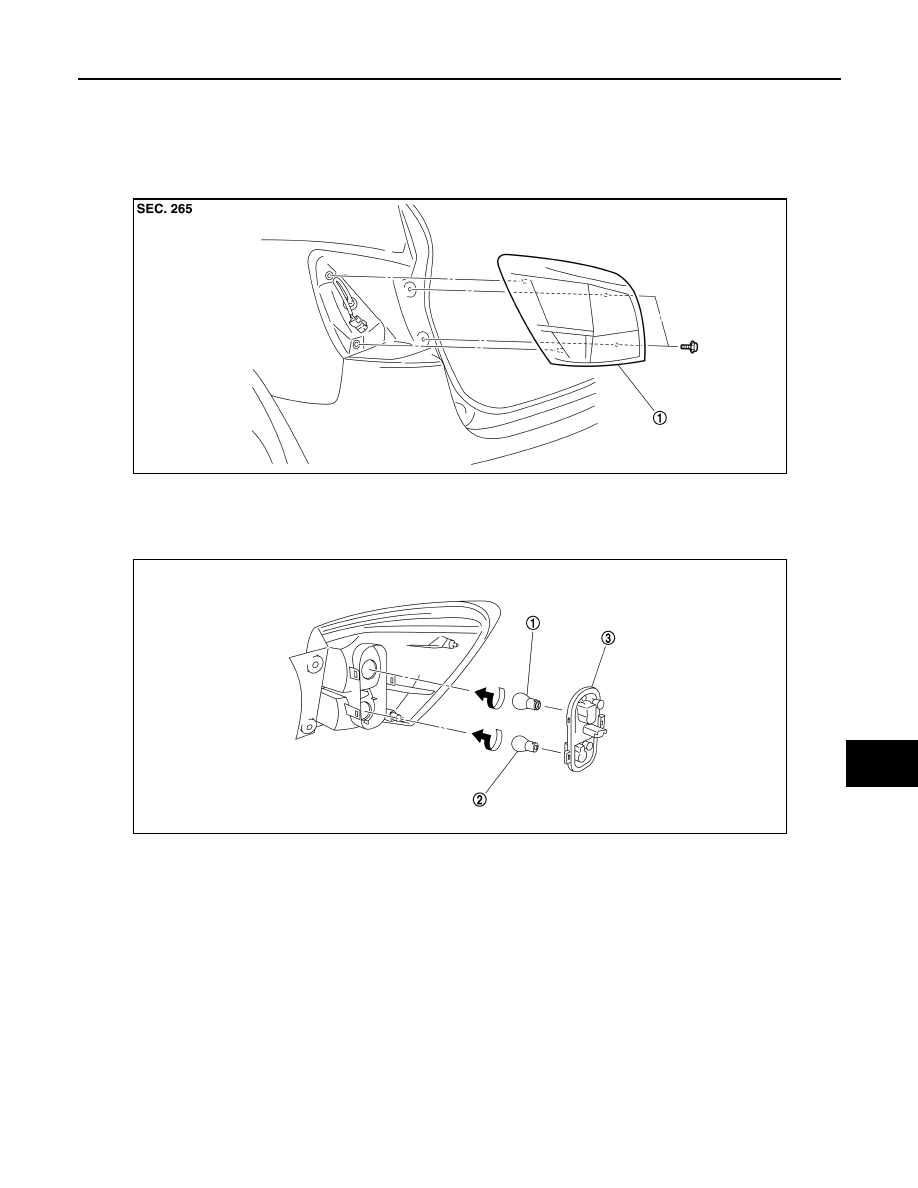

REAR COMBINATION LAMP

Exploded View

INFOID:0000000000955520

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000000955521

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Remove rear combination lamp mounting bolts.

2.

Pull the rear combination lamp toward rear of the vehicle. Remove the rear combination lamp.

3.

Disconnect rear combination lamp connector.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000000955522

1.

Rear combination lamp

JPLIA0256ZZ

1.

Tail lamp bulb

2.

Rear turn signal lamp bulb

3.

Bulb cover

JPLIA0257ZZ

EXL-182

< ON-VEHICLE REPAIR >

[XENON TYPE]

REAR COMBINATION LAMP

CAUTION:

Disconnect the battery negative terminal or the fuse.

TAIL LAMP BULB

1.

Remove the rear combination lamp.

2.

Remove the bulb cover.

3.

Turn the tail lamp bulb counterclockwise, and remove it.

REAR TURN SIGNAL LAMP BULB

1.

Remove the rear combination lamp.

2.

Remove the bulb cover.

3.

Turn the rear turn signal lamp bulb counterclockwise, and remove it.

HIGH-MOUNTED STOP LAMP

EXL-183

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

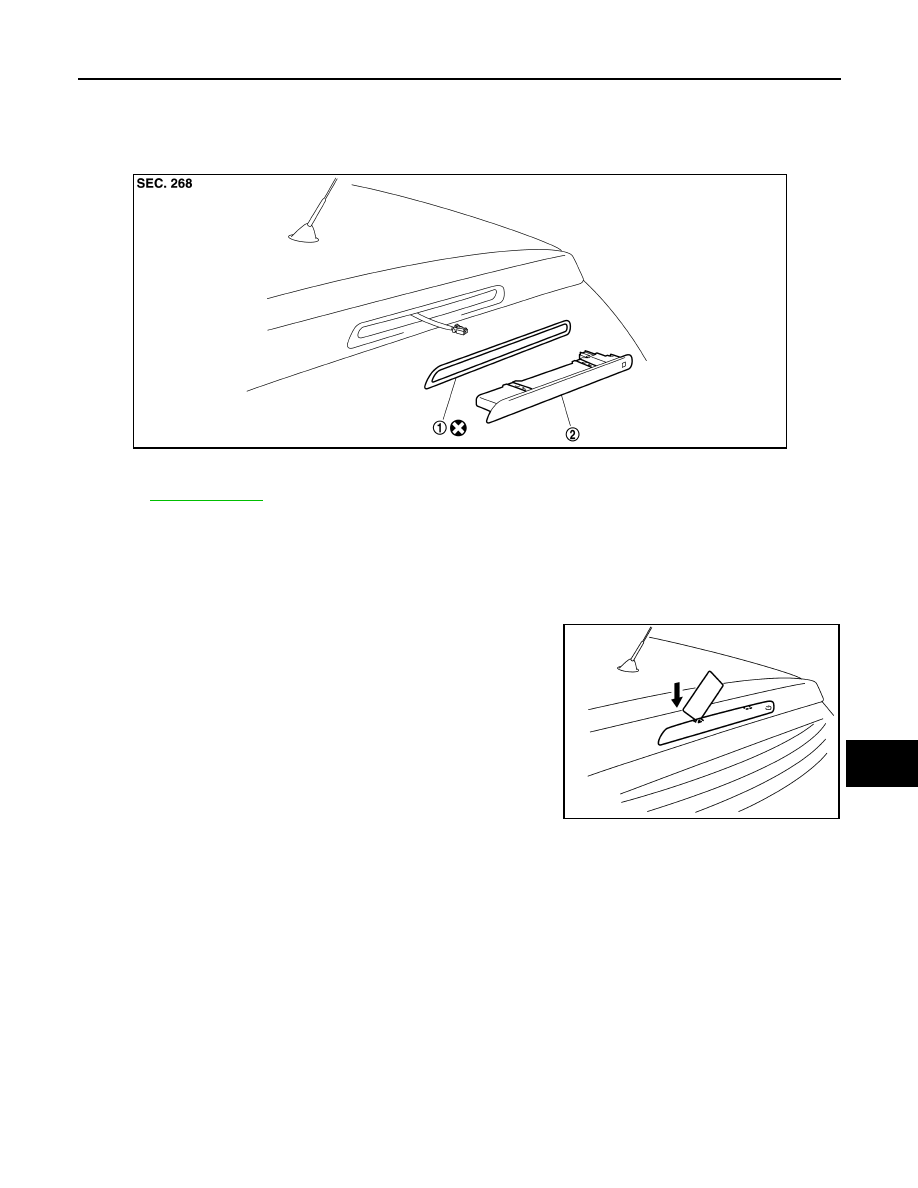

HIGH-MOUNTED STOP LAMP

Exploded View

INFOID:0000000000955523

Removal and Installation

INFOID:0000000000955524

CAUTION:

Disconnect battery negative terminal or remove the fuse.

REMOVAL

1.

Insert a cards upper the high-mounted stop lamp. While pushing
the metal clip of the lamp, pull off the lamp from the vehicle.

2.

Disconnect the high-mounted stop lamp connector.

3.

Remove the rear washer tube.

INSTALLATION

Install in the reverse order of removal.

1.

Seal packing

2.

High-mounted stop lamp

Refer to

GI-4, "Components"

 for symbols not described above.

JPLIA0258ZZ

JPLIA0259ZZ

EXL-184

< ON-VEHICLE REPAIR >

[XENON TYPE]

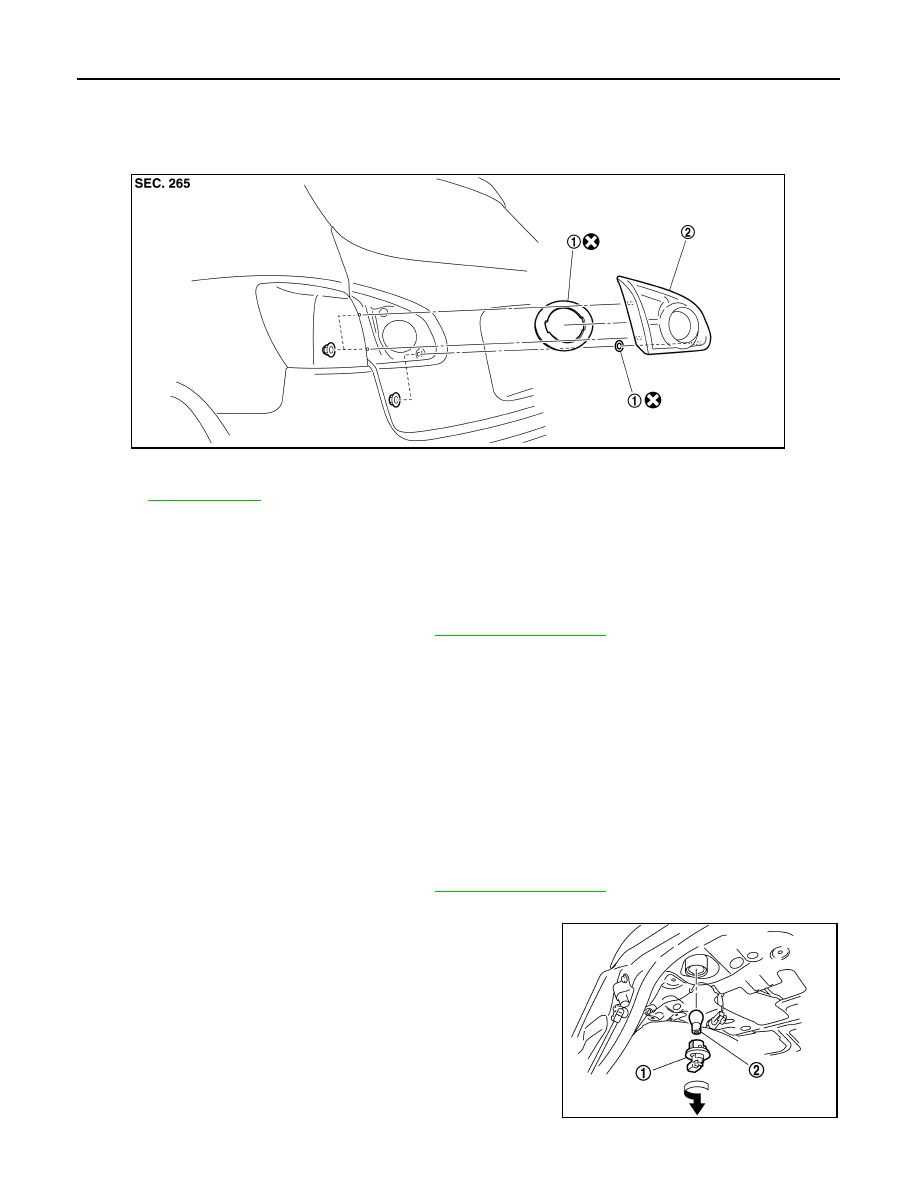

BACK-UP LAMP

BACK-UP LAMP

Exploded View

INFOID:0000000000955527

Removal and Installation

INFOID:0000000000955528

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Remove back door trim finisher lower. Refer to

INT-26, "Exploded View"

.

2.

Disconnect back-up lamp connector.

3.

Remove back-up lamp mounting nuts. And then remove back-up lamp.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Seal packing cannot be reused.

Replacement

INFOID:0000000000955529

CAUTION:

Disconnect the battery negative terminal or the fuse.

BACK-UP LAMP BULB

1.

Remove back door trim finisher lower. Refer to

INT-26, "Exploded View"

.

2.

Disconnect the back-up lamp connector.

3.

Turn the bulb socket (1) counterclockwise and unlock it.

4.

Remove the bulb (2) from the socket.

1.

Seal packing

2.

Back-up lamp

Refer to

GI-4, "Components"

 for symbols not described above.

JPLIA0260ZZ

JPLIA0261ZZ
