Nissan Qashqai (2007-2010). Manual - part 1304

RF-50

< ON-VEHICLE REPAIR >

SUNSHADE

ON-VEHICLE REPAIR

SUNSHADE

SUNSHADE MOTOR ASSEMBLY

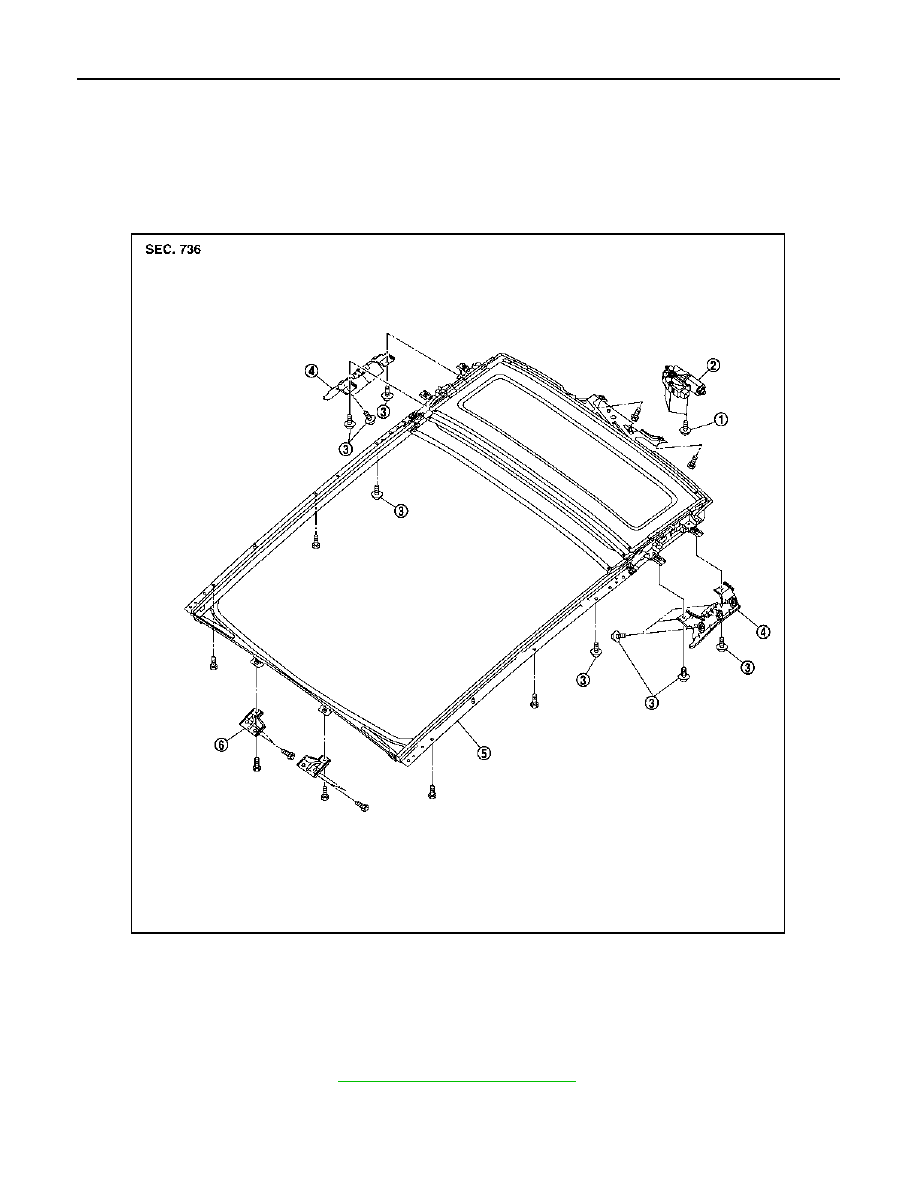

SUNSHADE MOTOR ASSEMBLY : Exploded View

INFOID:0000000000978178

SUNSHADE MOTOR ASSEMBLY : Removal and Installation

INFOID:0000000000978179

REMOVAL

1.

Remove the headlining. Refer to

INT-21, "Removal and Installation"

.

2.

Remove the sunshade motor assembly.

1.

TORX bolt (T25)

2.

Sunshade motor

3.

TORX bolt (T30)

4.

Rear sunshade bracket

5.

Sunshade unit assembly

6.

Front sunshade bracket

JMKIA0319ZZ

SUNSHADE

RF-51

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

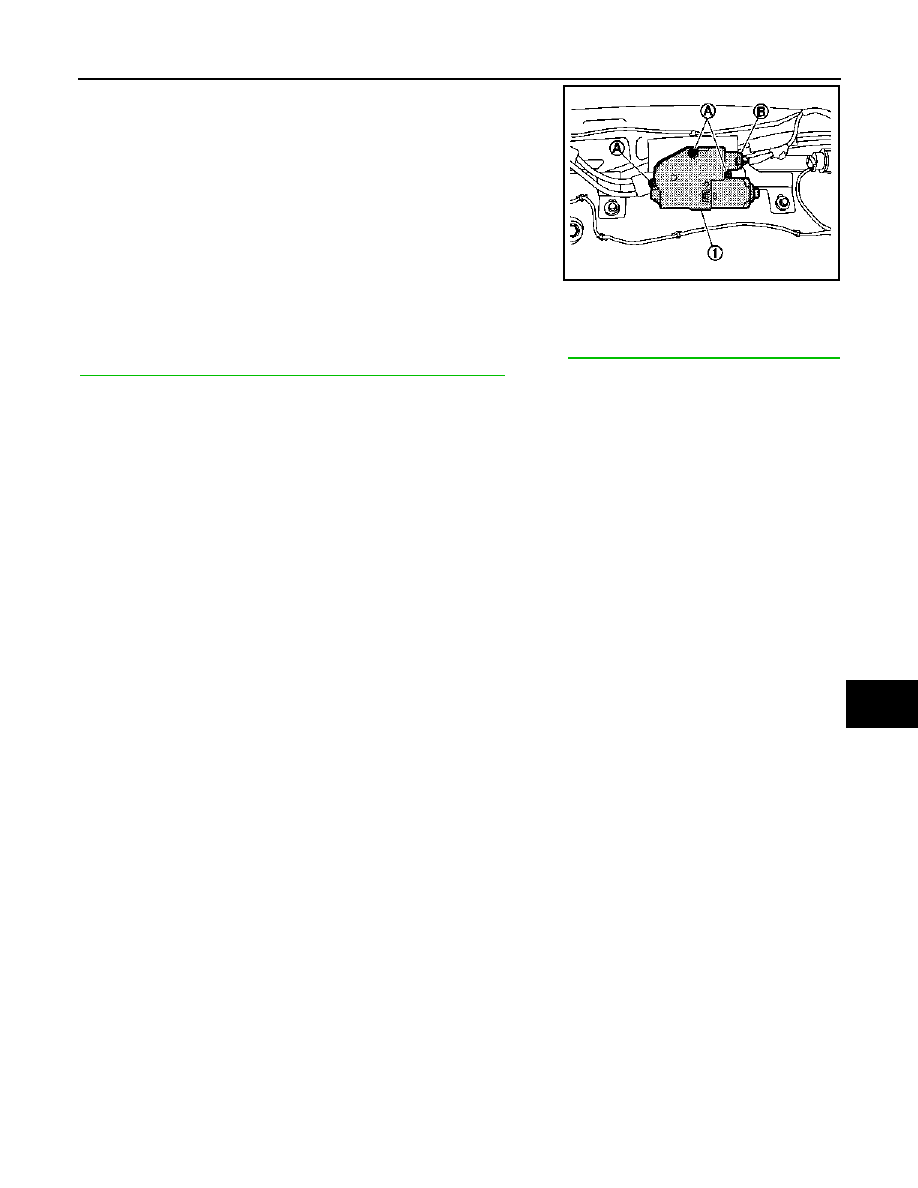

• Remove the sunshade motor mounting TORX bolt (T25) (A).
• Disconnect harness connector (B) from sunshade motor

assembly (1).

INSTALLATION

Install in the reverse order of removal.
NOTE:
After install the sunshade motor, perform additional service. Refer to

RF-4, "ADDITIONAL SERVICE WHEN

REMOVING BATTERY NEGATIVE TERMINAL : Description"

.

SUNSHADE UNIT ASSEMBLY

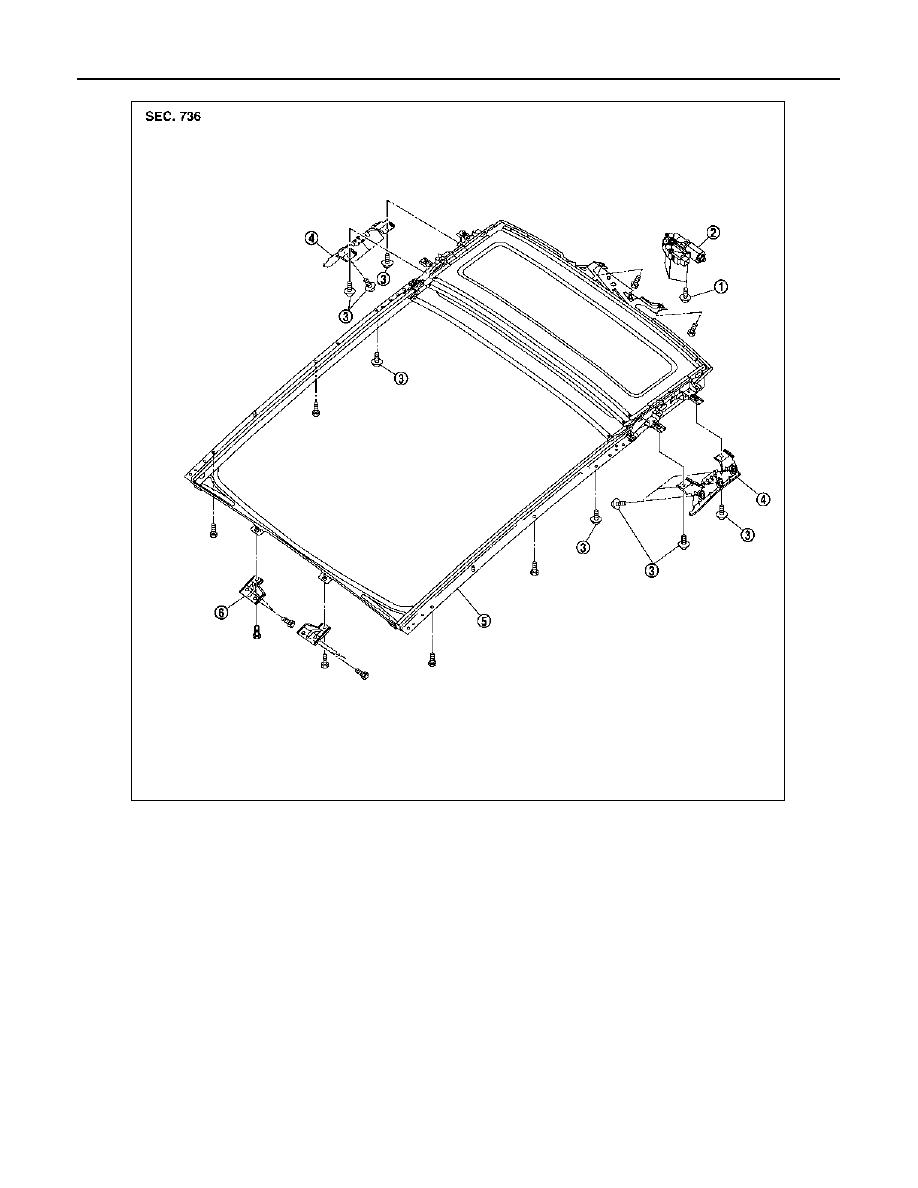

SUNSHADE UNIT ASSEMBLY : Exploded View

INFOID:0000000001026648

REMOVAL

JMKIA0321ZZ

RF-52

< ON-VEHICLE REPAIR >

SUNSHADE

DIASSEMBLY

1.

TORX bolt (T25)

2.

Sunshade motor

3.

TORX bolt (T30)

4.

Rear sunshade bracket

5.

Sunshade unit assembly

6.

Front sunshade bracket

JMKIA0319ZZ

SUNSHADE

RF-53

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNSHADE UNIT ASSEMBLY : Removal and Installation

INFOID:0000000001026654

REMOVAL

CAUTION:

• Always work with a helper.
• Fully open the sunshade before removal.
• Never operate sunshade motor assembly after removal.
• When taking sunshade unit assembly out, use cloths to protect the seats and trim from damage.

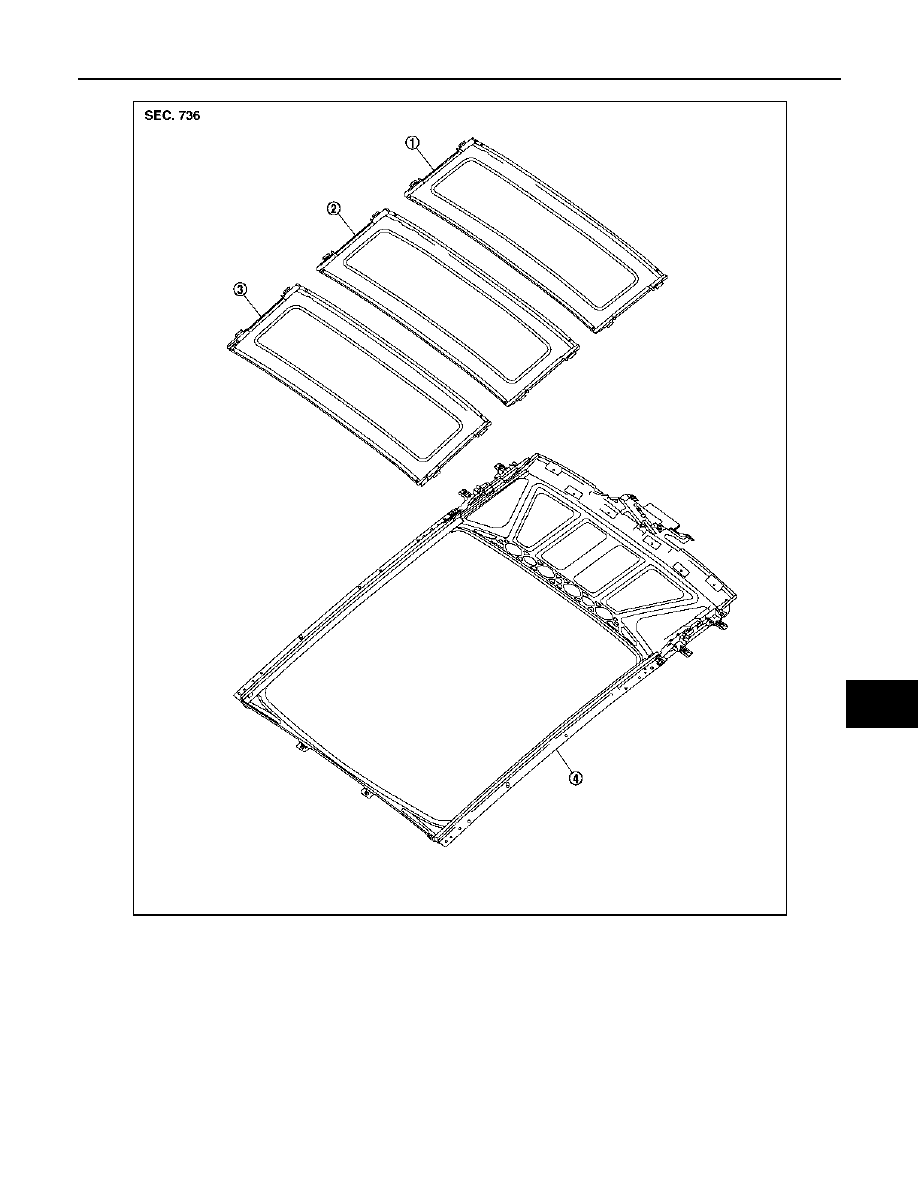

1.

Sunshade A

2.

Sunshade B

3.

Sunshade C

4.

Sunshade unit assembly

JMKIA0320ZZ
