BCM (BODY CONTROL MODULE)

PWC-57

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Fail Safe

INFOID:0000000001116529

Fail-safe index

BCM performs fail-safe control when any DTC listed below is detected.

JCKWA0330GB

PWC-58

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

REAR WIPER CONTROL

BCM detects a rear wiper stopping position according to a rear wiper auto stop signal.
When a rear wiper auto stop signal is in the condition listed below, BCM stops power supply to rear wiper after
rear wiper is activated for five seconds.

NOTE:
The above operation is repeated when operating the rear wiper switch one minute after the stop of the rear
wiper caused by Fail-safe.

TURN SIGNAL LAMP CONTROL

BCM detects the turn signal lamp circuit status from the terminal voltage.
BCM increases the turn signal lamp blinking speed if the bulb or harness open is detected with the turn signal
lamp operating.
NOTE:
The blinking speed is normal while activating the hazard warning lamp.

LIGHT & RAIN SENSOR MALFUNCTION DETECTION FUNCTION

BCM controls the following items when LIGHT & RAIN sensor has a malfunction.

Auto Light Control

Headlamp is turned ON.

Front Wiper Control

The condition just before the activation of Fail-safe is maintained until the front wiper switch is turned OFF.

DTC Inspection Priority Chart

INFOID:0000000001116530

Display contents of CONSULT

Fail-safe

Cancellation

B2190: NATS ANTENNA AMP

• Inhibits engine cranking
• Inhibits steering lock unlocking (Intelligent Key unit)
• Fuel  cut  (ECM)

Erase DTC

B2191: DIFFERENCE OF KEY

• Inhibits engine cranking
• Inhibits steering lock unlocking (Intelligent Key unit)
• Fuel  cut  (ECM)

Erase DTC

B2192: ID DISCORD BCM-ECM

Fuel cut (ECM)

Erase DTC

B2193: CHAIN OF BCM-ECM

Fuel cut (ECM)

Erase DTC

B2194: DISCORD BCM-I-KEY

• Inhibits engine cranking
• Inhibits steering lock unlocking (Intelligent Key unit)
• Fuel  cut  (ECM)

Erase DTC

B2195: ANTI SCANNING

• Inhibits engine cranking
• Inhibits steering lock unlocking (Intelligent Key unit)
• Fuel  cut  (ECM)

Erase DTC

B2196: DONGLE NG

• Inhibits engine cranking
• Inhibits steering lock unlocking (Intelligent Key unit)
• Fuel  cut  (ECM)

Erase DTC

Ignition switch

Rear wiper switch

Auto stop signal

ON

OFF

Rear wiper stop position signal cannot be
input 5 seconds.

ON

The signal does not change for 5 seconds.

BCM (BODY CONTROL MODULE)

PWC-59

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

DTC Index

INFOID:0000000001116531

NOTE:

Details of time display

• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-

tion switch OFF

→

 ON again.

• PAST: Displays when there is a malfunction that is detected in the past and stored.
• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1

→

 2

→

 3...38

→

 39 after returning to the normal condition whenever ignition switch OFF

→

 ON. The counter

remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch
OFF

→

 ON after returning to the normal condition if the malfunction is detected again.

Priority

DTC

1

• U1000: CAN COMM CIRCUIT
• U1010: CONTROL UNIT (CAN)

2

• B2190: NATS ANTENNA AMP
• B2191: DIFFERNCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM
• B2194: DISCORD BCM-I-KEY
• B2195: ANTI SCANNING
• B2196: DONGLE NG

CONSULT display

TIME

Fail-safe

Refer to

No DTC is detected.
further testing
may be required.

—

—

—

—

U1000: CAN COMM CIRCUIT

0

1 - 39

—

BCS-32

U1010: CONTROL UNIT (CAN)

0

1 - 39

—

BCS-33

B2190: NATS ANTENNA AMP

CRNT

PAST

×

• With Intelligent Key system

SEC-33

• Without Intelligent Key system

SEC-

174

B2191: DIFFERENCE OF KEY

CRNT

PAST

×

• With Intelligent Key system

SEC-35

• Without Intelligent Key system

SEC-

176



B2192: ID DISCORD BCM-ECM

CRNT

PAST

×

• With Intelligent Key system

SEC-36

• Without Intelligent Key system

SEC-

177

B2193: CHAIN OF BCM-ECM

CRNT

PAST

×

• With Intelligent Key system

SEC-38

• Without Intelligent Key system

SEC-

178

B2194: DISCORD BCM-I-KEY

CRNT

PAST

×

SEC-39

B2195: ANTI SCANNING

CRNT

PAST

×

• With Intelligent Key system

SEC-179

• Without Intelligent Key system

SEC-

179

B2196: DONGLE NG

CRNT

PAST

×

• With Intelligent Key system

SEC-41

• Without Intelligent Key system

SEC-

180



PWC-60

< ECU DIAGNOSIS >

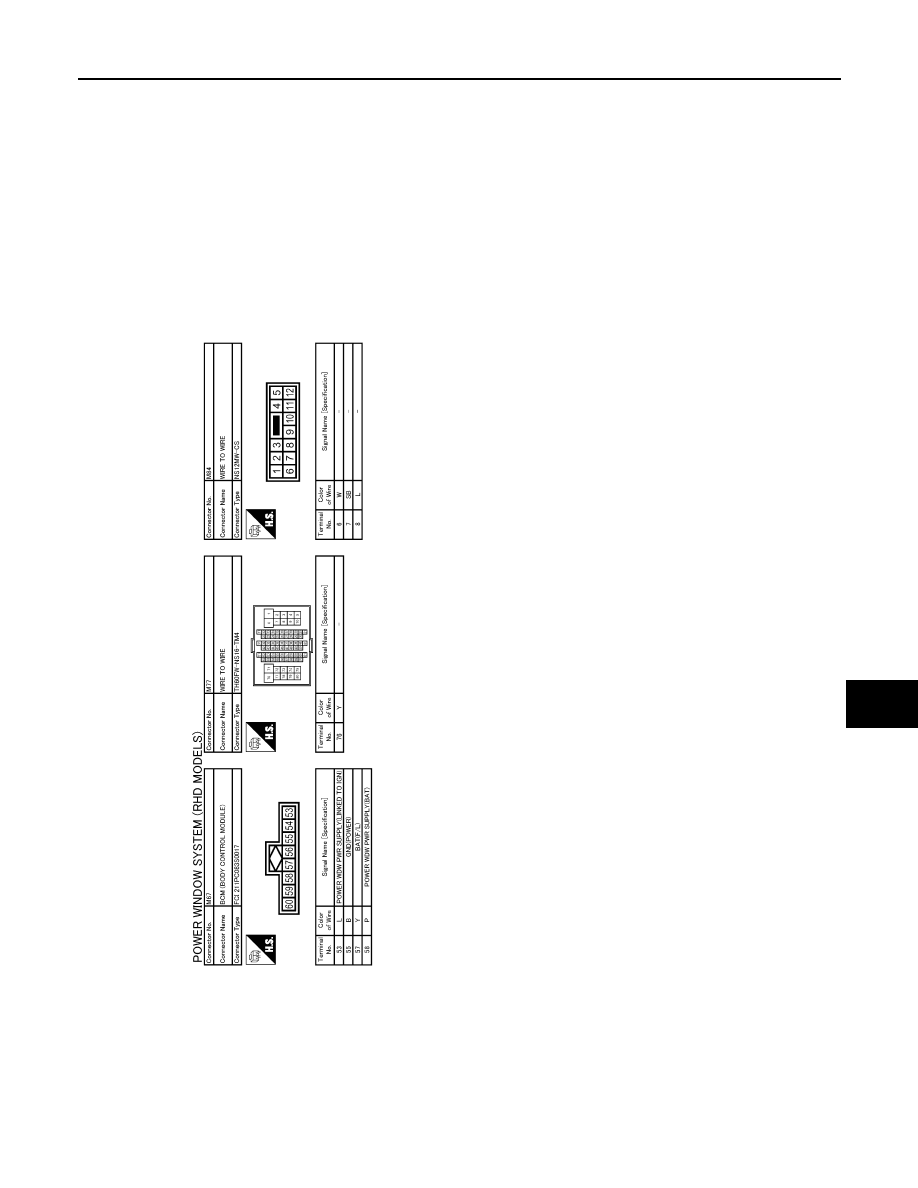

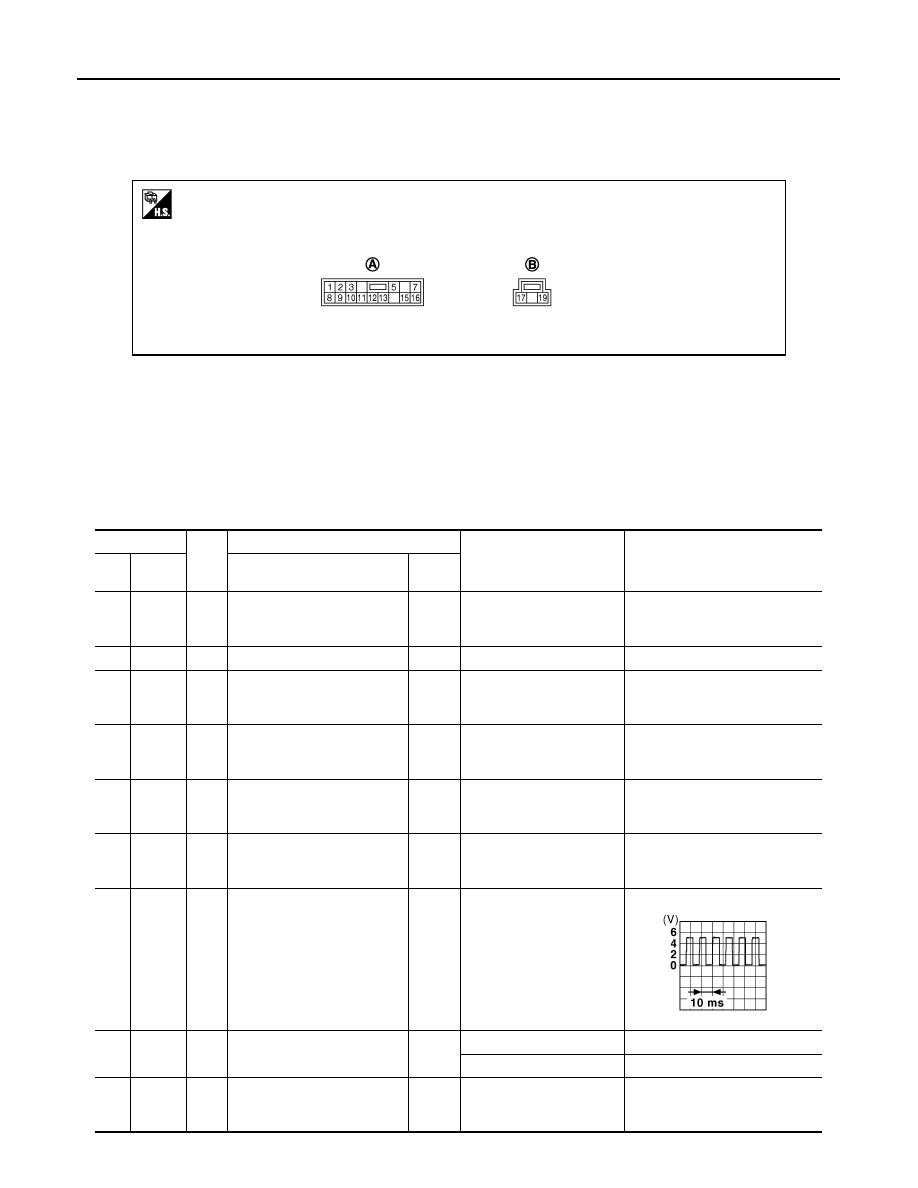

POWER WINDOW MAIN SWITCH

POWER WINDOW MAIN SWITCH

Reference Value

INFOID:0000000000990530

TERMINAL LAYOUT

PHYSICAL VALUES

POWER WINDOW MAIN SWITCH

JMKIA0311ZZ

A.

LHD:D5
RHD:D25

B.

LHD:D6
RHD:D26

Terminal No.

Wire

color

Description

Condition

Voltage [V]

(Approx.)

+

-

Signal name

Input/

Output

1

Ground

R

Rear power window motor LH
UP signal

Output

When rear LH switch in
power window main switch
is UP at operated.

Battery voltage

2

Ground

R

Encoder ground

—

—

0

3

Ground

O

Rear power window motor LH
DOWN signal

Output

When rear LH switch in
power window main switch
is DOWN at operated.

Battery voltage

5

Ground

Y

Rear power window motor RH
DOWN signal

Output

When rear RH switch in
power window main switch
is DOWN at operated.

Battery voltage

7

Ground

LG

Rear power window motor RH
UP signal

Output

When rear RH switch in
power window main switch
is UP at operated.

Battery voltage

8

Ground

W

Front power window motor
(passenger side) UP signal

Output

When front RH switch in
power window main switch
is UP at operated.

 Battery voltage

9

2

O

Encoder pulse signal 2

Input

When power window motor
operates.

10

Ground

L

IGN power supply

Input

IGN SW ON

Battery voltage

Other than above

0

11

Ground

SB

Front power window motor
(passenger side) DOWN sig-
nal

Output

When front RH switch in
power window main switch
is DOWN at operated.

 Battery voltage

JMKIA0070GB
