BCM (BODY CONTROL MODULE)

PWC-37

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−

1

(P)

Ground

Combination switch
OUTPUT 1

Output

Combination
switch

All switch OFF
(Wiper intermittent dial 4)

0 V

Front wiper switch HI
(Wiper intermittent dial 4)

9.1 V

Rear wiper switch INT
(Wiper intermittent dial 4)

Any of the condition below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 2
• Wiper intermittent dial 3
• Wiper intermittent dial 6
• Wiper intermittent dial 7

2

(Y)

Ground

Combination switch
OUTPUT 4

Output

Combination
switch
(Wiper intermit-
tent dial 4)

All switch OFF

0 V

Lighting switch 2ND

9.3 V

Lighting switch PASS

Front fog lamp switch ON

Turn signal switch LH

3

(LG)

Ground

Combination switch
OUTPUT 3

Output

Combination
switch
(Wiper intermit-
tent dial 4)

All switch OFF

0 V

Lighting switch AUTO

9.3 V

Rear fog lamp switch OFF

Front wiper switch MIST

Front wiper switch INT

Front wiper switch LO

4

(R)

Ground

Combination switch
OUTPUT 2

Output

Combination
switch

All switch OFF
(Wiper intermittent dial 4)

0 V

Front washer switch ON
(Wiper intermittent dial 4)

9.1 V

Rear wiper switch ON
(Wiper intermittent dial 4)

Rear washer switch ON
(Wiper intermittent dial 4)

Any of the condition below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 5
• Wiper intermittent dial 6

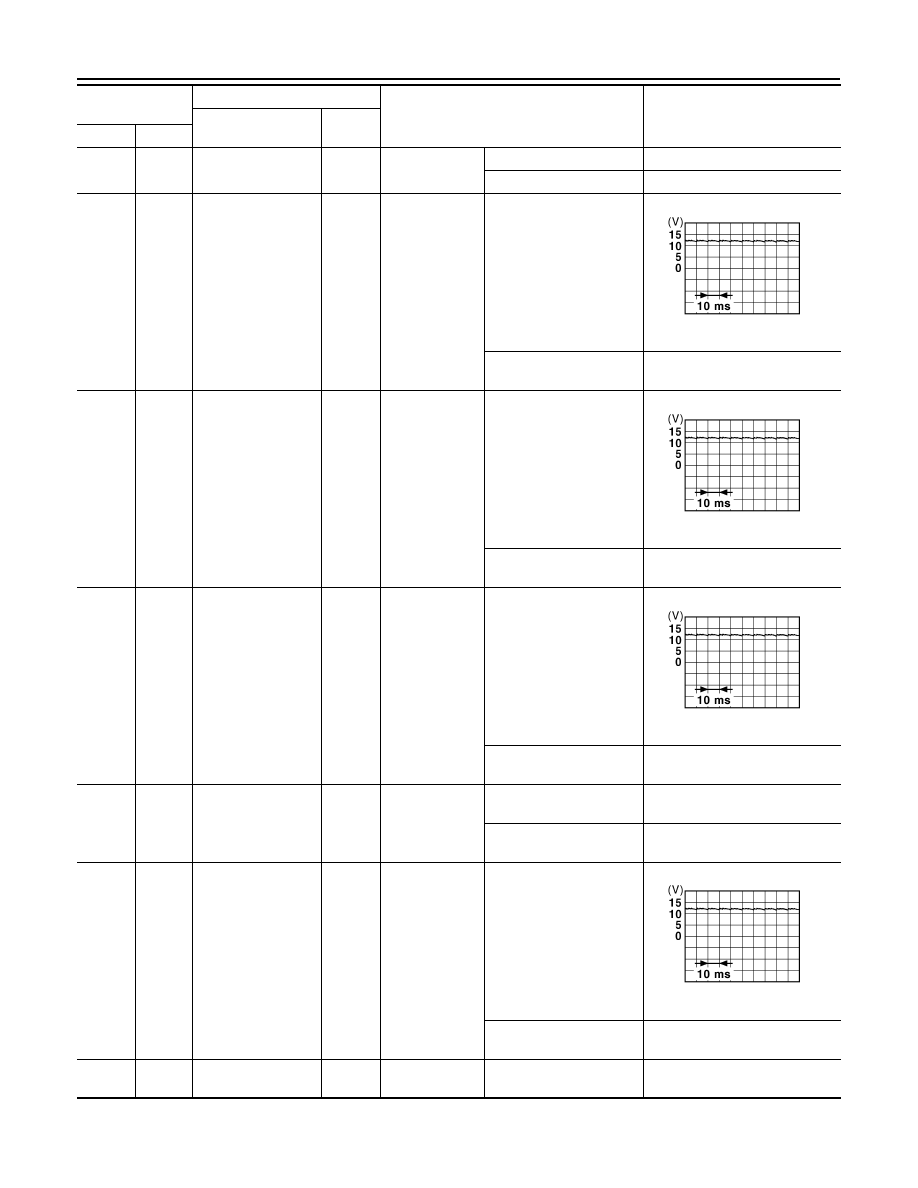

JPMIA0160GB

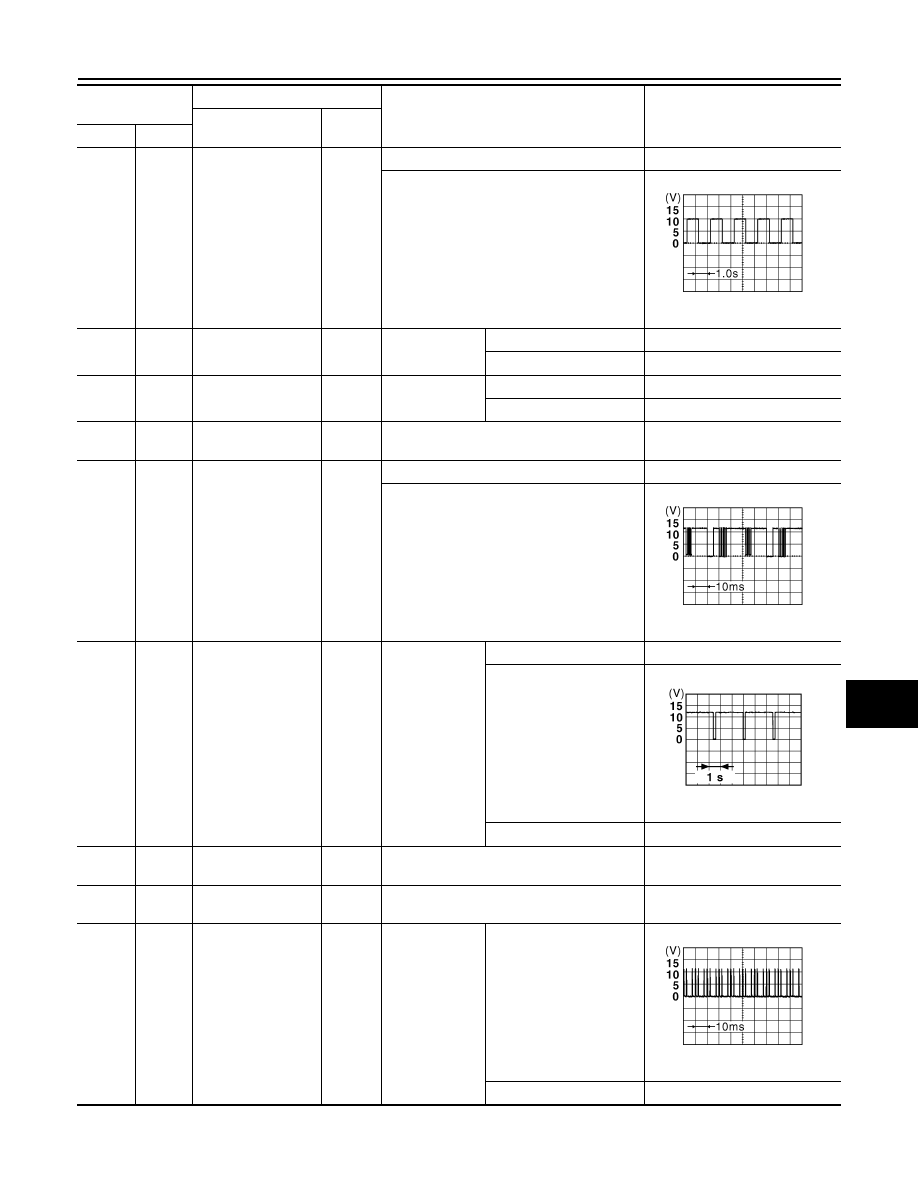

JPMIA0163GB

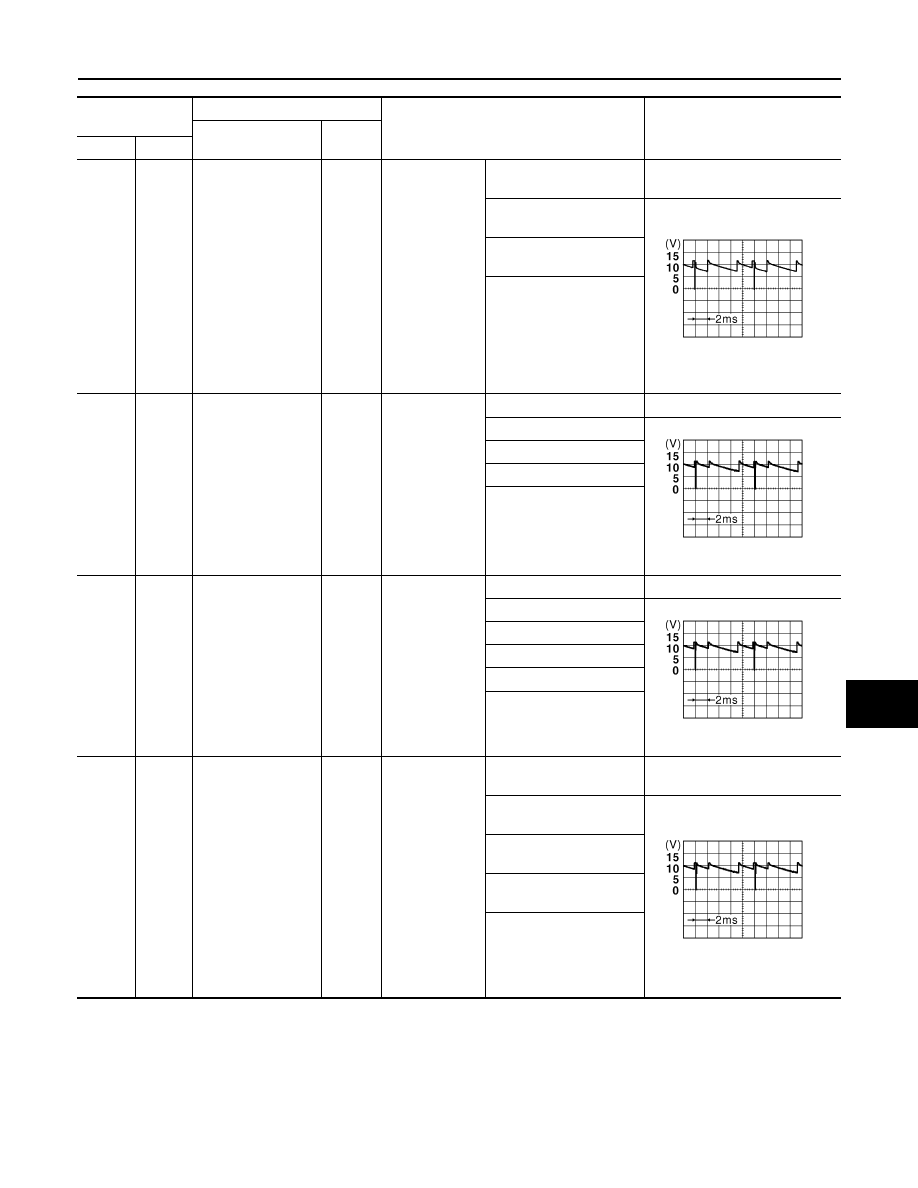

JPMIA0162GB

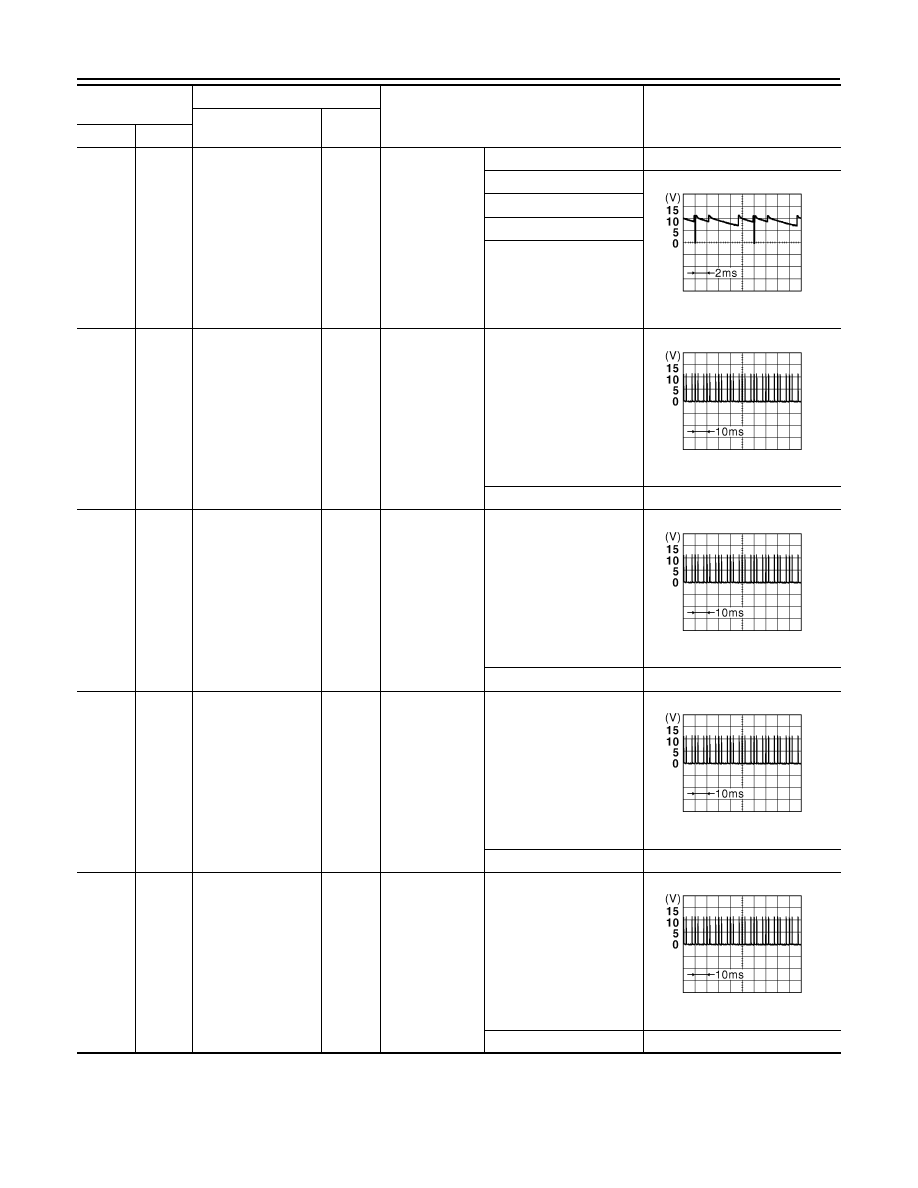

JPMIA0161GB

PWC-38

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

5

(W)

Ground

Combination switch
OUTPUT 5

Output

Combination
switch
(Wiper intermit-
tent dial 4)

All switch OFF

0 V

Lighting switch 1ST

9.1 V

Lighting switch 2ND

Lighting switch HI

Turn signal switch RH

7

(P)

Ground

Door lock/unlock
switch (Lock)

Output

Door lock/un-
lock switch

Not pressed

1.2 V

Pressed to the lock side

0 V

8

(LG)

Ground

Hazard switch

Output

Hazard switch

Not pressed

1.3 V

Pressed

0 V

9

(BR)

Ground

Door lock/unlock
switch (Unlock)

Output

Door lock/un-
lock switch

Not pressed

1.2 V

Pressed to the unlock side

0 V

12

(P)

Ground

Back door opener
switch

Output

Back door
opener switch

Not pressed

1.2 V

Pressed

0 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−

JPMIA0164GB

JPMIA0154GB

JPMIA0154GB

JPMIA0154GB

JPMIA0154GB

BCM (BODY CONTROL MODULE)

PWC-39

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

13

(R)

Ground

Shock detect sensor

Input

Ignition switch OFF or ACC

0 V

Ignition switch ON

6.0 V

14

(L/R)

Ground

A/C switch

Output

A/C switch

Not pressed

Battery voltage

Pressed

0 V

15

(LG/B)

Ground

Fan switch

Output

Fan switch

Not pressed

Battery voltage

Pressed

0 V

16

(GR)

Ground

Alarm link

Input

—

—

17

(BR)

Ground

Light & rain sensor
serial link

Output

Ignition switch OFF or ACC

Battery voltage

Ignition switch ON

8.7 V

18

(SB)

Ground

Security indicator

Output

Security indica-
tor

ON

0 V

Blinking

10.3 V

OFF

Battery voltage

19

(L)

—

CAN-H

Input/

Output

—

—

20

(P)

—

CAN-L

Input/

Output

—

—

21

(SB)

Ground

Rear window defog-
ger switch

Output

Rear window
defogger switch

Not pressed

1.1 V

While pressing

0 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−

JPMIA0155GB

JPMIA0156GB

JPMIA0014GB

JPMIA0154GB

PWC-40

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

24

(GR)

Ground

Door lock status indi-
cator

Output

Door lock status
indicator

ON

Battery voltage

OFF

0 V

25

(GR)

Ground

Rear door switch LH

Input

Rear door
switch LH

OFF (When rear door LH
closed)

11.2 V

ON (When rear door LH
opened)

0 V

26

(R)

Ground

Driver door switch

Input

Driver door
switch

OFF (When driver door
closed)

11.2 V

ON (When driver door
opened)

0 V

27

(BR)

Ground

Passenger door
switch

Input

Passenger door
switch

OFF (When passenger
door closed)

11.2 V

ON (When passenger
door opened)

0 V

28

(G)

Ground

Back door switch

Input

Back door
switch

OFF (When back door
closed)

Battery voltage

ON (When back door
opened)

0 V

29

(LG)

Ground

Rear door switch RH

Input

Rear door
switch RH

OFF (When rear door RH
closed)

11.2 V

ON (When rear door RH
opened)

0 V

30

(SB)

Ground

Audio link

Output

—

—

—

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−
