REAR DOOR LOCK

DLK-871

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

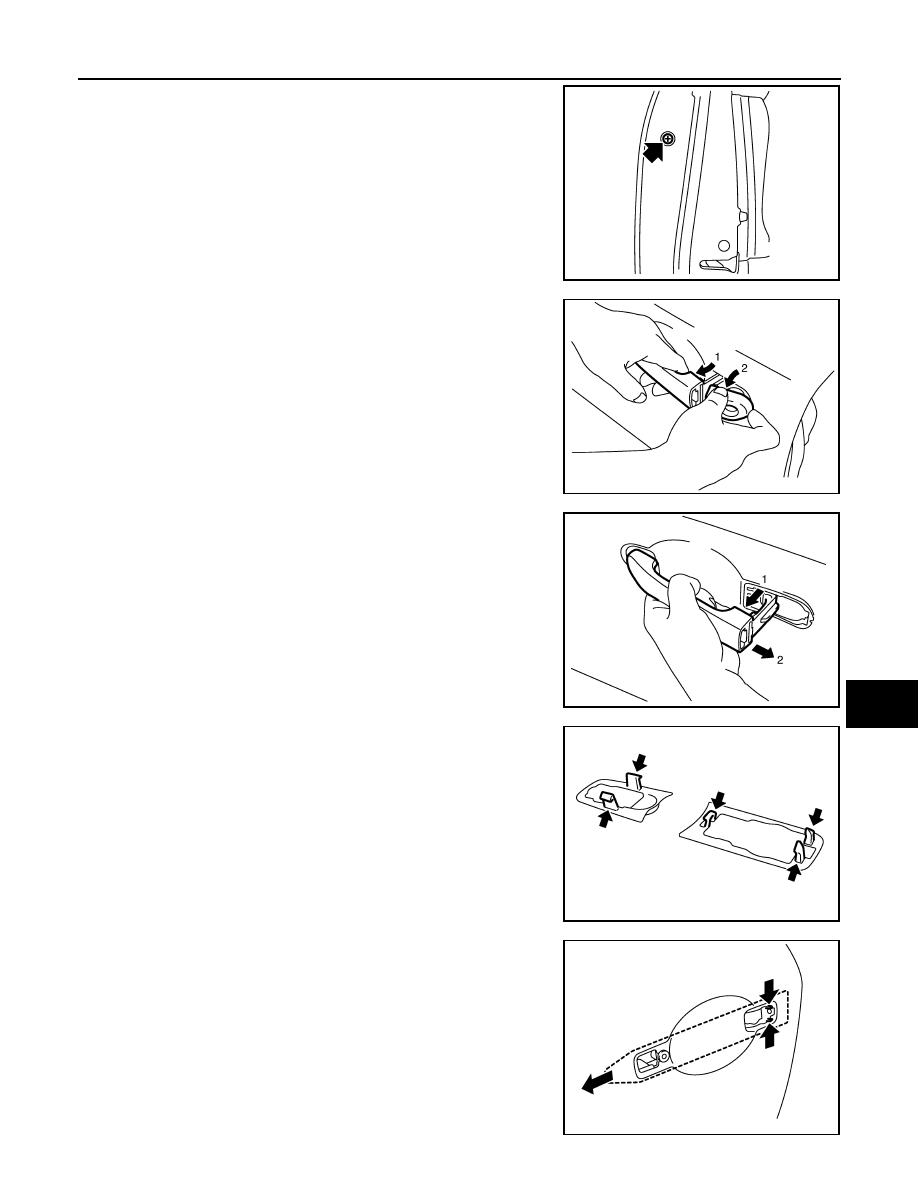

5.

Remove the door side grommet, and remove the door key cylin-
der assembly (driver side) and the outside handle escutcheon
(passenger side) mounting bolts from the grommet hole.

CAUTION:

Do not forcibly remove the bolts (TORX: T10).

6.

While pulling the outside handle, and then remove the door key
cylinder assembly.

7.

While pulling the outside handle, slide toward rear of vehicle to
remove the outside handle.

8.

Remove the front gasket and the rear gasket.

9.

While pulling the outside handle bracket, slide toward rear of
vehicle to remove the outside handle bracket.

JMKIA0020ZZ

PIIB5809E

PIIB5810E

PIIB5811E

PIIB5814E

DLK-872

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY, WITH SUPER LOCK]

REAR DOOR LOCK

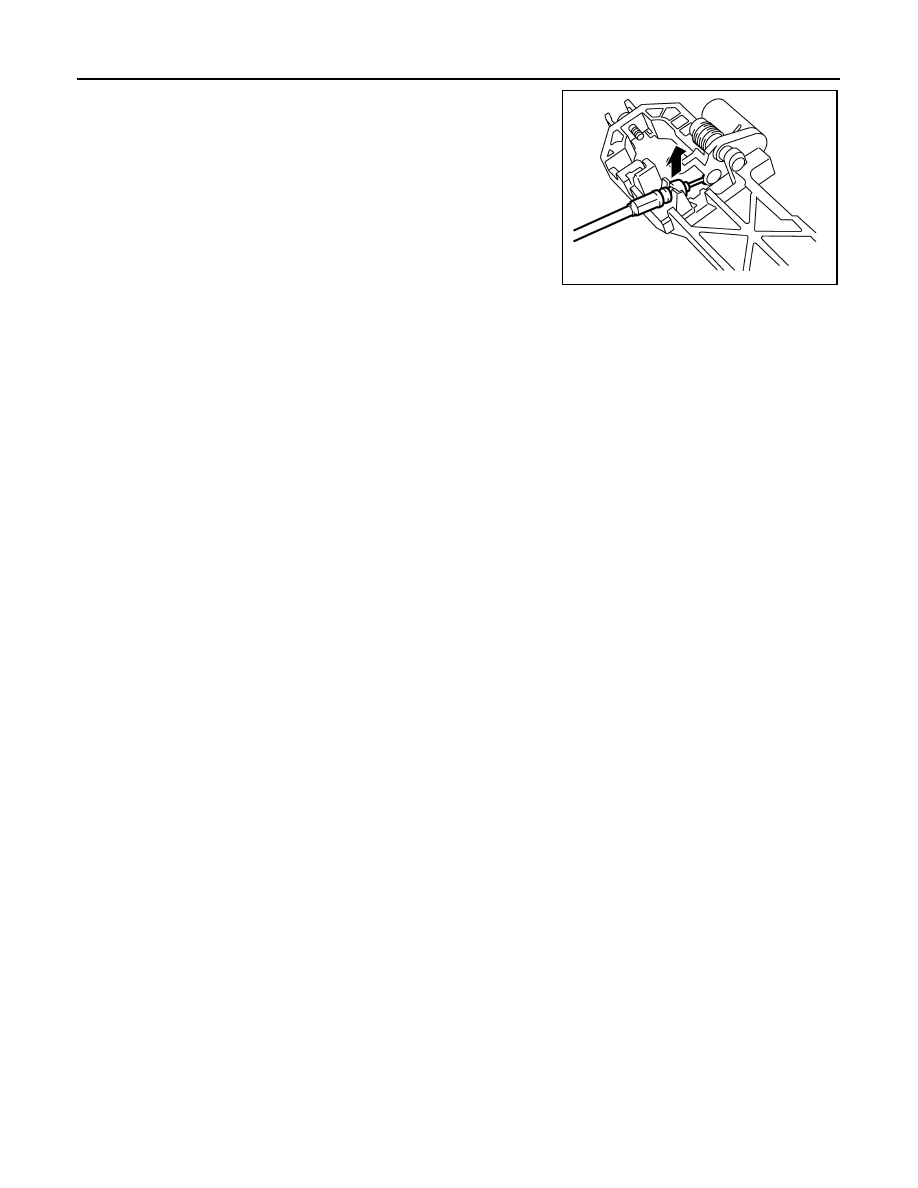

10. Reach in to separate the outside handle cable connection.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check the door lock/unlock operation after installation.
• Check the door open/close operation after installation.

PIIB5815E

BACK DOOR LOCK

DLK-873

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

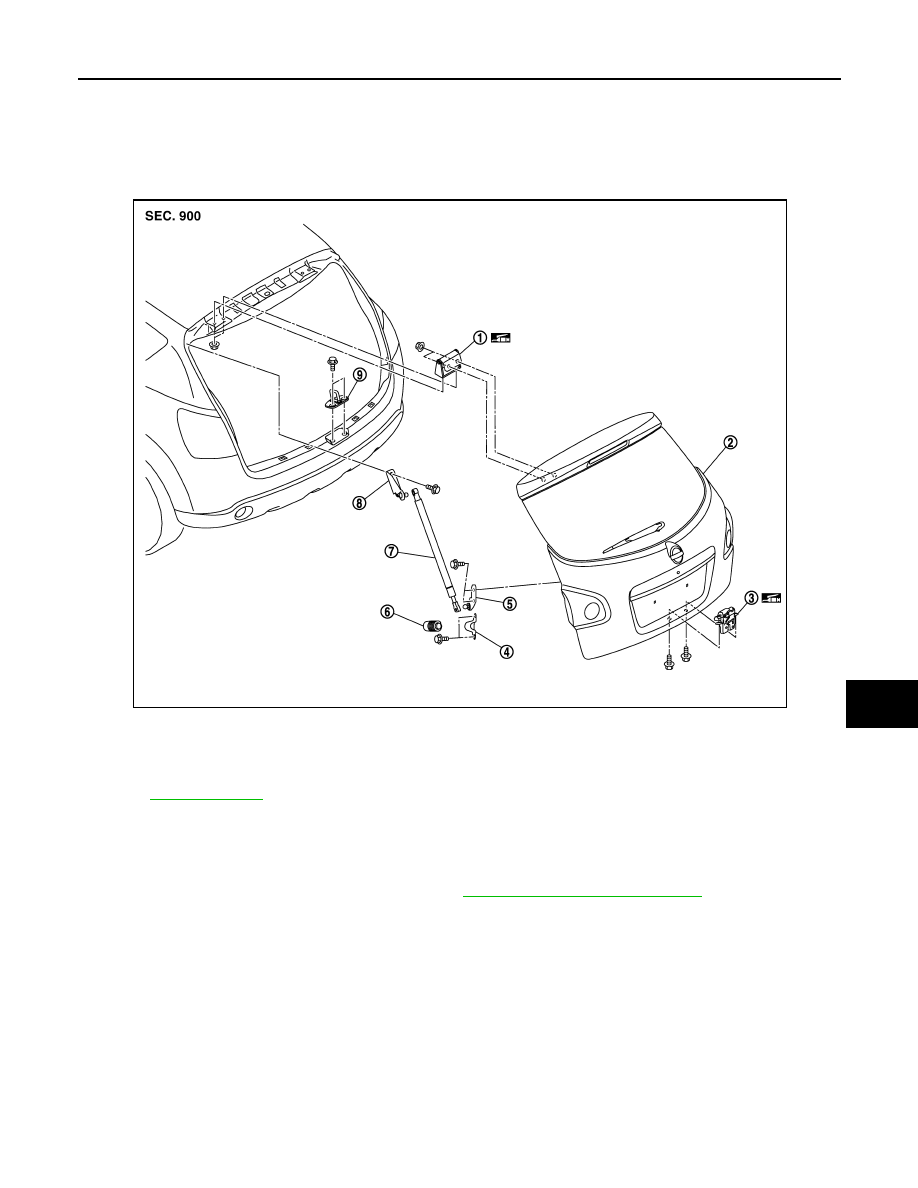

BACK DOOR LOCK

DOOR LOCK

DOOR LOCK : Exploded View

INFOID:0000000001098805

DOOR LOCK : Removal and Installation

INFOID:0000000001098806

REMOVAL

1.

Remove the back door trim finisher lower. Refer to

INT-26, "Removal and Installation"

.

2.

Disconnect the back door lock assembly and back door opener switch connectors.

3.

Remove the back door lock mounting bolts, and then remove the back door lock and actuator.

INSTALLTION

Install in the reverse order of removal.

CAUTION:

Check the back door lock/unlock operation after installation.

1.

Back door hinge

2.

Back door assembly

3.

Back door lock assembly

4.

Bumper rubber bracket

5.

Back door stay bracket (lower)

6.

Bumper rubber

7.

Back door stay

8.

Back door stay bracket (upper)

9.

Back door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0186ZZ

DLK-874

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY, WITH SUPER LOCK]

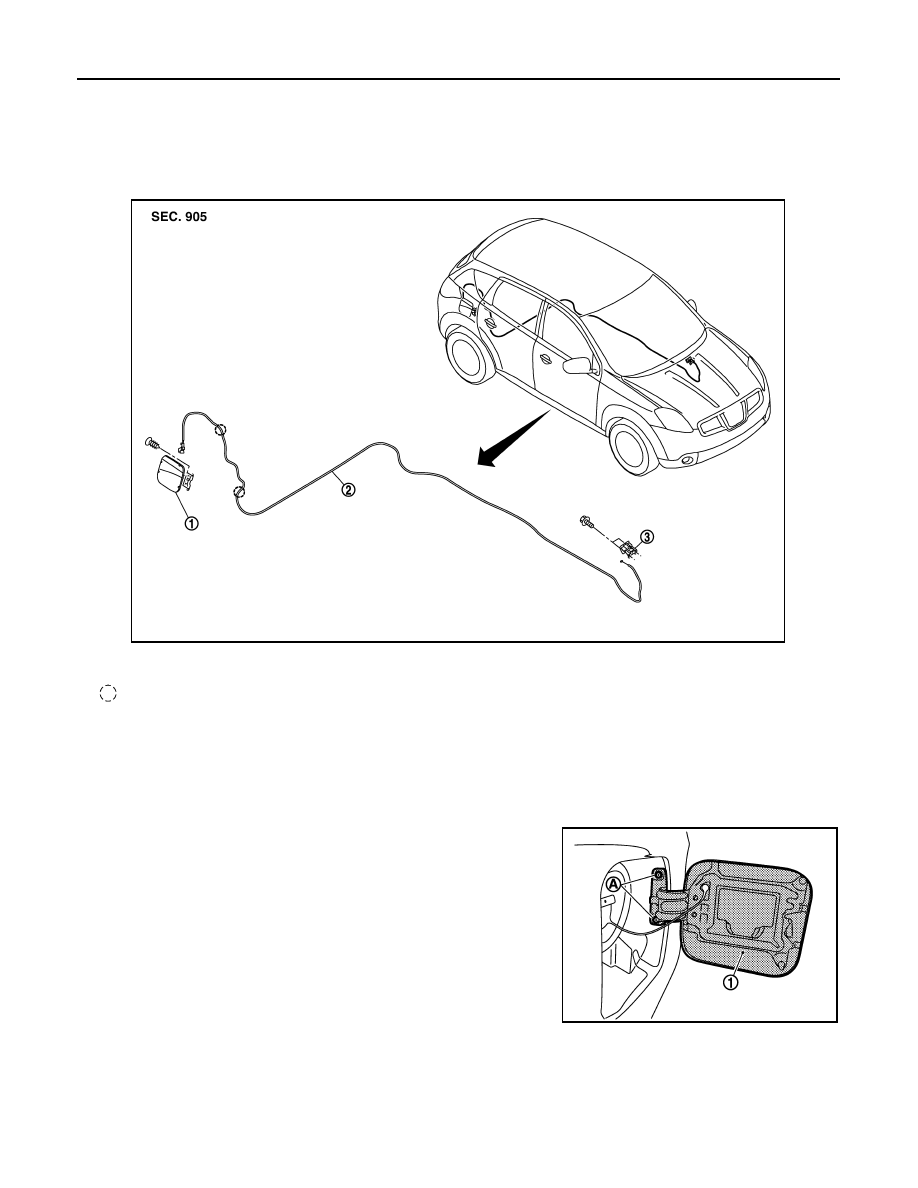

FUEL FILLER LID OPENER

FUEL FILLER LID OPENER

FUEL FILLER LID

FUEL FILLER LID : Exploded View

INFOID:0000000001098811

FUEL FILLER LID : Removal and Installation

INFOID:0000000001098812

REMOVAL

1.

Fully open the fuel filler lid.

2.

Remove the filler cap.

3.

Remove the mounting screws (A), and then remove the fuel filler
lid (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

After installation, apply the touch-up paint (the body color) onto the head of the mounting screws.

FUEL FILLER OPENER CABLE

1.

Fuel filler lid assembly

2.

Fuel filler opener cable

3.

Fuel opener lever

: Clip

JMKIA0187ZZ
