DIAGNOSIS AND REPAIR WORKFLOW

DLK-715

< BASIC INSPECTION >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

9.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1.

Repair or replace the malfunctioning part.

2.

Reconnect parts or connectors disconnected during Diagnostic Procedure again after repair and replace-
ment.

3.

Check DTC. If DTC is displayed, erase it.

>> GO TO 10.

10.

FINAL CHECK

When DTC was detected in step 2, perform DTC Confirmation Procedure or Component Function Check
again, and then check that the malfunction have been repaired securely.
When symptom was described from the customer, refer to confirmed symptom in step 3 or 4, and check that
the symptom is not detected.

Does the symptom reappear?

YES (DTC is detected)>>GO TO 8.
YES (Symptom remains)>>GO TO 6.
NO

>> INSPECTION END

DLK-716

< BASIC INSPECTION >

[WITHOUT I-KEY, WITH SUPER LOCK]

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000001102252

Perform the system initialization when replacing or registering Keyfob and ignition key.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000001102253

Refer to the CONSULT-III Operation Manual-NATS.

DOOR LOCK FUNCTION

DLK-717

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FUNCTION DIAGNOSIS

DOOR LOCK FUNCTION

DOOR LOCK AND UNLOCK SWITCH

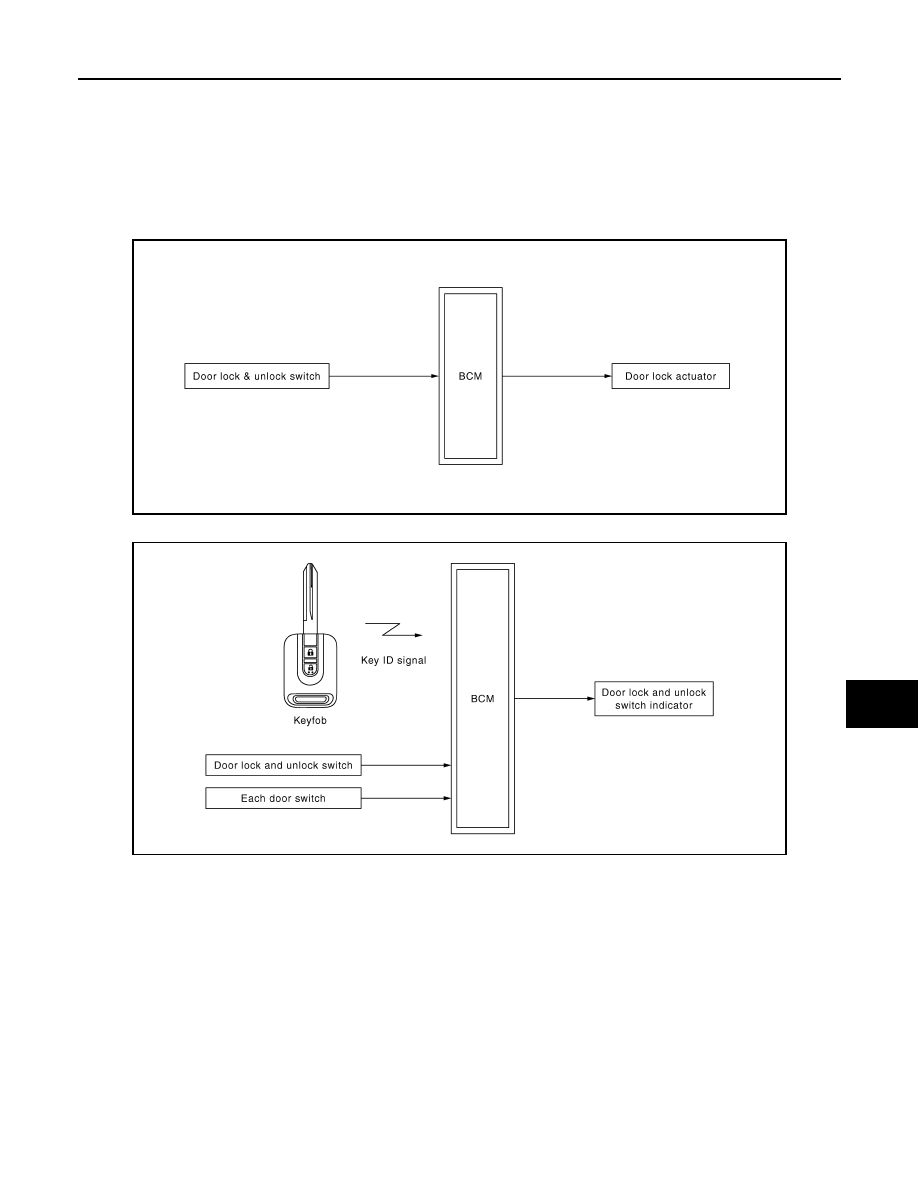

DOOR LOCK AND UNLOCK SWITCH : System Diagram

INFOID:0000000001088464

DOOR LOCK AND UNLOCK SWITCH OPERATION

DOOR LOCK AND UNLOCK SWITCH INDICATOR OPERATION

DOOR LOCK AND UNLOCK SWITCH : System Description

INFOID:0000000001088465

DOOR LOCK AND UNLOCK SWITCH OPERATION

Functions are available by operating the door lock and unlock switch on center console. Interlocked with the
lock/unlock operation of door lock and unlock switch, door lock actuators of all doors are locked/unlocked.

Operation Condition

If the following conditions are not satisfied, door lock/unlock operation is not performed even if the door lock
and unlock switch is operated.

JMKIA0399GB

JMKIA0503GB

DLK-718

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

DOOR LOCK FUNCTION

NOTE:
When the door lock is locked with keyfob, door lock and unlock switch operation will be invalid until either of
the following conditions is satisfied.
• Turn ignition switch ON.
• Unlock operation by keyfob.

DOOR LOCK AND UNLOCK SWITCH INDICATOR OPERATION

Door lock and unlock switch indicator indicates door lock status. The indicator turn ON while ignition switch is
ON and door lock is locked. If any door is opened, the indicator will turn OFF.

1 Minute Timer

A timer must be running to turn OFF the indicator. The timer will run for 1 minute after locking with keyfob or
auto door lock.

30 Minutes Timer

A timer must be running to turn OFF the indicator. The timer will run for 30 minutes after locking with door lock
and unlock switch.
NOTE:
1minute timer condition is satisfied while 30 minutes timer is active, however 30 minutes timer does not
change when 1 minutes timer is active.

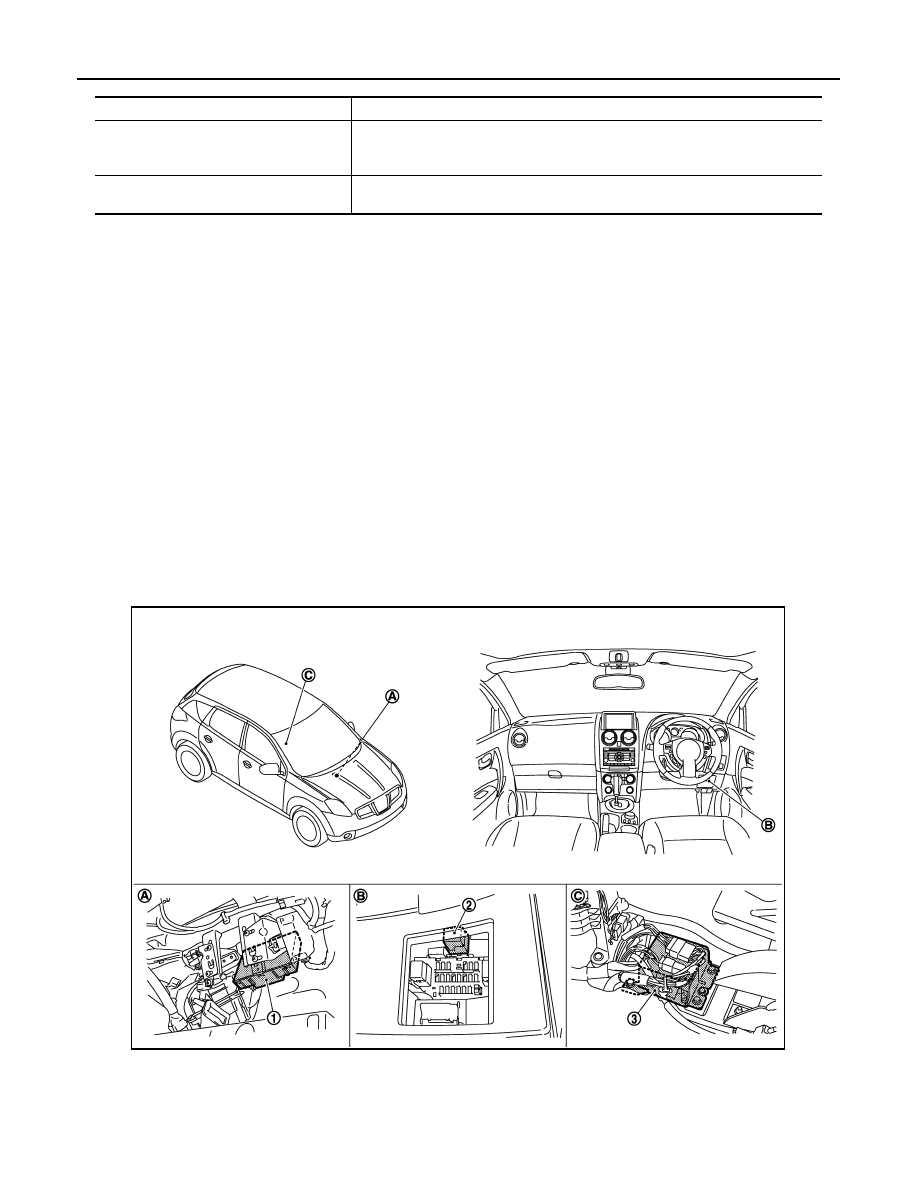

DOOR LOCK AND UNLOCK SWITCH : Component Parts Location

INFOID:0000000001088466

Door lock and unlock switch

Operation condition

Lock operation

All the following conditions are satisfied.
• Except driver side, doors are closed.
• Doors are not locked with keyfob.

Unlock operation

All the following all conditions are satisfied.
• Doors are not locked with keyfob.

JMKIA0489ZZ

1.

BCM
M65, M66, M67

2.

Passenger side anti-hijack relay
M90

3.

Air bag diagnosis sensor unit
M59

A.

Over the glove box

B.

View with fuse box lid removed

C. View with center console removed
