FUEL FILLER LID OPENER

FUEL FILLER LID

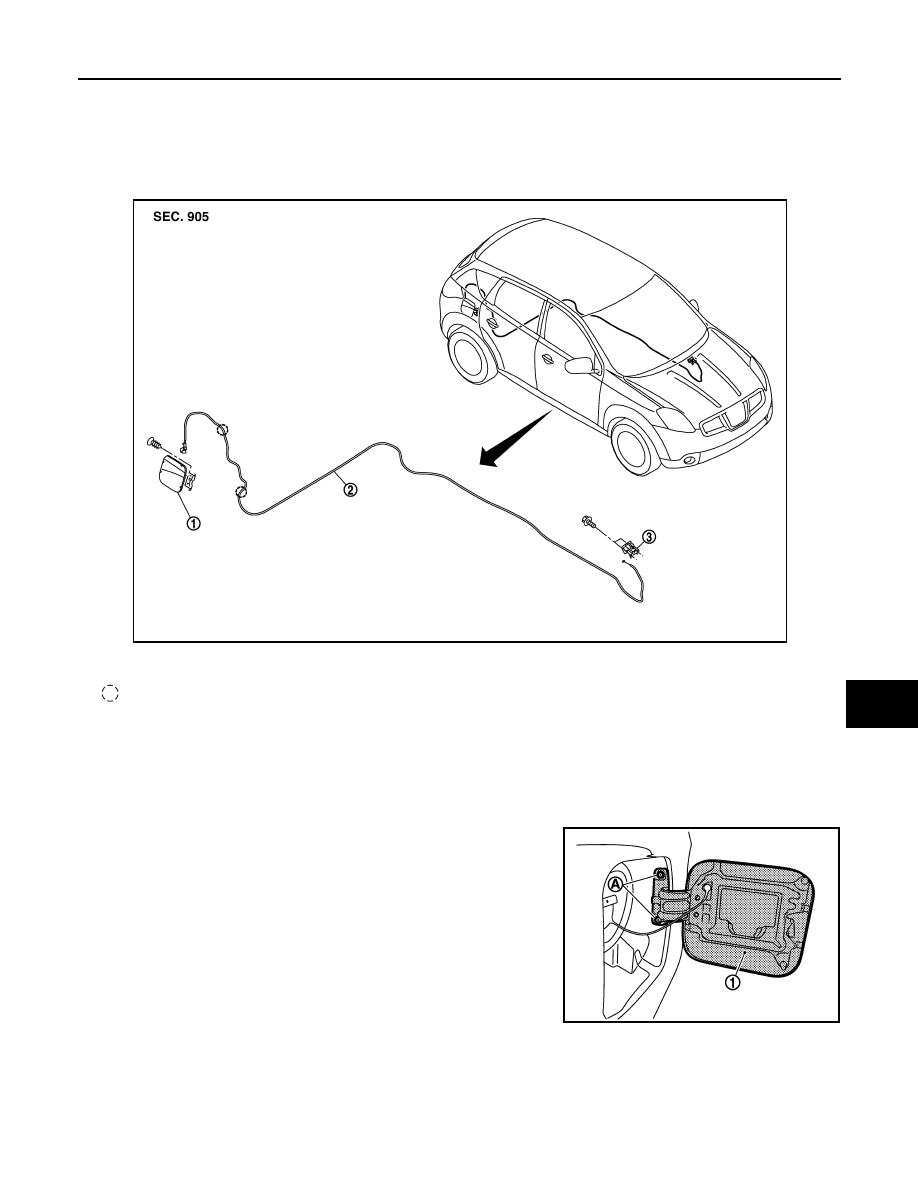

FUEL FILLER LID : Exploded View

INFOID:0000000001098690

FUEL FILLER LID : Removal and Installation

INFOID:0000000001098691

REMOVAL

1.

Fully open the fuel filler lid.

2.

Remove the filler cap.

3.

Remove the mounting screws (A), and then remove the fuel filler
lid (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

After installation, apply the touch-up paint (the body color) onto the head of the mounting screws.

FUEL FILLER OPENER CABLE

1.

Fuel filler lid assembly

2.

Fuel filler opener cable

3.

Fuel opener lever

: Clip

JMKIA0187ZZ

JMKIA0181ZZ

DLK-708

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

FUEL FILLER LID OPENER

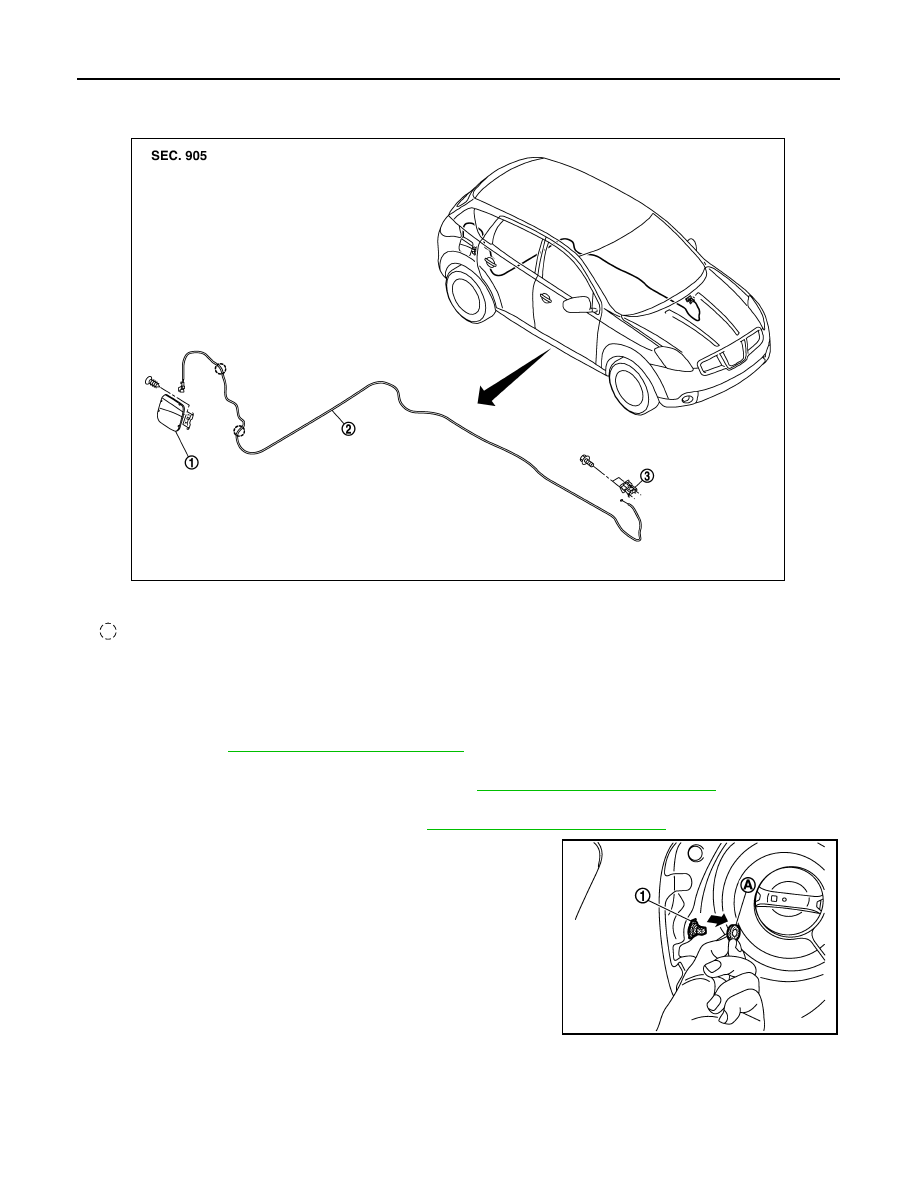

FUEL FILLER OPENER CABLE : Exploded View

INFOID:0000000001098692

FUEL FILLER OPENER CABLE : Removal and Installation

INFOID:0000000001098693

REMOVAL

1.

Remove the rear seat cushion, rear seatback, seatback lower support, and seatback mounting outer
bracket. Refer to

SE-31, "Removal and Installation"

.

2.

Remove the dash side finisher, front kicking plate inner, rear kicking plate inner, center pillar lower gar-
nish, and luggage side lower finisher (front). Refer to

INT-14, "Removal and Installation"

.

3.

Remove the parcel shelf, luggage floor carpet, luggage floor spacer, luggage rear plate, luggage side
lower finisher, and rear pillar finisher. Refer to

INT-24, "Removal and Installation"

.

4.

Remove the fuel filler lock seal (1).

1.

Fuel filler lid assembly

2.

Fuel filler opener cable

3.

Fuel opener lever

: Clip

JMKIA0187ZZ

JMKIA0182ZZ

FUEL FILLER LID OPENER

DLK-709

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

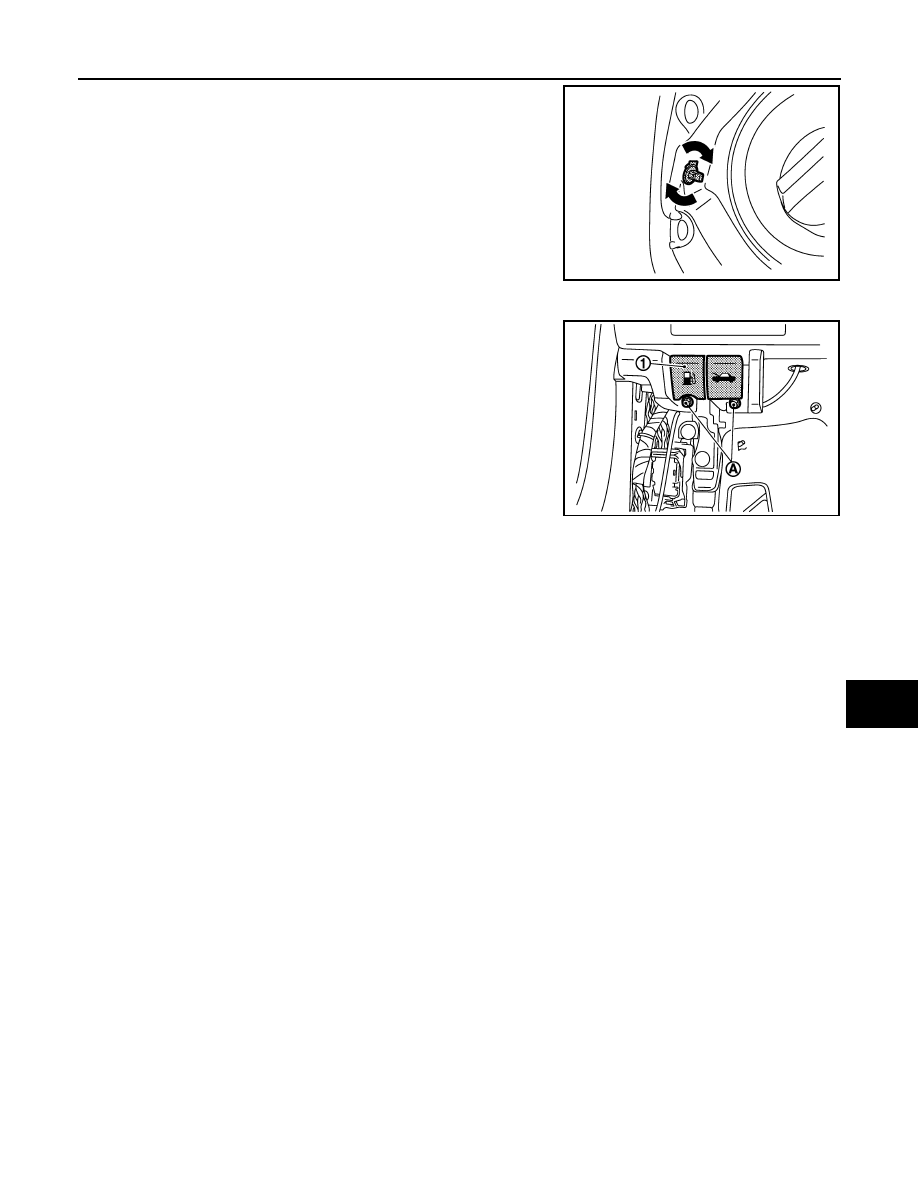

5.

Rotate the fuel filler lock, and then remove the fuel filler lock.

6.

Remove the fuel filler opener cable mounting clips and the clamps.

7.

Remove the mounting bolts, and then remove the fuel filler lid
opener lever.

8.

Remove the fuel filler opener cable.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check the fuel filler lid open/close operation after installation.

PIIB7988J

JMKIA0183ZZ

DLK-710

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

DOOR SWITCH

DOOR SWITCH

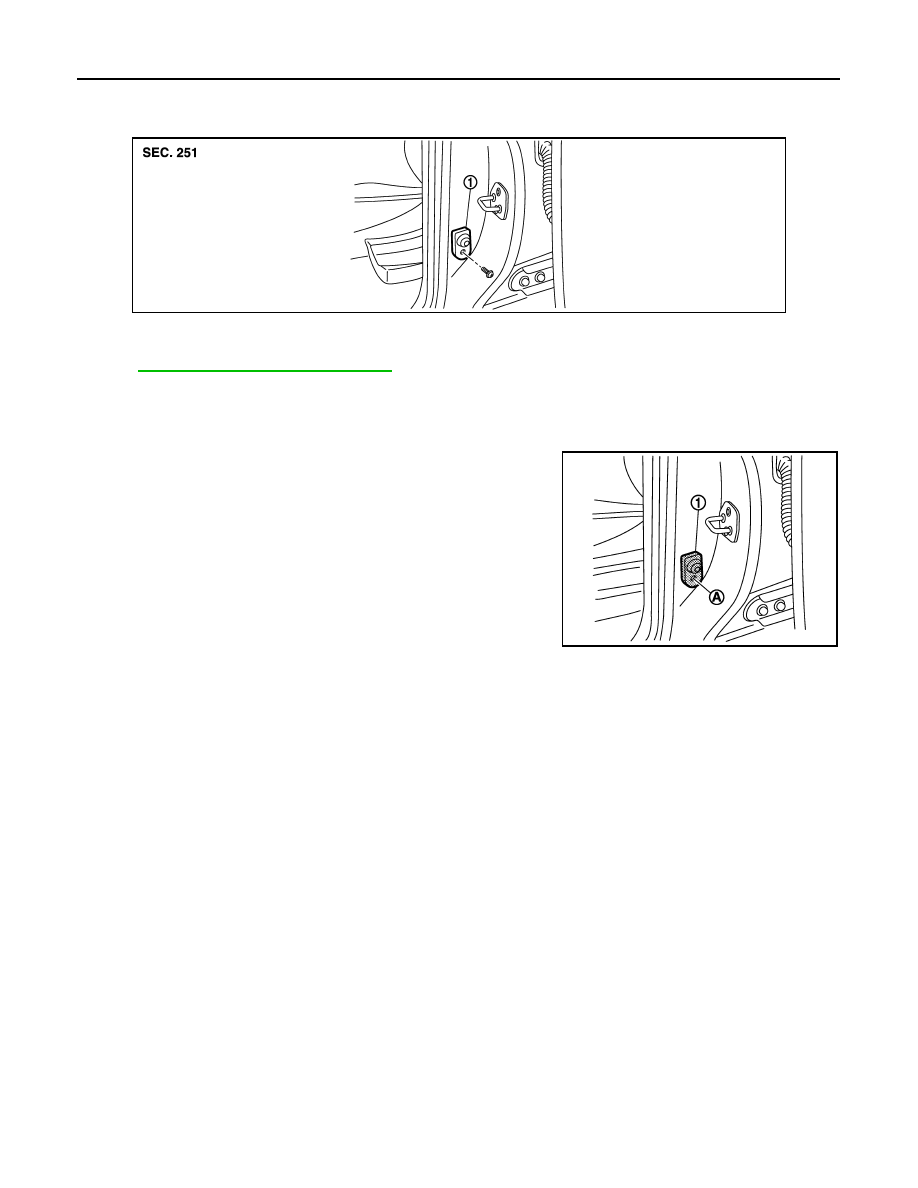

Exploded View

INFOID:0000000001095473

Refer to

DLK-877, "Removal and Installation"

.

Removal and Installation

INFOID:0000000001095474

REMOVAL

1.

Remove the door switch mounting bolt (A), and then remove
door switch (1).
NOTE:
The same procedure is also performed for door switch (passen-
ger side, rear LH and rear RH).

INSTALLATION

Install in the reverse order of removal.

JMKIA0451ZZ

1.

Door switch (driver side)

JMKIA0452ZZ
