3.

Remove the inside handle mounting bolt, and then disconnect the inside handle knob cable and the lock
knob cable.

4.

Remove the inside handle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check the door lock/unlock operation after installation.
• Check the door open/close operation after installation.

OUTSIDE HANDLE

OUTSIDE HANDLE : Exploded View

INFOID:0000000001098678

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000001098679

REMOVAL

1.

Remove the rear door finisher. Refer to

INT-13, "REAR DOOR FINISHER : Removal and Installation"

.

2.

Fully close the front door window.

3.

Remove the door sealing screen.

4.

Remove the inside handle mounting bolt, disconnect the inside handle knob cable and the lock knob
cable.

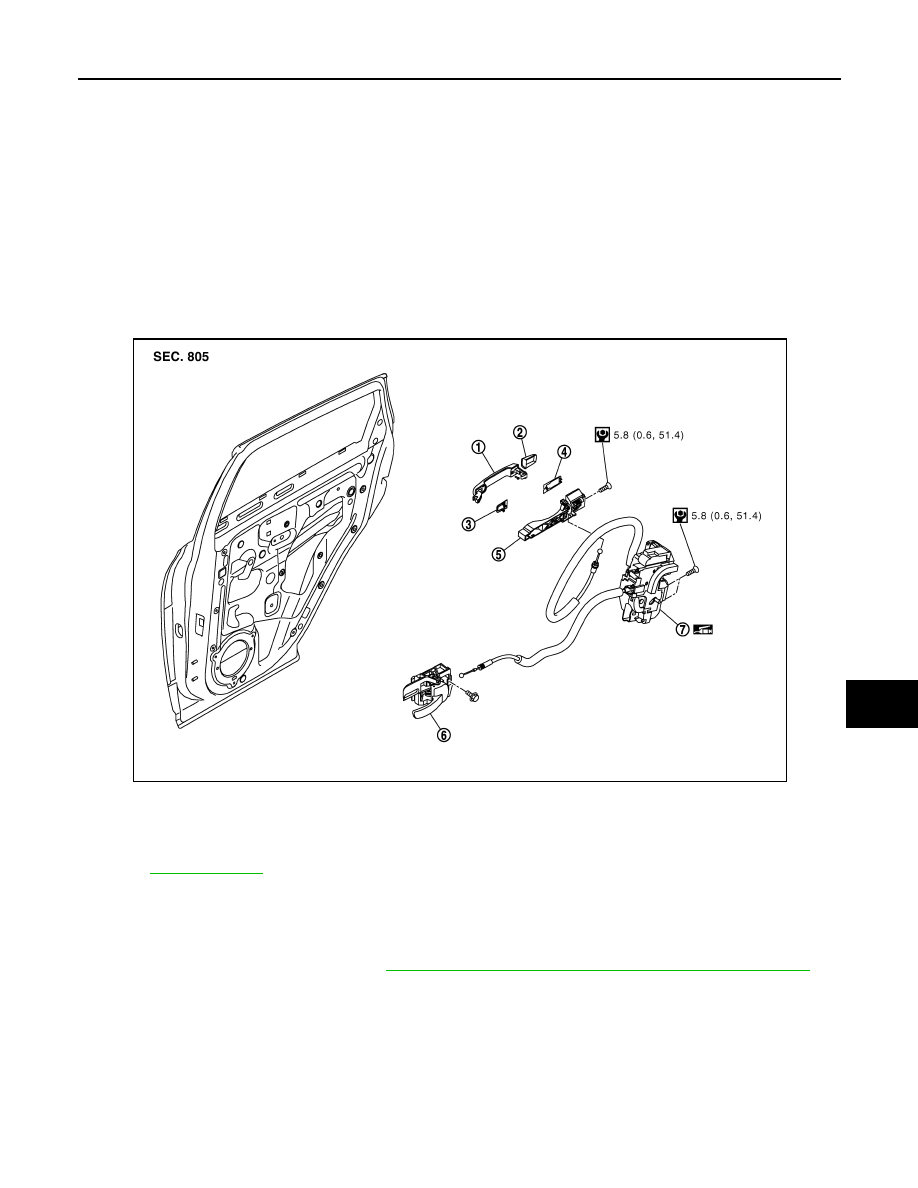

1.

Outside handle

2.

Outside handle escutcheon

3.

Front gasket

4.

Rear gasket

5.

Outside handle bracket

6.

Inside handle

7.

Door lock assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0189GB

DLK-704

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

REAR DOOR LOCK

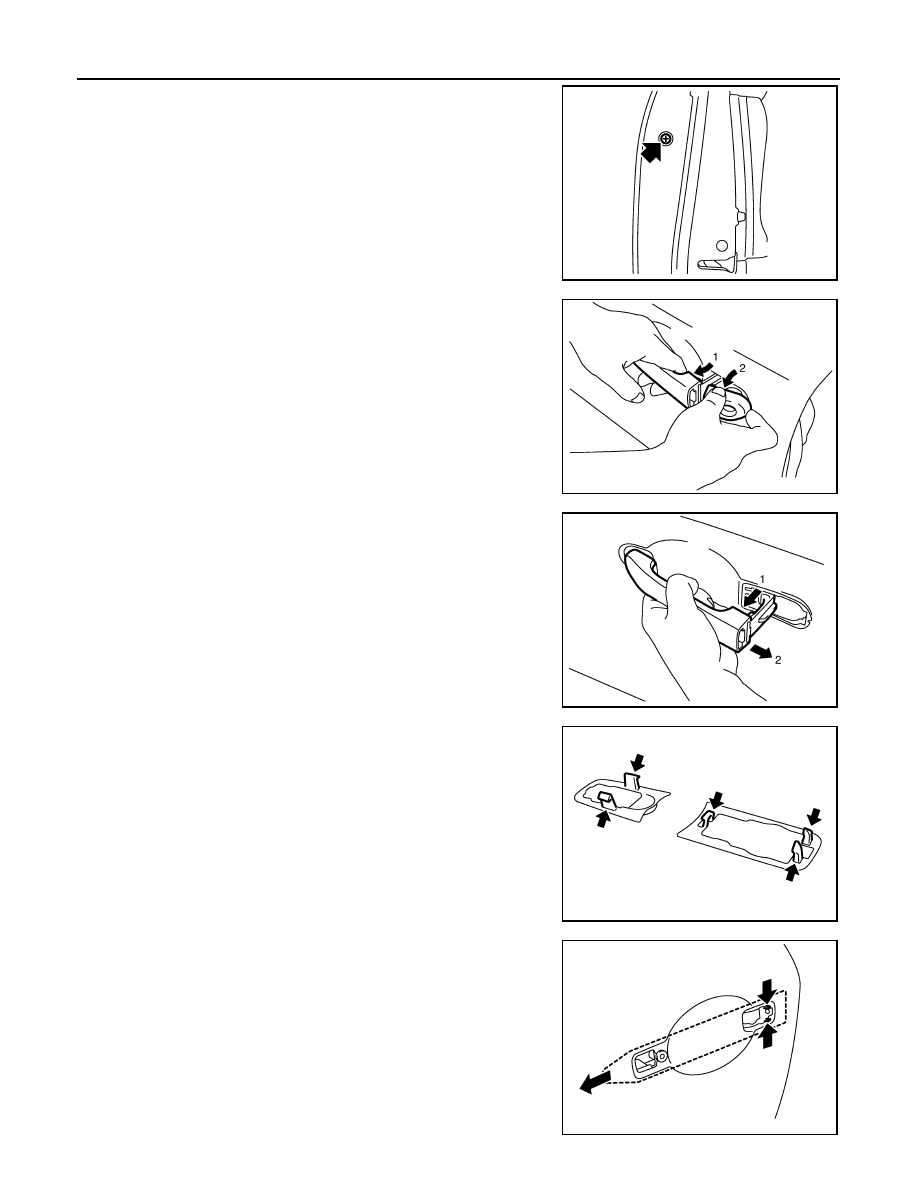

5.

Remove the door side grommet, and remove the door key cylin-
der assembly (driver side) and the outside handle escutcheon
(passenger side) mounting bolts from the grommet hole.

CAUTION:

Do not forcibly remove the bolts (TORX: T10).

6.

While pulling the outside handle, and then remove the door key
cylinder assembly.

7.

While pulling the outside handle, slide toward rear of vehicle to
remove the outside handle.

8.

Remove the front gasket and the rear gasket.

9.

While pulling the outside handle bracket, slide toward rear of
vehicle to remove the outside handle bracket.

JMKIA0020ZZ

PIIB5809E

PIIB5810E

PIIB5811E

PIIB5814E

REAR DOOR LOCK

DLK-705

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

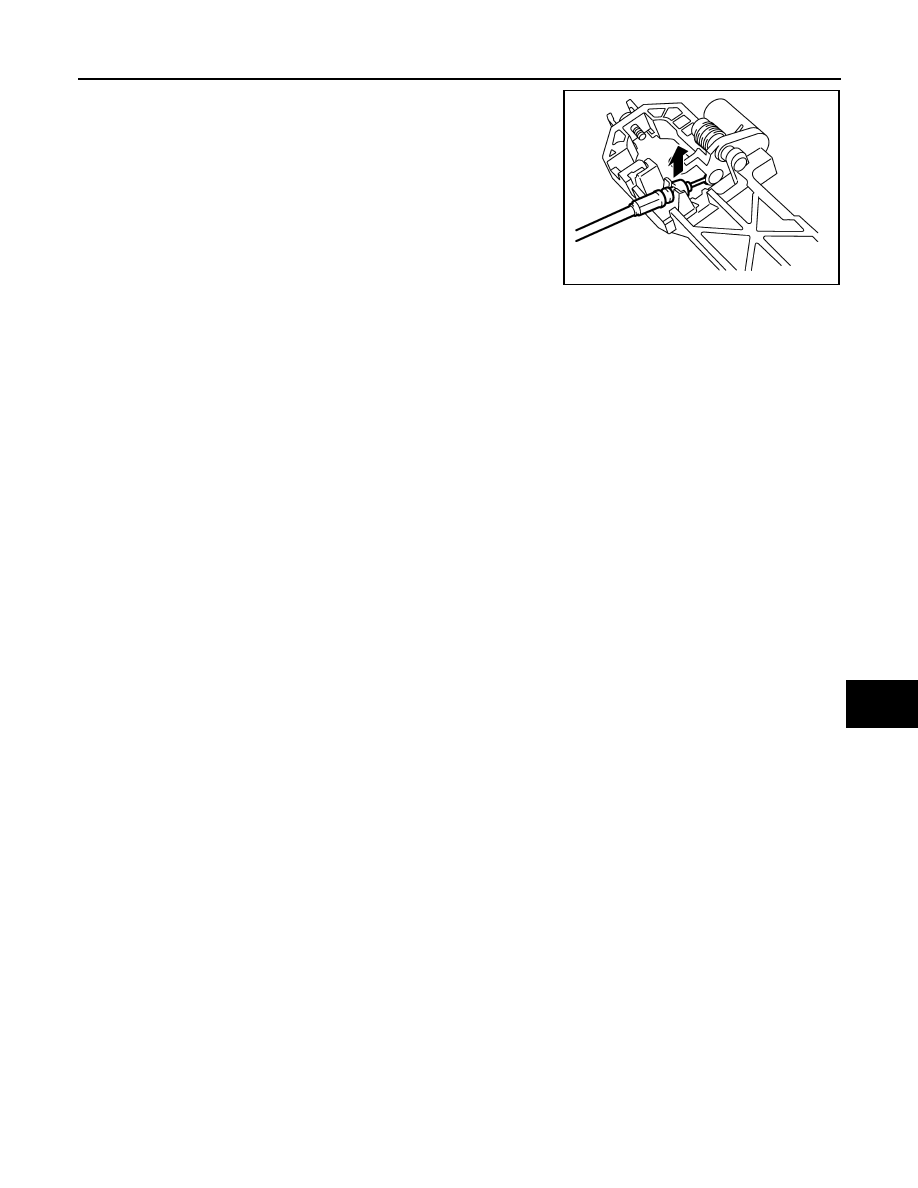

10. Reach in to separate the outside handle cable connection.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check the door lock/unlock operation after installation.
• Check the door open/close operation after installation.

PIIB5815E

DLK-706

< ON-VEHICLE REPAIR >

[WITHOUT I-KEY & SUPER LOCK]

BACK DOOR LOCK

BACK DOOR LOCK

DOOR LOCK

DOOR LOCK : Exploded View

INFOID:0000000001098684

DOOR LOCK : Removal and Installation

INFOID:0000000001098685

REMOVAL

1.

Remove the back door trim finisher lower. Refer to

INT-26, "Removal and Installation"

.

2.

Disconnect the back door lock assembly and back door opener switch connectors.

3.

Remove the back door lock mounting bolts, and then remove the back door lock and actuator.

INSTALLTION

Install in the reverse order of removal.

CAUTION:

Check the back door lock/unlock operation after installation.

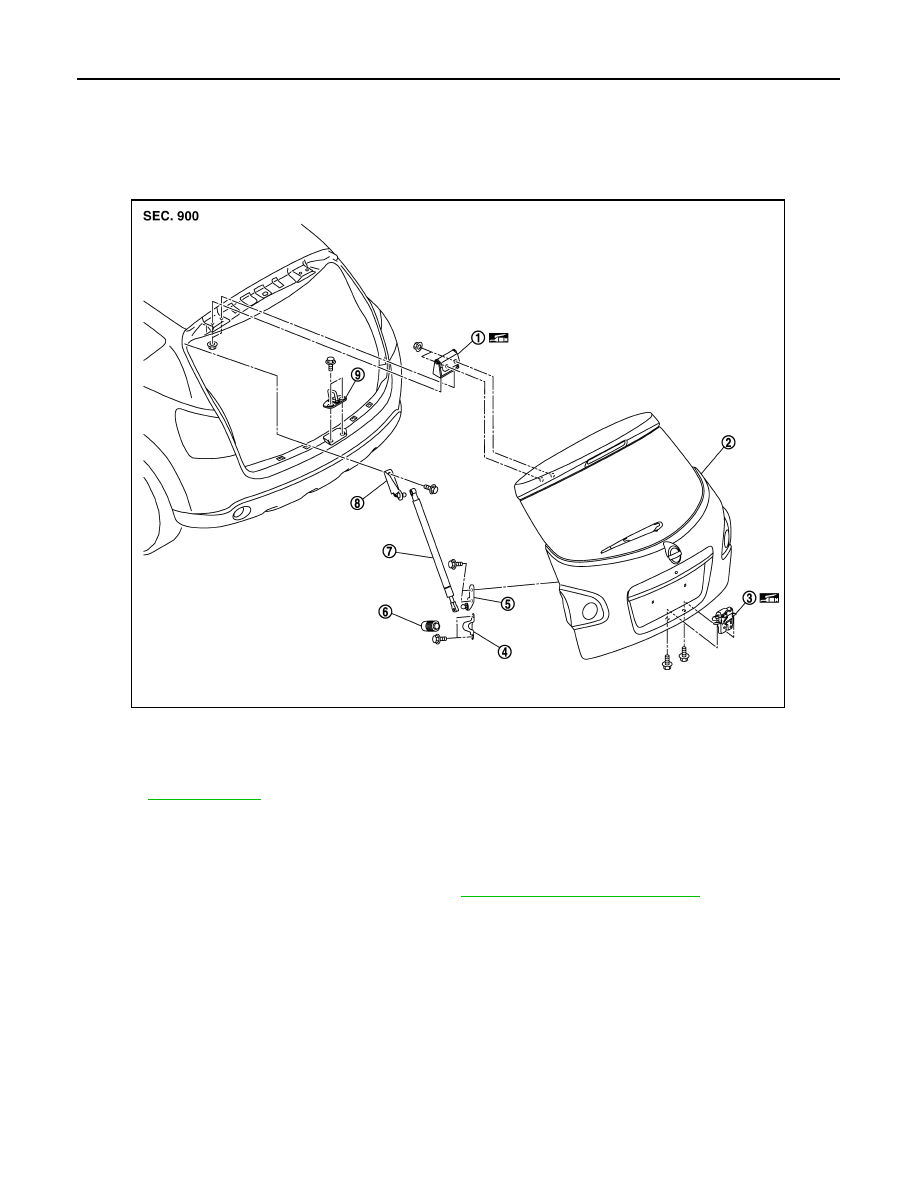

1.

Back door hinge

2.

Back door assembly

3.

Back door lock assembly

4.

Bumper rubber bracket

5.

Back door stay bracket (lower)

6.

Bumper rubber

7.

Back door stay

8.

Back door stay bracket (upper)

9.

Back door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0186ZZ
