RADIATOR

CO-35

< ON-VEHICLE REPAIR >

[MR20DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

Removal and Installation

INFOID:0000000000905154

REMOVAL

WARNING:

• Never remove reservoir tank cap when engine is hot. Serious burns could occur from high-pressure

engine coolant escaping from reservoir tank.

• Wrap a thick cloth around the reservoir tank cap. Slowly turn it a quarter of a turn to release built-up

pressure. Then turn it all the way.

1.

Drain engine coolant from radiator. Refer to

CO-30, "Draining"

.

CAUTION:

• Perform this step when the engine is cold.
• Never spill engine coolant on drive belts.

2.

Remove air duct (inlet). Refer to

EM-144, "Exploded View"

.

3.

Remove reservoir tank hose at radiator side (CVT models).

4.

Disconnect connector from resistor and fan motor, and move harness to aside.

5.

Remove cooling fan assembly. Refer to

CO-37, "Exploded View"

.

CAUTION:

Be careful not to damage radiator core.

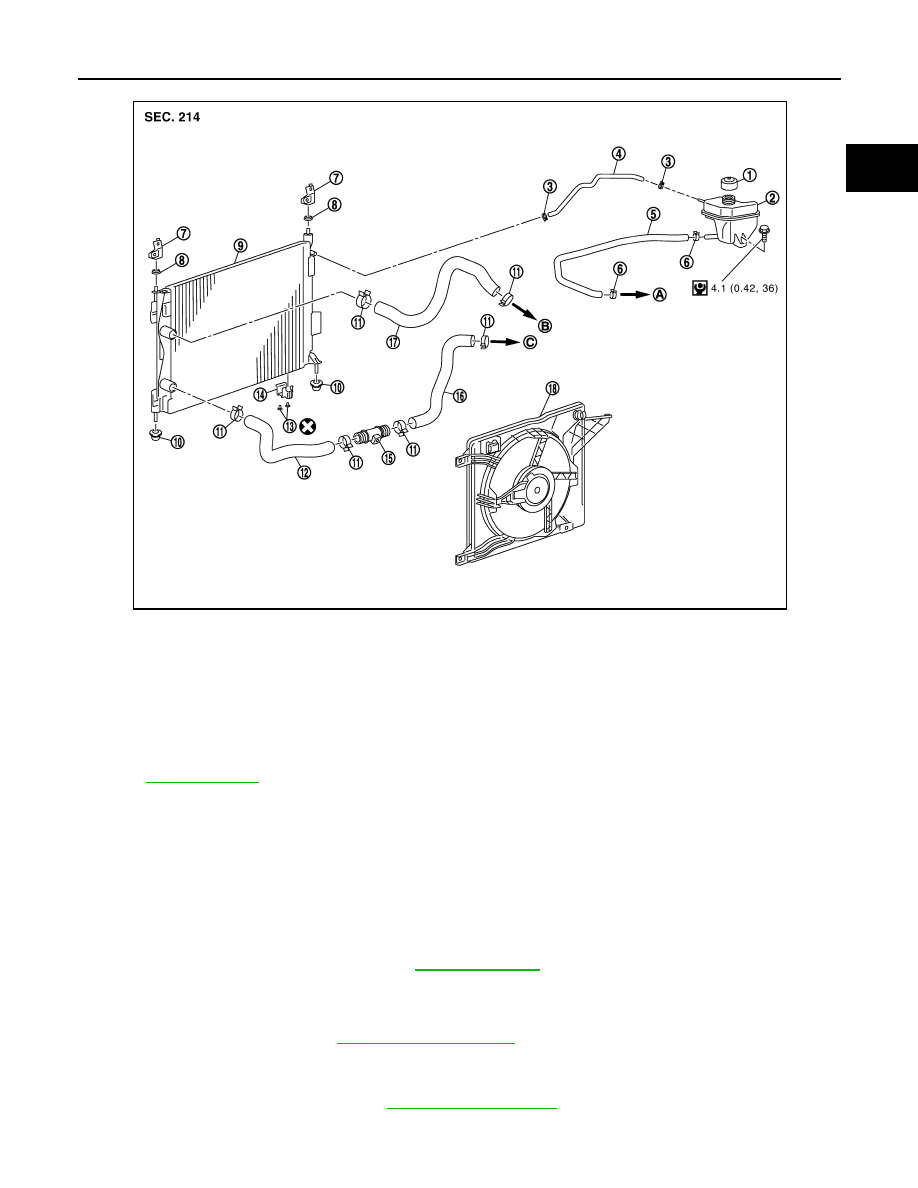

1.

Reservoir tank cap

2.

Reservoir tank

3.

Clamp

4.

Reservoir tank hose

5.

Reservoir tank hose

6.

Clamp

7.

Bracket

8.

Mounting rubber (upper)

9.

Radiator

10. Mounting rubber (lower)

11.

Clamp

12. Radiator hose (lower)

13. Rivet

14. Clip

15. Radiator hose pipe

16. Radiator hose (lower)

17. Radiator hose (upper)

18. Cooling fan assembly

A.

To thermostat housing

B.

To water outlet

C.

To water inlet

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA0313GB

CO-36

< ON-VEHICLE REPAIR >

[MR20DE]

RADIATOR

6.

Remove radiator hose (upper and lower).

7.

Remove liquid tank bracket mounting bolts. Refer to

HA-36, "Exploded View"

.

8.

Remove mounting bracket (upper).

9.

Lift up the A/C condenser to disengage the radiator, and then remove the radiator.

CAUTION:

Be careful not to damage or scratch radiator and A/C condenser core.

INSTALLATION

Installation is the reverse order of removal.

Inspection

INFOID:0000000000905155

INSPECTION AFTER INSTALLATION

• Check that the reservoir tank cap is tightened.
• Check for leaks of engine coolant using the adapter and the reservoir tank cap tester [SST: — (M.S. 554-07).

Refer to

CO-30, "Inspection"

.

• Start and warm up the engine. Visually make sure that there is no leaks of engine coolant.

COOLING FAN

CO-37

< ON-VEHICLE REPAIR >

[MR20DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

COOLING FAN

Exploded View

INFOID:0000000000905157

Removal and Installation

INFOID:0000000000905158

REMOVAL

1.

Remove air duct (inlet). Refer to

EM-144, "Exploded View"

.

2.

Disconnect harness connector from resistor and fan motor, and move harness to aside.

3.

Remove cooling fan assembly.

CAUTION:

Be careful not to damage or scratch on radiator core.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Only use genuine parts for fan shroud mounting bolt and observe the specified torque (to prevent
radiator from being damaged). (M/T models)
NOTE:
Cooling fan is controlled by ECM. For details, refer to

EC-918, "Description"

.

Disassembly and Assembly

INFOID:0000000000905174

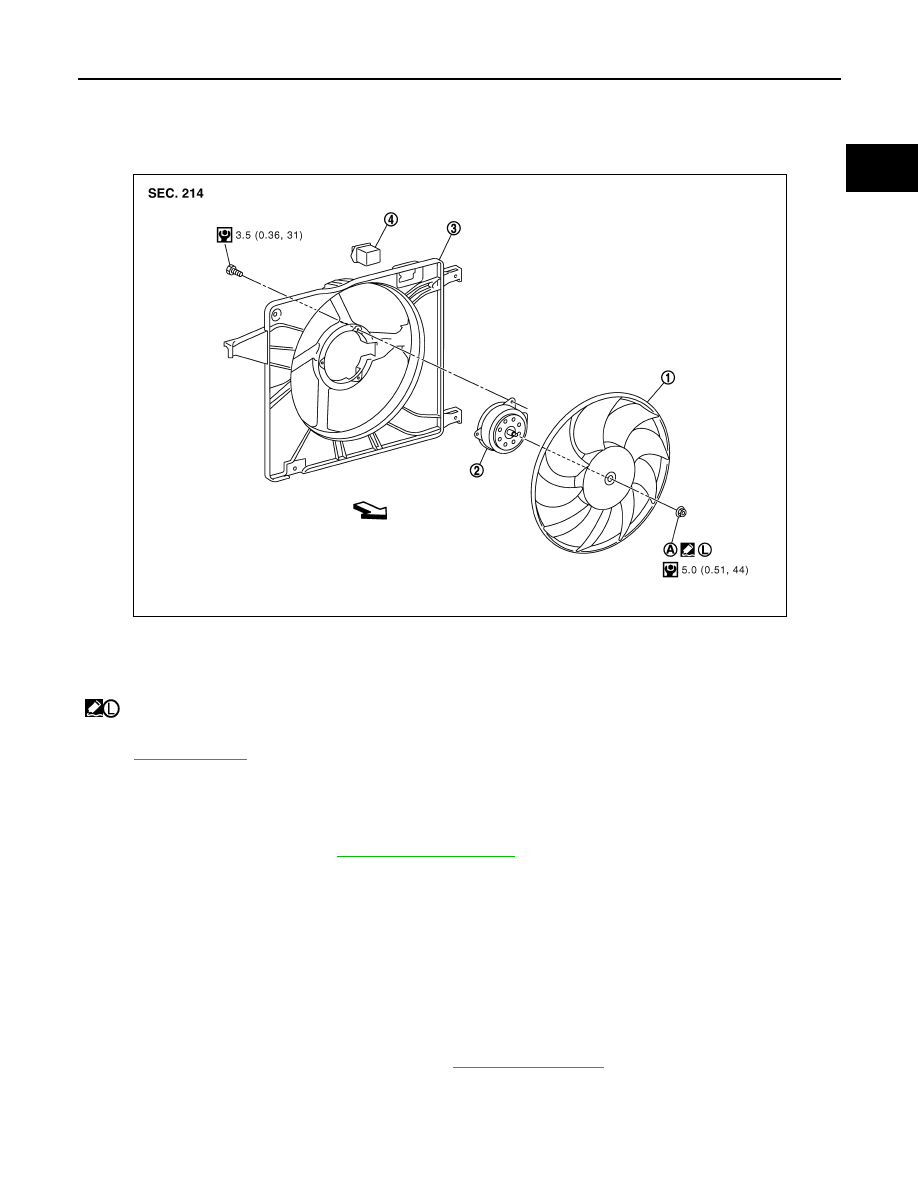

DISASSEMBLY

1.

Cooling fan

2.

Fan motor

3.

Fan shroud

4.

Resistor

A.

Reverse screw

 : Apply thread locking sealant.

 : Vehicle front

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPBIA0314GB

CO-38

< ON-VEHICLE REPAIR >

[MR20DE]

COOLING FAN

1.

Remove resistor from fan shroud.

CAUTION:

Handle carefully to avoid dropping and shocks.

2.

Remove cooling fan mounting nut, and then remove the cooling fan.

CAUTION:

Reverse screw is used for the fan attachment screw. When removing or attaching, turn the screw
the opposite way as for a normal screw.

3.

Remove fan motor.

ASSEMBLY

Assembly is the reverse order of disassembly.
• Apply thread locking sealant on fan motor shaft.

Inspection

INFOID:0000000000905177

INSPECTION AFTER DISASSEMBLY

Cooling Fan

Inspect cooling fan for crack or unusual bend.
• If anything is found, replace cooling fan.
