HAZARD REMINDER FUNCTION

DLK-575

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HAZARD REMINDER FUNCTION

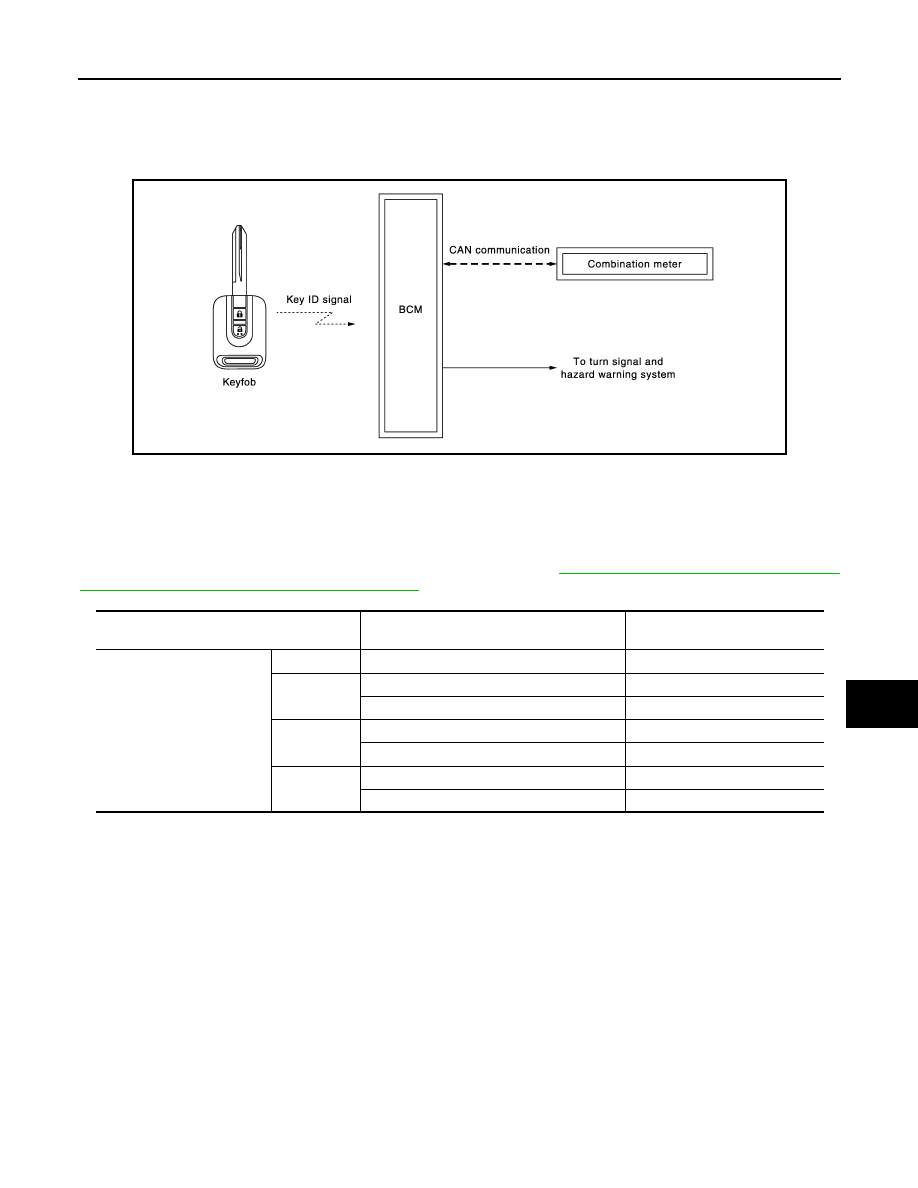

System Diagram

INFOID:0000000001081703

HAZARD REMINDER FUNCTION

System Description

INFOID:0000000001081704

HAZARD REMINDER OPERATION

When door is locked or unlocked by keyfob, then BCM flashes hazard warning lamp as a reminder.
NOTE:
Hazard reminder mode can be changed with CONSULT-III. Refer to

DLK-580, "MULTIREMOTE ENT : CON-

SULT-III Function (BCM - MULTIREMOTE ENT)"

.

Component Parts Location

INFOID:0000000001117097

JMKIA0510GB

Hazard reminder setting

(With CONSULT-III)

Door lock operation

(with keyfob)

Hazard warning lamp flash

HAZARD LAMP SET

MODE 1

—

—

MODE 2

Lock

Once

Unlock

—

MODE 3

Lock

—

Unlock

Twice

MODE 4

Lock

Once

Unlock

Twice

DLK-576

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

HAZARD REMINDER FUNCTION

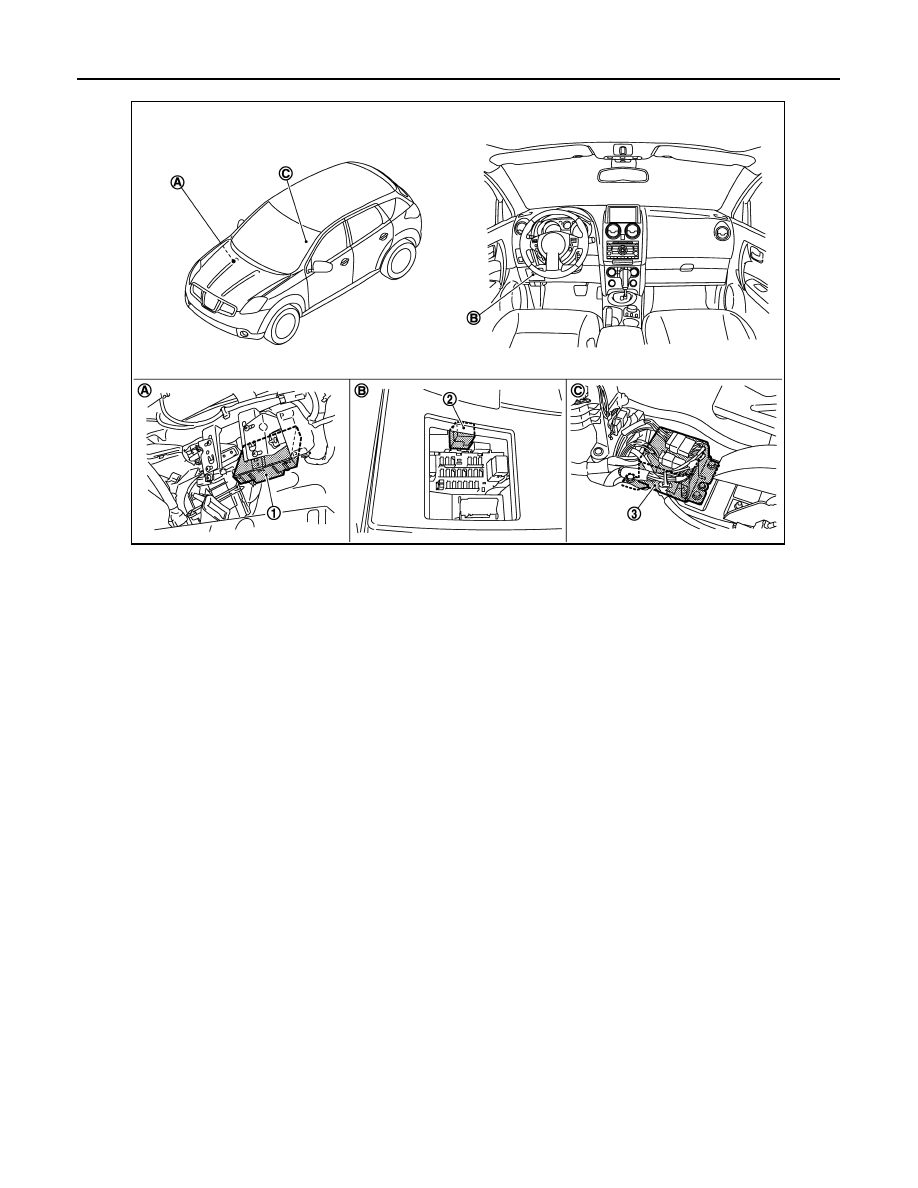

JMKIA0487ZZ

1.

BCM
M65, M66, M67

2.

Passenger side anti-hijack relay
M90

3.

Air bag diagnosis sensor unit
M59

A.

Over the glove box

B.

View with fuse box lid removed

C. View with center console removed

HAZARD REMINDER FUNCTION

DLK-577

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Component Description

INFOID:0000000001081706

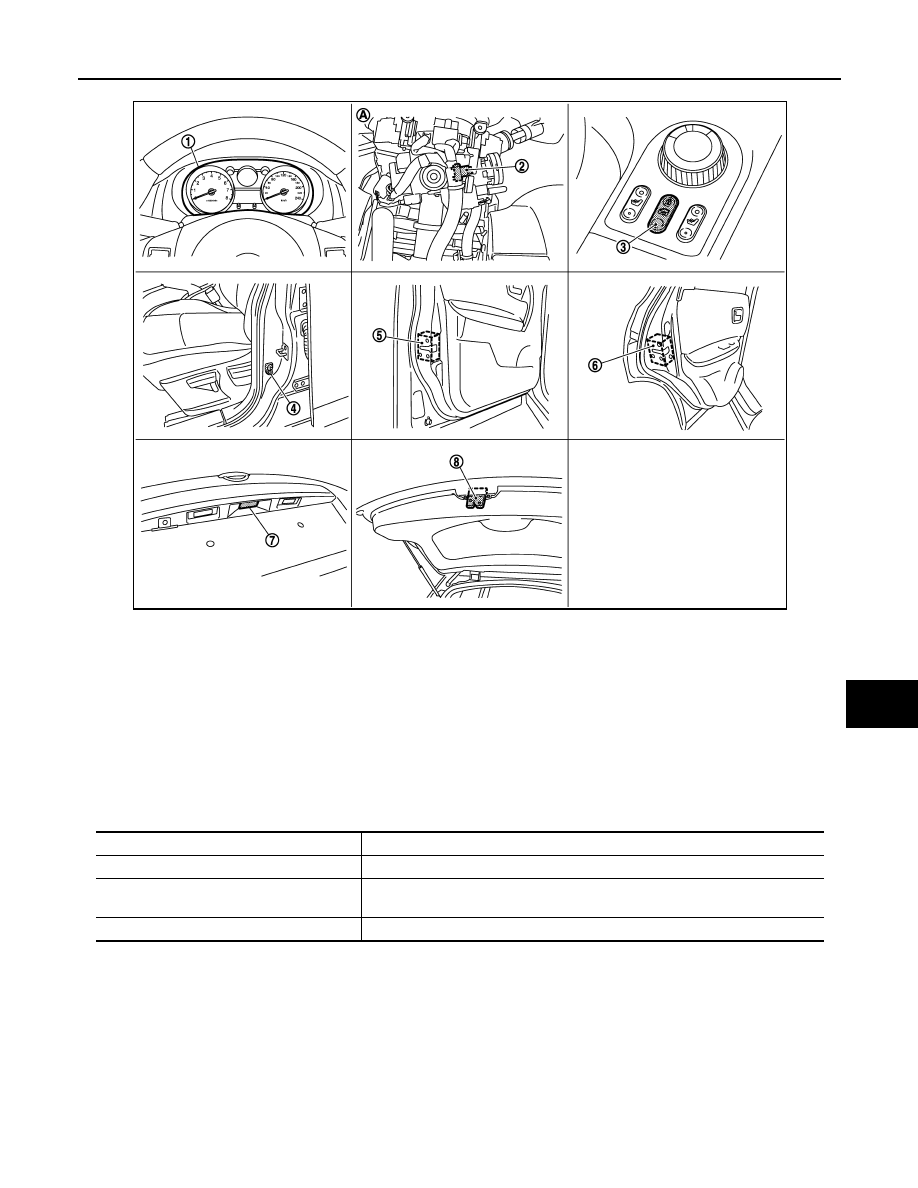

JMKIA0488ZZ

1.

Combination meter
M34

2.

Key switch
M24

3.

Door lock and unlock switch
M89

4.

Front door switch (driver side)
B34

5.

Front door lock actuator (driver side)
D9

6.

Rear door lock actuator LH
D85

7.

Back door opener switch
D186

8.

Back door lock assembly
D152

A.

View with steering column cover re-
moved

Item

Function

BCM

Controls the hazard reminder system.

Combination meter

Turns ON the turn signal indicator (built in combination meter) by the request from
BCM via CAN communication.

Keyfob

Transmits key ID to BCM when lock and unlock button is pressed.

DLK-578

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000001096702

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

DOOR LOCK

DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)

INFOID:0000000001097316

BCM CONSULT-III FUNCTION

CONSULT-III performs the following functions via CAN communication with BCM.

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

BCS-61, "DTC Index"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

—

BCM

×

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

Air conditioner

AIR CONDITONER

×

Intelligent Key system

INTELLIGENT KEY

×

Combination switch

COMB SW

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

PTC heater system

PTC HEATER

×

×
