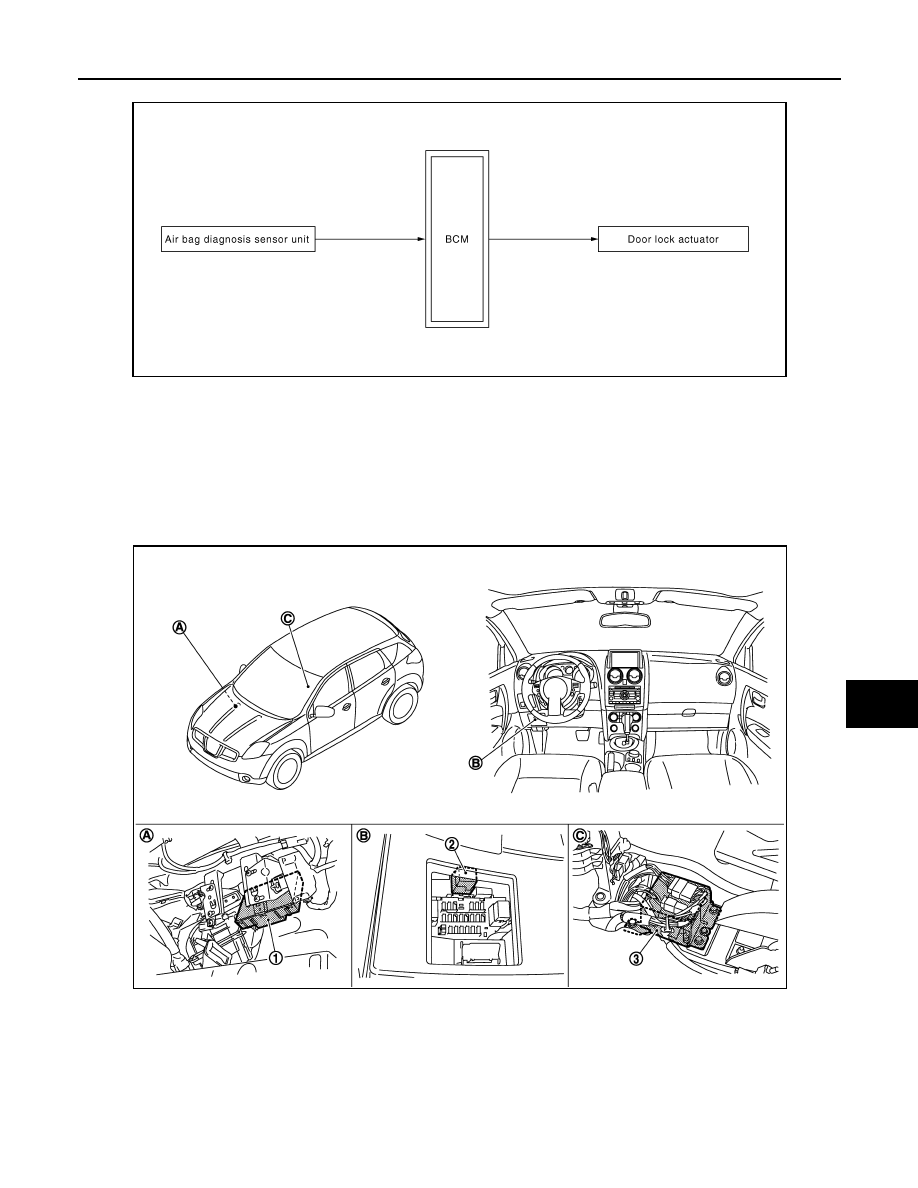

AIR BAG INTERLOCK UNLOCK OPERATION

AIR BAG INTERLOCK UNLOCK : System Description

INFOID:0000000001081616

AIR BAG INTERLOCK UNLOCK OPERATION

When ignition switch is ON and BCM receive air bag deployment signal, it operates automatically to unlock all
doors. Air bag diagnosis sensor unit sends the air bag deployment signal to BCM.

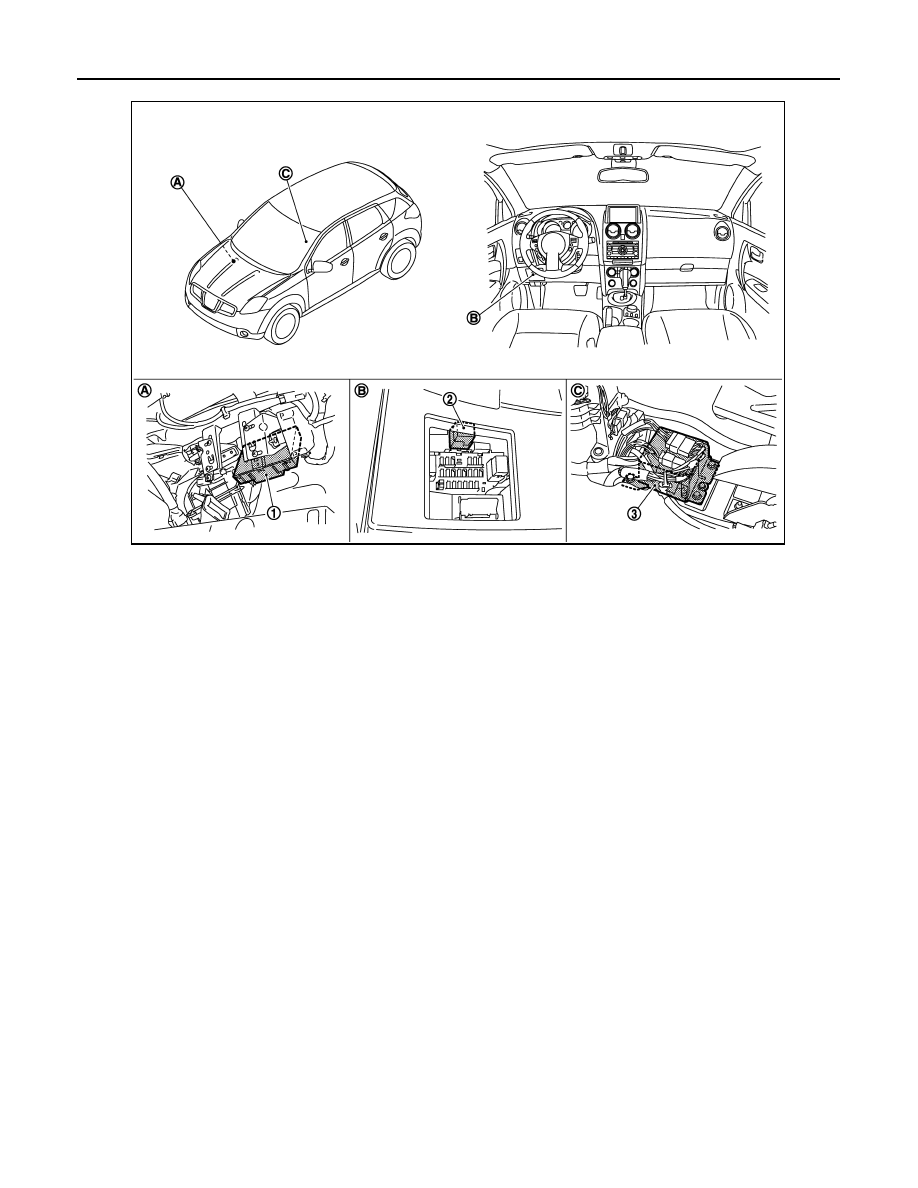

AIR BAG INTERLOCK UNLOCK : Component Parts Location

INFOID:0000000001117094

JMKIA0404GB

JMKIA0487ZZ

1.

BCM
M65, M66, M67

2.

Passenger side anti-hijack relay
M90

3.

Air bag diagnosis sensor unit
M59

A.

Over the glove box

B.

View with fuse box lid removed

C. View with center console removed

DLK-568

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

DOOR LOCK FUNCTION

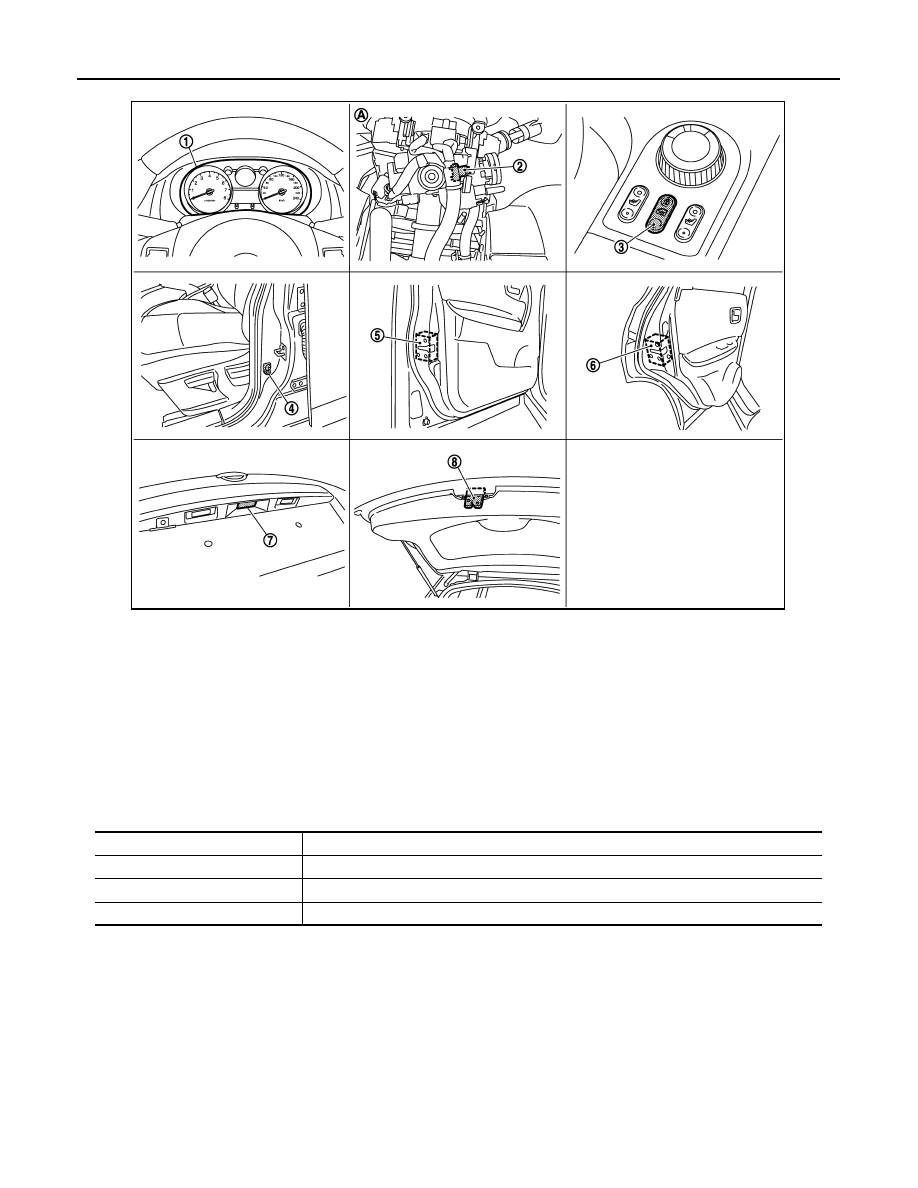

AIR BAG INTERLOCK UNLOCK : Component Description

INFOID:0000000001081618

JMKIA0488ZZ

1.

Combination meter
M34

2.

Key switch
M24

3.

Door lock and unlock switch
M89

4.

Front door switch (driver side)
B34

5.

Front door lock actuator (driver side)
D9

6.

Rear door lock actuator LH
D85

7.

Back door opener switch
D186

8.

Back door lock assembly
D152

A.

View with steering column cover re-
moved

Item

Function

BCM

Controls the door lock function.

Air bag diagnosis sensor unit

Transmits air bag deployment signal to BCM.

Door lock actuator

Receives door lock and unlock signal from BCM and lock and unlock each door.

BACK DOOR OPENER FUNCTION

DLK-569

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR OPENER FUNCTION

BACK DOOR OPENER SWITCH

BACK DOOR OPENER SWITCH : System Diagram

INFOID:0000000001081619

BACK DOOR OPENER OPERATION

BACK DOOR OPENER SWITCH : System Description

INFOID:0000000001081620

BACK DOOR OPENER OPERATION

When back door opener switch is pressed, BCM opens back door opener actuator.
NOTE:
Back door opener actuator is not for locking the back door. The function is only to open the back door.

OPERATION CONDITION

If the following conditions are not satisfied, back door opener operation is not performed.

BACK DOOR OPENER SWITCH : Component Parts Location

INFOID:0000000001117095

JMKIA0402GB

Back door opener switch operation

Operation condition

Back door open

• Vehicle speed is less than 5 km/h (3 MPH).
• All doors are unlocked.

DLK-570

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

BACK DOOR OPENER FUNCTION

JMKIA0487ZZ

1.

BCM
M65, M66, M67

2.

Passenger side anti-hijack relay
M90

3.

Air bag diagnosis sensor unit
M59

A.

Over the glove box

B.

View with fuse box lid removed

C. View with center console removed
