DOOR LOCK FUNCTION

DLK-559

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR LOCK AND UNLOCK SWITCH : Component Description

INFOID:0000000001081578

KEYFOB

KEYFOB : System Diagram

INFOID:0000000001081583

JMKIA0488ZZ

1.

Combination meter
M34

2.

Key switch
M24

3.

Door lock and unlock switch
M89

4.

Front door switch (driver side)
B34

5.

Front door lock actuator (driver side)
D9

6.

Rear door lock actuator LH
D85

7.

Back door opener switch
D186

8.

Back door lock assembly
D152

A.

View with steering column cover re-
moved

Item

Function

BCM

Controls the door lock and unlock function.

Door switch

Detects door state (open or closed).

Door lock and unlock switch

Transmits door lock and unlock signal to BCM. Door lock and unlock switch indicator is built
in door lock and unlock switch.

Door lock actuator

Receives door lock and unlock signal from BCM and locks and unlocks each door.

DLK-560

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

DOOR LOCK FUNCTION

KEYFOB OPERATION

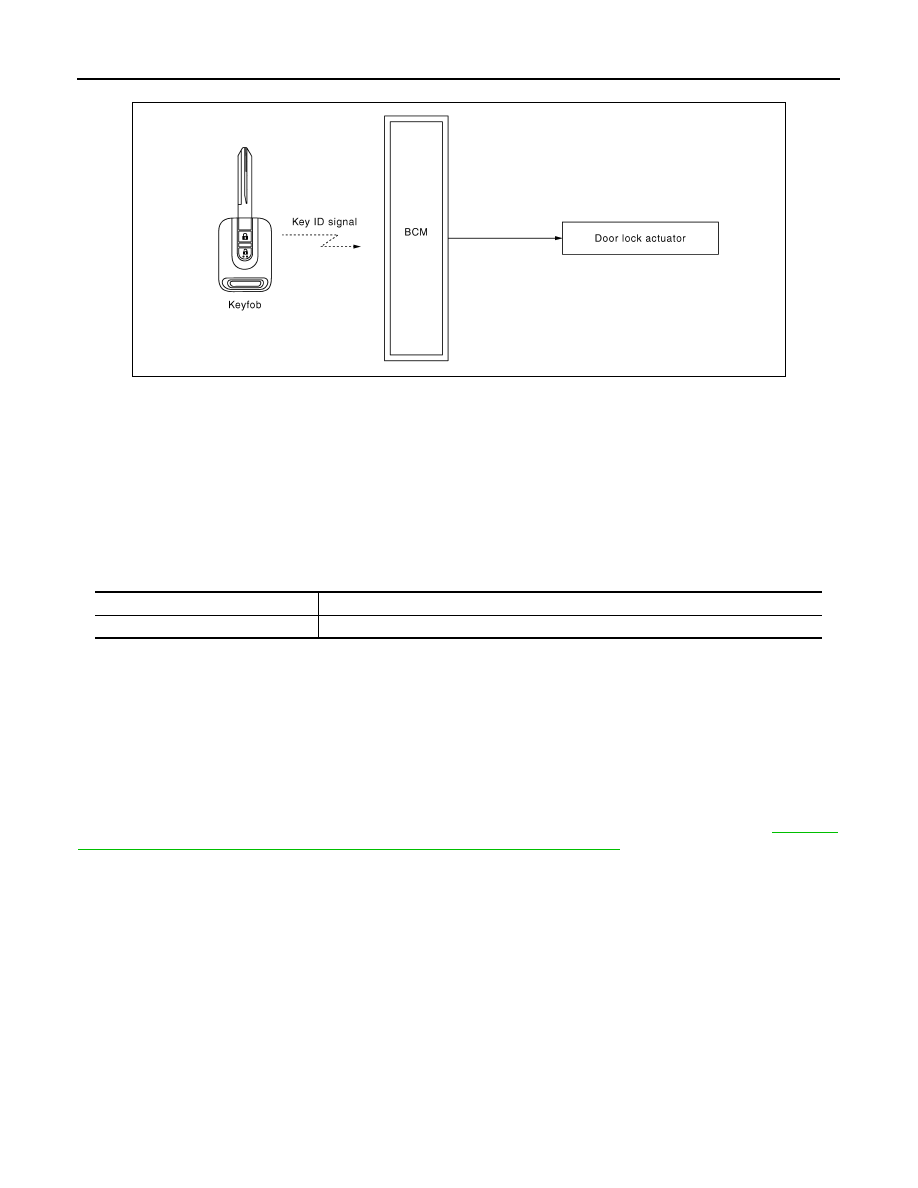

KEYFOB : System Description

INFOID:0000000001081584

KEYFOB OPERATION

The multi remote control system can be locked and unlocked by pressing door lock and unlock button of key-
fob.

DOOR LOCK AND UNLOCK OPERATION

When door lock and unlock button of keyfob is pressed, door lock and unlock signal transmits from keyfob to
BCM. When BCM receives the door lock and unlock signal, it operates door lock actuator.

OPERATION CONDITION

OPERATION AREA

To ensure that the keyfob works effectively, use within 100 cm range of each door, however the operable
range may differ according to surroundings.

ANTI-HIJACK MODE

When door lock is unlocked, pressing LOCK button on keyfob once will lock all doors. When door lock is
locked, pressing UNLOCK button on keyfob will unlock driver side door. Pressing UNLOCK button on keyfob
second time within 5 seconds from the first time will unlock all doors and back door can be opened with back
door opener switch.
NOTE:
Anti-hijack mode can be set to ON or OFF with CONSULT-III. For the setting information, refer to

DLK-580,

"MULTIREMOTE ENT : CONSULT-III Function (BCM - MULTIREMOTE ENT)"

.

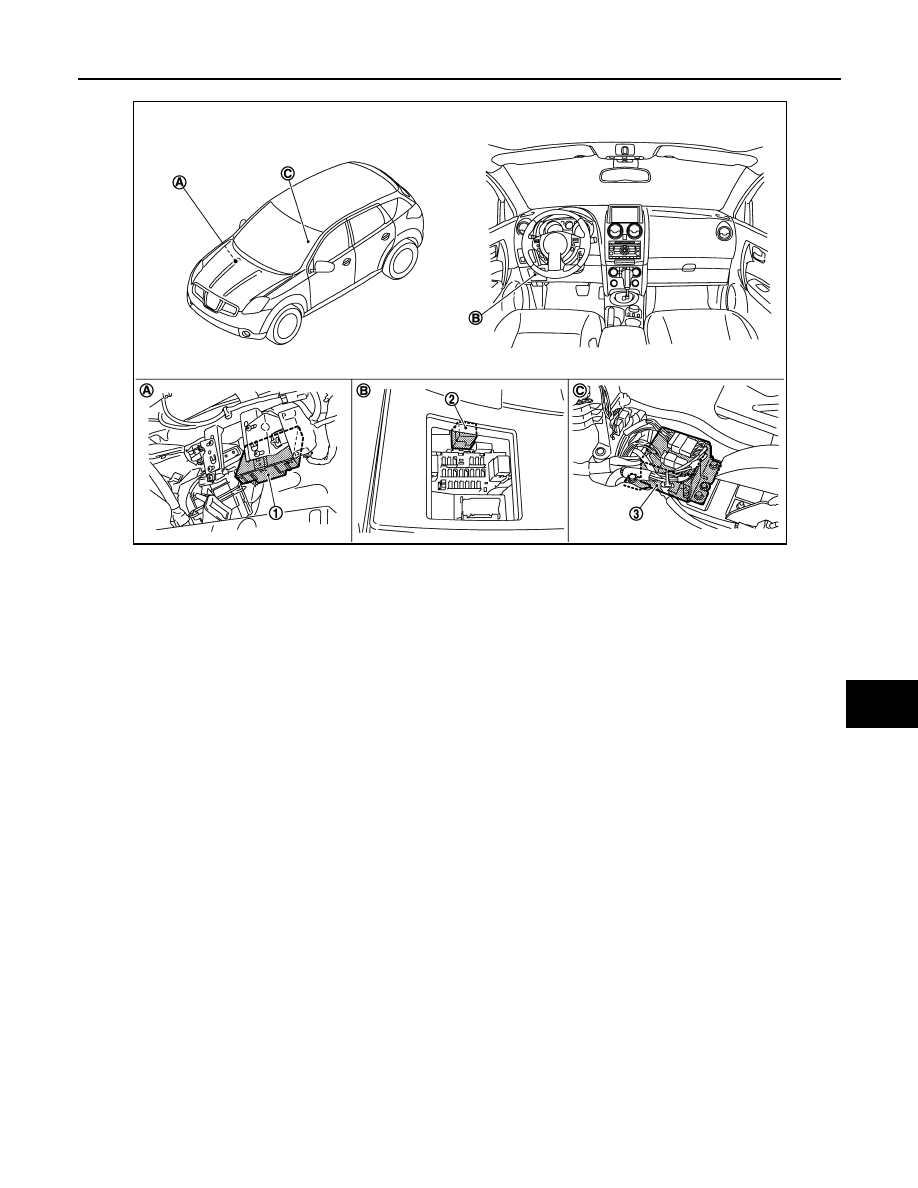

KEYFOB : Component Parts Location

INFOID:0000000001117091

JMKIA0507GB

Remote controller operation

Operation condition

Lock/unlock

Key switch is OFF (key is removed from ignition key cylinder).

DOOR LOCK FUNCTION

DLK-561

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JMKIA0487ZZ

1.

BCM
M65, M66, M67

2.

Passenger side anti-hijack relay
M90

3.

Air bag diagnosis sensor unit
M59

A.

Over the glove box

B.

View with fuse box lid removed

C. View with center console removed

DLK-562

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

DOOR LOCK FUNCTION

KEYFOB : Component Description

INFOID:0000000001081586

AUTO DOOR LOCK

AUTO DOOR LOCK : System Diagram

INFOID:0000000001081607

JMKIA0488ZZ

1.

Combination meter
M34

2.

Key switch
M24

3.

Door lock and unlock switch
M89

4.

Front door switch (driver side)
B34

5.

Front door lock actuator (driver side)
D9

6.

Rear door lock actuator LH
D85

7.

Back door opener switch
D186

8.

Back door lock assembly
D152

A.

View with steering column cover re-
moved

Item

Function

BCM

Controls the door lock function.

Key switch

Detects that ignition key is inserted into ignition key cylinder.

Door lock actuator

Receives lock and unlock signal from BCM and locks and unlocks each door.
