BACK DOOR

DLK-251

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR STRIKER : Removal and Installation

INFOID:0000000001054863

REMOVAL

1.

Remove the luggage rear plate cap. Refer to

INT-24, "Removal and Installation"

.

2.

Remove the mounting bolts, and then remove the back door striker.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• When removing and installing the back door striker, be sure to perform the fitting adjustment. Refer

to

DLK-250, "BACK DOOR ASSEMBLY : Adjustment"

.

• Check the back door open/close operation after installation.

BACK DOOR HINGE

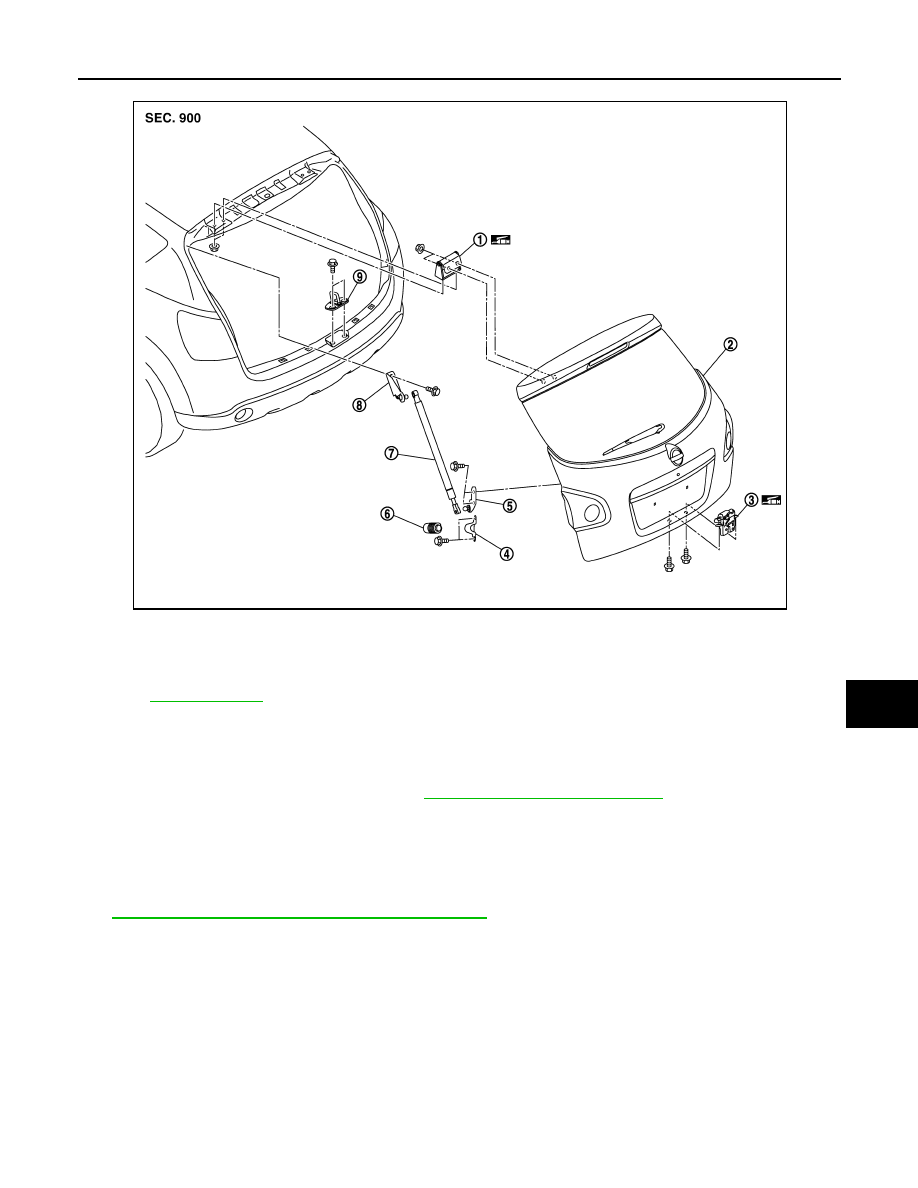

BACK DOOR HINGE : Exploded View

INFOID:0000000001116372

1.

Back door hinge

2.

Back door assembly

3.

Back door lock assembly

4.

Bumper rubber bracket

5.

Back door stay bracket (lower)

6.

Bumper rubber

7.

Back door stay

8.

Back door stay bracket (upper)

9.

Back door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0186ZZ

DLK-252

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

BACK DOOR

BACK DOOR HINGE : Removal and Installation

INFOID:0000000001102355

REMOVAL

1.

Remove the back door assembly. Refer to

DLK-248, "BACK DOOR ASSEMBLY : Removal and Installa-

tion"

.

2.

Remove upper side of the back door weatherstrip. Refer to

DLK-254, "BACK DOOR WEATHER-STRIP :

Removal and Installation"

.

3.

Remove rear seat belt cover. Refer to

INT-21, "Removal and Installation"

.

4.

Using remover tool, remove the headlining clip at the rear side of the headlining.
 Refer to

INT-20, "Exploded View"

.

5.

Remove the rear side of the headlining.

6.

Remove the back door hinge mounting nuts (body side), and then remove the back door hinge.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• When removing and installing the back door assembly, perform the fitting adjustment. Refer to

DLK-

250, "BACK DOOR ASSEMBLY : Adjustment"

.

• After installation, apply touch-up paint (the body color) onto the head of the hinge mounting nuts.
• Check the hinge rotating part for poor lubrication. If necessary, apply body grease.
• Check the back door open/close operation after installation.

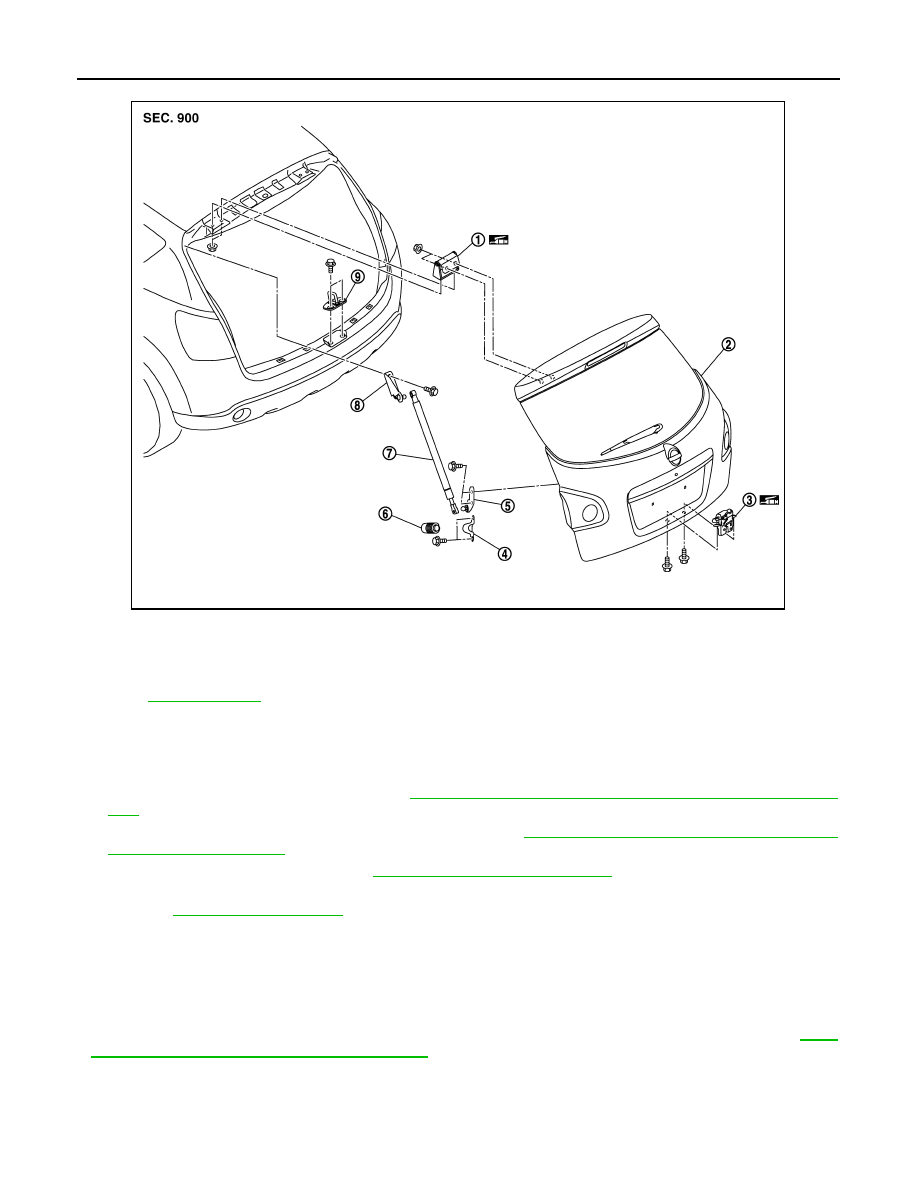

BACK DOOR STAY

1.

Back door hinge

2.

Back door assembly

3.

Back door lock assembly

4.

Bumper rubber bracket

5.

Back door stay bracket (lower)

6.

Bumper rubber

7.

Back door stay

8.

Back door stay bracket (upper)

9.

Back door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0186ZZ

BACK DOOR

DLK-253

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

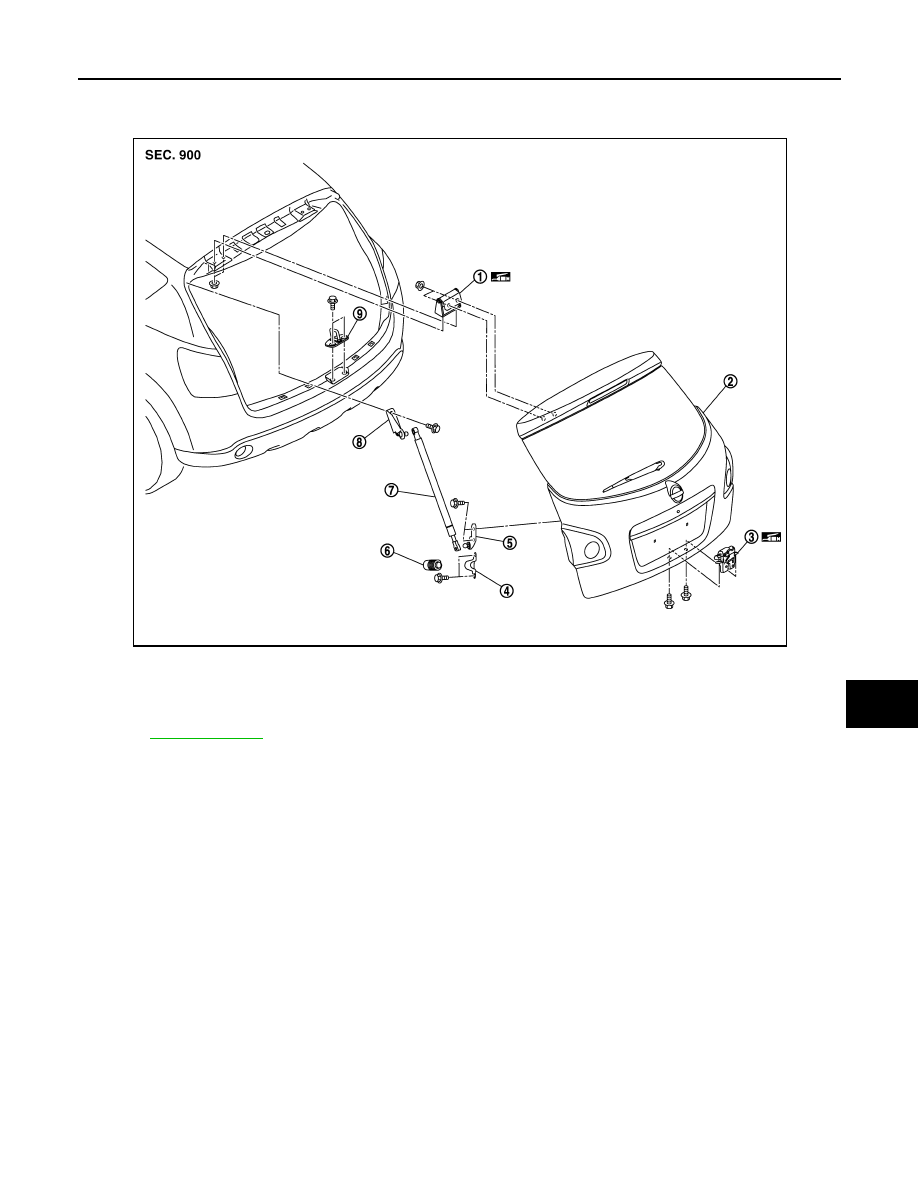

BACK DOOR STAY : Exploded View

INFOID:0000000001116373

BACK DOOR STAY : Removal and Installation

INFOID:0000000001054862

REMOVAL

1.

Remove the stud ball (upper/lower), and then remove the back door stay.

2.

Remove the mounting bolts, and then remove the back door stay bracket (upper/lower).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check the back door open/close operation after installation.

BACK DOOR WEATHER-STRIP

BACK DOOR WEATHER-STRIP : Exploded View

INFOID:0000000001091325

REMOVAL

1.

Back door hinge

2.

Back door assembly

3.

Back door lock assembly

4.

Bumper rubber bracket

5.

Back door stay bracket (lower)

6.

Bumper rubber

7.

Back door stay

8.

Back door stay bracket (upper)

9.

Back door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0186ZZ

DLK-254

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

BACK DOOR

BACK DOOR WEATHER-STRIP : Removal and Installation

INFOID:0000000001054829

REMOVAL

Pull up and remove engagement with body from the weatherstrip joint.

CAUTION:

After removal, do not pull strongly on the weather-strip.

INSTALLATION

1.

Working from the upper section, align the weatherstrip mark with vehicle center position mark and install
the weatherstrip onto the vehicle.

2.

For the lower section, align the weatherstrip seam with center of the back door striker.

3.

After installation, pull the weatherstrip gently to ensure that there is no loose section.
NOTE:
Make sure that the weatherstrip is fit tlightly at each corner and the luggage rear plate.

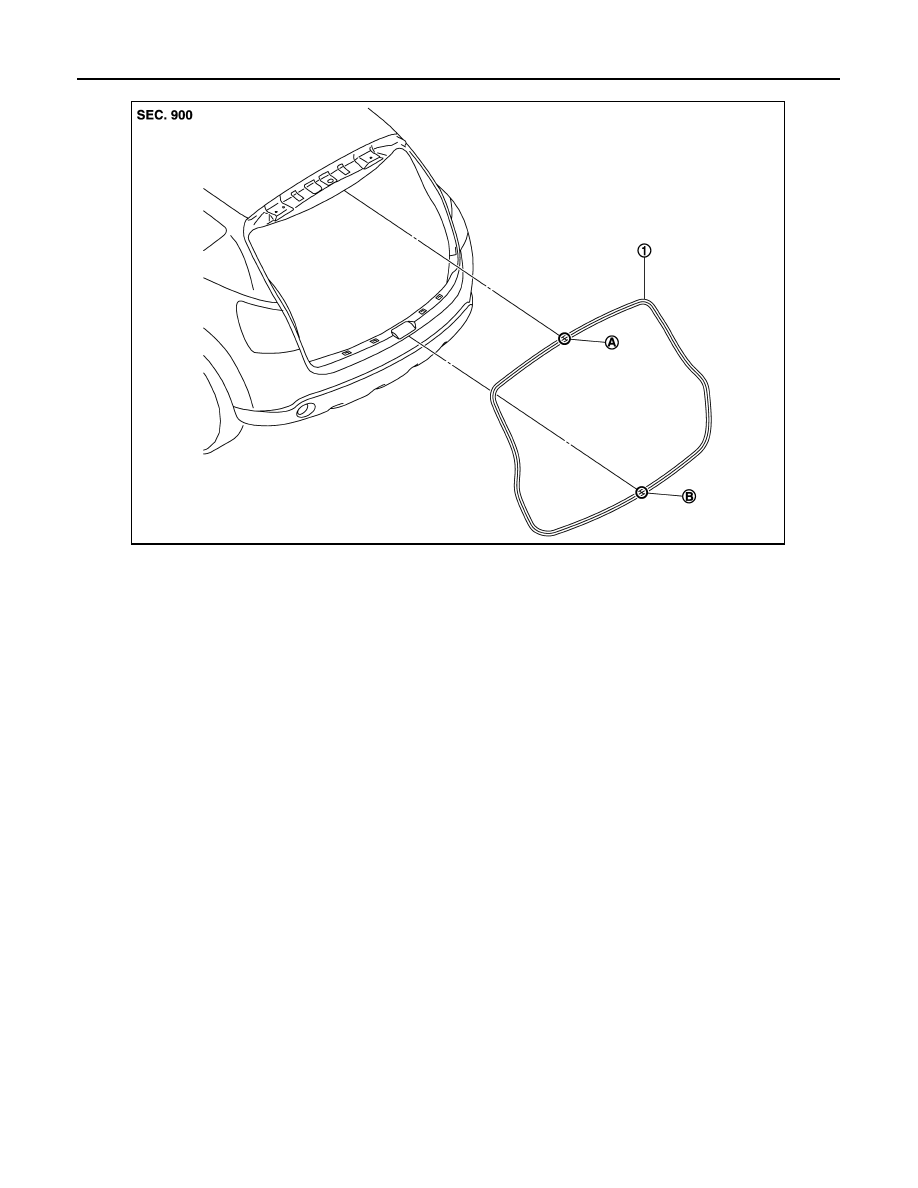

1.

Back door weatherstrip

A.

Mark (upper)

B.

Mark (lower)

JMKIA0184ZZ
