HOOD

DLK-223

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ON-VEHICLE REPAIR

HOOD

HOOD ASSEMBLY

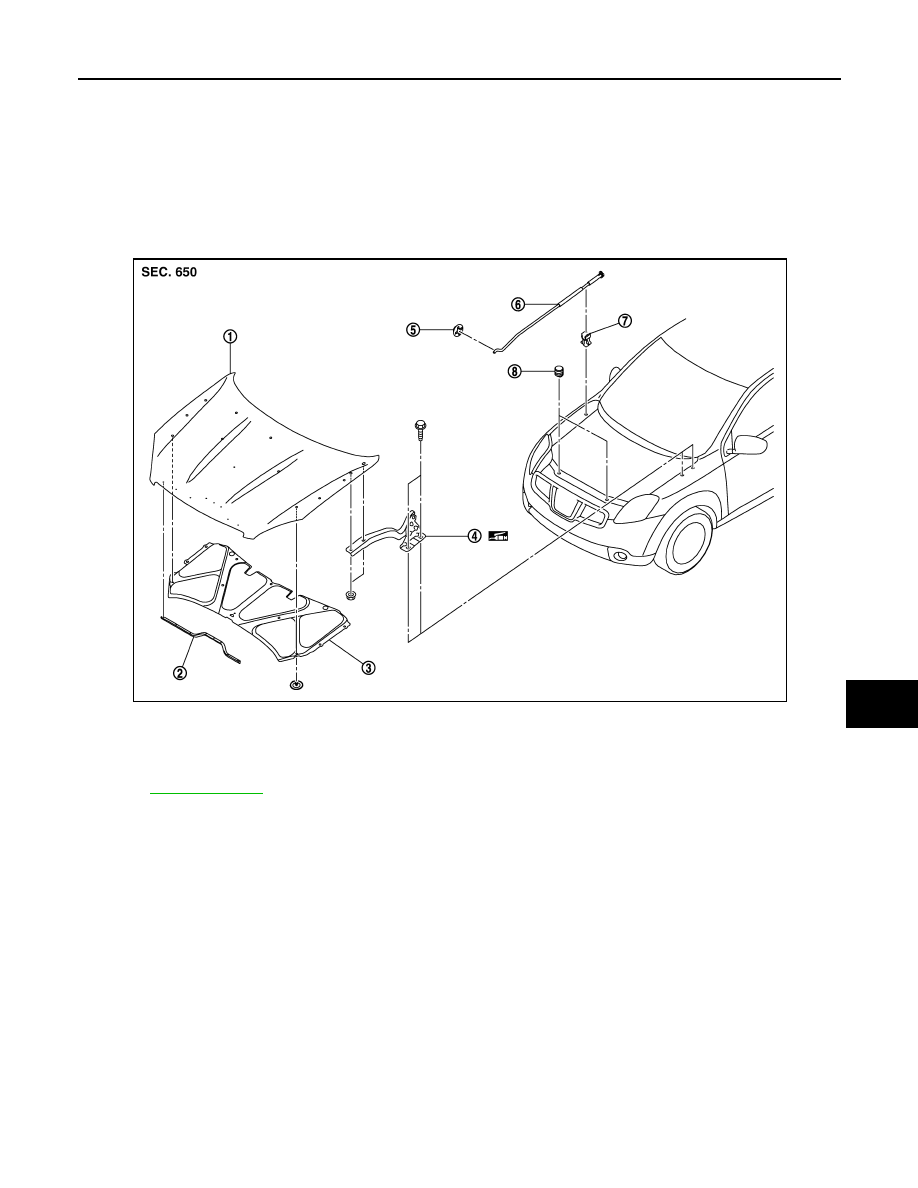

HOOD ASSEMBLY : Exploded View

INFOID:0000000000939208

REMOVAL

ADJUSTMENT

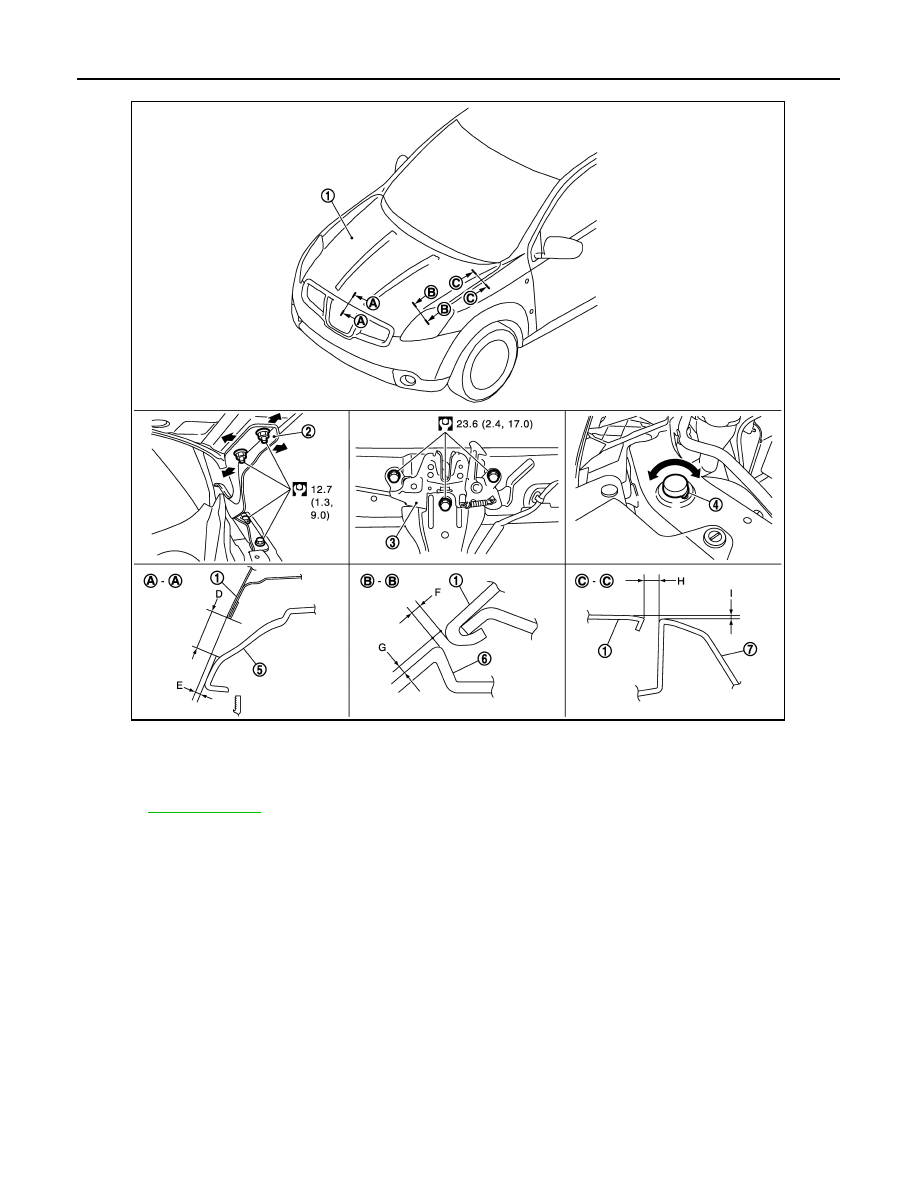

1.

Hood assembly

2.

Hood sealing rubber

3.

Hood insulator

4.

Hood hinge

5.

Grommet

6.

Hood support rod

7.

Clamp

8.

Hood bumper rubber

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0175ZZ

DLK-224

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

HOOD

HOOD ASSEMBLY : Removal and Installation

INFOID:0000000000939209

REMOVAL

1.

Support the hood lock assembly with the proper material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding the hood open when removing the hood
stay.

2.

Remove the hood hinge mounting nuts on the hood to remove the hood assembly.

CAUTION:

Perform work with 2 workers, because of its heavy weight.

3.

Remove the following parts after removing the hood assembly.
• Hood insulator
• Hood sealing rubber

INSTALLATION

Install in the reverse order of removal.

CAUTION:

1.

Hood assembly

2.

Hood hinge

3.

Hood lock assembly

4.

Hood bumper rubber

5.

Front grille

6.

Front combination lamp

7.

Front fender

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0185GB

HOOD

DLK-225

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• Perform work with 2 workers, because of its heavy weight.
• Before installing the hood hinge, apply anticorrosive agent onto the mounting surface of the vehicle

body.

• After installing, perform hood fitting adjustment. Refer to

DLK-225, "HOOD ASSEMBLY : Adjust-

ment"

.

HOOD ASSEMBLY : Adjustment

INFOID:0000000000939210

1.

Check the clearance and the surface height between the hood and each part by visualy and touching.
(Fitting standard dimension in the table below should be satisfied.)

2.

In case any parts are out of specification, adjust them according to the procedures shown below.

3.

Remove the hood lock and adjust the height by rotating the bumper rubber until the hood becomes 1 to1.5
mm (0.04 to 0.059 in) lower than the fender.

4.

Temporarily tighten the hood lock, and position by engaging it with the hood striker. Check the lock and
striker for looseness and adjust the clearance and evenness with the striker to satisfy the specification.

5.

Adjust A and B shown in the figure to the following value with hood's own weight by dropping it from
approximately. 200 mm (7.87 in) height or by pressing the hood lightly [approximately. 29 N (3 kg)].

6.

After adjustment tighten lock bolts to the specified torque.

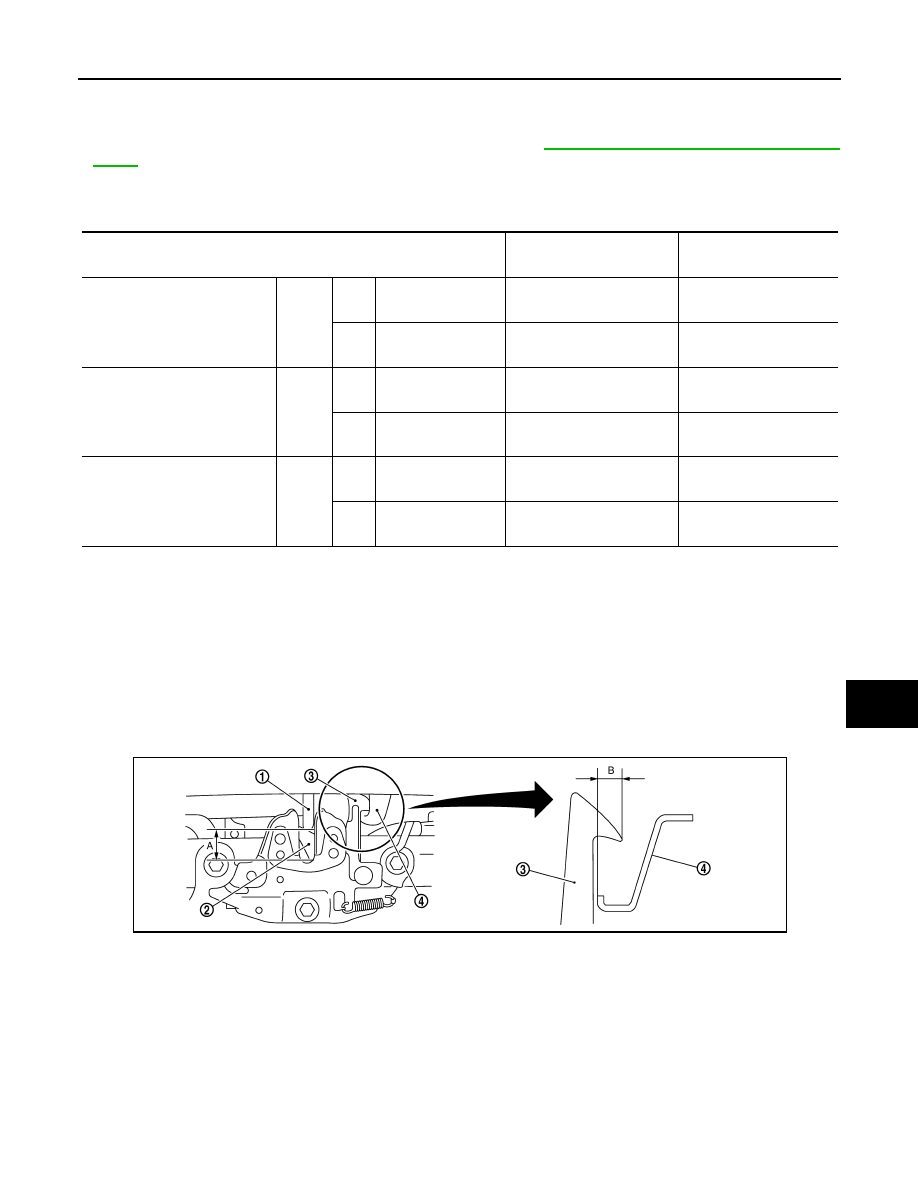

HOOD HINGE

Portion

Standard

Right/left

Clearance (MAX)

Hood – Front bumper

A – A

D

Clearance

5.2 – 9.2 mm

(0.205 – 0.362 in)

2.0 mm (0.079 in)

E

Surface height

- 0.2 – 3.8 mm

(- 0.008 – 0.150 in)

2.0 mm (0.079 in)

Hood –
Front combination lamp

B – B

F

Clearance

3.7 – 7.7 mm

(0.140 – 0.303 in)

2.0 mm (0.079 in)

G

Surface height

- 2.3 – 2.3 mm

 (- 0.091 – 0.091 in)

2.3 mm (0.091 in)

Hood – Front fender

C – C

H

Clearance

3.9 – 5.9 mm

(0.154 – 0.232 in)

1.5 mm (0.059 in)

I

Surface height

- 1.0 – 1.0 mm

 (- 0.039 – 0.039 in)

1.5 mm (0.059 in)

1.

Hood striker

2.

Primary latch

3.

Secondary striker

4.

Secondary latch

A

: 20.0 mm (0.787 in)

B

: 6.8 mm (0.268 in)

PIIB5794E

DLK-226

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

HOOD

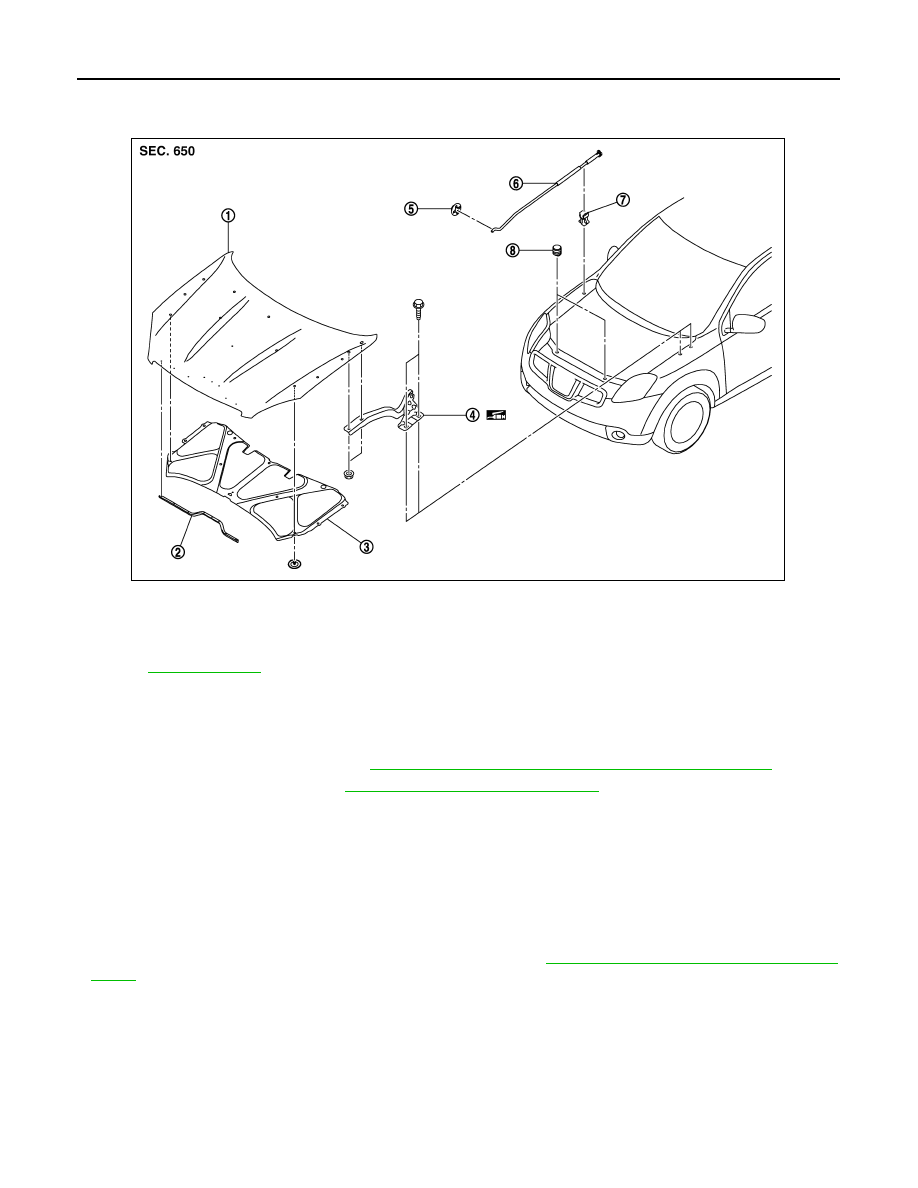

HOOD HINGE : Exploded View

INFOID:0000000001091261

HOOD HINGE : Removal and Installation

INFOID:0000000001091262

REMOVAL

1.

Remove the hood assembly. Refer to

DLK-224, "HOOD ASSEMBLY : Removal and Installation"

.

2.

Remove the front fender. Refer to

DLK-233, "Removal and Installation"

.

3.

Remove the hood hinge mounting bolts, and then remove the hood hinge.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• After installation, apply touch-up paint (the body color) onto the head of the hinge mounting bolts

and nuts.

• Before installation of hood hinge, apply anticorrosive agent onto the mounting surface of the vehicle

body.

• After installation, perform hood fitting adjustment. Refer to

DLK-225, "HOOD ASSEMBLY : Adjust-

ment"

.

HOOD SUPPORT ROD

HOOD SUPPORT ROD : Exploded View

INFOID:0000000001095093

1.

Hood assembly

2.

Hood sealing rubber

3.

Hood insulator

4.

Hood hinge

5.

Grommet

6.

Hood support rod

7.

Clamp

8.

Hood bumper rubber

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0175ZZ
