OIL FILTER

LU-25

< ON-VEHICLE MAINTENANCE >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

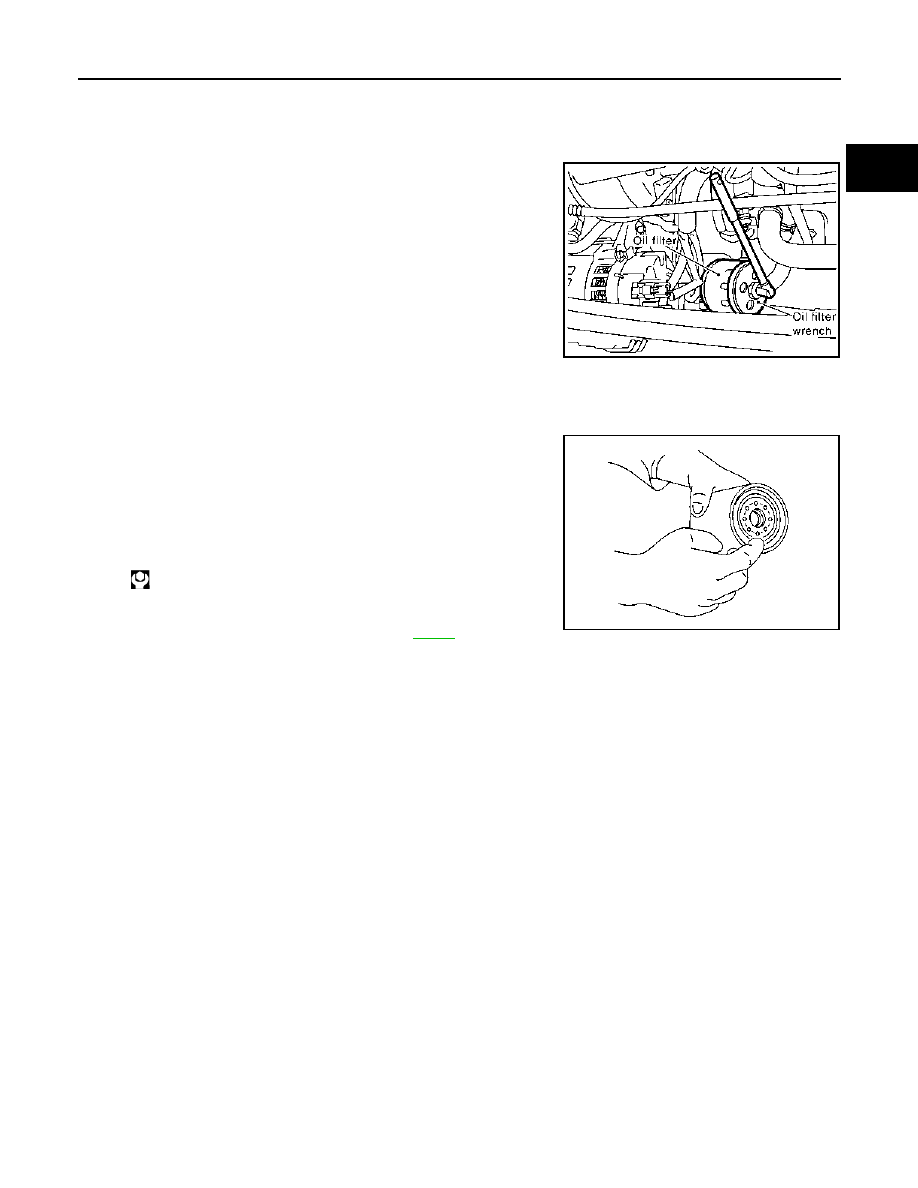

OIL FILTER

Replacement

INFOID:0000000001062311

1.

Using an oil filter wrench [SST: KV113C0010 (Mot. 1329)],
remove oil filter.

CAUTION:

• Be careful not to get burned when the engine and engine

oil are hot.

• When removing, prepare a shop cloth to absorb any oil

leakage or spillage.

• Do not allow engine oil to adhere to the drive belts.
• Completely wipe off any oil that adhere to the engine and

the vehicle.

2.

Remove foreign materials adhering to the oil filter installation
surface.

3.

Install oil filter bracket to oil cooler.

CAUTION:

Install oil filter bracket, positioning lug in the hole of oil cooler.

4.

Apply engine oil to the oil seal contact surface of the new oil fil-
ter.

5.

Install the oil filter until it comes into contact with the oil seal on
the engine bracket.

6.

Using an oil filter wrench [SST: KV113C0010 (Mot. 1329)],
tighten oil filter.

7.

After warming up the engine, check for engine oil leakage.

8.

Check oil level and add engine oil. Refer to

LU-23

.

: 14 N·m (1.4 kg-m, 10 ft-lb)

MBIB0551E

SMA010

LU-26

< ON-VEHICLE REPAIR >

[K9K]

OIL FILTER BRACKET

ON-VEHICLE REPAIR

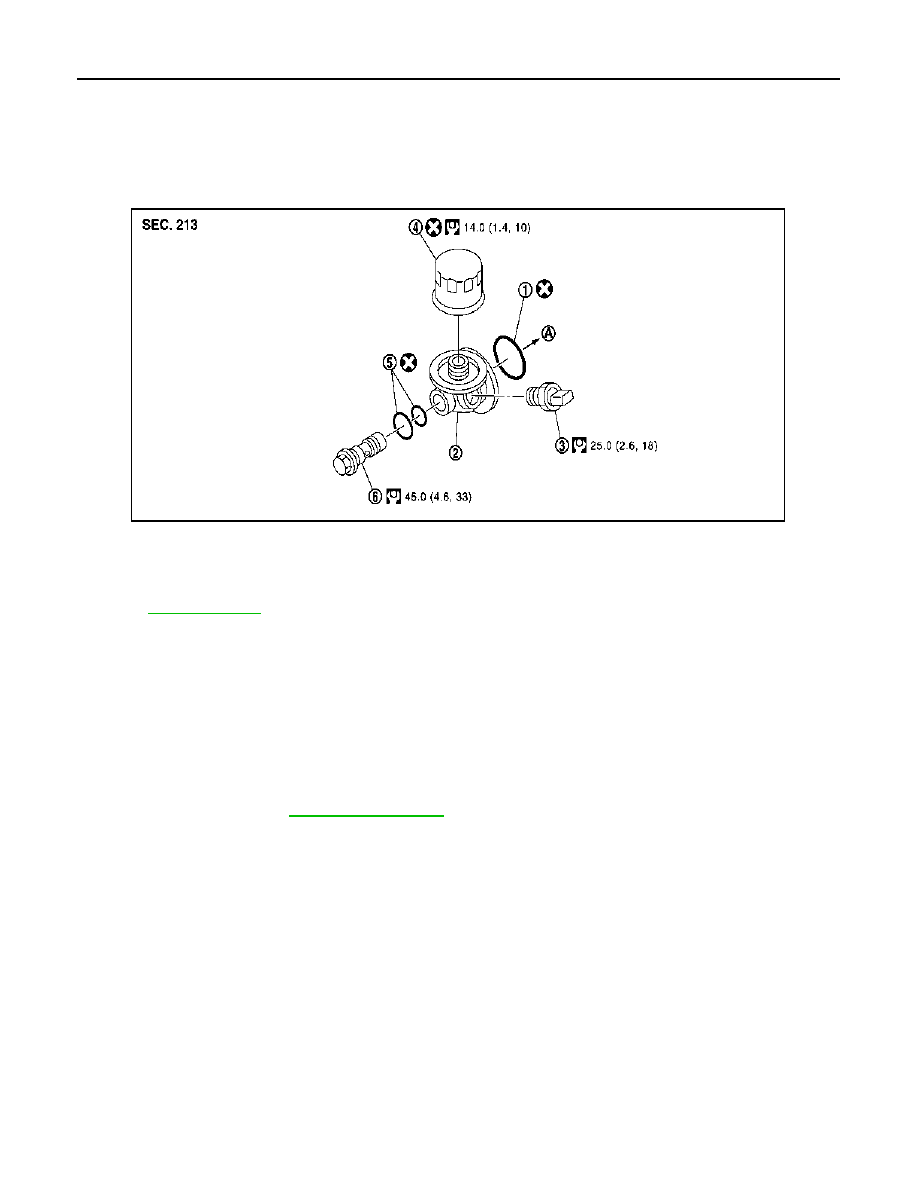

OIL FILTER BRACKET

Exploded View

INFOID:0000000001062314

Removal and Installation

INFOID:0000000001062313

REMOVAL

CAUTION:

• Be careful not to get burned when the engine and engine oil are hot.
• When removing, prepare a shop cloth to absorb any oil leakage or spillage.
• Do not allow engine oil to adhere to the drive belts.
• Completely wipe off any oil that adhere to the engine and the vehicle.

1.

Remove oil filter. Refer to

LU-25, "Replacement"

.

2.

Remove oil filter bracket.

INSTALLATION

Install in the reverse order of removal.

1.

O-ring

2.

Oil filter bracket

3.

Oil pressure switch

4.

Oil filter

5.

O-ring

6.

Connecting bolt

A.

To oil cooler

Refer to

GI-4, "Components"

 for symbols not described on the above.

E1BIA0012GB

OIL COOLER

LU-27

< ON-VEHICLE REPAIR >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

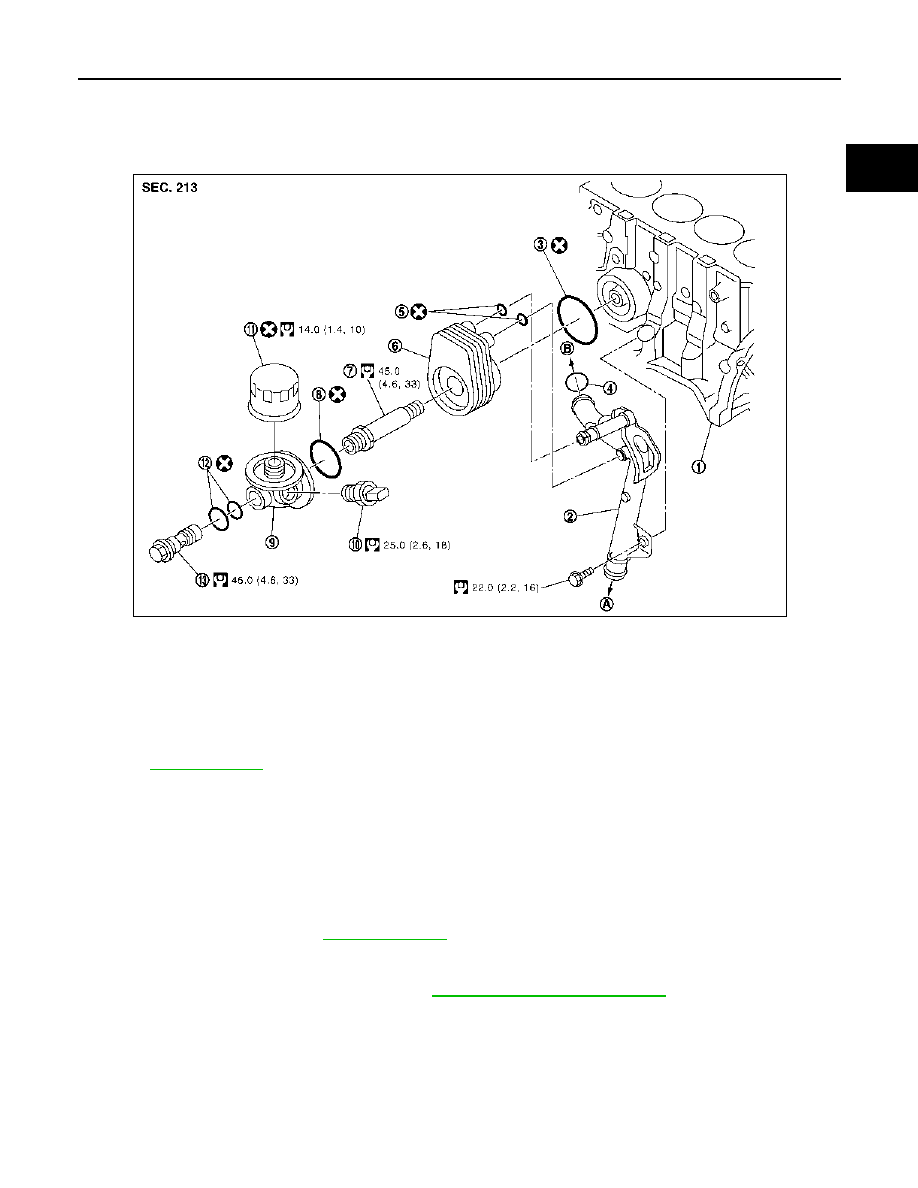

OIL COOLER

Exploded View

INFOID:0000000001062315

Removal and Installation

INFOID:0000000001062316

CAUTION:

• Be careful not to get burned when the engine and engine oil are hot.
• When removing, prepare a shop cloth to absorb any oil leakage or spillage.
• Completely wipe off any oil that adhere to the engine and the vehicle.

REMOVAL

1.

Drain engine coolant. Refer to

CO-52, "Draining"

.

CAUTION:

Perform when engine is cold.

2.

Remove oil filter and oil filter bracket. Refer to

LU-26, "Removal and Installation"

.

3.

Remove water hoses from oil cooler.

4.

Remove oil cooler.

INSTALLATION

Installation is in reverse order of removal.

1.

Cylinder block

2.

Water pipe

3.

O-ring

4.

O-ring

5.

O-ring

6.

Oil cooler

7.

Connecting stud

8.

O-ring

9.

Oil filter bracket

10. Oil pressure switch

11.

Oil filter

12. O-ring

13. Connecting bolt

A.

To radiator lower hose

B.

To water pump

Refer to

GI-4, "Components"

 for symbols not described on the above.

E1BIA0011GB

LU-28

< ON-VEHICLE REPAIR >

[K9K]

OIL COOLER

• Replace the O-ring (A) of the oil cooler, positioning the lip (B) of the

seal behind the lug (C) of the oil cooler.

• Confirm that no foreign objects are adhering to the installation

planes of the oil cooler and block.

Inspection

INFOID:0000000001062318

INSPECTION AFTER REMOVAL

Check oil cooler for cracks and clogging by blowing through coolant inlet. If necessary, replace oil cooler
assembly.

MBIB0458E
