OIL FILTER

Removal and Installation

INFOID:0000000000902591

REMOVAL

• Using oil filter wrench [SST: KV10115801] (A), remove oil filter.

CAUTION:

• Oil filter is provided with relief valve. Use Genuine NISSAN

Oil Filter or equivalent.

• Be careful not to get burned when engine and engine oil

may be hot.

• When removing, prepare a shop cloth to absorb any engine

oil leakage or spillage.

• Completely wipe off any engine oil that adheres to engine and vehicle.

INSTALLATION

1.

Remove foreign materials adhering to the oil filter installation surface.

2.

Apply new engine oil to the oil seal contact surface of new oil fil-
ter.

3.

Screw oil filter manually until it touches the installation surface,
then tighten it by 2/3 turn. Or tighten to specification.

Inspection

INFOID:0000000000902593

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level. Refer to

LU-14, "Inspection"

.

2.

Start the engine, and check there is no leak of engine oil.

3.

Stop the engine and wait for 10 minutes.

4.

Check the engine oil level, and adjust the level. Refer to

LU-14, "Inspection"

.

1

: Oil pan (lower)

: Vehicle front

PBIC3916E

SMA010

Oil filter:

: 17.7 N·m (1.8 kg-m, 13 ft-lb)

SMA229B

LU-18

< ON-VEHICLE REPAIR >

[MR20DE]

OIL COOLER

ON-VEHICLE REPAIR

OIL COOLER

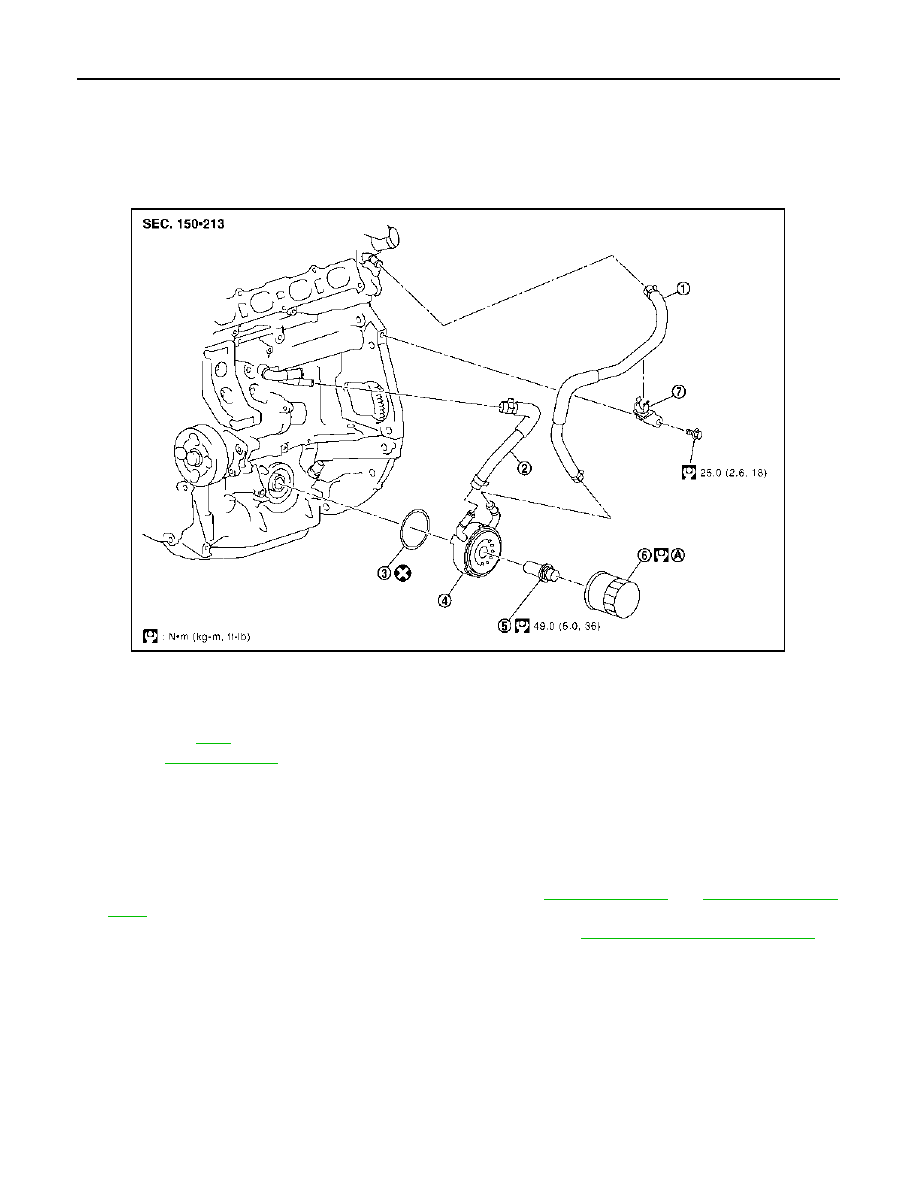

Exploded View

INFOID:0000000000902598

Removal and Installation

INFOID:0000000000902599

REMOVAL

WARNING:

Be careful not to get burn yourself, as engine oil and engine coolant may be hot.
1.

Drain engine coolant from radiator and cylinder block. Refer to

CO-30, "Draining"

 and

EM-210, "Exploded

View"

.

2.

Using oil filter wrench [SST: KV10115801], remove oil filter. Refer to

LU-17, "Removal and Installation"

.

3.

Disconnect water hoses from oil cooler.
• When removing oil cooler only, pinching water hoses near oil cooler to prevent engine coolant from spill-

ing out.

• Remaining engine coolant in piping will come out. Use a tray to collect it.

CAUTION:

Perform this step when the engine is cold.

4.

Remove connector bolt, and remove oil cooler.
NOTE:
For reference when installing, put a matching mark on oil cooler and oil pan (upper).

INSTALLATION

1.

Water hose

2.

Water hose

3.

O-ring

4.

Oil cooler

5.

Connector bolt

6.

Oil filter

7.

Bracket

A.

Refer to

LU-17

Refer to

GI-4, "Components"

 for symbol marks in the figure.

PBIC3917E

OIL COOLER

LU-19

< ON-VEHICLE REPAIR >

[MR20DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

Installation in the reverse order of removal.

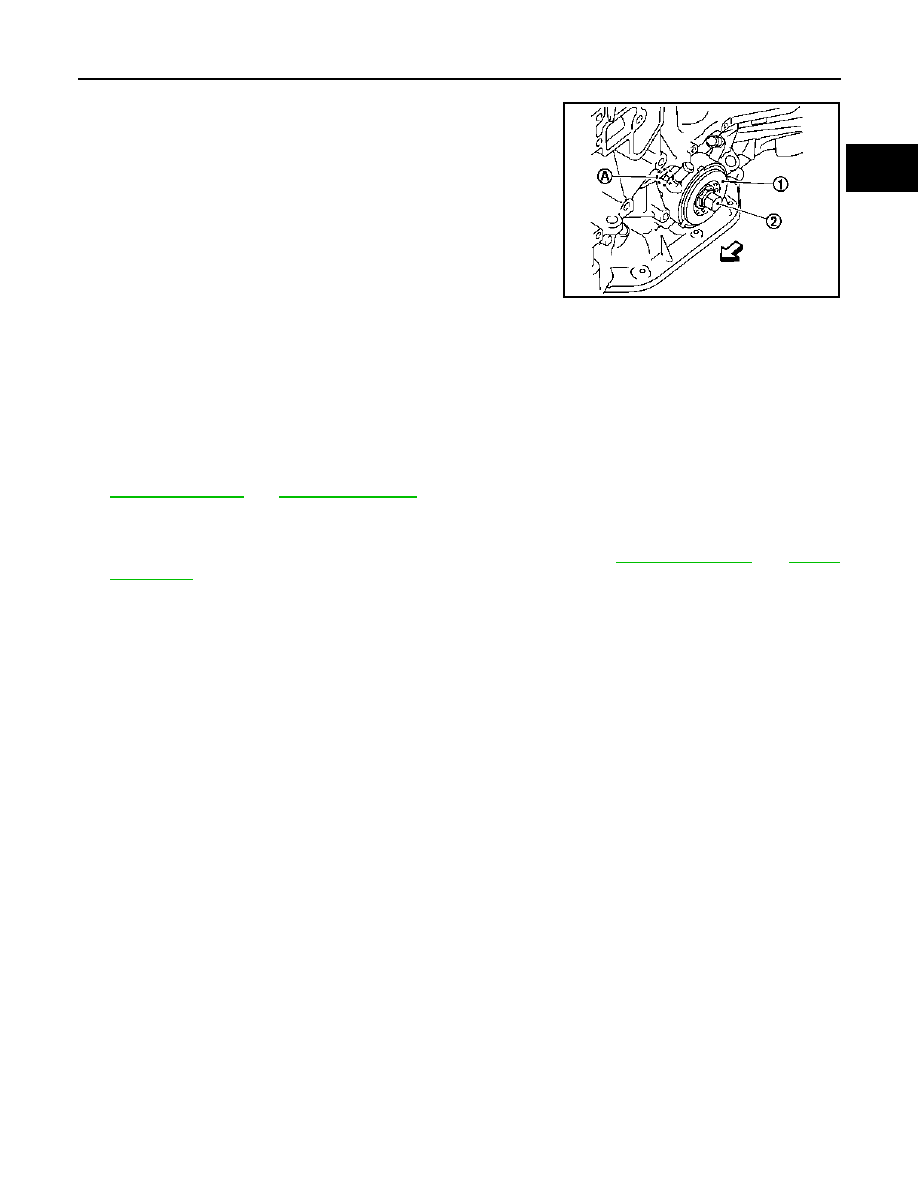

• Tighten the connecting bolt (2) after aligning the stopper (A) on the

oil pan (upper) side with protrusion of oil cooler (1).

Inspection

INFOID:0000000000902600

INSPECTION AFTER REMOVAL

Oil Cooler

Check oil cooler for cracks. Check oil cooler for clogging by blowing through engine coolant inlet. If necessary,
replace oil cooler.

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level and the engine coolant level and add engine oil and engine coolant. Refer to

LU-14, "Inspection"

 and

CO-30, "Inspection"

.

2.

Start the engine, and check there is no leaks of engine oil or engine coolant.

3.

Stop the engine and wait for 10 minutes.

4.

Check the engine oil level and the engine coolant level again. Refer to

LU-14, "Inspection"

 and

CO-30,

"Inspection"

.

: Engine front

PBIC3918E

LU-20

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR20DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Periodical Maintenance Specification

INFOID:0000000000902604

ENGINE OIL CAPACITY (APPROXIMATE)

Unit:

 (lmp qt)

Engine Oil Pressure

INFOID:0000000000902605

*: Engine oil temperature at 80

°

C (176

°

F)

Drain and refill

With oil filter change

4.4 (3-7/8)

Without oil filter change

4.2 (3-3/4)

Dry engine (Overhaul)

5.2 (4-5/8)

Engine speed (rpm)

Approximate discharge pressure* [kPa (bar, kg/cm

2

, psi)]

Idle speed

More than 80 (0.80, 0.8, 12)

2,000

More than 450 (4.50, 4.6, 65)
