AIR CLEANER FILTER

AIR CLEANER FILTER

Removal and Installation

INFOID:0000000000893922

REMOVAL

1.

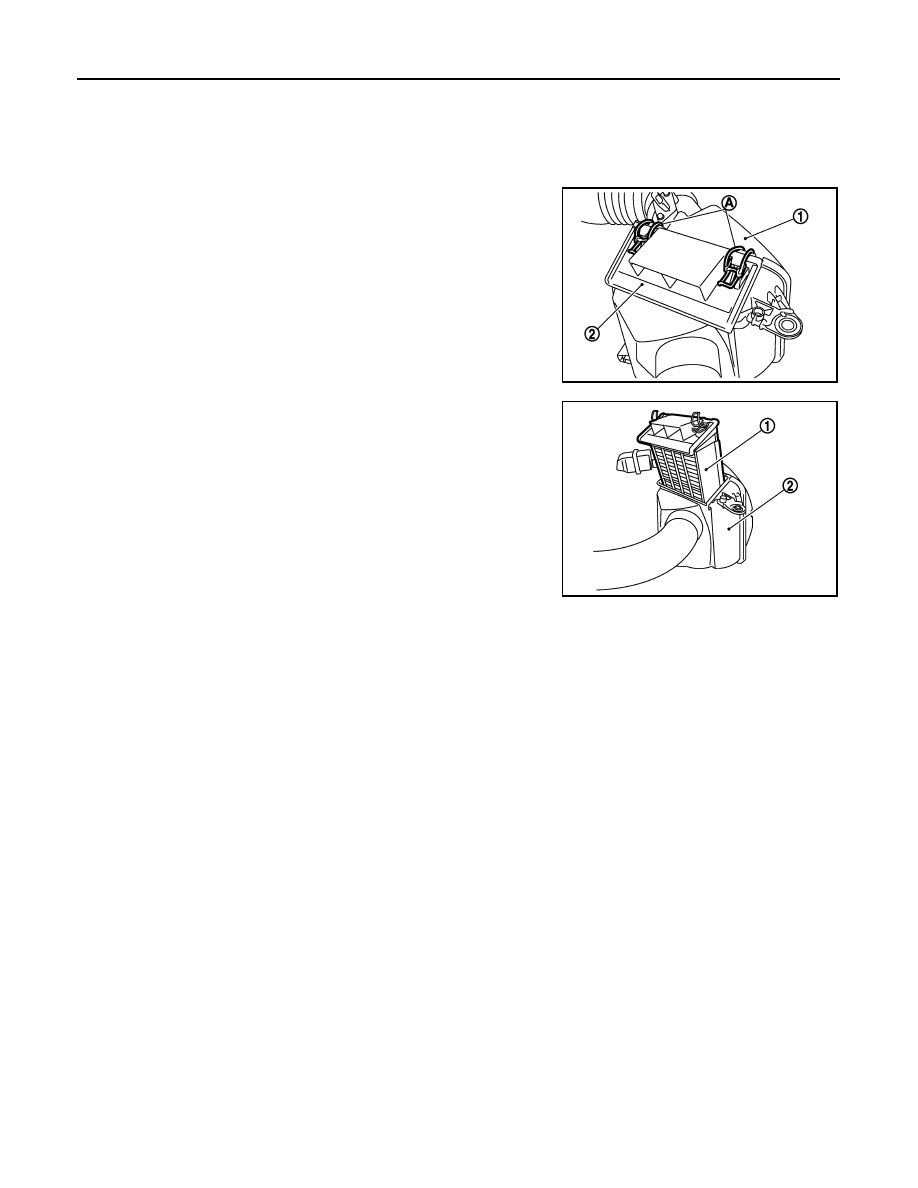

Unhook clips (A) and remove holder (2) from air cleaner case
(1).

2.

Remove air cleaner filter (1) from air cleaner case (2).

INSTALLATION

Note the following, and install in the reverse order of removal.
• Install the air cleaner filter by aligning the seal with the notch of air cleaner case.

JPBIA0464ZZ

JPBIA0465ZZ

SPARK PLUG

EM-137

< ON-VEHICLE MAINTENANCE >

[MR20DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

SPARK PLUG

Exploded View

INFOID:0000000000893923

Removal and Installation

INFOID:0000000000893924

REMOVAL

1.

Remove ignition coil. Refer to

EM-160, "Exploded View"

.

2.

Remove spark plug with a spark plug wrench (commercial ser-
vice tool).

INSTALLATION

1.

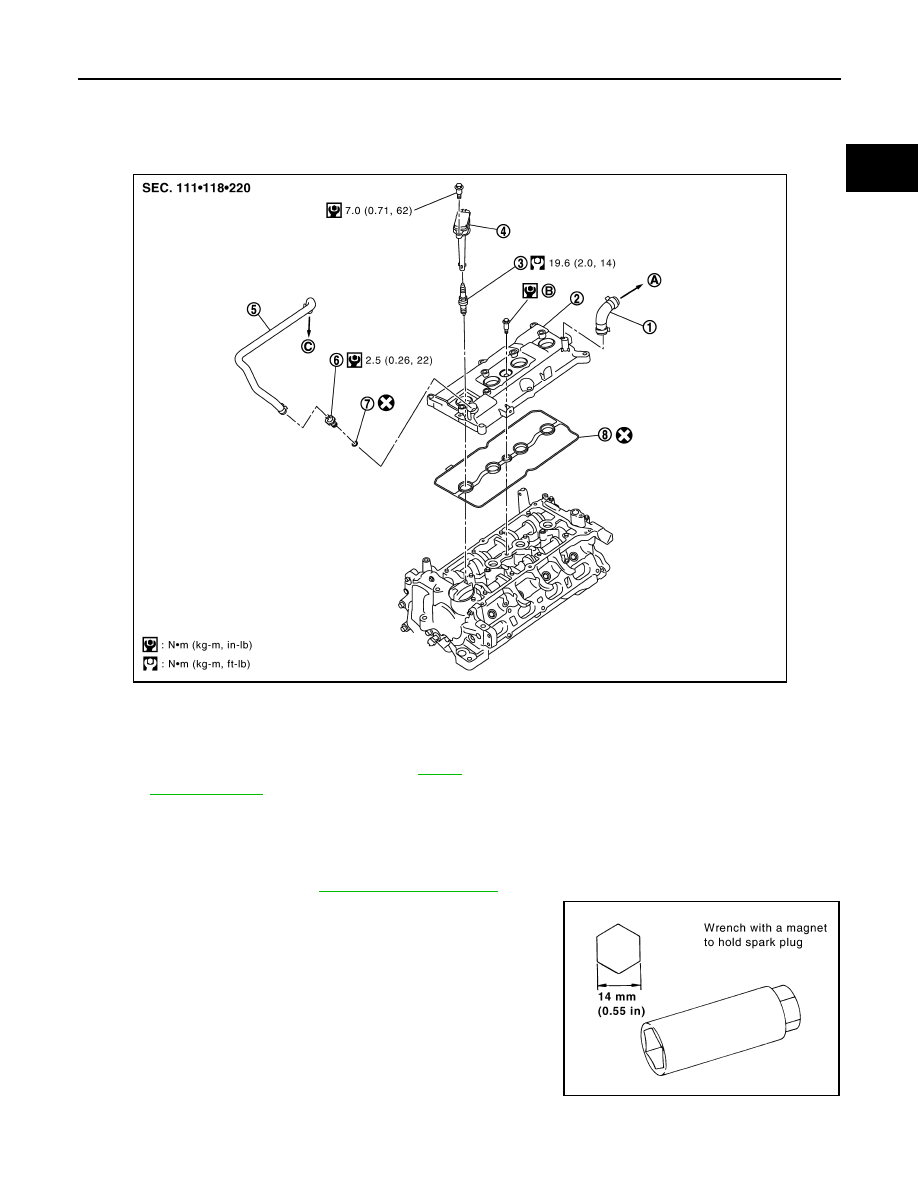

PCV hose

2.

Rocker cover

3.

Spark plug

4.

Ignition coil

5.

PCV hose

6.

PCV valve

7.

O-ring

8.

Gasket

A.

To air duct

B.

Refer to

EM-160

C.

To intake manifold

Refer to

GI-4, "Components"

 for symbols in the figure.

PBIC3536J

PBIC3871E

EM-138

< ON-VEHICLE MAINTENANCE >

[MR20DE]

SPARK PLUG

Installation is the reverse order of removal.

Inspection

INFOID:0000000000893925

INSPECTION AFTER REMOVAL

Use the standard type spark plug for normal condition.

CAUTION:

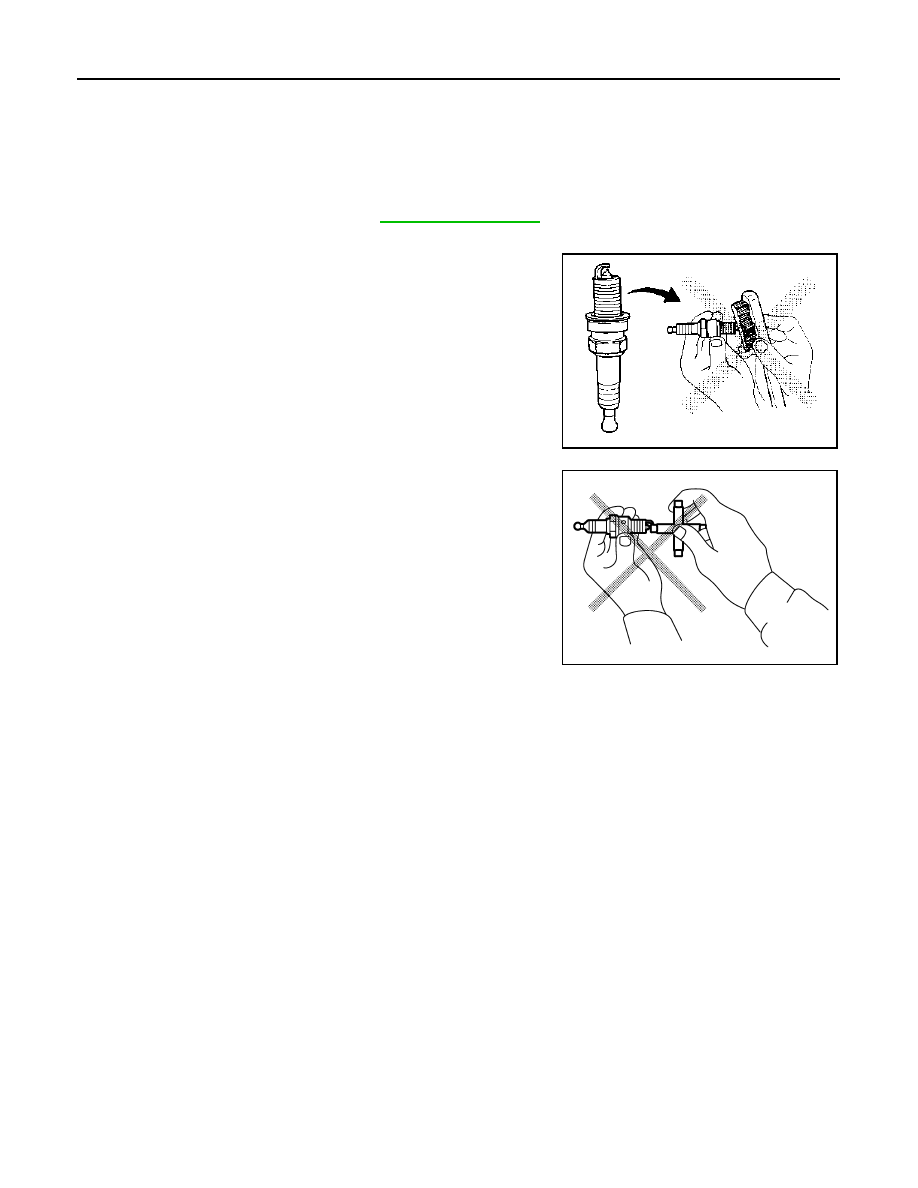

• Never drop or shock spark plug.
• Never use a wire brush for cleaning.
• If plug tip is covered with carbon, spark plug cleaner may be

used.

• Checking and adjusting plug gap is not required between

change intervals.

Spark plug (standard)

: Refer to

EM-236, "Spark Plug"

.

Cleaner air pressure:

Less than 588 kPa (6 kg/cm

2

, 85 psi)

Cleaning time:

Less than 20 seconds

SMA773C

JPBIA0031ZZ

CAMSHAFT VALVE CLEARANCE

EM-139

< ON-VEHICLE MAINTENANCE >

[MR20DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

CAMSHAFT VALVE CLEARANCE

Inspection and Adjustment

INFOID:0000000000893926

INSPECTION

Perform inspection as follows after removal, installation or replacement of camshaft or valve-related parts, or if
there is unusual engine conditions regarding valve clearance.

1.

Remove rocker cover. Refer to

EM-160, "Exploded View"

.

2.

Measure the valve clearance with the following procedure:

a.

Set No. 1 cylinder at TDC of its compression stroke.

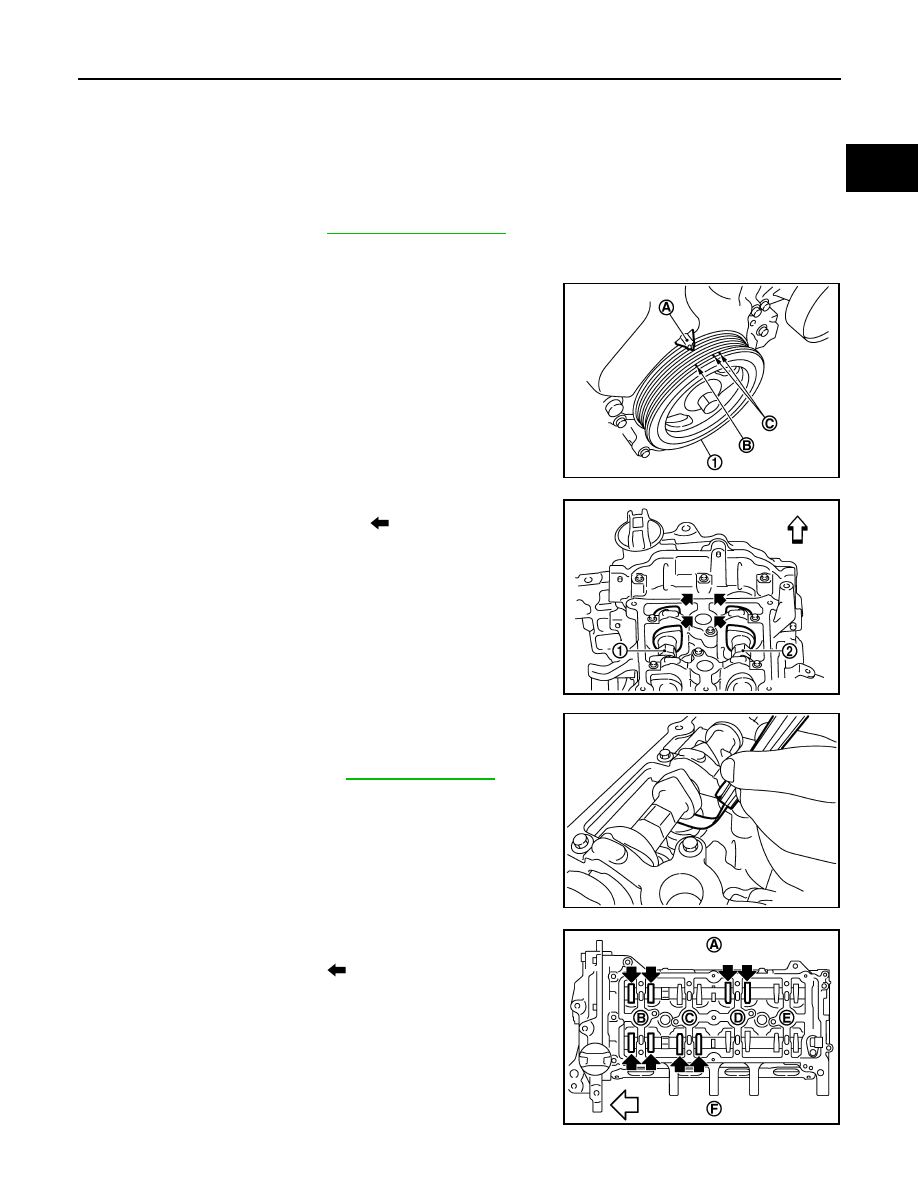

• Rotate crankshaft pulley (1) clockwise and align TDC mark (no

paint) (B) to timing indicator (A) on front cover.

• At the same time, make sure that both intake and exhaust cam

noses of No. 1 cylinder face inside (

) as shown in the figure.

• If they do not face inside, rotate crankshaft pulley once more

(360 degrees) and align as shown in the figure.

b.

Use a feeler gauge, measure the clearance between valve lifter
and camshaft.

• By referring to the figure, measure the valve clearances at

locations marked “

×

” as shown in the table below [locations

indicated with black arrow (

) in the figure] with a feeler

gauge.

C : White paint mark (Not use for service)

PBIC3960E

1

: Camshaft (INT)

2

: Camshaft (EXH)

: Engine front

PBIC3359J

Valve clearance

: Refer to

EM-237, "Camshaft"

.

PBIC3192J

A

: Exhaust side

B

: No.1 cylinder

C

: No.2 cylinder

D

: No.3 cylinder

E

: No.4 cylinder

PBIC3193J
