Nissan Qashqai (2007-2010). Manual - part 20

EM-28

< ON-VEHICLE REPAIR >

[HR16DE]

AIR CLEANER AND AIR DUCT

INSTALLATION

Note the following, and install in the reverse order of removal.
• Align marks. Attach each joint. Screw clamps firmly.

Inspection

INFOID:0000000000893840

INSPECTION AFTER REMOVAL

Inspect air duct and resonator assembly for crack or tear.
• If anything found, replace air duct and resonator assembly.

INTAKE MANIFOLD

EM-29

< ON-VEHICLE REPAIR >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

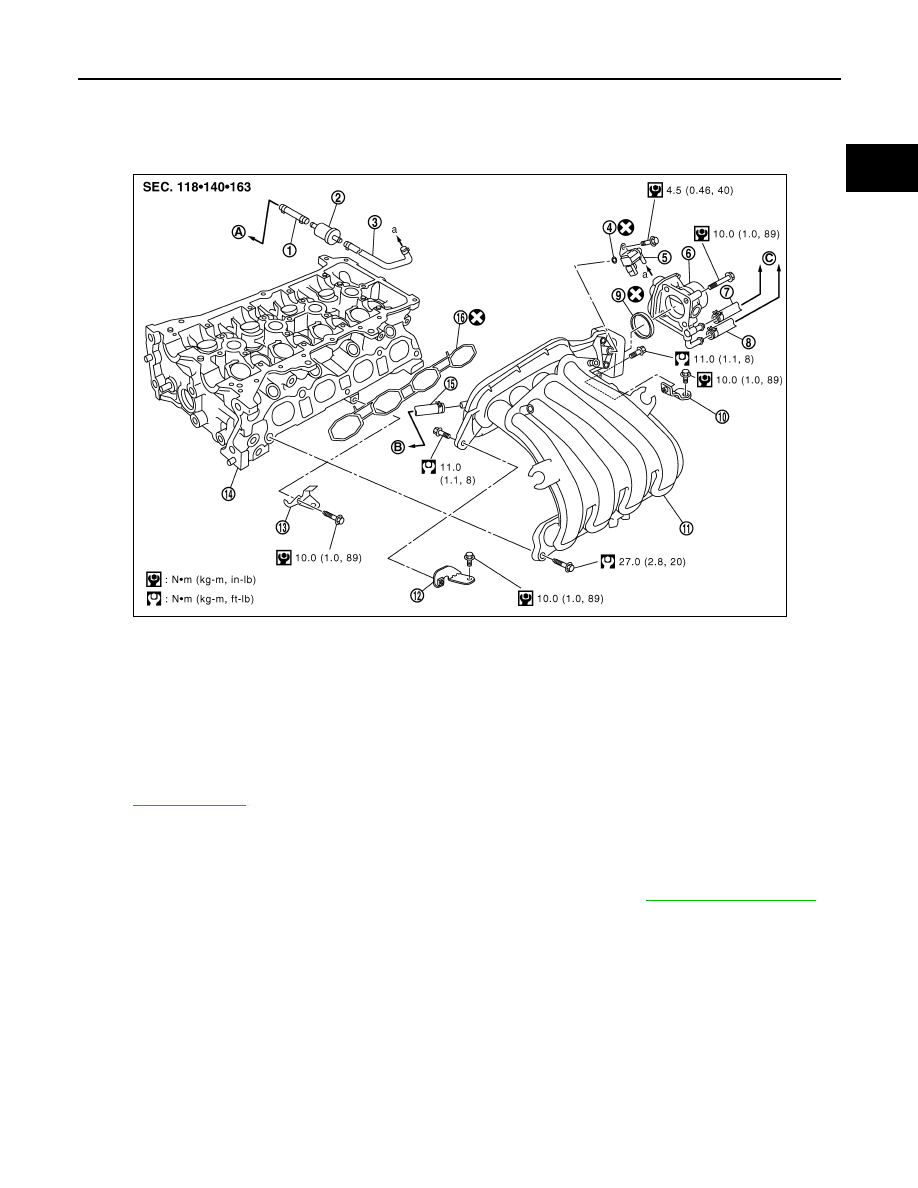

INTAKE MANIFOLD

Exploded View

INFOID:0000000000893844

Removal and Installation

INFOID:0000000000894020

REMOVAL

1.

Remove the air duct (inlet) and the air duct and resonator assembly. Refer to

EM-27, "Exploded View"

.

2.

Disconnect water hoses from electric throttle control actuator, attach blind plug to prevent engine coolant
leakage. (Northern Europe models)

CAUTION:

• Perform this step when the engine is cold.
• Never spill engine coolant on drive belts.

3.

Pull out oil level gauge.

CAUTION:

Cover the oil level gauge guide openings to avoid entry of foreign materials.

4.

Remove electric throttle control actuator.

CAUTION:

• Handle electric throttle control actuator carefully and avoid impacts.
• Never disassemble or adjust electric throttle control actuator.

PBIC4737E

1.

EVAP hose

2.

Vacuum tank

3.

EVAP hose

4.

O-ring

5.

EVAP canister purge volume control
solenoid valve

6.

Electric throttle control actuator

7.

Water hose (Northern Europe models) 8.

Water hose (Northern Europe models) 9.

Gasket

10.

Intake manifold support (rear)

11.

Intake manifold

12.

Intake manifold support (front)

13.

Intake manifold support (center)

14.

Cylinder head

15.

Vacuum hose

16.

Gasket

A.

To centralized under-floor piping

B.

To brake booster

C.

To water outlet

Refer to

GI-4, "Components"

 for symbols in the figure.

EM-30

< ON-VEHICLE REPAIR >

[HR16DE]

INTAKE MANIFOLD

5.

Disconnect the harness connector and EVAP hose from the EVAP canister purge volume control solenoid
valve.

6.

Disconnect vacuum hose for brake booster from intake manifold.

7.

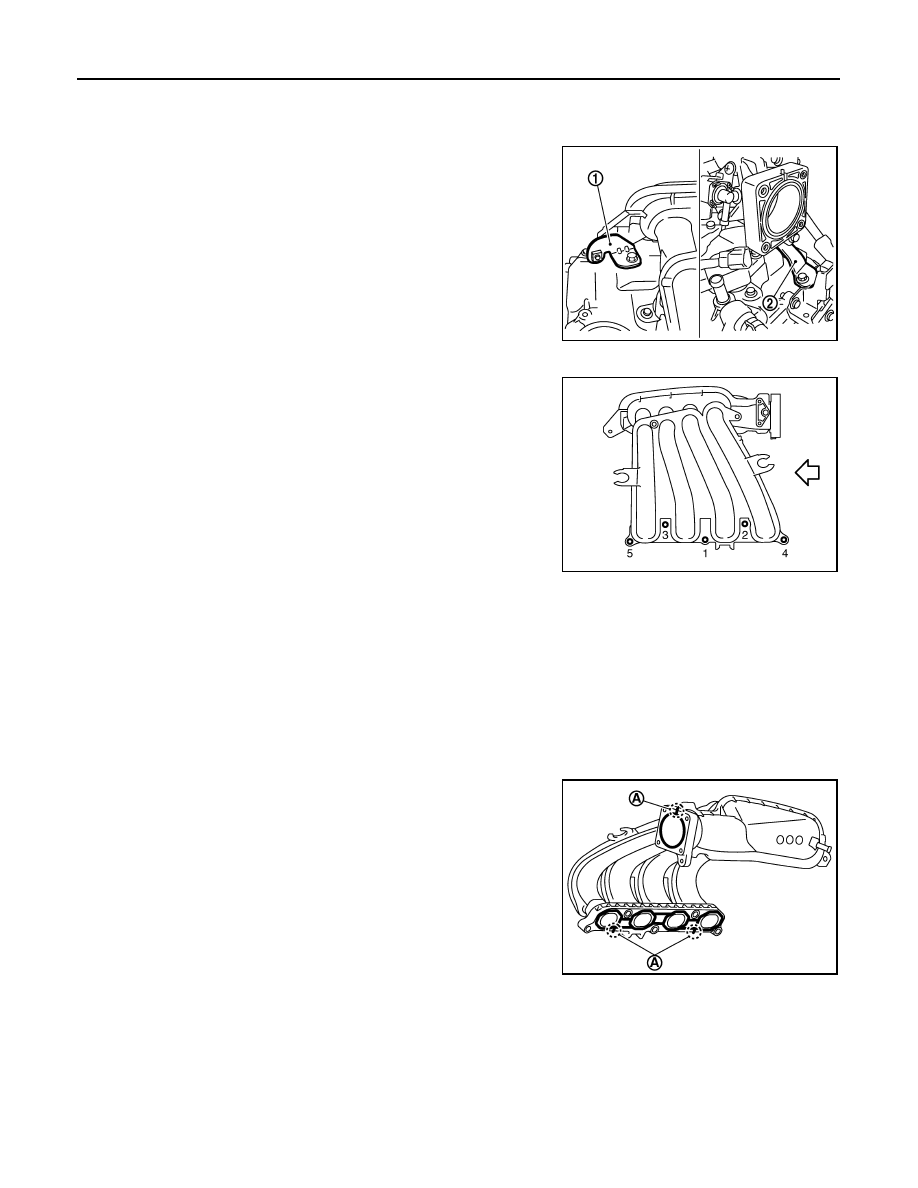

Remove intake manifold support front (1) and rear (2).

8.

Remove intake manifold.
• Loosen bolts in the reverse of the order shown in the figure.

9.

Remove EVAP canister purge volume control solenoid valve from intake manifold, if necessary.

CAUTION:

Handle EVAP canister purge volume control solenoid valve carefully and avoid impacts.

10. Remove intake manifold support (center) from cylinder head, if necessary.

NOTE:
The intake manifold support (center) functions as the guide when the intake manifold is installed.

INSTALLATION

Note the following, and install in the reverse order of removal.

Intake Manifold

1.

Install the gasket to the intake manifold.
• Align the protrusion (A) of gasket to the groove of intake mani-

fold.

2.

Place the intake manifold into the installation position.

CAUTION:

Make sure that the oil level gauge guide is not disconnected from the fixing clip of water inlet due
to interference with intake manifold.

JPBIA0278ZZ

: Engine front

PBIC3652E

PBIC3651E

INTAKE MANIFOLD

EM-31

< ON-VEHICLE REPAIR >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

3.

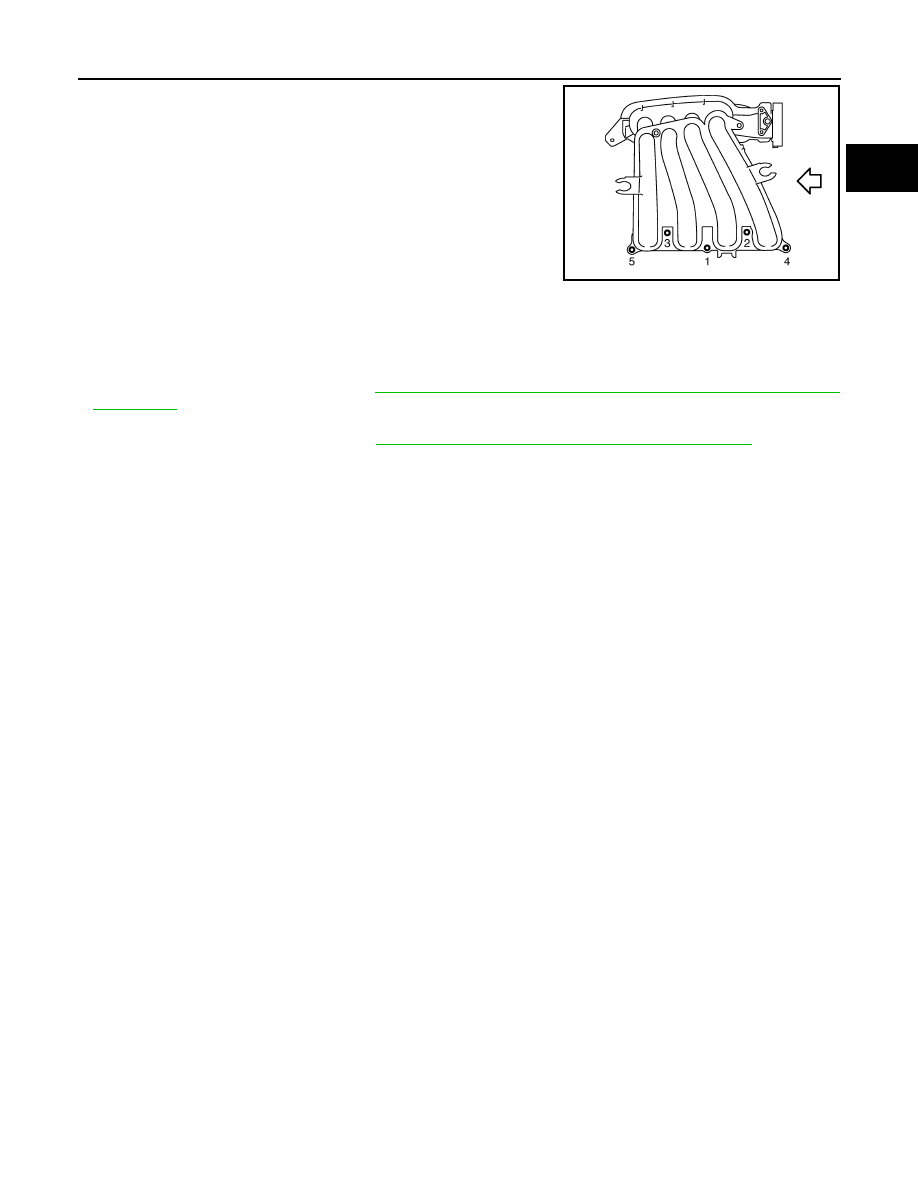

Tighten bolts in the numerical order shown in the figure.

4.

Install intake manifold support (front and rear).

Electric Throttle Control Actuator

• Tighten bolts of electric throttle control actuator equally and diagonally in several steps.
• Perform “Throttle Valve Closed Position Learning” after repair when removing harness connector of the elec-

tric throttle control actuator. Refer to

EC-31, "THROTTLE VALVE CLOSED POSITION LEARNING :

Description"

.

• Perform “Throttle Valve Closed Position Learning” and “Idle Air Volume Learning” after repair when replacing

electric throttle control actuator. Refer to

EC-31, "IDLE AIR VOLUME LEARNING : Description"

.

: Engine front

PBIC3652E
