NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting - Engine Noise

INFOID:0000000000894012

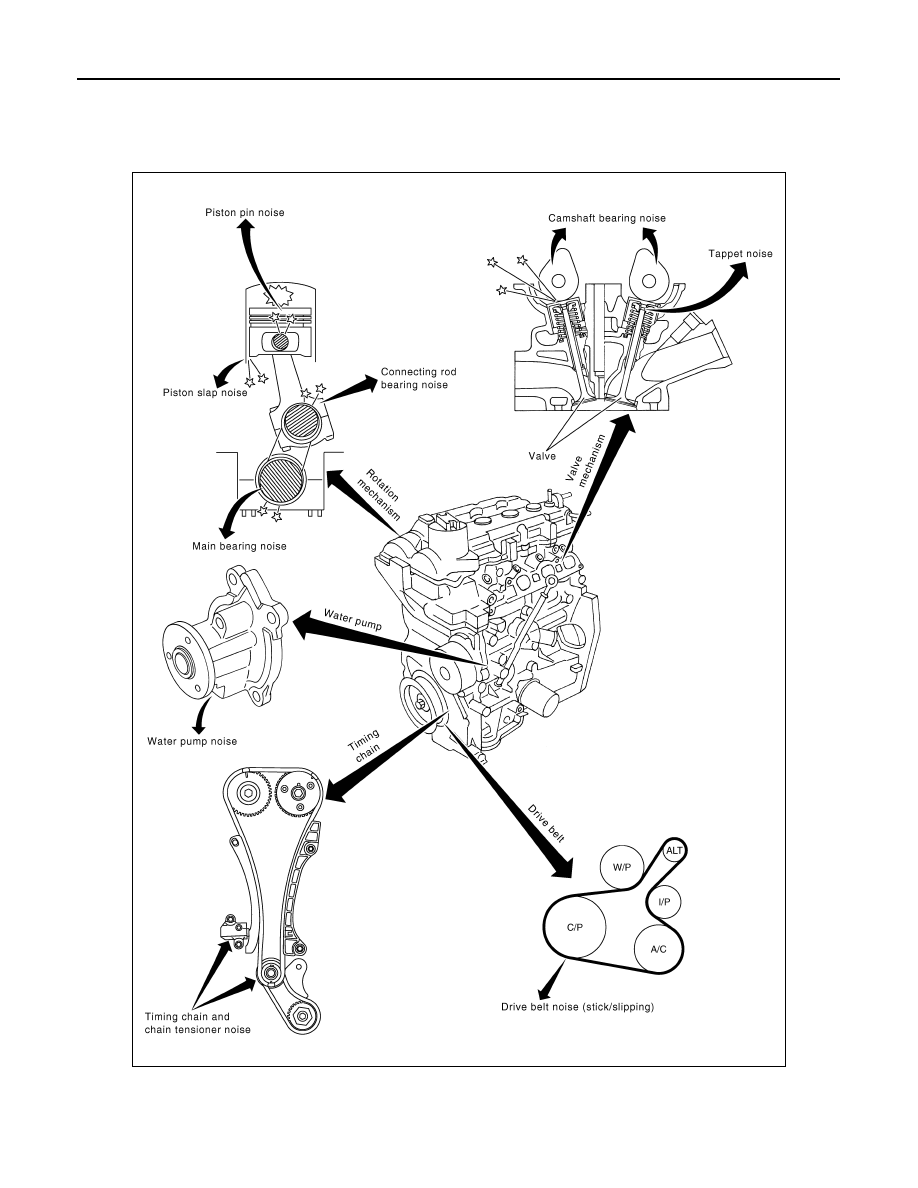

Use the Chart Below to Help You Find the Cause of the Symptom

INFOID:0000000000894013

PBIC3870E

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

EM-7

< SYMPTOM DIAGNOSIS >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

1.

Locate the area where noise occurs.

2.

Confirm the type of noise.

3.

Specify the operating condition of engine.

4.

Check specified noise source.

If necessary, repair or replace these parts.

A: Closely related

B: Related

C: Sometimes related

—: Not related

Location

of noise

Type of

noise

Operating condition of engine

Source of

noise

Check item

Refer-

ence page

Before

warm-

up

After

warm-

up

When

start-

ing

When

idling

When

racing

While

driving

Top of en-
gine
Rocker
cover
Cylinder
head

Ticking or
clicking

C

A

—

A

B

—

Tappet
noise

Valve clearance

EM-21

Rattle

C

A

—

A

B

C

Camshaft
bearing
noise

Camshaft journal oil
clearance
Camshaft runout

EM-116
EM-116

Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil pan

Slap or
knock

—

A

—

B

B

—

Piston pin
noise

Piston to piston pin oil
clearance
Connecting rod small
end clearance

EM-120
EM-123

Slap or
rap

A

—

—

B

B

A

Piston
slap noise

Piston to cylinder bore
clearance
Piston ring side clear-
ance
Piston ring end gap
Connecting rod bend
and torsion

EM-120
EM-120
EM-120
EM-123

Knock

A

B

C

B

B

B

Connect-
ing rod
bearing
noise

Connecting rod small
end clearance
Connecting rod bearing
oil clearance

EM-120
EM-123

Knock

A

B

—

A

B

C

Main bear-
ing noise

Main bearing oil clear-
ance
Crankshaft runout

EM-124
EM-120

Front of
engine
Front cov-
er

Tapping or
ticking

A

A

—

B

B

B

Timing
chain and
chain ten-
sioner
noise

Timing chain cracks
and wear
Timing chain tensioner
operation

EM-53

Front of
engine

Squeak-
ing or fizz-
ing

A

B

—

B

—

C

Drive belt
(Sticking
or slip-
ping)

Drive belt deflection

EM-115

Creaking

A

B

A

B

A

B

Drive belt
(Slipping)

Idler pulley bearing op-
eration

Squall
Creak

A

B

—

B

A

B

Water
pump
noise

Water pump operation

CO-18
