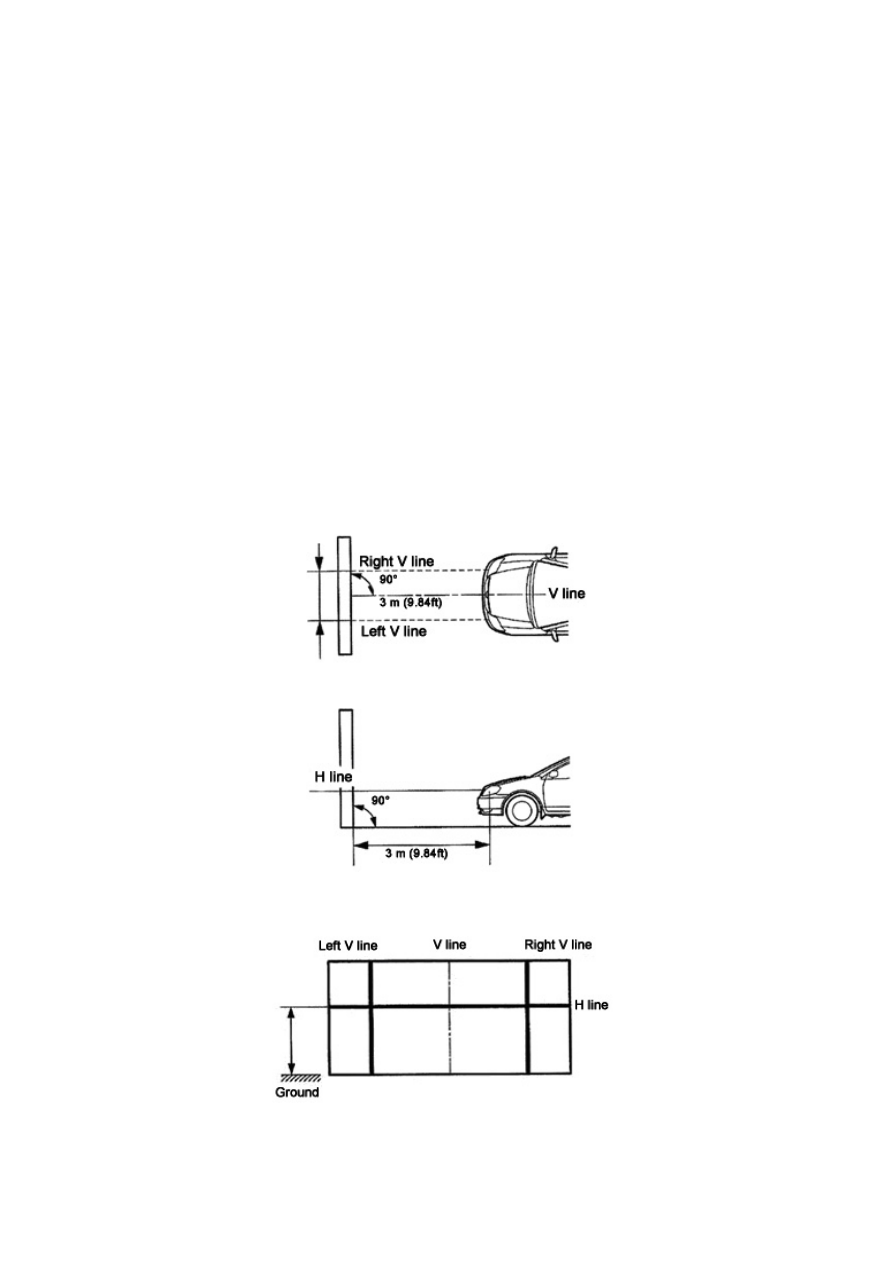

Fig. 4-79

241

(3) Check: When checking one side of front combination lamp, cover the other side or disconnect
the electrical connector plug to prevent the unchecked front combination lamp interfere the
focusing check.

Note:

 Do not cover the front combination lamp for more than 3 minutes, because the glass block

of front combination is made of synthetic resin, which is vulnerable to overheating. Start the engine,
to exceed 1500 rpm.

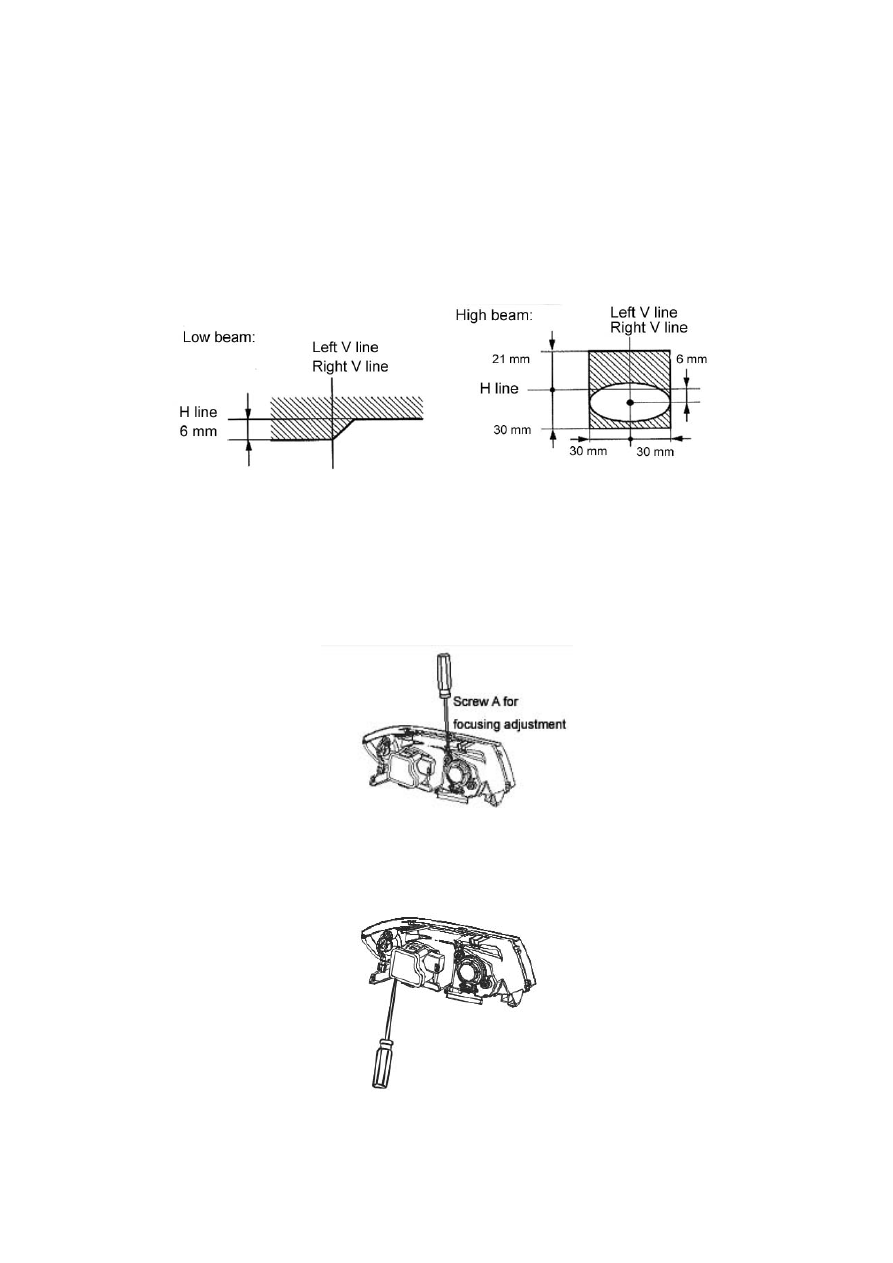

As shown in Fig. 4-80 and Fig. 4-81, turn on the front combination lamp to make the boundary
within designated area.



Fig. 4-83

242

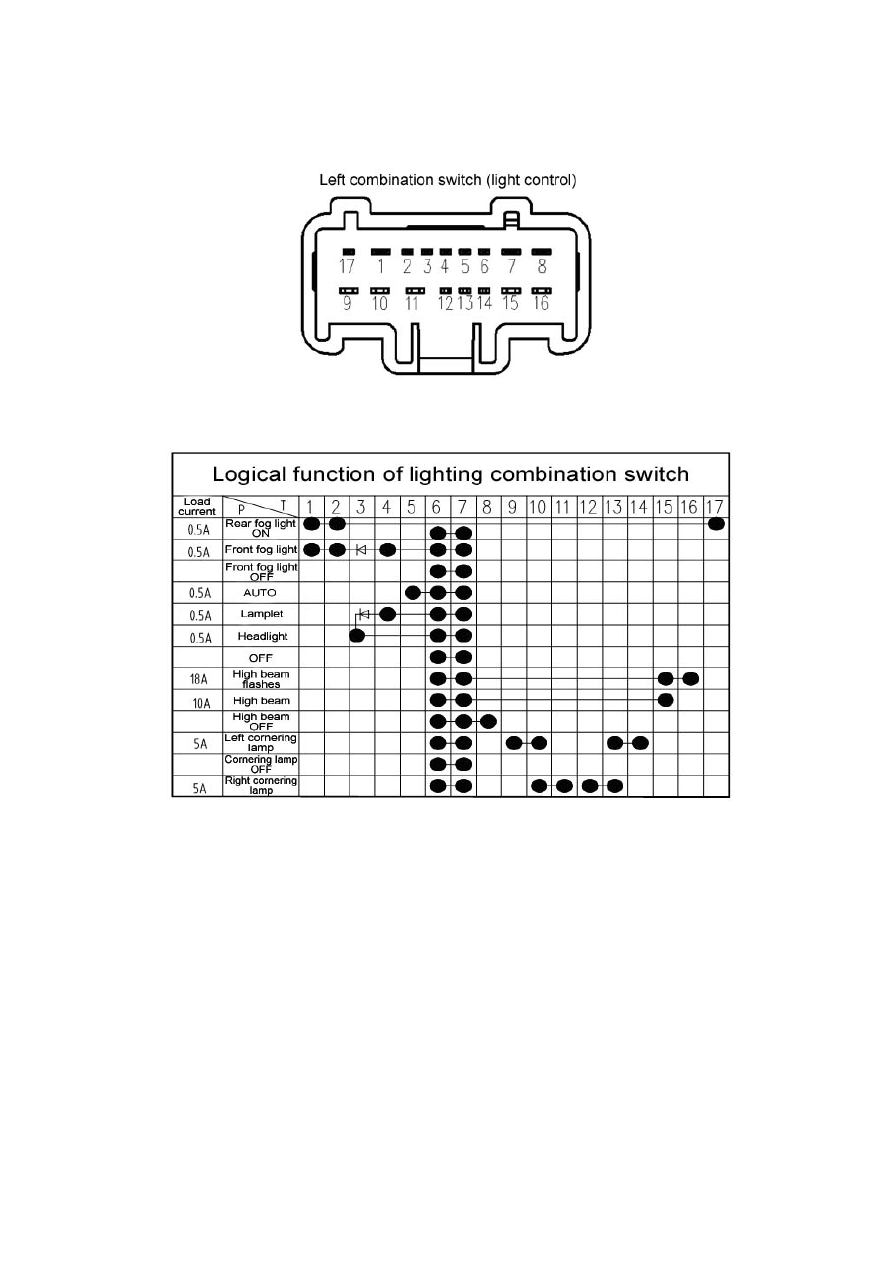

3. Check left combination switch (light control) as shown in Fig. 4-84 and Fig. 4-85.



243

(4) Check the conductivity of front fog light switch: When the switch is at OFF, terminals 1 and 2, 4
should be not conducted, when the switch is at ON, terminals 1 and 2, 4 should be conducted.
(5) Check the conductivity of control switch of front headlight before AUTO is lightened: When the
switch is at AUTO, terminals 5 and 6, 7 should be conducted.

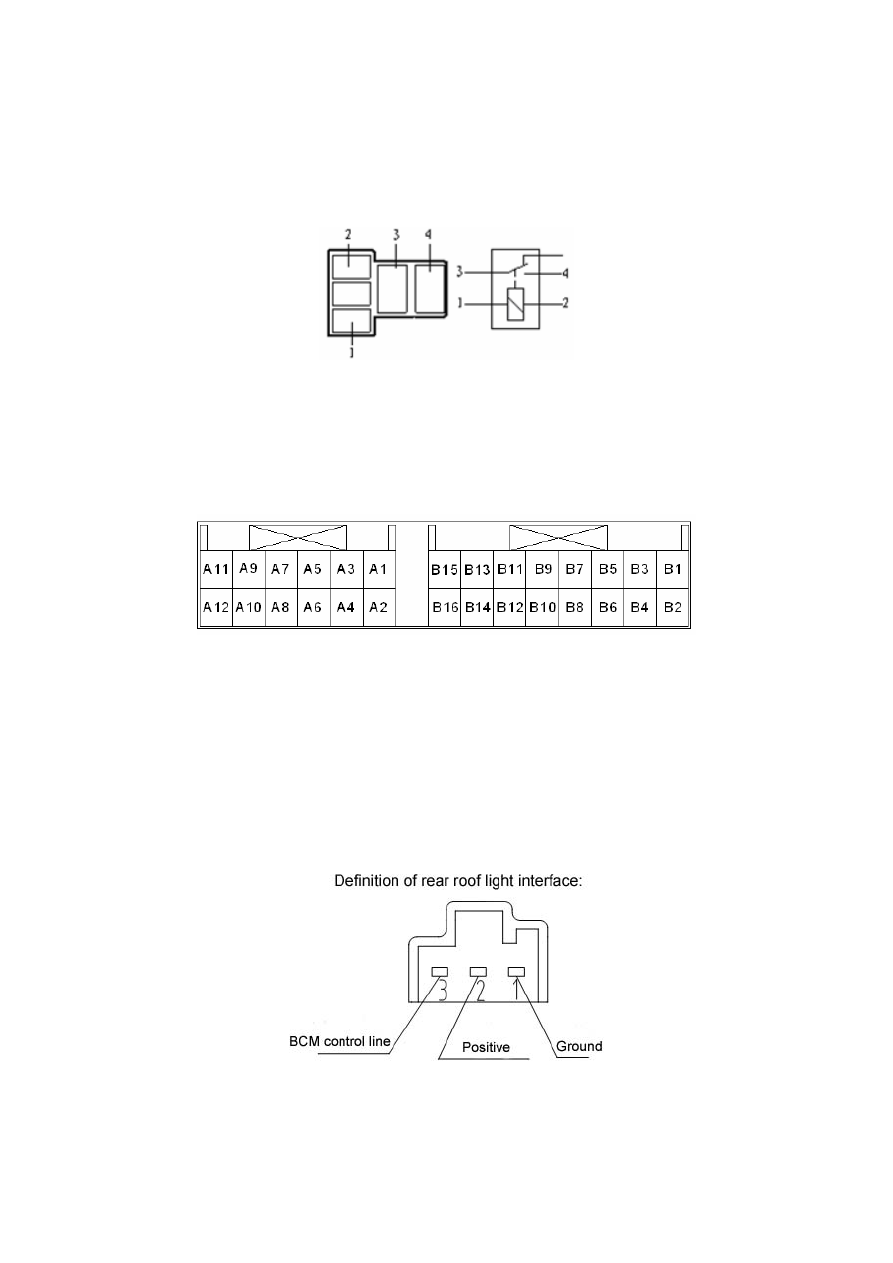

4. Check front fog light relay as shown in Fig. 4-86.



Fig. 4-88

7. Check the flash signal control
(1) The flash signal is controlled by BCM body controller, as required in the table, check the
