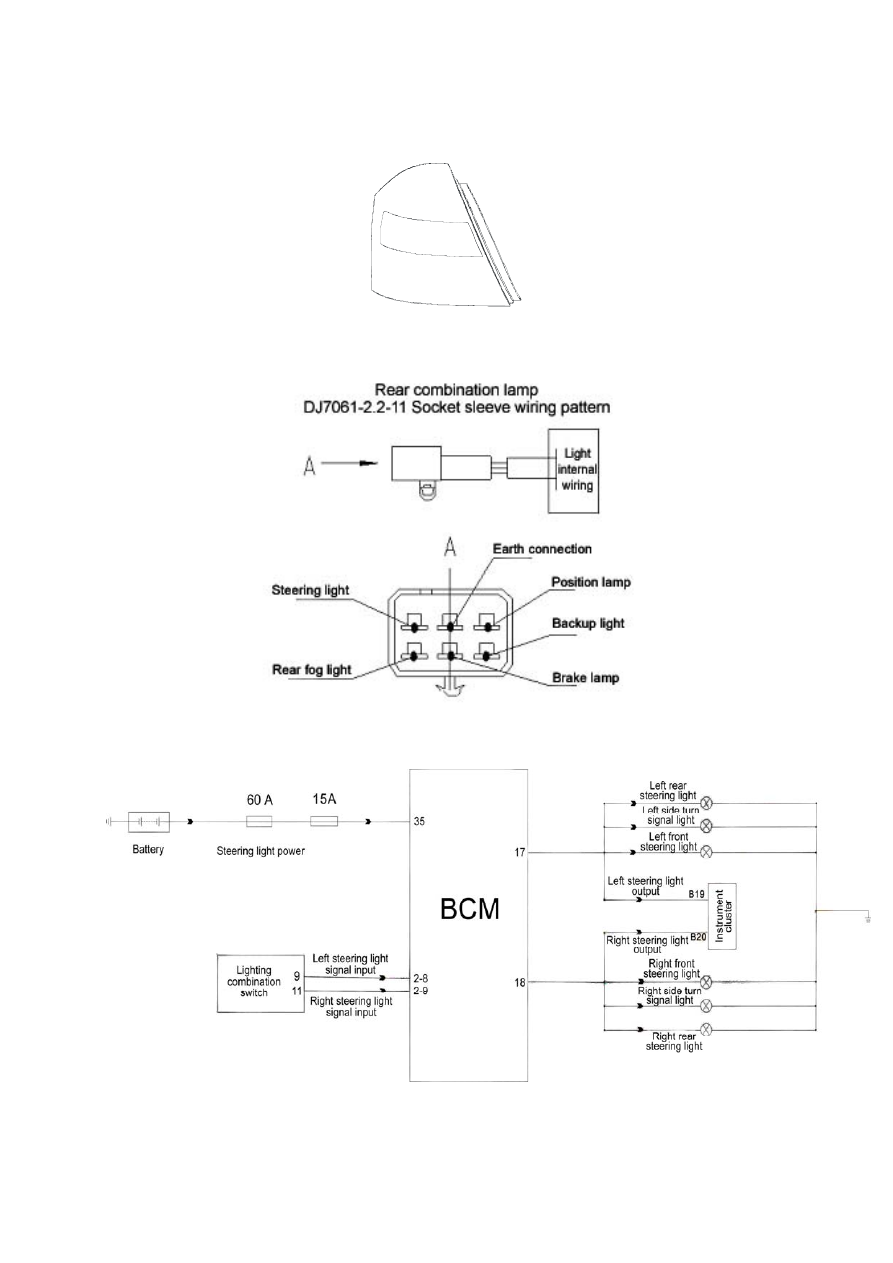

2. Rear combination lamp (Fig. 4-63, Fig. 4-64 and Fig. 4-65)





Fig. 4-63





Fig. 4-65



237

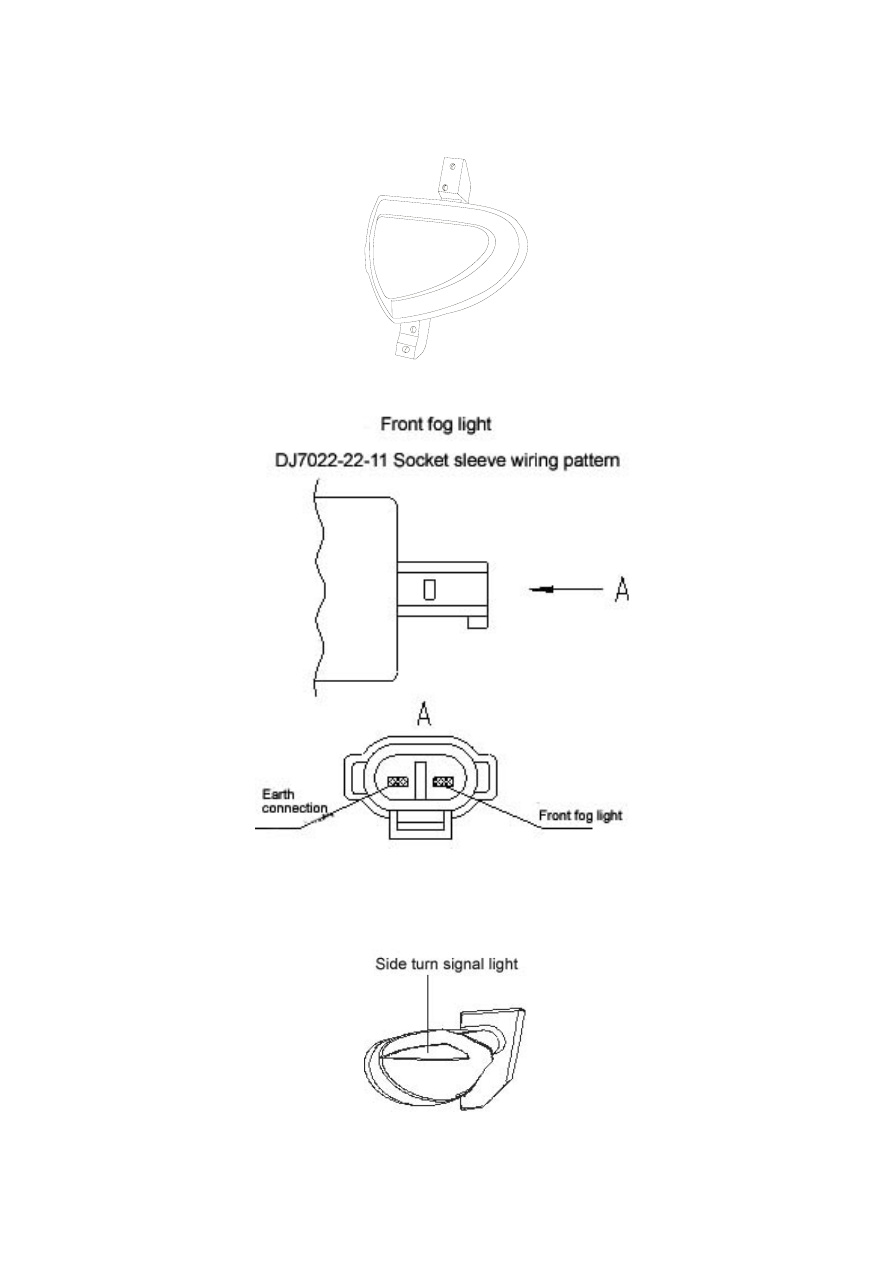

3. Front fog light (Fig. 4-66 and Fig. 4-67)







Fig. 4-68

238

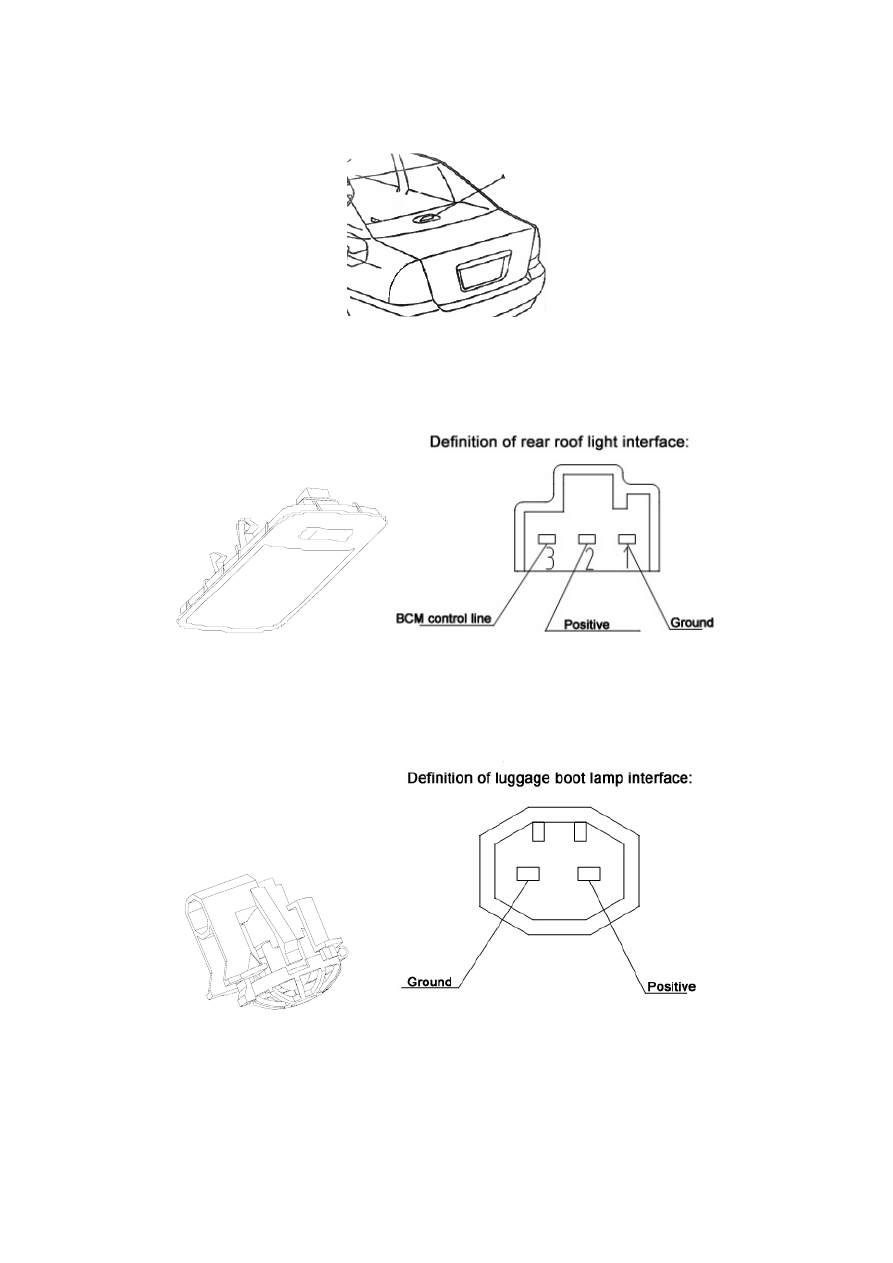

5. High-mounted brake lamp (Fig. 4-69)





Fig. 4-69





Fig. 4-72                           Fig. 4-73


III. Check and repair

1. Disassemble and assemble left and right of front combination lamp in the same steps,
disassembling steps are contrary to assembling steps.

239

(1) Remove radiator grille
(2) Remove left front fender inner panel
(3) Remove right front fender inner panel
(4) Remove front bumper
(5) Remove left headlight

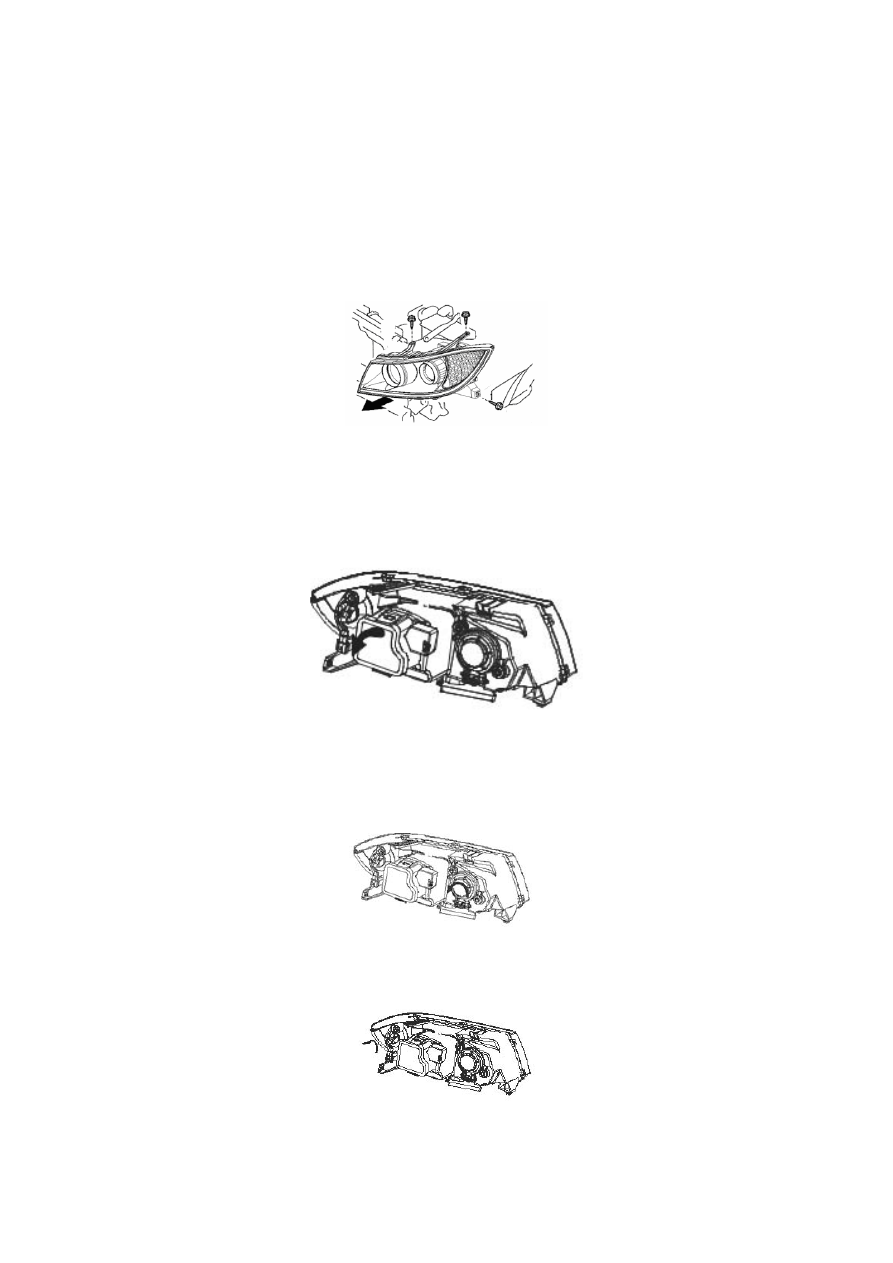

Remove the three screws to pull out the left front combination lamp assembly as per the direction
shown in the Fig., disconnect the bracket at the side of the car, and disconnect each electrical
connector lug of lamp socket, as shown in Fig. 4-74.

Fig. 4-76

(8) Remove steering light of left headlight as shown in Fig. 4-77.



Fig. 4-77
