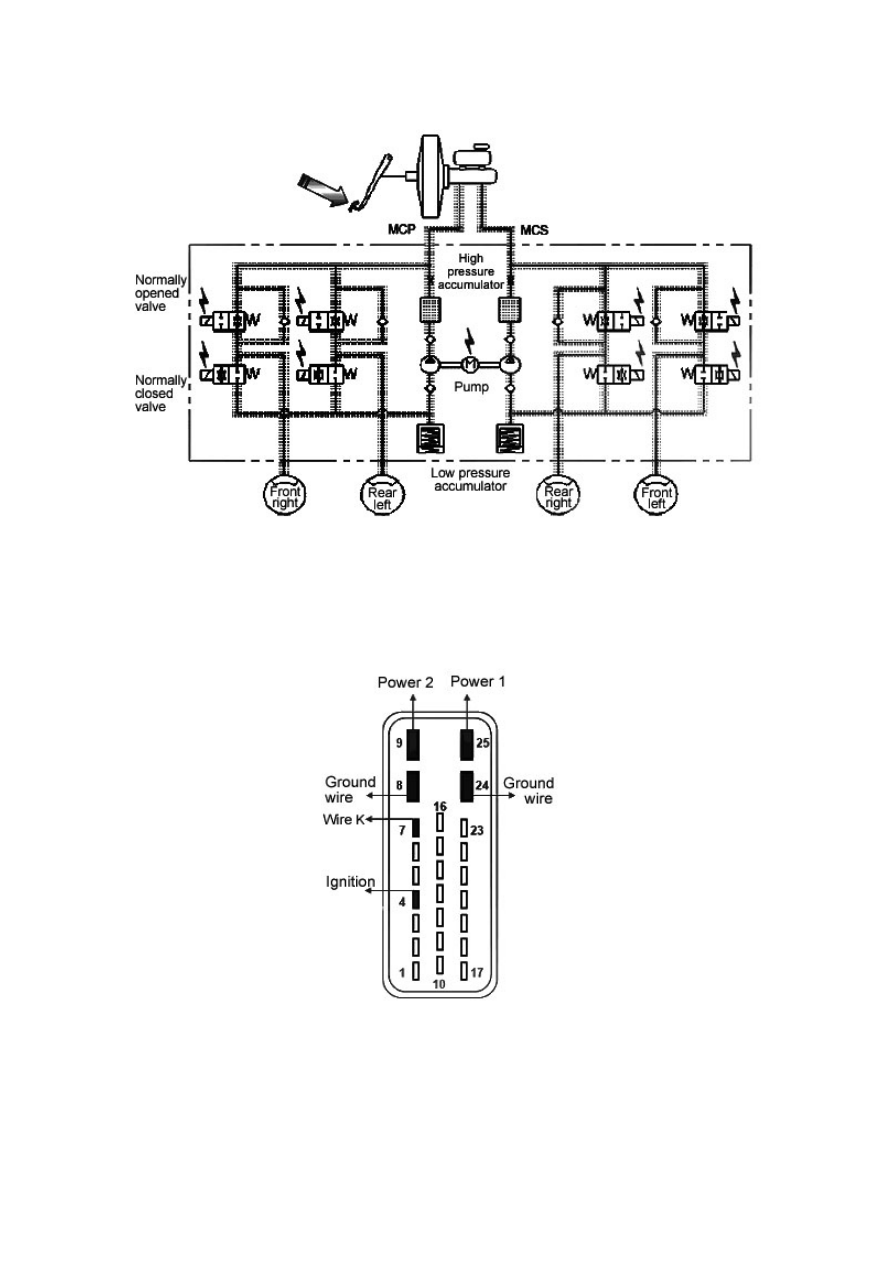

Appendix III: ABS Interior Hydraulic Pressure Flow Diagram






Fig. 3-21









189

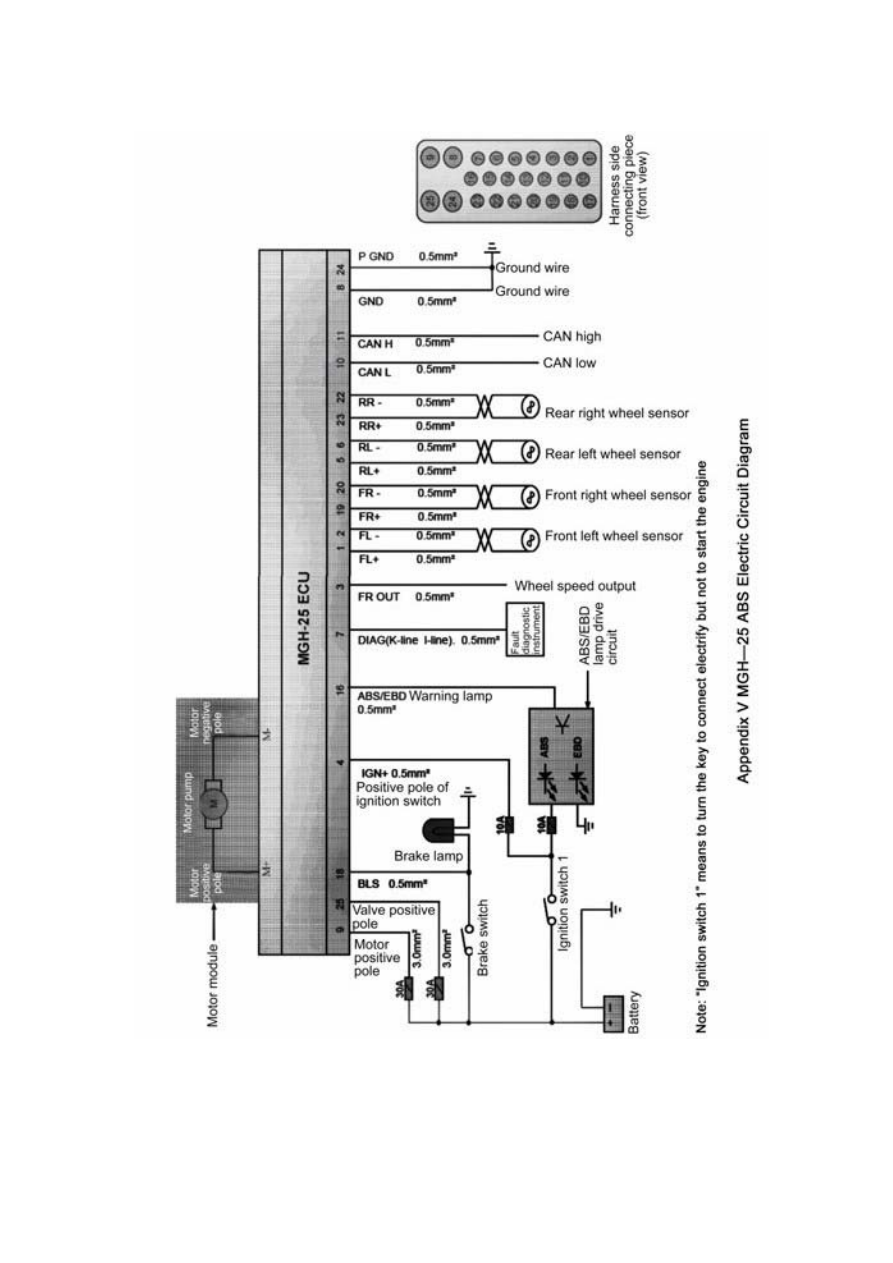

Appendix V: Electric Circuit Diagram





Fig. 3-22



190

Chapter IV    Electrical System



General Rules  Trouble Shooting



I. Appearance inspection before repair



Fig. 4-2

191

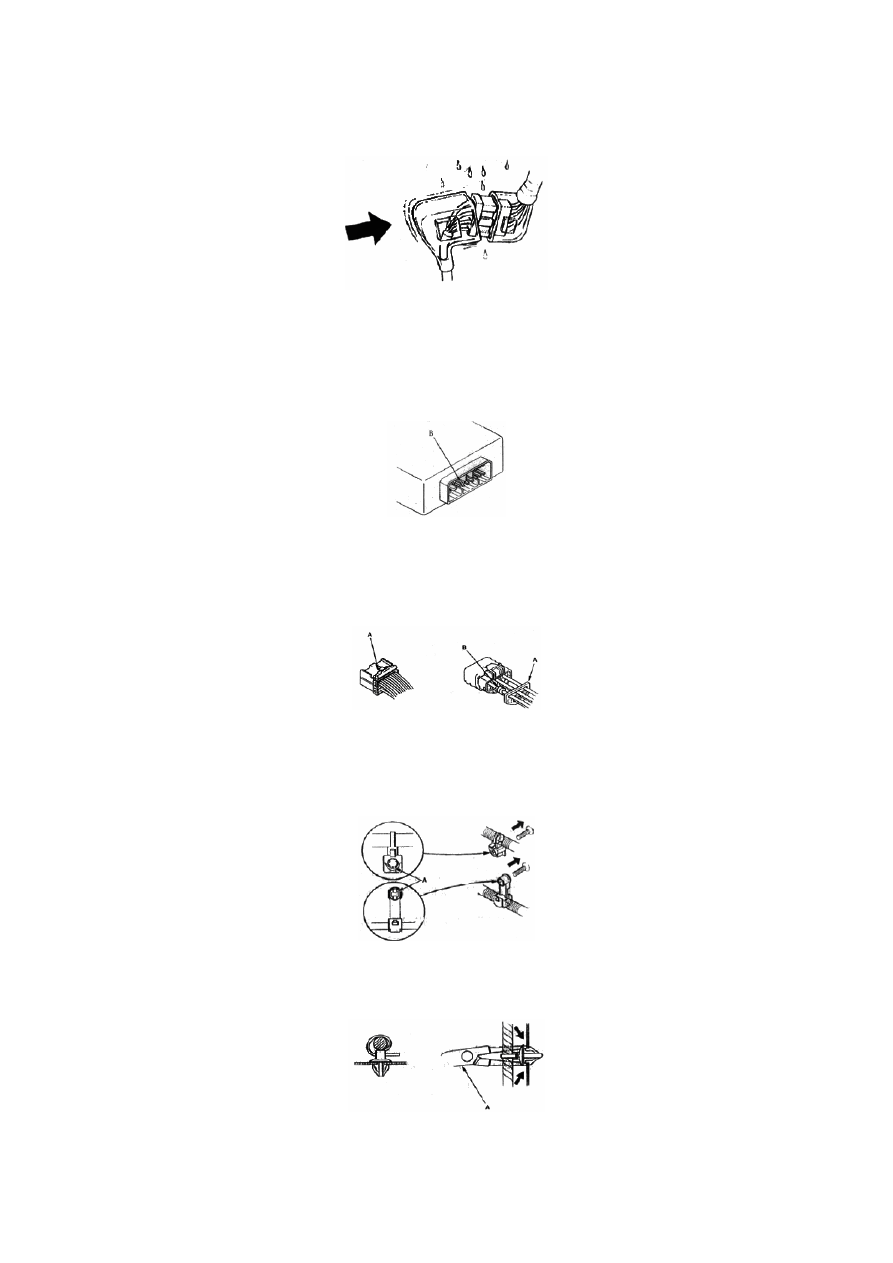

6. As for the ones with protective plastic or rubber sleeve, install the sleeve while removing.
(Fig. 4-3)



Fig. 4-3



Fig. 4-6

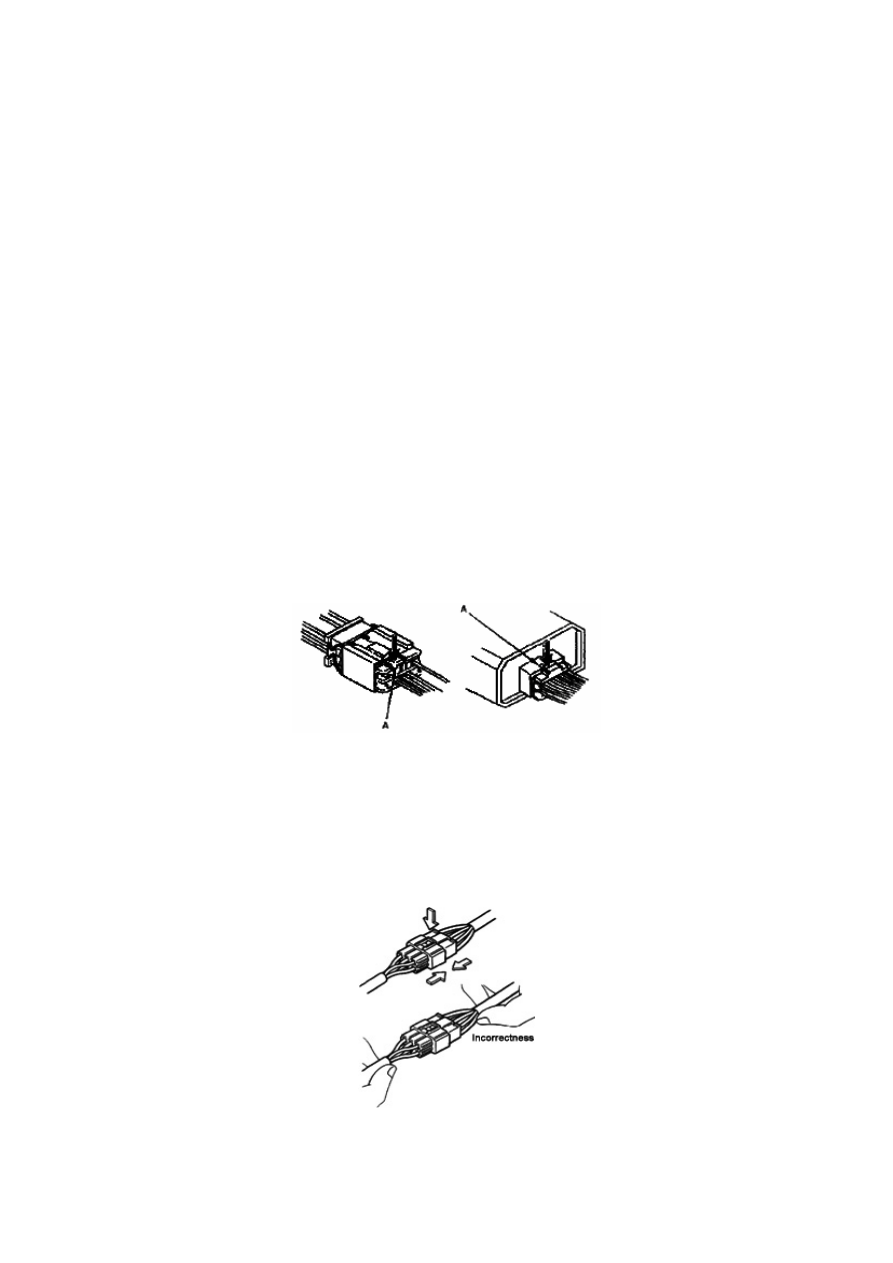

5. Slide the pliers down to the bottom of the wire clip, through the hole at a certain angle, and then
seize up the expansion piece, so as to loose the wire clip. (Fig. 4-7)



Fig. 4-7
