Lifan 620. Service manual - part 36



①

②

①

①

②

①

②

 Smear the

①

lithium base glycol grease on the sliding part of the 2 sliding pins and the surface of

oil seal.

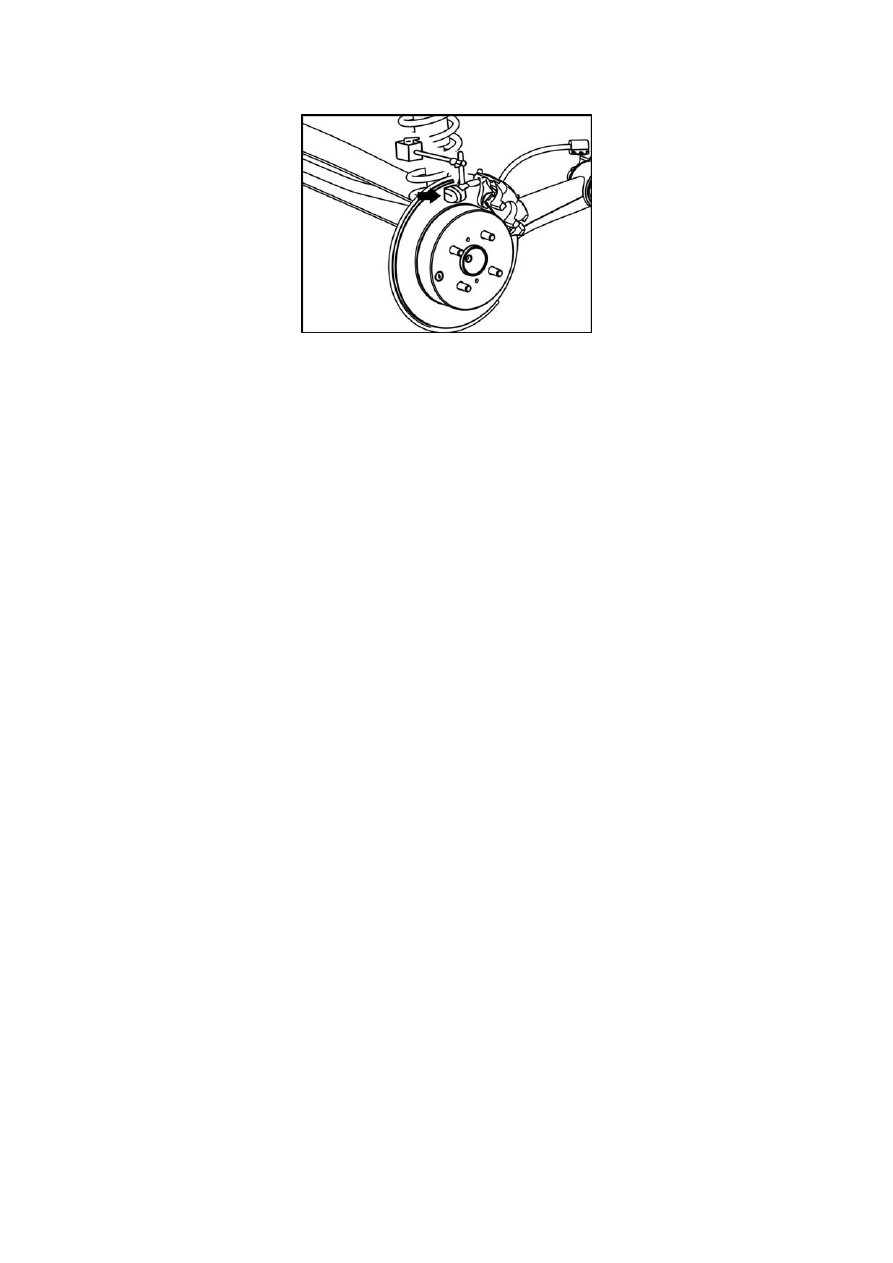

 Install the 2 sliding pins into the support of the front disc brake slave cylinder.

②



8) Install the rear brake pad holding piece. Remove the 2 holding pieces from the rear disc brake
slave cylinder support.
9) Install the components of brake pad. Note: The silencer pad must be replaced at the same time
while the wear brake pad is replaced.


 Smear grease for disc brake on the

①

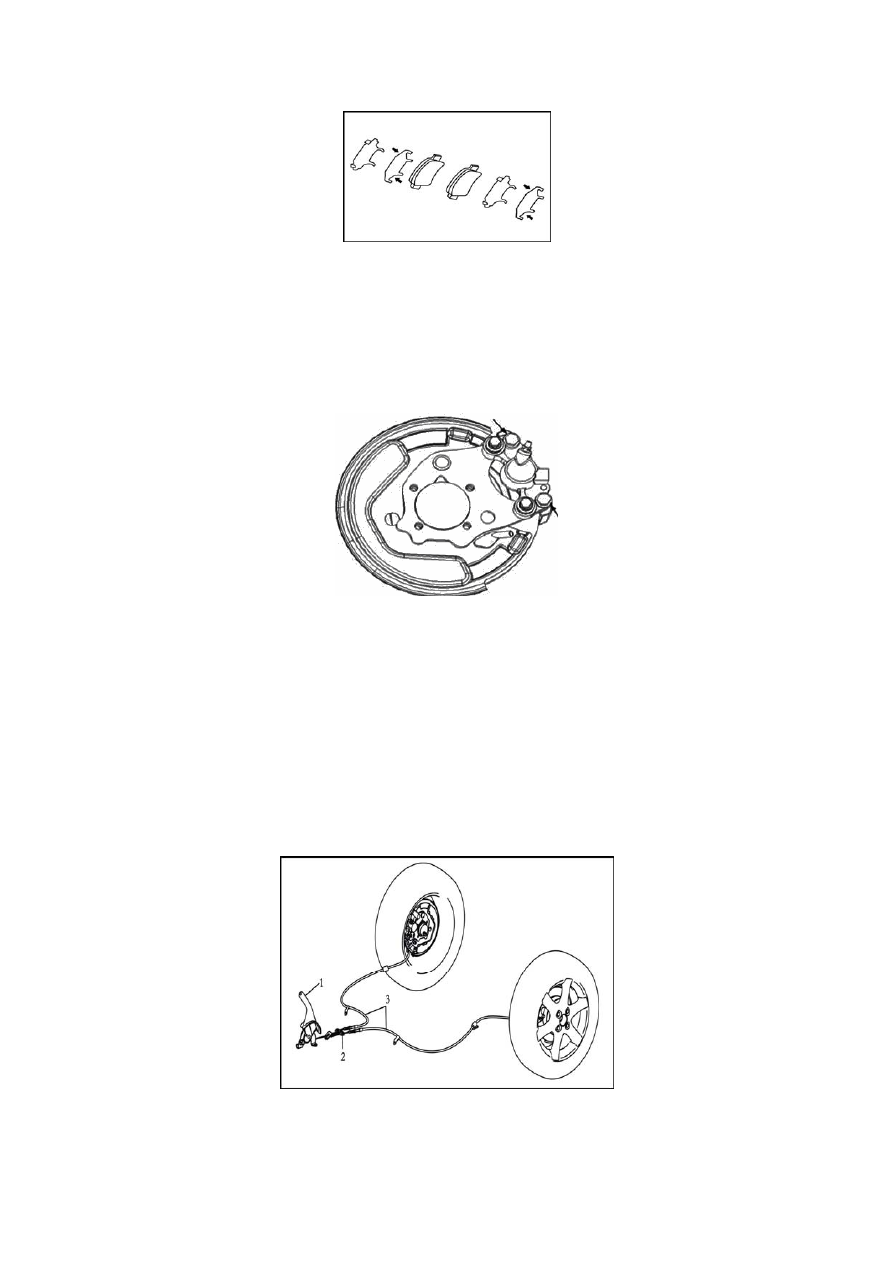

 two sides of each silencer pad. See Fig. 2-69.

145



Fig. 2-69

 Install silencer pad on each brake pad.

②



 The wear indicator is upwards. Install the inside brake pad, and then the outside.

③



①

②



Fig. 2-71

1. Parking brake control lever assembly

146

2. Front and rear cables support
3. Parking brake cable

1. Fault elimination

Table 2-5

Fault

Possible Cause

Action

Inactive parking

brake

1. Parking brake cable

2. Parking brake control

1. Check the parking cable and

adjustment

2. Check the parking brake control



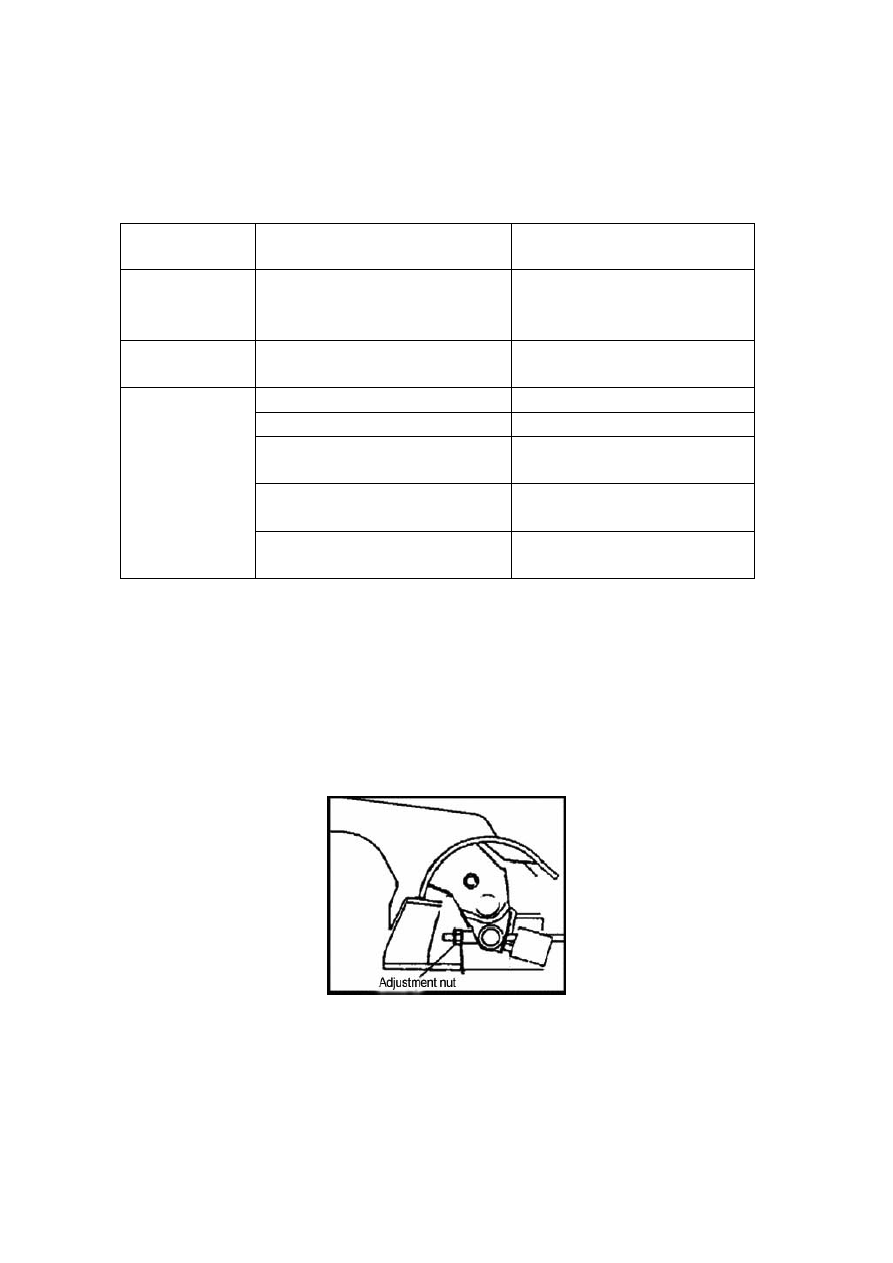

Fig. 2-72

1) Remove the glove box cover.
2) Rotate the No. 1 adjustment nut cable until the pulling rod play is normal.
3) Install the glove box cover.
3. Accessories of parking brake rod

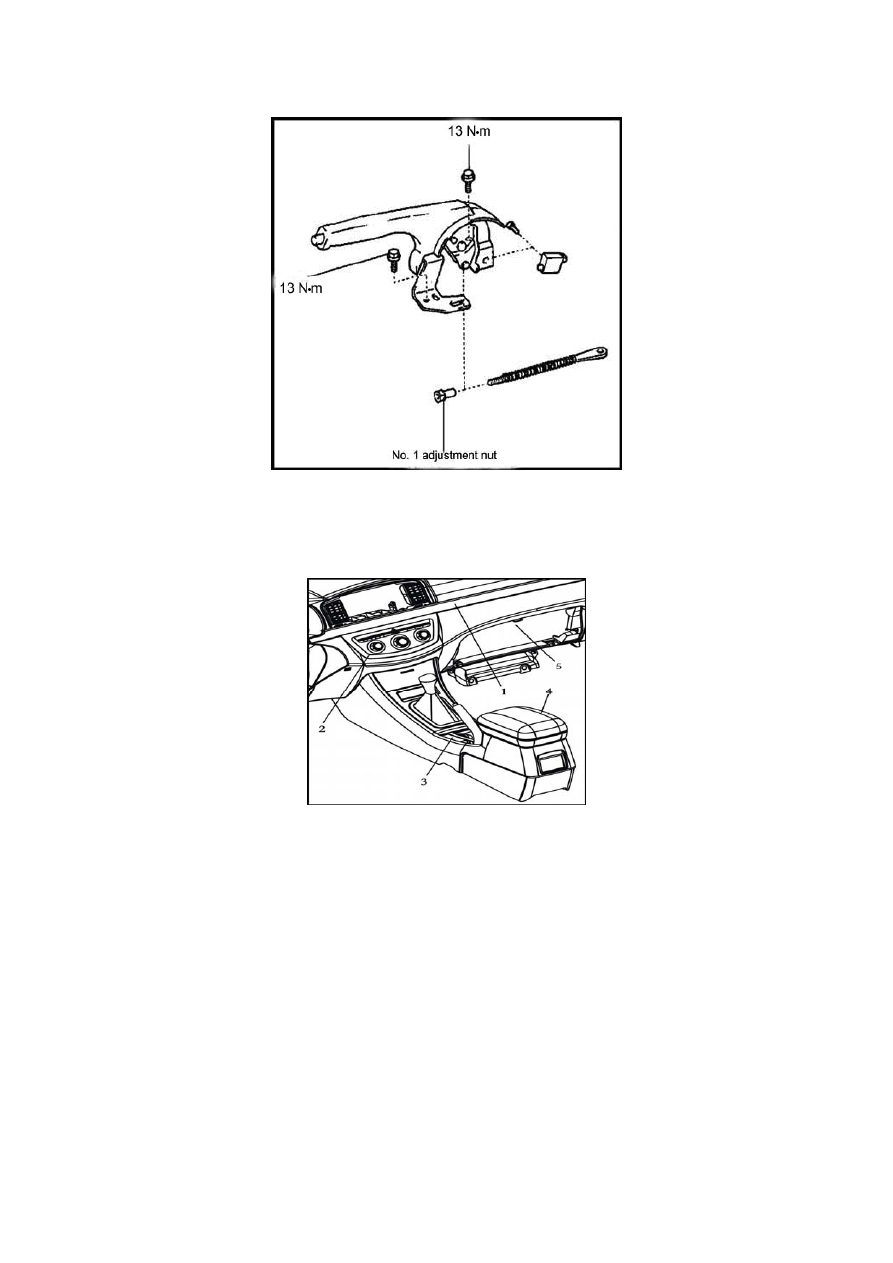

Disassembly of parts and components as shown in Fig. 2-73

147



2) Remove the two bolts of the fixed fascia console and auxiliary fascia console beneath the
position of the air conditioning control panel.
3) Remove bolt 3 (both left and right).
4) Dismantle the floor brake cover.
5) Open the auxiliary fascia console sundries box cover, and dismantle the two bolts at the bottom

.

6) Remove the lead of No. 1 adjustment nut.
7) Remove the accessories of the parking brake rod as shown in Fig. 2-75.

148
