Lifan 620. Service manual - part 28

tightening torque reading at the fifth turn. Tightening torque: 0.05～1.98Nm.



Fig. 2-16



N·m



Fig. 2-18



3) Install the cotter pin. Note: In case that the hole of cotter pin is not correctly aligned, please
further tighten the nut according to the hole of cotter pin.

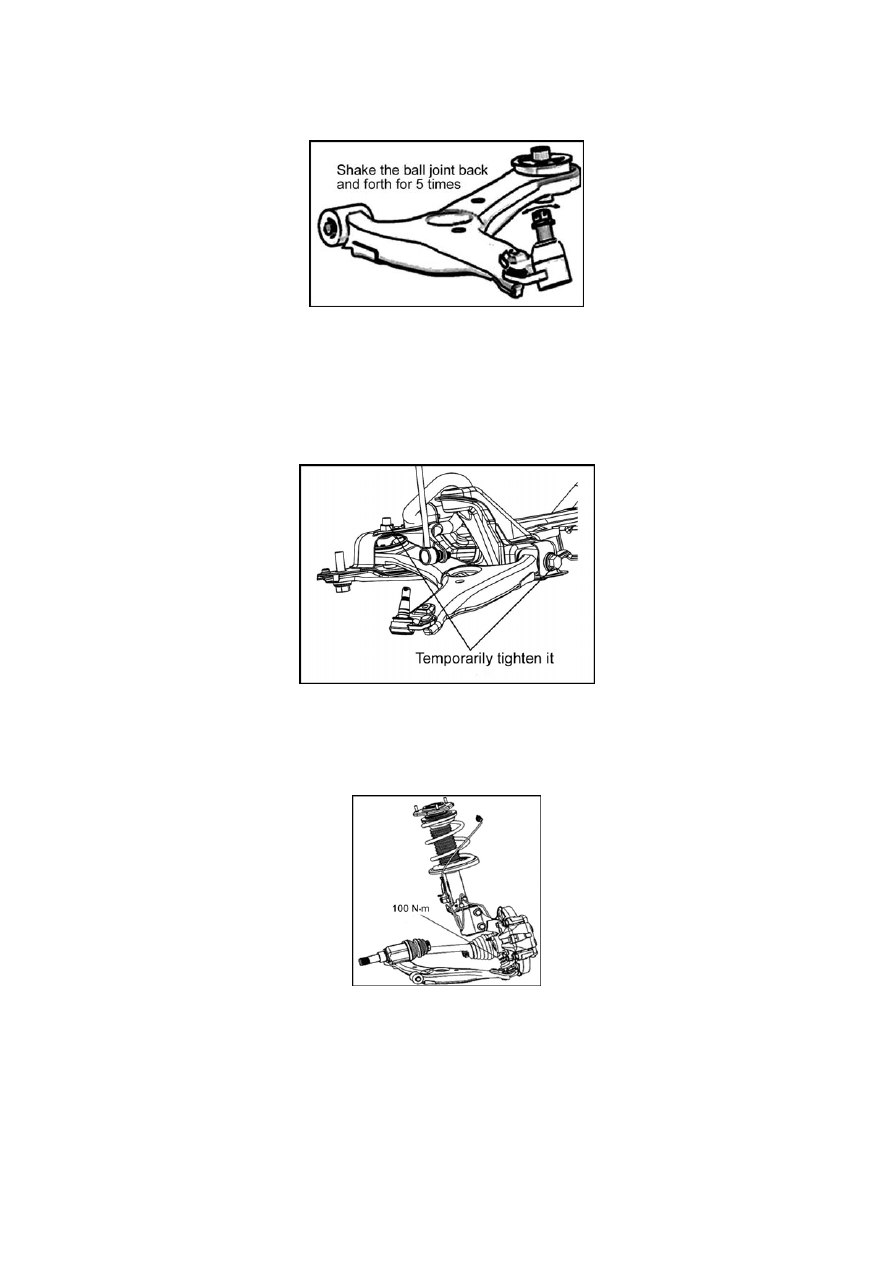

4) Fully tighten the front suspension lower arm assembly. Secure the lower arm by 2 bolts as
shown in Fig. 2-17.

113

5. Replacement of shock damper
(1) Disassembly of front shock damper assembly.
1) Dismantle the front wheel.

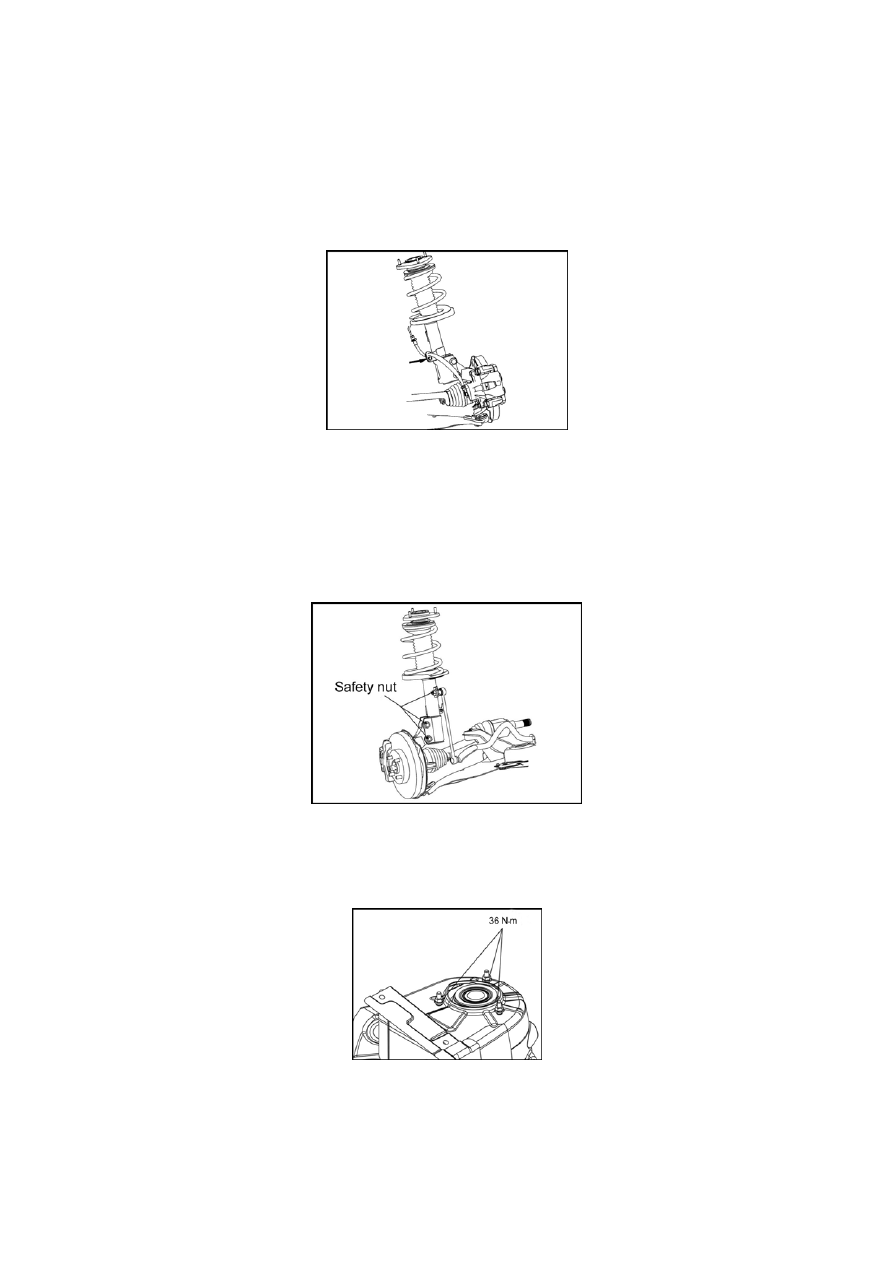

2) Disconnect the brake hose. Remove the bolt, brake hose and ABS vehicle speed sensor
harness clip from the shock damper bracket (of vehicle with ABS)



according to Fig. 2-19.





Fig. 2-21

(2) Installation of front shock damper assembly.
To install, reverse the removal procedure

114

(3) Disassembly of the rear shock damper assembly
1) Dismantle the rear wheel.

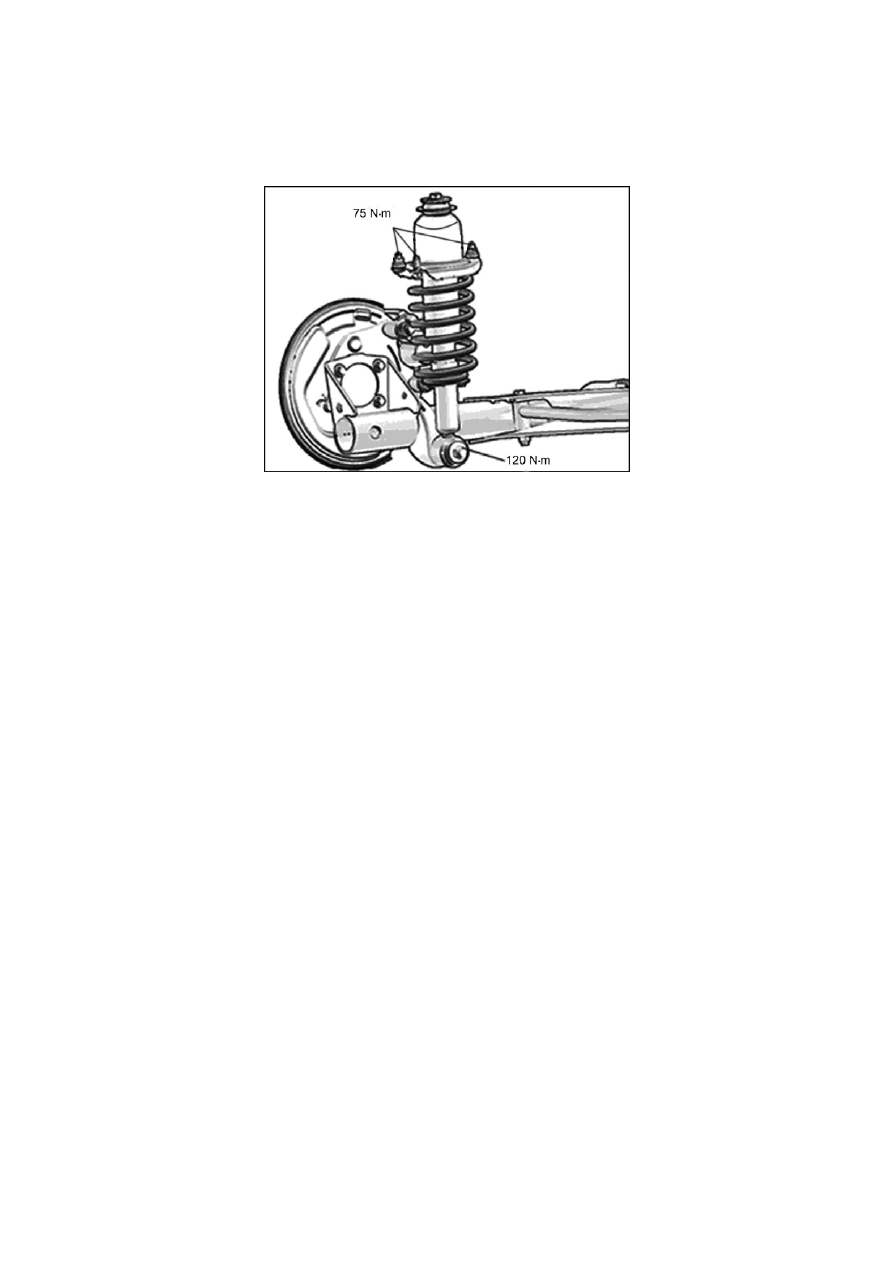

2) Dismantle the left and right rear shock damper assembly according to Fig. 2-22.

①



②



③



④









115

Section II  Steering System

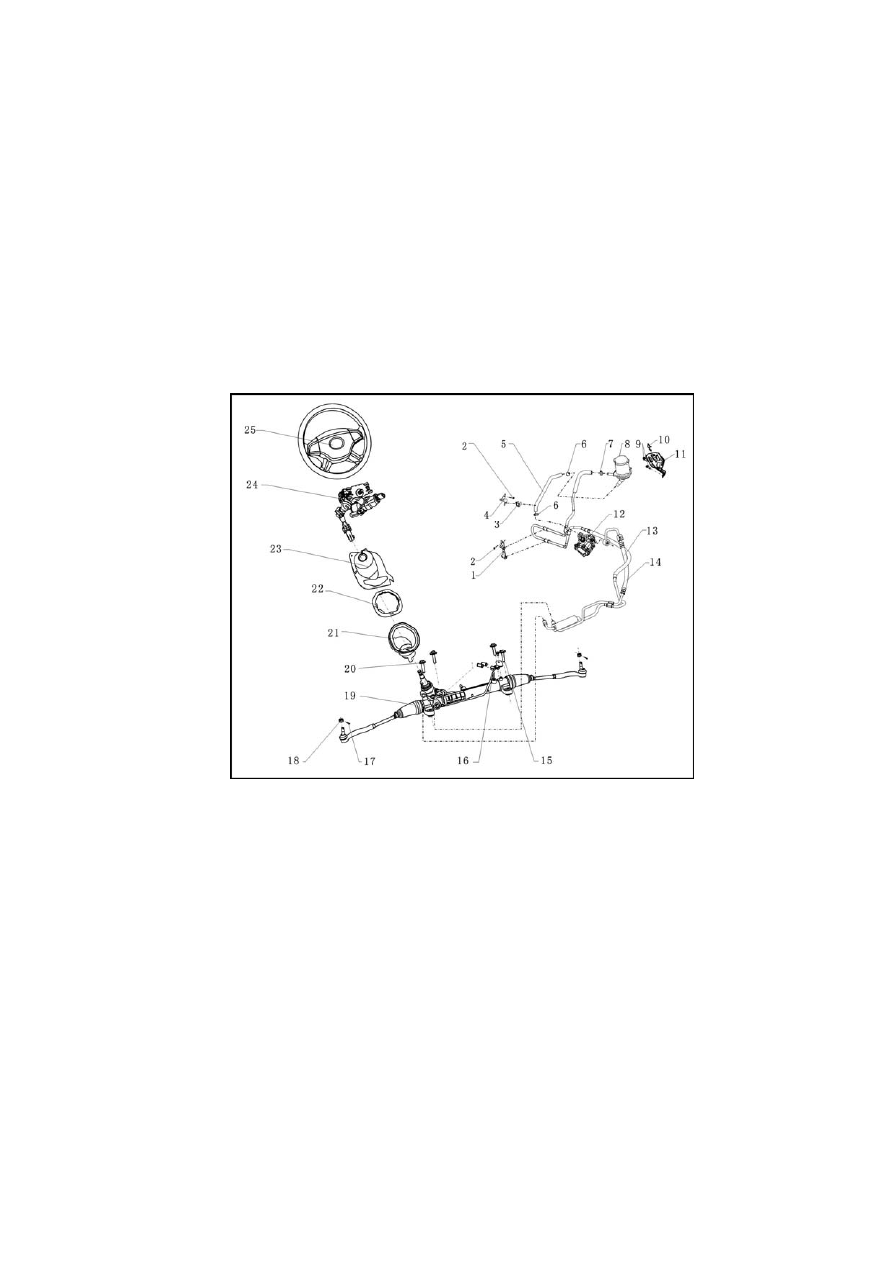

9. Hex bolt with flat washer (75N·m)                  10. Power steering oil can clip

11. Power steering oil can bracket                    12. Power steering oil pump assembly

13. Steering return line assembly                     14. Steering gear intake pipe assembly

15. Hexagon flange bolt (75N·m)                     16. Oil pipeline bracket A component

17. Cotter pin                                                                            18. Hex slotted thin nut (75N·m)

19. Steering gear and tie-rod assembly                20. Hexagon flange bolt (75N·m)

21. Acoustic hood on the steering gear                   22. Collar of acoustic hood on the steering gear

23. Steering column dustproof cap components       24. Steering column and adjustment mechanism assembly

25. Steering wheel assembly





116
