RCTA function

The RCTA function is operational when

The RCTA function uses rear side radar sensors to detect vehicles approaching
from the right or left at the rear of the vehicle and alerts the driver of the presence
of such vehicles by flashing the outside rear view mirror indicators and sounding a
buzzer.

Approaching vehicles

Detection areas of approaching vehicles

RCTA icon display

When a vehicle approaching from the right or left at the rear of the vehicle is
detected, the following will be displayed on the center display.

*2 :

Depending on the vehicle grade and equipped options, the actual screen may be

different from this illustration.

6-2. Using the safe driving support functions

439

Driving suppor

t s

ystem

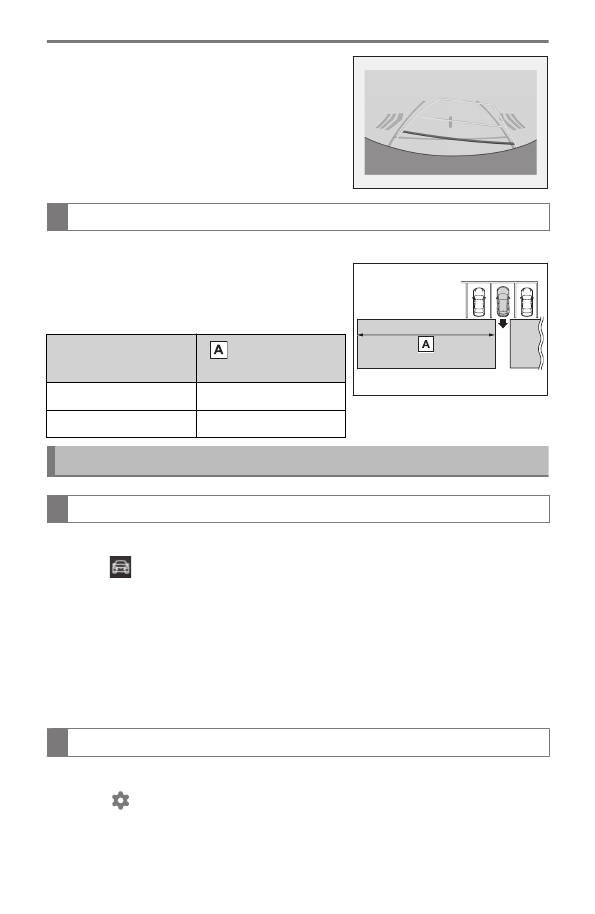

Example: Vehicles are approaching from both
sides of the vehicle (Example: Vehicles with a
Lexus parking assist monitor)

RCTA function detection areas

The areas that vehicles can be detected in are outlined below.
The buzzer can alert the driver of faster vehicles
approaching from farther away.
Example:

Approaching vehicle

speed

Approximate alert

distance

34 mph (56 km/h) (fast) 98 ft. (30 m)

5 mph (8 km/h) (slow)

13 ft. (4 m)

Changing the RCTA settings

Turning the RCTA function ON/OFF

The RCTA function can be enabled/disabled on the center display as follows:

Select

Select [Driving assist].

Select [Rear cross traffic alert].

When the RCTA function is disabled, the driving assist information indicator
illuminates on the multi-information display.
(Each time the power switch is turned off then changed to ON, the RCTA function
will be enabled automatically.)

Changing the RCTA buzzer volume

The buzzer volume can be adjusted on the center display.

Select

Select [Driving assist].

Select [Collision mitigation].

6-2. Using the safe driving support functions

440

Select [Parking assist volume].

Temporarily muting the RCTA buzzer

A mute button will be displayed on the center display when an object is detected.
To mute the buzzer, select

.To mute the buzzer, select

. The buzzers for the

intuitive parking assist sensor, RCTA and RCD function will be muted simultane-
ously.

INFORMATION

Mute will be canceled automatically in the following situations:

●

When the shift position is changed.

●

When the vehicle speed exceeds a certain speed.

●

When there is a malfunction in a sensor or the system is temporarily unavailable.

●

When the operating function is disabled manually.

●

When the power switch is turned off.

6-2. Using the safe driving support functions

441

Driving suppor

t s

ystem

Rear Camera Detection

Purpose of the RCD (Rear Camera Detection)

When the vehicle is backing up, the rear camera detection function can detect
pedestrians in the detection area behind the vehicle. If a pedestrian is detected, a
buzzer will sound and an icon will be displayed on the center display to inform the
driver of the pedestrian.

WARNING

■

Cautions regarding the use of the system

The recognition and control capabilities for this system are limited.
The driver should always drive safely by always being responsible without over relying on
the system and have a understanding of the surrounding situations.

■

To ensure the system can operate properly

Observe the following, otherwise there is the danger that could lead to an accident.

●

Always clean the camera with damaging it.

●

Do not install market electronic parts (such as Illuminated license plate, fog lamps,
etc.) in the camera vicinity.

●

Do not subject the camera vicinity to strong impacts. If the vicinity is subjected to a
strong impact, have the vehicle inspected by your Lexus dealer.

●

Do not disassemble, remodel or paint the camera.

●

Do not attach accessories or stickers to the camera.

●

Do not install market protection parts (bumper trim, etc.) to the rear bumper.

●

Maintain suitable tire air pressure.

●

Make sure the back door is completely closed.

■

RCD function is turned off

In the following situations the system turns off. The RCD function may not operate
properly and thus there is the danger that an accident may occur.

●

The contents mentioned above are not observed.

●

Suspensions other than Lexus genuine parts are installed.

INFORMATION

■

The rear camera detection function is operational when

●

The power switch is in ON.

* :

If equipped

6-2. Using the safe driving support functions

442

●

RCD function is on.

●

The shift position is in R.

●

Advanced Park is not operating

■

Situations in which the system may not operate properly

●

Some pedestrians, such as the following, may not be detected by the rear camera
detection function, preventing the function from operating properly:

•

Pedestrians who are bending forward or squatting

•

Pedestrians who are lying down

•

Pedestrians who are running

•

Pedestrians who suddenly enter the detection area

•

People riding a bicycle, skateboard, or other light vehicle

•

Pedestrians wearing oversized clothing such as a rain coat, long skirt, etc., making
their silhouette obscure

•

Pedestrians whose body is partially hidden by an object, such as a cart or umbrella

•

Pedestrians which are obscured by darkness, such as at night

●

In some situations, such as the following, pedestrians may not be detected by the rear
camera detection function, preventing the function from operating properly:

•

When backing up in inclement weather (rain, snow, fog, etc.)

•

When the rear camera is obscured (dirt, snow, ice, etc. are attached) or scratched

•

When a very bright light, such as the sun, or the headlights of another vehicle,
shines directly into the rear camera

•

When backing up in a place where the surrounding brightness changes suddenly,
such as at the entrance or exit of a garage or underground parking lot

•

When backing up in a dim environment such as during dusk or in an underground
parking lot

•

When the camera position and direction are deviated

•

When a towing hook is attached

•

When water droplets are flowing on the camera lens

•

When the rear washer is operating

•

When the vehicle height is extremely changed (nose up, nose down)

•

When tire chains or an emergency tire puncture repair kit is used

•

If the suspension has been modified or tires of a size other than specified are
installed

•

When install market electronic parts (such as Illuminated license plate, fog lamps,
etc.) in the camera vicinity

6-2. Using the safe driving support functions

443

Driving suppor

t s

ystem

•

When install market protection parts (bumper trim, etc.) to the rear bumper

■

Situations in which the system may operate unexpectedly

●

Even though there are no pedestrians in the detection area, some objects, such as the
following, may be detected, possibly causing the rear camera detection function to
operate.

•

Three dimensional objects, such as a pole, traffic cone, fence, or parked vehicle

•

Moving objects, such as a car or motorcycle

•

Objects moving toward your vehicle when backing up, such as flags or puddles (or
airborne matter, such as smoke, steam, rain, or snow)

•

Cobblestone or gravel roads, tram rails, road repairs, white lines, pedestrian cross-
ings or fallen leaves on the road

•

Metal covers (gratings), such as those used for drainage ditches

•

Objects reflected in a puddle or on a wet road surface

•

Shadows on the road

●

In some situations, such as the following, the rear camera detection function may
operate even though there are no pedestrians in the detection area.

•

When backing up toward the roadside or a bump on the road

•

When backing up toward an incline/decline

•

If the rear of the vehicle is raised or lowered due to the carried load

•

If a bumper protector, such as an additional trim strip, is installed to the rear bumper

•

If the orientation of the rear camera has been changed

•

If a towing eyelet is installed to the rear of the vehicle

•

When water is flowing over the rear camera lens

•

When the rear camera is obscured (dirt, snow, ice, etc., are attached) or scratched

•

If there is a flashing light in the detection area, such as the emergency flashers of
another vehicle

•

When a tire chains or an emergency tire puncture repair kit is used

●

Situations in which the rear camera detection function may be difficult to notice

•

The buzzer may be difficult to hear if the surrounding area is noisy, the volume of
the audio system volume is high, the air conditioning system is being used, etc.

•

If the temperature in the cabin is extremely high or low, the audio system screen
may not operate correctly.

RCD function

6-2. Using the safe driving support functions

444

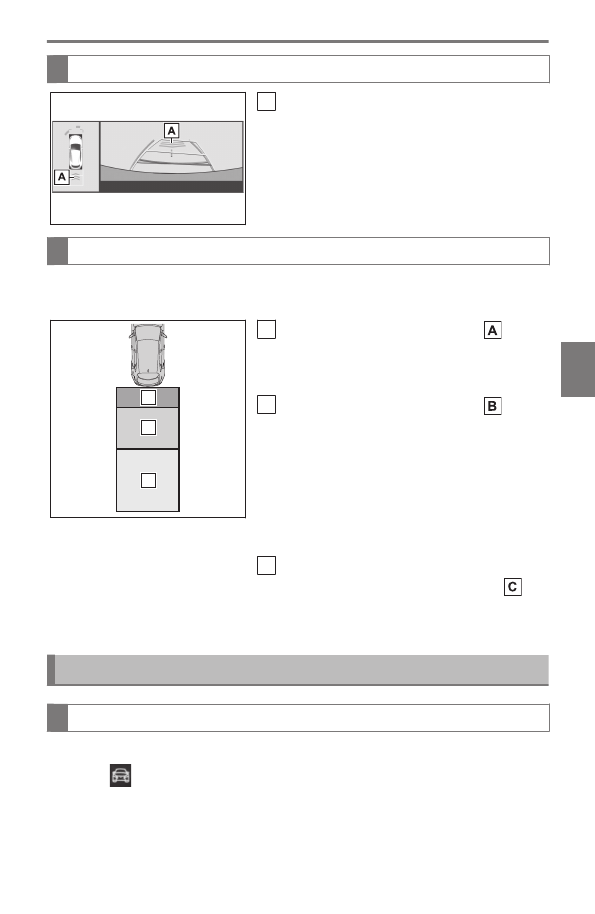

Center Display

Pedestrian detection icon
Displayed automatically when a pedestrian
is detected.
(Each time the power switch is turned off
then changed to ON, the RCD function will
be enabled automatically.)

When a pedestrian is detected

If the rear camera detection function detects a pedestrian in the detection area, the
buzzer and pedestrian detection will operate as follows:

If a pedestrian is detected in area
Buzzer: Sounds repeatedly
Pedestrian detection icon: Blinks

If a pedestrian is detected in area
Buzzer (When the vehicle is stationary):
Sounds 3 times
Buzzer (When the vehicle is backing up,
when a pedestrian approaches the rear of
the vehicle): Sounds repeatedly
Pedestrian detection icon: Blinks

If the system determines that your vehicle
may collide with a pedestrian in area
Buzzer: Sounds repeatedly
Pedestrian detection icon: Blinks

Changing the RCD settings

Turning the RCD function ON/OFF

The RCD function can be enabled/disabled on the center display as follows:

Select

Select [Driving assist].

Select [Rear camera detection].

6-2. Using the safe driving support functions

445

Driving suppor

t s

ystem

When the RCD function is disabled, the driving assist information indicator illumi-
nates on the multi-information display.

Changing the RCD buzzer volume

The buzzer volume can be adjusted on the center display.

Select

Select [Driving assist].

Select [Collision mitigation].

Select [Parking assist volume].

Temporarily muting the RCD buzzer

A mute button will be displayed on the center display when an object is detected.
To mute the buzzer, select

.To mute the buzzer, select

. The buzzers for

the intuitive parking assist sensor, RCTA and RCD function will be muted simulta-
neously.

INFORMATION

Mute will be canceled automatically in the following situations:

●

When the shift position is changed.

●

When the vehicle speed exceeds a certain speed.

●

When there is a malfunction in a sensor or the system is temporarily unavailable.

●

When the operating function is disabled manually.

●

When the power switch is turned off.

6-2. Using the safe driving support functions

446

Parking Support Brake

Purpose of the PKSB (Parking Support Brake) system

The PKSB (Parking Support Brake) system consists of the following functions that
operate when driving at a low speed or backing up, such as when parking. When
the system determines that the probability of a collision with a detected object is
high, a warning operates to urge the driver to take evasive action.

■

Parking assist function

The system can detect the following as detectable objects. (Detectable objects
differ depending on the function.)

●

Static Objects Front and Rear of the vehicle

●

Moving Vehicles Rear of the Vehicle

●

Pedestrians Rear of the Vehicle

●

Static Objects Around the vehicle (vehicles with Advanced Park)

PKSB (Parking Support Brake) system

WARNING

■

Cautions regarding the use of the system

Do not overly rely on the system, as doing so may lead to an accident. Always drive while
checking the safety of the surroundings of the vehicle.
Depending on the vehicle and road conditions, weather, etc., the system may not operate.
The detection capabilities of sensors and radars are limited. Always drive while checking
the safety of the surroundings of the vehicle.

●

The driver is solely responsible for safe driving. Always drive carefully, taking care to
observe your surroundings. The PKSB (Parking Support Brake) system is designed
to provide support to lessen the severity of collisions. However, it may not operate in
some situations.

●

The PKSB (Parking Support Brake) system is not designed to stop the vehicle com-
pletely. Additionally, even if the system has stopped the vehicle, it is necessary to
depress the brake pedal immediately as brake control will be canceled after approxi-
mately 2 seconds.

●

It is extremely dangerous to check the system operations by intentionally driving the
vehicle into the direction of a wall, etc. Never attempt such actions.

* :

If equipped

6-2. Using the safe driving support functions

447

Driving suppor

t s

ystem

WARNING

■

When to disable the PKSB (Parking Support Brake) system

In the following situations, disable the PKSB (Parking Support Brake) as the system may
operate even though there is no possibility of a collision.

●

When inspecting the vehicle using a chassis roller, chassis dynamo or free roller

●

When loading the vehicle onto a boat, truck or other transport vessel

●

If the suspension has been modified or tires of a size other than specified are installed

●

If the front of the vehicle is raised or lowered due to the carried load

●

When equipment that may obstruct a sensor is installed, such as a towing eyelet,
bumper protector (an additional trim strip, etc.), bicycle carrier, or snow plow

●

When using automatic car washing devices

●

If the vehicle cannot be driven in a stable manner, such as when the vehicle has been in
an accident or is malfunctioning

●

When the vehicle is driven in a sporty manner or off-road

●

When the tires are not properly inflated

●

When the tires are very worn

●

When a tire chains, compact spare tire or an emergency tire puncture repair kit is
used

●

When your vehicle is towing a trailer or during emergency towing

■

Precautions for the suspension

Do not modify the suspension of the vehicle. If the height or tilt of the vehicle is changed,
the sensors may not be able to detect detectable objects and the system may not operate
correctly, possibly leading to an accident.

■

System overview

If the PKSB (Parking Support Brake) determines that a collision with a detected
object or pedestrian is possible, the hybrid system output will be restricted to re-
strain any increase in the vehicle speed. (Hybrid system output restriction control:
See figure 2.) Additionally, if the accelerator pedal continues to be depressed, the
brakes will be applied automatically to reduce the vehicle speed. (Brake control:
See figure 3.)

●

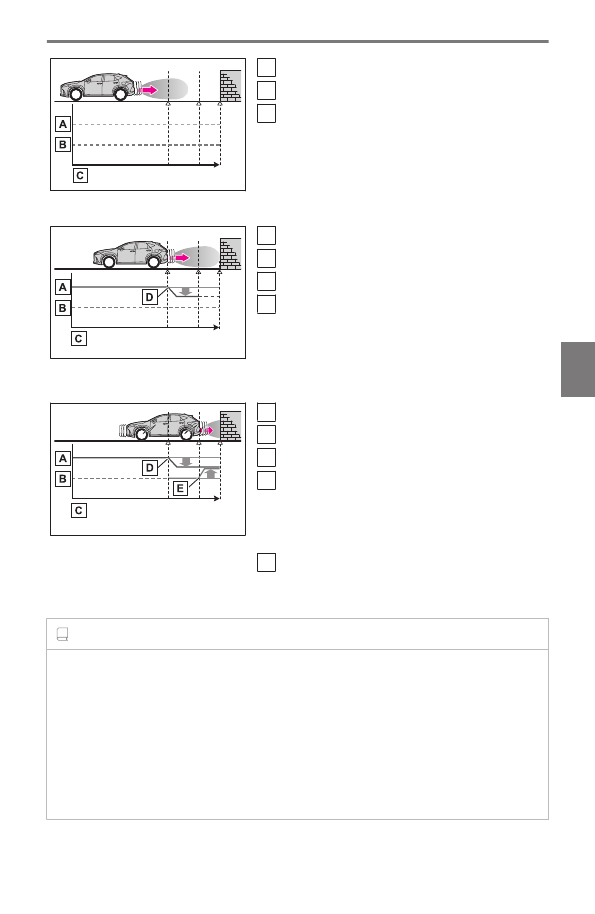

Figure 1 When the PKSB (Parking Support Brake) is not operating

6-2. Using the safe driving support functions

448

Hybrid system output

Braking force

Time

●

Figure 2 When hybrid system output restriction control operates

Hybrid system output

Braking force

Time

Hybrid system output restriction control
begins operating (System determines that
possibility of collision with detected object is
high)

●

Figure 3 When hybrid system restriction control and brake control operates

Hybrid system output

Braking force

Time

Hybrid system output restriction control
begins operating (System determines that
possibility of collision with detected object is
high)

Brake control begins operating (System de-
termines that possibility of collision with de-
tected object is extremely high)

INFORMATION

■

If the PKSB (Parking Support Brake) system has operated

If the vehicle is stopped due to operation of the PKSB (Parking Support Brake), the PKSB
(Parking Support Brake) will be disabled and the driving assist information indicator will
illuminate.
If the PKSB (Parking Support Brake) system operates unnecessarily, brake control can
be canceled by depressing the brake pedal or waiting approximately 2 seconds for
it to automatically be canceled. Then, the vehicle can be operated by depressing the
accelerator pedal.

6-2. Using the safe driving support functions

449

Driving suppor

t s

ystem

■

Re-enabling the PKSB (Parking Support Brake) system

To re-enable the PKSB (Parking Support Brake) the when it is disabled due to operation
of the PKSB (Parking Support Brake), either enable the system again, or turn the power
switch off and then back to ON.
Additionally, if any of the following conditions are met, the system will be re-enabled
automatically and the driving assist information indicator will turn off:

●

The P shift position is selected

●

The object is no longer detected in the traveling direction of the vehicle

●

The traveling direction of the vehicle changes

Turning the PKSB (Parking Support Brake) system ON/OFF

The PKSB (Parking Support Brake) system can be changed between ON (ena-
bled) and OFF (disabled) on the center display.

Select

Select [Driving assist].

Select [Parking support brake] to change ON (enable)/OFF (disabled).

When the PKSB (Parking Support Brake) is disabled, the driving assist information
indicator illuminates.
When turned OFF (disabled), the PKSB (Parking Support Brake) will be disabled
and will not be enabled until the setting is changed to ON again in center display.
(The function will not be re-enabled by operating the power switch.)

PKSB (Parking Support Brake) function displays and buzzers

When the hybrid system output restriction control or brake control operates,
a buzzer sounds and a message is displayed on the multi-information display,
head-up display

and center display to alert the driver.

Depending on the situation, output restriction control operates to either limit
acceleration or restrict output as much as possible.

■

Hybrid system output restriction control is operating (acceleration restric-
tion)

●

Acceleration greater than a certain amount is restricted by the system.

●

Multi-information display:"Object Detected Acceleration Reduced"

●

Head-up display

:"Object Detected Acceleration Reduced"

*1 :

Except when the Pedestrians Rear of the Vehicle operated.

* :

If equipped

6-2. Using the safe driving support functions

450

●

Center display: No warning displayed

●

Driving assist information indicator: Not illuminated

●

Buzzer: Does not sound

■

Hybrid system output restriction control is operating (output restricted as
much as possible)

●

The system has determined that stronger-than-normal brake operation is neces-
sary.

●

Multi-information display and head-up display

: "BRAKE!"

●

Center display: "BRAKE!"

●

Driving assist information indicator: Not illuminated

●

Buzzer: Short beep

■

Brake control is operating

●

The system determined that emergency braking is necessary.

●

Multi-information display and head-up display

: "BRAKE!"

●

Center display: "BRAKE!"

●

Driving assist information indicator: Not illuminated

●

Buzzer: Short beep

■

Vehicle stopped by system operation

●

The vehicle has been stopped by brake control operation.

●

Multi-information display: "Accelerator Pedal is Pressed Press Brake Pedal" (If
the accelerator pedal is not depressed, "Press Brake Pedal" will be displayed.)

●

Head-up display

: "Accelerator Pedal is Pressed Press Brake Pedal" (If the

accelerator pedal is not depressed, "Press Brake Pedal" will be displayed.)

●

Center display: "Press Brake Pedal"

●

Driving assist information indicator: Illuminated

●

Buzzer: Sounds repeatedly

Static Objects Front and Rear of the vehicle

If the sensors detect a static object, such as a wall, in the travelling direction of the
vehicle and the system determines that a collision may occur due to the vehicle
suddenly moving forward due to an accidental accelerator pedal operation, the
vehicle moving the unintended direction due to the wrong shift position, or while

* :

If equipped

6-2. Using the safe driving support functions

451

Driving suppor

t s

ystem

parking or traveling at low speeds, the system will operate to lessen the impact with
the detected static object and reduce the resulting damage.

INFORMATION

■

The system will operate when

The function will operate when the driving assist information indicator is not illuminated
or flashing and all of the following conditions are met:

●

Hybrid system output restriction control

•

PKSB (Parking Support Brake) system is enabled.

•

The vehicle speed is approximately 9 mph (15 km/h) or less.

•

There is a static object in the traveling direction of the vehicle (approximately 6 to
13 ft. [2 to 4 m] ahead).

•

The Parking Support Brake determines that a stronger-than-normal brake opera-
tion is necessary to avoid a collision.

●

Brake control

•

Hybrid system output restriction control

•

The Parking Support Brake determines that an immediate brake operation is
necessary to avoid a collision.

■

The system will stop operating when

The function will stop operating if any of the following conditions are met:

●

Hybrid system output restriction control

•

PKSB (Parking Support Brake) system is disabled.

•

The system determines that the collision has become avoidable with normal brake
operation.

•

The static object is no longer in the traveling direction of the vehicle or approxi-
mately 6 to 13 ft. (2 to 4 m) away from the vehicle.

●

Brake control

•

PKSB (Parking Support Brake) system is disabled.

•

Approximately 2 seconds have elapsed since the vehicle was stopped by brake
control.

•

The brake pedal is depressed after the vehicle is stopped by brake control.

•

The static object is no longer in the traveling direction of the vehicle or approxi-
mately 6 to 13 ft. (2 to 4 m) away from the vehicle.

■

Detection range

The detection range of the system differs from the detection range of the intuitive parking
assist.

6-2. Using the safe driving support functions

452

Therefore, even if the intuitive parking assist detects a static object and provides a
warning, the PKSB (Parking Support Brake) system may not start operating.

■

Intuitive parking assist sensor buzzer

Regardless of whether the intuitive parking assist sensor buzzer is enabled or not, if the
PKSB (Parking Support Brake) system is enabled, the front or rear sensors detect an
object and brake control is performed, the intuitive parking assist buzzer will sound to
notify the driver of the approximate distance to the object.

■

Situations in which the system may not operate properly

P.423

■

Situations in which the system may operate even if there is no possibility of a
collision

WARNING

■

If the PKSB (Parking Support Brake) system operates unnecessarily, such as at a
railroad crossing

P.447

Static Objects Front and Rear of the vehicle sensors

WARNING

■

To ensure the system can operate properly

■

Notes when washing the vehicle

Static Objects Front and Rear of the vehicle operation examples

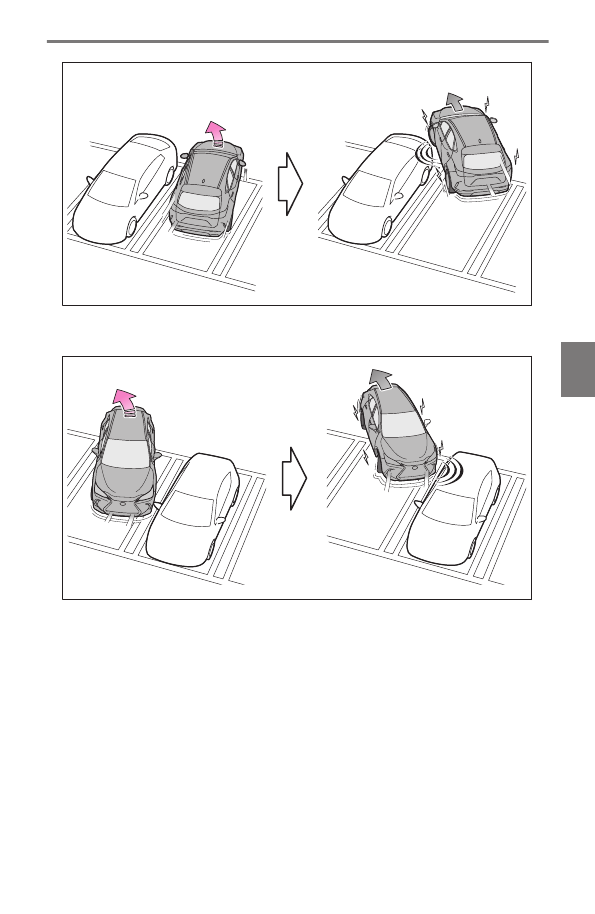

The system operates in the following situations when a static object is detected in
the traveling direction of the vehicle.

6-2. Using the safe driving support functions

453

Driving suppor

t s

ystem

●

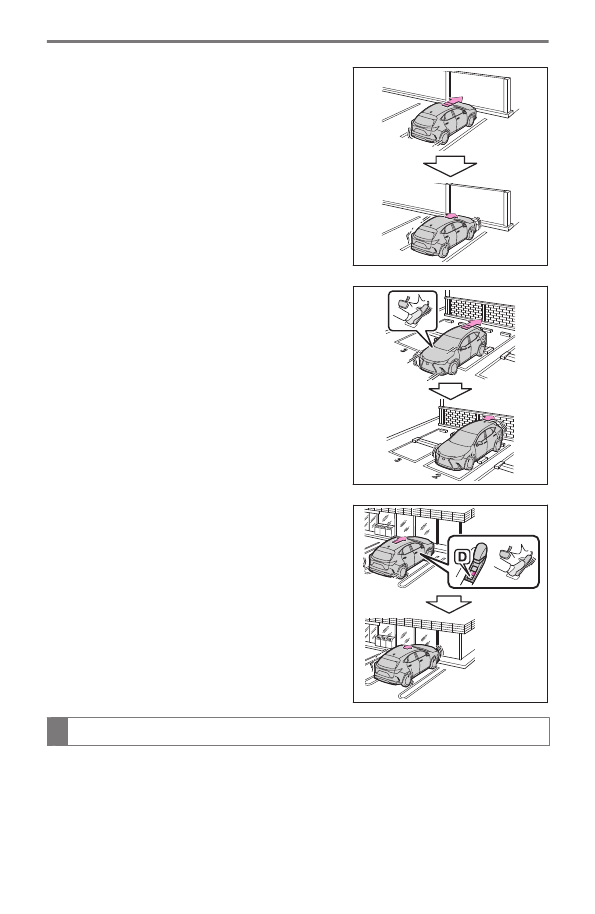

When the vehicle is traveling at a low speed
and the brake pedal is not depressed, or is de-
pressed late

●

When the accelerator pedal is depressed ex-
cessively

●

When the moves forward due to the incorrect
shift position being selected

Moving Vehicles Rear of the Vehicle

If a rear radar sensor detects a vehicle approaching from the right or left at the rear
of the vehicle and the system determines that the possibility of a collision is high,
this function will perform brake control to reduce the likelihood of an impact with
the approaching vehicle.

* :

If equipped

6-2. Using the safe driving support functions

454

INFORMATION

■

The system will operate when

The function will operate when the driving assist information indicator is not illuminated
or flashing and all of the following conditions are met:

●

Hybrid system output restriction control

•

PKSB (Parking Support Brake) system is enabled.

•

The vehicle speed is 9 mph (15 km/h) or less.

•

Vehicles are approaching from the right or left at the rear of the vehicle at a
traveling speed of approximately 5 mph (8 km/h) or more.

•

The shift position is in R.

•

The PKSB (Parking Support Brake) determines that a stronger than normal brake
operation is necessary to avoid a collision with an approaching vehicle.

●

Brake control

•

Hybrid system output restriction control is operating.

•

The PKSB (Parking Support Brake) determines that an emergency brake operation
is necessary to avoid a collision with an approaching vehicle.

■

The system will stop operating when

The function will stop operating if any of the following conditions are met:

●

Hybrid system output restriction control

•

PKSB (Parking Support Brake) system is disabled.

•

The collision becomes avoidable with normal brake operation.

•

A vehicle is no longer approaching from the right or left at the rear of the vehicle.

●

Brake control

•

PKSB (Parking Support Brake) system is disabled.

•

Approximately 2 seconds have elapsed since the vehicle was stopped by brake
control.

•

The brake pedal is depressed after the vehicle is stopped by brake control.

•

A vehicle is no longer approaching from the right or left at the rear of the vehicle.

■

Detection range

The detection range of the system differs from the detection area of the RCTA function.
(

P.440

) Therefore, even if the RCTA function detects a vehicle and provides an alert,

the PKSB (Parking Support Brake) system may not start operating.

6-2. Using the safe driving support functions

455

Driving suppor

t s

ystem

■

RCTA buzzer

Regardless of whether the RCTA function is on or off, if the PKSB (Parking Support
Brake) system is not disabled, when the brake control operates, the buzzer will sound to
alert the driver.

■

Situations in which the system may not operate properly

P.434

■

Situations in which the system may operate even if there is no possibility of a
collision

P.434

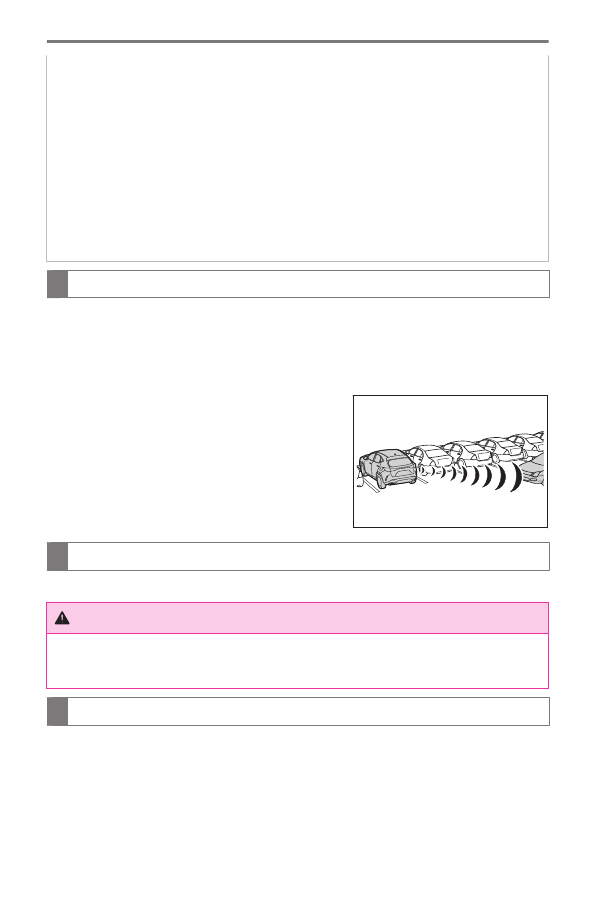

Examples of the Moving Vehicles Rear of the Vehicle operation

This function will operate in situations such as the following if a vehicle is detected
in the traveling direction of the vehicle.

■

When reversing, a vehicle is approaching and the brake pedal is not de-
pressed, or is depressed late

Moving Vehicles Rear of the Vehicle sensors

P.410

WARNING

■

To ensure the system can operate properly

P.410

Pedestrians Rear of the Vehicle

If the rear camera sensor detects a pedestrian behind the vehicle while backing
up and the system determines that the possibility of colliding with the detected
pedestrian is high, a buzzer will sound. If the system determines that the possibility
of colliding with the detected pedestrian is extremely high, the brakes will be
applied automatically to help reduce the impact of the collision.

* :

If equipped

6-2. Using the safe driving support functions

456

INFORMATION

■

The system will operate when

●

The function will operate when the driving assist information indicator is not illuminat-
ed or flashing and all of the following conditions are met:

•

Hybrid system output restriction control

•

PKSB (Parking Support Brake) system is enabled.

•

The vehicle speed is approximately 9 mph (15 km/h) or less.

•

The shift position is in R.

•

The rear camera sensor detects a pedestrian behind the vehicle while backing
up and the system determines that the possibility of colliding with the detected
pedestrian is high.

•

The PKSB (Parking Support Brake) determines that a stronger-than-normal brake
operation is necessary to avoid a collision.

●

Brake control

•

Hybrid system output restriction control is operating.

•

The PKSB (Parking Support Brake) determines that an emergency brake operation
is necessary to avoid a collision with a pedestrians.

■

The system will stop operating when

The function will stop operating if any of the following conditions are met:

●

Hybrid system output restriction control

•

PKSB (Parking Support Brake) system is disabled.

•

The collision becomes avoidable with normal brake operation.

•

The pedestrian is no longer detected behind your vehicle.

●

Brake control

•

PKSB (Parking Support Brake) system is disabled.

•

Approximately 2 seconds have elapsed since the vehicle was stopped by brake
control.

•

The brake pedal is depressed after the vehicle is stopped by brake control.

●

The pedestrian is no longer detected behind your vehicle.

■

Detection range

The detection range of the system differs from the detection area of the RCTA function.
(

P.445

) Therefore, even if the RCTA function detects a vehicle and provides an alert,

the PKSB (Parking Support Brake) system may not start operating.

■

Situations in which the system may not operate properly

P.442

6-2. Using the safe driving support functions

457

Driving suppor

t s

ystem

■

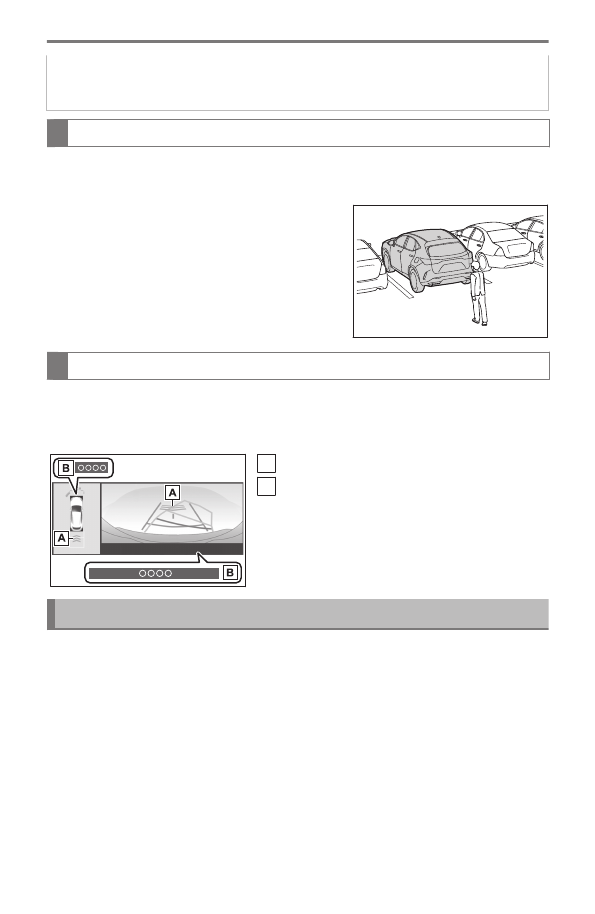

Situations in which the system may operate unexpectedly

P.442

When a vehicle is detected behind the vehicle

When a pedestrian is detected behind the vehicle while backing up, the brake
pedal is not depressed or is depressed late.

Pedestrians Rear of the Vehicle display

Displays a message to urge the driver to take evasive action when a pedestrian
is detected in the detection area behind the vehicle. (A message will also be
displayed on the center display.)

Pedestrian detection icon

Brake reminder

Static Objects Around the vehicle (Vehicles with Advanced Park)

While parking, if a sensor detects a surrounding stationary object, such as a wall,
with which a collision is likely, the system will operate to help avoid a collision or
reduce the impact of the collision.
The system will operate in the following situations when a stationary object is
detected in the surrounding area.

●

When moving forward and a collision with a stationary object on the inner side
of a turn is likely

* :

If equipped

6-2. Using the safe driving support functions

458

●

When reversing and a collision with a stationary object on the outer side of a
turn is likely

■

Operating conditions

This function is operable when any of the following conditions are met in addition to
the operating conditions for stationary objects in around the vehicle.

●

After the hybrid system has been started, the vehicle has moved approximately
23.0 ft. (7 m) or less

●

The R shift position is selected

●

After the shift position has been changed from R to D, the vehicle has moved
approximately 23.0 ft. (7 m) or less

■

The system will stop operating when

P.451

6-2. Using the safe driving support functions

459

Driving suppor

t s

ystem

■

Sensor detection information

The detection range of the system differs from the detection range of the intuitive
parking assist.
Therefore, even if the intuitive parking assist detects a static object and provides a
warning, the PKSB (Parking Support Brake) system may not start operating.

■

Objects which the sensor may not be properly detected

■

Intuitive parking assist sensor buzzer

Regardless of whether the intuitive parking assist sensor buzzer is enabled or not
(

), if the PKSB (Parking Support Brake) system is enabled (

P.450

), the

front or rear sensors detect an object and brake control is performed, the intuitive
parking assist buzzer buzzer will sound to notify the driver of the approximate
distance to the object.

■

Situations in which the system may not operate properly

P.423

■

Situations in which the system may operate even though there is no possibility
of a collision

●

In addition to the situations in which stationary objects around the vehicle
(

P.451

) may not be detected, objects may not be detected by the sensors in

the following situations:

●

When moving sideways, such as when parallel parking

■

Detection of objects along the sides of the vehicle

●

Objects along the sides of the vehicle are not instantaneously detected. The
location of objects in relation to the vehicle is estimated after they are first
detected by the front or rear side sensors, or side cameras. Therefore, after the
power switch is changed to ON, even if an object is along the side of the vehicle,
it may not be detected until the vehicle has been driven a small amount and the
side sensors or side cameras completely scan the areas along the sides of the
vehicle.

●

If a vehicle, person, animal, etc., is detected by a side sensors or side cameras,
but then leaves the detection area of the side sensors or side cameras, the
system will assume the object has not moved.

6-2. Using the safe driving support functions

460

Lexus Teammate Advanced Park

Function description

The Advanced Park is a system which assists in a safe and smooth parking or
exiting from a parking space by displaying the blind spots around the vehicle and
the target parking spot through a bird’s eye view, delivering operation guidance
through displays and buzzer operation, and changing the shift position, operating
the steering wheel, accelerator pedal, and brake pedal.Additionally, the panoramic
view monitor

can display the area in front, behind, and from above the vehicle,

helping confirm the condition of the area around the vehicle.The turn signal lights
will blink automatically when the parking assistance starts until the vehicle reaches
the target parking spot, to notify people around the vehicle that parking is being
performed.Depending on the condition of the road surface or the vehicle, the
distance between the vehicle and a parking space, etc., it may not be possible to
assist in parking in the target space.

■

Remote control function

Remote control function is a system which assists in parking or exiting from a park-
ing space selected on the center display by allowing changing the shift position,
operating the steering wheel, accelerator pedal, and brake pedal from outside of
the vehicle via a smartphone.The turn signal lights will blink automatically when
the parking assistance, except that for moving the vehicle forward and backward,
starts until the vehicle reaches the target parking spot, to notify people around the
vehicle that parking is being performed.Preparation before using:

P.497

Functions

■

Perpendicular parking (forward/reverse) function

Assistance is provided from the position the vehicle is stopped near the target
parking space until the vehicle is in the parking space.

P.475

■

Perpendicular exiting (forward/reverse) function

Assistance is provided from the parked position until the vehicle is in a position
where you can easily exit from the parking space.

P.478

■

Parallel parking function

Assistance is provided from the position the vehicle is stopped near the target
parking space until the vehicle is in the parking space.

P.480

* :

If equipped

*1 :

For details on the panoramic view monitor refer to "MULTIMEDIA OWNER'S MAN-

UAL".

6-2. Using the safe driving support functions

461

Driving suppor

t s

ystem

■

Parallel exiting function

Assistance is provided from the parked position until the vehicle is in a position
where you can easily exit from the parking space.

P.484

■

Memory function

Assistance is provided until the vehicle is guided into a previously registered
parking space.

P.487

■

Remote control function

By operating a smartphone, assistance in entering or exiting a nearby target
parking space, confirmed on the screen of the smartphone, is provided from
outside of the vehicle.

P.493

WARNING

■

Cautions regarding the use of the system

The recognition and control capabilities for this system are limited. The driver should
always drive safety by always being responsible without over relying on the system and
have a understanding of the surrounding situations.

●

As with a normal vehicle, take care to observe your surroundings while the vehicle is
moving.

●

Always pay attention to the vehicle’s surroundings while the system is operating and
depress the brake pedal as necessary to slow or stop the vehicle.

●

When parking, make sure that the vehicle can be parked in the target parking space
before beginning operation.

●

Depending on the condition of the road surface or the vehicle, the distance between
the vehicle and a parking space, etc., it may not be possible to detect a parking space
or the system may not be able to provide assistance to the point the vehicle is fully
parked.

●

This system will guide the vehicle to appropriate positions for changing the direction
of travel, however, if you feel that the vehicle is approaching too close to an adjacent
parked vehicle at any time, depress the brake pedal and change the shift position.
However, if this is performed, the number of times the vehicle changes direction may
increase, and the vehicle may be parked at an angle.

●

As following objects may not be detected, make sure to check the safety of the area
around your vehicle and depress the brake pedal to stop the vehicle if it may collide
with an object.

•

Wires, fences, ropes, etc.

•

Cotton, snow and other materials that absorb sound waves

•

Sharply-angled objects

* :

If equipped

6-2. Using the safe driving support functions

462

WARNING

•

Low objects (curb stones, parking blocks, etc.)

•

Tall objects with upper sections projecting outwards in the direction of your vehicle

●

Even if there is an object in the target parking space, it may not be detected and
assistance may be performed.

●

While the system is operating, if it is likely that your vehicle will collide with a nearby
vehicle, parking block, object, or person, depress the brake pedal to stop the vehicle
and press the Advanced Park main switch to disable the system.

●

Never use only the center display to view the area behind the vehicle. The image
displayed may differ than the actual situation. Using only the screen when backing up
may lead to an accident, such as a collision with another vehicle. When backing up,
make sure to look directly or use the mirrors to check the safety of the area around
your vehicle, especially behind the vehicle.

●

When the ambient temperature is extremely low, the screen may appear dark or the
displayed image may become unclear. Also, as moving objects may appear distorted
or may not be able to be seen on the screen, make sure to directly check the safety of
the area around your vehicle.

●

In the following situations, while the vehicle is stopped and held by Advanced Park,
it may be canceled and the vehicle may start moving. Immediately depress the brake
pedal. Failure to do so may lead to an accident.

•

When the driver’s door is opened

•

When operations instructed by the system are not performed within a certain
amount of time

•

When the brake pedal is depressed and the vehicle is stopped for a certain amount
of time

•

When the system malfunctions

●

As the steering wheel will turn while this system is operating, pay attention to the
following.

•

Be careful so that a necktie, scarf, or arm does not get caught. Keep your upper
body away from the steering wheel. Also, keep children away from the steering
wheel.

•

Long fingernails may be caught and when the steering wheel is rotating, leading to
injury.

•

In an emergency, depress the brake pedal to stop the vehicle, and then press the
Advanced Park main switch to disable the system.

●

Do not allow anyone to put their hands outside of a window while this system is
operating.

6-2. Using the safe driving support functions

463

Driving suppor

t s

ystem

WARNING

■

To ensure correct operation of the Advanced Park

Observe the following precautions. Failing to do so may result in the vehicle being unable
to be driven safely and possibly cause an accident.

●

Do not use this system in situations such as the following:

•

When in areas other than common parking spaces

•

When the surface of the parking space is sand or gravel and is not clearly defined
with parking space lines

•

When the parking space is not level, such as when on a slope or has differences in
height

•

Mechanical parking system

•

Parking lot with a device which raises to contact the bottom of the vehicle

•

When the road surface is frozen, slick, or covered with snow

•

When it is extremely hot and the asphalt is melting

•

When there are objects around the vehicle

•

When there is an object between your vehicle and the target parking spot or within
the target parking spot (within the displayed blue box)

•

When there is a gutter between your vehicle and the target parking space or within
the target parking spot (within the displayed blue box)

•

When there is a hole or gutter in the exit direction

•

When in high pedestrian or vehicle traffic areas

•

When the parking space is in a location that is difficult to park in (too narrow for
your vehicle, etc.)

•

When images are unclear due to dirt or snow attached to the camera lens, light
being shined into the camera or shadows

•

When tire chains or a compact spare tire is installed to the vehicle

•

When the doors or back door are not completely closed

•

When an arm is held outside of a window

•

In inclement weather such as heavy rain or snow

●

Make sure to use only standard sized tires, such as those that were installed to the
vehicle when it was shipped from the factory. Otherwise, Advanced Park may not
operate properly. Also, when the tires have been replaced, the displayed position of
the lines or box displayed on the screen may become incorrect. When replacing the
tires, contact your Lexus Dealer.

●

In situations such as the following, it may not be possible for the system to provide
assistance to a registered parking spot:

6-2. Using the safe driving support functions

464

WARNING

•

When the tires are extremely worn or the tire inflation pressure is low

•

When carrying a heavy load

•

When the vehicle is tilted due to the carried load

•

When a heater is installed in the surface of the parking space (road surface freeze
prevention heater)

•

When the wheels are misaligned, such after a wheel has been subjected to a strong
impact

•

When a pedestrian or passing vehicle is detected during assistance

•

When something is incorrectly detected as a parking line (light, reflections from a
building, difference in height on the parking surface, a gutter, painted road lines,
redrawn lines, etc.)

If the vehicle deviates greatly from the set parking space in any situation other than the
above, have the vehicle inspected by your Lexus dealer.

■

When using Remote control function

●

Remote control function is a function of the Advanced Park system. When using
Remote control function on public roads, be sure to follow all local road traffic laws
and regulations.

●

Remote control function can only be used after agreeing to the disclaimer of the
smartphone application.

●

Remote control function can only perform some driving operations. It should only
be operated by a driver with a valid driving license. While using application, carry,
electronic key. While operating, do not stare at the application screen, and pay
attention to the vehicle’s surroundings. In an emergency, cancel the Remote control
function operation and stop the vehicle.

●

As with a normal vehicle, take care to observe the area around the vehicle while the
vehicle is moving.

●

Always pay attention to the vehicle’s surroundings while the system is operating.

●

Remote control function is a system which assists in remote parking or exiting opera-
tions using a smartphone. When using Remote control function, the driver must carry
the electronic key and smartphone and confirm the safety of the area around the
vehicle.

●

While using Remote control function, the vehicle can be stopped by stop continuously
operating the smartphone (stopping movement of your finger, removing your finger
from the screen, etc.). The vehicle can also be stopped by touching the cancel button
on the smartphone application, unlocking the doors using the electronic key, or
opening a door.

6-2. Using the safe driving support functions

465

Driving suppor

t s

ystem

WARNING

●

If it seems like your vehicle may contact an obstruction, etc., stop operating the
smartphone and cancel Remote control function if necessary.

●

System operation will only be performed at a fixed speed and the vehicle cannot
be accelerated or decelerated even if the speed of continuous operation of the
smartphone is increased or decreased.

●

Never drive the vehicle while staring at the smartphone screen.

●

When driving, make sure to directly check the safety of the area around your vehicle.

●

Do not use Remote control function when passengers or pets are in the vehicle.

●

In an emergency, the system can be canceled by operating a switch on the electronic
key or by opening a door.

●

To use Remote control function, it is necessary to have a smartphone with the latest
version of the Remote Park app. The following operating systems are supported:

•

Android

™

•

Apple

iOS

●

When registering the vehicle to the Remote Park smartphone app, disconnect any
other apps which are connected to the vehicle.

●

To enable Remote control function, make sure to disable the Apple CarPlay connec-
tion.

●

When parking, make sure that the vehicle can be parked in the target parking space
before beginning operation.

●

Only use Remote control function on level road surfaces which are not slick. Do not
use Remote control function for parking spaces on a downward or upward slope.

●

While Remote control function is operating, if a malfunction or system limitation is
detected, the following will occur automatically:

•

Remote control function will be canceled

•

The vehicle will stop

•

The shift position will change to P and the parking brake will be engaged

•

The power switch will turn off (for some malfunctions, the power switch will not turn
off or cannot be turned off. Enter the vehicle and take corrective action according
to the message displayed on the smartphone.)

•

The doors will remain locked

●

When starting Remote control function, unlock the doors with wireless remote control
by electronic key.

6-2. Using the safe driving support functions

466

WARNING

●

When Remote control function is operating, the driver should remain within approxi-
mately 9.8 ft. (3 m) of the vehicle. If the driver becomes more than approximately 9.8
ft. (3 m) away, Remote control function will
be suspended and a message will be displayed on the smartphone. Remote control
function operation can be resumed by approaching the vehicle.

●

The headlights will be turned on if the surrounding area is dark.

●

If system operation is canceled due to a malfunction, the emergency flashers will flash.
The emergency flashers will turn off if any of the following conditions are met:

•

A door is opened

•

3 minutes have elapsed since the emergency flashers began flashing

●

Remote control function can only be started when the following conditions are met:

•

When the hybrid system is starting, after assist mode is selected

•

When the power switch is off

•

When the remote air conditioning is operating

●

After unlocking the doors using the wireless remote control, if the doors are locked
using the smart entry function, the lock operation may be delayed.

NOTICE

■

Precautions for use Advanced Park

If the 12-volt battery was discharged or has been removed and installed, fold and extend
the outside rear view mirrors.

■

When using Remote control function

●

Check the battery charge level of the smartphone before using Remote control func-
tion. If the battery of the smartphone dies while operating Remote control function,
assist will be suspended. Also, if the battery charge level of the smartphone is 20%
or less when attempting to start Remote control function, Remote control function will
not be started.

●

Turn on the Bluetooth communication function of the smartphone before using
Remote control function. Remote control function cannot be used if the Bluetooth
function is off.

●

Do not turn off the Bluetooth function of the smartphone or disconnect from the
multi-media system while using Remote control function. If the vehicle cannot be
connected to via Bluetooth, Remote control function cannot be used.

●

While using Remote control function, if a call is received, etc., and another app is
opened, Remote control function will be suspended. Assist can be resumed if the

6-2. Using the safe driving support functions

467

Driving suppor

t s

ystem

NOTICE

Remote Park app is reopened within 3 minutes. If 3 minutes or more elapse, assist will
be canceled.

●

While using Remote control function, if the home button or power button of the
smartphone is pressed and the screen is locked, Remote control function will be
suspended. Assist can be resumed if the Remote Park app is reopened within 3
minutes. If 3 minutes or more elapse, assist will be canceled.

●

Do not force close the Remote Park app while Remote Park is being used. If the app is
force closed, assist will be canceled.

●

When the ambient temperature is low, it may take time for the system to start, due to
12-volt battery charging.

●

If the 12-volt battery voltage drops, assistance will be canceled.

●

When using Remote control function on a slope, the vehicle speed will be slower and
the distance that the vehicle will approach objects will become longer than when on a
level road surface.

●

If a system temporary failure occurs, after the vehicle is stopped by the electronic
parking brake or the shift position being changed to P, the power switch may turn off
and the system may be canceled. In this case, have the vehicle inspected by your Lexus
dealer.

●

If a system malfunction occurs, assistance may be temporarily suspended. If the system
returns to normal, operation can be resumed. Follow the content on the smartphone
screen to resume operation.

●

Remote control function cannot be started if the hybrid system has been started using
an aftermarket remote starter.

●

After Remote control function completes, the parking brake will be engaged as per
regulations. As the parking brake may freeze and not be able to be released, avoid
using Remote control function in extremely cold areas. Also, if the parking brake
freezes, it may make a noise when it is released. However, this does not indicate a
malfunction.

●

Do not use Remote control function when the electronic key battery is depleted.

6-2. Using the safe driving support functions

468

Types of cameras and sensors used for the Advanced Park

Cameras and sensors are used to detect parked
vehicles, making it easier to identify parking
spaces.

INFORMATION

■

Camera images

As special cameras are used, the colors in displayed images may differ from the actual
color.

■

Precautions for use

For details on the following, refer to "Panoramic view monitor (Vehicles equipped with
Lexus Teammate Advanced Park)" of "Peripheral monitoring system" in the "MULTIME-
DIA OWNER'S MANUAL".

●

Displayable range of the screens

●

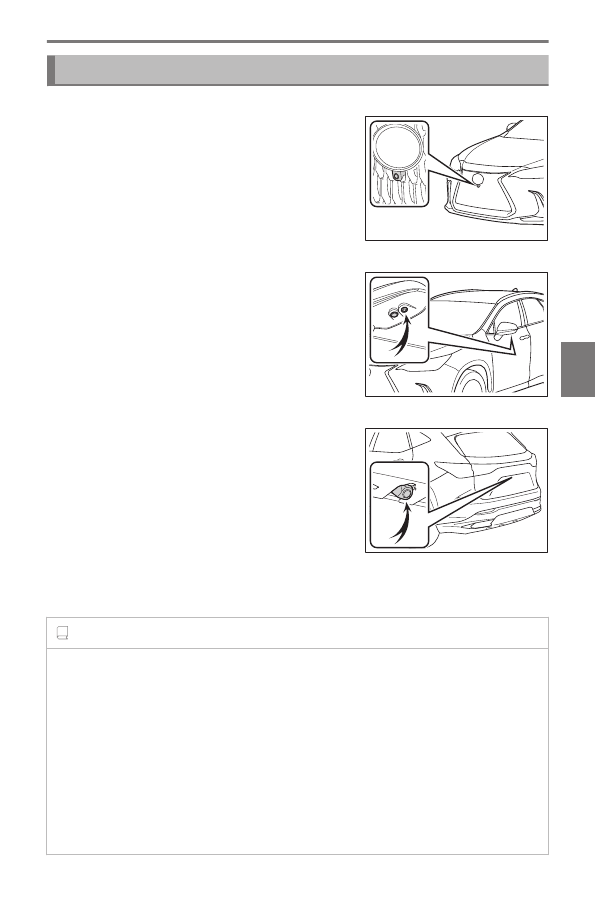

Cameras

▶

Front camera

▶

Side cameras

▶

Rear camera

▶

Sensors
