About connected portable devices

●

Portable devices compatible with the Qi wireless charging standard can be charged
by the wireless charger. However, compatibility with all devices which meet the Qi
wireless charging standard is not guaranteed.

●

The wireless charger is designed to supply low power electricity (5 W or less) to a
cellular phone, smartphone, or other portable device.

●

Failure to do so may result in the possibility of fire,However, portable devices, such as
the following, can be charged with more than 5 W.

•

7.5 W charging compatible iPhones can be charged at 7.5 W or less.

•

Portable devices which conform to WPC Ver 1.2.4 (Extended Power profile) can be
charged at 10 W or less.

■

Using the smart access system with push-button start

Charging will be suspended for the smart access system with push-button start to detect
the electronic key during charging such as when the electronic key has been brought
outside the vehicle. When the electronic key is detected, charging will automatically start
again.

■

If a cover or accessory is attached to the portable device

Do not charge a portable device if a cover or accessory which is not Qi compatible is
attached.
Even if a device is “Qi” compatible, charging may not be possible if a cover or accessories
are attached. (

→

P.281

）

■

Charging precautions

While charging, the wireless charger and the portable device will become warm. This is
not a malfunction.
If a portable device becomes warm while charging and charging stops due to the
protection function of the portable device, wait until the portable device cools down and
charge it again.
Also, to decrease the temperature inside the wireless charger, a fan may operate. This
does not indicate a malfunction.

■

Sound generated during operation

Operation sounds may be heard when the power switch is pressed to change to ACC or
ON, or when a portable device is being detected. This does not indicate a malfunction.

■

“Qi” symbol

The “Qi” logo is a trademark of the Wireless Power Consortium.

4-5. Using the interior features

279

Interior feat

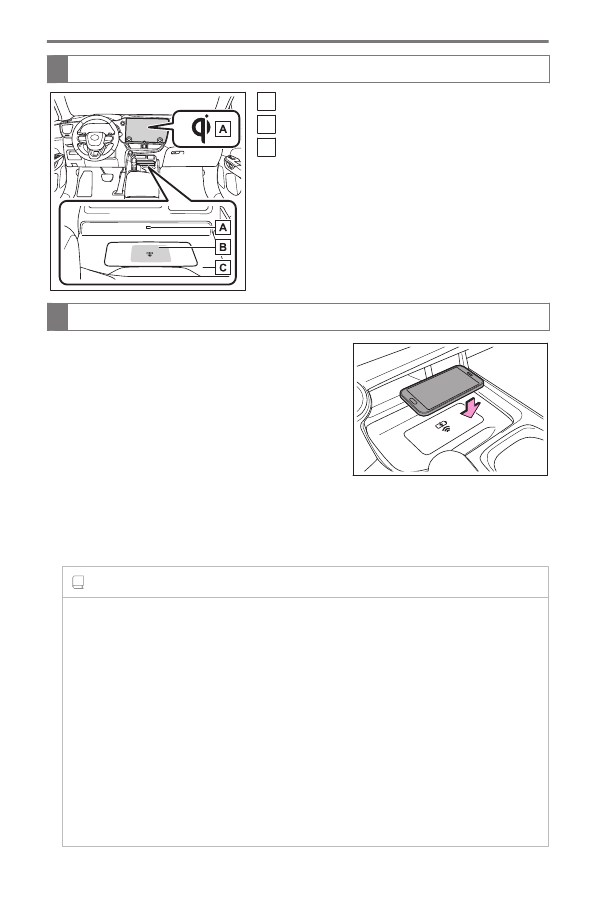

Names of the parts of the wireless charger

Operation indicator light

Charging area

Charging tray

Use the wireless charger

●

Place a portable device on the charging tray.

Depending on the portable device, its charging coil
may not be in the center of the device. In this case,
place the portable device so that its charging coil is
centered in the charging area.
While charging, the operation indicator light on the
charging tray (orange) will be illuminated.
If charging does not begin, move the portable de-
vice as close to the center of the charging area as possible.
When charging is complete, the operation indicator light on the charging tray (green)
will illuminate.

INFORMATION

■

AM radio broadcast linked function during charging

●

During charging, if noise occurs when listening to the AM radio, the charging
frequency is automatically changed to reduce the noise.

●

When automatically seeking AM radio stations, charging will be suspended to
prevent charging noise from being detected as a radio station. Charging will
resume automatically when seek tuning is stopped.

■

Recharging function

●

If a certain amount of time has elapsed since charging completed and the portable
device has not been moved, the wireless charger will restart charging.

●

If a portable device is moved significantly within the charging area, the charging coil
may disconnect and charging may temporarily be stopped. However, if a charging

4-5. Using the interior features

280

coil is detected within the charging area, the charging coil inside the wireless
charger will move near the other coil and charging will resume.

■

Rapid charging function

Portable devices, such as the following, can be rapidly charged.

●

Rapid charging capable devices which conform to WPC Ver1.2.4 EPP (Extended
Power profile)

●

7.5 W charging capable iPhones (iPhone 8 and later)

■

Situations in which the wireless charger may not operate correctly

In the following situations, the wireless charger may not operate correctly:

●

When a portable device is fully charged

●

When a portable device is being charged by a wired connection.

●

When there is foreign matter between the charging area and portable device

●

When the temperature of a portable device becomes high while charging

●

When the temperature near the charging tray is 95 °F (35 °C) or more due to
being in direct sunlight, etc.

●

When a portable device is placed with its charging surface facing up

●

When a portable device is not centered on the charging area

●

When a portable device is larger than the charging tray

●

When a foldable portable device is placed outside of the charging area

●

When the vehicle is near a TV tower, electric power plant, fuel station, radio station,
large display, airport, or other facility that generates strong radio waves or electrical
noise

●

The electronic key is not inside the vehicle

●

When the any of the following objects are between or attached to a portable device
and cause a gap of 0.08 in. (2 mm) or more between the charging surface of a
portable device and the charging area:

•

Thick cases or covers

•

Thick decorations

•

Cases or covers which the charging surface is not flat, but is grooved or changes
in thickness

•

Accessories, such as finger rings, straps, etc.

●

When the portable device is in contact with, or is covered by any of the following
metallic objects:

•

Cards covered with metal, such as aluminum foil

•

Cigarette boxes that have aluminum foil inside

4-5. Using the interior features

281

Interior feat

•

Metallic wallets or bags

•

Coins

•

Heat packs

•

Recorded media such as CDs and DVDs

•

Metallic decorations

•

Metallic cases or covers

●

When wireless keys (that emit radio waves) other than those of your vehicle are
being used nearby

●

When 2 or more portable devices are placed on the charging tray at the same time

In situations other than above, if the wireless charger does not operate properly
or the operation indicator light blinks continuously, the wireless charger may be
malfunctioning.
Contact your Lexus dealer.

Wireless charger operation indicator light status

The operation indicator light of the wireless charger indicates the operating state
of the wireless charger as follows:

Operation indicator light

State

Charging tray

Center dis-

play

Off

Disappear The Wireless charger is off

Green (illumi-

nated)

Gray

Standby (charging is possible)

(1)

Charging is complete

(2)

Orange (illu-

minated)

Blue

A portable device has been placed on the charging area
(identifying the portable device)

Charging

(1)

While in standby, charging power is not output. If a metal object is placed on the

charging tray in this state, the object will not heat up.

(2)

Depending on the portable device, the operation indicator light may stay illuminated

(orange) after charging has completed.

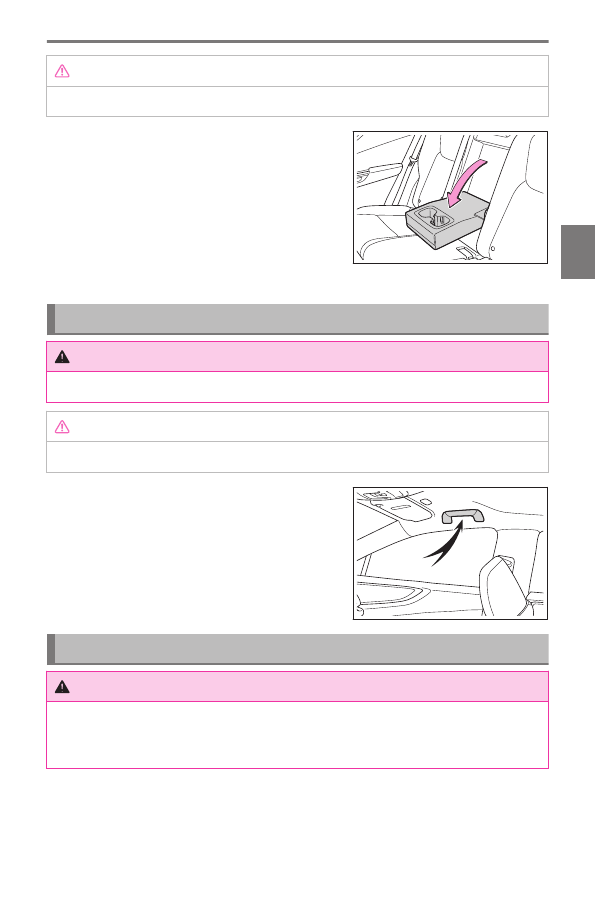

Using the armrest

4-5. Using the interior features

282

NOTICE

Do not apply excessive load to the armrest. Doing so may damage the armrest.

●

Fold down the armrest for use.

Assist grip functions and operation

WARNING

Do not use the assist grip when getting in or out of the vehicle or rising from your seat.

NOTICE

Do not hang any heavy object or put a heavy load on the assist grip.

An assist grip installed on the ceiling can be used
to support your body while sitting on the seat.

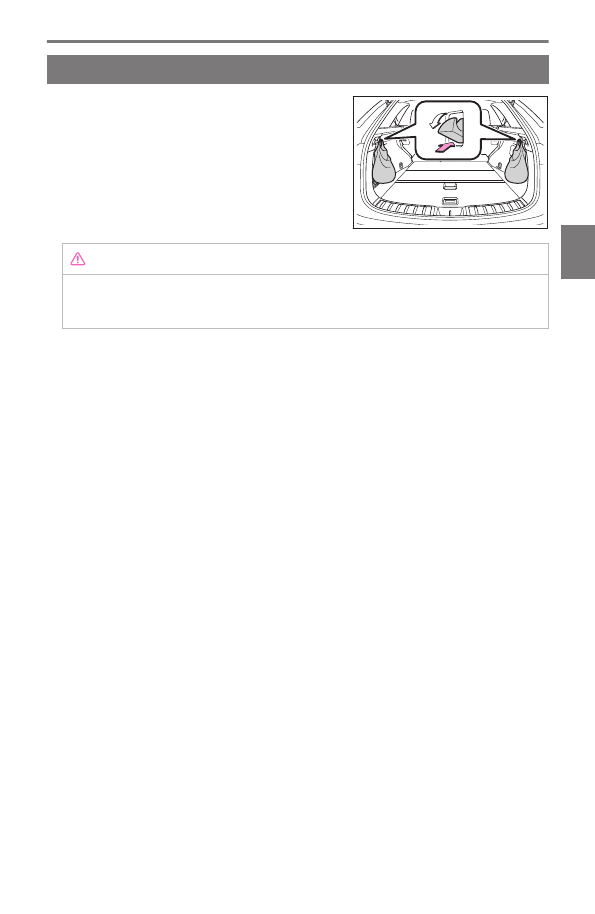

Locations of coat hooks

WARNING

Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS curtain
shield airbags deploy, these items may become projectiles, causing death or serious
injury.

4-5. Using the interior features

283

Interior feat

The coat hooks are provided with the rear assist
grips.

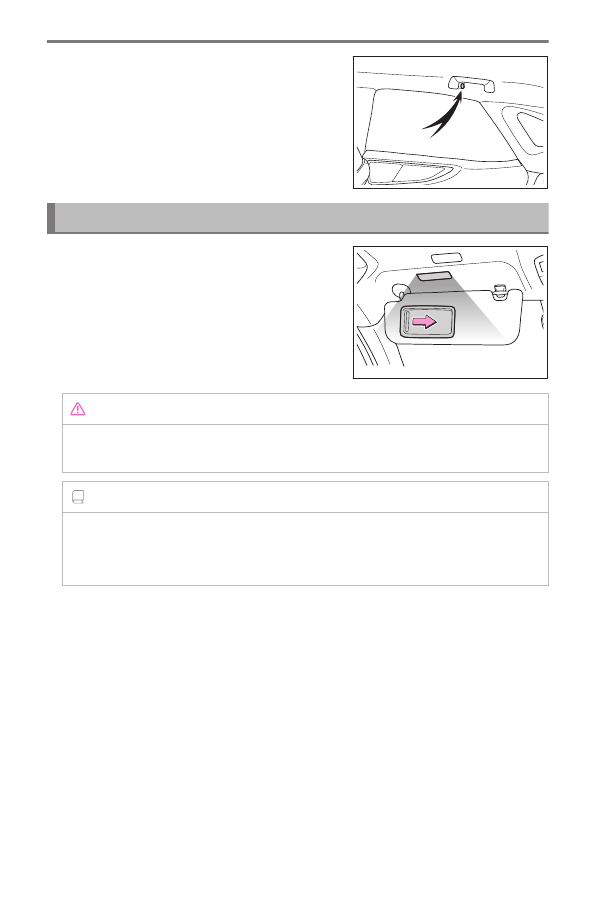

Using the vanity mirrors

●

Slide the cover to open.

The vanity light turns on when the cover is opened.

NOTICE

Do not leave the vanity lights on longer than necessary with the hyprid system
stopped. Doing so may lead to the 12-volt battery becoming discharged.

INFORMATION

■

Automatic light off function

When the power switch is off, if the vanity lights are turned on, they will be turned off
automatically after 20 minutes.

4-5. Using the interior features

284

Deck board

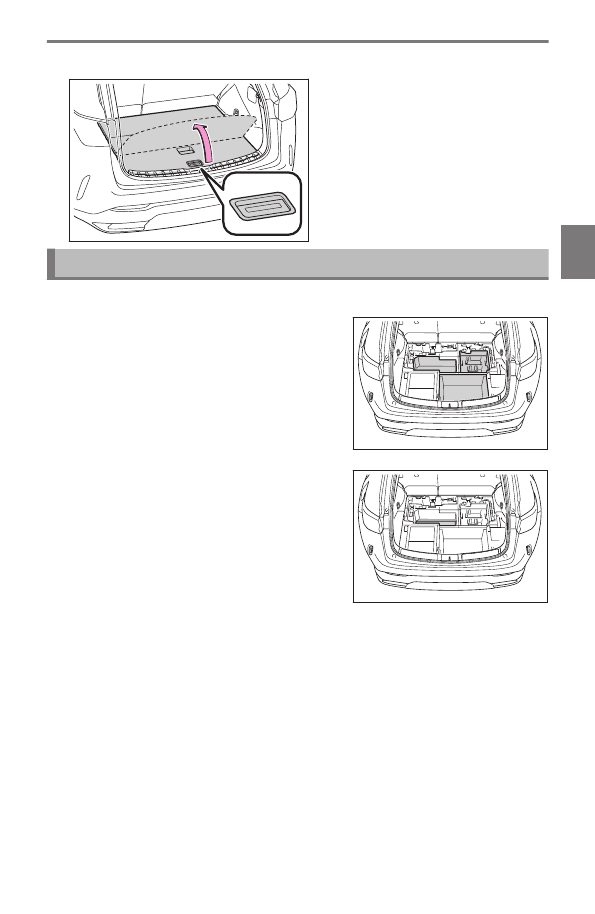

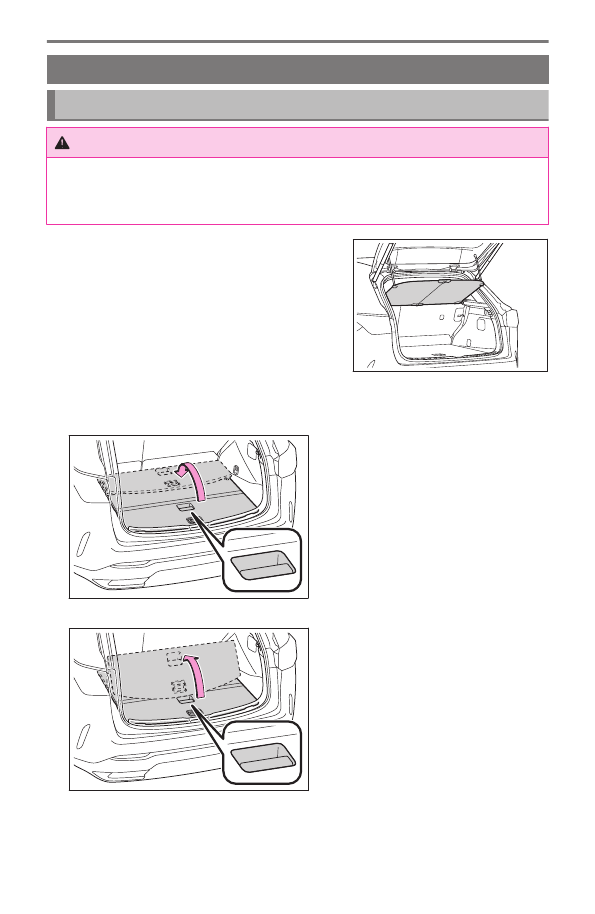

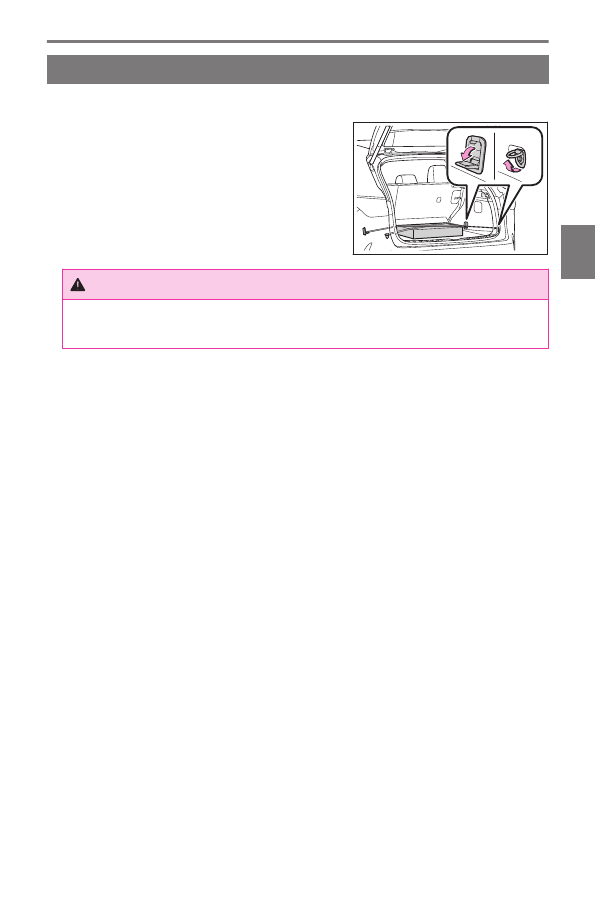

Opening the deck board

WARNING

If a deck board has been opened or removed, return it to its original position before
driving. Otherwise, in the event of sudden braking or an accident, a deck board or stored
items may fly out and strike an occupant.

Open the back door.

Open the deck board.

▶

Pattern A

▶

Pattern B

4-6. Using the luggage compartment

288

▶

Pattern C

Storing items in the deck under tray

The following items can be stowed.

●

Accessories

●

Warning reflector

*1 :

A warning reflector itself is not included as an original equipment.

4-6. Using the luggage compartment

289

Interior feat

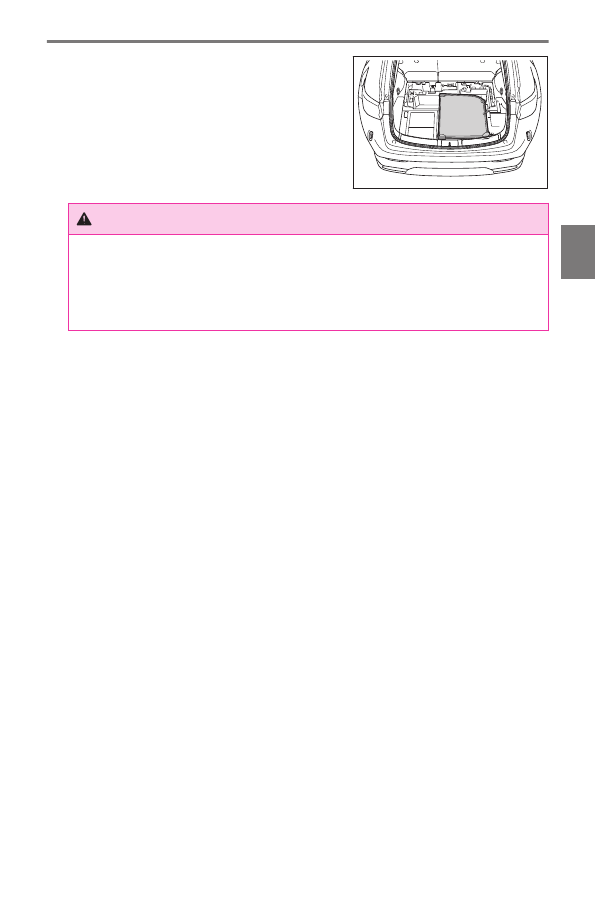

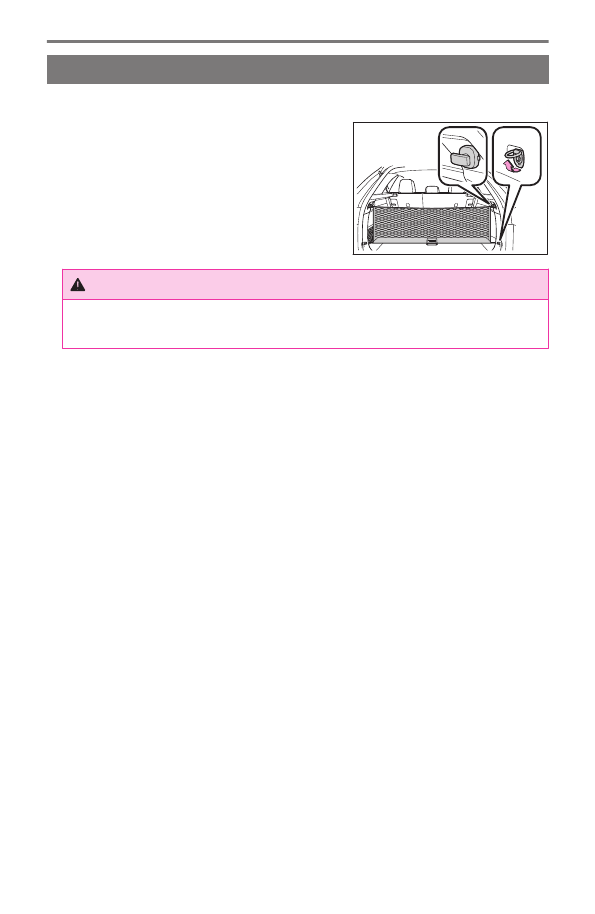

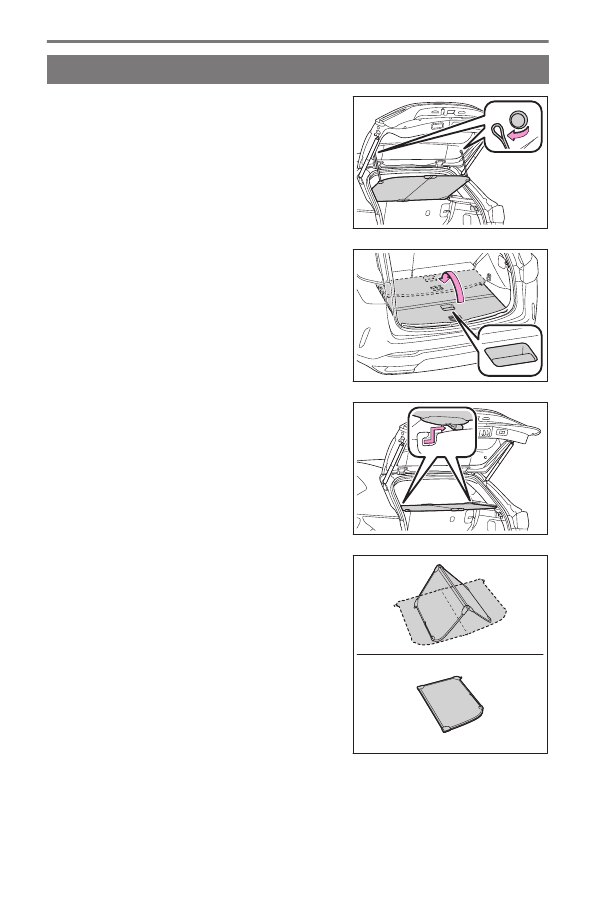

Lift the deck board and stow the luggage
cover in the deck under tray.

WARNING

●

Do not stow items on the luggage cover. In the event of sudden braking or
swerving, the items may fly about and strike an occupant.

●

Do not allow children to climb on the luggage cover. Doing so may damage the
luggage cover.

4-6. Using the luggage compartment

291

Interior feat

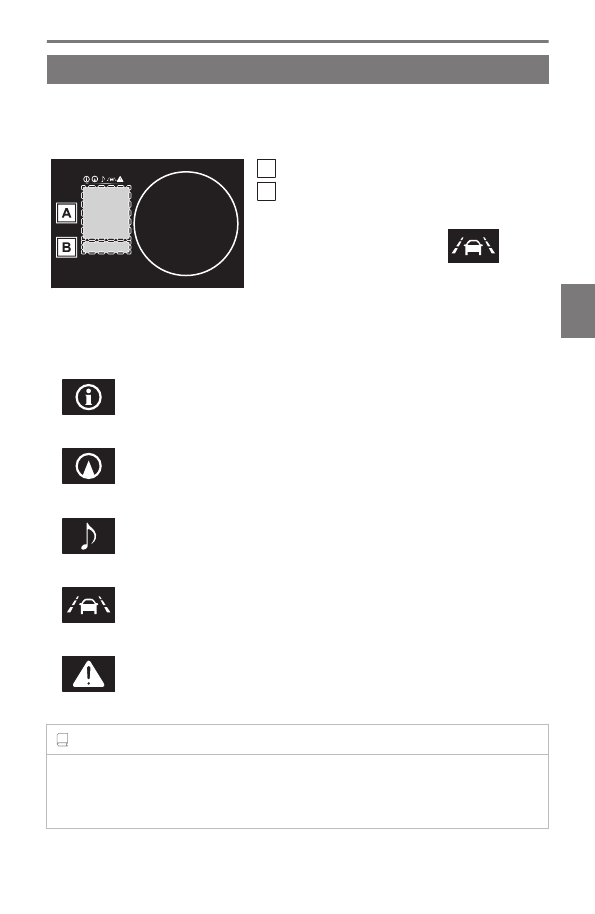

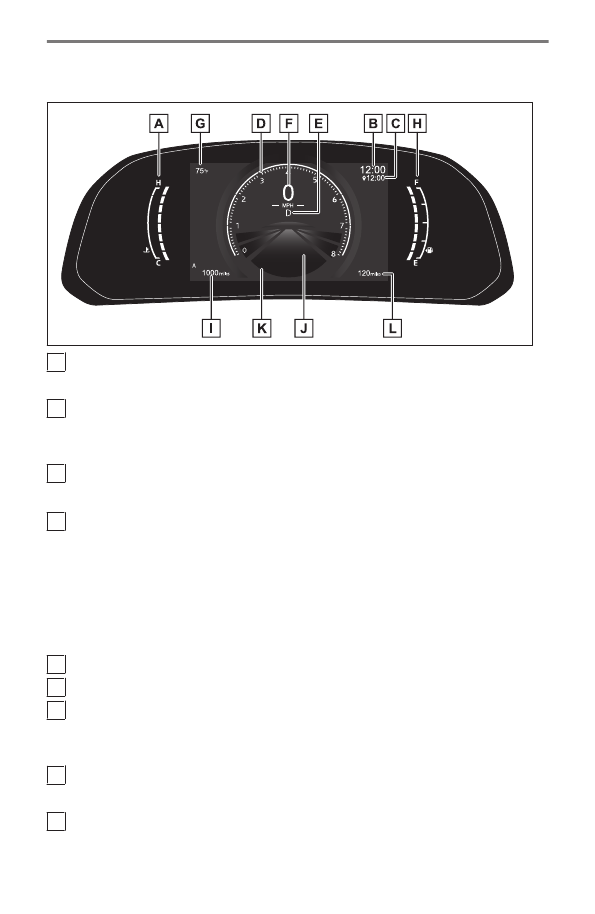

Functions and displays of the meter

Warning lights and indicators

The warning lights and indicators on the instrument cluster and outside rear view
mirrors inform the driver of the status of the vehicle’s various systems.

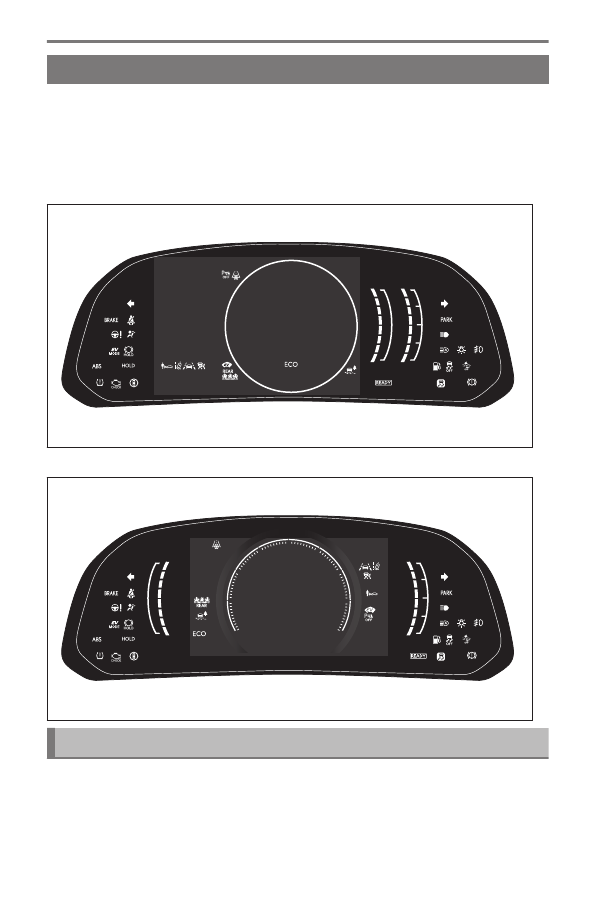

For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.

▶

Vehicles without a head-up display

▶

Vehicles with a head-up display

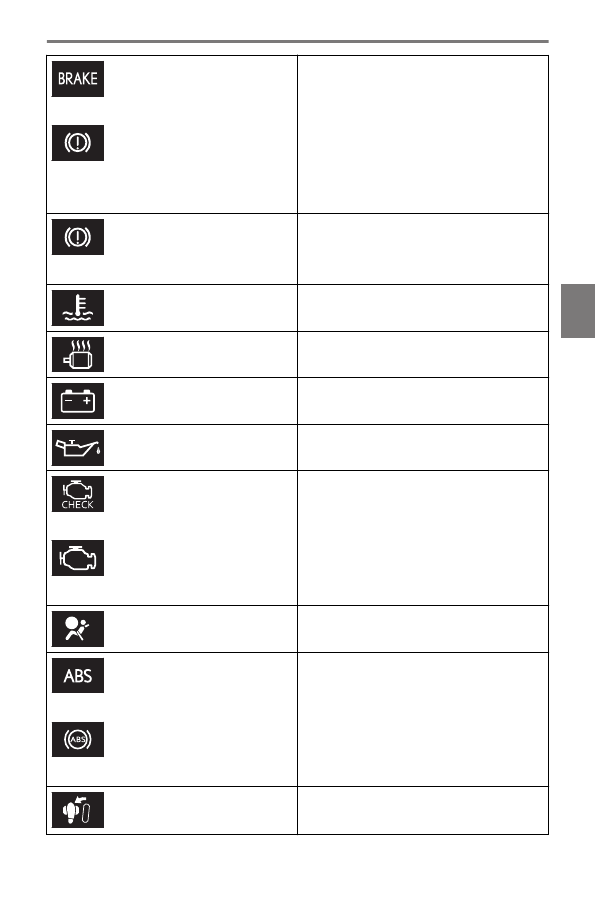

List of warning lights

Warning lights inform the driver of malfunctions in the indicated vehicle’s systems.

5-1. Functions and displays of the meter

294

(U.S.A.)

(Canada)
(red)

Brake system warning light

(1)

(yellow)

Brake system warning light

(1)

High coolant temperature warning light

(2)

Hybrid system overheat warning light

(2)

Charging system warning light

(2)

Low engine oil pressure warning light

(2)

(U.S.A.)

(Canada)

Malfunction indicator lamp

(1)

SRS warning light

(1)

(U.S.A.)

(Canada)

ABS warning light

(1)

Inappropriate pedal operation warning
light

(2)

5-1. Functions and displays of the meter

295

Vehicle st

us information and indicator

(red)

Electric power steering system warning
light

(1)

(yellow)

Electric power steering system warning
light

(1)

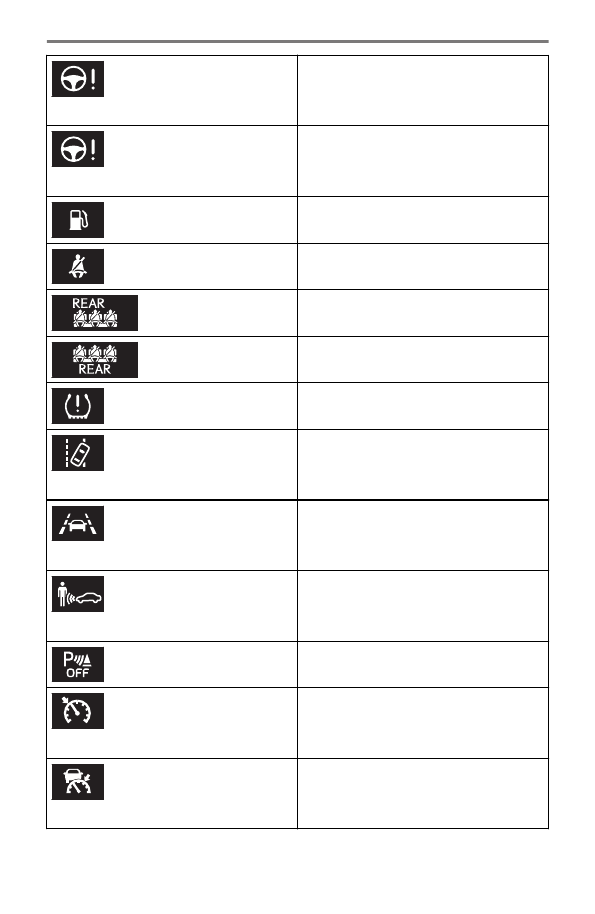

Low fuel level warning light

Driver’s and front passenger’s seat belt re-
minder light

Rear passengers’ seat belt reminder light
(vehicles without a head-up display)

Rear passengers’ seat belt reminder light
(vehicles with a head-up display)

Tire pressure warning light

(1)

(yellow)

LDA indicator

(yellow)

LTA indicator

(yellow)

PDA indicator

Intuitive parking assist OFF indicator

*(1)

(yellow)

Cruise control indicator

(yellow)

Dynamic radar cruise control indicator

* :

If equipped

5-1. Functions and displays of the meter

296

Driving assist information indicator

PCS warning light

(U.S.A.)
(flashes)

(Canada)
(flashes)

Parking brake indicator

(flashes)

Brake hold operated indicator

(1)

These lights come on when the power switch is turned to ON to indicate that a system

check is being performed. They will turn off after the hybrid system is on, or after a few

seconds. There may be a malfunction in a system if the light does not come on, or turn

off. Have the vehicle inspected by your Lexus dealer.

(2)

This light illuminates on the multi-information display.

WARNING

Should a safety system light such as the ABS and SRS warning light not come on when
you start the hybrid system, this could mean that these systems are not available to help
protect you in an accident, which could result in death or serious injury. Have the vehicle
inspected by your Lexus dealer immediately if this occurs.

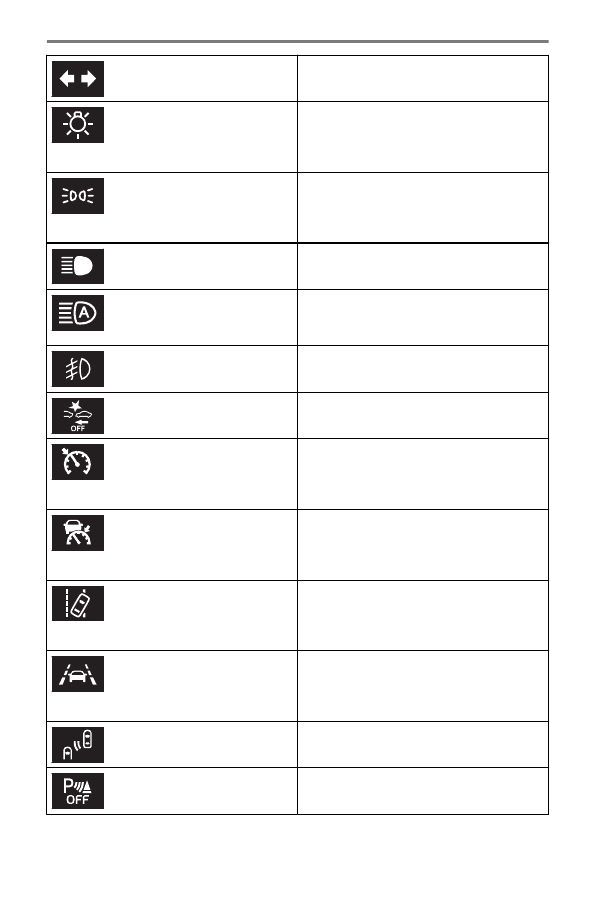

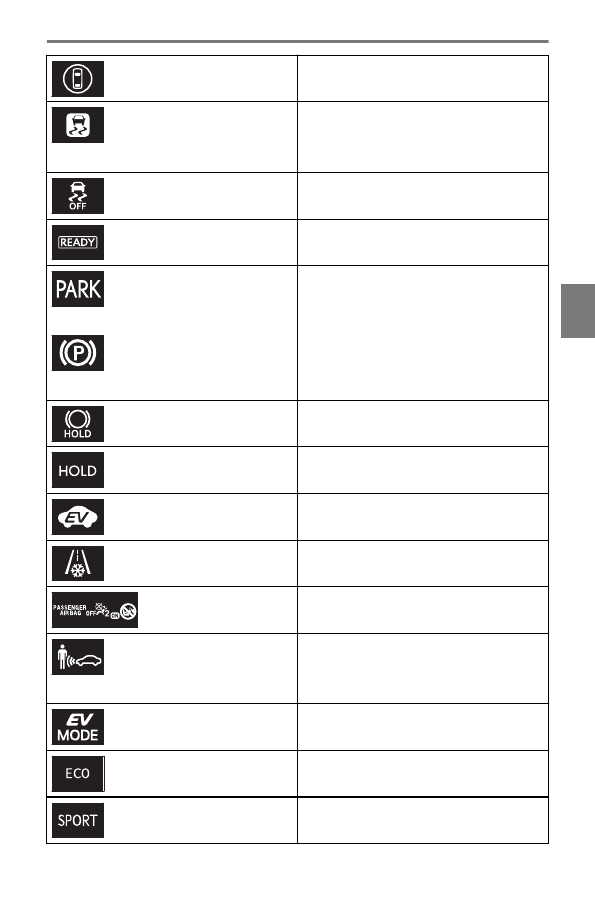

List of indicators

The indicators inform the driver of the operating state of the vehicle’s various
systems.

5-1. Functions and displays of the meter

297

Vehicle st

us information and indicator

Turn signal indicator

(U.S.A.)

Headlight indicator

(Canada)

Tail light indicator

Headlight high beam indicator

Front fog light indicator

PCS warning light

(1)(3)

(green/white)

Cruise control indicator

(green/white)

Dynamic radar cruise control indicator

(green/white)

LDA indicator

(green/white)

LTA indicator

Outside rear view mirror indicators

(2)

Intuitive parking assist OFF indicator

*(1)(3)

* :

If equipped

5-1. Functions and displays of the meter

298

Driving assist information indicator

(flashes)

"READY" indicator

(U.S.A.)

(Canada)

Parking brake indicator

Brake hold standby indicator

(1)

Brake hold operated indicator

(1)

EV indicator

Low outside temperature indicator

(4)

[AIR BAG ON/OFF] indicator

(5)

(green/white)

PDA indicator

EV drive mode indicator

Eco drive mode indicator

Sport mode indicator

5-1. Functions and displays of the meter

299

Vehicle st

us information and indicator

Trail Mode indicator

(1)

These lights come on when the power switch is turned to ON to indicate that a system

check is being performed. They will turn off after the hybrid system is on, or after a few

seconds. There may be a malfunction in a system if the light does not come on, or turn

off. Have the vehicle inspected by your Lexus dealer.

(2)

This light illuminates on the outside rear view mirrors.

(3)

This light comes on when the system is turned off.

(4)

When the outside temperature is approximately 37°F (3°C) or lower, this indicator

will flash for approximately 10 seconds, then stay on.

(5)

This light illuminates on the front interior/personal lights.

Related Links

Customizable features(P. 751)

5-1. Functions and displays of the meter

300

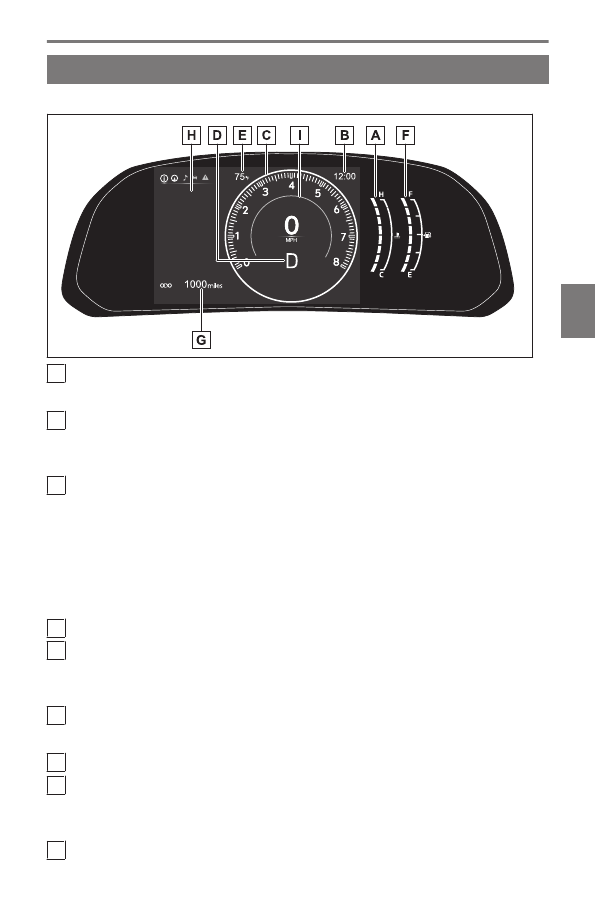

Gauges and meter

▶

Vehicles without a head-up display

Engine coolant temperature gauge

Displays the engine coolant temperature

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For
details, refer to "MULTIMEDIA OWNER'S MANUAL".

Tachometer

Displays the engine speed in revolutions per minute
Hybrid System Indicator
Displays hybrid system output or regeneration level.
Speedometer
Depending on the selected drive mode or certain settings, the display will change.

Shift position/shift range

Outside temperature

Displays the ambient temperature within the range of -40°F (-40°C) to 140°F
(60°C).

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Odometer and trip meter display

Multi-information display

Presents the driver with a variety of vehicle data and displays warning messages if a
malfunction occurs .

Background color of driving mode

5-1. Functions and displays of the meter

301

Vehicle st

us information and indicator

Background color changes according to the driving mode.

▶

Vehicles with a head-up display

Engine coolant temperature gauge

Displays the engine coolant temperature

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For
details, refer to "MULTIMEDIA OWNER'S MANUAL".

Navigation system estimated time of arrival display

Displays the estimated time of arrival according to the navigation system.

Tachometer

Displays the engine speed in revolutions per minute
Hybrid System Indicator
Displays hybrid system output or regeneration level.
Analog speedometer
Depending on the selected drive mode or certain settings, the display will change.

Shift position/shift range

Digital speedometer

Outside temperature

Displays the ambient temperature within the range of -40°F (-40°C) to 140°F
(60°C).

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Odometer and trip meter display

* :

If equipped

5-1. Functions and displays of the meter

302

Multi-information display

Presents the driver with a variety of vehicle data and displays warning messages if a
malfunction occurs .

Background color of driving mode

Background color changes according to the driving mode.

Distance to empty

Displays the driving range with remaining fuel.

INFORMATION

■

The meters and display illuminate when

The power switch is in ON.

■

Engine speed

On hybrid electric vehicles, engine speed is precisely controlled in order to help improve
fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even when vehicle
operation and driving conditions are the same.

■

Outside temperature display

●

In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change:

•

When stopped, or driving at low speeds (less than 16 mph [25 km/h])

•

When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)

●

When "--" or "E" is displayed, the system may be malfunctioning.
Take your vehicle to your Lexus dealer.

■

Distance to empty

●

This distance is computed based on your average fuel consumption. As a result, the
actual distance that can be driven may differ from that displayed.

●

When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the power switch off. If the vehicle is refueled without turning the
power switch off, the display may not be updated.

■

Liquid crystal display

Small spots or light spots may appear on the display.
This phenomenon is characteristic of liquid crystal displays, and there is no problem
continuing to use the display.

5-1. Functions and displays of the meter

303

Vehicle st

us information and indicator

■

Free/Open Source Software Information

This product contains Free/Open Source Software (FOSS). The license information
and/or the source code of such FOSS can be found at the following URL.

https://www.denso.com/global/en/opensource/meter/toyota/

WARNING

Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, the information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, causing rapid
and excessive engine braking and possibly an accident resulting in death or injury.

NOTICE

To prevent the engine or components from being damaged, observe the following
precautions.

●

Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.

●

The engine may be overheating if the engine coolant temperature gauge is in the red
zone (H); or "Engine Coolant Temp High Stop in a Safe Place See Owner's Manual"
is shown on the multi-information display. In this case, immediately stop the vehicle in a
safe place, and check the engine after it has cooled completely.

Related Links

Customizable features(P. 751)

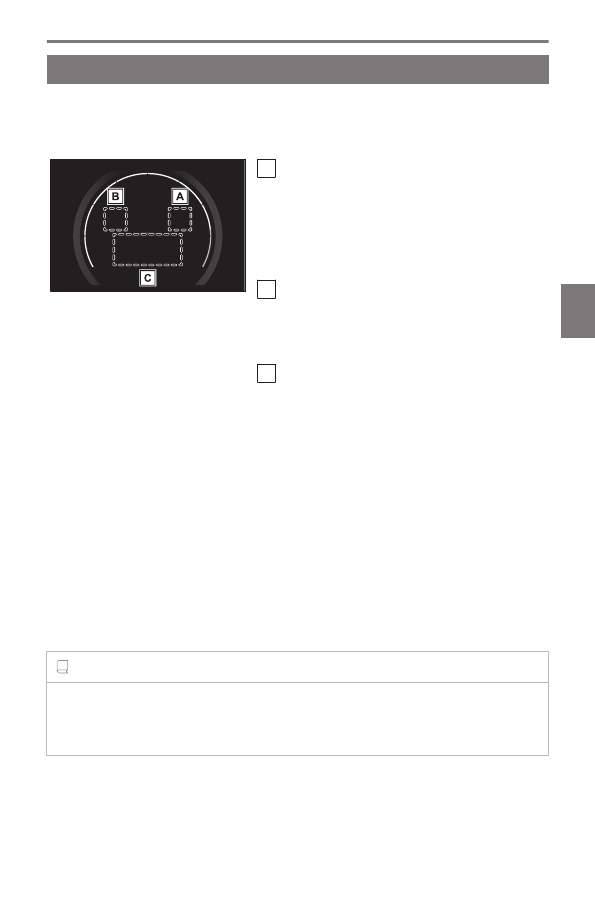

Hybrid system indicator

The hybrid system indicator displays the hybrid system output or regeneration
level.
This illustration is for explanation only and may differ depending on the specifica-
tions of the vehicle.

Charge area

Shows regeneration status.
Regenerated energy will be used to charge the
hybrid battery (traction battery).
When used in this manual, "regeneration" refers
to the conversion of energy created by the
movement of the vehicle into electrical energy.

5-1. Functions and displays of the meter

304

Eco area

Shows that the vehicle is being driven in an Eco-
friendly manner.
By keeping the indicator needle within Eco area,
more Eco-friendly driving can be achieved.

Power area

Shows that an Eco-friendly driving range is be-
ing exceeded (during full power driving etc.)

Hybrid Eco area

Shows that gasoline engine power is not being
used very often.
The gasoline engine will automatically stop and
restart under various conditions.

Changing between the tachometer/hybrid system indicator/speedom-
eter displays

Depending on the current drive mode or settings, the displays will change as
follows. Settings can be changed on the center display.

■

Vehicles without a head-up display

●

Tachometer

The tachometer will be displayed in the following situations when the meter display type
setting is set to display type 1 or display type 3.

•

When the tachometer setting is set to always display the tachometer

•

When the tachometer setting is set to change according to the driving mode and
sport mode is selected

●

Hybrid System Indicator

The hybrid system indicator will be displayed in the following situations when the meter
display type setting is set to display type 1 or display type 3.

•

When the tachometer setting is set to always display the hybrid system indicator

•

When the tachometer setting is set to change according to the driving mode and a
driving mode other than sport mode is selected

●

Speedometer

Always displayed.
The display will change between a digital speedometer and/or analog speedometer
depending on the meter display type setting.

5-1. Functions and displays of the meter

305

Vehicle st

us information and indicator

■

Vehicles with a head-up display

●

Tachometer

Displayed when the meter display type setting is set to display type 1.

●

Hybrid System Indicator

Displayed when the meter display type setting is set to display type 1.

●

Speedometer

A digital speedometer is always displayed.
When the meter display type setting is set to display type 2, an analog speedometer will
also be displayed.

Related Links

Customizable features(P. 751)

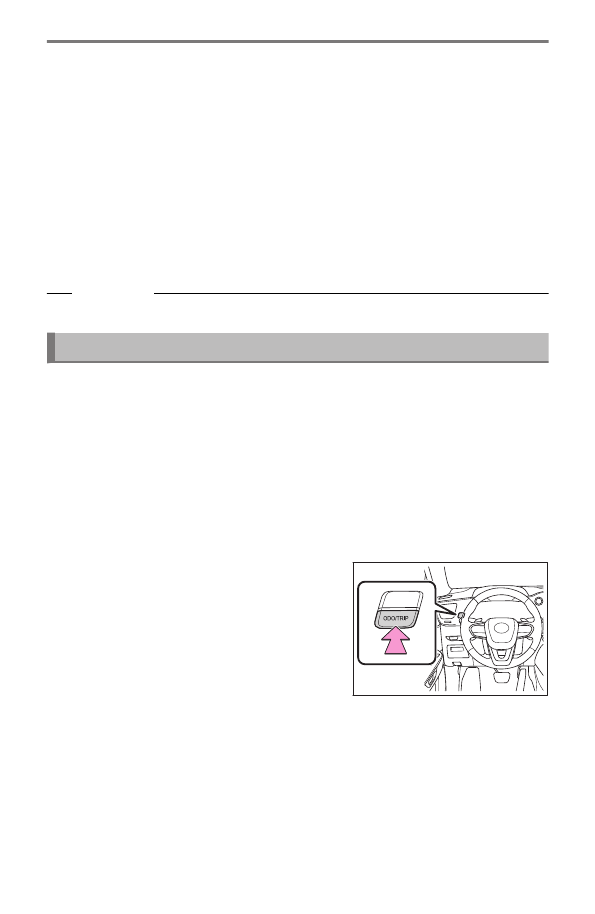

Changing the distance driven display/resetting the distance driven

The display can be changed between the following items.

●

Odometer

Displays the total distance the vehicle has been driven.

●

Trip meter A/trip meter B

Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters A and B can be used to record and display different distances independently.

●

Distance until next engine oil change

Displays the distance the vehicle can be driven until an oil change is necessary.

Each time the switch is pressed, the displayed
item will be changed.
When the trip meter is displayed, pressing and
holding the switch will reset the trip meter.

5-1. Functions and displays of the meter

306

Functions of the displays

Multi-information display (vehicles without a head-up display)

A variety of driving-related information can be displayed. Depending on the
situation, warning or advice pop-up displays will also be displayed.

■

Display area

Content display area

Driving support system information display
area

When a menu icon other than

is se-

lected, if the driving support system operates,
the system operating state will be displayed.

■

Items displayed in the content display area

By selecting menu icons on the multi-information display, the following items can
be displayed.

●

Driving information display

●

Navigation system-linked display

●

Audio system-linked display

●

Driving support system information display

●

Warning message

INFORMATION

■

Liquid crystal display

Small spots or light spots may appear on the display. This phenomenon is characteristic of
liquid crystal displays, and there is no problem continuing to use the display.

* :

If equipped

5-2. Functions of the displays

307

Vehicle st

us information and indicator

WARNING

■

Caution for use while driving

●

When operating the multi-information display while driving, pay extra attention to the
safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as you may fail
to see pedestrians, objects on the road, etc. ahead of the vehicle.

■

The information display at low temperatures

■

Cautions during setting up the display

As the hybrid system needs to be operating during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area such as a
garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter
the vehicle. This may lead to death or a serious health hazard.

NOTICE

To prevent 12-volt battery discharge, ensure that the hybrid system is operating while
setting up the display features.

5-2. Functions of the displays

308

Multi-information display (vehicles with a head-up display)

A variety of driving-related information can be displayed. Depending on the
situation, warning or advice pop-up displays will also be displayed.

■

Display area

Driving support system information display
area

When driving support system information is not
displayed in the content display area, if the driv-
ing support system operates, the system operat-
ing state will be displayed.

Navigation system-linked display area

If the navigation system linked-display is not dis-
played in the content display area, route guid-
ance will be displayed.

Content display area

■

Items displayed in the content display area

The following items can be displayed.

●

Drive information 1

●

Drive information 2

●

Energy monitor/EV driving ratio

●

Audio system-linked display

●

Navigation system-linked display

**1

●

G-force

●

Driving support system information display

●

Blank (No items)

INFORMATION

■

Liquid crystal display

Small spots or light spots may appear on the display. This phenomenon is characteristic of
liquid crystal displays, and there is no problem continuing to use the display.

* :

If equipped

*1 :

Displayed on the head-up display when the display mode is set to display the maxi-

mum.

5-2. Functions of the displays

309

Vehicle st

us information and indicator

WARNING

■

Caution for use while driving

●

When operating the multi-information display while driving, pay extra attention to the
safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as you may fail
to see pedestrians, objects on the road, etc. ahead of the vehicle.

■

The information display at low temperatures

■

Cautions during setting up the display

NOTICE

To prevent 12-volt battery discharge, ensure that the hybrid system is operating while
setting up the display features.

5-2. Functions of the displays

310

Lexus NX350h (2024 year). Manual in english - page 9
