Lexus ES300H (2023 year). Manual in english

437

9-1. For owners

For owners

AVERTISSEMENT

• Inclinez légèrement le dossier du

siège. Bien que les véhicules soient

conçus différemment, la plupart des

conducteurs peuvent maintenir une

distance de 10 in. (250 mm), même si

leur siège se trouve complètement

vers l’avant, simplement en inclinant un

peu le dossier du siège vers l’arrière. Si

la visibilité avant est moindre après

avoir incliné le dossier de votre siège,

utilisez un coussin ferme et non glis-

sant pour être assis plus haut ou rele-

vez le siège si cette option est

disponible sur votre véhicule.

• Si votre volant est réglable en hauteur,

inclinez-le vers le bas. Cela vous per-

met d’orienter le coussin gonflable

vers votre buste plutôt que vers votre

tête et vers votre cou.

Le siège doit être réglé de la manière

recommandée ci-dessus par la NHTSA,

tout en gardant le contrôle des pédales

et du volant, ainsi que la vue sur les com-

mandes du tableau de bord.

●

Si la rallonge de ceinture de sécurité a

été reliée à la boucle de ceinture de

sécurité du conducteur sans avoir

également été attachée à la plaque de

blocage de la ceinture de sécurité du

conducteur, les coussins gonflables

SRS avant du conducteur con-

sidéreront que le conducteur porte

tout de même sa ceinture même si elle

n’est pas attachée. Les coussins gon-

flables SRS avant du conducteur peu-

vent alors ne pas s’activer

correctement lors d’une collision, ce

qui pourrait occasionner des blessures

graves, voire mortelles, en cas de colli-

sion.

Assurez-vous de toujours porter la

ceinture de sécurité avec la rallonge

de ceinture de sécurité.

●

Le coussin gonflable SRS du passager

avant se déploie également avec une

force considérable et peut occasion-

ner des blessures graves, voire mor-

telles, notamment lorsque le passager

avant se trouve très près du coussin

gonflable. Le siège du passager avant

doit se trouver le plus loin possible du

coussin gonflable et le dossier doit être

réglé de manière à ce que le passager

avant soit assis bien droit.

438

9-1. For owners

AVERTISSEMENT

●

Le déploiement d’un coussin gonflable

risque d’infliger des blessures graves,

voire mortelles, aux bébés et aux

enfants mal assis et/ou mal attachés.

Un bébé ou un enfant trop petit pour

utiliser une ceinture de sécurité doit

être correctement retenu à l’aide d’un

dispositif de retenue pour enfants.

Lexus recommande vivement de

placer et d’attacher correctement tous

les bébés et tous les enfants sur les

sièges arrière du véhicule à l’aide de

dispositifs de retenue adaptés. Les

sièges arrière sont plus sécuritaires

pour les bébés et les enfants que le

siège du passager avant.

●

N’installez jamais un dispositif de

retenue pour enfants de type dos à la

route sur le siège du passager avant,

même si le voyant “PASSENGER AIR

BAG OFF” est allumé. En cas d’acci-

dent, la force et la vitesse de déploie-

ment du coussin gonflable du passager

avant pourraient infliger à l’enfant des

blessures graves, voire mortelles, si le

dispositif de retenue pour enfants de

type dos à la route était installé sur le

siège du passager avant.

●

Ne vous asseyez pas sur le bord du

siège et ne vous appuyez pas sur la

planche de bord.

●

Ne laissez pas un enfant se tenir face

au coussin gonflable SRS du passager

avant ni s’asseoir sur les genoux d’un

passager avant.

●

Ne laissez pas les occupants des

sièges avant tenir des objets sur leurs

genoux.

●

Ne vous appuyez pas sur la portière

ou sur le brancard de pavillon, ni sur

les montants avant, latéraux ou arrière.

●

Ne laissez personne s’agenouiller face

à la portière sur les sièges des passag-

ers ni sortir la tête ou les mains à

l’extérieur du véhicule.

439

9-1. For owners

For owners

AVERTISSEMENT

●

Ne fixez et n’appuyez rien sur des

zones telles que la planche de bord, le

tampon de volant ou encore la partie

inférieure du tableau de bord.

Ces objets peuvent se transformer en

projectiles lorsque les coussins gonfla-

bles SRS du conducteur, du passager

avant et de protection des genoux se

déploient.

●

Ne fixez rien sur des zones telles que

les portières, le pare-brise, les glaces

latérales, les montants avant ou

arrière, le brancard de pavillon et la

poignée de maintien.

●

N’accrochez pas de cintres ni d’autres

objets rigides sur les crochets porte-

vêtements. Tous ces objets pourraient

se transformer en projectiles et vous

occasionner des blessures graves,

voire mortelles, en cas de déploiement

des coussins gonflables SRS en rideau.

●

Si un recouvrement de vinyle est placé

sur la zone de déploiement du coussin

gonflable SRS de protection des

genoux, veillez à le retirer.

●

N’utilisez pas d’accessoires recou-

vrant les parties du siège où les couss-

ins gonflables SRS latéraux se

déploient, car ces accessoires pour-

raient entraver le déploiement des

coussins gonflables SRS. De tels

accessoires peuvent empêcher les

coussins gonflables latéraux de se

déployer correctement, rendre le sys-

tème inopérant ou provoquer acci-

dentellement le déploiement des

coussins gonflables latéraux, occa-

sionnant des blessures graves, voire

mortelles.

●

Ne frappez pas et n’appliquez pas une

pression importante à l’emplacement

des portières avant ou des com-

posants des coussins gonflables SRS.

Cela peut provoquer un mauvais

fonctionnement des coussins gonfla-

bles SRS.

●

Ne touchez à aucun composant des

coussins gonflables SRS immédiate-

ment après leur déploiement (gon-

flage), car ils pourraient être chauds.

●

Si vous avez de la difficulté à respirer

après le déploiement des coussins

gonflables SRS, ouvrez une portière

ou une glace pour laisser entrer l’air

frais, ou quittez le véhicule si vous pou-

vez le faire en toute sécurité. Dès que

possible, nettoyez tous les résidus afin

d’éviter les irritations cutanées.

●

Si les emplacements de stockage des

coussins gonflables SRS, tels que le

tampon de volant et les garnitures des

montants avant et arrière, sont endom-

magés ou fissurés, faites-les remplacer

par votre concessionnaire Lexus.

●

Ne placez aucun objet, par exemple

un coussin, sur le siège du passager

avant. Cela disperserait le poids du

passager, ce qui empêcherait le cap-

teur de le détecter correctement. Cela

pourrait empêcher le déploiement des

coussins gonflables SRS du passager

avant en cas de collision.

440

9-1. For owners



Véhicules dotés de phares à fais-
ceau unique

Boulon de réglage A (vertical)

Boulon de réglage B (horizontal)



Véhicules dotés de phares à triple
faisceau

Boulon de réglage A (vertical)

Boulon de réglage B (horizontal)

AVERTISSEMENT

■

Modification et mise au rebut des

composants du système de coussins

gonflables SRS

Ne mettez pas votre véhicule au rebut et

n’effectuez aucune des modifications

suivantes sans d’abord consulter votre

concessionnaire Lexus. Les coussins

gonflables SRS pourraient fonctionner

de manière incorrecte ou se déployer

(gonfler) accidentellement, ce qui serait

susceptible d’occasionner des blessures

graves, voire mortelles.

●

Installation, retrait, démontage et

réparation des coussins gonflables

SRS

●

Réparations, modifications, retrait ou

remplacement du volant, du tableau

de bord, de la planche de bord, des

sièges ou du capitonnage des sièges,

des montants avant, latéraux et arrière,

des brancards de pavillon, des pan-

neaux des portières avant, des garni-

tures des portières avant ou des haut-

parleurs des portières avant

●

Modifications du panneau de la

portière avant (comme le perforer)

●

Réparations ou modifications de l’aile

avant, du pare-chocs avant ou du côté

de l’habitacle

●

Installation d’une protection de calan-

dre (barre safari, barre kangourou,

etc.), de lames de déneigement, de

treuils ou d’un porte-bagages de toit

●

Modifications du système de suspen-

sion du véhicule

●

Installation d’appareils électroniques

tels qu’un émetteur-récepteur radio

ou un lecteur de CD

●

Modifications à votre véhicule pour

une personne aux capacités physiques

réduites

Headlight aim instructions
for Canadian owners (in
French)

The following is a French explana-
tion of headlight aim instructions
from the headlight aim section in
this manual.

Boulons de réglage vertical/hor-
izontal

441

9-1. For owners

For owners



Assurez-vous que le réservoir de
carburant du véhicule est plein et
que la partie de carrosserie située
autour des phares n’est pas
déformée.



Garez le véhicule sur un sol parfait-
ement horizontal.



Assurez-vous que la pression de
gonflage des pneus est au niveau
prescrit.



Demandez à quelqu’un de s’asseoir
sur le siège du conducteur.



Faites rebondir le véhicule à plu-
sieurs reprises.



Véhicules dotés de phares à fais-
ceau unique

Tournez le boulon A vers la droite
ou vers la gauche à l’aide d’un
tournevis cruciforme.

Retenez le sens de rotation et le nombre

de tours.

Tournez le boulon B du même
nombre de tours et dans le même
sens qu’à l’étape

Si vous n’arrivez pas à régler vos phares en

suivant cette procédure, apportez le

véhicule chez votre concessionnaire Lexus

afin qu’il règle la portée des phares.



Véhicules dotés de phares à triple
faisceau

Tournez le boulon A vers la droite
ou vers la gauche à l’aide d’un
tournevis cruciforme.

Retenez le sens de rotation et le nombre

de tours.

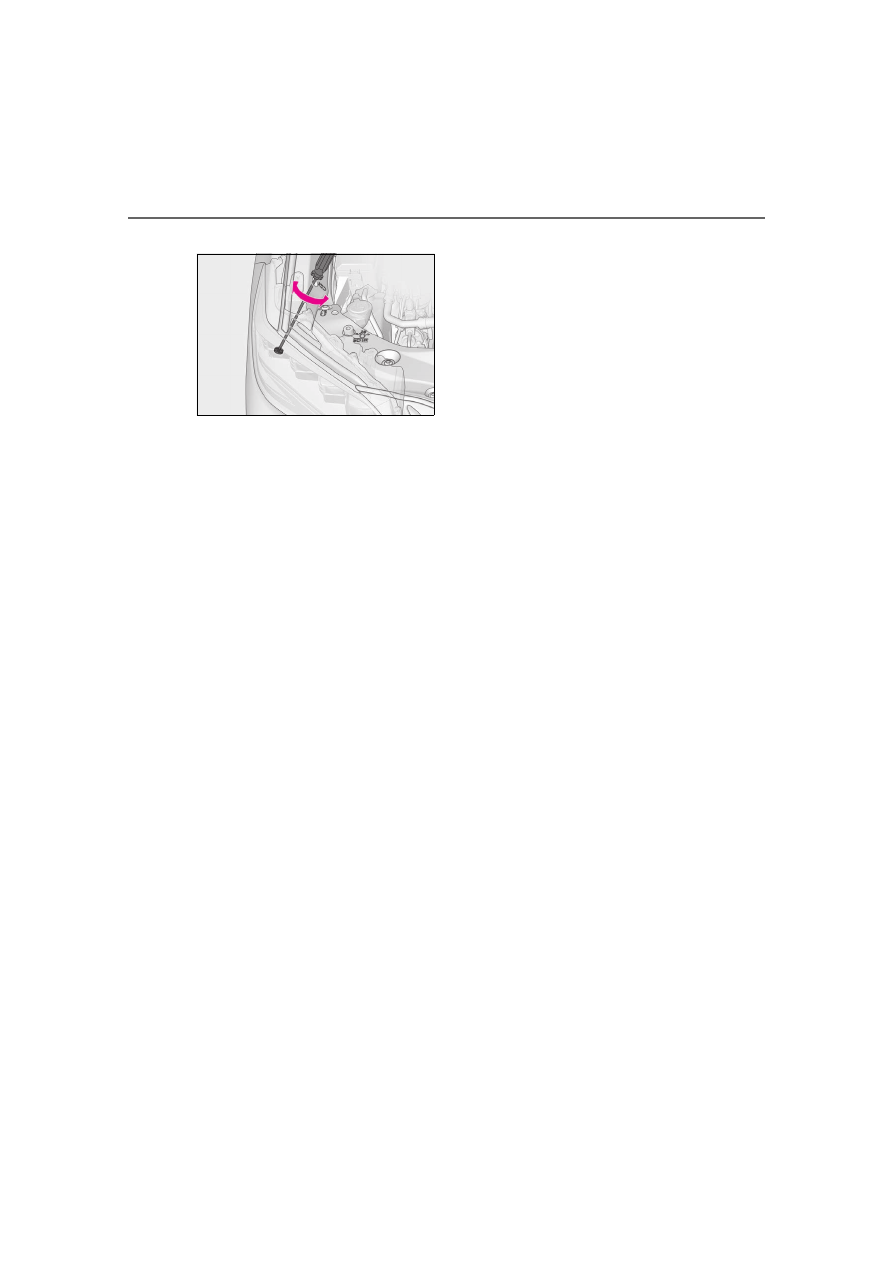

Tournez le boulon B du même
nombre de tours et dans le même
sens qu’à l’étape

Si vous n’arrivez pas à régler vos phares en

suivant cette procédure, apportez le

véhicule chez votre concessionnaire Lexus

Avant de vérifier la portée des
phares

Réglage de la portée des phares

444

What to do if... (Troubleshooting)

1-1.What to do if... (Troubleshooting)

What to do if... (Troubleshooting)



If you lose your mechanical keys,
new genuine mechanical keys can
be made by your Lexus dealer.
(



P.384)



If you lose your electronic keys, the
risk of vehicle theft increases signifi-
cantly. Contact your Lexus dealer
immediately. (



P.384)



Is the electronic key battery weak or
depleted? (



P.343)



Is the power switch in ON mode?

When locking the doors, turn the power
switch off. (



P.151)



Is the electronic key left inside the
vehicle?

When locking the doors, make sure that
you have the electronic key on your per-
son.



The function may not operate prop-
erly due to the condition of the radio
wave. (



P.117)



Is the child-protector lock set?
The rear door cannot be opened
from inside the vehicle when the
lock is set.
Open the rear door from outside
and then unlock the child-protector
lock. (



P.107)



The function to prevent the elec-
tronic key from being left inside the
trunk will operate and you can open
the trunk as usual. Take the key out
from the trunk. (



P.112)



Did you press the power switch
while firmly depressing the brake
pedal? (



P.148)



Is the shift lever in P? (



P.154)



Is the electronic key anywhere
detectable inside the vehicle?
(



P.116)



Is the electronic key battery weak or
depleted?

In this case, the hybrid system can be
started in a temporary way. (



P.386)

If you have a problem, check the
following before contacting your
Lexus dealer.

The doors cannot be locked,
unlocked, opened or closed

You lose your keys

The doors cannot be locked or
unlocked

The rear door cannot be opened

The trunk lid is closed with the
electronic key left inside

If you think something is wrong

The hybrid system does not start

445

What to do if... (Troubleshooting)



Is the 12-volt battery discharged?
(



P.387)



Is the power switch in ON mode?
If you cannot release the shift lever
by depressing the brake pedal with
the power switch in ON mode
(



P.156)



Is the window lock switch pressed?

The power window except for the one at
the driver’s seat cannot be operated if the
window lock switch is pressed. (



P.132)



The auto power off function will be
operated if the vehicle is left in
ACCESSORY or ON mode
(hybrid system is not operating) for
a period of time. (



P.151)



The seat belt reminder light is flash-
ing

Are the driver and the passengers wearing
the seat belts? (



P.363)



The parking brake indicator is on

Is the parking brake released? (



P.159)

Depending on the situation, other

types of warning buzzer may also
sound. (



P.360, 370)



Did anyone inside the vehicle open
a door during setting the alarm?

The sensor detects it and the alarm sounds.
(



P.68)

To stop the alarm, turn the power
switch to ON mode, or start the hybrid
system.



Is the message displayed on the
multi-information display?

Check the message on the multi-informa-
tion display. (



P.370)



When a warning light turns on or a
warning message is displayed, refer
to P.360, 370.



Stop the vehicle in a safe place and
replace the flat tire with the spare
tire. (



P.375)

The shift lever cannot be shifted
from P even if you depress the
brake pedal

The windows do not open or
close by operating the power
window switches

The power switch is turned off
automatically

A warning buzzer sounds during
driving

An alarm is activated and the
horn sounds

A warning buzzer sounds when
leaving the vehicle

A warning light turns on or a
warning message is displayed

When a problem has occurred

If you have a flat tire

447

Alphabetical index

Alphabetical index

A/C................................................................... 265

Air conditioning filter ...............................338
Automatic air conditioning system...265
Front seat concentrated airflow mode

(S-FLOW).................................................270

ABS (Anti-lock Brake System).............. 252

Function.......................................................... 252
Warning light...............................................362

ACA (Active Cornering Assist)........... 252
Acoustic Vehicle Alerting System............61
Active Cornering Assist (ACA)........... 252
Adaptive Variable Suspension system252
AHB (Automatic High Beam) .................166
Airbags ............................................................... 28

Airbag operating conditions...................30
Airbag precautions for your child........ 33
Correct driving posture.............................23
Curtain shield airbag operating condi-

tions....................................................................31

Curtain shield airbag precautions ....... 33
Front passenger occupant classification

system ..............................................................37

General airbag precautions ................... 33
Locations of airbags....................................28
Modification and disposal of airbags .35
Side airbag operating conditions...........31
Side airbag precautions............................ 33
Side and curtain shield airbags operating

conditions........................................................31

Side and curtain shield airbags precau-

tions.................................................................. 33

SRS airbags .....................................................28
SRS warning light ........................................361

Air conditioning filter.................................338
Air conditioning system............................ 265

Air conditioning filter ...............................338
Automatic air conditioning system...265
Front seat concentrated airflow mode

(S-FLOW).................................................270

Alarm...................................................................68

Alarm...................................................................68
Warning buzzer........................................ 360

Anchor brackets.....................................44, 53
Antennas (smart access system with push-

button start) ...................................................115

Anti-lock Brake System (ABS).............. 252

Function..........................................................252
Warning light ...............................................362

Approach warning......................................209
Armrest............................................................ 292
Assist grips ..................................................... 292
Audio system-linked display......................89
Auto Glide Control......................................219
Automatic headlight leveling system ....164
Automatic High Beam (AHB) .................166
Automatic light control system................163
Auxiliary box....................................................281
Average fuel economy................................. 87
Average vehicle speed ................................ 87

Back-up lights

Replacing light bulbs................................349

Battery (12-volt battery) ...........................325

Battery checking ........................................325
If the 12-volt battery is discharged ....387
Preparing and checking before winter

..........................................................................259

Warning light ................................................ 361

Battery (traction battery) ............................ 62
Blind Spot Monitor (BSM).........................213
Brake

Brake hold........................................................161
Fluid...................................................................402
Parking brake ...............................................159
Regenerative braking .................................60
Warning light .............................................. 360

Brake assist .................................................... 252
Break-in tips.....................................................139
Brightness control

Instrument panel light control........79, 84

BSM (Blind Spot Monitor).........................213

448

Alphabetical index

Card key .......................................................... 100
Care...................................................... 304, 307

Exterior ...........................................................304
Interior.............................................................307
Seat belts........................................................307
Wheels and wheel ornaments............304

Cargo capacity...............................................146
Cargo hooks .................................................282
Chains ..............................................................260
Child-protectors............................................107
Child restraint system................................... 43

Fixed with a LATCH system ..................50
Fixed with a seat belt....................................47
Front passenger occupant classification

system ..............................................................37

Points to remember .................................... 43
Riding with children..................................... 43
Types of child restraint system installation

method ........................................................... 44

Using an anchor bracket..........................53

Child safety ....................................................... 43

12-volt battery precautions...... 325, 390
Airbag precautions...................................... 33
Child restraint system................................. 44
Heated steering wheel and seat heater

precautions.................................................272

How your child should wear the seat belt

............................................................................ 25

Moon roof precautions ............................135
Power window lock switch.....................132
Power window precautions...................132
Rear door child-protectors....................107
Seat belt extender precautions ............. 25
Seat belt precautions.................................. 43
Trunk precautions ......................................108

Cleaning.............................................. 304, 307

Exterior ...........................................................304
Interior.............................................................307
Radar sensor........................................177, 214
Seat belts........................................................307

Wheels and wheel ornaments........... 304

Clock ...............................................76, 80, 283
Coat hooks..................................................... 294
Compass.........................................................300
Condenser ..................................................... 323
Console box ..................................................280
Console box light ........................................280
Cooling system............................................. 322

Engine overheating.................................... 391
Hybrid system overheating ..................392

Cornering lights.............................................165

Replacing light bulbs................................349

Cruise control

Dynamic radar cruise control with full-

speed range..............................................203

Cup holder.....................................................280
Current fuel consumption .......................... 87
Curtain shield airbags .................................. 28
Customizable features................................417
Custom mode.................................................218

Daytime running light system...................163
Defogger

Outside rear view mirrors.....................266
Rear window................................................266
Windshield....................................................266

Dimension ......................................................398
Dinghy towing.................................................147
Display

BSM (Blind Spot Monitor)......................213
Dynamic radar cruise control with full-

speed range..............................................203

Energy monitor..............................................95
Head-up display..............................................91
Intuitive parking assist.............................. 222
LTA (Lane-Tracing Assist) .................... 196
Multi-information display..........................85
Parking Support Brake function (rear

pedestrians).............................................. 250

RCD (Rear Camera Detection) ........235
RCTA...............................................................229

Alphabetical index

449

Warning message.....................................370

Distance until next engine oil change.. 78,

Do-it-yourself maintenance.......................311
Door courtesy lights....................................276
Door lock

Doors................................................................ 104
Smart access system with push-button

start................................................................... 115

Wireless remote control..........................102

Doors................................................................. 104

Automatic door locking and unlocking

system ............................................................107

Door glasses................................................... 131
Door lock........................................................ 104
Open door warning buzzer ..................107
Outside rear view mirrors ......................128
Rear door child-protectors....................107

Drive distance.................................................. 87
Drive info 1/Drive info 2 .............................. 87
Driver’s seat position memory.................. 121

Driving position memory...........................121
Memory recall function ............................123

Drive-Start Control (DSC)

Sudden start restraint control................143

Driving............................................................... 138

Break-in tips...................................................139
Correct driving posture.............................23
Driving Mode Select switch...................218
Hybrid Electric Vehicle driving tips. 257
Procedures.................................................... 138
Winter drive tips.........................................259

Driving information display ........................ 87
Driving Mode Select switch......................218
Driving range ................................................... 87
Driving support system information display

.............................................................................89

DSC (Drive-Start Control)

Sudden start restraint control................143

Dynamic radar cruise control with full-

speed range................................................203

Warning message.......................................212

ECB (Electronically Controlled Brake Sys-

tem) ................................................................ 252

Eco drive mode..............................................218
EDR (Event data recorder)........................... 8
Elapsed time ..................................................... 87
Electric motor (traction motor)................ 59
Electric Power Steering (EPS)

Function..........................................................252
Warning light ...............................................362

Electronically Controlled Brake System

(ECB) ............................................................ 252

Electronic key ................................................ 100

Battery-saving function.............................. 117
If the electronic key does not operate

properly...................................................... 385

Replacing the battery...............................343

Emergency, in case of

If a warning buzzer sounds.................. 360
If a warning light turns on...................... 360
If a warning message is displayed.....370
If the 12-volt battery is discharged ....387
If the electronic key does not operate

properly...................................................... 385

If the fuel filler door cannot be opened

......................................................................... 384

If the hybrid system will not start ........382
If the vehicle is submerged or water on

the road is rising..................................... 355

If you have a flat tire ..................................375
If you lose your keys................................ 384
If you think something is wrong.........358
If your vehicle becomes stuck.............394
If your vehicle has to be stopped in an

emergency.................................................354

If your vehicle needs to be towed .....357
If your vehicle overheats ......................... 391

Emergency flashers....................................354
Energy monitor ............................................... 95
Engine

ACCESSORY mode.................................151

450

Alphabetical index

Compartment ...............................................319
Hood..................................................................317
How to start the hybrid system ........... 148
Identification number...............................399
If the hybrid system will not start........382
If your vehicle has to be stopped in an

emergency ................................................354

Ignition switch (power switch)............. 148
Overheating...................................................391
Power switch ................................................ 148
Tachometer ............................................76, 80

Engine coolant.............................................. 322

Capacity.......................................................... 401
Checking ....................................................... 322
Preparing and checking before winter

.........................................................................259

Engine coolant temperature gauge76, 80
Engine oil ..........................................................319

Capacity........................................................ 400
Checking .........................................................319
Preparing and checking before winter

.........................................................................259

Warning light.................................................361

Engine oil maintenance data ....................321
EPS (Electric Power Steering) .............. 252

Function.......................................................... 252
Warning light...............................................362

EV drive mode................................................153
Event data recorder (EDR)........................... 8
EV indicator......................................................60

Flat tire ............................................................. 375

Tire pressure warning system.............329

Floor mats...........................................................22
Fluid

Brake................................................................402
Hybrid transmission .................................402
Washer........................................................... 324

Footwell light ..................................................276
Front passenger occupant classification

system ...............................................................37

Front seats ........................................................120

Adjustment..................................................... 120
Cleaning.........................................................307
Correct driving posture ............................ 23
Driving position memory.......................... 121
Head restraints..............................................124
Memory recall function.............................123
Power easy access system ...................... 121
Seat heaters.................................................. 272
Seat position memory ................................ 121
Seat ventilators............................................ 272

Front side marker light ................................163

Light switch.................................................... 163

Front side marker lights

Replacing light bulbs................................349
Wattage......................................................... 405

Front turn signal lights ................................ 158

Replacing light bulbs................................349
Turn signal lever ..........................................158
Wattage......................................................... 405

Fuel......................................................................174

Capacity ........................................................ 399
Fuel gauge...............................................76, 80
Information................................................... 406
Refueling...........................................................174
Type................................................................. 399
Warning light ...............................................363

Fuel consumption

Average fuel economy ..............................87
Current fuel consumption........................87

Fuel filler door.................................................174

If the fuel filler door cannot be opened

......................................................................... 384

Refueling...........................................................174

Fuel gauge.................................................76, 80
Fuses.................................................................345

Garage door opener.................................295
Gauges.......................................................76, 80
Glove box.......................................................280
Glove box light.............................................280

Alphabetical index

451

Grocery bag hooks....................................282

Hands Free Power Trunk Lid ......................111
Headlights ........................................................163

AHB (Automatic High Beam)..............166
Light switch.....................................................163
Replacing light bulbs................................349

Headlights aim.............................................. 347
Head restraints...............................................124
Head-up display................................................91

Driving information display area.............91
Driving support system display area..93
Head-up display switch............................. 92
Hybrid System Indicator........................... 94
Navigation system-linked display..........91
Pop-up display...............................................93
Settings .............................................................. 92

Head-up display switch................................ 92
Heated steering wheel...............................272
Heaters

Air conditioning system..........................265
Heated steering wheel.............................272
Outside rear view mirrors ....................266
Seat heaters...................................................272

High mounted stoplight

Replacing light bulbs................................349

High-voltage components ......................... 62
Hill-start assist control............................... 252
Hood...................................................................317

Open .................................................................317

Hooks

Cargo hooks................................................282
Coat hooks...................................................294
Grocery bag hooks .................................282
Retaining hooks (floor mat)......................22

Horn....................................................................127
Hybrid battery (traction battery)

Location............................................................. 62
Specification................................................ 400
Warning message........................................65

Hybrid battery (traction battery) air vents

............................................................................. 64

Hybrid system.................................................. 59

Acoustic Vehicle Alerting System .........61
Emergency shut off system......................65
Energy monitor/consumption screen95
EV drive mode............................................. 153
High voltage components .......................62
Hybrid Electric Vehicle driving tips .257
Hybrid system precautions......................62
If the hybrid system will not start ........382
Overheating.................................................392
Power (ignition) switch............................ 148
Regenerative braking .................................60
Starting the hybrid system...................... 148

Hybrid System Indicator..............77, 82, 94
Hybrid transmission......................................154

Paddle shift switches..................................157
S mode..............................................................157

I/M test ..............................................................314
Identification

Engine............................................................. 399
Vehicle ........................................................... 398

Ignition switch (power switch) ................ 148

Auto power off function.............................151
Changing the power switch modes ...151
If your vehicle has to be stopped in an

emergency.................................................354

Starting the hybrid system...................... 148

Immobilizer system.........................................67
Indicators ............................................................74
Initialization

Intuitive parking assist..............................224
Items to initialize .........................................429
Maintenance........................................310, 321
Moon roof .......................................................134
PKSB (Parking Support Brake) .........244
Power windows............................................. 131
Tire pressure warning system .............. 331

Inside rear view mirror................................127
Instrument panel light control ...........79, 84

452

Alphabetical index

Interior lights...................................................276
Intuitive parking assist.....................220, 222

Function...........................................................222
Warning message..................................... 224

Jack

Positioning a floor jack..............................317
Vehicle-equipped jack...........................376

Jack handle .................................................... 376
Jam protection function

Moon roof.......................................................134
Power trunk opener and closer............ 113
Power windows............................................. 131

Keyless entry

Smart access system with push-button

start................................................................... 115

Wireless remote control..........................102

Keys.................................................................... 100

Battery-saving function ..............................117
Card key .........................................................100
Electronic key...............................................100
If the electronic key does not operate

properly...................................................... 385

If you lose your keys.................................384
Key number plate.......................................100
Keyless entry..................................104, 111, 115
Mechanical key............................................100
Power switch ................................................ 148
Replacing the battery...............................343
Warning buzzer............................................ 116
Wireless remote control..........................102

Knee airbags .................................................... 28

Lane Tracing Assist (LTA).......................... 191

Operation......................................................... 191
Warning messages ....................................199

Language (multi-information display) ...89
LATCH anchors .............................................50
Lever

Auxiliary catch lever...................................317
Hood lock release lever...........................317
Internal trunk release lever....................... 113
Shift lever......................................................... 154
Turn signal lever ..........................................158
Wiper lever.................................................... 169

Lexus climate concierge .......................... 264
Lexus Safety System + 2.5 ........................ 177

AHB (Automatic High Beam)............. 166
Dynamic radar cruise control with full-

speed range..............................................203

LTA (Lane Tracing Assist).......................191
PCS (Pre-Collision System)...................181
RSA (Road Sign Assist)......................... 200

License plate lights........................................163

Light switch.................................................... 163
Replacing light bulbs................................349

Light bulbs

Replacing .......................................................349
Wattage......................................................... 405

Lights

AHB (Automatic High Beam)............. 166
Front interior lights .................................... 277
Front personal lights................................. 277
Headlight switch.......................................... 163
Interior lights list..........................................276
Interior lights......................................276, 277
Rear personal lights.................................. 277
Trunk light......................................................... 112
Turn signal lever ..........................................158
Vanity lights ..................................................283
Wattage......................................................... 405
Welcome light illumination control ... 164

Low profile tire.............................................. 327
LTA (Lane Tracing Assist)..........................191

Operation.........................................................191
Warning messages.................................... 199

Luggage mat .................................................282

Alphabetical index

453

Maintenance

Do-it-yourself maintenance ...................315
General maintenance................................ 311
Maintenance data......................................398
Maintenance requirements ................... 310

Malfunction indicator lamp .......................361
Master warning light .................................. 367
Menu icons........................................................86
Meter

Changing the main meter location .....85
Clock .........................................................76, 80
Hybrid System Indicator...................77, 82
Indicators ...........................................................74
Instrument panel light control ....... 79, 84
Meter control switches..............................86
Meters .......................................................76, 80
Multi-information display..........................85
Settings ..............................................................89
Units ....................................................................88
Warning lights.............................................360
Warning message.....................................370

Mirrors

Inside rear view mirror.............................. 127
Outside rear view mirror defoggers266
Outside rear view mirrors ......................128
Vanity mirrors..............................................283

Moon roof

Door lock linked moon roof operation

...........................................................................134

Jam protection function............................134
Operation........................................................133

Multi-information display............................85

Audio system-linked display...................89
Drive information 1/Drive information 2

............................................................................ 87

Driving information display...................... 87
Driving support system information dis-

play ...................................................................89

Dynamic radar cruise control with full-

speed range..............................................203

Energy monitor..............................................95
G-force............................................................. 88
LTA (Lane-Tracing Assist) .................... 196
Menu icons ......................................................86
Meter control switches ..............................86
Navigation system-linked display ........89
Pop-up display...............................................85
Settings...............................................................89
Suggestion function.....................................90
Tire pressure ................................................329
Units.................................................................... 88
Warning message.....................................370

Navigation system-linked display..... 89, 91
Noise from under vehicle ...............................6

Odometer .................................................78, 84
Odometer and trip meter display

“ODO TRIP” switch...........................78, 84
Display items..........................................78, 84
Pop-up display......................................79, 84

“ODO TRIP” switch ..............................78, 84
Oil

Engine oil.......................................................400

Opener

Fuel filler door................................................174
Hood..................................................................317
Trunk ...................................................................110

Outer foot lights

Replacing light bulbs................................349

Outside door handle lights.......................276
Outside rear view mirrors .........................128

Adjustment..................................................... 128
BSM (Blind Spot Monitor)......................213
Folding...............................................................129
Linked mirror function when reversing

...........................................................................130

Mirror position memory............................ 121
Outside rear view mirror defoggers266

454

Alphabetical index

RCTA function............................................ 229

Outside temperature............................76, 80
Overheating....................................................391

Paddle shift switches....................................157
Panic mode ......................................................102
Parking assist sensors (intuitive parking

assist)............................................................. 222

Parking brake..................................................159

Operation....................................................... 159
Parking brake engaged warning buzzer

.......................................................................... 160

Warning light...............................................366
Warning message...................................... 160

Parking lights...................................................163

Light switch.....................................................163

Parking Support Brake function (rear-

crossing vehicles)......................... 238, 248

Function..........................................................248

Parking Support Brake function (rear

pedestrians).................................... 238, 250

Function..........................................................250

Parking Support Brake function (static

objects)..............................................238, 245

Function..........................................................245

PCS (Pre-Collision System)......................181

Function.............................................................181
PCS OFF switch......................................... 184
Warning light...............................................366

Personal lights................................................276
PKSA (Parking Support Alert)..............220
PKSB (Parking Support Brake).............238

Warning message..................................... 243

Power control unit.......................................... 62
Power control unit coolant...................... 322

Capacity.......................................................... 401
Checking ....................................................... 322
Preparing and checking before winter

.........................................................................259

Power easy access system ......................... 121
Power outlet ..................................................283

Power steering (Electric Power Steering)

.......................................................................... 252

Warning light ...............................................362

Power switch.................................................. 148

Auto power off function.............................151
Changing the power switch modes ...151
If your vehicle has to be stopped in an

emergency.................................................354

Starting the hybrid system...................... 148

Power trunk lid .............................................. 108
Power windows...............................................131

Door lock linked window operation..132
Jam protection function............................. 131
Operation......................................................... 131
Window lock switch...................................132

Pre-Collision System (PCS)......................181

Function.............................................................181
PCS OFF switch......................................... 184
Warning light .............................................. 366

Radar cruise control (dynamic radar cruise

control with full-speed range).............203

Radiator........................................................... 323
RCD (Rear Camera Detection) ...........235

Function..........................................................235
Warning message.....................................236

RCTA (Rear Cross Traffic Alert) ......... 229
RCTA

Function..........................................................229
Warning message.....................................230

Rear Cross Traffic Alert (RCTA) ......... 229
Rear door sunshades................................. 293
Rear seats

Head restraints..............................................124

Rear side marker lights ...............................163

Light switch.................................................... 163
Replacing light bulbs................................349

Rear sunshades ............................................ 292
Rear turn signal lights ................................. 158

Replacing light bulbs................................349
Turn signal lever ..........................................158

Alphabetical index

455

Rear view mirror

Inside rear view mirror.............................. 127
Outside rear view mirrors ......................128

Rear window defogger ............................. 266
Refueling ...........................................................174

Capacity.........................................................399
Fuel types.......................................................399
If the fuel filler door cannot be opened

.........................................................................384

Opening the fuel tank cap......................174

Regenerative braking...................................60
Replacing

Electronic key battery..............................343
Fuses ................................................................345
Light bulbs.....................................................349
Tires..................................................................375

Resetting the message indicating mainte-

nance is required....................................... 310

Rev indicator .................................................... 82
Rev peak.............................................................83
Road Sign Assist ..........................................200
RSA (Road Sign Assist) ............................200

Safety Connect................................................ 55
Seat belt reminder light.............................363
Seat belts............................................................ 24

Adjusting the seat belt................................ 26
Automatic Locking Retractor ................ 26
Child restraint system installation......... 44
Cleaning and maintaining the seat belt

.........................................................................307

Emergency Locking Retractor.............. 26
How to wear your seat belt..................... 25
How your child should wear the seat belt

............................................................................ 25

Pregnant women, proper seat belt use

.............................................................................24

Reminder light and buzzer...................363
Seat belt extender ........................................ 25
Seat belt pretensioners...............................27
SRS warning light ........................................361

Seat heaters....................................................272
Seating capacity.............................................146
Seat position memory................................... 121
Seats....................................................................120

Adjustment precautions.......................... 120
Adjustment..................................................... 120
Child seats/child restraint system instal-

lation.................................................................43

Cleaning.........................................................307
Driving position memory.......................... 121
Head restraints..............................................124
Power easy access system ...................... 121
Properly sitting in the seat ........................ 23
Seat heaters.................................................. 272
Seat position memory ................................ 121
Seat ventilators............................................ 272

Seat ventilators..............................................272
Secondary Collision Brake ..................... 252
Sensor

AHB (Automatic High Beam)............. 166
Automatic headlight system.................. 163
Headlight control sensor........................ 163
Humidity sensor .........................................270
Inside rear view mirror............................. 128
Intuitive parking assist.............................. 222
Kick sensor.........................................................111
Lexus Safety System + ..............................177
LTA (Lane Tracing Assist).......................191
Outside door handle ................................ 104
Parking Support Brake function (rear-

crossing vehicles)...................................248

Parking Support Brake function (static

objects)........................................................246

Radar sensor........................................177, 214
Rain-sensing windshield wipers............ 171
RCTA...............................................................230
SRS airbags......................................................29

Service plug...................................................... 62
Service reminder message ...................... 310
S-FLOW ......................................................... 270
Shift lever

Hybrid transmission................................... 154

456

Alphabetical index

Shift lever light ...............................................276
Side airbags ...................................................... 28
Side marker lights..........................................163

Light switch.....................................................163

Side mirrors .....................................................128

Adjustment......................................................128
BSM (Blind Spot Monitor) .....................213
Folding ..............................................................129
Linked mirror function when reversing

.......................................................................... 130

Mirror position memory.............................121
RCTA function............................................ 229

Side turn signal lights .................................. 158

Replacing light bulbs................................349
Turn signal lever.......................................... 158

Side windows ...................................................131
Smart access system with push-button

start....................................................................115

Antenna location........................................... 115
Entry functions........................................104, 111
Starting the hybrid system...................... 148

Snow tires ....................................................... 259
Spare tire

Storage location.........................................376

Spark plug ......................................................402
Specifications................................................398
Speedometer ...........................................76, 80
Sport mode ......................................................218
Steering wheel................................................126

Adjustment......................................................126
Heated steering wheel.............................272
Meter control switches..............................86
Power easy access system.......................121
Steering wheel position memory ..........121

Stop lights

Replacing light bulbs................................349

Storage feature ............................................ 279
Stuck

If the vehicle becomes stuck................394

Suggestion function.......................................90
Sunshade

Moon roof.......................................................134

Rear door sunshades...............................293
Rear sunshade.............................................292

Sun visors........................................................283
Switches

“ODO TRIP” switch...........................78, 84
“SOS” button...................................................55
Automatic High Beam............................. 166
Brake Hold switch........................................161
BSM (Blind spot monitor) switch........214
Door lock switches ....................................106
Driving Mode Select switch.................. 218
Driving position memory switches ...... 121
Dynamic radar cruise control with full-

speed range switch ...............................203

Emergency flashers switch ...................354
EV drive mode switch.............................. 153
Garage door opener switches...........295
Head-up display switch.............................92
Heated steering wheel switch............. 272
Ignition switch............................................... 148
Instrument panel light control switches

....................................................................79, 84

Intuitive parking assist switch...............223
Light switches ............................................... 163
LTA (Lane-Tracing Assist) switch ..... 196
Meter control switches ..............................86
Moon roof switches................................... 133
Outside rear view mirror switches.... 128
Paddle shift switches..................................157
Parking brake switch.................................159
PCS OFF switch......................................... 184
PKSB (Parking Support Brake) switch

..........................................................................240

Power door lock switch ..........................106
Power switch................................................. 148
Power window switches ........................... 131
RCD (Rear Camera Detection) switch

..........................................................................235

RCTA switch................................................230
Rear sunshades switch............................292
Rear window and outside rear view mir-

ror defoggers switch ............................265

Alphabetical index

457

Seat heater switches .................................272
Seat ventilator switches...........................272
Tilt and telescopic steering control

switch..............................................................126

Tire pressure warning reset switch ....331
Trunk closer switch.......................................112
Trunk opener main switch ........................114
Trunk opener switch...................................110
Vehicle-to-vehicle distance switch ..203
VSC OFF switch.......................................253
Window lock switch ..................................132
Windshield wiper and washer switch169
Windshield wiper de-icer switch ......269
Wireless charger switch........................286

Tachometer...............................................76, 80

Rev indicator...................................................82
Rev peak ...........................................................83

Tail lights............................................................163

Light switch.....................................................163
Replacing light bulbs................................349

Theft deterrent system

Alarm ..................................................................68
Immobilizer system...................................... 67

Tire inflation pressure................................335

Maintenance data......................................403
Tire inflation pressure display function

.........................................................................329

Warning light...............................................364

Tire information............................................408

Glossary...........................................................412
Size..................................................................... 410
Tire identification number ...................... 410
Uniform Tire Quality Grading................411

Tire pressure warning system ................ 329

Function..........................................................329
Initializing .........................................................331
Installing tire pressure warning valves

and transmitters ......................................330

Registering ID codes...............................333
Warning light...............................................364

Tires................................................................... 327

Chains ............................................................ 260
Checking .......................................................327
If you have a flat tire ..................................375
Inflation pressure........................................335
Information...................................................408
Replacing .......................................................375
Rotating tires ................................................329
Size................................................................... 403
Snow tires ......................................................259
Spare tire........................................... 375, 403
Tire inflation pressure display function

..........................................................................329

Tire pressure warning system .............329
Warning light ...............................................364

Tools.................................................................. 376
Top tether strap............................................... 53
Total load capacity......................................398
Towing

Dinghy towing...............................................147
Emergency towing....................................357
Trailer towing................................................ 146

TRAC (Traction Control) ........................ 252
Traction battery (hybrid battery) ............. 62

Hybrid battery (traction battery) air vents

.............................................................................64

Location.............................................................62
Specification ................................................400
Warning message........................................65

Traction Control (TRAC) ........................ 252
Traction motor (electric motor) ............... 59
Trailer towing ..................................................146
Transmission

Driving Mode Select switch.................. 218
Hybrid transmission................................... 154
Paddle shift switches..................................157
S mode..............................................................157

Trip meters ................................................78, 84
Trunk.................................................................. 108

Hands Free Power Trunk Lid...................111
Internal trunk release lever....................... 113
Power trunk lid.............................................108

458

Alphabetical index

Smart access system with push-button

start..................................................................... 111

Trunk closer switch.......................................112
Trunk easy closer...........................................112
Trunk features..............................................282
Trunk grip..........................................................112
Trunk light..........................................................112
Trunk opener main switch ........................114
Trunk opener switch...................................110
Trunk storage extension ........................294
Wireless remote control............................. 111

Trunk light.......................................................... 112
Turn signal lights ........................................... 158

Replacing light bulbs................................349
Turn signal lever.......................................... 158
Wattage..........................................................405

USB Type-C charging ports...................284

Vanity lights....................................................283
Vanity mirrors ...............................................283
Vehicle data recordings..................................7
Vehicle identification number................398
Vehicle Stability Control (VSC) ........... 252
Ventilators (seat ventilators)....................272
VSC (Vehicle Stability Control) ........... 252

Warning buzzers

ABS ..................................................................362
Airbags .............................................................361
Approach warning....................................209
Brake hold.....................................................367
Brake Override System.........................362
Brake system ...............................................360
Charging system .........................................361
Downshifting.......................................157, 158
Drive-Start Control ..................................362

Electric power steering...........................362
Engine............................................................... 361
High coolant temperature.................... 360
Hybrid system overheat.........................367
Hybrid system............................................... 361
Intuitive parking assist..................228, 364
Low engine oil pressure.......................... 361
LTA (Lane Tracing Assist)...........191, 364
Open door..................................................... 107
Open hood.................................................... 107
Open trunk .................................................... 107
Open window ...............................................132
PKSA (Parking Support Alert) .............221
PKSB (Parking Support Brake) ........ 365
RCD (Rear Camera Detection) ....... 365
RCTA (Rear Cross Traffic Alert) ..... 365
Seat belt..........................................................363

Warning label .................................................. 62
Warning lights...............................................360

ABS...................................................................362
Brake hold operated indicator ...........367
Brake system............................................... 360
Charging system......................................... 361
Electric power steering...........................362
High coolant temperature.................... 360
Hybrid system overheat.........................367
Inappropriate pedal operation............362
Intuitive parking assist OFF indicator

..........................................................................364

Low engine oil pressure.......................... 361
Low fuel level ...............................................363
LTA indicator...............................................364
Malfunction indicator lamp.................... 361
Master warning light.................................367
Parking brake indicator ......................... 366
PCS.................................................................. 366
PKSB OFF indicator ............................... 365
RCD OFF indicator................................. 365
RCTA OFF indicator.............................. 365
Seat belt reminder light...........................363
Slip indicator................................................ 366
SRS..................................................................... 361

Alphabetical index

459

Tire pressure................................................364

Warning messages..................................... 370
Washer ..............................................................169

Checking ....................................................... 324
Preparing and checking before winter

.........................................................................259

Switch ................................................................169

Washing and waxing..................................304
Weight

Cargo capacity.............................................146
Load limits .......................................................146
Weight ............................................................398

Wheels............................................................. 337

Size....................................................................403

Window lock switch .....................................132
Windows............................................................131

Power windows............................................. 131
Rear window defogger ..........................266
Washer.............................................................169

Windshield wiper de-icer ........................ 269
Windshield wipers ........................................169

Position ............................................................. 172
Rain-sensing windshield wipers...........169

Winter driving tips....................................... 259
Wireless charger.........................................285
Wireless remote control ............................102

Battery-Saving Function ............................117
Locking/Unlocking ....................................102
Replacing the battery...............................343

For information regarding the

equipment listed below, refer to
the “MULTIMEDIA OWNER’S
MANUAL”.

· Audio/video system
· Navigation system
· Lexus parking assist monitor
· Panoramic view monitor

Lexus ES300H (2023 year). Manual in english - page 14
