8-1. Specifications

8

Vehi

cle

 spec

ifi

ca

tions

*

: The 28/8 W bulb is used. However, only the 28 W filament illuminates.

Light bulbs (vehicles with single-beam headlights)

Light bulbs

Bulb No.

W

Type

Front turn signal lights

7444NA

28/8

*

Wedge base

bulbs (amber)

Front side marker lights

W5W

5

Wedge base

bulbs (clear)

406

8-1. Specifications

■

Gasoline quality

In very few cases, driveability problems may

be caused by the brand of gasoline you are

using. If driveability problems persist, try

changing the brand of gasoline. If this does

not correct the problem, consult your Lexus

dealer.

■

Recommendation of the use of gasoline

containing detergent additives

●

Lexus recommends the use of gasoline

that contains detergent additives to avoid

the build-up of engine deposits.

●

All gasoline sold in the U.S.A. contains

minimum detergent additives to clean

and/or keep clean intake systems, per

EPA’s lowest additives concentration

program.

●

Lexus strongly recommends the use of

Top Tier Detergent Gasoline. For more

information on Top Tier Detergent Gas-

oline and a list of marketers, please go to

the official website www.toptiergas.com.

■

Recommendation of the use of low

emissions gasoline

Gasolines containing oxygenates such as

ethers and ethanol, as well as reformulated

gasolines, are available in some cities.

These fuels are typically acceptable for use,

providing they meet other fuel require-

ments.

Lexus recommends these fuels, since the

formulations allow for reduced vehicle

emissions.

■

Non-recommendation of the use of

blended gasoline

●

Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30 (30% ethanol [

]), E50 (50%

ethanol [

]), E85 (85% ethanol [

])

(which are only some examples of fuel
containing more than 15% ethanol).

●

If you use gasohol in your vehicle, be sure

that it has an octane rating no lower than

87.

●

Lexus does not recommend the use of

gasoline containing methanol.

■

Non-recommendation of the use of gas-

oline containing MMT

Some gasoline contains an octane enhanc-

ing additive called MMT (Methylcyclopen-

tadienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gas-

oline that contains MMT. If fuel containing

MMT is used, your emission control system

may be adversely affected.
The malfunction indicator lamp on the

instrument cluster may come on. If this hap-

pens, contact your Lexus dealer for service.

■

If your engine knocks

●

Consult your Lexus dealer.

●

You may occasionally notice light knock-

ing for a short time while accelerating or

driving uphill. This is normal and there is

no need for concern.

Fuel information

You must only use unleaded gaso-
line.

Select octane rating 87 (Research
Octane Number 91) or higher. Use
of unleaded gasoline with an octane
rating lower than 87 may result in
engine knocking. Persistent knock-
ing can lead to engine damage.

At minimum, the gasoline you use
should meet the specifications of
ASTM D4814 in the U.S.A.

A

B

C

407

8-1. Specifications

8

V

eh

icle

 sp

ec

ific

atio

ns

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If improper

fuels are used, the engine will be dam-

aged.

●

Do not use leaded gasoline.

Leaded gasoline can cause damage to

your vehicle’s three-way catalytic con-

verters causing the emission control

system to malfunction.

●

Do not use gasohol other than the type

previously stated.

Other gasohol may cause fuel system

damage or vehicle performance prob-

lems.

●

Using unleaded gasoline with an

octane number or rating lower than

the level previously stated may cause

persistent heavy knocking.

At worst, this may lead to engine dam-

age and will void the vehicle warranty.

■

Fuel-related poor driveability

If poor driveability (poor hot starting,

vaporization, engine knocking, etc.) is

encountered after using a different type

of fuel, discontinue the use of that type of

fuel.

■

When refueling with gasohol

Take care not to spill gasohol. It can

damage your vehicle’s paint.

408

8-1. Specifications



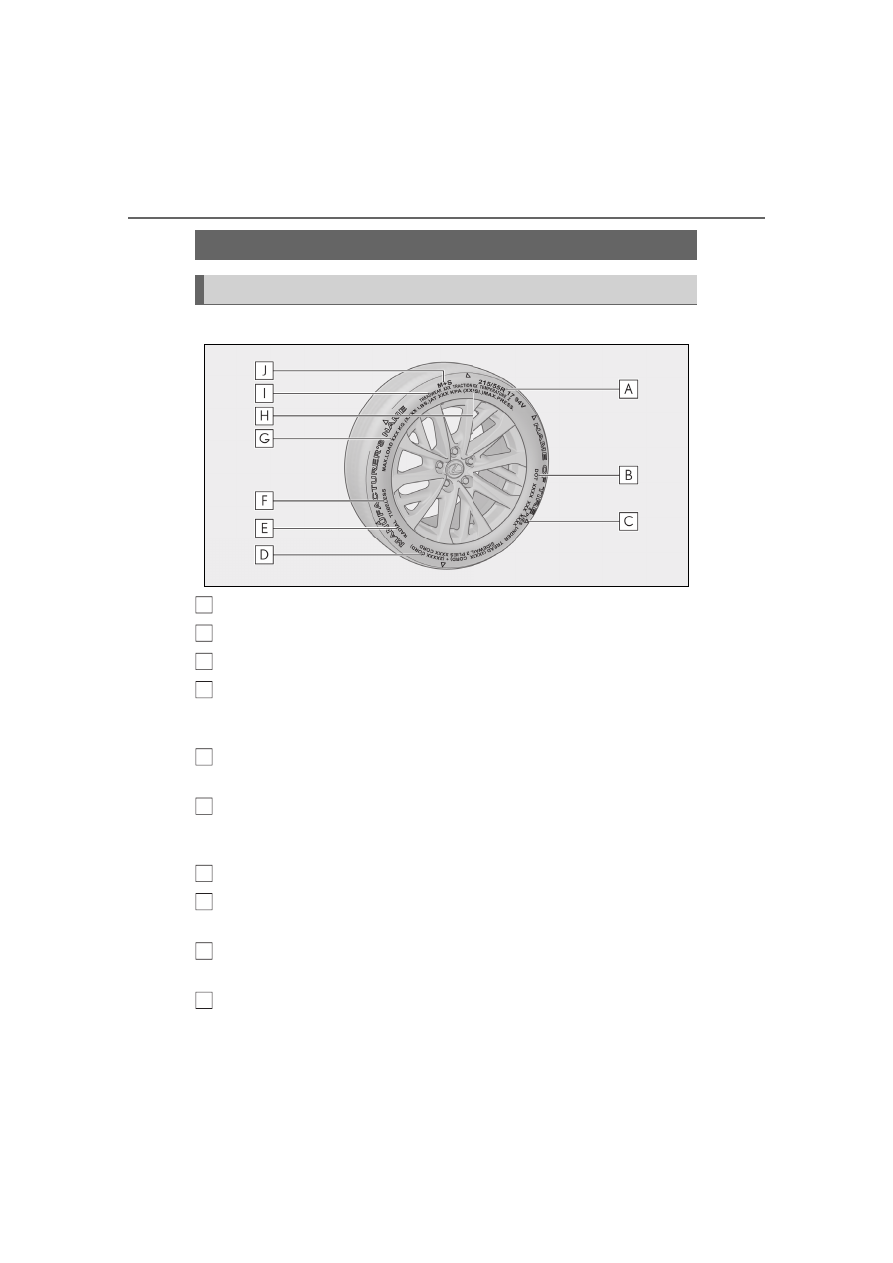

Full-size tire

Tire size (



P.410)

DOT and Tire Identification Number (TIN) (



P.410)

Location of treadwear indicators (



P.327)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies
in a tire.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire has a
tube inside the tire and the tube maintains the air pressure.

Load limit at maximum cold tire inflation pressure (



P.412)

Maximum cold tire inflation pressure (



P.412)

This means the pressure to which a tire may be inflated.

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Summer tires or all season tires (



P.328)

An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a summer tire.

Tire information

Typical tire symbols

A
B
C
D

E

F

G

H

I

J

409

8-1. Specifications

8

Vehi

cle

 spec

ifi

ca

tions



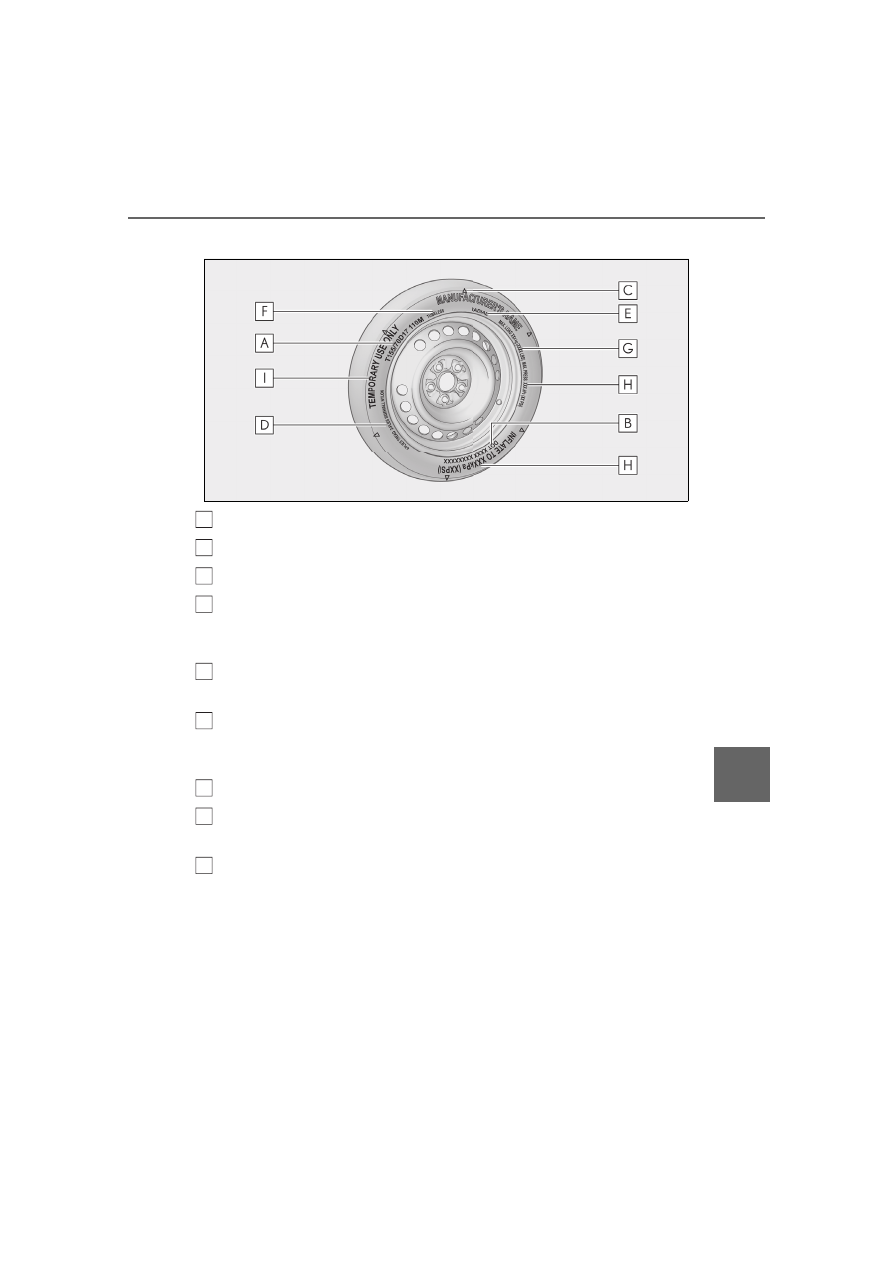

Compact spare tire

Tire size (



P.410)

DOT and Tire Identification Number (TIN) (



P.410)

Location of treadwear indicators (



P.327)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies
in a tire.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire has a
tube inside the tire and the tube maintains the air pressure.

Load limit at maximum cold tire inflation pressure (



P.412)

Maximum cold tire inflation pressure (



P.412)

This means the pressure to which a tire may be inflated.

“TEMPORARY USE ONLY”

A compact spare tire is identified by the phrase “TEMPORARY USE ONLY” molded on
its sidewall. This tire is designed for temporary emergency use only.

A
B
C
D

E

F

G

H

I

410

8-1. Specifications



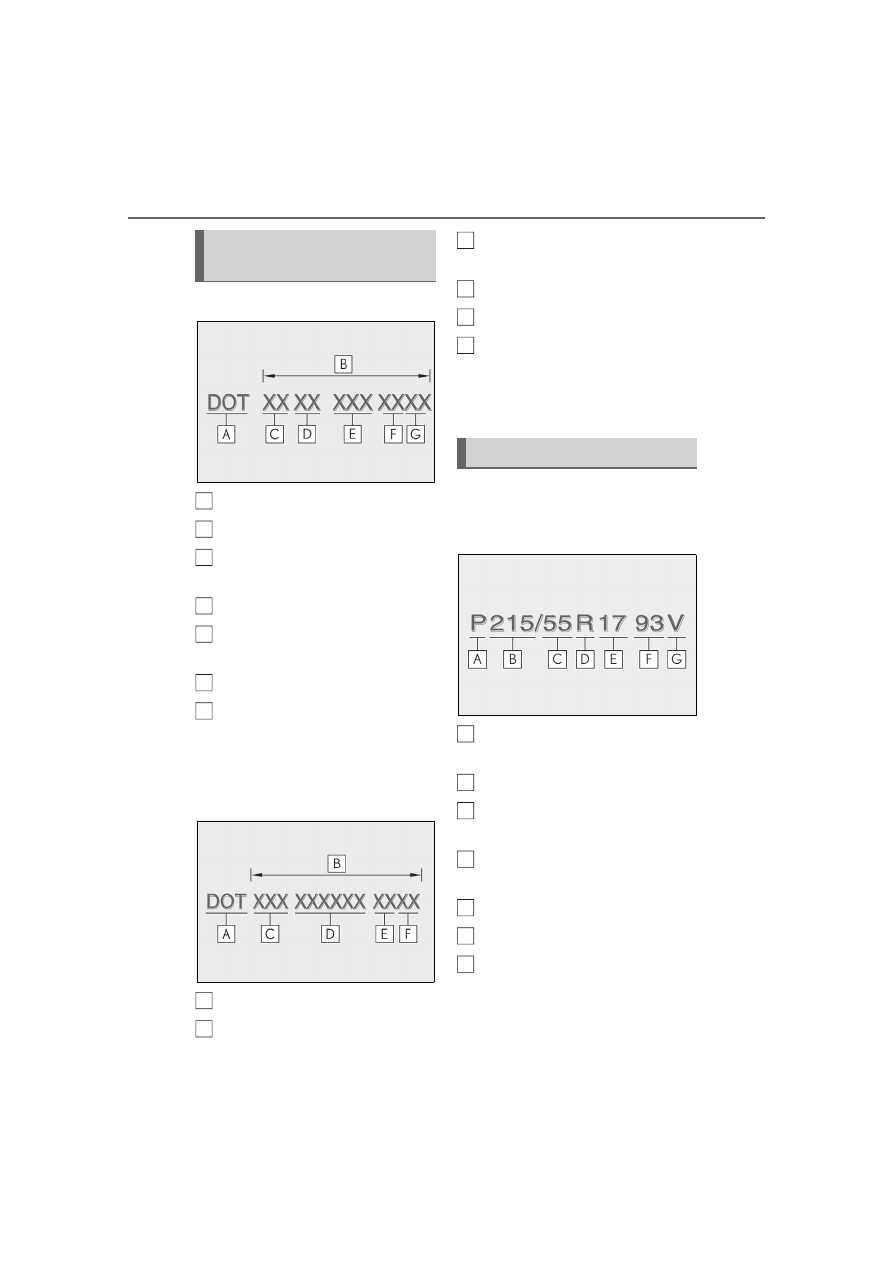

Type A

DOT symbol

*

Tire Identification Number (TIN)

Tire manufacturer’s identification
mark

Tire size code

Manufacturer’s optional tire type
code (3 or 4 letters)

Manufacturing week

Manufacturing year

*

: The  DOT  symbol  certifies that the tire

conforms to applicable Federal Motor
Vehicle Safety Standards.



Type B

DOT symbol

*

Tire Identification Number (TIN)

Tire manufacturer’s identification
mark

Manufacturer’s code

Manufacturing week

Manufacturing year

*

: The DOT symbol certifies that the tire

conforms to applicable Federal Motor
Vehicle Safety Standards.

■

Typical tire size information

The illustration indicates typical tire
size.

Tire use (P = Passenger car, T =
Temporary use)

Section width (millimeters)

Aspect ratio (tire height to section
width)

Tire construction code (R = Radial,
D = Diagonal)

Wheel diameter (inches)

Load index (2 digits or 3 digits)

Speed symbol (alphabet with one
letter)

Typical DOT and Tire Identifica-
tion Number (TIN)

A
B
C

D

E

F

G

A
B

Tire size

C

D

E
F

A

B
C

D

E
F

G

411

8-1. Specifications

8

Vehi

cle

 spec

ifi

ca

tions

■

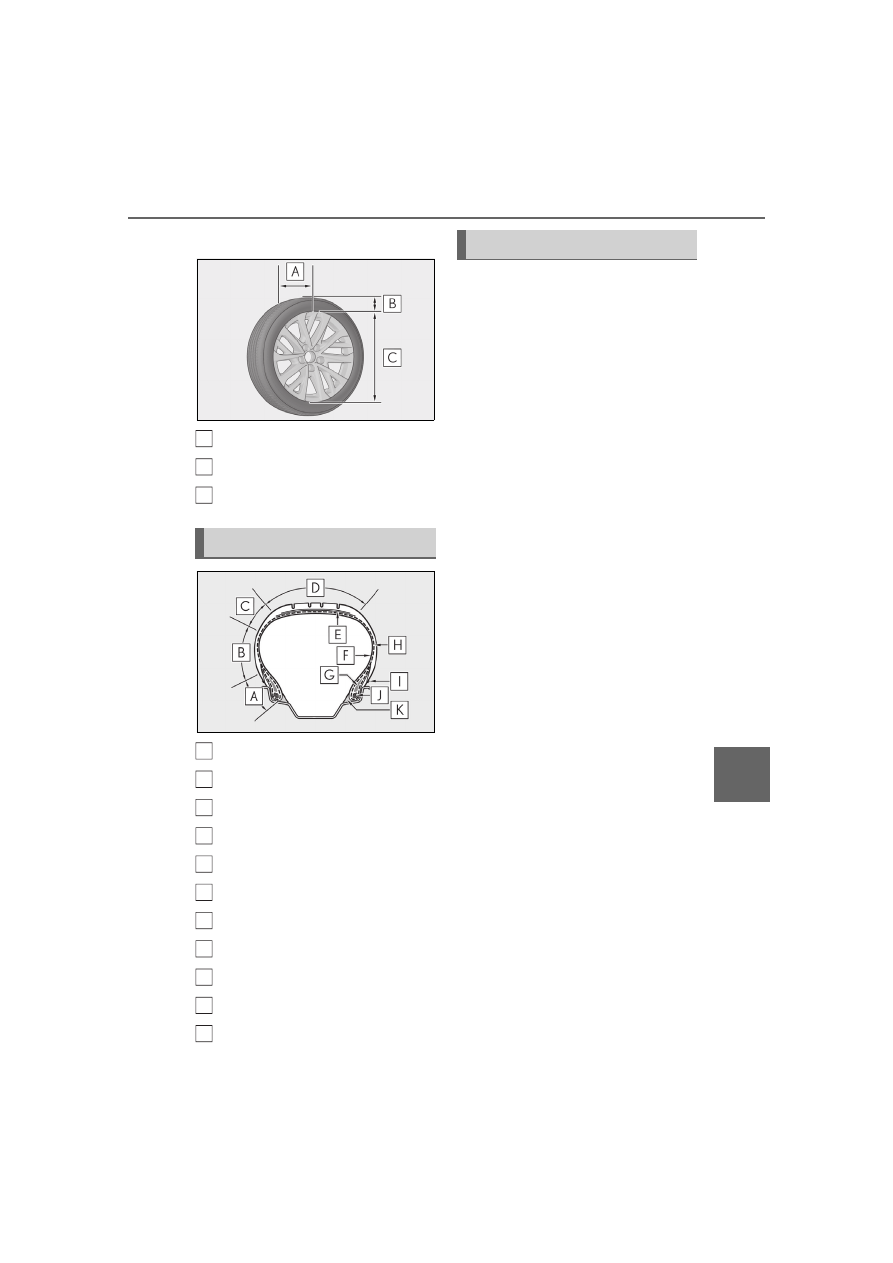

Tire dimensions

Section width

Tire height

Wheel diameter

Bead

Sidewall

Shoulder

Tread

Belt

Inner liner

Reinforcing rubber

Carcass

Rim lines

Bead wires

Chafer

This information has been prepared in
accordance with regulations issued by
the National Highway Traffic Safety
Administration of the U.S. Department
of Transportation.
It provides the purchasers and/or pro-
spective purchasers of Lexus vehicles
with information on uniform tire quality
grading.

Your Lexus dealer will help answer any
questions you may have as you read this
information.

■

DOT quality grades

All passenger vehicle tires must con-
form to Federal Safety Requirements
in addition to these grades. Quality
grades can be found where applicable
on the tire sidewall between tread
shoulder and maximum section width.

For example: Treadwear 200 Traction AA
Temperature A

■

Treadwear

The treadwear grade is a comparative
rating based on the wear rate of the
tire when tested under controlled con-
ditions on a specified government test
course.

For example, a tire graded 150 would
wear one and a half (1 - 1/2) times as well
on the government course as a tire graded
100.
The relative performance of tires depends
upon the actual conditions of their use.
Performance may differ significantly from
the norm due to variations in driving habits,
service practices and differences in road
characteristics and climate.

Tire section names

A
B
C

A
B
C
D

E
F

G

H

I

J

K

Uniform Tire Quality Grading

412

8-1. Specifications

■

Traction AA, A, B, C

The traction grades, from highest to
lowest, are AA, A, B and C, and they
represent the tire’s ability to stop on
wet pavement as measured under con-
trolled conditions on specified govern-
ment test surfaces of asphalt and
concrete.

A tire marked C may have poor traction
performance.
Warning: The traction grade assigned to
this tire is based on braking (straight
ahead) traction tests and does not include
cornering (turning) traction.

■

Temperature A, B, C

The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat

when tested under controlled condi-
tions on a specified indoor laboratory
test wheel.

Sustained high temperature can cause the
material of the tire to degenerate and
reduce tire life, and excessive temperature
can lead to sudden tire failure.
Grade C corresponds to a level of perfor-
mance which all passenger car tires must
meet under the Federal Motor Vehicle
Safety Standard No. 109.
Grades B and A represent higher levels of
performance on the laboratory test wheel
than the minimum required by law.
Warning: The temperature grades of a tire
assume that it is properly inflated and not
overloaded.
Excessive speed, underinflation, or exces-
sive loading, either separately or in combi-
nation, can cause heat buildup and
possible tire failure.

Glossary of tire terminology

Tire related term

Meaning

Cold tire inflation
pressure

Tire pressure when the vehicle has been parked for three hours or
more, or has not been driven more than 1 mile or 1.5 km under that
condition

Maximum inflation
pressure

The maximum cold inflated pressure to which a tire may be inflated,
shown on the sidewall of the tire

Recommended
inflation pressure

Cold tire inflation pressure recommended by a manufacturer

Accessory weight

The combined weight (in excess of those standard items which may
be replaced) of hybrid transmission, power steering, power brakes,
power windows, power seats, radio and heater, to the extent that
these items are available as factory-installed equipment (whether
installed or not)

Curb weight

The weight of a motor vehicle with standard equipment, including the
maximum capacity of fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional engine

413

8-1. Specifications

8

Vehi

cle

 spec

ifi

ca

tions

Maximum loaded
vehicle weight

The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

Normal occupant
weight

150 lb. (68 kg) times the number of occupants specified in the sec-
ond column of Table 1

*

 that follows

Occupant distribu-
tion

Distribution of occupants in a vehicle as specified in the third column
of Table 1

*

 below

Production options
weight

The combined weight of installed regular production options weigh-
ing over 5 lb. (2.3 kg) in excess of the standard items which they
replace, not previously considered in curb weight or accessory
weight, including heavy duty brakes, ride levelers, roof rack, heavy
duty 12-volt battery, and special trim

Rim

A metal support for a tire or a tire and tube assembly upon which the
tire beads are seated

Rim diameter
(Wheel diameter)

Nominal diameter of the bead seat

Rim size designation Rim diameter and width

Rim type designa-
tion

The industry manufacturer’s designation for a rim by style or code

Rim width

Nominal distance between rim flanges

Vehicle capacity
weight (Total load
capacity)

The rated cargo and luggage load plus 150 lb. (68 kg) times the
vehicle’s designated seating capacity

Vehicle maximum
load on the tire

The load on an individual tire that is determined by distributing to
each axle its share of the maximum loaded vehicle weight, and divid-
ing by two

Vehicle normal load
on the tire

The load on an individual tire that is determined by distributing to
each axle its share of curb weight, accessory weight, and normal
occupant weight (distributed in accordance with Table 1

*

 below),

and dividing by two

Weather side

The surface area of the rim not covered by the inflated tire

Tire related term

Meaning

414

8-1. Specifications

Bead

The part of the tire that is made of steel wires, wrapped or reinforced
by ply cords and that is shaped to fit the rim

Bead separation

A breakdown of the bond between components in the bead

Bias ply tire

A pneumatic tire in which the ply cords that extend to the beads are
laid at alternate angles substantially less than 90 degrees to the cen-
terline of the tread

Carcass

The tire structure, except tread and sidewall rubber which, when
inflated, bears the load

Chunking

The breaking away of pieces of the tread or sidewall

Cord

The strands forming the plies in the tire

Cord separation

The parting of cords from adjacent rubber compounds

Cracking

Any parting within the tread, sidewall, or innerliner of the tire extend-
ing to cord material

CT

A pneumatic tire with an inverted flange tire and rim system in which
the rim is designed with rim flanges pointed radially inward and the
tire is designed to fit on the underside of the rim in a manner that
encloses the rim flanges inside the air cavity of the tire

Extra load tire

A tire designed to operate at higher loads and at higher inflation
pressures than the corresponding standard tire

Groove

The space between two adjacent tread ribs

Innerliner

The layer(s) forming the inside surface of a tubeless tire that contains
the inflating medium within the tire

Innerliner separa-
tion

The parting of the innerliner from cord material in the carcass

Intended outboard
sidewall

(a) The sidewall that contains a whitewall, bears white lettering, or
bears manufacturer, brand, and/or model name molding that is
higher or deeper than the same molding on the other sidewall of the
tire, or
(b) The outward facing sidewall of an asymmetrical tire that has a
particular side that must always face outward when mounted on a
vehicle

Light truck (LT) tire

A tire designated by its manufacturer as primarily intended for use
on lightweight trucks or multipurpose passenger vehicles

Load rating

The maximum load that a tire is rated to carry for a given inflation
pressure

Tire related term

Meaning

415

8-1. Specifications

8

Vehi

cle

 spec

ifi

ca

tions

Maximum load rat-
ing

The load rating for a tire at the maximum permissible inflation pres-
sure for that tire

Maximum permissi-
ble inflation pres-
sure

The maximum cold inflation pressure to which a tire may be inflated

Measuring rim

The rim on which a tire is fitted for physical dimension requirements

Open splice

Any parting at any junction of tread, sidewall, or innerliner that
extends to cord material

Outer diameter

The overall diameter of an inflated new tire

Overall width

The linear distance between the exteriors of the sidewalls of an
inflated tire, including elevations due to labeling, decorations, or pro-
tective bands or ribs

Passenger car tire

A tire intended for use on passenger cars, multipurpose passenger
vehicles, and trucks, that have a gross vehicle weight rating (GVWR)
of 10,000 lb. or less.

Ply

A layer of rubber-coated parallel cords

Ply separation

A parting of rubber compound between adjacent plies

Pneumatic tire

A mechanical device made of rubber, chemicals, fabric and steel or
other materials, that, when mounted on an automotive wheel, pro-
vides the traction and contains the gas or fluid that sustains the load

Radial ply tire

A pneumatic tire in which the ply cords that extend to the beads are
laid at substantially 90 degrees to the centerline of the tread

Reinforced tire

A tire designed to operate at higher loads and at higher inflation
pressures than the corresponding standard tire

Section width

The linear distance between the exteriors of the sidewalls of an
inflated tire, excluding elevations due to labeling, decoration, or pro-
tective bands

Sidewall

That portion of a tire between the tread and bead

Sidewall separation

The parting of the rubber compound from the cord material in the
sidewall

Tire related term

Meaning

416

8-1. Specifications

*

: Table  1



 Occupant loading and distribution for vehicle normal load for various desig-

nated seating capacities

Snow tire

A tire that attains a traction index equal to or greater than 110, com-
pared to the ASTM E-1136 Standard Reference Test Tire, when
using the snow traction test as described in ASTM F-1805-00, Stan-
dard Test Method for Single Wheel Driving Traction in a Straight
Line on Snow-and Ice-Covered Surfaces, and which is marked with

an Alpine Symbol (

) on at least one sidewall

Test rim

The rim on which a tire is fitted for testing, and may be any rim listed
as appropriate for use with that tire

Tread

That portion of a tire that comes into contact with the road

Tread rib

A tread section running circumferentially around a tire

Tread separation

Pulling away of the tread from the tire carcass

Treadwear indica-
tors (TWI)

The projections within the principal grooves designed to give a visual
indication of the degrees of wear of the tread

Wheel-holding fix-
ture

The fixture used to hold the wheel and tire assembly securely during
testing

Designated seating capacity,

Number of occupants

Vehicle normal load, Num-

ber of occupants

Occupant distribution in a

normally loaded vehicle

2 through 4

2

2 in front

5 through 10

3

2 in front, 1 in second seat

11 through 15

5

2 in front, 1 in second seat, 1 in

third seat, 1 in fourth seat

16 through 20

7

2 in front, 2 in second seat, 2

in third seat, 1 in fourth seat

Tire related term

Meaning

417

8-2. Customization

8

V

eh

icle

 sp

ec

ific

atio

ns

8-2.Customization

■

Changing by using the meter con-
trol switches

1

Press

 or

 to select

.

2

Operate the meter control
switches to select the desired item
to be customized.

3

According to the display, select the
desired setting.

To go back to the previous screen or exit
the customize mode, press

.

■

Changing using the Center Dis-
play

1

Select

 on the main menu.

2

Select “Vehicle customize” on the
sub menu.

Various setting can be changed. Refer to

the list of settings that can be changed for

details.

■

During customization

Stop the vehicle in a safe place, apply the

parking brake, and shift the shift lever to P.

Also, to prevent 12-volt battery discharge,

leave the hybrid system operating while

customizing the features.

Some function settings are changed simultaneously with other functions being cus-
tomized. Contact your Lexus dealer for further details.

Settings that can be changed using the Center Display
Settings that can be changed using the meter control switches
Settings that can be changed by your Lexus dealer

Definition of symbols: O = Available,



 = Not available

Customizable features

Your vehicle includes a variety of
electronic features that can be per-
sonalized to your preferences. The
settings of these features can be
changed by using the meter control
switches, the Center Display or at
your Lexus dealer.

Customizing vehicle features

WARNING

■

During customization

As the hybrid system needs to be operat-

ing during customization, ensure that the

vehicle is parked in a place with ade-

quate ventilation. In a closed area such as

a garage, exhaust gases including harm-

ful carbon monoxide (CO) may collect

and enter the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

During customization

To prevent 12-volt battery discharge,

ensure that the hybrid system is operat-

ing while customizing features.

Customizable features

A

B

C

418

8-2. Customization

■

Gauges, meters and multi-information display (



P.76, 80, 85)

*1

: For details about each function:



P.89

Function

*1

Default setting

Customized set-

ting

Language

English

French

O

O



Spanish

Units

*2

miles (MPG)

km (km/L)

O

O



km (L/100 km)

miles (MPG Impe-

rial)

Speedometer display

*3

Digital

Analog



O



Analog and digital

Drive information 1

Current fuel con-

sumption

Customizable
items:



P.87



O



Average fuel econ-

omy (after reset)

Drive information 2

Distance (driving

range)

Average vehicle

speed (after reset)

Clock

12-hour display

24-hour display



O



Pop-up display

On

Off



O



Tachometer setting

Change according

to driving mode

Always tachome-

ter



O



Always Hybrid

System Indicator

Rev indicator

*4

4000 rpm

2000 - 5700 rpm



O



Off

Rev peak

*4

On

Off



O



EV indicator

On

Off



O



Suggestion function

On

On (when the vehi-

cle is stopped)

O



O

Off

A

B

C

419

8-2. Customization

8

Vehi

cle

 spec

ifi

ca

tions

*2

: The default setting varies according to country.

*3

: Except  F  SPORT  models

*4

: F  SPORT  models

■

Head-up Display

*

 (



P.91)

*

: If  equipped

■

Door lock (



P.104, 108, 385)

Function

Default setting

Customized set-

ting

Gauge information

Hybrid System

Indicator

Tachometer



O



No content

Route guidance to destina-
tion/street name

*

On

Off



O



Driving support system display

On

Off



O



Compass

*

On

Off



O



Audio system operation status

On

Off



O



Function

Default setting

Customized set-

ting

Unlocking using a mechanical
key

Driver’s door

unlocked in one

step, all doors

unlocked in two

step

All doors unlocked

in one step

 

O

Automatic door locking func-
tion

Shift lever linked

door locking oper-

ation

Off

O



O

Speed linked door

locking operation

Automatic door unlocking
function

Shift lever linked

door unlocking

operation

Off

O



O

Driver’s door

linked door

unlocking opera-

tion

Locking/unlocking of the trunk
when all doors are
locked/unlocked

On

Off

 

O

A

B

C

A

B

C

420

8-2. Customization

■

Rear seat reminder (



P.106)

■

Smart access system with push-button start and wireless remote control
(



P.104, 115)

■

Smart access system with push-button start (



P.104, 115)

Function

Default setting

Customized set-

ting

Rear seat reminder function

On

Off



O



Function

Default setting

Customized set-

ting

Operating signal (Buzzers)

Standard

Desired volume

O



O

Operation signal (Emergency
flashers)

On

Off

O



O

Time elapsed before automatic
door lock function is activated if
door is not opened after being
unlocked

60 seconds

Off

O



O

30 seconds

120 seconds

Open door warning buzzer
(When locking the vehicle)

On

Off

 

O

Function

Default setting

Customized set-

ting

Smart access system with push-
button start

On

Off

 

O

Smart door unlocking

Driver’s door

All the doors

O



O

Time elapsed before unlocking
all the door when gripping and
holding the driver’s door handle

2 seconds

Off

 

O

1.5 seconds

2.5 seconds

Number of consecutive door
lock operations

2 times

As many as desired

 

O

A

B

C

A

B

C

A

B

C

421

8-2. Customization

8

Vehi

cle

 spec

ifi

ca

tions

■

Wireless remote control (



P.100, 104, 108)

■

Trunk (



P.108)

*

: If  equipped

■

Driving position memory

*

 (



P.121)

Function

Default setting

Customized set-

ting

Wireless remote control

On

Off

 

O

Unlocking operation

Driver’s door

unlocked in one

step, all doors

unlocked in two

step

All doors unlocked

in one step

O



O

Locking operation when door
opened

On

Off

O



O

Trunk unlocking operation

Press and hold

(short)

One short press

 

O

Push twice

Press and hold

(long)

Off

Theft deterrent panic mode

On

Off

 

O

Function

Default setting

Customized set-

ting

Hands Free Power Trunk Lid
(kick sensor)

*

On

Off



O



Buzzer when the kick sensor

*



detects a foot

On

Off

 

O

Function

Default setting

Customized set-

ting

Selecting doors linked to the
memory recall function

*

Driver’s door

All doors

 

O

Driver’s seat slide movement
when exiting the vehicle

*

Full

Off

O



O

Partial

A

B

C

A

B

C

A

B

C

422

8-2. Customization

*

: If  equipped

■

Outside rear view mirrors (



P.128)

*

: If  equipped

■

Power windows and moon roof (



P.131, 133)

■

Automatic light control system (



P.163)

Steering wheel movement

Tilt only

Off

O

 

Telescopic only

Tilt and telescopic

Function

Default setting

Customized set-

ting

Automatic mirror folding and
extending operation

*

Linked to the lock-

ing/ unlocking of

the doors

Off

 

O

Linked to opera-

tion of the power

switch

Function

Default setting

Customized set-

ting

Mechanical key linked opera-
tion (open)

Off

On

 

O

Mechanical key linked opera-
tion (close)

Off

On

 

O

Wireless remote control linked
operation (open)

Off

On

 

O

Wireless remote control linked
operation signal (buzzer)

On

Off

 

O

Function

Default setting

Customized set-

ting

Light sensor sensitivity

Normal

Brighter

O



O

Bright

Dark

Darker

Function

Default setting

Customized set-

ting

A

B

C

A

B

C

A

B

C

A

B

C

423

8-2. Customization

8

Vehi

cle

 spec

ifi

ca

tions

■

Lights (



P.163)

*

: Except  for  Canada

■

PCS (Pre-Collision System) (



P.181)

*

: The system is automatically enabled each time the power switch is turned to ON mode.

■

LTA (Lane Tracing Assist) (



P.191)

Time elapsed before head-
lights automatically turn off
after doors are closed

30 seconds

Off

O



O

60 seconds

90 seconds

Windshield wiper linked head-
light illumination

On

Off

 

O

Function

Default setting

Customized set-

ting

Daytime running lights

*

On

Off

O



O

Welcome lighting

On

Off

 

O

Function

Customized setting

Adjust alert timing

Early, Middle, Late



O



PCS (Pre-Collision System)

*

On, Off



O



Function

Customized setting

Lane centering function

On, Off



O



Alert type

Steering wheel vibration, Buzzer



O



Alert sensitivity

High, Standard



O



Vehicle sway warning function

On, Off



O



Vehicle sway warning sensitiv-
ity

High, Standard, Low



O



Function

Default setting

Customized set-

ting

A

B

C

A

B

C

A

B

C

A

B

C

424

8-2. Customization

■

RSA (Road Sign Assist)

*

 (



P.200)

*

: If  equipped

■

Dynamic radar cruise control with full-speed range (



P.203)

■

BSM (Blind Spot Monitor) (



P.213)

■

PKSA (Parking Support Alert)

*

 (



P.220)

*

: If  equipped

Function

Customized setting

RSA (Road Sign Assist)

On, Off



O



Excess speed notification
method

Display only, No notification, Display

and buzzer



O



Excess speed notification level

1 mph (2 km/h), 3 mph (5 km/h), 5 mph

(10 km/h)



O



Other notifications method
(No-entry notification)

Display only, No notification, Display

and buzzer



O



Function

Customized setting

Curve speed reduction func-
tion

High, Low, Off



O



Function

Default setting

Customized set-

ting

BSM (Blind Spot Monitor)

On

Off



O



Outside rear view mirror indi-
cator brightness

Bright

Dim



O



Alert timing for presence of
approaching vehicle (sensitiv-
ity)

Intermediate

Early



O



Late

Only when vehicle

detected in blind

spot

Function

Default setting

Customized set-

ting

Buzzer volume

Level2

Level1



O

O

Level3

A

B

C

A

B

C

A

B

C

A

B

C

425

8-2. Customization

8

Vehi

cle

 spec

ifi

ca

tions

■

Intuitive parking assist

*

 (



P.222)

*

: If  equipped

■

RCTA (Rear Cross Traffic Alert) function (



P.229)

*

: Vehicles without the Intuitive parking assist

■

RCD (Rear Camera Detection) function

*

 (



P.235)

*

: If  equipped

■

PKSB (Parking Support Brake)

*

 (



P.238)

*

: If  equipped

■

Driving Mode Select switch (



P.218)

Function

Default setting

Customized set-

ting

Intuitive parking assist

On

Off



O

O

Function

Default setting

Customized set-

ting

RCTA (Rear Cross Traffic
Alert) function

On

Off



O



Buzzer volume

*

Level2

Level1



O



Level3

Function

Default setting

Customized set-

ting

RCD (Rear Camera Detection)
function

On

Off



O



Function

Default setting

Customized set-

ting

PKSB (Parking Support Brake)
function

On

Off



O

O

Function

Default setting

Customized set-

ting

Powertrain control in custom
mode

*

Normal

Power

O

 

Eco

A

B

C

A

B

C

A

B

C

A

B

C

A

B

C

426

8-2. Customization

*

: If  equipped

■

Automatic air conditioning system (



P.265)

■

Seat heater

*

/seat ventilators

*

 (



P.272)

*

: If  equipped

■

Heated steering wheel

*

 (



P.272)

*

: If  equipped

Chassis control in custom
mode

*

Normal

Sport

O

 

Air conditioning operation in
custom mode

*

Normal

Eco

O

 

Function

Default setting

Customized set-

ting

A/C auto switch operation

On

Off

O



O

Exhaust gas sensor sensitivity

Standard

-3 to 3

O



O

Function

Default setting

Customized set-

ting

Driver’s seat temperature pref-
erence in automatic mode

Standard

-2 (cooler) to 2

(warmer)

O



O

Passenger’s seat temperature
preference in automatic mode

Standard

-2 (cooler) to 2

(warmer)

O



O

Function

Default setting

Customized set-

ting

Steering wheel heating prefer-
ence in automatic mode

Standard

-2 (low) to 2 (high) O



O

Function

Default setting

Customized set-

ting

A

B

C

A

B

C

A

B

C

A

B

C

427

8-2. Customization

8

Vehi

cle

 spec

ifi

ca

tions

■

Illumination (



P.276)

*

: If  equipped

■

Vehicle customization

●

When the smart access system with

push-button start is off, the entry unlock

function cannot be customized.

●

When the doors remain closed after

unlocking the doors and the timer acti-

vated automatic door lock function acti-

vates, signals will be generated in

accordance with the operation buzzer

volume and operational signal (Emer-

gency flashers) function settings.

Function

Default setting

Customized set-

ting

Time elapsed before the inte-
rior lights turn off

15 seconds

Off

O



O

7.5 seconds

30 seconds

Operation after the power
switch is turned off

On

Off

 

O

Operation when the doors are
unlocked

On

Off

 

O

Operation when you approach
the vehicle with the electronic
key on your person

On

Off

 

O

Footwell lights

On

Off

 

O

Instrument panel ornament
light

*

 and door trim ornament

lights

*

On

Off

 

O

Time elapsed before the outer
foot lights turn off

15 seconds

Off

O



O

7.5 seconds

30 seconds

Operation of the outer foot
lights when you approach the
vehicle with the electronic key
on your person

On

Off

 

O

Operation of the outer foot
lights when the doors are
unlocked

On

Off

 

O

Operation of the outer foot
lights when a door is opened

On

Off

 

O

A

B

C

428

8-2. Customization

●

Some settings can be changed using a

switch or the Center Display. If a setting

is changed using a switch, the changed

setting will not be reflected on the Center

Display until the power switch is turned

off and then turned back to ON mode.

■

Clock settings

If the clock adjustment screen is displayed

continuously when attempting to change

the clock settings, the system may be mal-

functioning.
Have the vehicle inspected by your Lexus

dealer.

429

8-3. Items to initialize

8

Vehi

cle

 spec

ifi

ca

tions

8-3.Items to initialize

*

: If  equipped

Items to initialize

The following items must be initialized for normal system operation after such
cases as the 12-volt battery being reconnected, or maintenance being per-
formed on the vehicle:

List of the items to initialize

Item

When to initialize

Reference

Intuitive parking assist

*

After reconnecting or changing the
12-volt battery

P.224

PKSB (Parking Support Brake)

*

After reconnecting or changing the
12-volt battery

P.244

Tire pressure warning system

• When rotating the tires.
• When the tire inflation pressure is

changed by changing tire size.
(When there are multiple speci-
fied pressures)

• After registering the ID codes.
• When the tire inflation pressure is

changed such as when changing
traveling speed.

P.331

Power windows

When functioning abnormally

P.131

Moon roof

P.134

Message indicating maintenance is
required

After the maintenance is performed

P.310

Oil maintenance

After the maintenance is performed

P.321

430

8-3. Items to initialize

431

9

9

For owners

For owners

9-1. For owners

Reporting safety defects for U.S.

owners ........................................

432

Reporting safety defects for

Canadian owners...................

432

Seat belt instructions for Cana-

dian owners (in French).......

433

SRS airbag instructions for Cana-

dian owners (in French).......

434

Headlight aim instructions for

Canadian owners (in French)
........................................................

440

432

9-1. For owners

9-1.For owners

Reporting safety defects for
U.S. owners

If you believe that your vehicle has
a defect which could cause a crash
or could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addi-
tion to notifying the Lexus Division
of Toyota Motor Sales, U.S.A., Inc.
(Toll-free: 1-800-25-LEXUS).

If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of vehicles,
it may order a recall and remedy
campaign. However, NHTSA can-
not become involved in individual
problems between you, your
dealer, or Lexus Division of Toyota
Motor Sales, U.S.A., Inc.

To contact NHTSA, you may call
the Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-
424-9153); go to

http://www.saf-

ercar.gov

; or write to: Administra-

tor, NHTSA, 1200 New Jersey
Ave. SE., Washington, DC 20590.
You can also obtain other informa-
tion about motor vehicle safety
from

http://www.safercar.gov.

Reporting safety defects for
Canadian owners

Canadian customers who wish to
report a safety-related defect to
Transport Canada, Defects Investi-
gations and Recalls, may telephone
the toll-free hotline 1-800-333-
0510, mail Transport Canada -
ASFAD, 330 Sparks Street,
Ottawa, ON, K1A 0N5, or com-
plete the online form at
https://www.tc.gc.ca/recalls.

433

9-1. For owners

9

For owners



Tirez sur la ceinture épaulière
jusqu’à ce qu’elle recouvre entière-
ment l’épaule; elle ne doit cepen-
dant pas toucher le cou ni glisser de
l’épaule.



Placez la ceinture abdominale le
plus bas possible sur les hanches.



Réglez la position du dossier.
Tenez-vous assis bien au fond du
siège, le dos droit.



Ne vrillez pas la ceinture de sécu-
rité.

■

Manipulation des ceintures de
sécurité

Avec un chiffon ou une éponge, net-
toyez à l’aide d’un savon doux et de
l’eau tiède. Vérifiez aussi les ceintures
régulièrement pour vous assurer
qu’elles ne présentent pas d’usure
excessive, d’effilochage ou de cou-
pures.

Seat belt instructions for
Canadian owners (in
French)

The following is a French explana-
tion of seat belt instructions
extracted from the seat belt section
in this manual.

See the seat belt section for more
detailed seat belt instructions in
English.

Utilisation adéquate des cein-
tures de sécurité

Entretien et soin

AVERTISSEMENT

■

Dommages et usure de la ceinture de

sécurité

Vérifiez périodiquement le système de

ceintures de sécurité. Vérifiez qu’il n’y a

pas de coupures, d’effilochures ni de

pièces desserrées. N’utilisez pas une

ceinture de sécurité endommagée avant

qu’elle ne soit remplacée. Les ceintures

de sécurité endommagées ne peuvent

pas protéger les occupants contre les

blessures graves, voire mortelles.

434

9-1. For owners

■

Emplacement des coussins gonflables SRS



Coussins gonflables SRS avant

coussin gonflable SRS du conducteur/coussin gonflable SRS du passager
avant
Peuvent aider à protéger la tête et la poitrine du conducteur et du passager
avant contre les impacts avec des composants intérieurs

coussins gonflables SRS de protection des genoux
Peuvent aider à protéger le conducteur et le passager avant



Coussins gonflables SRS latéraux et en rideau

coussins gonflables SRS latéraux avant
Peuvent aider à protéger le torse des occupants des sièges avant

coussins gonflables SRS latéraux arrière
Peuvent aider à protéger le torse des occupants des sièges latéraux arrière

SRS airbag instructions for Canadian owners (in French)

The following is a French explanation of SRS airbag instructions extracted
from the SRS airbag section in this manual.

See the SRS airbag section for more detailed SRS airbag instructions in English.

Système de coussins gonflables SRS

A

B

C

D

435

9-1. For owners

9

For owners

coussins gonflables SRS en rideau

• Peuvent aider à protéger principalement la tête des occupants des sièges latéraux
• Peuvent aider à empêcher les occupants d’être éjectés du véhicule en cas de tonneaux

■

Composants du système de coussins gonflables SRS

Système de classification de l’occupant du siège du passager avant (ECU et
capteurs)

Coussins gonflables de protection des genoux

Coussin gonflable du passager avant

Coussins gonflables en rideau

Capteurs d’impact latéral (portière avant)

Limiteurs de force et dispositifs de tension des ceintures de sécurité

Capteurs d’impact latéral (avant)

Coussins gonflables latéraux avant

Coussins gonflables latéraux arrière

Coussin gonflable du conducteur

lampe témoin SRS

Capteur de position du siège du conducteur

Contacteur de boucle de ceinture de sécurité du conducteur

E

A

B
C
D

E
F

G

H

I

J

K

L

M

436

9-1. For owners

Module de capteur de coussin gonflable

Voyants “PASSENGER AIR BAG”

Contacteur de boucle de ceinture de sécurité du passager avant

Capteurs d’impact avant

Votre véhicule est doté de COUSSINS GONFLABLES ÉVOLUÉS dont la con-
ception s’appuie sur les normes de sécurité des véhicules à moteur américains
(FMVSS208). Le module de capteur de coussin gonflable (ECU) contrôle le
déploiement des coussins gonflables en fonction des informations obtenues des
capteurs et d’autres éléments affichés dans le diagramme des composants du sys-
tème ci-dessus. Ces informations comprennent des données relatives à la gravité
de l’accident et aux occupants. Au moment du déploiement des coussins gonfla-
bles, une réaction chimique se produit dans les gonfleurs de coussin gonflable et
les coussins gonflables se remplissent rapidement d’un gaz non toxique pour aider
à limiter le mouvement des occupants.

N

O

P

Q

AVERTISSEMENT

■

Précautions relatives aux coussins

gonflables SRS

Observez les précautions suivantes en

ce qui concerne les coussins gonflables

SRS.

Négliger de le faire pourrait occasionner

des blessures graves, voire mortelles.

●

Le conducteur et tous les passagers

du véhicule doivent porter leur cein-

ture de sécurité de la manière appro-

priée.

Les coussins gonflables SRS sont des

dispositifs supplémentaires qui doivent

être utilisés avec les ceintures de sécu-

rité.

●

Le coussin gonflable SRS du conduc-

teur se déploie avec une force con-

sidérable et peut occasionner des

blessures graves, voire mortelles,

notamment lorsque le conducteur se

trouve très près du coussin gonflable.

La National Highway Traffic Safety

Administration (NHTSA), aux États-

Unis, fait les recommandations

suivantes :

La zone à risque du coussin gonflable

du conducteur couvre 2 à 3 in.

(50 à 75 mm) de la zone de déploie-

ment du coussin gonflable. Pour

assurer une marge de sécurité suff-

isante, restez à 10 in. (250 mm) du

coussin gonflable. Cette distance est

mesurée du centre du volant à votre

sternum. Si maintenant vous vous

tenez assis à moins de 10 in. (250

mm), vous pouvez changer votre posi-

tion de conduite de plusieurs

manières :

• Reculez votre siège à la position maxi-

male vous permettant d’atteindre

encore aisément les pédales.
