Lexus RZ450E (2023 year). Manual in english - page 7





211

4-3. Adjusting the temperature/environment inside the vehicle

4

In

te

rio

r fe

atu

re

s

Customization

The temperature setting of the heated

steering wheel can be set through “Vehicle

customize” on the center display. (

P.595)

*

: If equipped

Seat heaters/Radiant heat-
ers

*

Warm up seat surface and leg area
of the front seat occupant.

WARNING

To prevent minor burn injuries

Care should be taken if anyone in the fol-

lowing categories comes in contact with

the seats when the heater is on:

Babies, small children, the elderly, the

sick and the physically challenged

Persons with sensitive skin

Persons who are fatigued

Persons who have taken alcohol or

drugs that induce sleep (sleeping

drugs, cold remedies, etc.)

To prevent causes of overheating and

minor burn injuries

Observe the following precautions when

using a seat heater/radiant heater:

Do not cover the seat with a blanket or

cushion when using the seat heater.

Do not use seat heater more than nec-

essary.

Use while driving

Do not touch the radiant heater or hold

your hand or foot over it by releasing a

hand from the handle or a foot from the

pedal.

Doing so may cause the driver to mis-

handle the vehicle and cause an acci-

dent, resulting in death or serious injury.

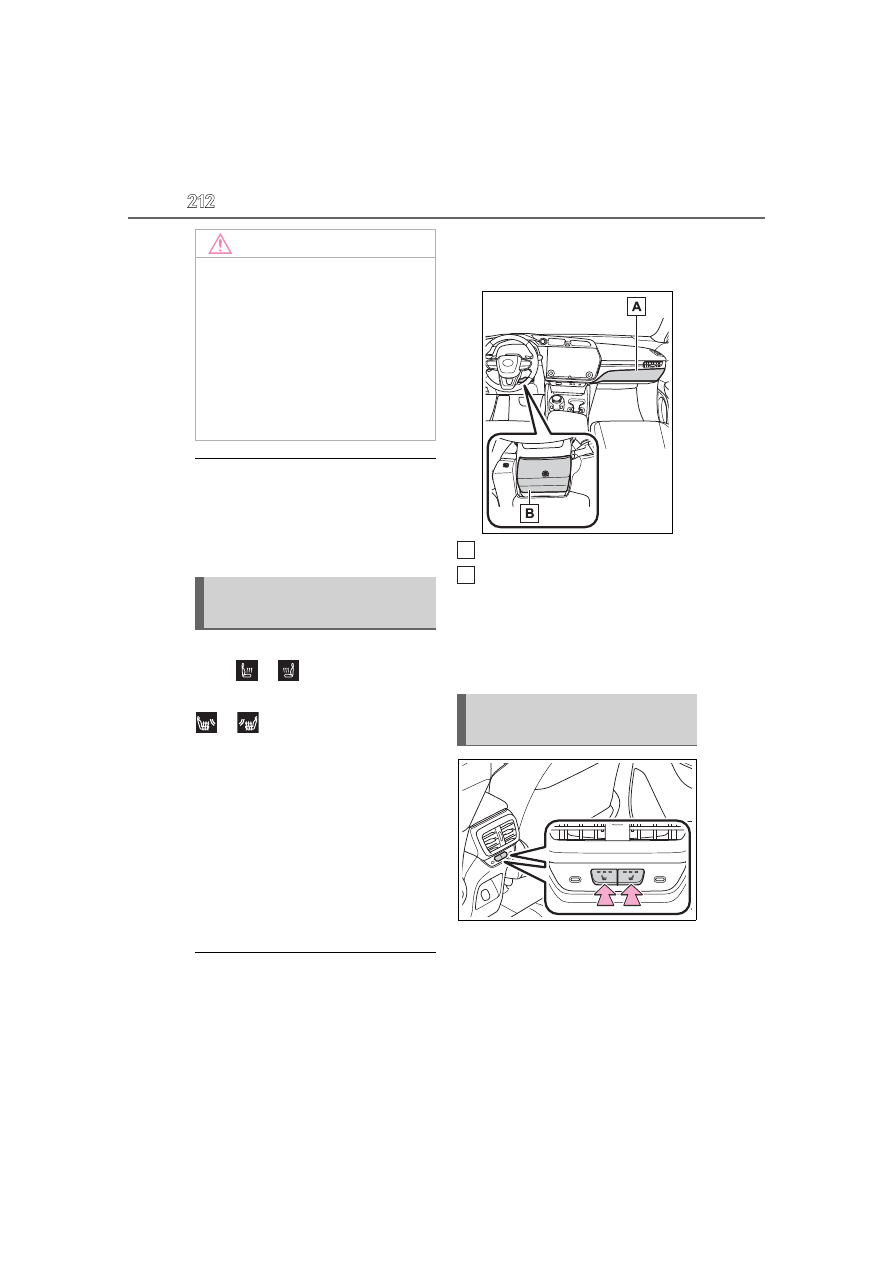

212

4-3. Adjusting the temperature/environment inside the vehicle

Operating conditions of seat heaters

The power switch is in ON

Operating conditions of radiant heaters

The power switch is in ON and seat belt is

fastened.

Vehicles without radiant heaters:
Select

 or

 on the center display.

Vehicles with radiant heaters: Select

 or

 on the center display.

Each time the switch is selected, the
operation condition changes as fol-
lows.
AUTO

 Hi (3 segments lit)

 Mid

(2 segments lit)

 Lo (1 segment lit)



Off
The level indicator (red) lights up
during operation. AUTO indicator
lights up during automatic operation.

The radiant heater can be used when

The power may be turned off automati-

cally be continually touching the heater

section. In that case, turn the radiant

heater switch on the center display again.

It may take some time for the heater tem-

perature to rise.

Position of the radiant heaters

Front passenger’s side radiant heater
Driver’s side radiant heater

Customization

The temperature setting of the seat heaters

of the front seats can be set through “Vehi-

cle customize” on the center display.

(

P.595)

Press the switch.
Each time the switch is pressed, the
operation condition changes as fol-
lows.
Hi (3 segments lit)

 Mid (2 segments

NOTICE

To prevent damage to the seat heat-

ers/radiant heaters

Do not put heavy objects that have an

uneven surface on the seat and do not

stick sharp objects (needles, nails, etc.)

into the seat.

To prevent 12-volt battery discharge

Do not use the functions when the EV

system is off.

Turn the front seat heaters/radi-
ant heaters ON/OFF

Turns the rear seat heaters on/off
(if equipped)

A
B

213

4-3. Adjusting the temperature/environment inside the vehicle

4

In

te

rio

r fe

atu

re

s

lit)

 Lo (1 segment lit)

 Off

The level indicators (yellow) light up
during operation.

*

: If equipped

Operating conditions

The power switch is in ON.

Select

 or

on the center display.

Each time the switch is selected, the
operation condition changes as fol-
lows.
AUTO

 Hi (3 segments lit)

 Mid (2

segments lit)

 Lo (1 segment lit)



Off
The level indicator (blue) lights up
during operation. AUTO indicator
lights up during automatic operation.

Air conditioning system-linked control

mode

When a seat ventilator is set to Hi, the fan

speed of the seat ventilator may increase

Seat ventilators

*

Using fans inside the seats,
improved ventilation can be pro-
vided at the surface of the seats.

NOTICE

To prevent damage to the seat venti-

lators

Do not put heavy objects that have an

uneven surface on the seat and do not

stick sharp objects (needles, nails, etc.)

into the seat.

To prevent 12-volt battery discharge

Do not use the functions when the EV

system is off.

Turn the seat ventilators (front)
ON/OFF

214

4-3. Adjusting the temperature/environment inside the vehicle

according to the fan speed of the air condi-

tioning system.

Customization

The temperature setting of the seat ventila-

tors can be set through “Vehicle customize”

on the center display.

*

: If equipped

Panoramic fixed moon roof with

one-touch frosted glass control can be

operated when

The power switch is in ON.

Using the voice control system

The front wipers can be operated one

sweep using the voice control system.
For details, refer to the “MULTIMEDIA

OWNER’S MANUAL”.

When the moon roof is transparent

Stripes (interference patterns) may

appear on the moon roof under some

weather conditions or depending on how

the light shines the interior and exterior of

the vehicle.

The moon roof may appear opaque,

Using the panoramic fixed
moon roof with one-touch
frosted glass control

*

Use the overhead switches to
change the moon roof between
opaque and transparent.

WARNING

Observe the following precautions.

Panoramic fixed moon roof with

one-touch frosted glass control

Do not disassemble or repair the pan-

oramic fixed moon roof with one-touch

frosted glass control because it contains

high voltage parts. Contact your Lexus

dealer if the panoramic fixed moon roof

with one-touch frosted glass control

needs repair.

To prevent burns

If the vehicle is left in direct sunlight for a

long time, the underside of the glass roof

could become very hot and could cause

burns.

215

4-3. Adjusting the temperature/environment inside the vehicle

4

Interio

r fe

atures

depending on the angle.

The moon roof at low temperatures

The moon roof may take some time to

change between opaque and transparent.

Allow the interior of the vehicle to warm up

before use.

Turning the power switch to OFF

The transparent moon roof automatically

returns to opaque when the power switch is

turned to OFF.

If the indicator on the dimming switch

flashes

The panoramic fixed moon roof with

one-touch frosted glass control may be

malfunctioning. Have the vehicle inspected

by your Lexus dealer immediately.

When the vehicle is subjected to a

strong impact

The moon roof changes to opaque and can-

not be changed back to transparent .Have

the vehicle inspected by your Lexus dealer.

Press the dimming switch.

The moon roof is changed between
opaque and transparent each time the
dimming switch is pressed.

The indicator

 on the dimming switch

turns on when the moon roof is transpar-
ent.

Changing the moon roof
between opaque and transpar-
ent

216

4-4. Illuminating the interior

4-4.Illuminating the interior

Rear interior light
Front interior light
Personal lights

Door trim ornament lights

*1

Door pocket lights

*1

Inside handle lights

*1

Door courtesy lights

*2

Auxiliary box lights

*1

Outer foot lights

Footwell lights

*1

*1

: The illumination color can also be changed

*2

.

*2

: If equipped

Each lights automatic on/off

Illuminated entry system: The lights auto-

matically turn on/off according to power

switch mode, the presence of the elec-

tronic key, whether the doors are

locked/unlocked, and whether the doors

are opened/closed. Also, the brightness

Using the interior lights

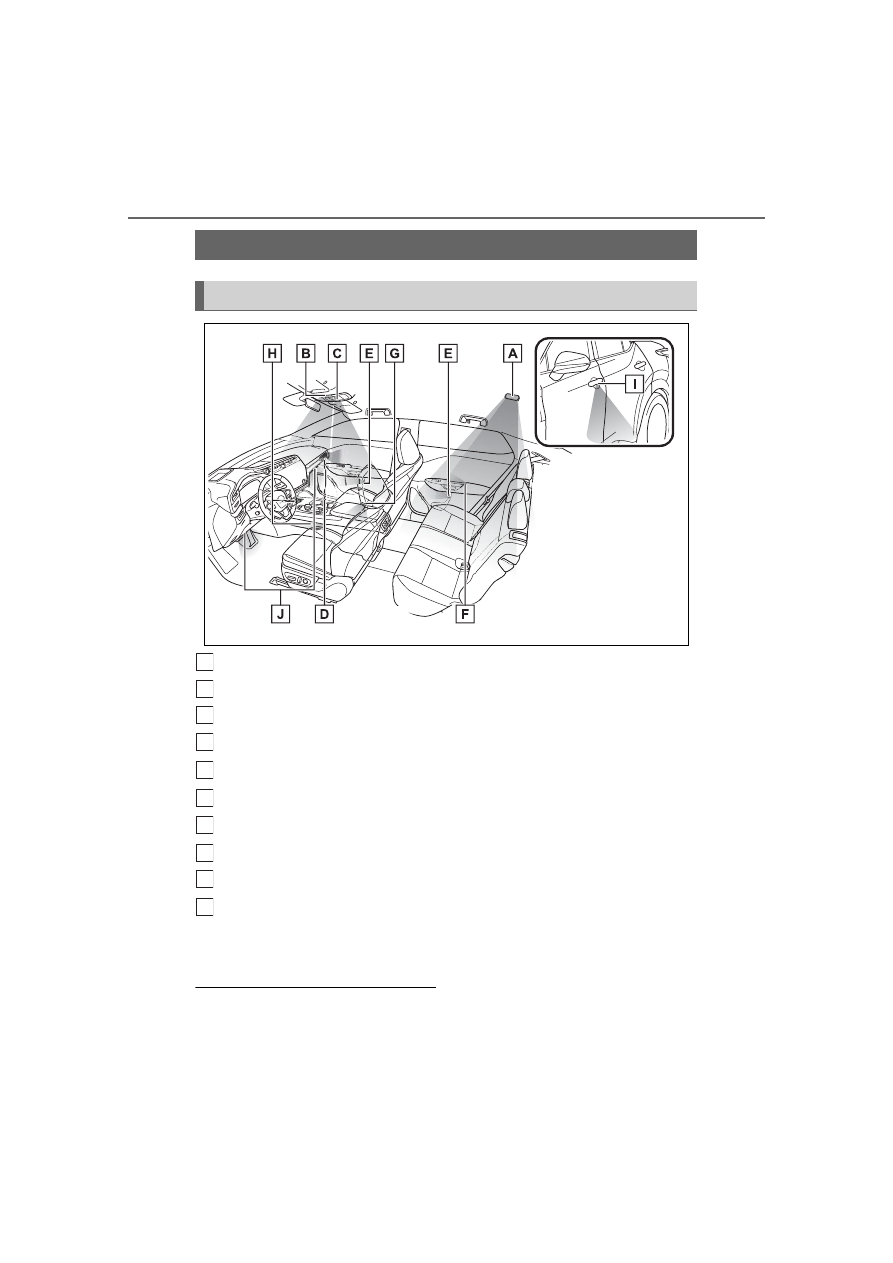

Location of the interior lights

A
B
C
D

E
F

G

H

I

J

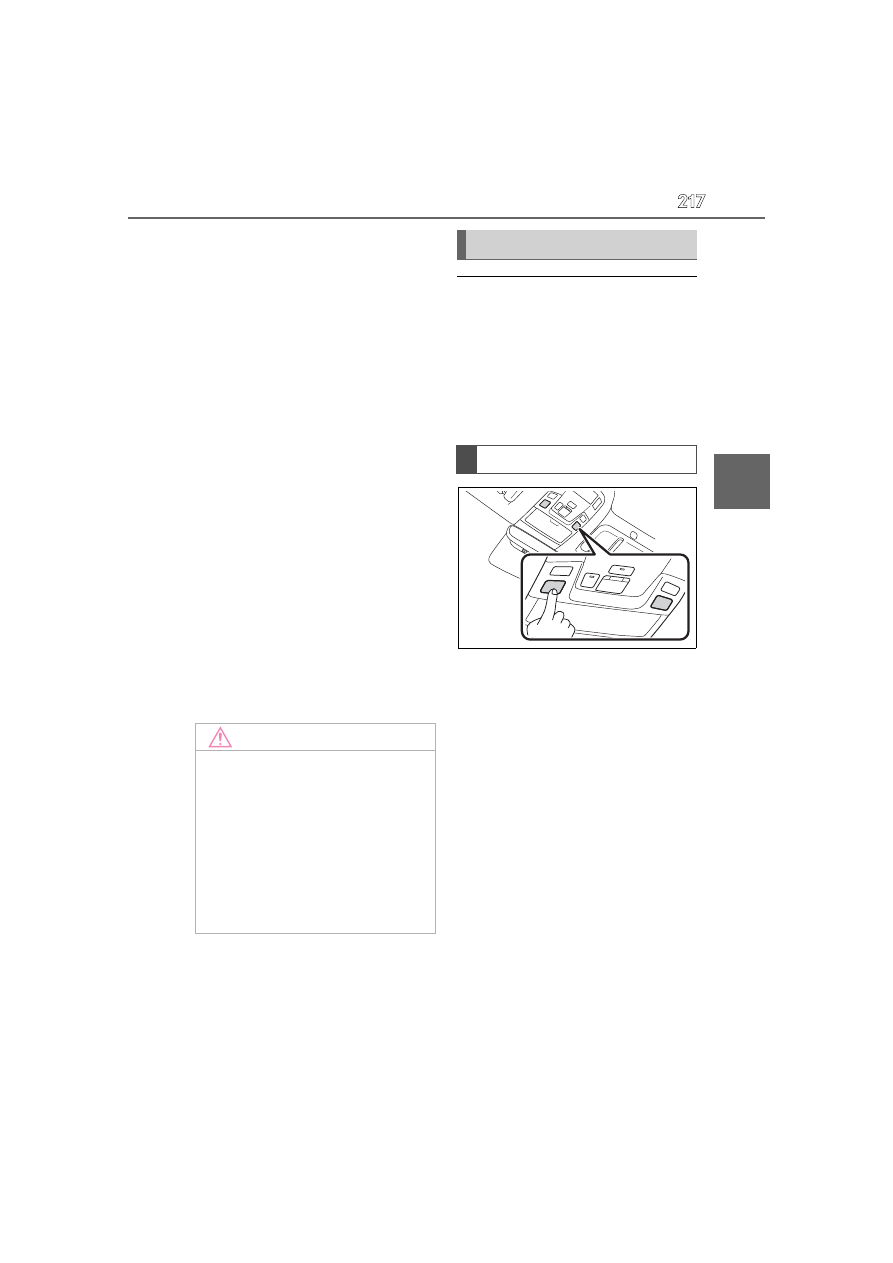

217

4-4. Illuminating the interior

4

In

te

rio

r fe

atu

re

s

of the lights is automatically adjusted

linked with the shift operation.

If the interior lights remain on when the

power switch is turned off, the lights will

go off automatically after 20 minutes.

Automatic illumination of the interior

lights

If any of the SRS airbags deploy (inflate) or

in the event of a strong rear impact, the inte-

rior lights will turn on automatically. The

interior lights will turn off automatically after

approximately 20 minutes.
The interior lights can be turned off manu-

ally. However, in order to help prevent fur-

ther collisions, it is recommended that they

be left on until safety can be ensured. (The

interior lights may not turn on automatically

depending on the force of the impact and

conditions of the collision.)

Using the voice control system (if

equipped)

The front wipers can be operated one

sweep using the voice control system.
For details, refer to the “MULTIMEDIA

OWNER’S MANUAL”.

Customization

Some functions can be customized.

(

P.595)

The front interior lights may not operate

normally when

The front interior lights may not operate

normally in the following situations:

When water, dirt, etc., have adhered to

the lens surface

When operated with a wet hand

When wearing gloves, etc.

Touch the light.
The front interior light will turn on/off
each time it is touched.
The rear interior light will also turn
on/off.
However, when the rear interior light
has already been turned on, it will not
be controlled by front interior light
operations.

NOTICE

Removing light lenses

Never remove the lens for the front inte-

rior light and personal lights. Otherwise,

the lights will be damaged. If the lens

need to remove, contact your Lexus

dealer.

To prevent 12-volt battery discharge

Do not leave the lights on longer than

necessary when the EV system is off.

Interior lights

Turning the interior lights on/off

218

4-4. Illuminating the interior

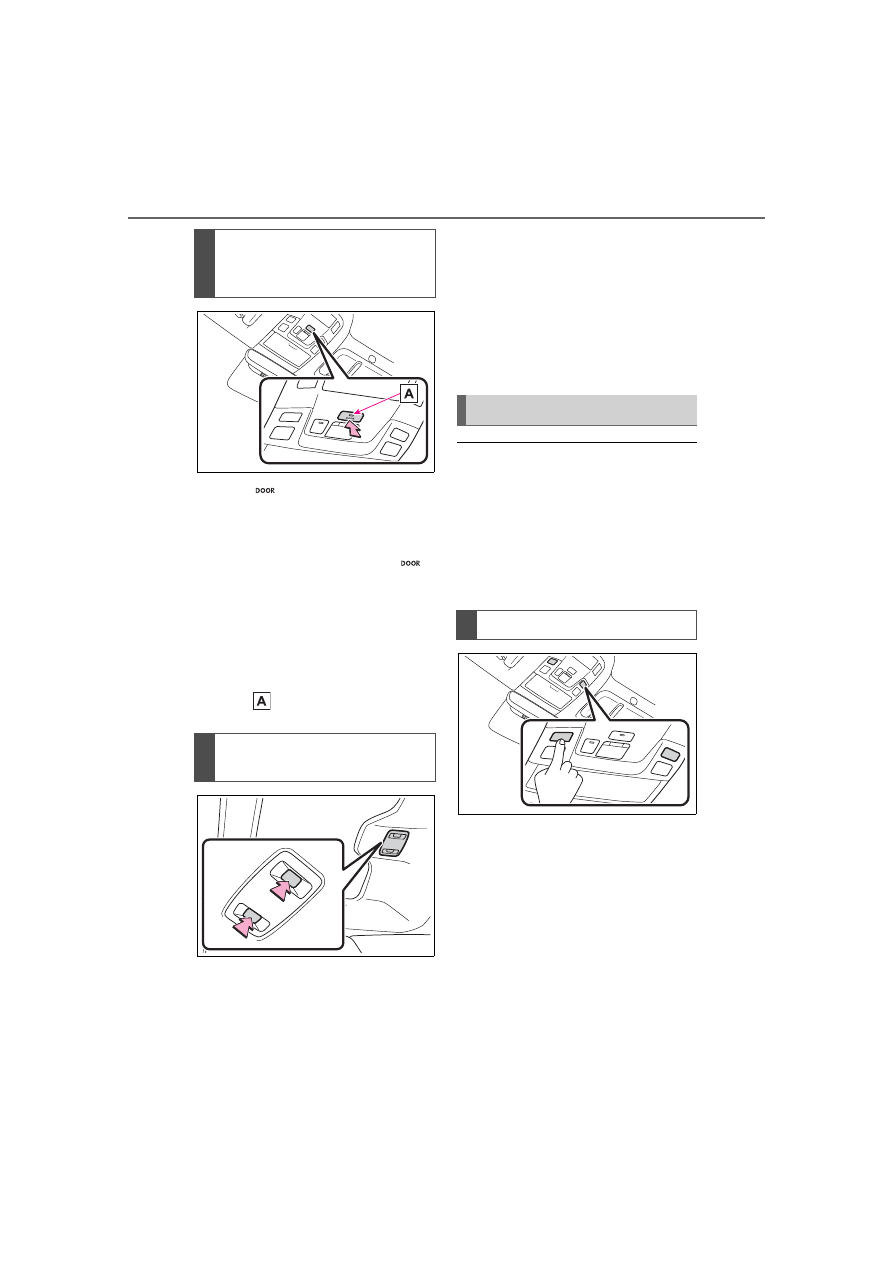

Press the

 switch.

The link between the front interior light
operation and doors will change
between ON/OFF each time the



switch is pressed.
The operation of the rear interior lights
will also be linked to the opening/clos-
ing of the doors.
When the door link is turned on, the
indicator   will illuminate.

Touch the light.
The rear interior light will turn on/off
each time it is touched.

Operation of the rear interior light is
linked to the turning on/off of the front
interior light.
When the rear interior light has been
turned on by front interior light opera-
tion, the rear interior light cannot be
turned off by touch the light.

The personal lights may not operate

normally when

The personal lights may not operate nor-

mally in the following situations:

When water, dirt, etc., have adhered to

the lens surface

When operated with a wet hand

When wearing gloves, etc.

Touch the light.
The personal lights will turn on/off each
time they are touched.

Linking the opening/closing of
the doors to the front interior
light operation

Turning the rear interior light
on/off

Personal lights

Using the personal lights

219

4-5. Using the interior features

4

In

te

rio

r fe

atu

re

s

4-5.Using the interior features

Bottle holders
Card holders
Auxiliary box
Open tray
Cup holders
Console box

Console box light

The console box light turn on when the tail lights are on.

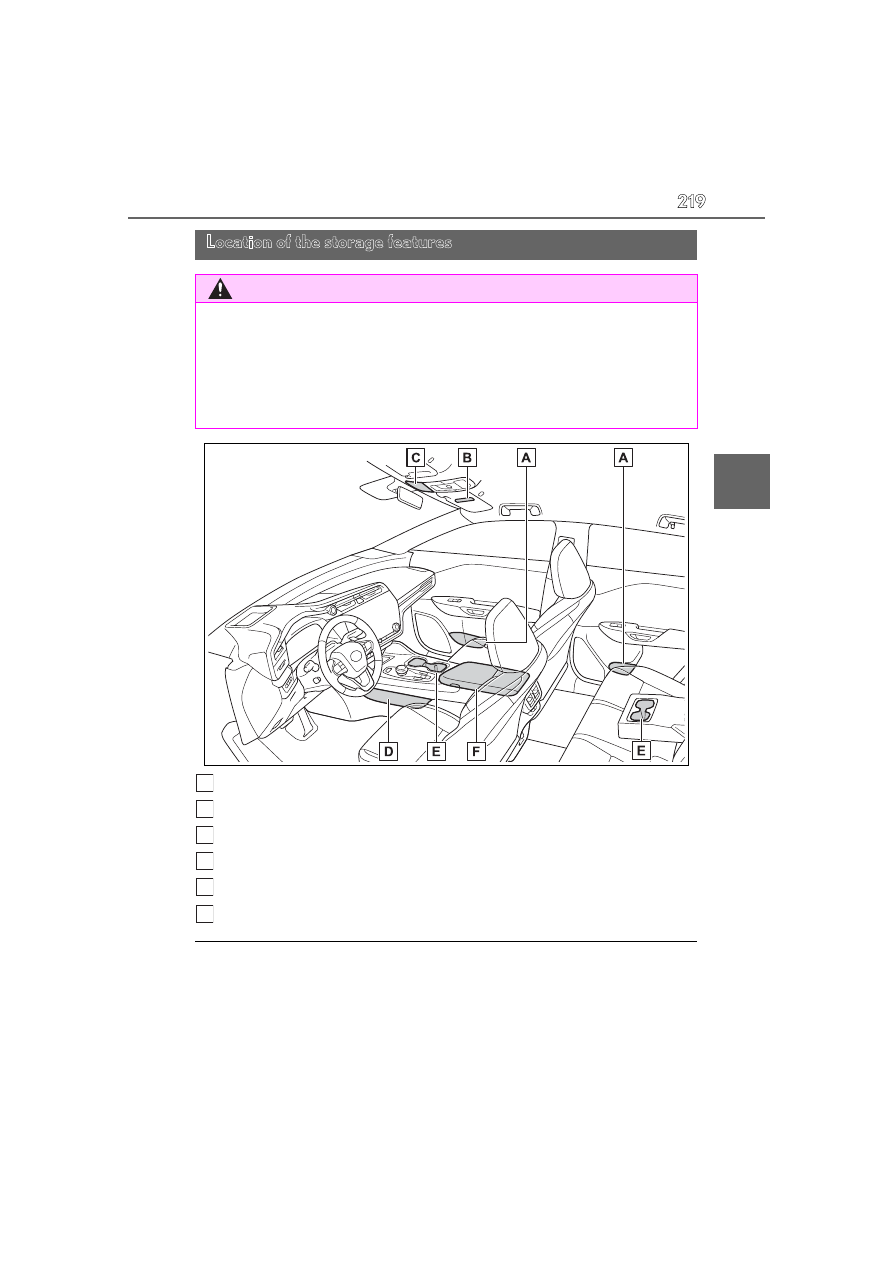

Location of the storage features

WARNING

Do not leave eyeglasses, lighters or spray cans in the storage spaces, as the following may

occur when cabin temperature becomes high:

Eyeglasses may be deformed by heat or cracked if they come into contact with other

stored items.

Lighters or spray cans may explode. If they come into contact with other stored items, a

lighter may catch fire or a spray can may release gas, causing a fire hazard.

A
B
C
D

E
F

220

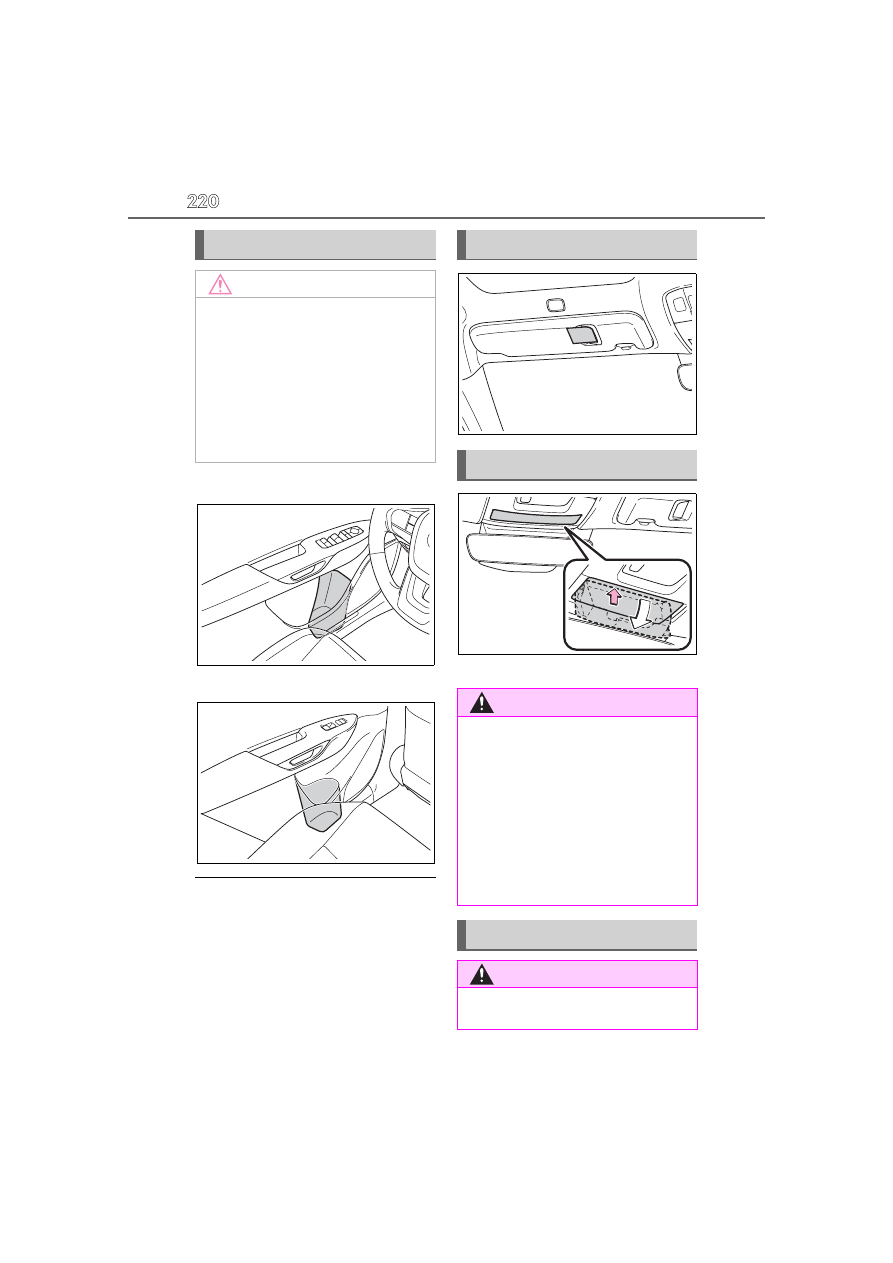

4-5. Using the interior features

Front

Rear

Bottle holders

A bottle may not be able to be stored

depending on its size or shape.

Press in the lid.

Locations of the bottle holders

NOTICE

When using a bottle holder, observe the

following precautions.

Do not place open bottles, glass cups,

or paper cups containing liquid in the

bottle holders.

The liquid may spill out and glass cups
may break.

When storing a bottle, close the cap.

Location of the card holders

Using the auxiliary box

WARNING

Do not store items heavier than 0.44

lb. (200 g). Doing so may cause the

auxiliary box to open and the items

inside may fall out, resulting in an acci-

dent.

When driving or when the auxiliary

box is not in use, keep the lid closed. In

the event of sudden braking or sudden

swerving, an accident may occur due

to an occupant being struck by the

items stored inside.

Using the open tray

WARNING

Observe the following precautions when

putting items in the open tray.

221

4-5. Using the interior features

4

In

te

rio

r fe

atu

re

s

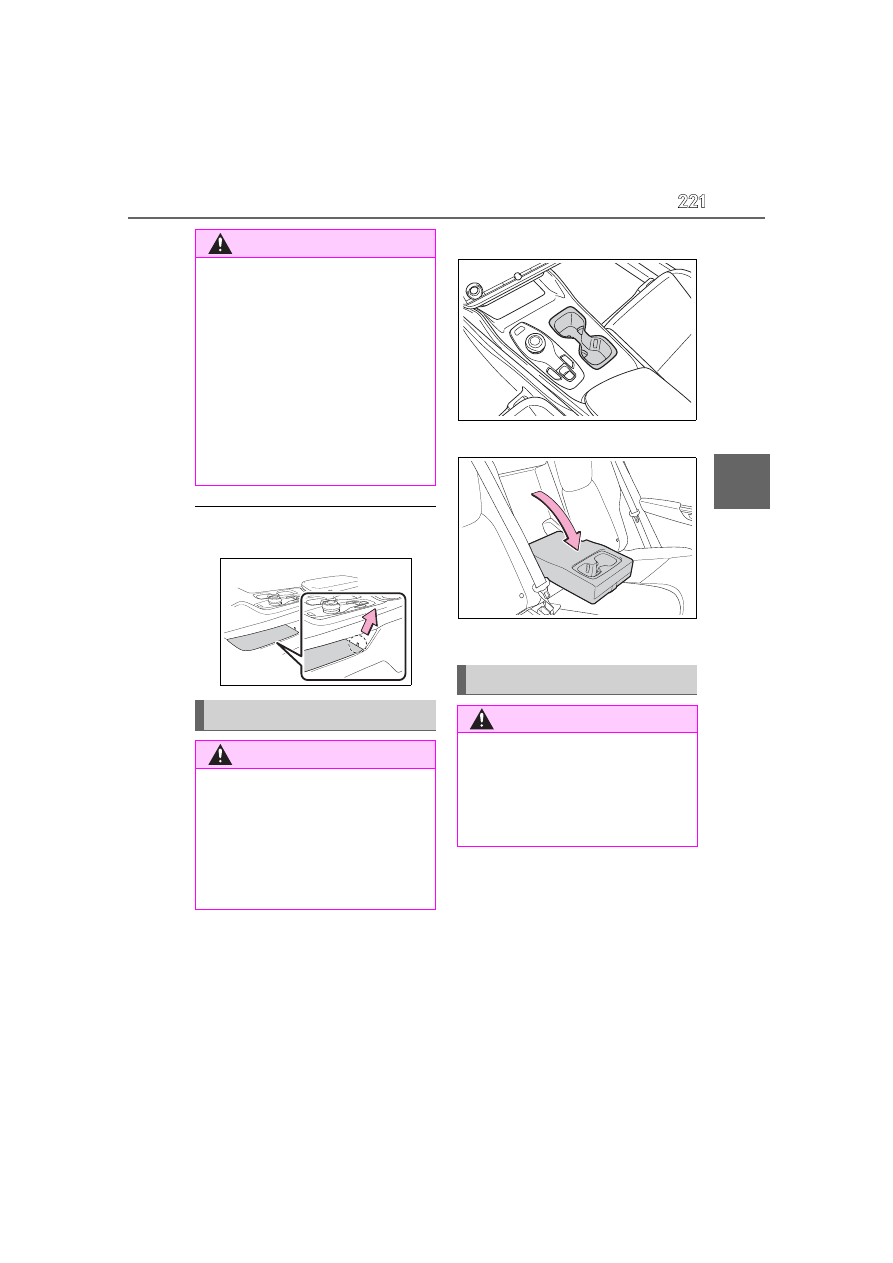

When cleaning the interior

Remove the mat to clean it.

Front

Rear

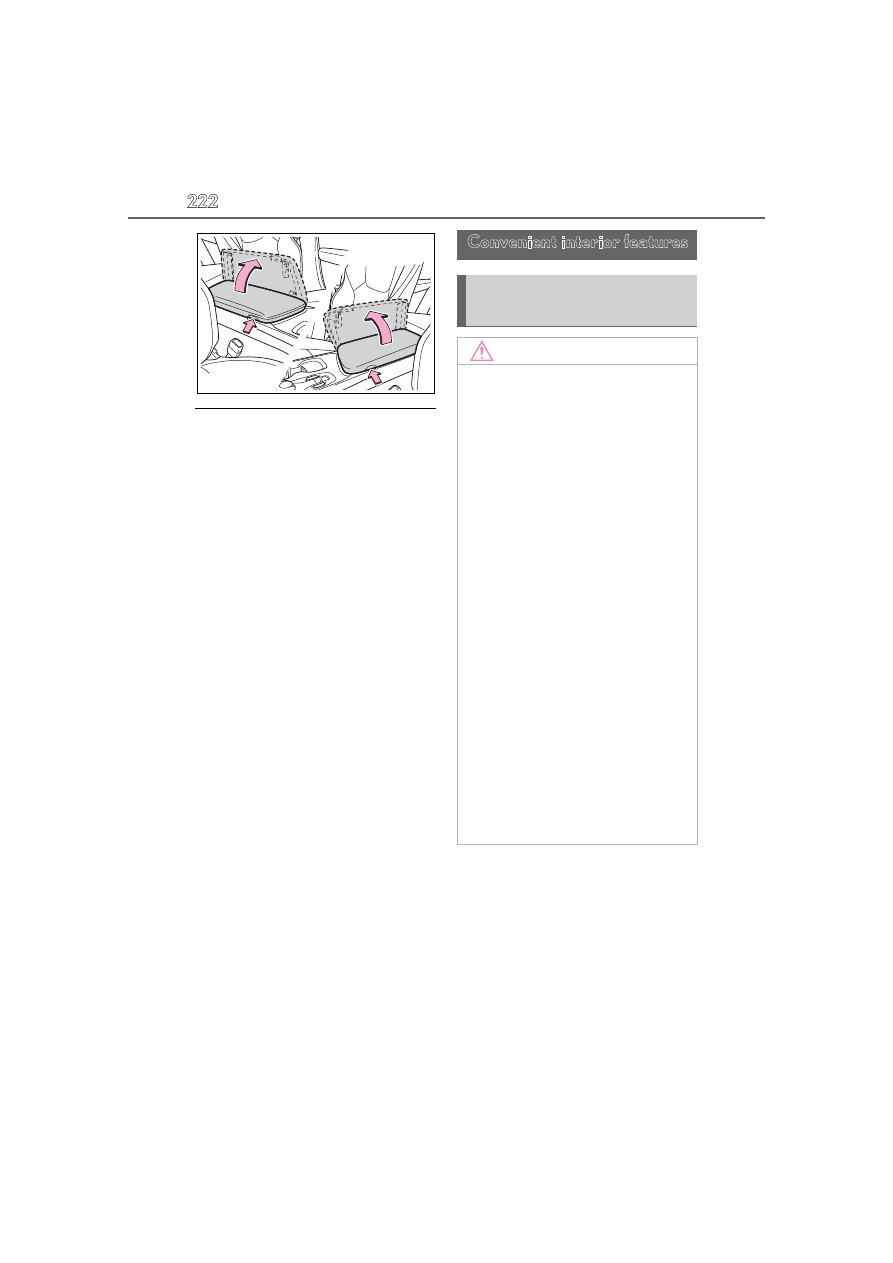

Pull down the armrest.

To open the console box, lift the lid
while pushing the button.
The console box can be opened from
either side.

WARNING

Failure to do so may cause items to be

thrown out of the tray in the event of sud-

den braking or steering. In these cases,

the items may interfere with pedal opera-

tion or cause driver distraction, resulting

in an accident.

Do not store items in the tray that can

easily shift or roll out.

Do not stack items in the tray higher

than the edge of tray.

Do not put items in the tray that may

protrude over the edge of tray.

Use the cup holders

WARNING

Do not place anything other than cups or

aluminum cans in the cup holders.

Other items may be thrown out of the

holders in the event of an accident or

sudden braking, causing injury.

If possible, cover hot drinks to prevent

burns.

Using the console box

WARNING

When driving or when the console box is

not in use, keep it closed.

If left open, in the event of sudden brak-

ing or swerving, an occupant may strike

the console box lid or stowed items may

fly out, possibly leading to an accident.

222

4-5. Using the interior features

Console box light

The console box light turns on when the tail

lights are on.

The USB charging ports are used to
supply 3.0 A of electricity at 5 V to
external devices.
The USB charging ports are for
charging only. They are not designed
for data transfer or other purposes.
Depending on the external device, it
may not charge properly. Refer to the

Convenient interior features

Function and operation of the
USB charging port

NOTICE

To prevent damage to the USB

charging ports

Do not insert foreign objects into the

ports.

Do not spill water or other liquids into

the ports.

Do not apply excessive force to or

impact the USB charging ports.

Do not disassemble or modify the USB

charging ports.

To prevent damage to external

devices

Do not leave external devices in the

vehicle. The temperature inside the

vehicle may become high, resulting in

damage to an external device.

Do not push down on or apply unnec-

essary force to an external device or

the cable of an external device while it

is connected.

To prevent 12-volt battery discharge

Do not use the USB charging ports for a

long period of time with the EV system

stopped.

223

4-5. Using the interior features

4

In

te

rio

r fe

atu

re

s

manual included with the device
before using a USB charging port.

The USB charging ports can be used

when

The power switch is in ACC or ON.

Situations in which the USB charging

ports may not operate correctly

If a device which consumes more than

3.0 A at 5 V is connected.

If a device designed to communicate with

a personal computer, such as a USB

memory device, is connected

If the connected external device is turned

off (depending on device)

If the temperature inside the vehicle is

high, such as after the vehicle has been

parked in the sun

About connected external devices

Depending on the connected external

device, charging may occasionally be sus-

pended and then start again. This is not a

malfunction.

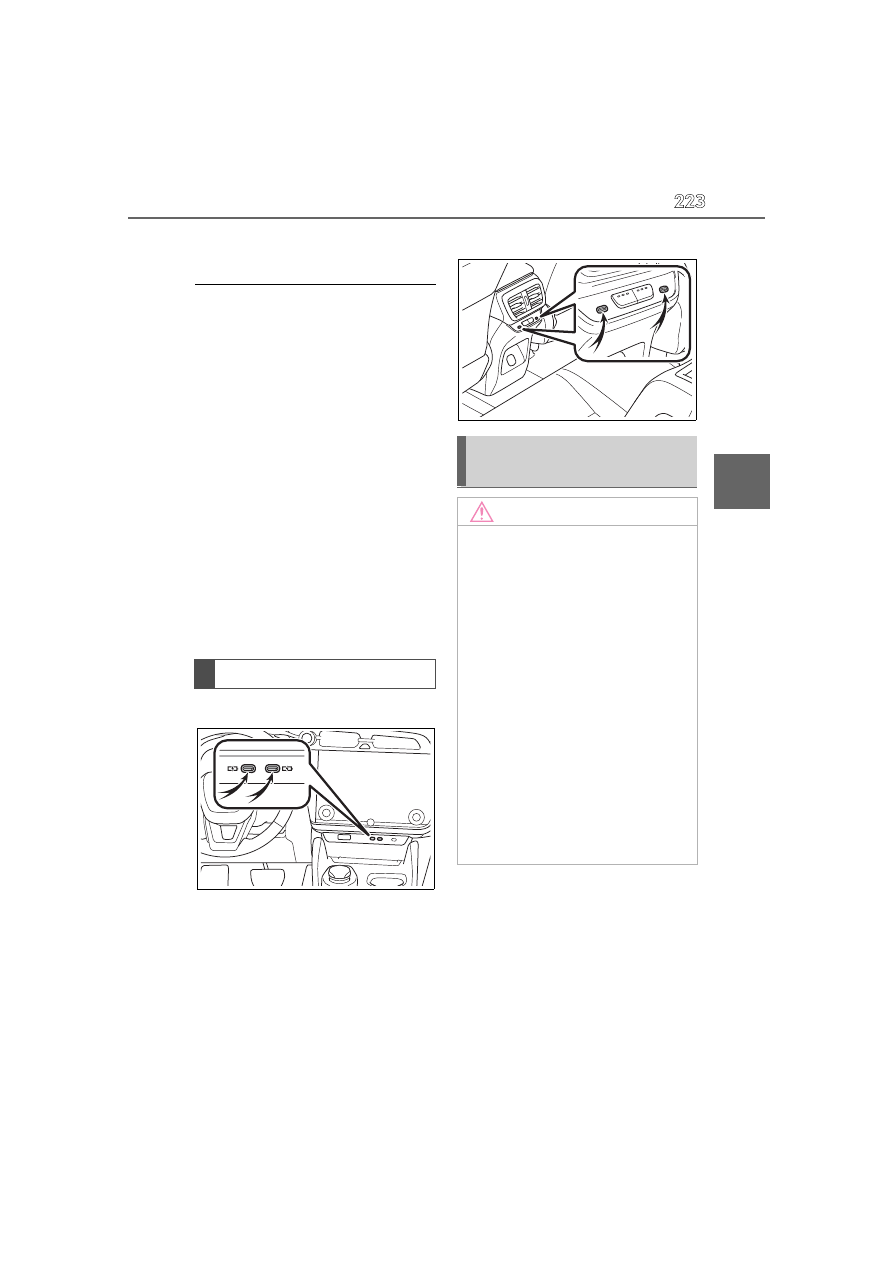

Instrument panel

On the rear console

The power outlet can be used to supply
power for devices which operate on 12
VDC at less than 10A (power con-
sumption of 120 W).
When connecting multiple devices,
make sure that the total power con-
sumption of all the connected devices
is less than 120 W.

Use the USB charging port

Function and operation of the
power outlet (12 VDC)

NOTICE

To prevent damage to the power out-

let (12 VDC)

Do not insert foreign objects into the

ports.

Do not spill water or other liquids into

the ports.

When the power outlets (12 VDC) are

not in use, close the lids. If a foreign

object or liquid enters a port may

cause a short circuit.

Do not apply excessive force to or

impact the power outlets (12 VDC)

ports.

To prevent 12-volt battery discharge

Do not use the power outlets (12 VDC)

for a long period of time with the EV sys-

tem stopped.

224

4-5. Using the interior features

The power outlet can be used when

The power switch is in ACC or ON.

When stopping the EV system

Disconnect electrical devices with charging

functions, such as mobile battery packs.
If such devices are left connected, the EV

system may not stop normally.

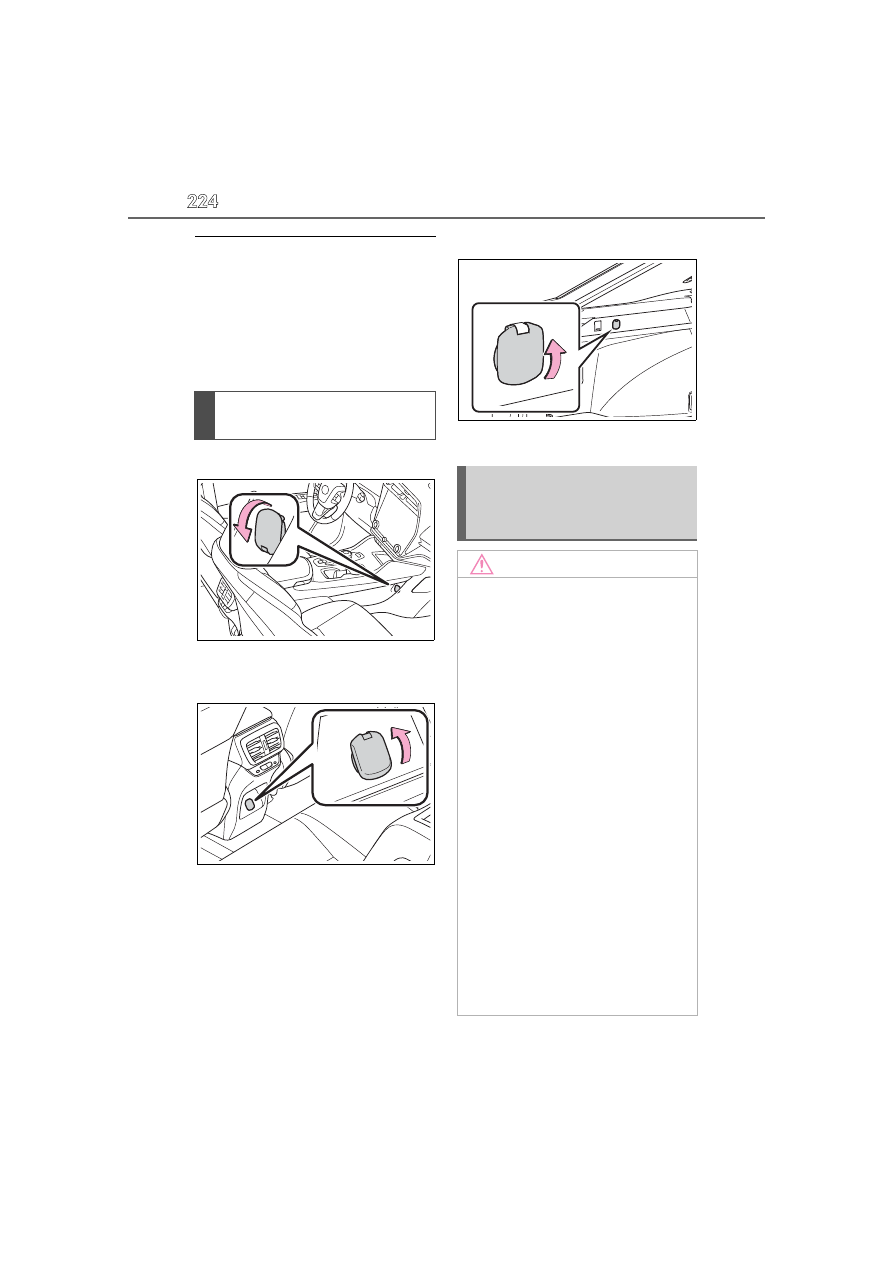

Instrument panel

Open the lid.

On the rear console (if equipped)

Open the lid.

In the luggage compartment

Open the lid.

Using the accessory sockets (12
VDC)

Function and operation of the
power outlet (120 VAC) (if
equipped)

NOTICE

To prevent damage to the power out-

let

Do not insert foreign objects into the

ports.

Do not spill water or other liquids into

the ports.

When the power outlets are not in use,

close the lids. If a foreign object or liq-

uid enters a port may cause a short cir-

cuit.

Do not apply excessive force to or

impact the power outlets ports.

To prevent blown fuse

Do not use a 120 VAC appliance that

requires more than 100 W. If a 120 VAC

appliance that consumes more than 100

W is used, the protection circuit will cut

the power supply.

To prevent 12-volt battery discharge

Do not use the power outlets for a long

period of time with the EV system

stopped.

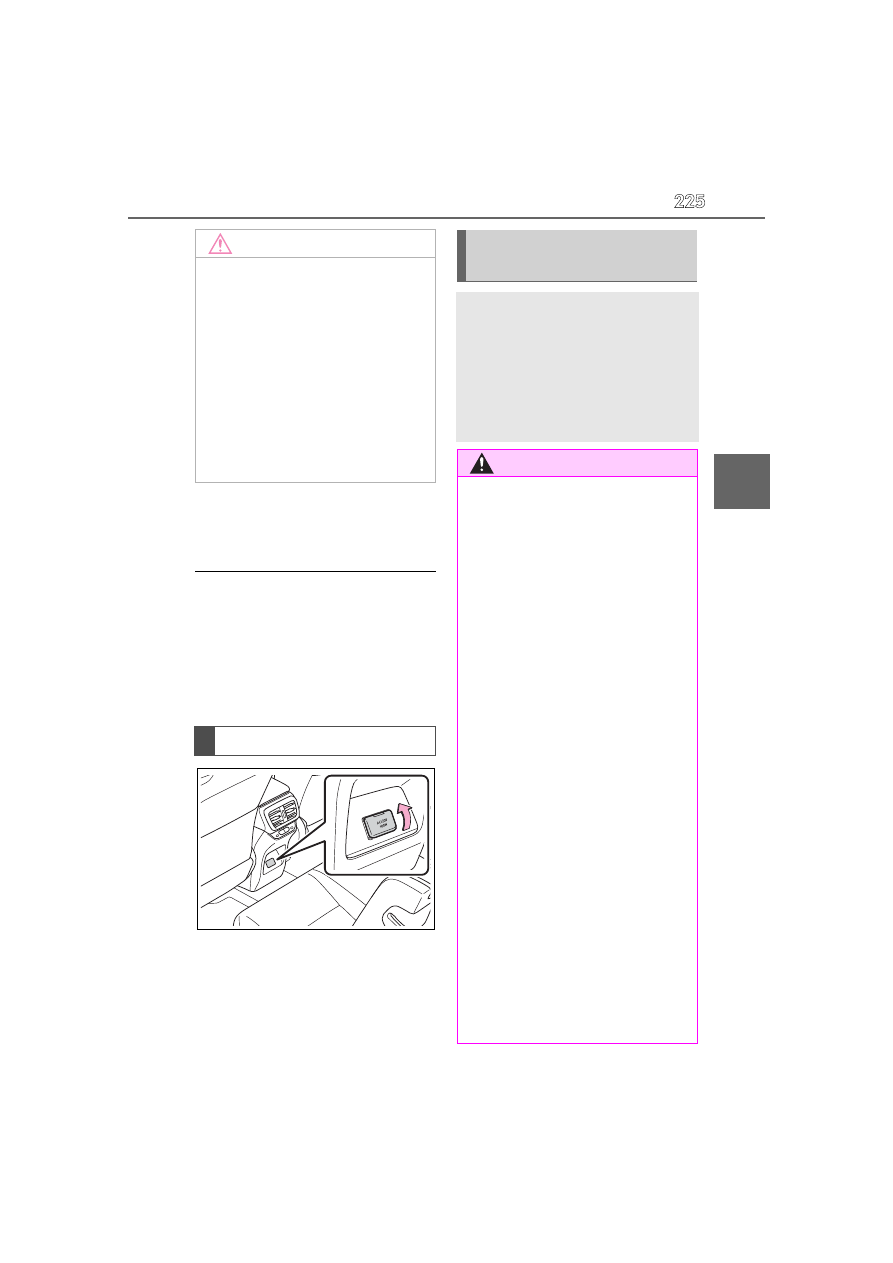

225

4-5. Using the interior features

4

In

te

rio

r fe

atu

re

s

Please use as a power supply for elec-
tronic devices that use less than 120
VAC (power consumption of 100 W).

The power outlet can be used when

The power switch is in ACC or ON.

When stopping the EV system

Disconnect electrical devices with charging

functions, such as mobile battery packs.
If such devices are left connected, the EV

system may not stop normally.

Open the lid.

NOTICE

Appliances that may not operate

properly (120 VAC)

The following 120 VAC appliances may

not operate properly even if their power

consumption is under 100 W:

Appliances with high initial peak watt-

age

Measuring devices that process pre-

cise data

Other appliances that require an

extremely stable power supply

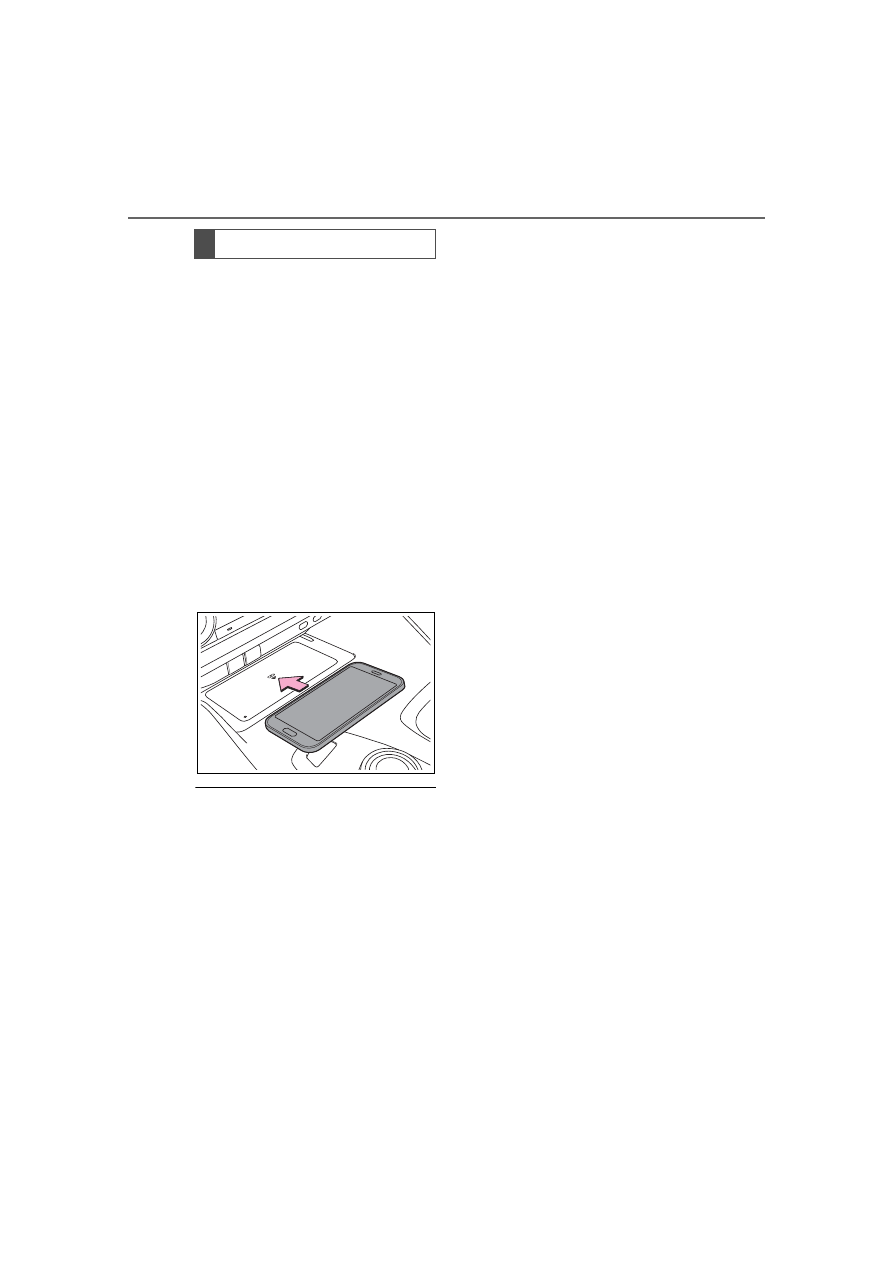

Using the accessory sockets

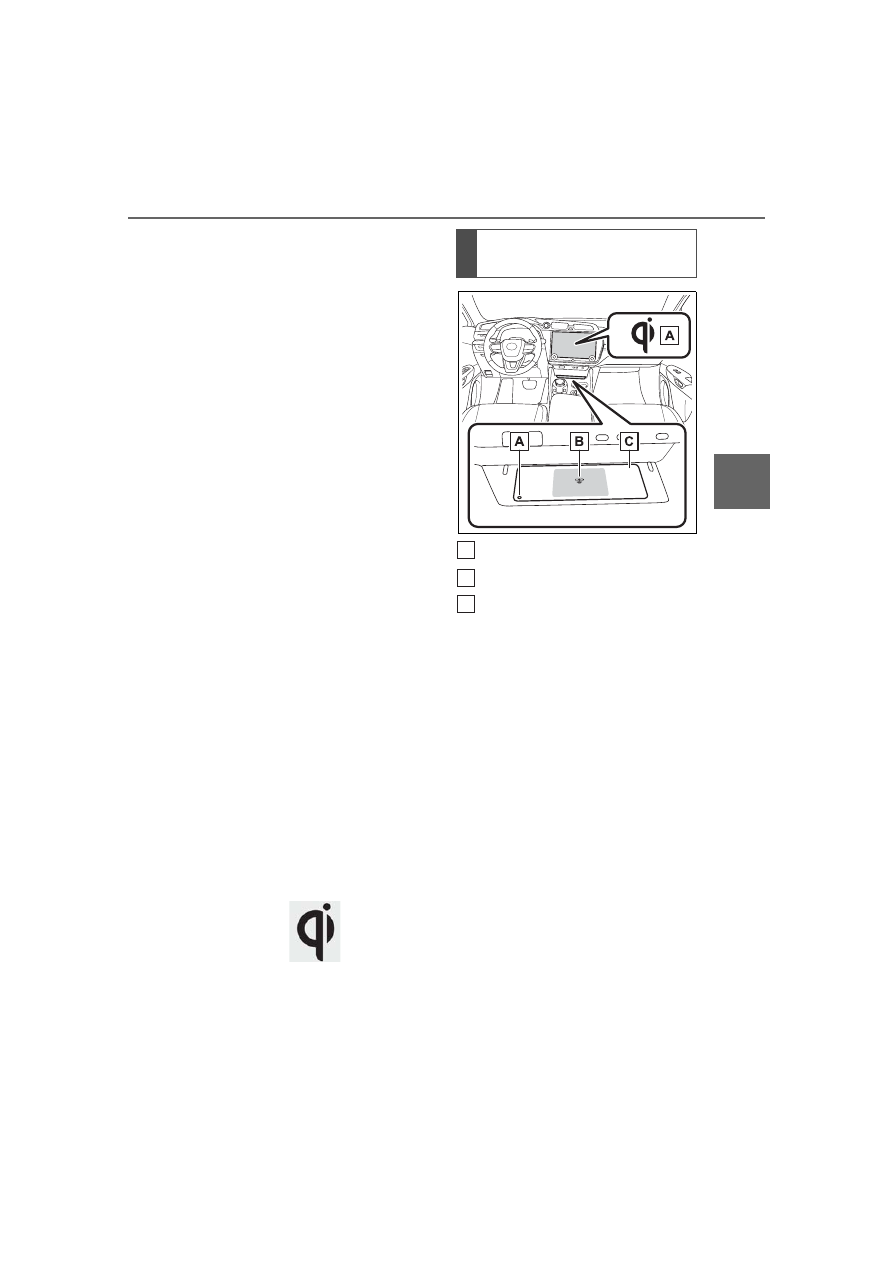

Function and operation of the
wireless charger

A portable device, such as a smart-
phone or mobile battery, can be
charged by just placing it on the
charging area, provided the device
is compatible with the Qi wireless
charging standard created by the
Wireless Power Consortium.

WARNING

Caution while driving

When charging a portable device while

driving, for safety reasons, the driver

should not operate the portable device.

Precautions for when driving

Do not charge small, lightweight porta-

ble devices, such as wireless earbuds,

while driving. Lightweight devices may fly

off of the charging tray, possibly leading

to an accident.

Caution regarding interference with

electronic devices

People with implantable cardiac pace-

makers, cardiac resynchronization ther-

apy pacemakers or implantable

cardioverter defibrillators, as well as any

other electrical medical device, should

consult their physician about the usage of

the wireless charger.

Operations of the wireless charger may

have an affect on medical devices.

To prevent damage or burns

Observe the following precautions.

Do not put any metallic objects

between the charging area and the

portable device while charging.

Do not attach metallic objects, such as

aluminum stickers, to the charging

area.

226

4-5. Using the interior features

The wireless charger can be operated

when

The power switch is in ACC or ON.

About connected portable devices

Portable devices compatible with the Qi

wireless charging standard can be

charged by the wireless charger. How-

ever, compatibility with all devices which

meet the Qi wireless charging standard is

not guaranteed.

The wireless charger is designed to sup-

ply low power electricity (5 W or less) to

a cellular phone, smartphone, or other

portable device.

Failure to do so may result in the possibil-

ity of fire. However, portable devices,

such as the following, can be charged

with more than 5 W.

• 7.5 W charging compatible iPhones can

be charged at 7.5 W or less.

• Portable devices which conform to WPC

Ver 1.2.4 (Extended Power profile) can

be charged at 10 W or less.

WARNING

Do not charge portable devices with

aluminum stickers or other metallic

objects attached to the side which

touches the charging area.

Do not store items on the wireless

charger instead of in an auxiliary box.

Do not apply force or impact to the

wireless charger.

Do not disassemble, modify or remove

the wireless charger.

Do not attempt to charge portable

devices which are not compatible with

the Qi wireless charging standard.

Do not allow magnetic objects to

come near the wireless charge

Do not perform charging if the

charging area is dirty

Do not cover the wireless charger with

a cloth or other object while charging.

NOTICE

Preventing malfunction and corrup-

tion of data

Do not bring magnetic cards, such as

credit cards, or magnetic recording

media, etc., close to the charger while

charging, otherwise, data may be

erased.

Additionally, do not bring precision

instruments such as wrist watches, close

to the wireless charger, as such objects

may malfunction.

Do not perform charging with a con-

tactless smart card, such as a transpor-

tation system IC card, between the

charging surface of a portable device

and the charging area. The IC chip in

the card may become extremely hot,

possibly damaging the portable device

or smart card.Failure to do so may

result in the possibility of fire, equip-

ment failure or damage, or burns due

to heat.

Be extra careful to not charge a portable

device with a case or cover which a con-

tactless smart card can be inserted.

Do not leave portable devices in the

vehicle. The temperature inside the

vehicle may become high, when in

direct sunlight, possibly damaging the

device.

To prevent 12-volt battery discharge

When the EV system is stopped, do not

use the wireless charger for longer than

necessary.

227

4-5. Using the interior features

4

Interio

r fe

atures

Using the smart access system with

push-button start

During charging, when the smart access

system with push-button start searches for

an electronic key, charging may be tempo-

rarily suspended.

If a cover or accessory is attached to the

portable device

Do not charge a portable device if a cover

or accessory which is not Qi compatible is

attached.
Depending on the type of cover (including

the certain genuine manufacture parts)

and/or accessory attached, it may not be

possible to charge the portable device. If

the portable device is placed on the

charging area and does not charge, remove

the cover and/or accessories.

Charging precautions

While charging, the wireless charger and

the portable device will become warm. This

is not a malfunction.
If a portable device becomes warm while

charging and charging stops due to the pro-

tection function of the portable device, wait

until the portable device cools down and

charge it again.
Also, to decrease the temperature inside

the wireless charger, a fan may operate.

This does not indicate a malfunction.

Sound generated during operation

Operation sounds may be heard when the

power switch is pressed to change to ACC

or ON, or when a portable device is being

detected. This does not indicate a malfunc-

tion.

“Qi” symbol

The “Qi” logo is a trademark of the Wireless

Power Consortium.

Operation indicator light

Charging area

*

Charging tray

*

: Compatible portable devices and the

wireless charger contain charging coils.
The charging coil inside the wireless
charger can move within the area
around the center of the charging tray.

When the charging coil inside a portable

device is detected within the charging
area, the charging coil in the wireless
charger will move near the other coil
and charging will begin. If the charging
coil inside the portable device is moved
out of the charging area, charging will be
stopped automatically.

Additionally, if 2 or more portable devices

are placed on the charging tray at the
same time, each charging coil may not
be detected correctly and charging may
not be possible.

Names of the parts of the wireless
charger

A
B
C

228

4-5. Using the interior features

1

Place a portable device on the
charging tray.

Depending on the portable device, its

charging coil may not be in the center of

the device. In this case, place the portable

device so that its charging coil is centered

in the charging area.
While charging, the operation indicator

light on the charging tray (orange) will be

illuminated.
If charging does not begin, move the porta-

ble device as close to the center of the

charging area as possible. If charging is not

performed, the operation indicator light

will slowly illuminate in green and orange

alternatively and a sound of charging coil

operation may be heard repeatedly.
When charging is complete, the operation

indicator light on the charging tray (green)

will illuminate.

AM radio broadcast linked function

during charging

During charging, if noise occurs when lis-

tening to the AM radio, the charging fre-

quency is automatically changed to

reduce the noise.

Rapid charging may not be performed as

AM radio reception is prioritized.

When automatically seeking AM radio

stations, charging will be suspended to

prevent charging noise from being

detected as a radio station. At this time,

the operation indicator light of the

charging tray will illuminate in green and

the operation indicator light of the center

display will be gray. Charging will resume

automatically when seek tuning is

stopped.

Recharging function

If a certain amount of time has elapsed

since charging completed and the porta-

ble device has not been moved, the wire-

less charger will restart charging.

If a portable device is moved significantly

within the charging area, the charging

coil may disconnect and charging may

temporarily be stopped. However, if a

charging coil is detected within the

charging area, the charging coil inside

the wireless charger will move near the

other coil and charging will resume.

Rapid charging function

Portable devices, such as the following, can

be rapidly charged.

Rapid charging capable devices which

conform to WPC Ver 1.2.4 EPP

(Extended Power profile)

7.5 W charging capable iPhones (iPhone

8 and later)

Situations in which the wireless charger

may not operate correctly

In the following situations, the wireless char-

ger may not operate correctly:

When a portable device is fully charged

When a portable device is being charged

by a wired connection.

When there is foreign matter between

the charging area and portable device

When the temperature of a portable

device becomes high while charging

When the temperature near the charging

tray is 95 °F (35 °C) or more due to

being in direct sunlight, etc.

When a portable device is placed with its

charging surface facing up

When a charging coil inside the portable

device is not centered on the charging

area

When a portable device is larger than the

charging tray

When a foldable portable device is

Use the wireless charger

229

4-5. Using the interior features

4

Interio

r fe

atures

placed outside of the charging area

When the vehicle is near a TV tower,

electric power plant, fuel station, radio

station, large display, airport, or other

facility that generates strong radio waves

or electrical noise

The electronic key is not inside the vehi-

cle

When the any of the following objects are

between or attached to a portable device

and cause a gap of 0.08 in. (2 mm) or

more between the charging surface of a

portable device and the charging area:

• Thick cases or covers

• A case or cover attached with an uneven

or tilted surface, so that the charging side

is not flat

• Thick  decorations

• Accessories, such as finger rings, straps,

etc.

When there is a gap between the

charging side of the portable device and

the charge area due to a protrusion of

0.12 in (3 mm) such as a camera on the

charging side of the portable device.

When the portable device is in contact

with, or is covered by any of the following

metallic objects:

• Cards covered with metal, such as alumi-

num foil

• Cigarette boxes that have aluminum foil

inside

• Metallic wallets or bags

• Coins

• Heat  packs

• Recorded media such as CDs and DVDs

• Metallic decorations

• Metallic cases or covers

• A  Case  which  has  magnet in it on the

charging side of the portable device

When wireless keys (that emit radio

waves) other than those of your vehicle

are being used nearby

When 2 or more portable devices are

placed on the charging tray at the same

time

In situations other than above, if the wireless

charger does not operate properly or the

operation indicator light blinks continu-

ously, the wireless charger may be malfunc-

tioning.
Contact your Lexus dealer.

If the smartphone OS has been updated

If the smartphone OS has been updated to

a newer version, its charging specifications

may have changed significantly. For details,

check the information on the manufac-

turer’s website.

The operation indicator light of the wireless charger indicates the operating state
of the wireless charger as follows:

Wireless charger operation indicator light status

Operation indicator light

State

Charging tray

Center display

Off

Disappear

The Wireless charger is off

Green (illumi-

nated)

Gray

Standby (charging is possible)

*1

Charging is complete

*2

Orange (illumi-

nated)

Blue

A portable device has been placed on the charging
area (identifying the portable device)

Charging

230

4-5. Using the interior features

*1

: Depending on the portable device, the operation indicator light may stay illuminated

(orange) after charging has completed.

*2

: While in standby, charging power is not output. If a metal object is placed on the

charging tray in this state, the object will not heat up.

1

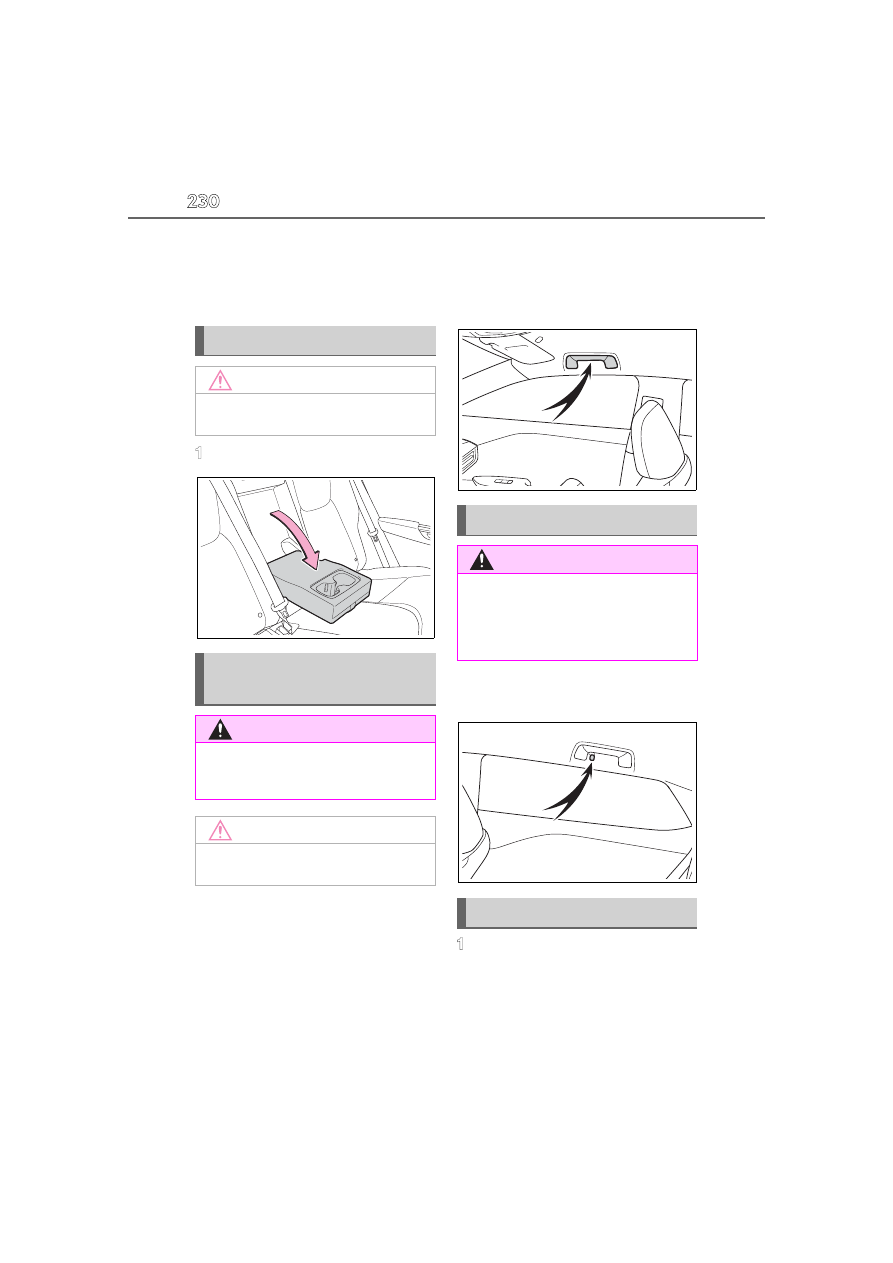

Fold down the armrest for use.

An assist grip installed on the ceiling
can be used to support your body
while sitting on the seat.

The coat hooks are provided with the
rear assist grips.

1

Slide the cover to open.

The vanity light turns on when the cover is

Using the armrest

NOTICE

Do not apply excessive load to the arm-

rest. Doing so may damage the armrest.

Assist grip functions and opera-
tion

WARNING

Do not use the assist grip when getting in

or out of the vehicle or rising from your

seat.

NOTICE

Do not hang any heavy object or put a

heavy load on the assist grip.

Locations of coat hooks

WARNING

Do not hang coat hangers or other hard

or sharp objects on the hook. If the SRS

curtain shield airbags deploy, these items

may become projectiles, causing death

or serious injury.

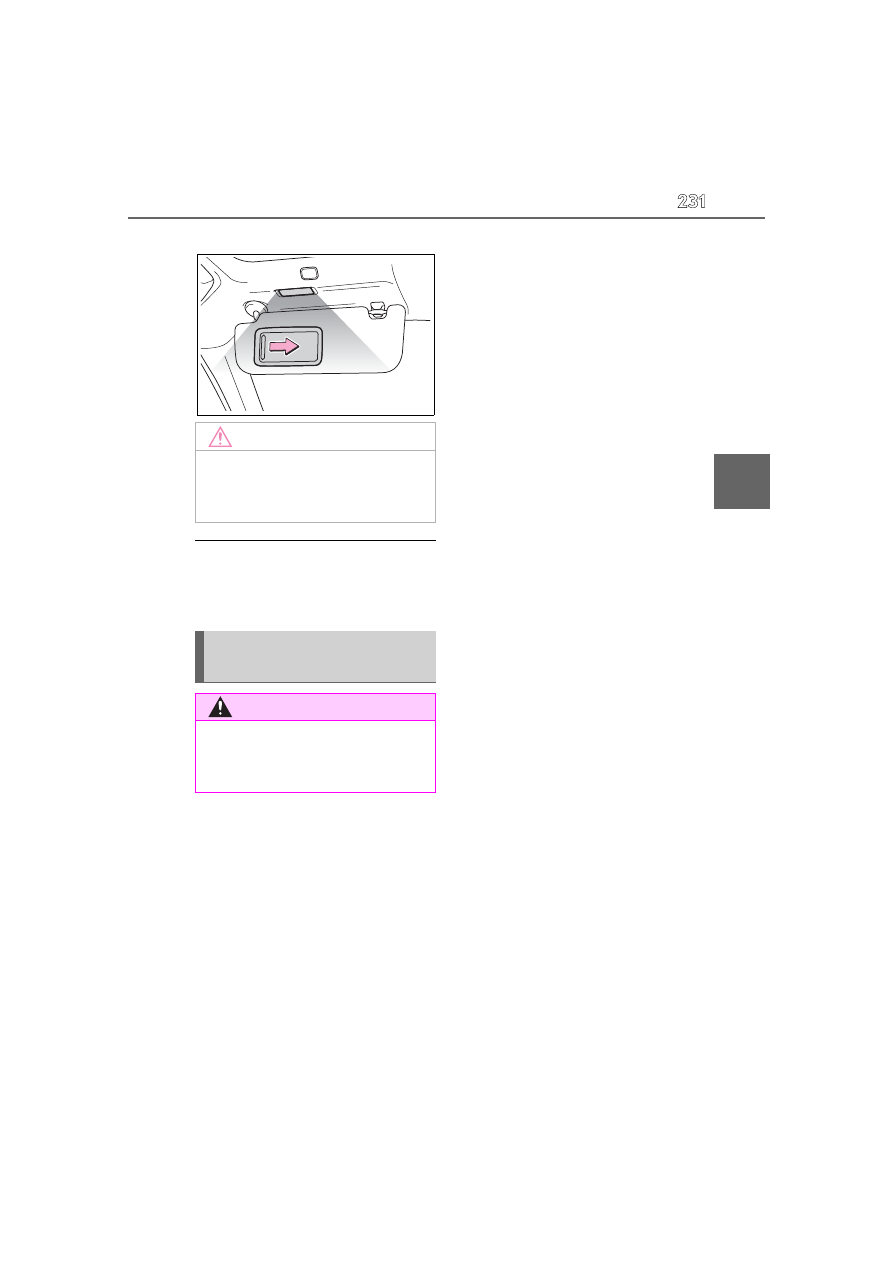

Using the vanity mirrors

231

4-5. Using the interior features

4

In

te

rio

r fe

atu

re

s

opened.

Automatic light off function

When the power switch is off, if the vanity

lights are turned on, they will be turned off

automatically after 20 minutes.

NOTICE

Do not leave the vanity lights on longer

than necessary with the EV system

stopped. Doing so may lead to the

12-volt battery becoming discharged.

Panoramic fixed moon roof (if
equipped)

WARNING

If the vehicle is left in direct sunlight for a

long time, the underside of the glass roof

could become very hot and could cause

burns.

232

4-6. Using the luggage compartment

4-6.Using the luggage compartment

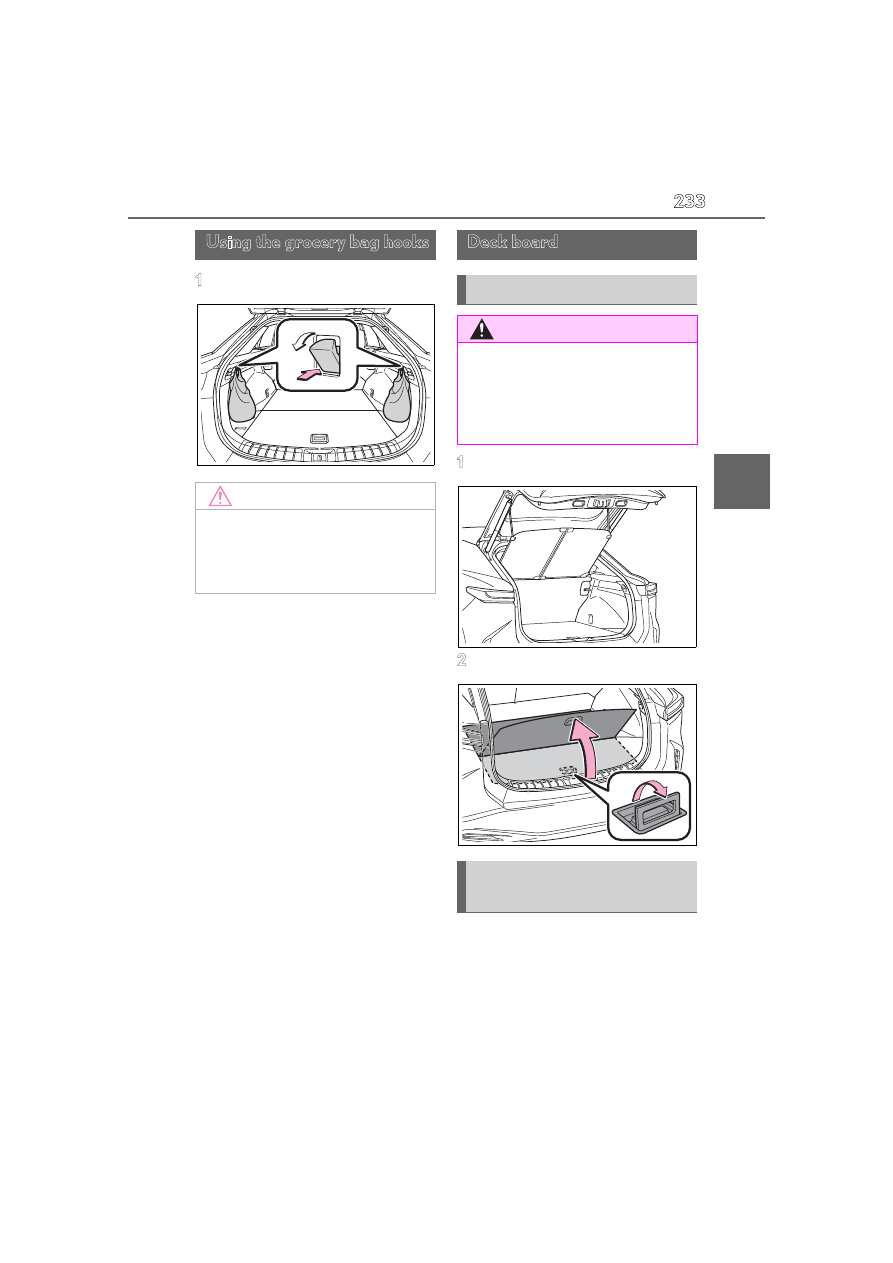

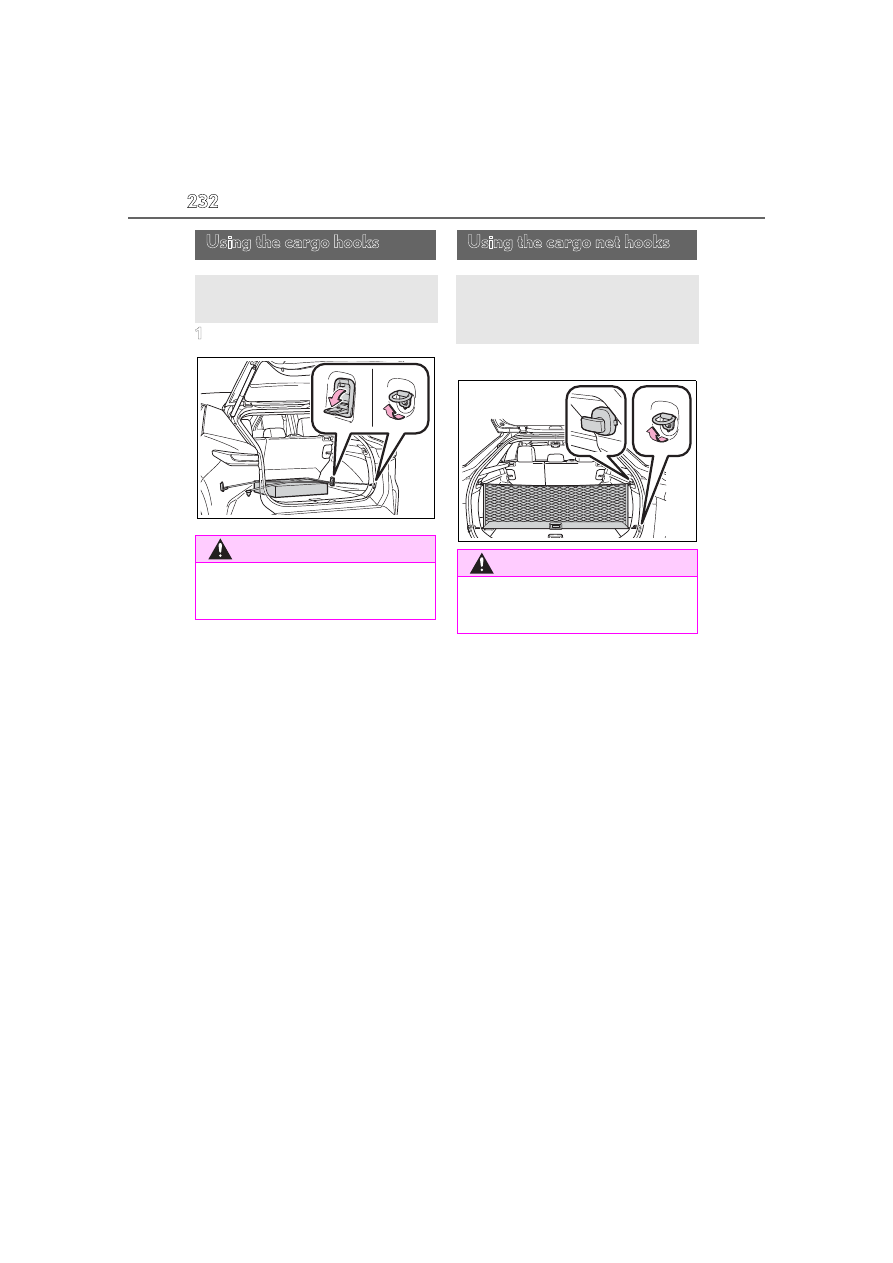

1

Raise the hook to use.

Raise the rear cargo hooks to use.

Using the cargo hooks

The cargo hooks are provided for
securing loose items.

WARNING

To avoid injury, when the cargo hooks are

not in use, make sure to return them to

their stowed position.

Using the cargo net hooks

The cargo net can be hung using
the cargo net hooks and rear cargo
hooks.

WARNING

To avoid injury, when the cargo net hooks

are not in use, make sure to return them

to their stowed position.

233

4-6. Using the luggage compartment

4

In

te

rio

r fe

atu

re

s

1

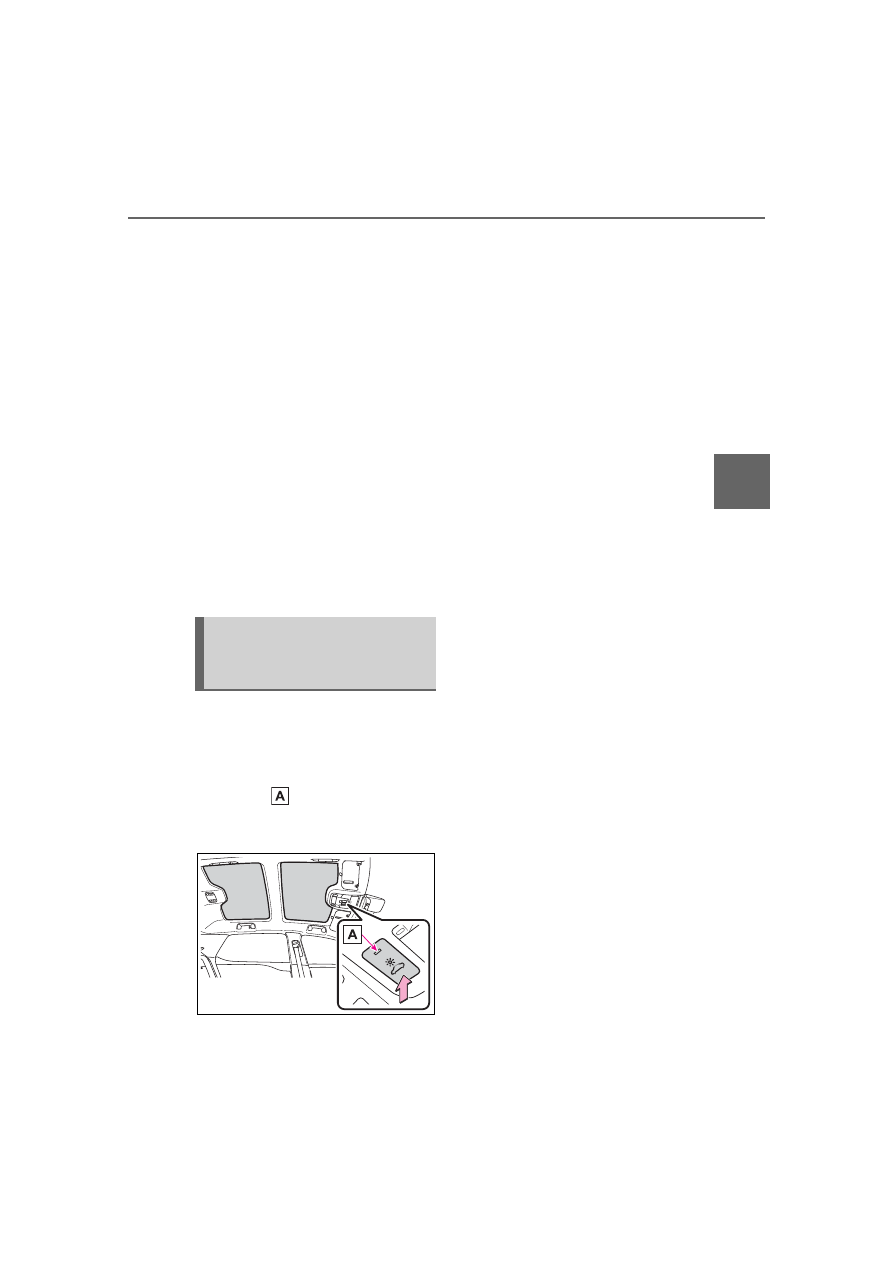

Push the grocery back hook to use.

1

Open the back door.

2

Open the deck board.

The following items can be stowed.

Accessories

Using the grocery bag hooks

NOTICE

Do not hang objects heavier than 8.8 lb.

(4 kg) on the grocery bag hooks.

Doing so may damage the grocery bag

hook.

Deck board

Opening the deck board

WARNING

If a deck board has been opened or

removed, return it to its original position

before driving. Otherwise, in the event of

sudden braking or an accident, a deck

board or stored items may fly out and

strike an occupant.

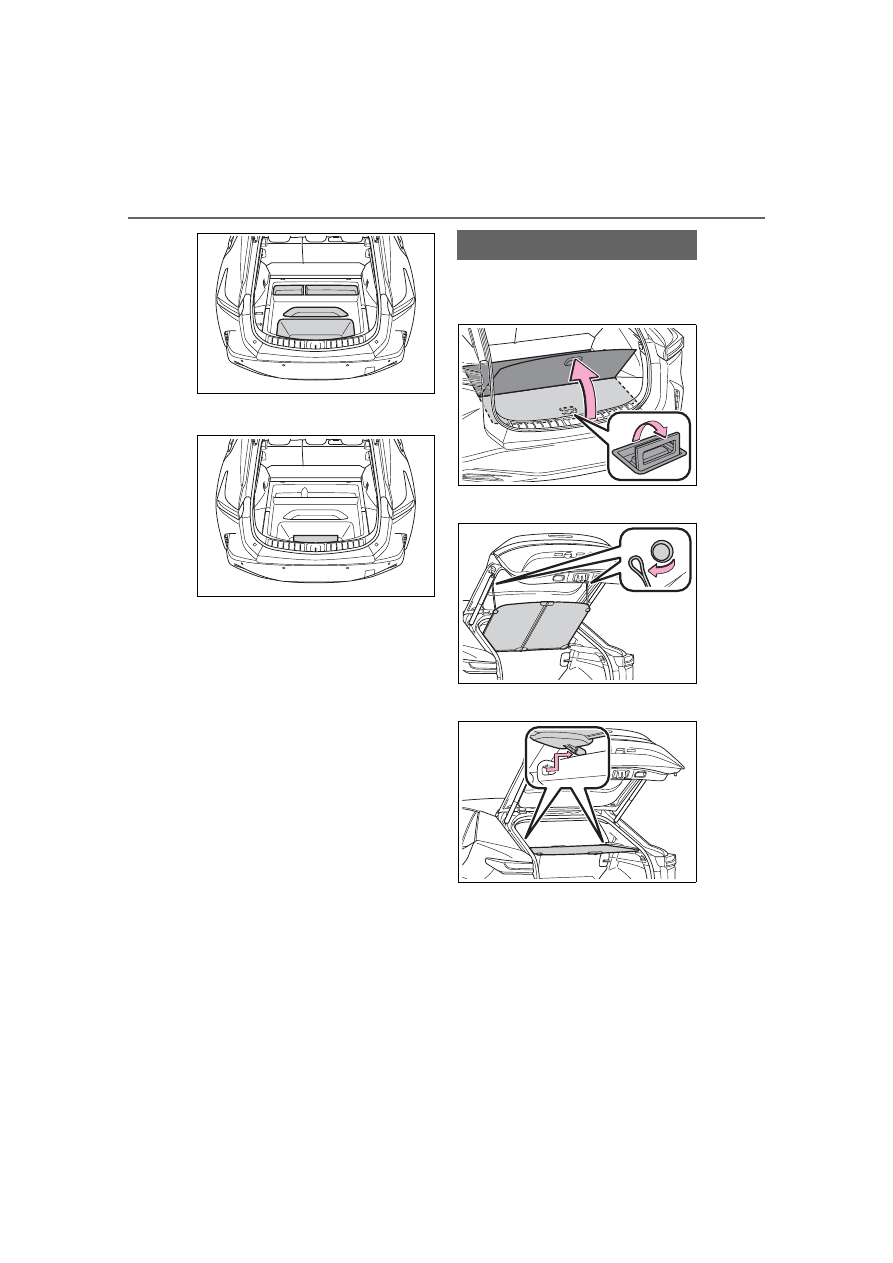

Storing items in the deck under
tray

234

4-6. Using the luggage compartment

Warning reflector

*

*

: A warning reflector itself is not included

as an original equipment.

1

Pull the lever upwards and fold the
deck board.

2

Unhook each cord.

3

Remove the luggage cover.

Stowing the luggage cover

235

4-6. Using the luggage compartment

4

In

te

rio

r fe

atu

re

s

4

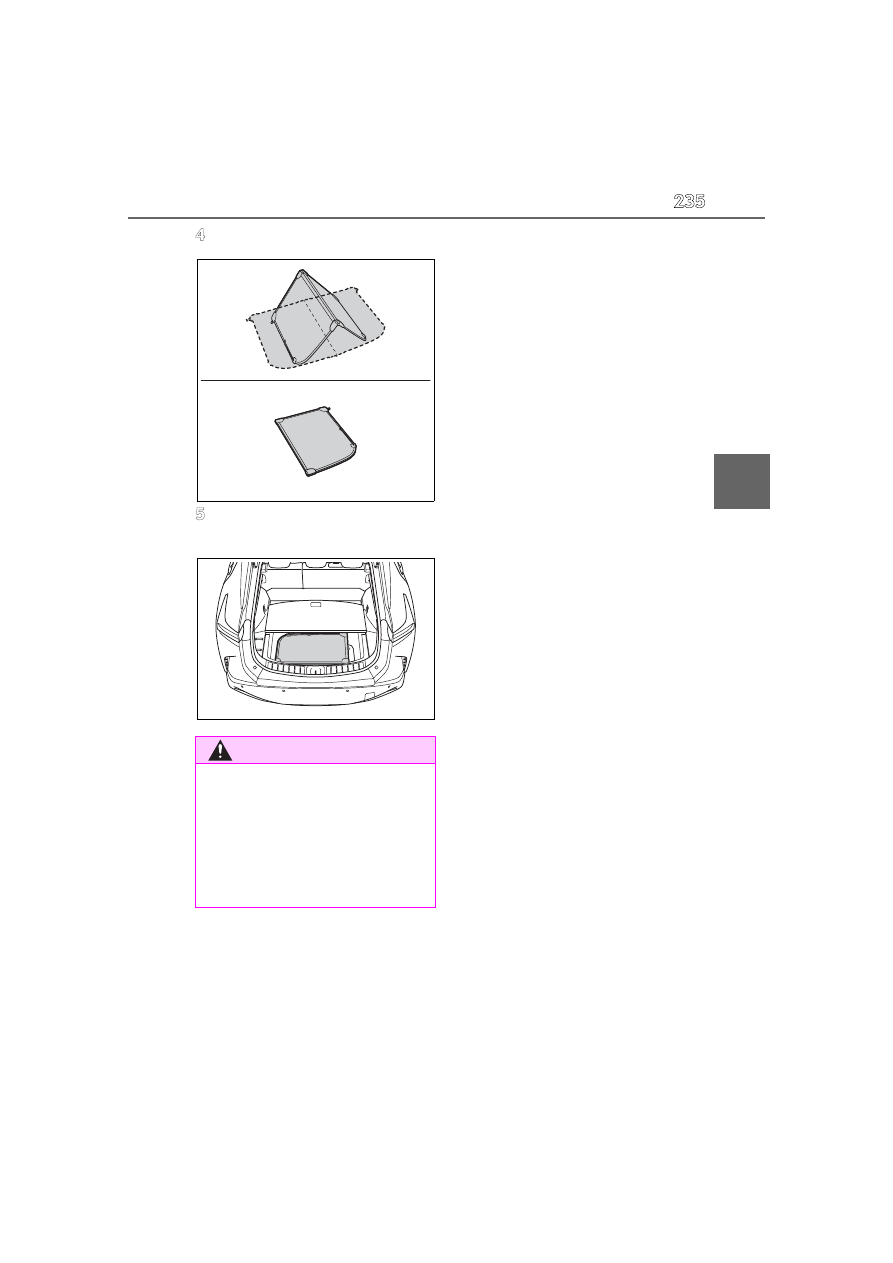

Fold the luggage cover.

5

Stow the luggage cover in the deck
under tray.

WARNING

Do not stow items on the luggage

cover. The luggage cover may be dam-

aged, or the items may fly about and

strike an occupant in the event of sud-

den braking or swerving.

Do not allow children to climb on the

luggage cover. Doing so may damage

the luggage cover.

236

4-6. Using the luggage compartment

237

5

5

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Vehicle status information

and indicators

.

5-1. Functions and displays of the

meter

Warning lights and indicators

........................................................

238

Gauges and meters ..................

241

5-2. Functions of the displays

Multi-information display (vehi-

cles without a head-up display)
........................................................

246

Multi-information display (vehi-

cles with a head-up display)
........................................................

247

Head-up display ........................

249

Displayed content......................

251

5-3. Changing the settings of the dis-

plays

Changing the instrument panel

light brightness........................

258

Changing settings for the head-up

display .........................................

258

238

5-1. Functions and displays of the meter

5-1.Functions and displays of the meter

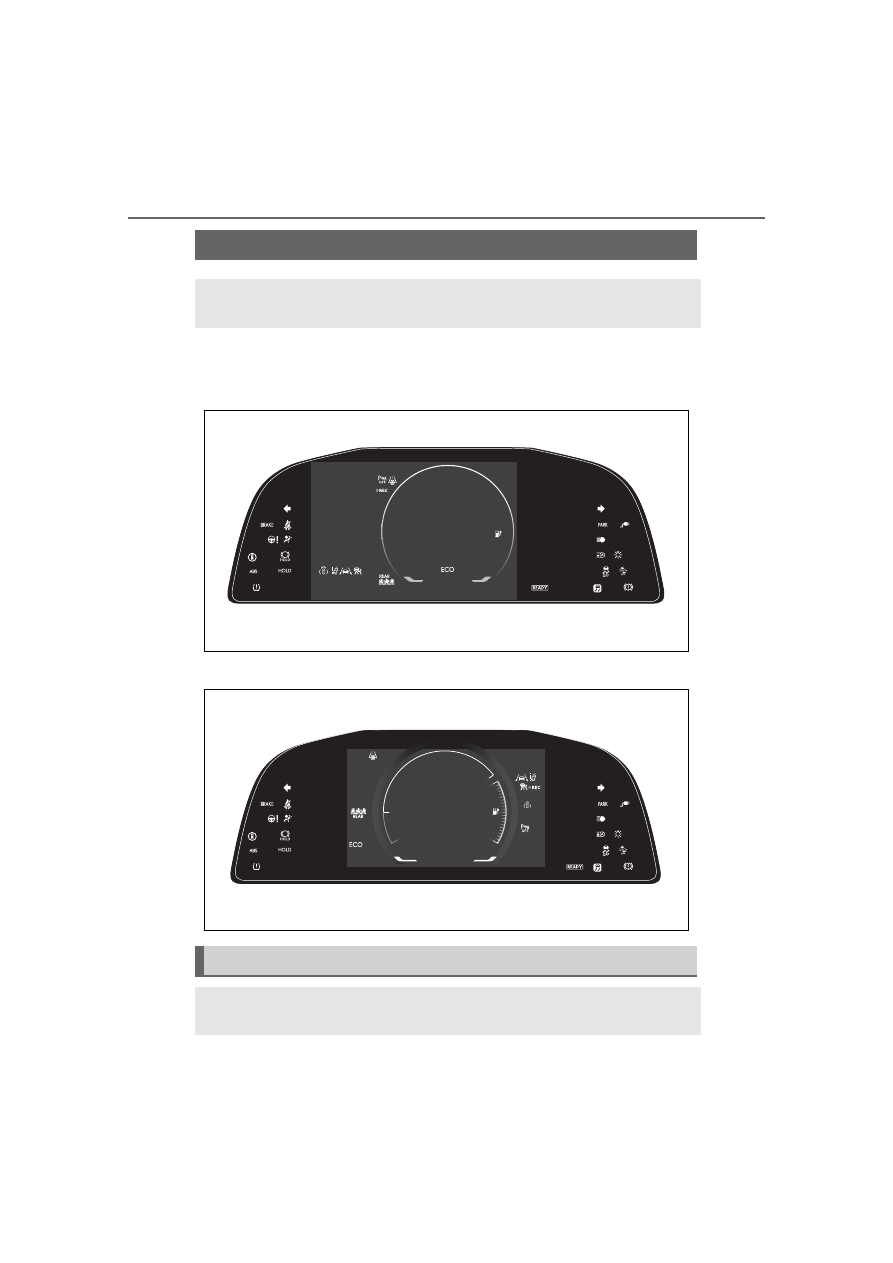

For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.

Vehicles without a head-up display

Vehicles with a head-up display

Warning lights and indicators

The warning lights and indicators on the instrument cluster and outside rear
view mirrors inform the driver of the status of the vehicle’s various systems.

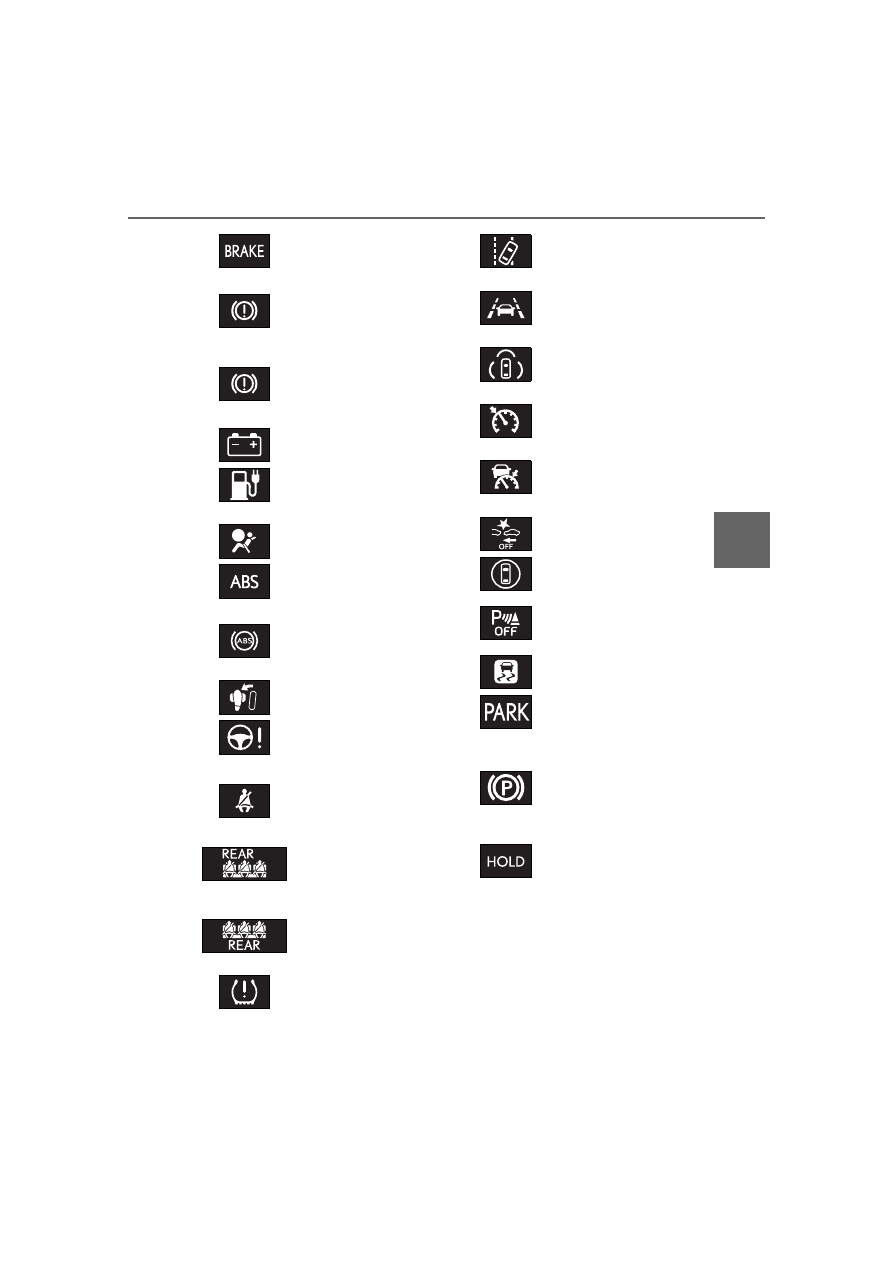

List of warning lights

Warning lights inform the driver of malfunctions in the indicated vehicle’s sys-
tems.

239

5-1. Functions and displays of the meter

5

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

*1

: These lights come on when the power

switch is turned to ON to indicate that a
system check is being performed. They
will turn off after the EV system is on, or
after a few seconds. There may be a
malfunction in a system if the light does
not come on, or turn off. Have the vehi-
cle inspected by your Lexus dealer.

(U.S.A.)

(Canada)

(red)

Brake system warning
light

*1

(yellow)

Brake system warning
light

*1

Charging system warn-
ing light

*2

(yellow)

Traction battery charge
warning light

SRS warning light

*1

(U.S.A.)

(Canada)

ABS warning light

*1

Inappropriate pedal
operation warning light

*2

(red/yellow)

Electric power steering
system warning light

*1

Driver’s and front passen-
ger’s seat belt reminder
light
Rear passengers’ seat
belt reminder light (vehi-
cles without a head-up
display)
Rear passengers’ seat
belt reminder light (vehi-
cles with a head-up dis-
play)
Tire pressure warning
light

*1

(yellow)

LDA indicator

(yellow)

LTA indicator

(yellow)

PDA indicator

(yellow)

Cruise control indicator

(yellow)

Dynamic radar cruise
control indicator

PCS warning light

*1

Driving assist information
indicator

*1

Intuitive parking assist
OFF indicator (if
equipped)

*1

Slip indicator

*1

(U.S.A.)

(flashes)

(Canada)

(flashes)

Parking brake indicator

(flashes)

Brake hold operated indi-
cator

*1

240

5-1. Functions and displays of the meter

*2

: This light illuminates on the multi-infor-

mation display.

If a warning light turns on/flashes

P.472

WARNING

Should a safety system light such as the

ABS and SRS warning light not come on

when you start the EV system, this could

mean that these systems are not available

to help protect you in an accident, which

could result in death or serious injury.

Have the vehicle inspected by your

Lexus dealer immediately if this occurs.

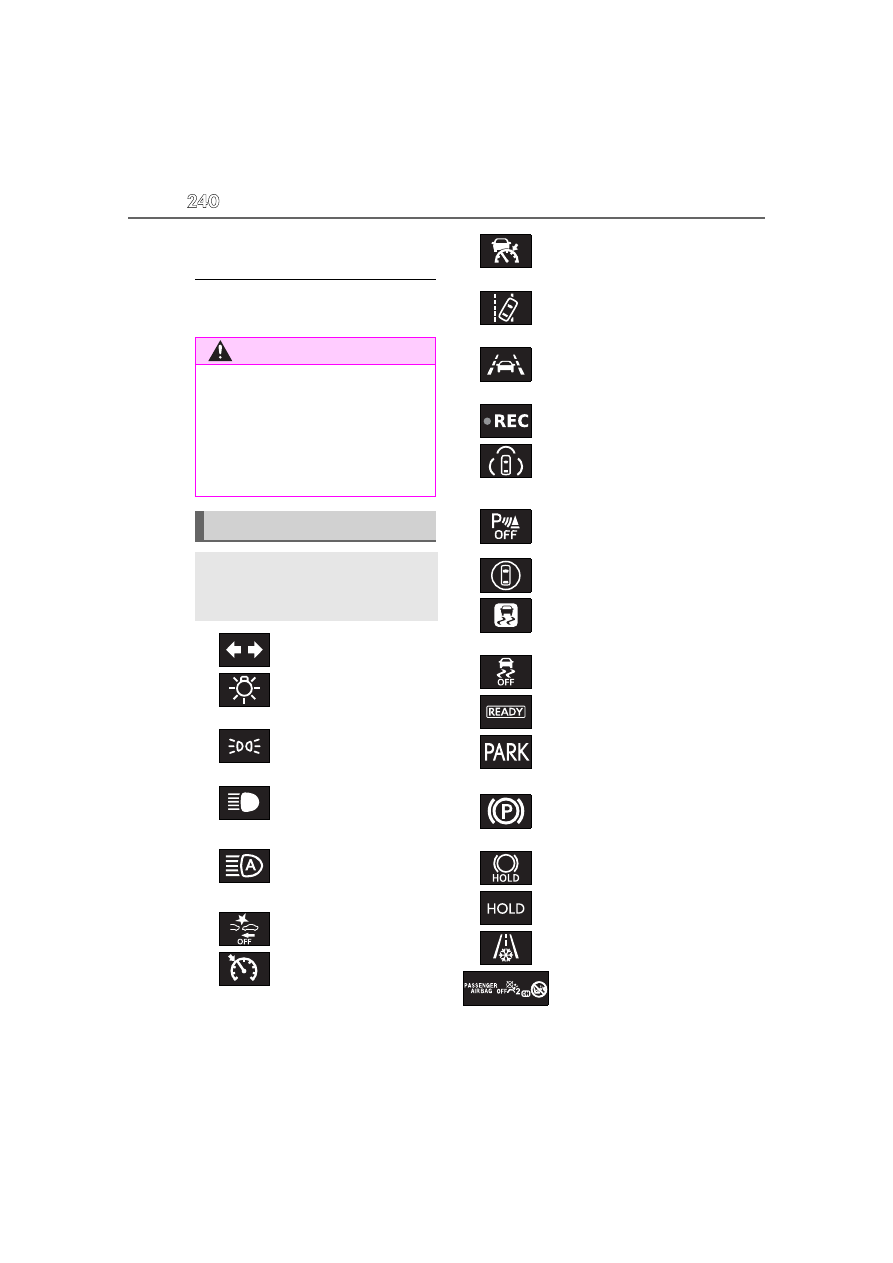

List of indicators

The indicators inform the driver of
the operating state of the vehicle’s
various systems.

Turn signal indicator

(U.S.A.)

Headlight indicator

(Canada)

Tail light indicator

Headlight high beam
indicator
AHS indicator (if
equipped)

*1

AHB indicator (if
equipped)

*1

PCS warning light

*1,2

(green/white)

Cruise control indicator

(green/white)

Dynamic radar cruise
control indicator

(green/white)

LDA indicator

(green/white)

LTA indicator

REC indicator

(green/white)

PDA indicator

Intuitive parking assist
OFF indicator (if
equipped)

*1,2

Driving assist information
indicator

*1,2

(flashes)

Slip indicator

*1

VSC OFF indicator

*1,2

“READY” indicator

(U.S.A.)

(Canada)

Parking brake indicator

Brake hold standby indi-
cator

*1

Brake hold operated indi-
cator

*1

Low outside temperature
indicator

*3

“AIR BAG ON/OFF”
indicator

*5

241

5-1. Functions and displays of the meter

5

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

*1

: These lights come on when the power

switch is turned to ON to indicate that a
system check is being performed. They
will turn off after the EV system is on, or
after a few seconds. There may be a
malfunction in a system if the light does
not come on, or turn off. Have the vehi-
cle inspected by your Lexus dealer.

*2

: This light comes on when the system is

turned off.

*3

: When the outside temperature is

approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10
seconds, then stay on.

*4

: This light illuminates on the outside rear

view mirrors.

*5

: This light illuminates on the front inte-

rior/personal lights.

*6

: This light comes on when the stop lights

are illuminated by the operation of the
brake pedal or the driving assist system.

Customization

Some functions can be customized.

(

P.582)

Depending on the settings and system
operation, the meter displays or posi-
tion of some gauges will change.

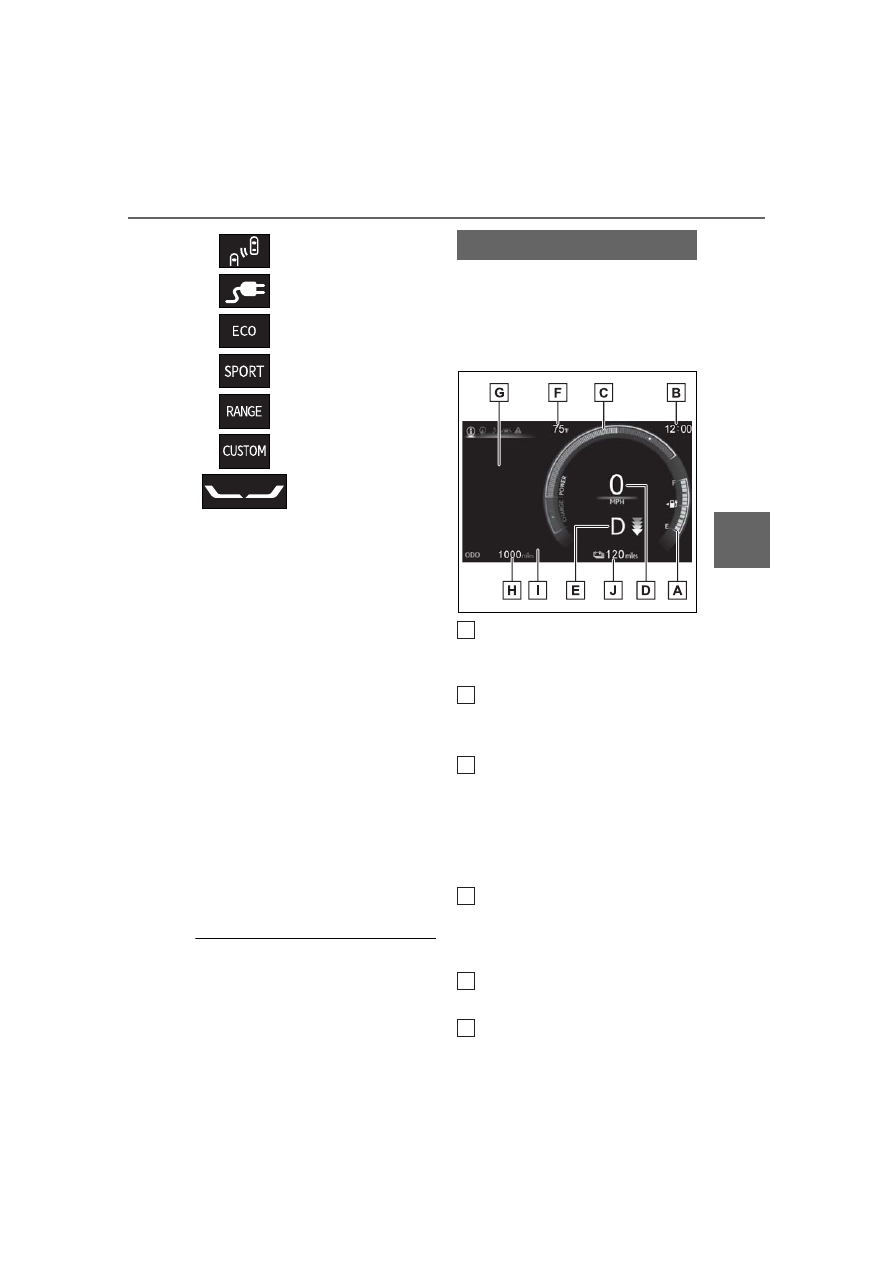

Vehicles without a head-up display

SOC (State of Charge) gauge

Displays the amount of charge remaining
in the traction battery.

Clock

Automatically adjusts the time by using the
GPS time information (GPS clock).

*1

Power meter

*2

/Analog speedome-

ter

*3

Power meter: Displays EV system output
or regeneration level. (

P.244)

Depending on the selected drive mode or
certain settings, the display will change.

Power meter

*3, 4

/Digital speedom-

eter

Power meter: Displays EV system output
or regeneration level. (

P.244)

Shift position/regenerative braking
power indicator (

P.144, 150)

Outside temperature

Outside rear view mirror
indicators

*4

Charging cable indicator

Eco drive mode indicator

Sport mode indicator

Range mode indicator

Customize mode indica-
tor

Stop light indicator

*6

Gauges and meters

A

B

C

D

E

F

242

5-1. Functions and displays of the meter

Displays the ambient temperature within
the range of -40°F (-40°C) to 141°F
(60°C).

Multi-information display

Presents the driver with a variety of vehicle
data and displays warning messages if a
malfunction occurs .

Odometer and trip meter display
(

P.245)

Background color of driving mode

Background color changes according to
the driving mode.

Driving range

Displays the driving range with charge
remaining in the traction battery.

*1

: For details, refer to “MULTIMEDIA

OWNER’S MANUAL”.

*2

: Displayed when the meter display type

setting is set to display type 1

*3

: Displayed when the meter display type

setting is set to display type 2

*4

: Displayed when the meter display type

setting is set to display type 3

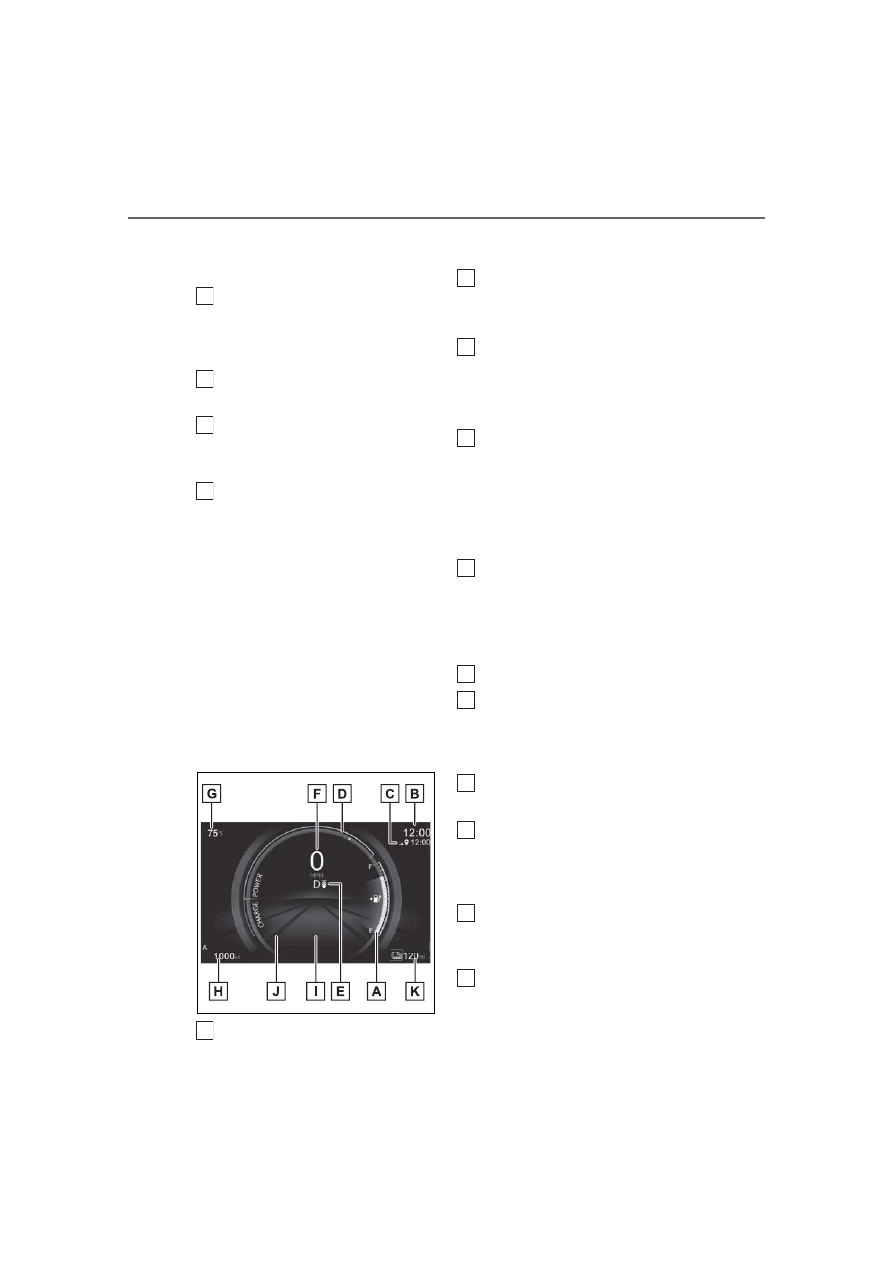

Vehicles with a head-up display
(Ring display state

*1, 2

)

SOC (State of Charge) gauge

Displays the amount of charge remaining
in the traction battery.

Clock

Automatically adjusts the time by using the
GPS time information (GPS clock).

*3

Navigation system estimated time
of arrival display

Displays the estimated time of arrival
according to the navigation system.

*3

Power meter

*1

/Analog speedome-

ter

*2

Power meter: Displays EV system output
or regeneration level. (

P.244)

Depending on the selected drive mode or
certain settings, the display will change.

Power meter

*2

/Shift posi-

tion/regenerative braking power
indicator (

P.244, 144, 150)

Power meter: Displays EV system output
or regeneration level.

Digital speedometer
Outside temperature

Displays the ambient temperature within
the range of -40°F (-40°C) to 141°F
(60°C).

Odometer and trip meter display
(

P.245)

Multi-information display

Presents the driver with a variety of vehicle
data and displays warning messages if a
malfunction occurs .

Background color of driving mode

Background color changes according to
the driving mode.

Driving range

Displays the driving range with charge
remaining in the traction battery.

G

H

I

J

A

B

C

D

E

F

G

H

I

J

K















Content      ..     5      6      7      8     ..
