5-5. Using the other interior features

rio

r fe

atu

Pull the armrest down for use.

An assist grip installed on the ceiling
can be used to support your body
while sitting on the seat.

NOTICE

■

To prevent failure or damage to data

●

Do not place magnetic cards, such as a

credit card, or magnetic recording

media, close to the wireless charger

while charging. Otherwise, data may

be erased due to the influence of mag-

netism. Additionally, do not bring pre-

cision instruments such as wrist

watches, close to the wireless charger,

as such objects may malfunction.

●

Do not perform charging with a con-

tactless smart card, such as a transpor-

tation system IC card, between the

charging surface of a portable device

and the charging area. The IC chip in

the card may become extremely hot,

possibly damaging the portable device

or smart card.

Be extra careful to not charge a porta-

ble device with a case or cover which a

contactless smart card can be

inserted.

●

Do not leave portable devices in the

cabin. The temperature inside the

cabin may become high when parked

in the sun, and cause damage to the

device.

■

When the OS of a smartphone has

been updated

When the OS version of a smartphone

has been changed, the charging specifi-

cations may have changed. If the WPC

compatibility version is changed, the

rapid charging function may no longer

be able to be used. For details, check for

information on the website for the smart-

phone manufacturer.

■

To prevent 12-volt battery discharge

Do not use the wireless charger for a

long period of time with the hybrid sys-

tem stopped.

Armrest

NOTICE

■

To prevent damage to the armrest

Do not apply too much load on the arm-

rest.

Assist grips

WARNING

■

Assist grip

Do not use the assist grip when getting in

or out of the vehicle or rising from your

seat.

NOTICE

■

To prevent damage to the assist grip

Do not hang any heavy object or put a

heavy load on the assist grip.

442

5-5. Using the other interior features

The coat hooks are provided with the
rear assist grips.

Please use as a power supply for elec-
tronic goods that use less than 12
VDC/10 A (power consumption of
120 W).
When connecting multiple devices,
make sure that the total power con-
sumption of all the connected devices
is less than 120 W.



Inside the console box

Open the lid.



In the luggage compartment

Open the lid.

■

The power outlet can be used when

The power switch is in ACC or ON.

■

When stopping the hybrid system

Disconnect electrical devices with charging

functions, such as mobile battery packs.

If such devices are left connected, the

hybrid system may not stop normally.

Coat hooks

WARNING

■

Items that must not be hung on the

hook

Do not hang coat hangers or other hard

or sharp objects on the hook. If the SRS

curtain shield airbags deploy, these items

may become projectiles, causing death

or serious injury.

Power outlets (12 VDC)

NOTICE

■

To avoid damaging the power outlet

Install the cap or close the lid when the

power outlets is not in use.

Foreign objects or liquids that enter the

power outlet may cause a short circuit.

■

To prevent 12-volt battery discharge

Do not use the power outlet longer than

necessary when the hybrid system is not

running.

443

5-5. Using the other interior features

rio

r fe

atu

To set the visor in the forward posi-
tion, flip it down.

To set the visor in the side position,
flip down, unhook, and swing it to
the side.

To use the side extender, place the
visor in the side position, then slide
it backward.

Slide the cover to open.

The light turns on when the cover is
opened.

■

To prevent 12-volt battery discharge

If the vanity lights remain on when the

power switch is turned off, the lights will go

off automatically after 20 minutes.

Pull the sunshade up using the tab and
hook the sunshade on to the anchors.

To lower the sunshade, pull it up slightly
using the tab, unhook it from the anchors,
and lower it slowly.

Sun visors

Vanity mirrors

NOTICE

■

To prevent the 12-volt battery from

being discharged

Do not leave the vanity lights on for

extended periods while the hybrid sys-

tem is off.

Rear door sunshades (if
equipped)

WARNING

■

Closing the rear door sunshade

When a rear door sunshade is in use, do

not put fingers, etc. on the anchors or in

the groove of the rear door sunshade.

Otherwise, a finger, etc. may get caught,

possibly causing an injury.

NOTICE

■

To ensure normal operation of the

sunshade

●

Do not put anything in an area where it

may interfere with the operation of a

rear door sunshade.

444

5-5. Using the other interior features

: If equipped

Observe the following precautions
before starting the power supply:



As the engine may operate while
the system is operating, avoid areas
with poor ventilation, such as a
garage. Park the vehicle in a well
ventilated place.



Park the vehicle on a solid and level
place.



Check that the hood is closed.



Check that the parking brake is
engaged.



Check that the P shift position is
selected.



Check that the power switch is off.



Note that the alarm system cannot
be enabled during the Power supply.
For theft prevention, do not leave
valuable items, etc. in the cabin or
luggage compartment.

NOTICE

●

To prevent damage to the rear door

sunshades, do not apply excessive

load or attach items to the rear door

sunshades.

Using the power outlets
(1500 W)

The system allows the on-board use
of electric devices which operate
on 120 VAC and have a combined
power consumption of 1500 W or
less.

Precautions for using the power
outlets while parked

445

5-5. Using the other interior features

Interio

r fe

atures

Power switch (



P.208)

In the luggage compartment

Check that the parking brake is
engaged. securely depress the
brake pedal, and press the power
switch. (



P.208)

Check that the “READY” indicator
is illuminated, and select the short-
cut switch on the center display.

Touch “Power outlet 1500W”.

The power outlets are turned on/off each

time “Power outlet 1500W” is touched.

Open the lid, and fully and securely
insert the plug of the device into the
power outlet.

Turn the connected device(s) off.

Select the shortcut switch on the
center display.

Touch “Power outlet 1500W” to
turn it off.

Disconnect each plug from the
power outlets.

Close the lid of each power outlet.

■

When connecting a device

Make sure to read the instruction man-
ual which came with a device and
observe warnings on the device.
Before connecting a device to the
power outlet, make sure that the device
is turned off.

Open the lid, and fully and securely
insert the plug of the device into the
power outlet.

Do not leave the plug halfway inserted.
In the following situations, use cable
extension, etc. and connect the plug
securely to the power outlet:



When the plug of a device is too
large to allow it to be inserted fully
and securely into the power outlet.



When the plug of a device is heavy,
possibly causing it to come off the
power outlet.

If the device to be used has a ground
wire, use a conversion adapter avail-
able on the market and connect the
ground wire to the ground terminal of
the conversion adapter.

Names of parts

Using the power outlets (1500
W)

Stopping the use of the power
outlets (1500 W)

A
B

Connecting a device

446

5-5. Using the other interior features

■

Power outlets

●

With these power outlets, use devices

which operate on 120 VAC and have a

combined maximum power consumption

of 1500 W or less. If a device is con-

nected and the power consumption is

exceeded, a protection circuit may be

activated and the power supply function

may be stopped.

●

Some of the devices that consume a large

amount of power, such as an electric

grille, may require the exclusive use of the

power outlets. When such a device is

connected, do not connect other

device(s) to the power outlets.

●

When multiple devices are connected,

depending on the device, a connected

device may not operate properly. For

such a device, use exclusively the power

outlets.

●

When a power outlet is being used,

depending on the device to be used, the

current flow may be high and the initial

peak wattage may exceed 1500 W.

●

When a power outlet is being used,

depending on the device to be used, it

may cause interference with TV and

radio broadcasts.

●

While a power outlet is being used, a

cooling fan sound may be heard from

near a luggage compartment. This does

not indicate a malfunction.

■

Devices which may not operate cor-

rectly

The following devices may not operate

properly even if the combined power con-

sumption is 1500 W or less:

●

Devices with high initial peak wattage

●

Devices requiring larger amount of

power supply than the power consump-

tion specified in its instruction manual

●

Measuring devices that process precise

data

●

Devices that require an extremely stable

power supply

●

Devices that require a constant power

supply from the power outlet, such as a

device with a timer.

■

When the power outlets are used while

the vehicle is parked or stopped

●

The doors cannot be locked/unlocked

using the smart access system with

push-button start.

●

The doors cannot be locked/unlocked

using an electronic key. The doors can

only be locked/unlocked using a

mechanical key. (



P.549)

●

When a door is opened/closed, a buzzer

may sound or “Key not detected Check

key location” may be displayed on the

multi-information display. Check that an

electronic key is carried with you.

●

When the surrounding area becomes

dark while the power supply is being per-

formed, the headlights, etc. will come on

automatically.

To turn the lights off:



P.232

WARNING

■

For safe use

Observe the following precautions. Fail-

ure to do so may lead to an accident,

resulting in death or serious injury.

●

Do not allow children or other people

not used to the operation to perform

the power supply by themselves.

●

Do not disconnect the plug of a device

while your hands are wet or insert a pin

or other object into the power outlet.

Also, if a liquid or snow is on the power

outlet, dry the outlet before using it.

447

5-5. Using the other interior features

rio

r fe

atu

WARNING

●

Do not attempt to modify, disassemble,

or repair a Power outlet. For informa-

tion on repairs, contact your Lexus

dealer.

●

Keep the power outlets free of dust

and foreign matter. Also, make sure to

clean the power outlets periodically.

●

Hold the plug body to plug in/out of a

power outlet. Do not touch the plug

blades. Do not pull on a cord for

unplugging, as otherwise the plug or

cord may be damaged.

●

Stop the use immediately if abnormal

heat is observed on a cord or power

outlet. To prevent the cord or power

outlet from becoming hot, observe the

following precautions:

• Do not connect 2 or more multi-point

outlet adapters, such as dual adapters.

• When an extension cord reel is used,

make sure to draw the whole cord out

of the reel.

●

If the device to be used has a ground

wire, use a conversion adapter avail-

able on the market and connect the

ground wire to the ground terminal of

the conversion adapter.

●

If the plug of a device fits loosely in a

power outlet, even though it is fully

inserted, replace the power outlet. For

information on replacement, contact

your Lexus dealer.

■

Devices to be connected

●

Make sure to read any instruction

manual which came with a device and

observe any warnings on the device.

●

Do not connect a device to a power

outlet if the device is malfunctioning or

its plug is damaged.

●

Otherwise, the device may be further

malfunctioning, especially when the

outside temperature is high or low.

●

Devices requiring to be installed on a

level place may not operate properly.

●

Do not use devices, other than water-

proof devices, in a place where water,

such as rain, is splashed over or where

it is humid.

●

Do not use a device that has been or

likely to have been merged in water or

absorbed water within.

●

Depending on the vehicle condition,

the power supply function may be tem-

porarily stopped.

■

When the power outlets are used

while the vehicle is parked or stopped

●

The power outlets are designed to be

connected to electric devices, such as

lighting devices. Do not use them as a

generator that supplies power to a

house, etc. Also, when they are to be

used on an emergency power supply

device for homes, such as an exclusive

device having connection to an exter-

nal power source, or a device whose

power supply circuit for external

power source is separate from electric

wiring of power companies, consult

with the manufacturer or a retailer of

the device.

●

When using a power outlet, make sure

to securely engage the parking brake

and shift the shift position to P. Other-

wise, the vehicle may move, possibly

leading to an accident.

448

5-5. Using the other interior features

WARNING

●

When using a power outlet, do not

move away from the vehicle.

●

Do not perform rapid charging during

weather when lightning may occur.

Stop supplying power if lightning is

observed during power supply.

●

Do not use the power outlets if the

vehicle has a vehicle cover installed.

●

Take due care when you sleep in the

vehicle while using devices such as an

electric heater. The power supply sys-

tem may stop automatically, possibly

resulting in unintended stoppage of

the connected device.

●

Do not use a power outlet when the

vehicle is parked on a slanted place or

a slope. When a power outlet is being

used, do not move the vehicle or cause

it to be inclined.

●

Observe the following precautions

when a connected cord is to be

brought outside the vehicle:

• Take due care for not allowing rain to

enter.

If the power outlet are wet with rain-

drops, dry them before use.

• Do not have cords pinched in a win-

dow or door.

• Allow slack in a connected cord. Do

not cause it to be extraordinary tense.

• Do not start off the vehicle by mistake.

●

Do not refuel or wash the vehicle when

using a power outlet.

●

Make sure that the hood is closed. As

the engine will start automatically

depending on the condition of the

vehicle, make sure that nothing is left

near or contacting the exhaust pipes.

Also, do not put your head or hands

anywhere inside the engine compart-

ment. The cooling fans may operate

suddenly. Keep hands and clothing

(especially a tie, scarf, muffler, etc.)

away from the fans as they may get

caught in a fan, resulting in serious

injury.

●

Do not stop the vehicle near objects

which burn easily. If the exhaust system

is extremely hot, it may cause a fire.

●

If the charge level of the hybrid battery

(traction battery) becomes low, the

gasoline engine will operate automati-

cally. When using a power outlet in an

area with poor ventilation, such as a

garage, or an enclosed area (covered

with snow), to prevent the exhaust gas-

ses from accumulating and causing a

lack of oxygen, make sure to properly

install and use an air supply/exhaust

device. Do not use the power outlets if

such a device cannot be installed.

■

Use of a power outlet while driving

●

In situations such as the following, do

not use an electric device while driv-

ing. Also, do not use a device if it can-

not be secured within the vehicle.

• When a device is likely to distract the

driver and be a hindrance to safe driv-

ing, such as a TV, video/DVD player,

etc.

• When an inadequately secured device

is likely to fall over in case of sudden

braking or an accident

• When a device is likely to cause fire if it

falls or generates heat

• When a device is likely to cause burns,

such as a toaster, microwave, electric

heater, electric kettle, coffee maker,

etc.

449

5-5. Using the other interior features

rio

r fe

atu

WARNING

• When a device is likely to fall under the

pedals and prevent the brake pedal

from being depressed, such as a hair

dryer, AC adapter, mouse, etc.

●

Do not use devices which produce

steam while the windows are closed.

Doing so may cause the windows to

fog up, reducing visibility and making it

difficult to drive safely. Also, the steam

may damage or negatively affect other

devices. If the device must be used,

stop the vehicle and open the windows

before use.

NOTICE

■

To avoid short circuit or malfunction

Observe the following precautions. Fail-

ure to do so may lead to the power out-

lets not operating correctly or damage to

the vehicle or a connected device.

●

Do not set a toaster or other device

which generates heat near the interior

components or on a seat. Heat may

cause these parts to melt or burn.

●

Do not use devices which are sensitive

to vibration or heat in the vehicle.

These devices may malfunction due to

vibration while driving or heat while

the vehicle is parked in the sun.

●

When not using a power outlet, make

sure to close the lid. If foreign matter or

a liquid enters the power outlet, it may

cause a malfunction or short circuit.

If the power outlets (1500
W) cannot be used

If the power supply does not start
even though the correct steps are
followed, check each of the follow-
ing:

If the power outlets (1500 W)
cannot be used

Cause

Remedy

The traction bat-
tery may be too
hot, such as when
the outside tem-
perature is high,
etc.

Move the vehicle to a
shaded place, etc. or
use the air condition-
ing system to cool
down the cabin. After
a while, touch “Power
outlet 1500 W” again.

The traction bat-
tery may be too
cold, such as
when the outside
temperature is
low, etc.

Drive the vehicle for a
while or use the air
conditioning system to
warm up the cabin.
After a while, touch
“Power outlet 1500
W” again.

A connect device
does not operate.

Disconnect the plug of
each device from the
power outlets, check
that the devices are not
malfunctioning, recon-
nect the devices, and
then touch “Power out-
let 1500 W” again.
Refer to the instruc-
tion manual of the
device.

450

5-5. Using the other interior features

■

HomeLink

programming procedure

The programming procedures can also be

found at the following URL.
Website: www.homelink.com/lexus

For support, contact customer support at

the following.
Help Line: 1-800-355-3515

The HomeLink

wireless control sys-

tem in your vehicle has 3 buttons which
can be programmed to operate 3 dif-
ferent devices. Refer to the program-
ming methods on the following pages
to determine the method which is
appropriate for the device.

The combined
power consump-
tion of connected
device(s) exceeds
1500 W.

Disconnect the plug of
each device from the
power outlets, check
that the combined
power consumption of
all devices to be con-
nected to the power
outlets is 1500 W or
below, reconnect the
devices, and then
touch “Power outlet
1500 W” again.

The power outlets
have a short cir-
cuit.

Disconnect the plug of
each device from the
power outlets, check
the following, and then
touch “Power outlet
1500 W” again.



If a pin or other
object is not inserted



If a liquid or snow is
not on the power
outlets



If the power outlets
are free of dust or
foreign matter

Cause

Remedy

Garage door opener

The garage door opener can be
programmed using the Home-
Link

to operate garage doors,

gates, entry doors, door locks,
home lighting systems, security sys-
tems, and other devices.

System components

451

5-5. Using the other interior features

rio

r fe

atu



Vehicles with auto anti-glare inside
rear view mirror

HomeLink

indicator light

Garage door operation indicators

HomeLink

icon

Illuminates while HomeLink

is operating.

Buttons



Vehicles with Digital Rearview Mir-
ror

HomeLink

logo

Appears while HomeLink

is operating.

When the menu button (



P.157) is

pressed, the logo disappears even while
the HomeLink

is operating.

Garage door operation indicators

HomeLink

indicator light

Illuminates above each button selected.

Buttons

■

Codes stored in the HomeLink

mem-

ory

●

The registered codes are not erased even

if the 12-volt battery cable is discon-

nected.

●

If learning failed when registering a dif-
ferent code to a HomeLink

button that

already has a code registered to it, the

already registered code will not be

erased.

■

Before programming HomeLink



During programming, it is possible
that garage doors, gates, or other
devices may operate. For this rea-

A
B
C

B
C

WARNING

■

When programming a garage door or

other remote control device

The garage door or other device may

operate, so ensure people and objects

are out of danger to prevent potential

harm.

■

Conforming to federal safety stan-

dards

Do not use the HomeLink

compatible

transceiver with any garage door opener

or device that lacks safety stop and

reverse features as required by federal

safety standards.

This includes any garage door that can-

not detect an interfering object. A door

or device without these features

increases the risk of death or serious

injury.

■

When operating or programming
HomeLink

Never allow a child to operate or play
with the HomeLink

buttons.

Programming the HomeLink

452

5-5. Using the other interior features

son, make sure that people and
objects are clear of the garage door
or other devices to prevent injury or
other potential harm.



It is recommended that a new bat-
tery be placed in the remote control
transmitter for more accurate pro-
gramming.



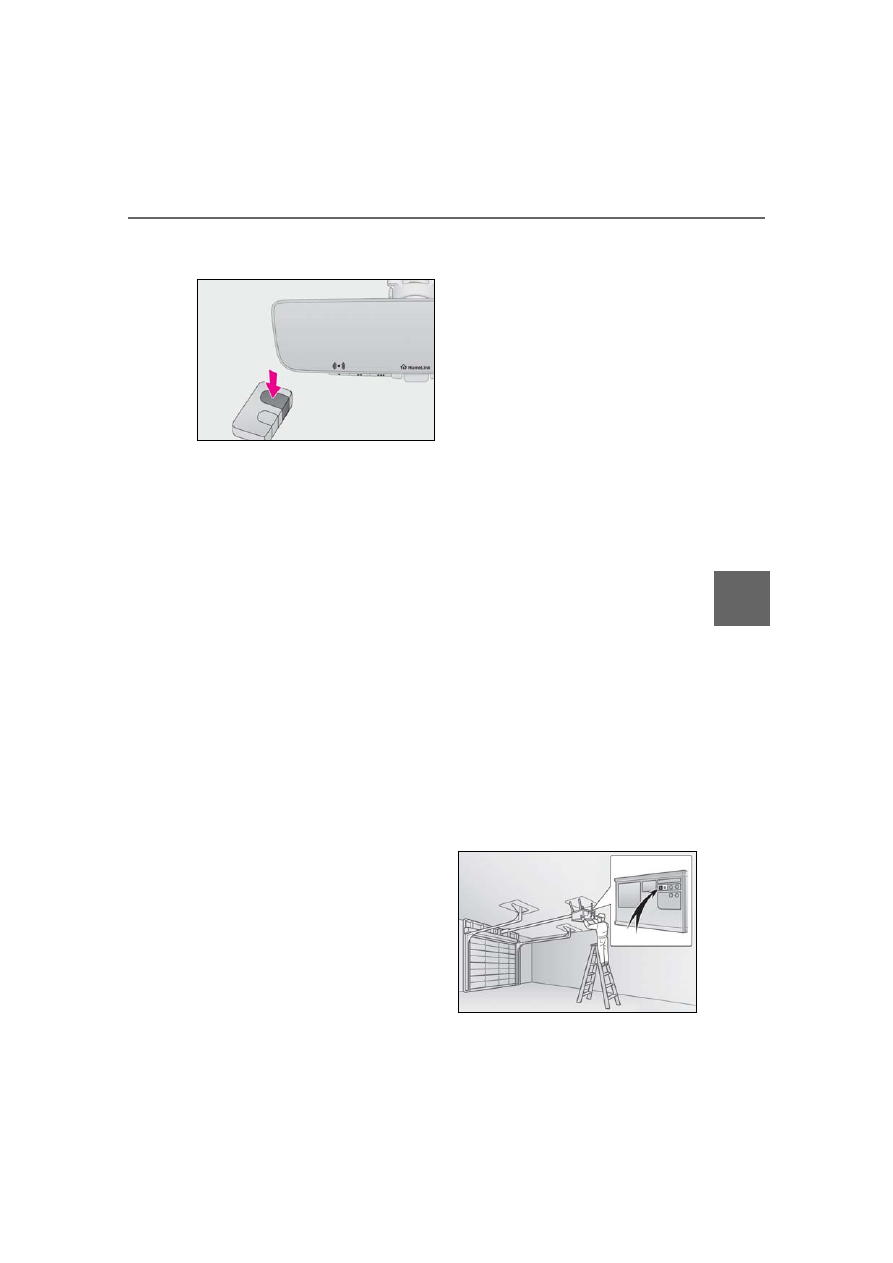

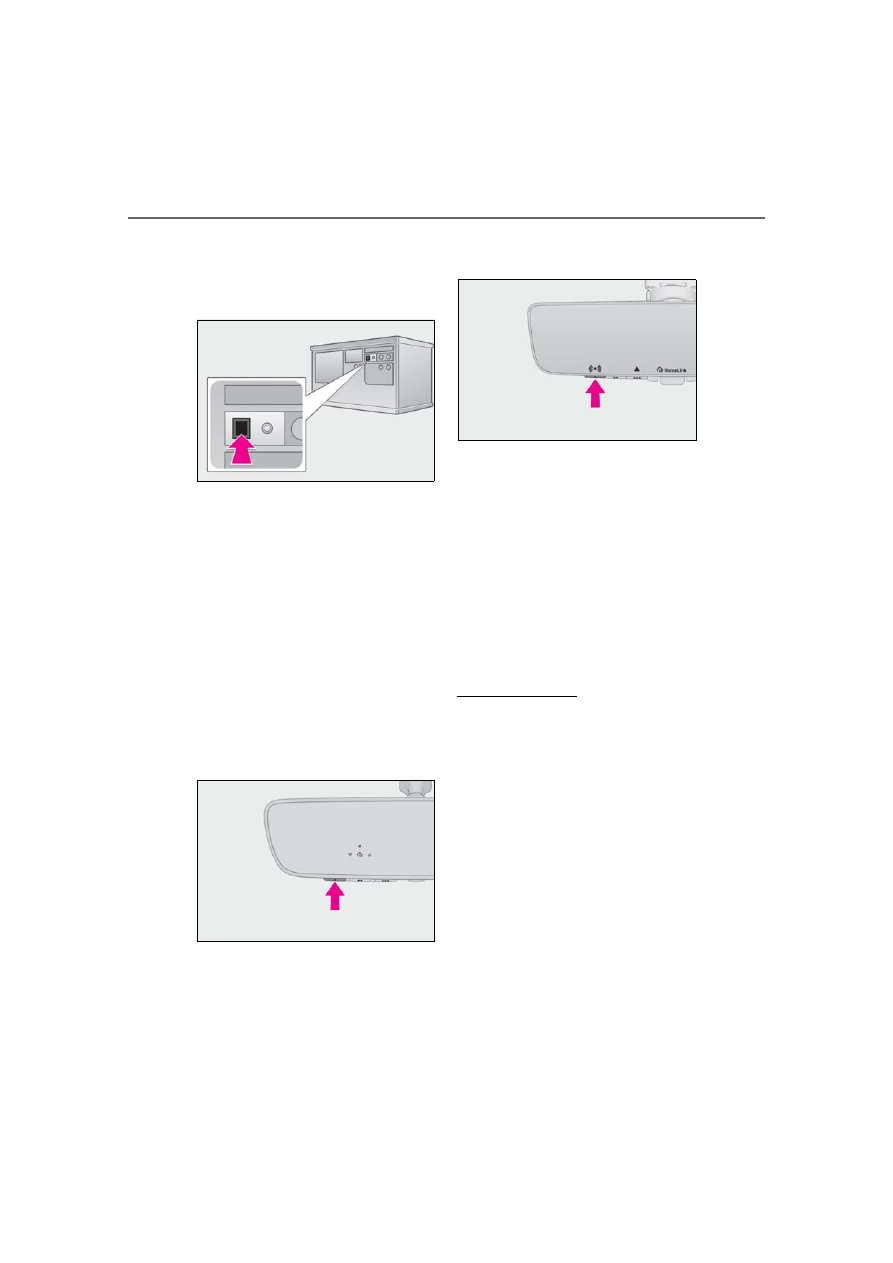

Garage door opener motors manu-
factured after 1995 may be
equipped with rolling code protec-
tion. If this is the case, you may need
a stepladder or other sturdy, safe
device to reach the “Learn” or
“Smart” button on the garage door
opener motor.

■

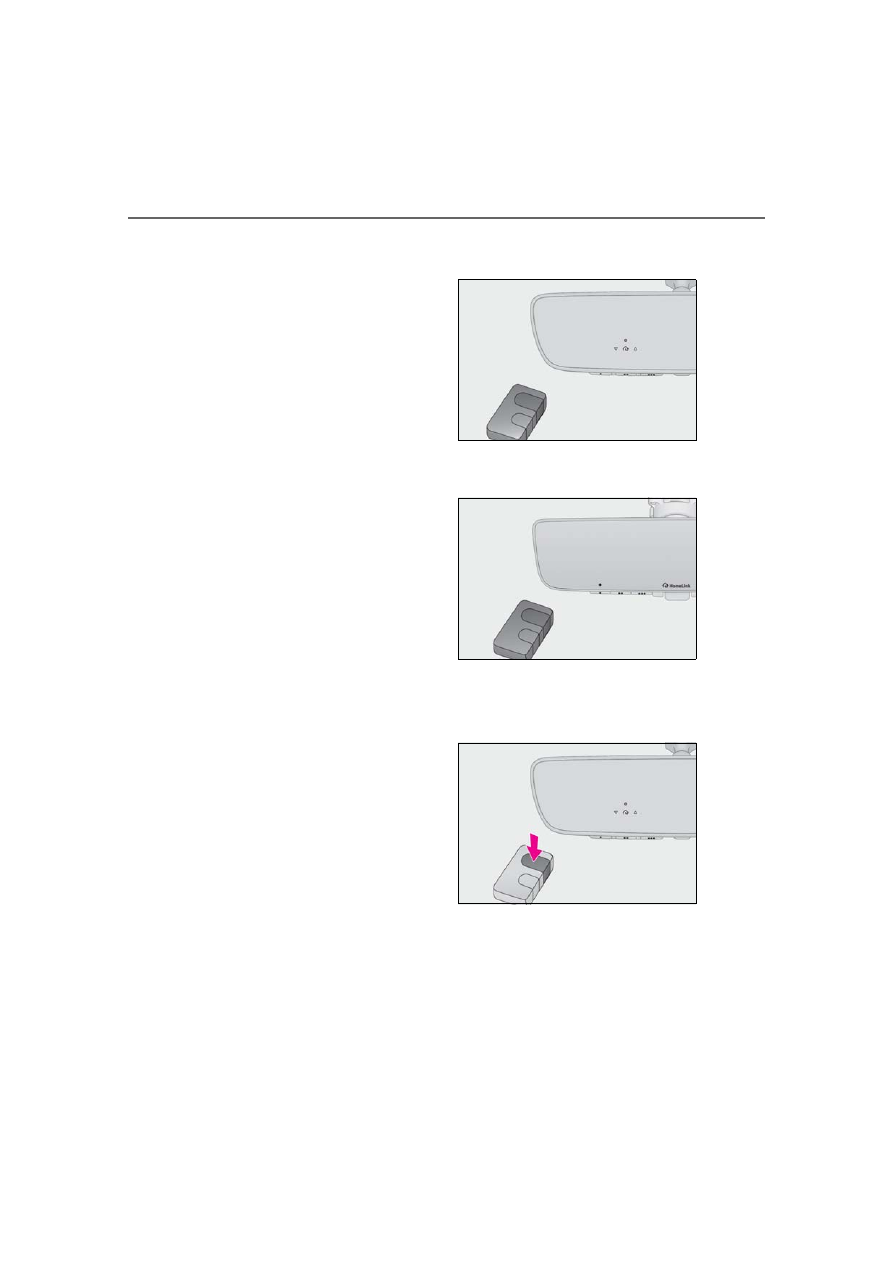

Programming HomeLink

Steps

through

must be performed

within 60 seconds, otherwise the
HomeLink

indicator light will stop

flashing and programming will not be
successfully completed.

Press and release the HomeLink

button you want to program and
check that the HomeLink

indica-

tor light flashes (orange).

Point the remote control transmit-
ter for the device at the rear view
mirror, 1 to 3 in. (25 to 75 mm)
from the HomeLink

buttons.

Keep the HomeLink

indicator light in

view while programming.



Vehicles with auto anti-glare inside
rear view mirror



Vehicles with Digital Rearview Mir-
ror

Program a device.



Vehicles with auto anti-glare inside
rear view mirror

453

5-5. Using the other interior features

Interio

r fe

atures



Vehicles with Digital Rearview Mir-
ror



Programming a device other than
an entry gate (for U.S.A. owners)

Press and hold the remote control
transmitter button until the Home-
Link

indicator light changes from

slowly flashing orange to rapidly flash-
ing green (rolling code) or continu-
ously lit green (fixed code), then
release the button.



Programming an entry gate (for
U.S.A. owners)/Programming a
device in the Canadian market

Press and release the remote control
transmitter button at 2 second inter-
vals, repeatedly, until the HomeLink

indicator light changes from slowly
flashing (orange) to rapidly flashing
(green) (rolling code) or continuously
lit (green) (fixed code).

Test the HomeLink

operation by

pressing the newly programmed
button and observing the indicator
light:



HomeLink

indicator light illumi-

nates: Programming of a fixed code
device has completed. The garage
door or other device should operate

when a HomeLink

button is

pressed and released.



HomeLink

indicator light flashes

rapidly: The garage door opener
motor or other device is equipped
with a rolling code. To complete
programming, firmly press and hold
the HomeLink

button for 2 sec-

onds then release it.



If the garage door or other device
does not operate, proceed to “Pro-
gramming a rolling code system”.

Repeat the steps above to program
another device for any of the
remaining HomeLink

buttons.

■

Programming a rolling code sys-
tem

Two or more people may be necessary
to complete rolling code program-
ming.

Locate the “Learn” or “Smart” but-
ton on the garage door opener
motor in the garage.

This button can usually be found where the

hanging antenna wire is attached to the

unit. The name and color of the button may

vary by manufacturer. Refer to the owner’s

manual supplied with the garage door

opener motor for details.

454

5-5. Using the other interior features

Press and release the “Learn” or
“Smart” button.
Perform

within 30 seconds after

performing

Press and hold the desired Home-
Link

button (inside the vehicle)

for 2 seconds and release it. Repeat
this sequence (press/hold/release)
up to 3 times to complete pro-
gramming.
If the garage door opener motor
operates when the HomeLink

button is pressed, the garage door
opener motor recognizes the
HomeLink

signal.



Vehicles with auto anti-glare inside
rear view mirror



Vehicles with Digital Rearview Mir-
ror

■

Enabling 2-way communication
with a garage door (only available
for compatible devices)

When enabled, 2-way communication
allows you to check the status of the
opening and closing of a garage door
through indicators in your vehicle.
2-way communication is only available
if the garage door opener motor used
is a compatible device. (To check
device compatibility, refer to
www.homelink.com.)

Within 5 seconds after program-
ming the garage door opener has
been completed, if the garage door
opener motor is trained to Home-
Link

, both garage door operation

indicators will flash rapidly (green)
and the light on the garage door
opener motor will blink twice, indi-
cating that 2-way communication is
enabled.

If the indicators do not flash, perform

and

within the first 10 presses of the Home-

Link

button after programming has been

completed.

Press a programmed HomeLink

button to operate a garage door.

455

5-5. Using the other interior features

Interio

r fe

atures

Within 1 minute of pressing the
HomeLink

button, after the

garage door operation has
stopped, press the “Learn” or
“Smart” button on the garage door
opener motor. Within 5 seconds of
the establishment of 2-way com-
munication with the garage door
opener, both garage door opera-
tion indicators in the vehicle will
flash rapidly (green) and the light
on the garage door opener motor
will blink twice, indicating that
2-way communication is enabled.

■

Reprogramming a single Home-
Link

button

When the following procedure is per-
formed, buttons which already have
devices registered to them can be
overwritten:

Press and hold the desired Home-
Link

button.

When the HomeLink

indicator

starts flashing orange, release the
HomeLink

button and perform

“Programming HomeLink

” 1 (it

takes 20 seconds for the Home-
Link

indicator to start flashing).

■

Before programming

●

Install a new battery in the transmitter.

●

The battery side of the transmitter must
be pointed away from the HomeLink

buttons.

Press the appropriate HomeLink

button. The HomeLink

indicator light

should turn on.
The status of the opening and closing
of a garage door is shown by the indi-
cators.



Vehicles with auto anti-glare inside
rear view mirror

Opening
Closing



Vehicles with Digital Rearview Mir-
ror

Opening
Closing

This function is only available if the garage
door opener motor used is a compatible
device. (To check device compatibility,
refer to www.homelink.com.)

Operating HomeLink

A
B

456

5-5. Using the other interior features

The indicators can operate within
approximately 820 ft. (250 m) of the
garage door. However, if there are
obstructions between the garage door
and the vehicle, such as houses and
trees, feedback signals from the
garage door may not be received.
To recall the previous door operation
status, press and release either Home-
Link

buttons

and

(vehicles with auto

anti-glare inside rear view mirror),

and

(vehicles with Digital Rearview

Mirror), simultaneously. The last
recorded status will be displayed for 3
seconds.

Press and hold the 2 outside buttons
for 10 seconds until the HomeLink

indicator light changes from continu-
ously lit (orange) to rapidly flashing
(green).

If you sell your vehicle, be sure to erase the
programs stored in the HomeLink

mem-

ory.



Vehicles with auto anti-glare inside
rear view mirror



Vehicles with Digital Rearview Mir-
ror

Color

Status

Orange (flashing)

Currently open-

ing/closing

Green

Opening/closing has

completed

Red (flashing)

Feedback signals

cannot be received

Erasing the entire HomeLink

memory (all three codes)

457

Mai
nte

e a

are

Maintenance and care

6-1. Maintenance and care

Cleaning and protecting the vehi-

cle exterior................................

458

Cleaning and protecting the vehi-

cle interior ..................................

461

6-2. Maintenance

Maintenance requirements

........................................................

464

General maintenance.............

465

Emission inspection and mainte-

nance (I/M) programs .........

468

6-3. Do-it-yourself maintenance

Do-it-yourself service precautions

........................................................

469

Hood................................................

471

Positioning a floor jack.............

471

Engine compartment...............

473

12-volt battery..............................

481

Tires ................................................

483

Tire inflation pressure..............

493

Wheels...........................................

495

Air conditioning filter...............

496

Cleaning the hybrid battery (trac-

tion battery) air intake vents
........................................................

498

Electronic key battery..............

501

Checking and replacing fuses

........................................................

503

Headlight aim..............................

505

Light bulbs....................................

506

458

6-1. Maintenance and care

6-1.Maintenance and care



Working from top to bottom, liber-
ally apply water to the vehicle body,
wheel wells and underside of the
vehicle to remove any dirt and dust.



Wash the vehicle body using a
sponge or soft cloth, such as a
chamois.



For hard-to-remove marks, use car
wash soap and rinse thoroughly with
water.



Wipe away any water.



Wax the vehicle when the water-
proof coating deteriorates.

If water does not bead on a clean surface,
apply wax when the vehicle body is cool.

■

Self-restoring coat

The vehicle body has a self-restoring coat-

ing that is resistant to small surface

scratches caused in a car wash etc.

●

The coating lasts for 5 to 8 years from

when the vehicle is delivered from the

plant.

●

The restoration time differs depending on

the depth of the scratch and outside tem-

perature.

The restoration time may become

shorter when the coating is warmed by

applying warm water.

●

Deep scratches caused by keys, coins,

etc. cannot be restored.

●

Do not use wax that contains abrasives.

■

Automatic car washes

●

Before washing the vehicle:

• Fold the mirrors

• Turn off the power back door
Start washing from the front of the vehicle.

Extend the mirrors before driving.

●

Brushes used in automatic car washes

may scratch the vehicle surface, parts

(wheel, etc.) and harm your vehicle’s

paint.

●

Rear spoiler may not be washable in

some automatic car washes. There may

also be an increased risk of damage to

vehicle.

●

When the shift position needs to be held

in N, refer to P.219, 225.

■

High pressure car washes

As water may enter the cabin, do not bring

the nozzle tip near the gaps around the

doors or perimeter of the windows, or spray

these areas continuously.

■

When using a car wash

If the door handle becomes wet while the

electronic key is within the effective range,

the door may lock and unlock repeatedly. In

that case, follow the following correction

procedures to wash the vehicle:

●

Place the key in a position 6 ft. (2 m) or

more separate from the vehicle while the

vehicle is being washed. (Take care to

ensure that the key is not stolen.)

●

Set the electronic key to battery-saving

mode to disable the smart access system

with push-button start. (



P.140)

■

Wheels and wheel ornaments (vehicles

without matte painted wheels)

●

Remove any dirt immediately by using a

neutral detergent.

●

Wash detergent off with water immedi-

ately after use.

●

To protect the paint from damage, make

sure to observe the following precau-

tions.

• Do not use acidic, alkaline or abrasive

detergent

• Do not use hard brushes

• Do not use detergent on the wheels when

they are hot, such as after driving or park-

Cleaning and protecting the
vehicle exterior

Perform cleaning in a manner
appropriate to each component
and its material.

Cleaning instructions

459

6-1. Maintenance and care

Mai
nte

e a

are

ing in hot weather

■

Wheels and wheel ornaments (vehicles

with matte painted wheels)

A different set of care is necessary for matte

painted wheels and wheel ornaments. Con-

tact your Lexus dealer for details.

●

Remove any dirt with water immediately.

If the wheels are excessively dirty, use

diluted neutral detergent.

●

When using detergent, make sure to

wash it off with water immediately. Then

use a soft cloth to wipe off the water.

●

Use a sponge or soft cloth to remove the

dirt by hand.

●

To prevent the matte paint from being

damaged or glossy, make sure to observe

the following precautions:

• Do not apply any coatings or wax.

• Do not use acidic, alkaline or abrasive

detergents.

• When using tire cleaners or tire wax, do

not allow them to be applied to the

wheels.

• Do not scrub or polish the wheels using a

brush or dry cloth, etc.

• When using an automatic car wash, do

not select the wheel brush function.

• Do not use a high pressure washer or

steam cleaner.

• Do not use detergent on the wheels when

they are hot, such as after driving or park-

ing in hot weather.

■

Brake pads and calipers

Rust may form if the vehicle is parked with

wet brake pads or disc rotors, causing them

to stick. Before parking the vehicle after it is

washed, drive slowly and apply the brakes

several times to dry the parts.

■

Brake caliper coating (F SPORT mod-

els)

●

When using detergent, use neutral deter-

gent. Do not use hard brushes or abra-

sive cleaners, as they will damage the

coating.

●

Do not use detergent on the brake cali-

pers when they are hot.

●

Wash detergent off immediately after

use.

■

Bumpers

Do not scrub with abrasive cleaners.

■

Front side windows water-repellent

coating

The following precautions can extend the

effectiveness of the water-repellent coating.

●

Remove any dirt, etc. from the front side

windows regularly.

●

Do not allow dirt and dust to accumulate

on the windows for a long period.

Clean the windows with a soft, damp

cloth as soon as possible.

●

Do not use wax or glass cleaners that

contain abrasives when cleaning the win-

dows.

●

Do not use any metallic objects to

remove condensation build up.

■

Plated portions

If dirt cannot be removed, clean the parts as

follows:

●

Use a soft cloth dampened with an

approximately 5% solution of neutral

detergent and water to clean the dirt off.

●

Wipe the surface with a dry, soft cloth to

remove any remaining moisture.

●

To remove oily deposits, use alcohol wet

wipes or a similar product.

WARNING

■

When washing the vehicle

Do not apply water to the inside of the

engine compartment. Doing so may

cause the electrical components, etc. to

catch fire.

■

When cleaning the windshield

Set the wiper switch to off.

If the switch is in “AUTO”, the wipers may

operate unexpectedly in the following sit-

uations, and may result in hands being

caught or other serious injuries and

cause damage to the wiper blades.

460

6-1. Maintenance and care

WARNING

Off
AUTO

●

When the upper part of the windshield

where the raindrop sensor is located is

touched by hand

●

When a wet rag or similar is held close

to the raindrop sensor

●

If something bumps against the wind-

shield

●

If you directly touch the raindrop sen-

sor body or if something bumps into

the raindrop sensor

■

Precautions regarding the exhaust

pipe

Exhaust gasses cause the exhaust pipe to

become quite hot.

When washing the vehicle, be careful not

to touch the pipe until it has cooled suffi-

ciently, as touching a hot exhaust pipe

can cause burns.

■

Precaution regarding the front and

rear bumpers

If the paint of the front or rear bumper is

chipped or scratched, the following sys-

tems may not function correctly. If this

occurs, consult your Lexus dealer.

●

Lexus Safety System + 3

●

BSM (Blind Spot Monitor)

●

Safe Exit Assist

●

Intuitive parking assist

●

RCTA (Rear cross traffic alert)

A
B

●

PKSB (Parking Support Brake) (if

equipped)

NOTICE

■

To prevent paint deterioration and

corrosion on the body and compo-

nents (aluminum wheels, etc.)

●

Wash the vehicle immediately in the

following cases:

• After driving near the sea coast

• After driving on salted roads

• If coal tar or tree sap is present on the

paint surface

• If dead insects, insect droppings or

bird droppings are present on the

paint surface

• After driving in an area contaminated

with soot, oily smoke, mine dust, iron

powder or chemical substances

• If the vehicle becomes heavily soiled

with dust or mud

• If liquids such as benzene and gasoline

are spilled on the paint surface

●

If the paint is chipped or scratched,

have it repaired immediately.

●

To prevent the wheels from corroding,

remove any dirt and store in a place

with low humidity when storing the

wheels.

■

Cleaning the exterior lights

●

Wash carefully. Do not use organic

substances or scrub with a hard brush.

This may damage the surfaces of the

lights.

●

Do not apply wax to the surfaces of the

lights.

Wax may cause damage to the lenses.

461

6-1. Maintenance and care

Mai
nte

e a

are



Remove dirt and dust using a vac-
uum cleaner. Wipe dirty surfaces
with a cloth dampened with luke-
warm water.



If dirt cannot be removed, wipe it off
with a soft cloth dampened with
neutral detergent diluted to approx-
imately 1%.
Wring out any excess water from
the cloth and thoroughly wipe off
remaining traces of detergent and
water.

■

Shampooing the carpets

There are several commercial foaming-type

cleaners available. Use a sponge or brush

to apply the foam. Rub in overlapping cir-

cles. Do not use water. Wipe dirty surfaces

and let them dry. Excellent results are

obtained by keeping the carpet as dry as

possible.

■

Handling the seat belts

Clean with mild soap and lukewarm water

using a cloth or sponge. Also check the

belts periodically for excessive wear, fraying

or cuts.

NOTICE

■

When using an automatic car wash

Set the wiper switch to the off position.

If the wiper switch is in “AUTO”, the wip-

ers may operate and the wiper blades

may be damaged.

■

When using a high pressure car wash

●

When washing the vehicle, do not

spray the camera or its surrounding

area directly with a high pressure

washer. Shock applied from high pres-

sure water may cause the device to not

operate normally.

●

Do not spray water directly on the

radar which is equipped behind the

emblem. Otherwise it may cause the

device to be damaged.

●

Do not bring the nozzle tip close to

boots (rubber or resin manufactured

cover), connectors or the following

parts. The parts may be damaged if

they come into contact with high-pres-

sure water.

• Traction related parts

• Steering parts

• Suspension parts

• Brake parts

●

Keep the cleaning nozzle at least 11.9

in. (30 cm) away from the vehicle

body. Otherwise resin section, such as

moldings and bumpers, may be

deformed and damaged.

Also, do not continuously hold the nozzle

in the same place.

●

Do not spray the lower part of the

windshield continuously.

If water enters the air conditioning sys-

tem intake located near the lower part of

the windshield, the air conditioning sys-

tem may not operate correctly.

●

Do not wash the underside of the vehi-

cle using a high pressure car washer.

Cleaning and protecting the
vehicle interior

Perform cleaning in a manner
appropriate to each component
and its material.

Protecting the vehicle interior

462

6-1. Maintenance and care

WARNING

■

Water in the vehicle

●

Do not splash or spill liquid in the vehi-

cle, such as on the floor, in the hybrid

battery (traction battery) air vents, and

in the luggage compartment. (



P.80)

Doing so may cause the hybrid battery,

electrical components, etc. to mal-

function or catch fire.

●

Do not get any of the SRS components

or wiring in the vehicle interior wet.

(



P.32)

An electrical malfunction may cause

the airbags to deploy or not function

properly, resulting in death or serious

injury.

●

Vehicles with wireless charger: Do not

let the wireless charger (



P.435) get

wet. Failure to do so may cause the

charger to become hot and cause

burns or could cause electric shock

resulting in death or serious injury.

■

Cleaning the interior (especially

instrument panel)

Do not use polish wax or polish cleaner.

The instrument panel may reflect off the

windshield, obstructing the driver’s view

and leading to an accident, resulting in

death or serious injury.

NOTICE

■

Cleaning detergents

●

Do not use the following liquids, as

they may discolor the vehicle interior

or cause streaks or damage to painted

surfaces:

• Areas other than the seats and steer-

ing wheel: Organic substances such as

benzene or gasoline, alkaline or acidic

solutions, dye, and bleach

• Seats: Alkaline or acidic solutions,

such as thinner, benzene, and alcohol

• Steering wheel: Organic substances,

such as thinner, and cleaner that con-

tains alcohol

●

Do not use polish wax or polish

cleaner. The instrument panel’s or

other interior part’s painted surface

may be damaged.

■

Preventing damage to leather sur-

faces

Observe the following precautions to

avoid damage to and deterioration of

leather surfaces:

●

Remove any dust or dirt from leather

surfaces immediately.

●

Do not expose the vehicle to direct

sunlight for extended periods of time.

Park the vehicle in the shade, espe-

cially during summer.

●

Do not place items made of vinyl, plas-

tic, or containing wax on the uphol-

stery, as they may stick to the leather

surface if the vehicle interior heats up

significantly.

■

Water on the floor

Do not wash the vehicle floor with water.

Vehicle systems such as the audio system

may be damaged if water comes into

contact with electrical components such

as the audio system above or under the

floor of the vehicle. Water may also

cause the body to rust.

■

When cleaning the inside of the wind-

shield

Do not allow glass cleaner to contact the

lens. Also, do not touch the lens.

(



P.253)

463

6-1. Maintenance and care

Mai
nte

e a

are



Remove dirt and dust using a vac-
uum cleaner.



Wipe off any excess dirt and dust
with a soft cloth dampened with
diluted detergent.

Use a diluted water solution of approxi-
mately 5% neutral wool detergent.



Wring out any excess water from
the cloth and thoroughly wipe off all
remaining traces of detergent.



Wipe the surface with a dry, soft
cloth to remove any remaining
moisture. Allow the leather to dry in
a shaded and ventilated area.

■

Caring for leather areas

Lexus recommends cleaning the interior of

the vehicle at least twice a year to maintain

the quality of the vehicle’s interior.



Remove dirt and dust using a vac-
uum cleaner.



Wipe it off with a soft cloth damp-
ened with neutral detergent diluted
to approximately 1%.



Wring out any excess water from
the cloth and thoroughly wipe off
remaining traces of detergent and
water.

NOTICE

■

Cleaning the inside of the rear win-

dow

●

Do not use glass cleaner to clean the

rear window, as this may cause dam-

age to the rear window defogger

heater wires or antenna. Use a cloth

dampened with lukewarm water to

gently wipe the window clean. Wipe

the window in strokes running parallel

to the heater wires or antenna.

●

Be careful not to scratch or damage

the heater wires or antenna.

Cleaning the leather areas

Cleaning the synthetic leather
areas

464

6-2. Maintenance

6-2.Maintenance

■

Repair and replacement

It is recommended that genuine Lexus parts

be used for repairs to ensure performance

of each system. If non-Lexus parts are used

in replacement or if a repair shop other than

a Lexus dealer performs repairs, confirm

the warranty coverage.

■

Allow inspection and repairs to be per-

formed by a Lexus dealer

●

Lexus technicians are well-trained spe-

cialists and are kept up to date with the

latest service information. They are well

informed about the operation of all sys-

tems on your vehicle.

●

Keep a copy of the repair order. It proves

that the maintenance that has been per-

formed is under warranty coverage. If any

problem should arise while your vehicle is

under warranty, your Lexus dealer will

promptly take care of it.

General maintenance should be per-
formed on a daily basis. This can be
done by yourself or by a Lexus dealer.

Scheduled maintenance should be
performed at specified intervals
according to the maintenance sched-
ule.

For details about maintenance items and
schedules, refer to the “Warranty and Ser-
vice Guide”, “Owner’s Manual Supple-
ment” or “Scheduled Maintenance”.

■

Resetting the message indicating main-

tenance is required

After the required maintenance is pre-

formed according to the maintenance

schedule, please reset the message.

To reset the message, follow the procedures

described below:

Select

on the center display.

Select “Vehicle customize”.

Select “Utility”.

Select “Scheduled maintenance”.

Select “Reset”.

“The data has been reset” will be displayed

Maintenance requirements

To ensure safe and economical driv-
ing, day-to-day care and regular
maintenance are essential. It is the
owner’s responsibility to perform
regular checks. Lexus recommends
the following maintenance:

WARNING

■

If your vehicle is not properly main-

tained

Improper maintenance could result in

serious damage to the vehicle and possi-

ble death or serious injury.

■

Handling of the 12-volt battery

●

Engine exhaust, some of its constitu-

ents, and a wide variety of automobile

components contain or emit chemicals

known to the State of California to

cause cancer and birth defects and

other reproductive harm. Work in a

well ventilated area.

●

Oils, fuels and fluids contained in vehi-

cles as well as waste produced by

component wear contain or emit

chemicals known to the State of Cali-

fornia to cause cancer and birth

defects or other reproductive harm.

Avoid exposure and wash any affected

area immediately.

●

12-volt battery posts, terminals and

related accessories contain lead and

lead compounds which are known to

cause brain damage. Wash your hands

after handling. (



P.481)

General maintenance

Scheduled maintenance

465

6-2. Maintenance

Mai
nte

e a

are

on the center display when the reset proce-

dure has been completed.

You can perform some maintenance
procedures by yourself.
Please be aware that do-it-yourself
maintenance may affect warranty cov-
erage.

The use of Lexus repair manuals is recom-
mended.
For details about warranty coverage, refer
to the separate “Owner’s Guide”, “War-
ranty and Service Guide”, “Owner’s Man-
ual Supplement” or “Warranty Booklet”.

Do-it-yourself maintenance

General maintenance

Listed below are the general main-
tenance items that should be per-
formed at the intervals specified in
the “Warranty and Service Guide”
or “Owner’s Manual Supplement”.
It is recommended that any prob-
lem you notice should be brought to
the attention of your Lexus dealer
or qualified service shop for advice.

WARNING

■

If the hybrid system is operating

Turn the hybrid system off and ensure

that there is adequate ventilation before

performing maintenance checks.

Engine compartment

Items

Check points

Brake fluid

Is the brake fluid at the
correct level?
(



P.479)

Engine/inter-
cooler/power
control unit cool-
ant

Is the engine/inter-
cooler/power control
unit coolant at the cor-
rect level? (



P.477)

Engine oil

Is the engine oil at the
correct level?
(



P.474)

Exhaust system

There should not be
any fumes or strange
sounds.

466

6-2. Maintenance

Radiator, con-
denser and inter-
cooler radiator

The radiator, con-
denser and inter-
cooler radiator should
be free from foreign
objects. (



P.479)

Washer fluid

Is there sufficient
washer fluid?
(



P.480)

Luggage compartment

Items

Check points

12-volt battery

Check the connec-
tions. (



P.481)

Vehicle interior

Items

Check points

Accelerator
pedal

• The accelerator

pedal should move
smoothly (without
uneven pedal effort
or catching).

Hybrid transmis-
sion “Park” mech-
anism

• When parked on a

slope and the shift
position is in P, is the
vehicle securely
stopped?

Brake pedal

• Does the brake

pedal move
smoothly?

• Does the brake

pedal have appro-
priate clearance
from the floor?

• Does the brake

pedal have the cor-
rect amount of free
play?

Items

Check points

Brakes

• The vehicle should

not pull to one side
when the brakes are
applied.

• The brakes should

work effectively.

• The brake pedal

should not feel
spongy.

• The brake pedal

should not get too
close to the floor
when the brakes are
applied.

Head restraints

• Do the head

restraints move
smoothly and lock
securely?

Indicators/buzz-
ers

• Do the indicators

and buzzers function
properly?

Lights

• Do all the lights

come on?

• Are the headlights

aimed correctly?
(



P.505)

Parking brake

• Does the parking

brake switch oper-
ate normally?

• When parked on a

slope and the park-
ing brake is on, is the
vehicle securely
stopped?

Seat belts

• Do the seat belts

operate smoothly?

• The seat belts should

not be damaged.

Items

Check points

467

6-2. Maintenance

Mai
nte

e a

are

Seats

• Do the seat controls

operate properly?

Steering wheel

• Does the steering

wheel rotate
smoothly?

• Does the steering

wheel have the cor-
rect amount of free
play?

• There should not be

any strange sounds
coming from the
steering wheel.

Vehicle exterior

Items

Check points

Doors

• Do the doors oper-

ate smoothly?

Engine hood

• Does the engine

hood lock system
work properly?

Fluid leaks

• There should not be

any signs of fluid
leakage after the
vehicle has been
parked.

Items

Check points

Tires

• Is the tire inflation

pressure correct?

• The tires should not

be damaged or
excessively worn.

• Have the tires been

rotated according to
the maintenance
schedule?

• The wheel bolts

should not be loose.

Windshield wip-
ers/rear window
wiper

• The wiper blades

should not show any
signs of cracking,
splitting, wear, con-
tamination or defor-
mation.

• The wiper blades

should clear the
windshield/rear win-
dow without streak-
ing or skipping.

Items

Check points

468

6-2. Maintenance

The OBD system determines that a
problem exists somewhere in the emis-
sion control system. Your vehicle may
not pass the I/M test and may need to
be repaired. Contact your Lexus
dealer to service the vehicle.



When the 12-volt battery is discon-
nected or discharged

Readiness codes that are set during ordi-
nary driving are erased.
Also, depending on your driving habits, the
readiness codes may not be completely
set.



When the fuel tank cap is loose

The malfunction indicator lamp comes on
indicating a temporary malfunction and
your vehicle may not pass the I/M test.

The error code in the OBD system will
not be cleared unless the vehicle is
driven 40 or more times.

Contact your Lexus dealer to prepare
the vehicle for re-testing.

Emission inspection and
maintenance (I/M) pro-
grams

Some states have vehicle emission
inspection programs which include
OBD (On Board Diagnostics)
checks. The OBD system monitors
the operation of the emission con-
trol system.

If the malfunction indicator lamp
comes on

Your vehicle may not pass the
I/M test in the following situa-
tions:

When the malfunction indicator
lamp still remains on after sev-
eral driving trips

If your vehicle does not pass the
I/M test

469

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

6-3.Do-it-yourself maintenance

Do-it-yourself service pre-
cautions

If you perform maintenance by
yourself, be sure to follow the cor-
rect procedure as given in these
sections.

Maintenance

Items

Parts and tools

12-volt battery
condition
(



P.481)

• Grease
• Conventional

wrench (for terminal
clamp bolts)

Brake fluid level
(



P.479)

• FMVSS No.116 DOT

3 or SAE J1703
brake fluid
FMVSS No.116 DOT
4 or SAE J1704
brake fluid

• Rag or paper towel
• Funnel (used only for

adding brake fluid)

Engine/inter-
cooler/power
control coolant
level (



P.477)

• “Toyota Super Long

Life Coolant” or a
similar high quality
ethylene gly-
col-based non-sili-
cate, non-amine,
non-nitrite and
non-borate coolant
with long-life hybrid
organic acid tech-
nology
For the U.S.A.:
“Toyota Super Long
Life Coolant” is
pre-mixed with 50%
coolant and 50%
deionized water.
For Canada:
“Toyota Super Long
Life Coolant” is
pre-mixed with 55%
coolant and 45%
deionized water.

• Funnel (used only for

adding coolant)

Engine oil level
(



P.474)

• “Toyota Genuine

Motor Oil” or equiv-
alent

• Rag or paper towel
• Funnel (used only for

adding engine oil)

Fuses (



P.503)

• Fuse with same

amperage rating as
original

Headlight aim
(



P.505)

• Phillips-head screw-

driver

Light bulbs
(



P.506)

• Bulb with same num-

ber and wattage rat-
ing as original

Items

Parts and tools

470

6-3. Do-it-yourself maintenance

Radiator, con-
denser and inter-
cooler radiator
(



P.479)



Tire inflation pres-
sure (



P.493)

• Tire pressure gauge
• Compressed air

source

Washer fluid
(



P.480)

• Water or washer

fluid containing anti-
freeze (for winter
use)

• Funnel (used only for

adding water or
washer fluid)

WARNING

The engine compartment contains many

mechanisms and fluids that may move

suddenly, become hot, or become elec-

trically energized. To avoid death or seri-

ous injury, observe the following

precautions.

■

When working on the engine com-

partment

●

Make sure that the “ACCESSORY” or

“IGNITION ON” on the multi-infor-

mation display and the “READY” indi-

cator are both off.

●

Keep hands, clothing and tools away

from the moving fan.

●

Be careful not to touch the engine,

power control unit, radiator, exhaust

manifold, etc. right after driving as they

may be hot. Oil and other fluids may

also be hot.

●

Do not leave anything that may burn

easily, such as paper and rags, in the

engine compartment.

Items

Parts and tools

■

When working near the electric cool-

ing fan or radiator grille

Be sure the power switch is off.

With the power switch in ON, the elec-

tric cooling fan may automatically start to

run if the air conditioning is on and/or the

coolant temperature is high. (



P.479)

■

Safety glasses

Wear safety glasses to prevent flying or

falling material, fluid spray, etc. from get-

ting in your eyes.

NOTICE

■

If you remove the air cleaner filter

Driving with the air cleaner filter

removed may cause excessive engine

wear due to dirt in the air.

471

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

Pull the hood lock release lever.

The hood will pop up slightly.

Pull up the auxiliary catch lever and
lift the hood.

■

Front

Hood

Opening the hood

WARNING

■

When the hood is open (RX500h)

Even if the power switch is turned off, the

cooling fan may continue to operate for a

short time. When the cooling fan is rotat-

ing, do not touch or approach the inside

of the engine compartment.

■

Pre-driving check

Check that the hood is fully closed and

locked.

If the hood is not locked properly, it may

open while the vehicle is in motion and

cause an accident, which may result in

death or serious injury.

Positioning a floor jack

When using a floor jack, follow the
instructions in the manual provided
with the jack and perform the oper-
ation safely.
When raising your vehicle with a
floor jack, position the jack cor-
rectly. Improper placement may
damage your vehicle or cause
injury.

Location of the jack point

Lexus RX500h (2023 year). Manual in english - page 14
